ConVerTT Posted May 21, 2019 Author Share #217 Posted May 21, 2019 Whoa! Those are some outstanding pieces of work! If those are “prototypes” I would love to see the “production” versions! Link to comment Share on other sites More sharing options...
Nat0z Posted August 4, 2019 Share #218 Posted August 4, 2019 (edited) Pretty impressive, ive just read the whole 9 pages so far. These parts out of the UK are great too, but only needed some square weld nuts added and they would be perfect. Ive got the front rad panel blank on CAD and have laser cut The prototypes (4x pieces from memory) Amongst other parts like front rails, full- length floor rails, lower rad and engime & gearbox mounts, std and RB versions. New here to classic Z cars, but long time Z man.... Keep up the artful creative, driven, no-doubt by the need for solid metal. Cheers Nat0 Oh and PS the 240z front frame. Rails taper outboard by only 5mm per side where as the 260z from about 75 taper out 10mm per side. As they run a wider & taller radiator. Youll also find their lower rad support drops another 15 or 20mm also. Had to Cad both of them up as i have a bitsa 240 with a 260z front repair which needed a hybrid panel made to finish the structural parta. Fyi. Edited August 4, 2019 by Nat0z 1 Link to comment Share on other sites More sharing options...
240260280 Posted August 4, 2019 Share #219 Posted August 4, 2019 Welcome NatOz! Link to comment Share on other sites More sharing options...
ConVerTT Posted August 5, 2019 Author Share #220 Posted August 5, 2019 On 8/4/2019 at 2:04 AM, Nat0z said: Pretty impressive, ive just read the whole 9 pages so far. These parts out of the UK are great too, but only needed some square weld nuts added and they would be perfect. Ive got the front rad panel blank on CAD and have laser cut The prototypes (4x pieces from memory) Amongst other parts like front rails, full- length floor rails, lower rad and engime & gearbox mounts, std and RB versions. New here to classic Z cars, but long time Z man.... Keep up the artful creative, driven, no-doubt by the need for solid metal. Cheers Nat0 Oh and PS the 240z front frame. Rails taper outboard by only 5mm per side where as the 260z from about 75 taper out 10mm per side. As they run a wider & taller radiator. Youll also find their lower rad support drops another 15 or 20mm also. Had to Cad both of them up as i have a bitsa 240 with a 260z front repair which needed a hybrid panel made to finish the structural parta. Fyi. Welcome Nat0z. And thanks for the kind words! I'd love to see more of your stuff too - sounds like you are quite a bit further down this journey than I am. It's summer here so progress has been slow, but I will be back at it furiously towards the end of September. So check back for more pics ... 1 Link to comment Share on other sites More sharing options...
ZCarFever Posted August 19, 2019 Share #221 Posted August 19, 2019 I’m day dreaming of having 10% of your talent and skills, I would be proud of myself!...What a great job you are doing there... Keep it going!... Love to follow your progress. Cheers! Link to comment Share on other sites More sharing options...
ConVerTT Posted December 27, 2019 Author Share #222 Posted December 27, 2019 (edited) Scored a NOS inner rocker panel during a recent garage sale... Part number suggests it is from a 73? Can anyone confirm? Interesting! I did not realize that they cut drain holes in the lower section. All the shells that I have seen are pretty rusty in this area. Edited December 27, 2019 by ConVerTT 4 Link to comment Share on other sites More sharing options...
Patcon Posted December 27, 2019 Share #223 Posted December 27, 2019 That's a great find! 1 Link to comment Share on other sites More sharing options...
ZCarFever Posted December 27, 2019 Share #224 Posted December 27, 2019 @ConVerTT wow, that is a great find! You should get it repro. 1 Link to comment Share on other sites More sharing options...

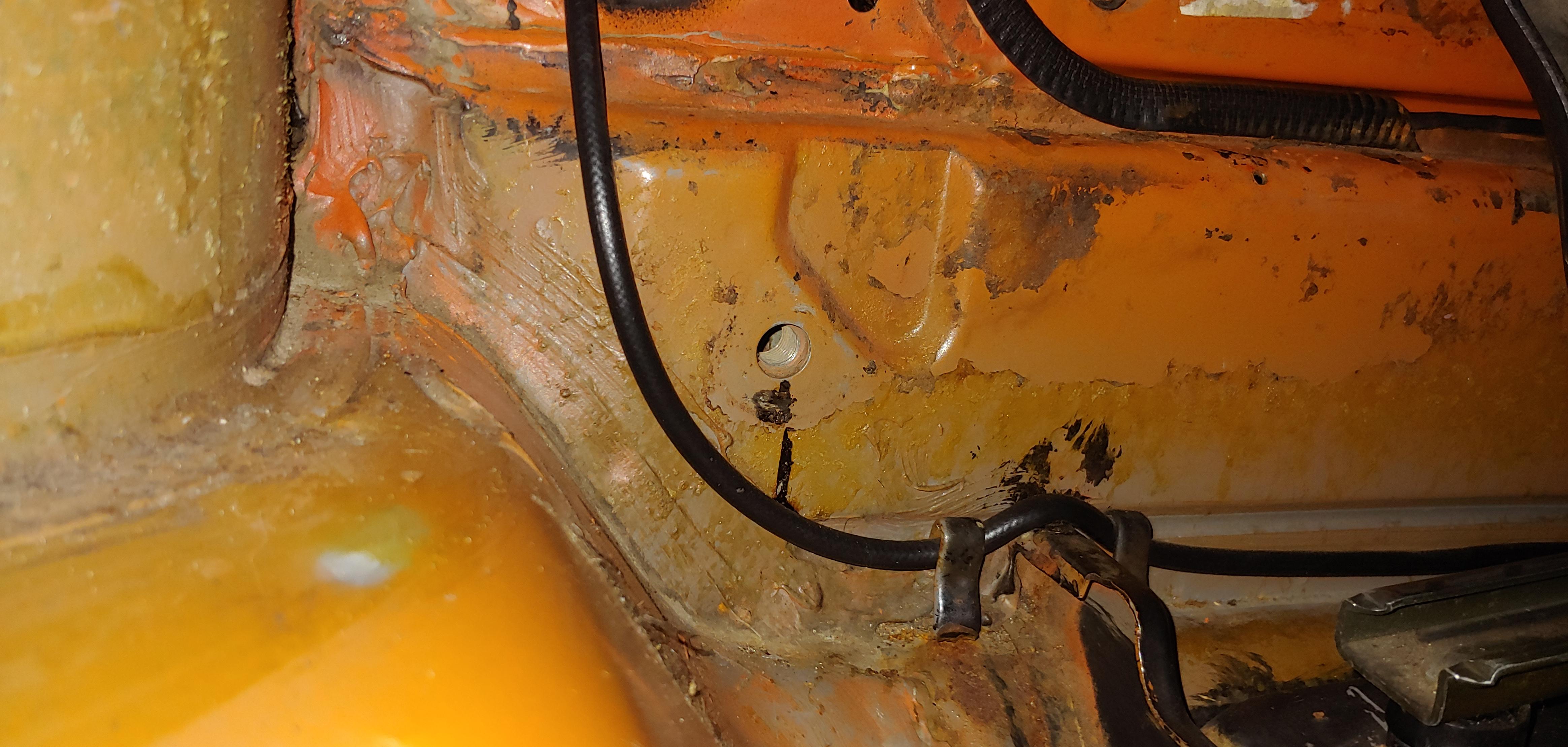

CanTechZ Posted December 27, 2019 Share #225 Posted December 27, 2019 Good score, here's a bit of info. Your part 76411-N3600, is for a 260Z, 70-73 240Z would be 76411-E4600. The 240Z inner has a different depression at the seat belt attachment bolt point. Here's what mine looks like in that area: 1 Link to comment Share on other sites More sharing options...
ConVerTT Posted December 27, 2019 Author Share #226 Posted December 27, 2019 13 minutes ago, CanTechZ said: Good score, here's a bit of info. Your part 76411-N3600, is for a 260Z, 70-73 240Z would be 76411-E4600. The 240Z inner has a different depression at the seat belt attachment bolt point. Here's what mine looks like in that area: Awesome -thanks for the info. Both my 240 shells have the same depression as yours so it makes sense that it is from a later car Link to comment Share on other sites More sharing options...
ConVerTT Posted December 27, 2019 Author Share #227 Posted December 27, 2019 44 minutes ago, ZCarFever said: @ConVerTT wow, that is a great find! You should get it repro. Agreed - of course I found it AFTER I completed my DIY inners. For right now it is going to sit in the Hall of Fame ... Link to comment Share on other sites More sharing options...
grannyknot Posted December 27, 2019 Share #228 Posted December 27, 2019 Wow, in a garage sale? Who's @zKars garage? Those are unicorns, nice score. Link to comment Share on other sites More sharing options...
zKars
