Timing Off Runs Bad


ZNate

Recommended Posts

My Z runs horrible and I’m unable to locate my timing marks when the #1 piston is at TDC.

Have a 1970 240Z 5speed, with 139K (engine rebuild at 134K). Performance modifications: Fujitsubo Legalis R Exhaust and Trust GReddy JDM Exhaust Headers.

PO installed a Mallory dual point distributor, which I changed to Pertronix version 1.  During the ignition change I found the timing before at 1-2 degrees ATDC with points and 20 degrees BTDC after Pertronix install.  I’m sure that change had something to do with the electronic pickup.

I was unable to retard the timing much due to adjustment limitations on the distributor, so I adjusted the timing by drivability and the ping test.  It ran decent enough.

Fast forward to last week, original carbs were impossible to adjust, so I installed replacements from ZTherapy.

Prior to carb installation I checked and re-gapped the plugs, adjusted the valves and checked the timing.  With the new carbs, the car ran great with full choke, but horrible once warm.  The lowest idle with the car still running was 1300 rpm.

I knew the timing was off, so I checked the oil pump shaft and found it at 1:35 (rotor at 12:00/#1 plug wire), instead of 11:25.  I set the engine at TDC; timing marks/pointer, cam lobs and piston at “what I thought was” compression stroke, based on the manuals.

Reinstalled oil pump shaft to 11:25 and bolted down distributor so I would have room for adjustment.  The Mallory rotor now installs after the 12:00 position, so past the #1 plug wire.

(I’m at 620 feet above sea level, so I found out last night I was running the carbs too lean at 2..5 turns out.  So my mixture should be 3-5 turns out based on elevation.)

Car still runs horrible, even with the mixture screws out to 3.5 turns.  In addition, when using my timing light I cannot find the timing marks and I have no more adjustment left on my distributor.

Today, I pulled the #1 plug and inserted an old rubber plug to find the compression stroke.  The plug popped out like a champagne cork, but I do not see my timing marks.

I’m stumped.  Will appreciate advice on getting my car running right with these new carbs.

Thank you!


Link to comment
Share on other sites

With the car at TDC on the compression stroke, take a clear photo (preferably close in) on the pulley and timing index.


Then take off the distributor and take a photo of oil pump shaft where it turns the distributor.

Link to comment
Share on other sites

55 minutes ago, ZNate said:

During the ignition change I found the timing before at 1-2 degrees ATDC with points



57 minutes ago, ZNate said:

20 degrees BTDC after Pertronix install.

55 minutes ago, ZNate said:

adjusted the timing by drivability and the ping test.  It ran decent enough.



56 minutes ago, ZNate said:

when using my timing light I cannot find the timing marks and I have no more adjustment left on my distributor



56 minutes ago, ZNate said:

find the compression stroke.  The plug popped out like a champagne cork, but I do not see my timing marks.

 Kind of seems like the damper might have slipped and might still be slipping.  You used to be able to see it, but it wasn't really in the right place.  2 degrees retarded is pretty far off, if the points were correct for the engine in the beginning.  Then it was at 20, you could see it, but now it seems to have moved again.

See if you can move the pulley on the crankshaft end by hand.  Wiggle twist torque on it.  See what happens.

  • Agree 1
Link to comment
Share on other sites

Posted (edited)

It might be worth pulling the valve cover also and lining up the notch and groove on the cam sprocket.  It should be within a few degrees of TDC.  You should certainly be able to see the marks then.

Also possible, I think, that the rebuilder pushed the crank woodruff key through the slot during the rebuild and the damper is spinning/moving on the crank.  Just a guess, based on what you wrote.

2 hours ago, ZNate said:

with 139K (engine rebuild at 134K)



Edited by Zed Head
- nark + mark
Link to comment
Share on other sites

Appreciate the replies.

Spent the last hour trying to find TDC for the #1 piston to take photos and help with the diagnosis.  Having no luck getting the "cork to pop" at TDC.  Will post my results once I get a quick break.

Link to comment
Share on other sites

Sorry for the delay, technology problems.

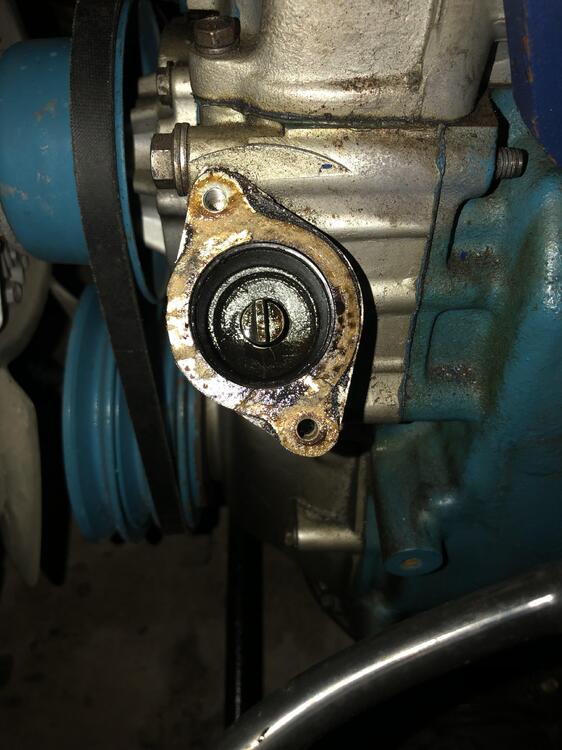

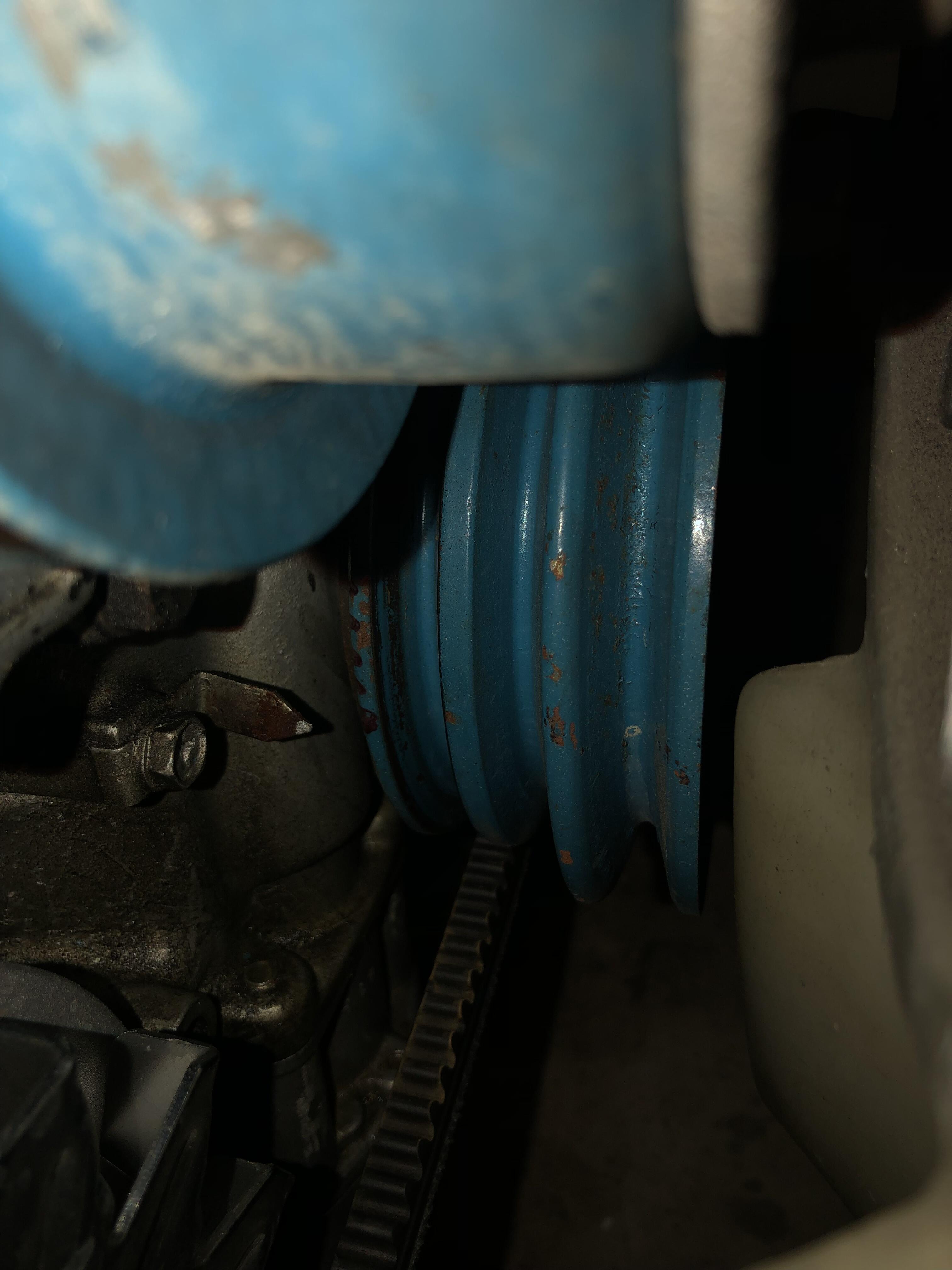

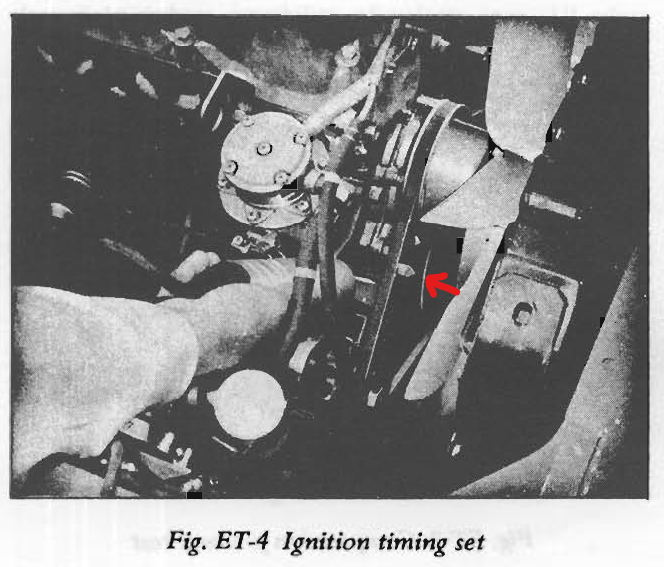

Finally got the cork to pop at #1 TDC, so I took the requested photos.  The timing mark is difficult to see, but the silver pointer tip is    pointing to the dark spot, which is zero.  The 5, 10, etc. marks are above the 0 marker.

Surprisingly, all the marks line up, but I think I’m not quite at 11:25 with the oil pump shaft.

Since my #1 plug wire is currently placed at about 12:30 and the rotor spins counter clockwise, the spark plug is igniting in advance of full compression.  So I think that's the problem.

Maybe I can move the #1 wire one to the left, which is currently #5 at about 11:00 to get my timing correct.










Link to comment
Share on other sites

11 minutes ago, ZNate said:

Sorry for the delay, technology problems.

Finally got the cork to pop at #1 TDC, so I took the requested photos.  The timing mark is difficult to see, but the silver pointer tip is    pointing to the dark spot, which is zero.  The 5, 10, etc. marks are above the 0 marker.

Surprisingly, all the marks line up, but I think I’m not quite at 11:25 with the oil pump shaft.

Since my #1 plug wire is currently placed at about 12:30 and the rotor spins counter clockwise, the spark plug is igniting in advance of full compression.  So I think that's the problem.

Maybe I can move the #1 wire one to the left, which is currently #5 at about 11:00 to get my timing correct.











The oil pump looks like it's about a tooth off. Maybe someone with more experience will chime in.

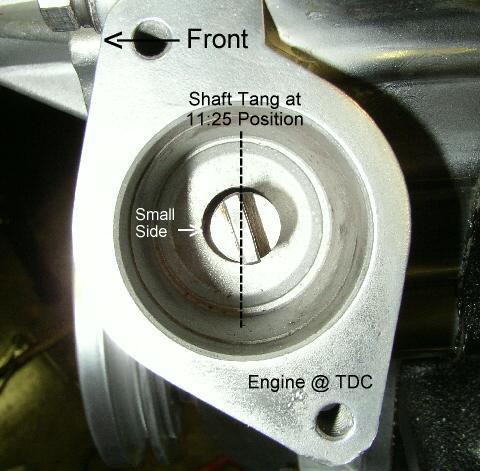

This is how it should look: (Courtesy of a post by @siteunseenfrom 3 years ago)

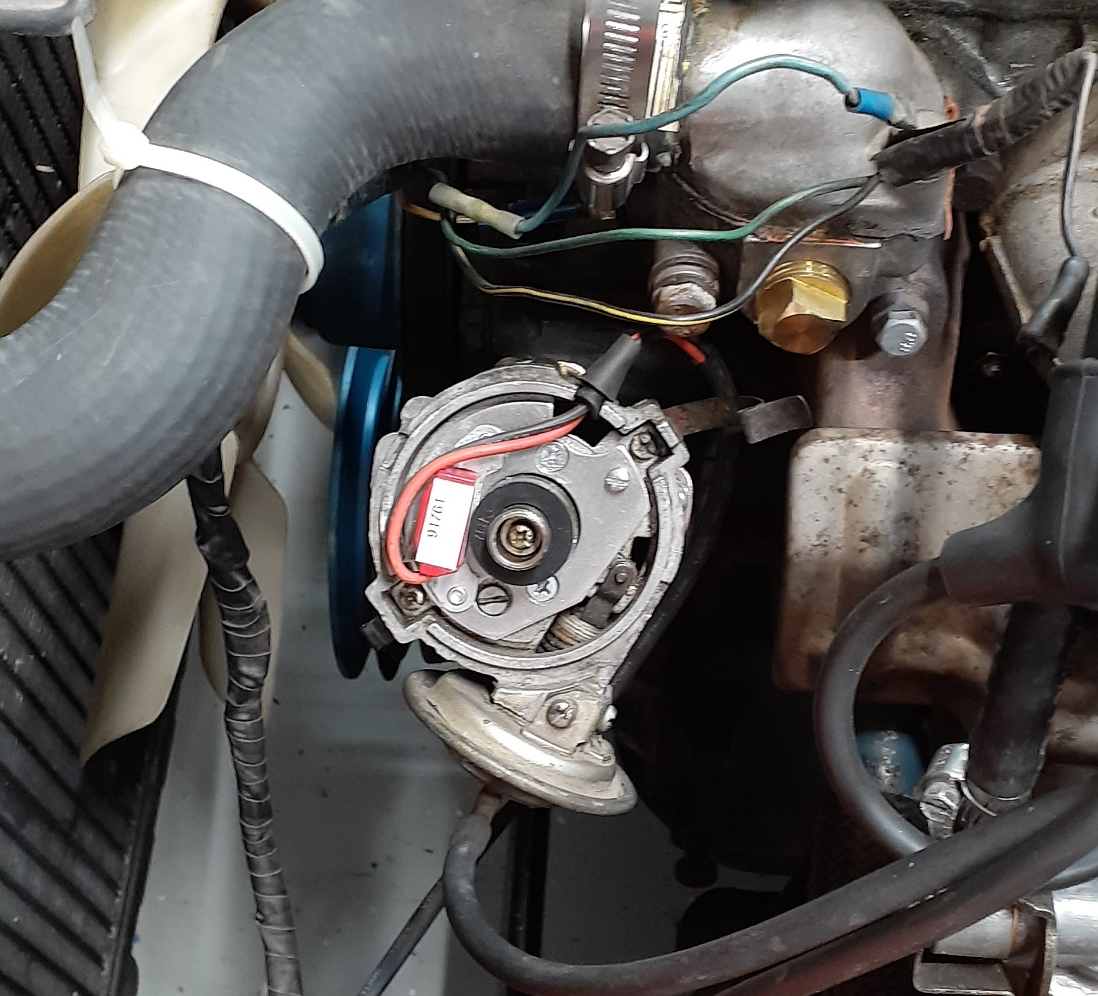

Also, the pickup location on the distributor does not look right. Every Pertronix install I have seen has the pickup closer to the radiator like in the photo below.


Also, see the photos in this thread:

You might also want to put some bright (or fluorescent) nail polish on the timing mark while you have it at TDC. That will make it easier to see with the timing light in the future.





  • Agree 1
Link to comment
Share on other sites

Posted (edited)

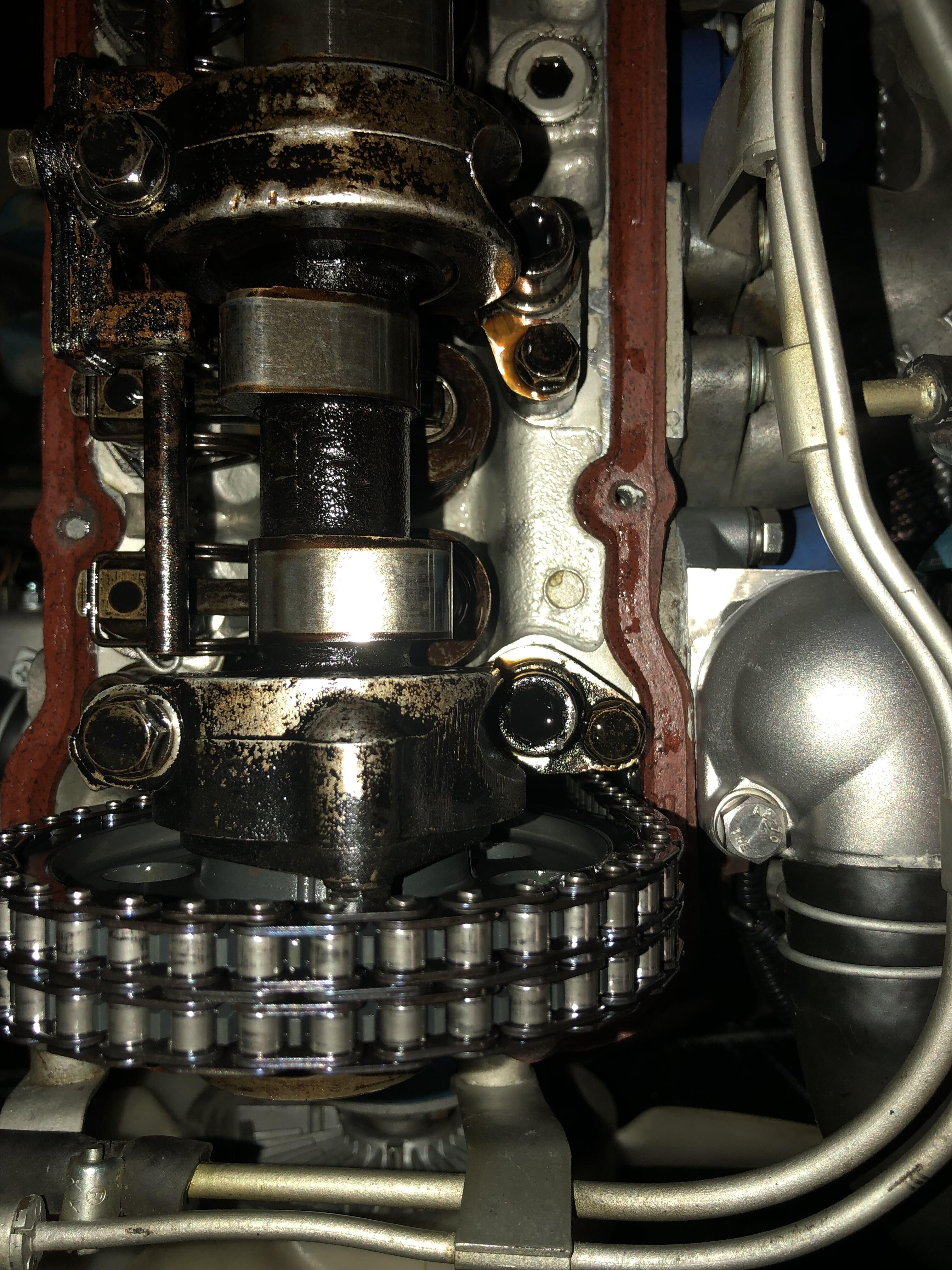

Probably just my eyes, but do the timing notch and cam pulley notch seem to be lined up too even?  I've always seen it to be that the notch is advanced just a tiny bit.  Perhaps it lines up different at the number 2 position somehow?





Edited by Reptoid Overlords
Link to comment
Share on other sites

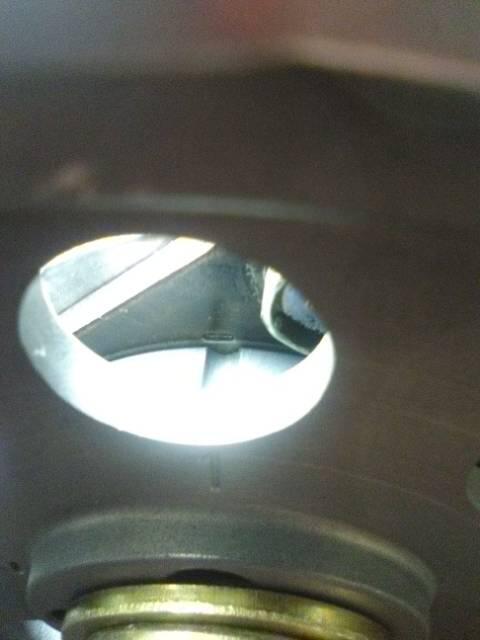

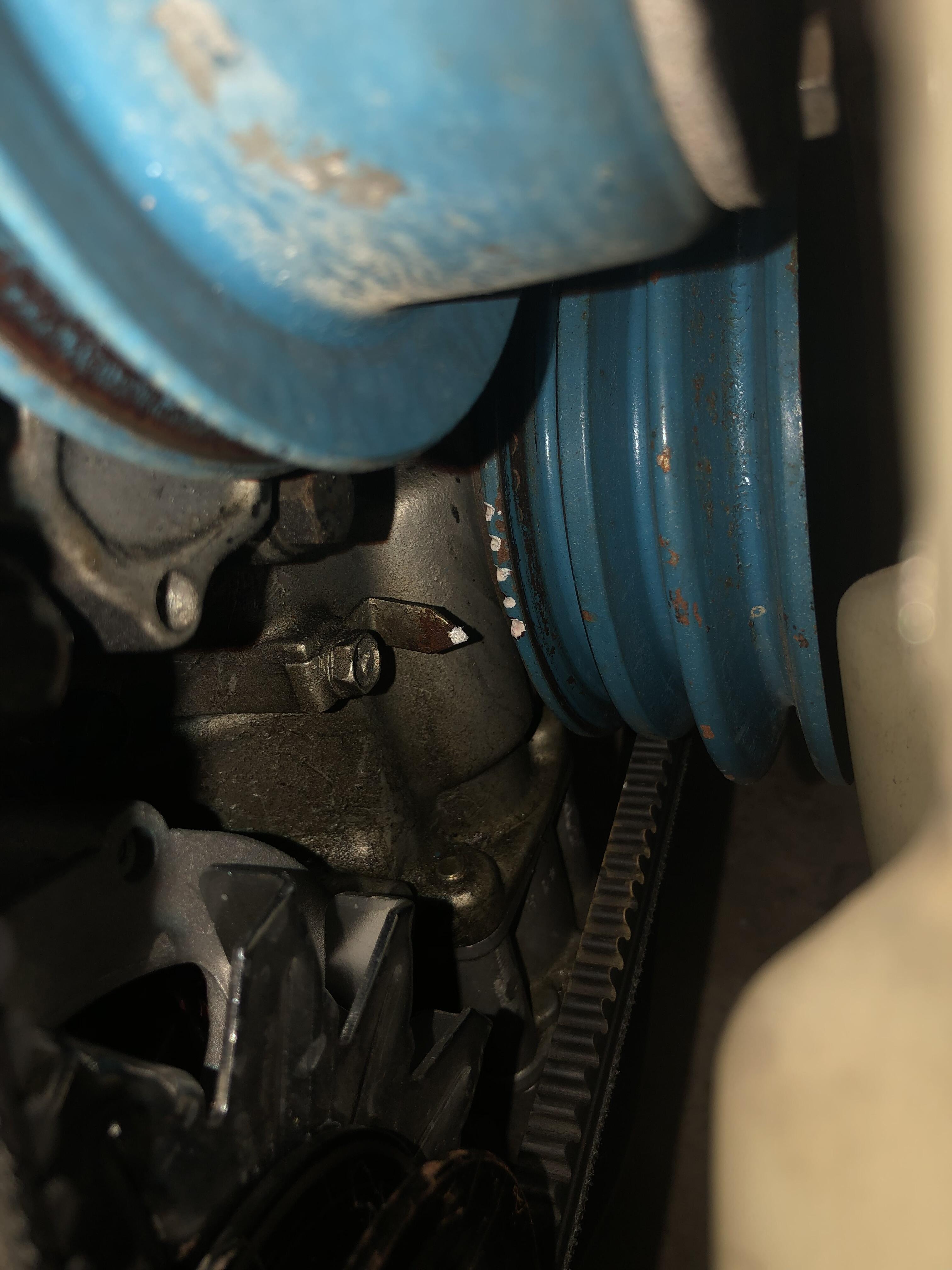

Thank you for the suggestions.  Attached are four additional (better) photos.

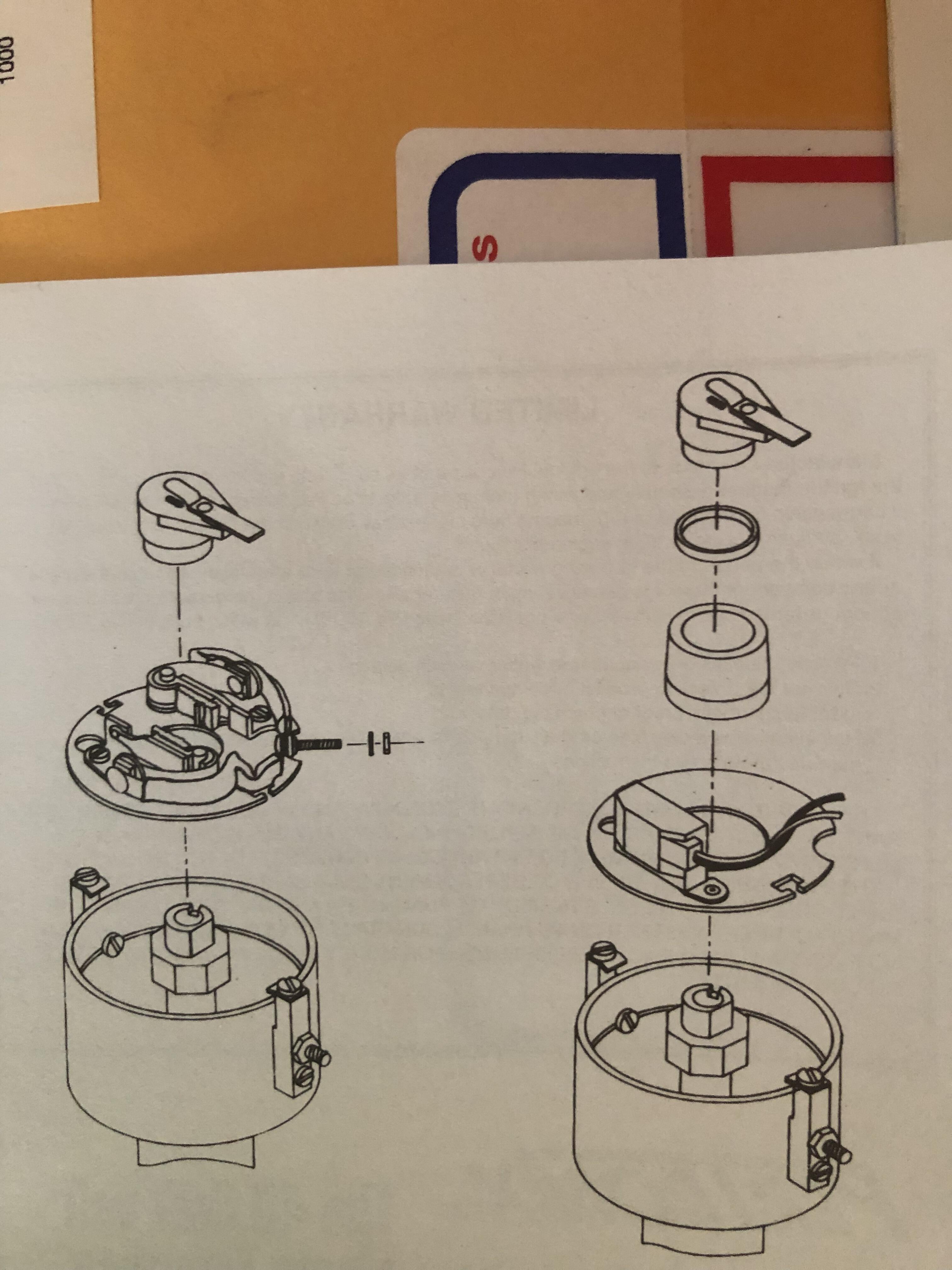

SteveJ: It appears the Pertronix unit only fits into the Mallory dual point distributor one way.  The rotor position and the oil shaft appear to align.  Used a Testors Enamel paint pen to highlight the timing marks better.

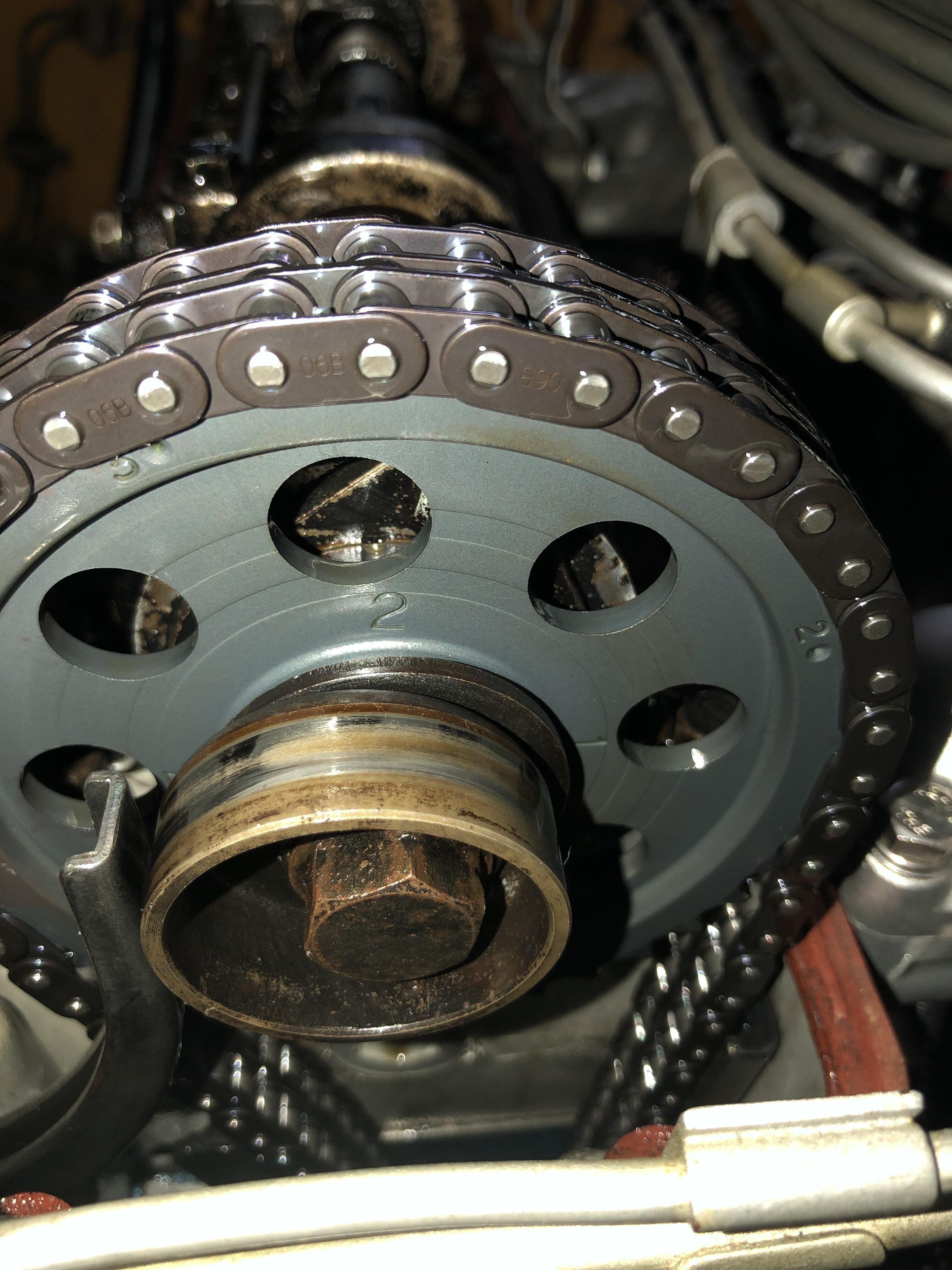

Reptoid Overlords: Cleaned up the cam pull notch and the alignment appears to be good.  My engine internals need some cleaning.






  • Like 1
Link to comment
Share on other sites

38 minutes ago, ZNate said:

the Pertronix unit only fits into the Mallory dual point distributor one way.

Put the #1 spark plug wire on the terminal that the rotor is closest to when all of your marks are linked up and the distributor is in a place which gives you adjustment range.  You might get you timing light marks back then.  Then you can set your timing and focus on the carbs.

Link to comment
Share on other sites

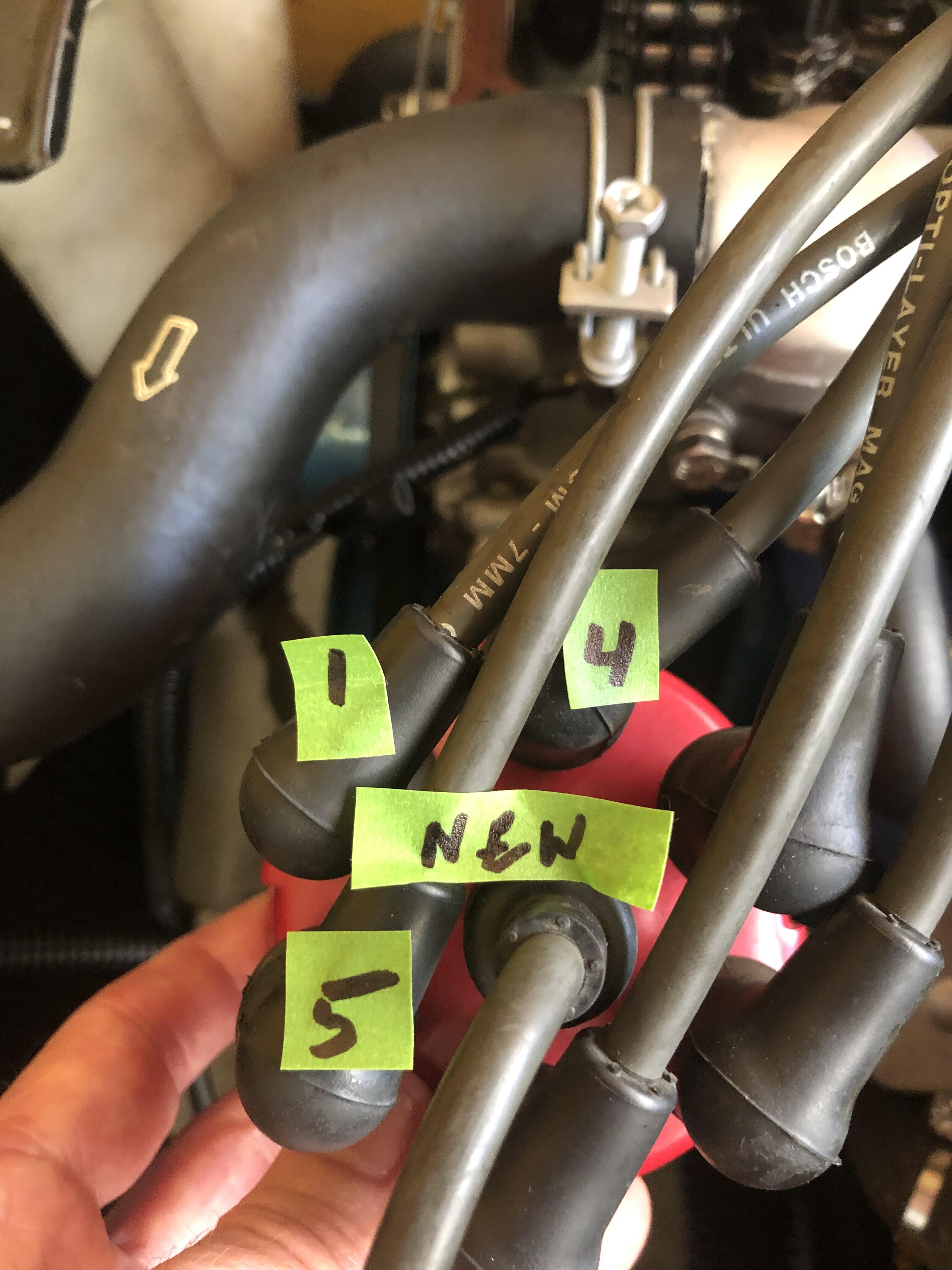

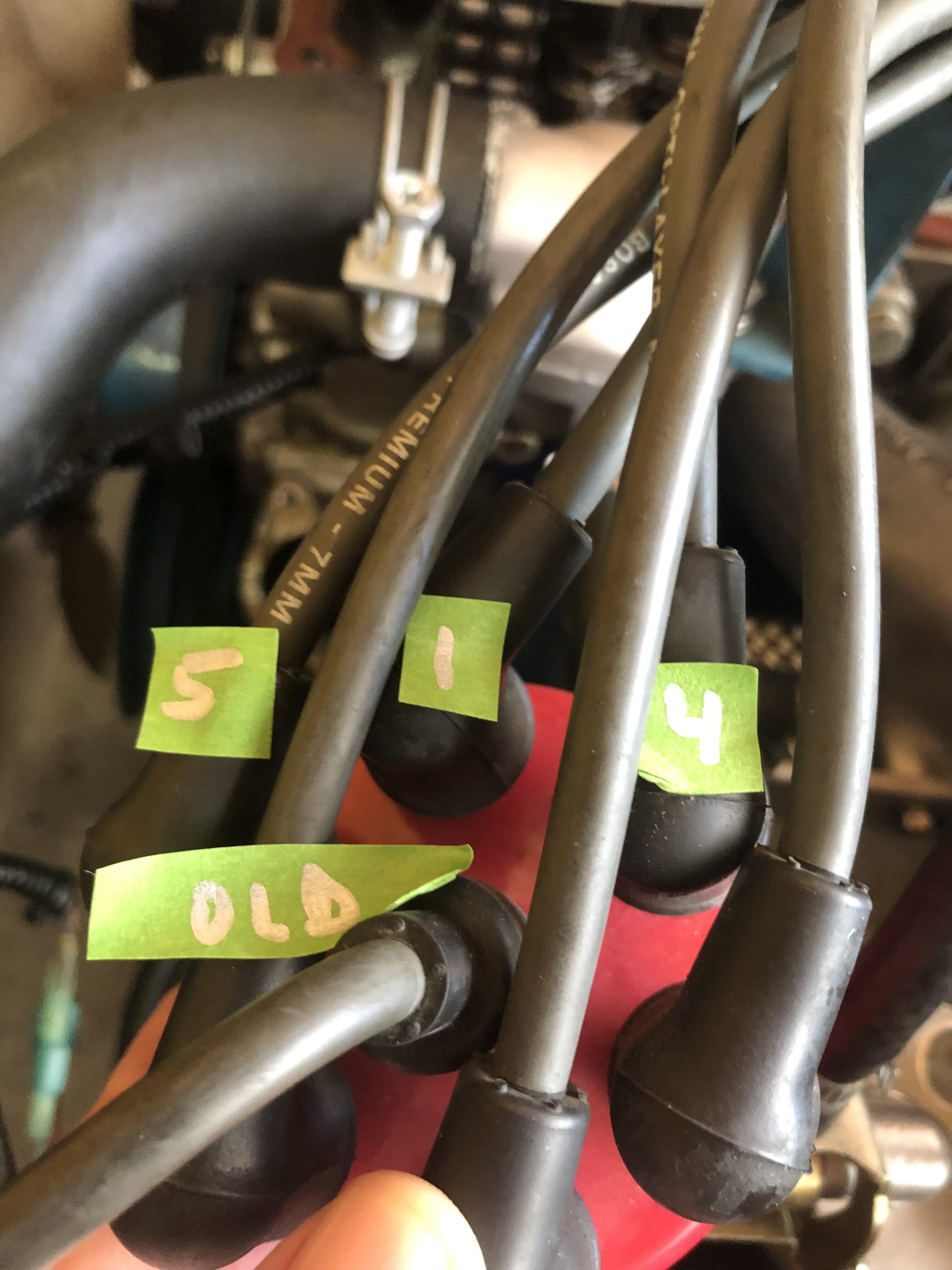

Zed Head: Based on your suggestion, this is what the #1 plug wire move will look like.

Will make the change and let you know the results.



Link to comment
Share on other sites

In principle, it should work.  The marks on the pulley are based on which wire is fired when they're passing by the pointer.

You could also have just moved the timing light pickup to other plug wires until you found the one that was on target.  Should have mentioned that.  You can still do that if it makes the wires fit better.

Link to comment
Share on other sites

Zed Head: Thank you for the advice.

My valve cover gasket no longer usable, so no start attempts until Friday at the earliest.  No gaskets available nearby.

Link to comment
Share on other sites

SteveJ: Thank you for the Nissan valve cover gasket details.  Once I saw your note last night I ordered a Nissan gasket from a well known Z Car parts house and it shipped this morning.  Delivery is scheduled for Saturday.

  • Like 2
Link to comment
Share on other sites

Pro tip: Don't use RTV on the valve cover gasket!

I was working on a guy's 280ZXT last year and found some idiot used RTV on the valve cover. I convinced the owner to replace the gasket since I was going to do a valve adjustment. I was delayed on the valve adjustment because I was picking off pieces of RTV from the camshaft and other places under the valve cover.

Link to comment
Share on other sites

Still no luck; unable to start the car.

Since last Wednesday, July 13, I moved the plug wires on the distributor one to the left (counterclockwise).   The rotor at TDC (11:25) is now before the #1 plug wire at 10:00 on the distributor.  The new Nissan valve cover gasket is installed.

While cranking I’m getting slight backfiring through the carbs and unusual odors, but it will not start.  I think the rotor is not close enough to the #1 plug wire on the distributor now.

I’m beyond frustrated.


Link to comment
Share on other sites

Have the distributor turned counterclockwise to the stops, but backfiring through the carbs continues.

Do I need to reset everything back to TDC and move the oil pump shaft 1-2 notches to the left (counterclockwise)?


Link to comment
Share on other sites

Posted (edited)

Edit: Some things got clipped out by mistake.

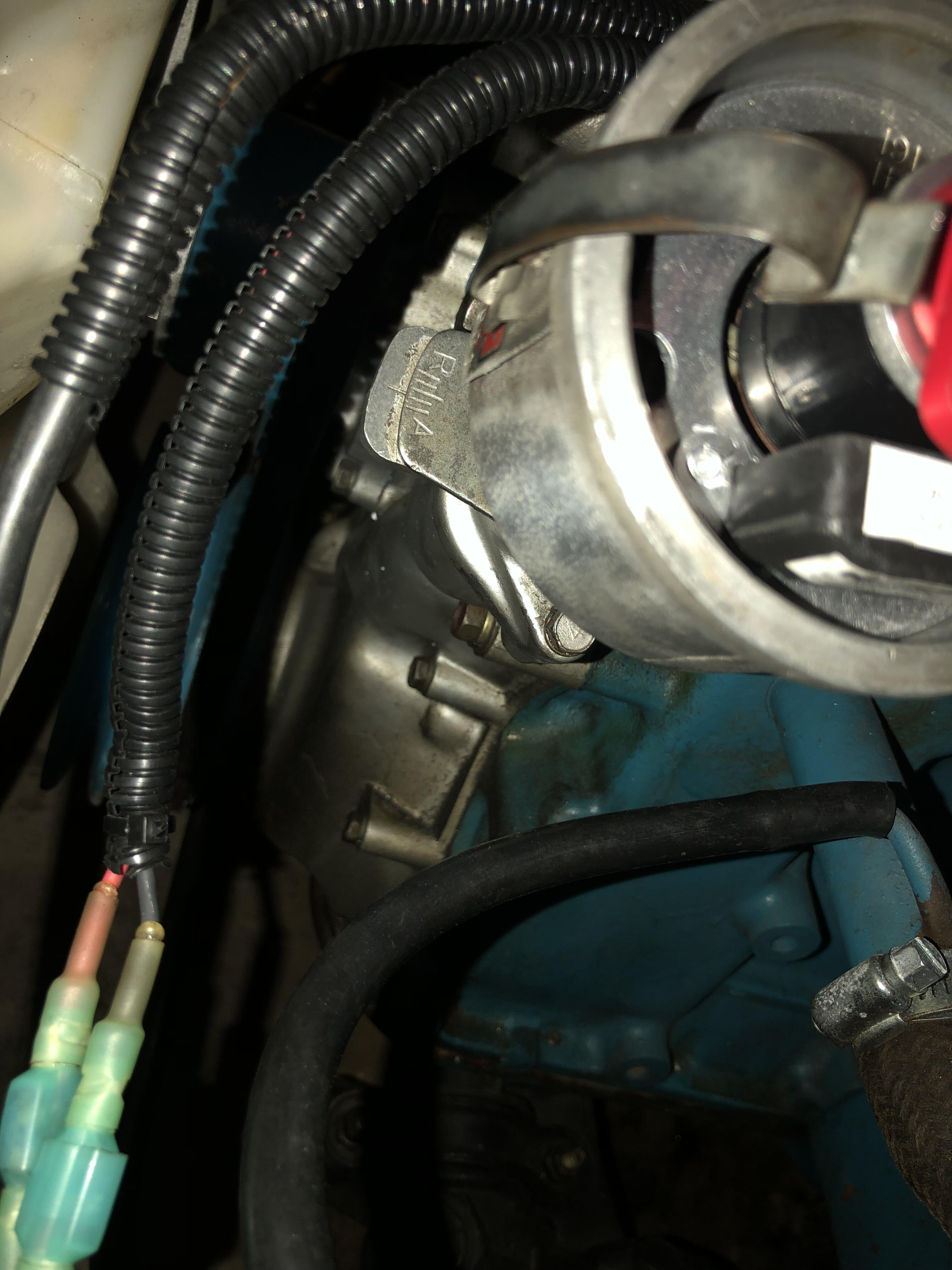

Does your distributor still have a plate like this?


Here is how it's lined up on my 240Z.


Here's what you might try to do before messing with the oil pump. (Minimize jumping around.)

  1. Set the car at TDC.
  2. Align the mark on the plate to the middle.
  3. Verify that the rotor is at the #1 plug.

From there, you'll have a better idea of what way you need to go.






Edited by SteveJ
  • Like 1
Link to comment
Share on other sites

SteveJ: My adjuster is the same and I lined up the center marks when I installed the distributor.  My adjuster works a little strange though, it will advance a mark or two, but the retard adjusts past the "R".

The rotor points to 11:25 and my #1 plug wire is at 2:00, so they are not close.  I could move the #1 plug wire back to 12:00 on the distributor, but that's where I was missing my timing marks and the engine ran horrible.

Link to comment
Share on other sites

49 minutes ago, ZNate said:

SteveJ: My adjuster is the same and I lined up the center marks when I installed the distributor.  My adjuster works a little strange though, it will advance a mark or two, but the retard adjusts past the "R".

The rotor points to 11:25 and my #1 plug wire is at 2:00, so they are not close.  I could move the #1 plug wire back to 12:00 on the distributor, but that's where I was missing my timing marks and the engine ran horrible.

There should be two adjustment bolts for timing. Have you played with both?

If you have, and what you said still holds, here is what you might do.

  1. Put the mark at the first line past the middle and toward retard. Consider that your static zero position.
  2. Adjust the oil pump from there to put the rotor at TDC.

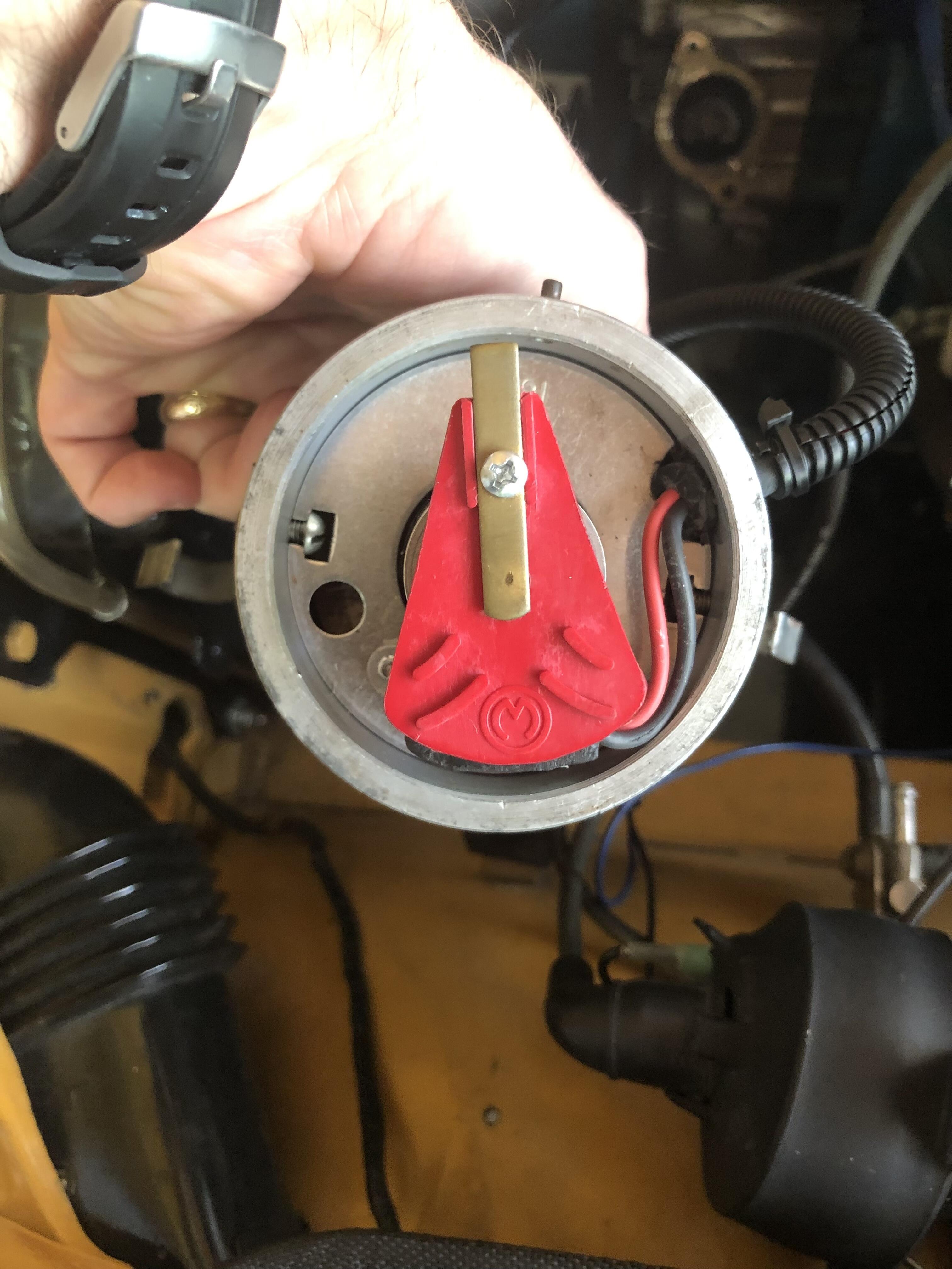

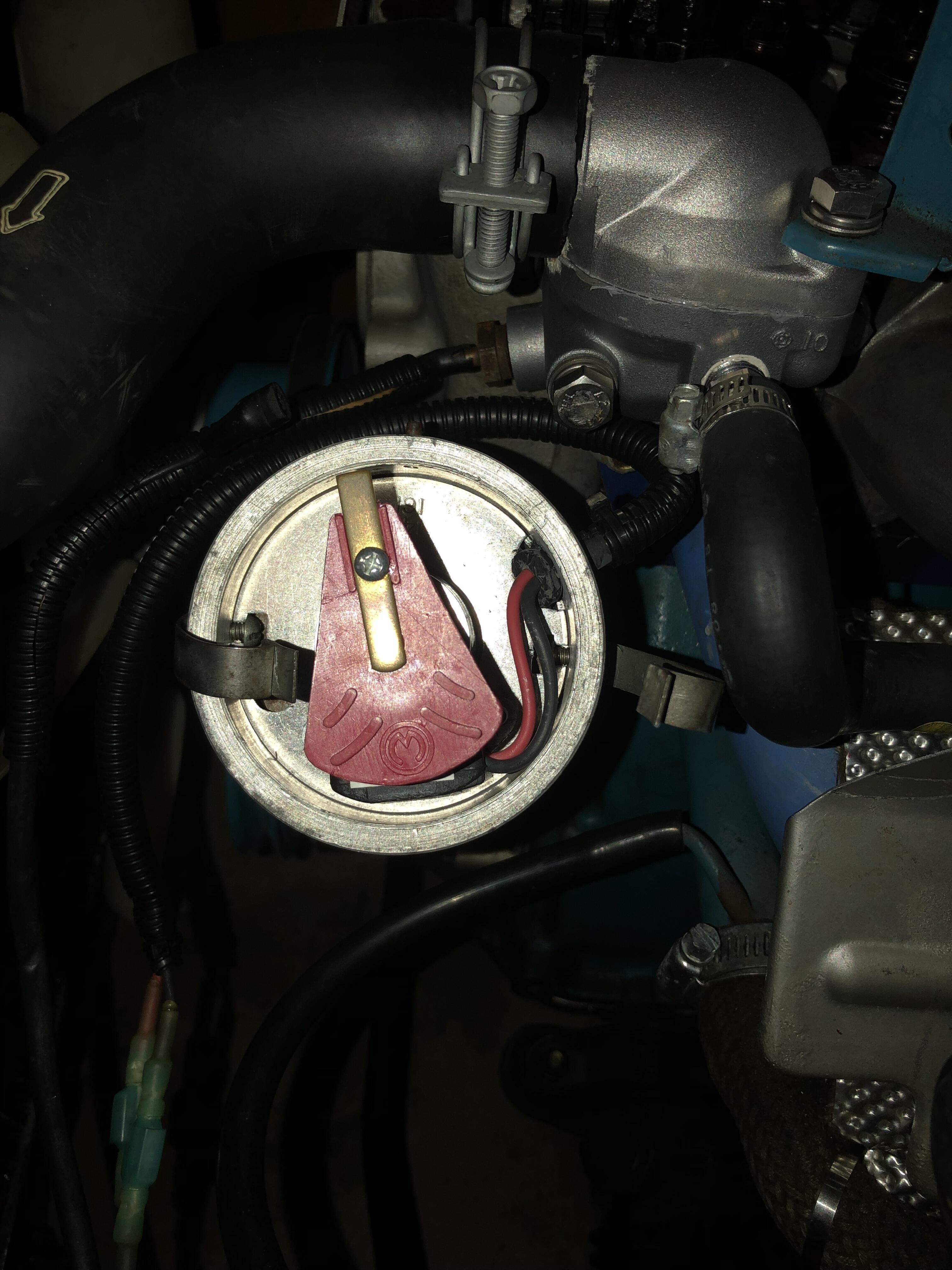

Still this picture bugs me.


In the 240Z, I could swear that when the engine is at TDC, the rotor is near the Hall effect sensor, not 180 out like in your photo.

I tried searching for images with your setup, and I tried searching Hybridz. I didn't find anything useful.

Maybe someone smarter than I am can chime in about this.

Link to comment
Share on other sites

Don't forget that the spark happens when the magnet on the shaft passes by the Pertronix sensor.  One more thing to line up.  Trigger, rotor, compression stroke on #1, plug wire.

The magnets have been known to fall off.

Link to comment
Share on other sites
