Painting rear tail light housing (77 280z)

Featured Replies

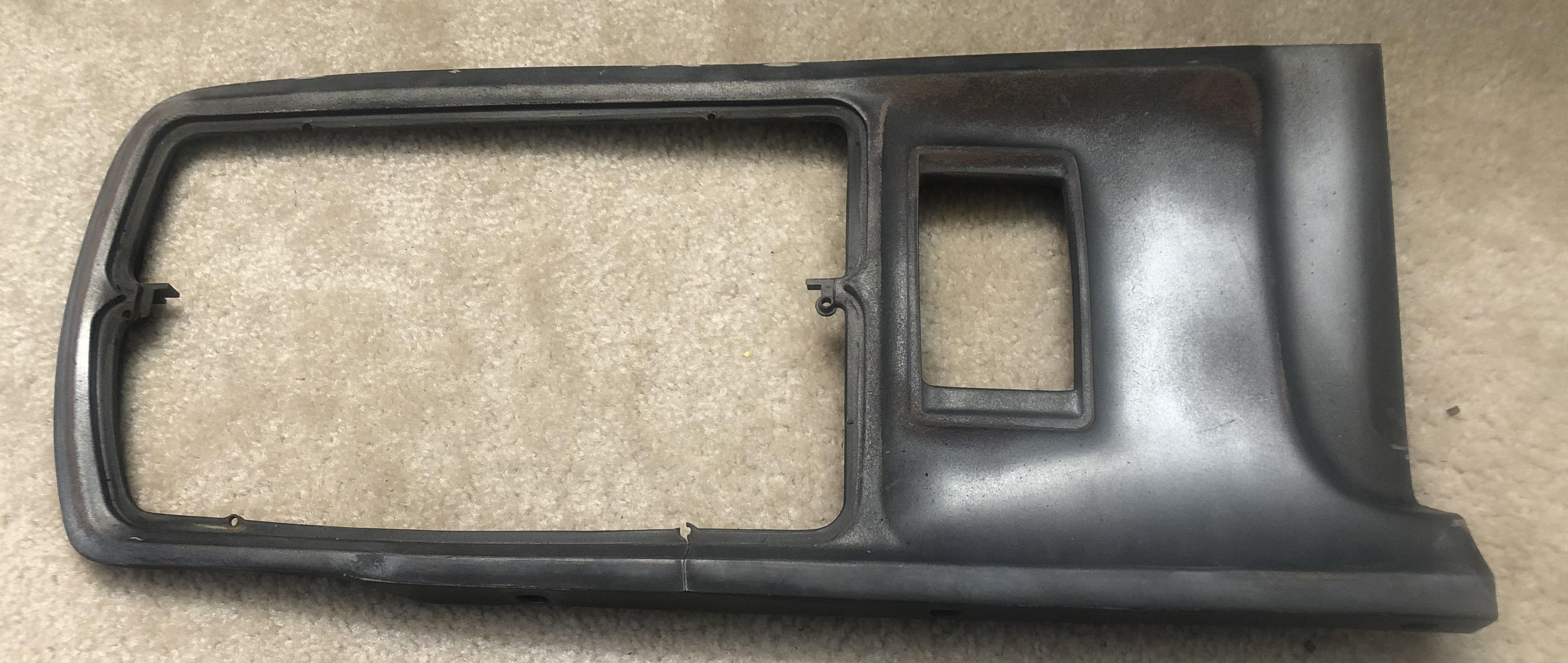

I thought this was metal. Seems like this is plastic and getting very brittle where the old iron rusted screws were. I suppose this cannot go in the heating oven after powder coat?

Do they sell reproductions of it?


240's were metal, 280 went to plastic. I would not recommend putting them in the oven.

I am not sure about reproductions, I seem to remember a FB ad for some made of metal but shady looking outfit and expensive.

They come up on eBay from time to time.

  • Author
19 minutes ago, Terrapin Z said:

240's were metal, 280 went to plastic. I would not recommend putting them in the oven.

I am not sure about reproductions, I seem to remember a FB ad for some made of metal but shady looking outfit and expensive.

They come up on eBay from time to time.

Yeah hard to find. Datsun Garage i saw today has a complete fiber glass panel for $900!!!

I think I may have some in good condition.

Let me check later today, and will report back.

Not that it matters (other than to satisfy my pedantic nature)... It wasn't just the 280's. The 260 also used plastic.   ROFL

If S30 doesn't turn anything up, I've got a spare pair here.

S
Sponsored
Advertisement
Go Ad-Free
No ad showing? Ads help support ClassicZcars. If you use an ad blocker, please consider allowing ads on this site or Go Ad-Free.

@CO Uh, you mean the 280Z's copied the same plastic taillight surrounds AS THE 260Z... All that great 280Z "innovation" started with the 260Z. 🤪

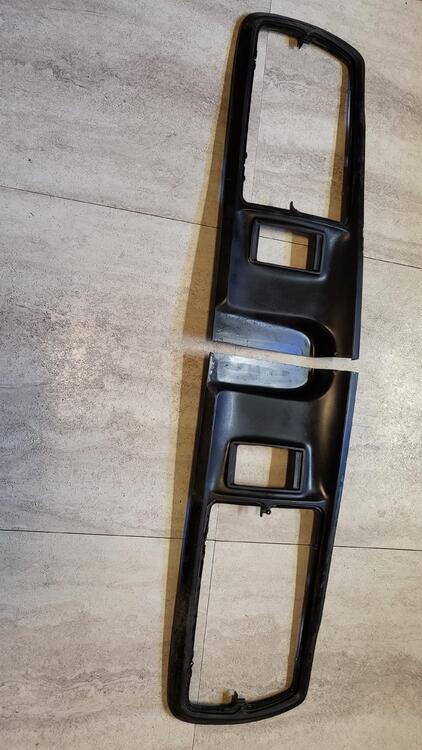

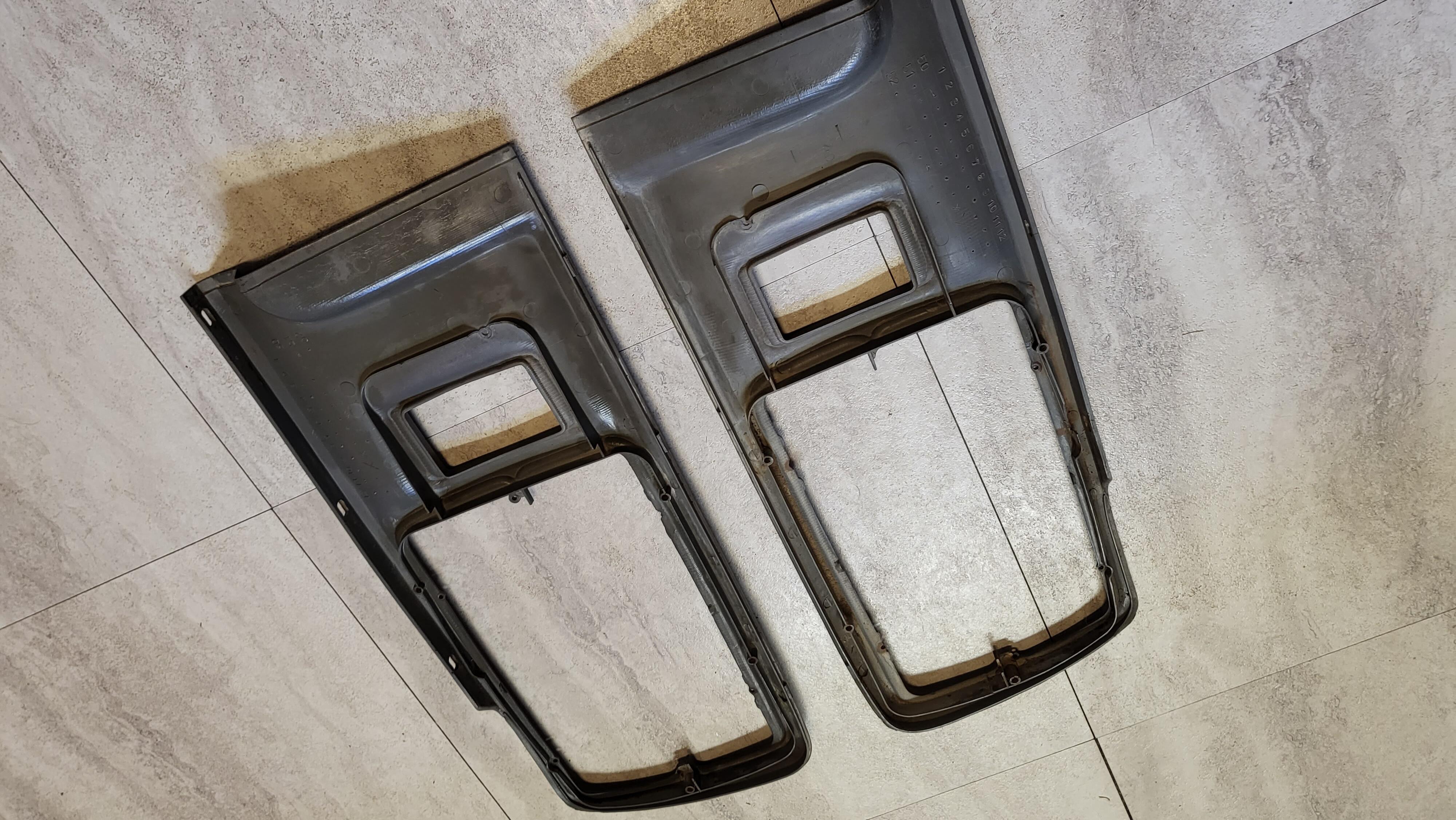

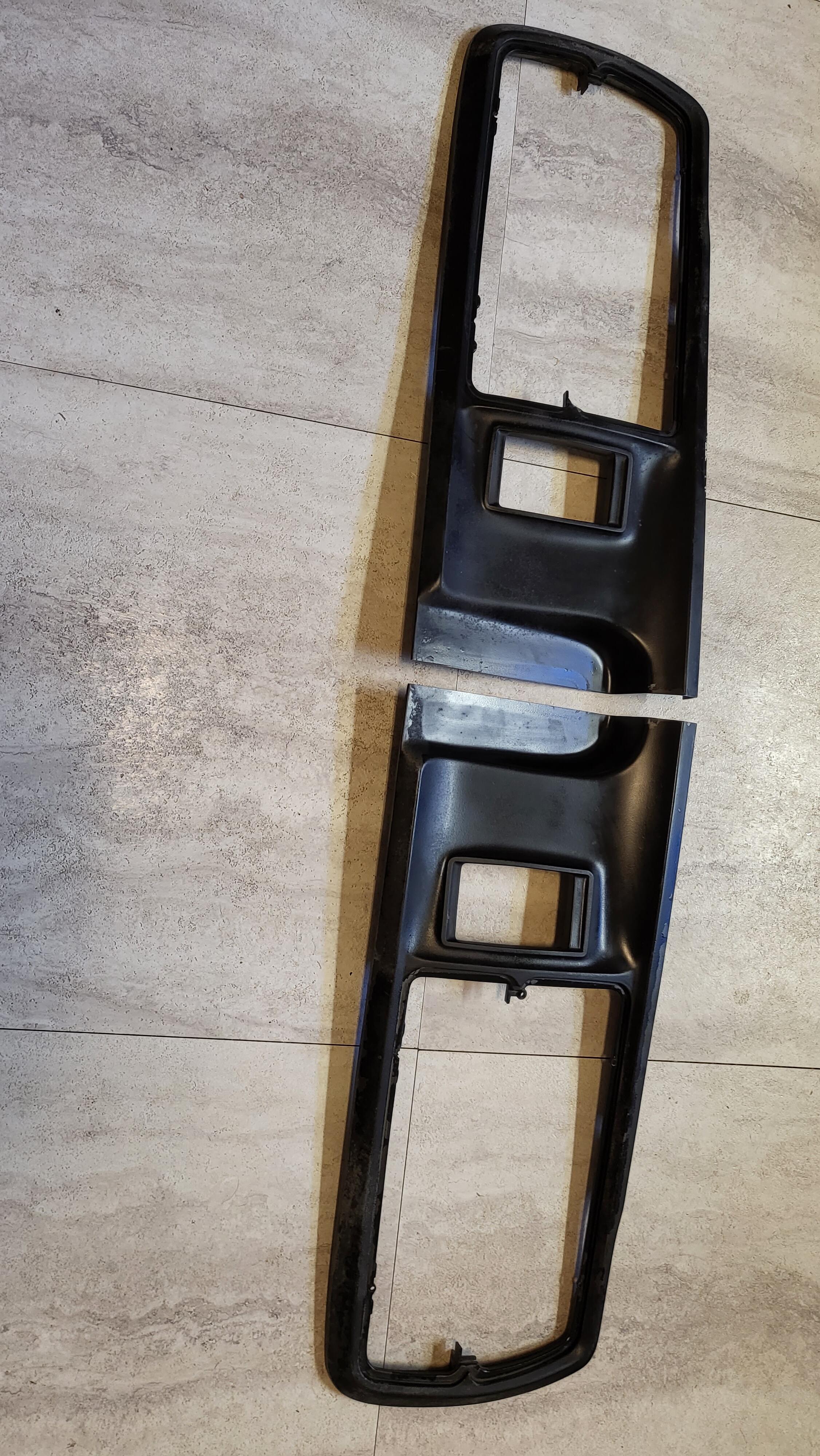

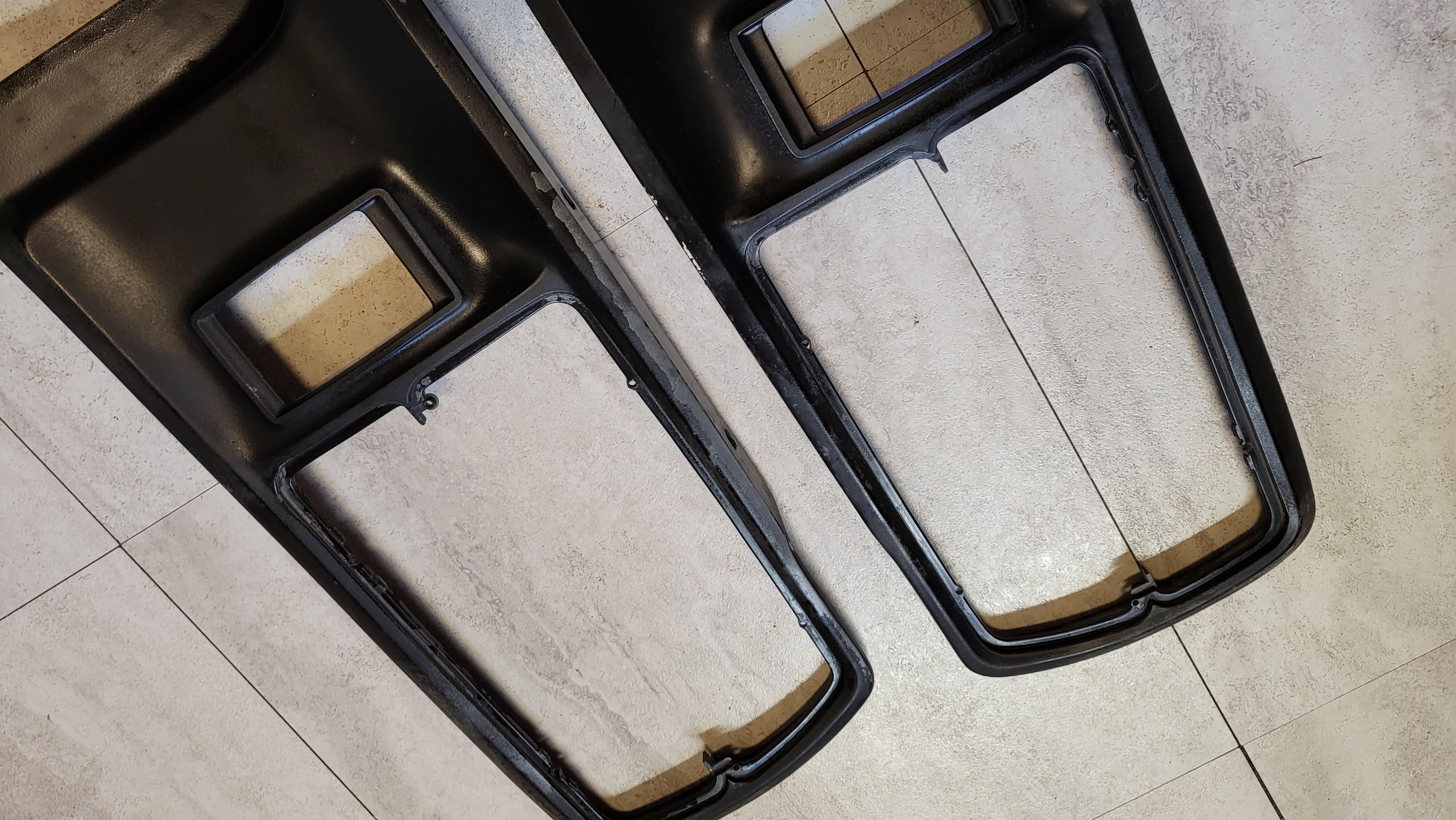

Found the pair of 280 housings.  They are in pretty good shape, just need refinishing.  No cracks, screw holes are good.  One plastic boss at the reverse light area is damaged on one, repairable.

280 1.jpg280 2.jpg280 3.jpg

  • Author

So guys I decided to do some patch work on my panels. I used JB weld to strengthen plastic around holes etc and it is looking good.

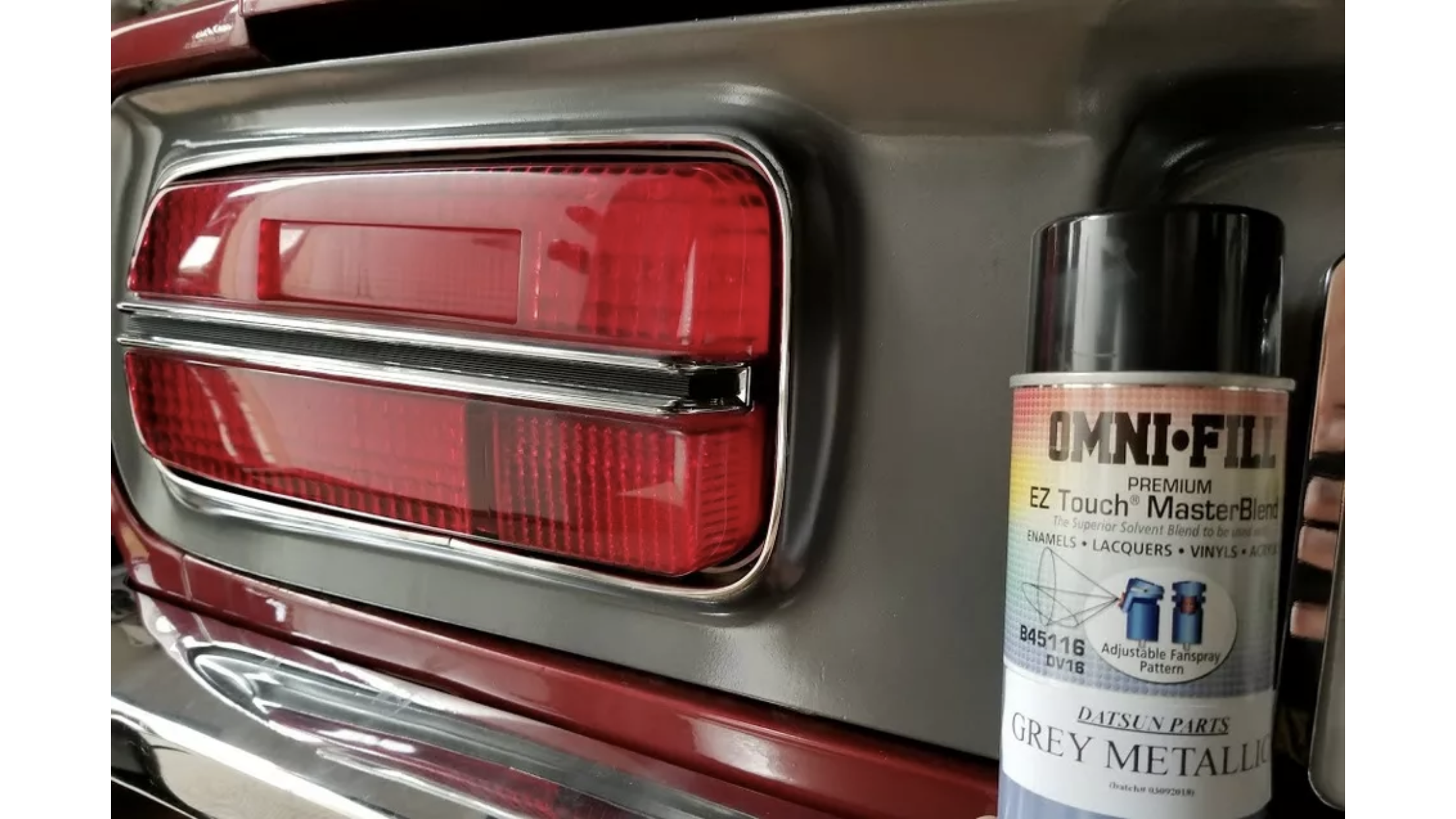

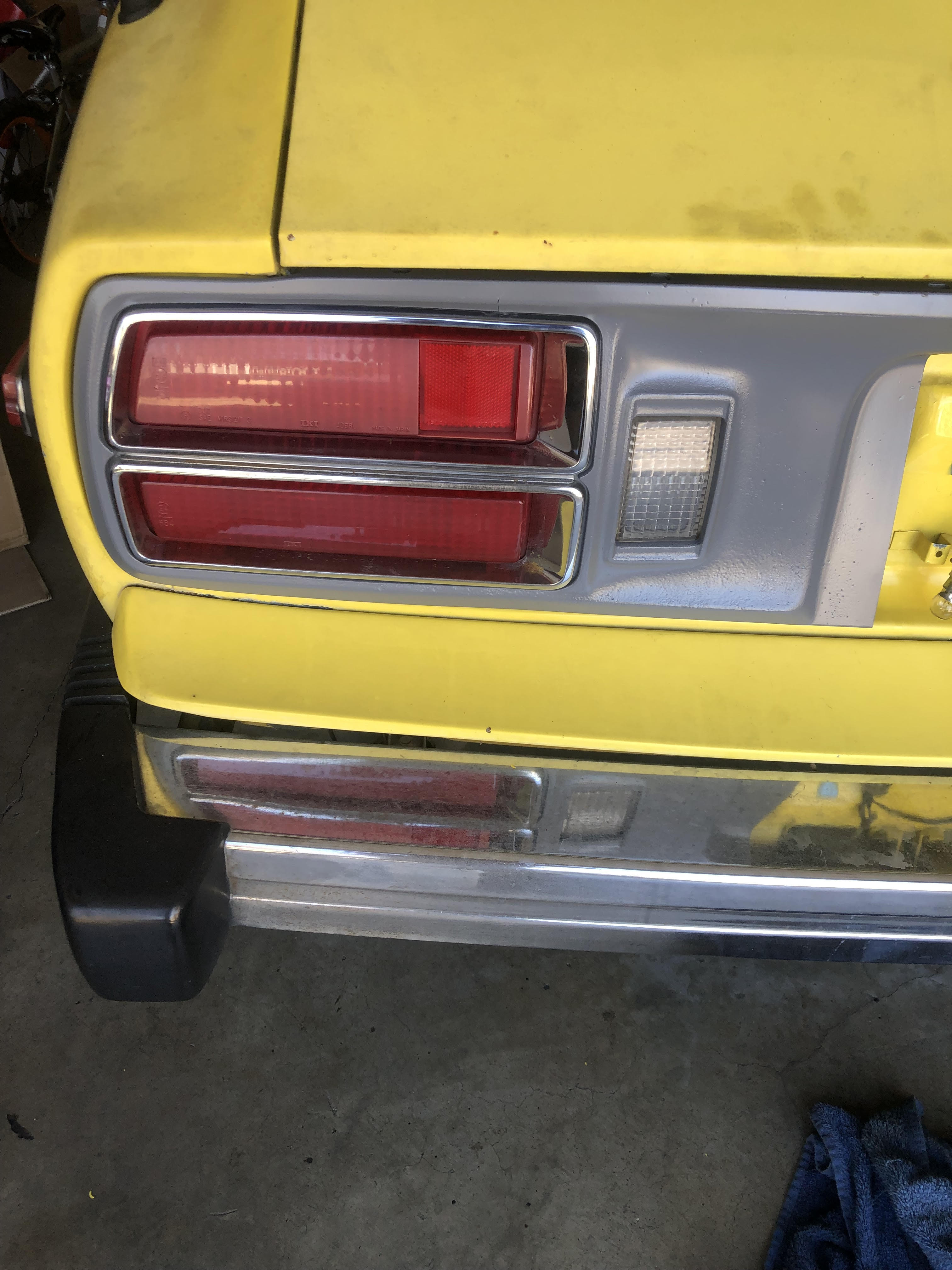

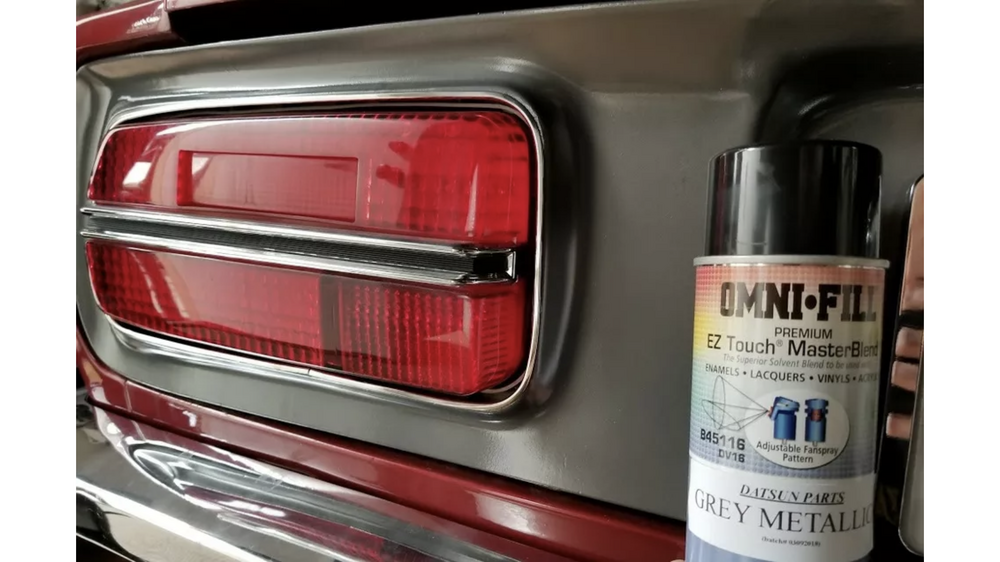

Need some opinion on the color 🙂 i found this pic on ebay on the list. My initial paint was all black but i didn't liked it. So i bought a Matt Grey from homedepot and it did not quite turned out to be the color in ebay product.

I think it is kind of a smoky grey color. I am planning to try smoky grey kind of thing ...

Appreciate if someone know a closer match I can find at a local store?

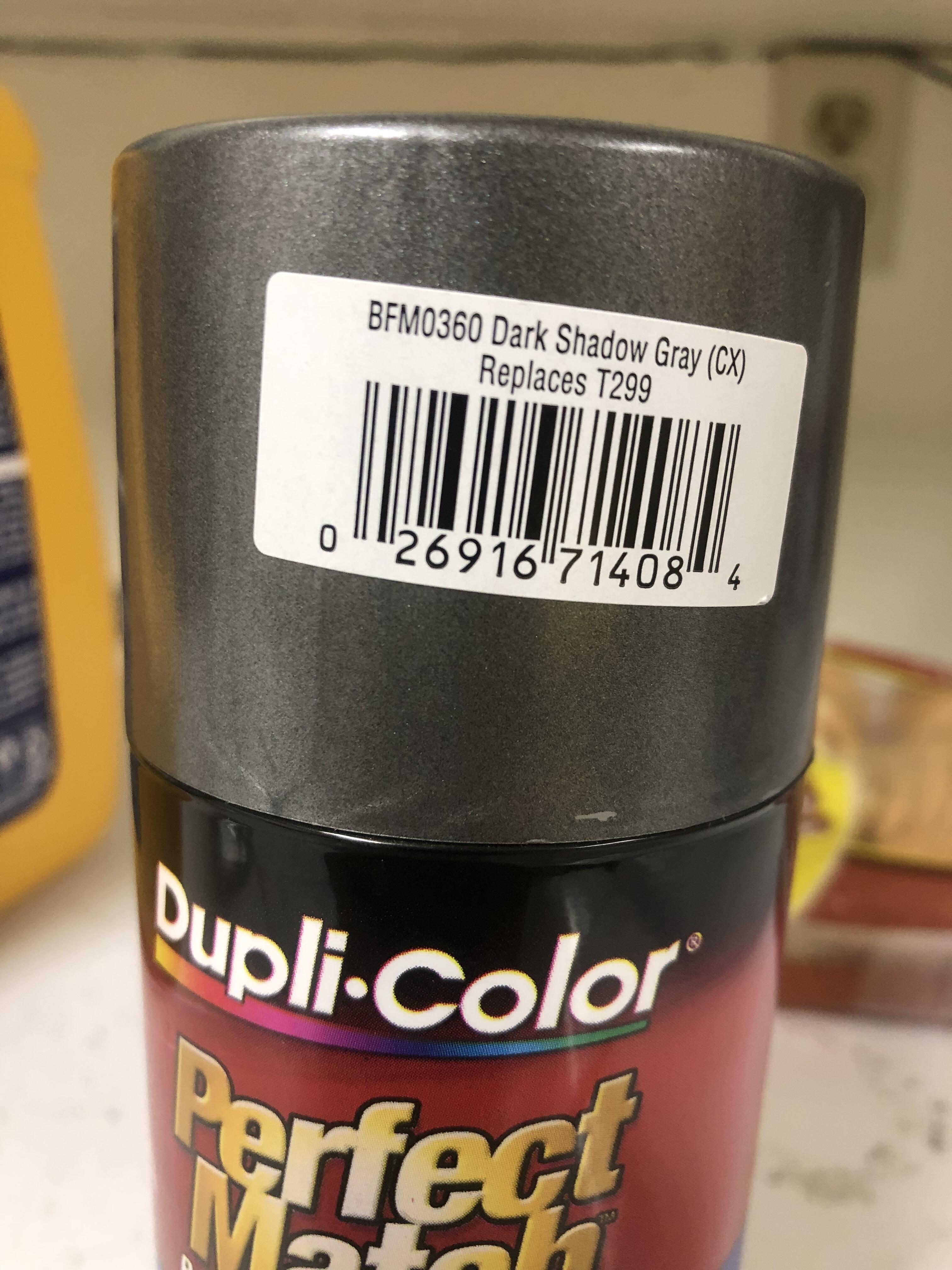

Just did my '71 tail light panels in December - although not sure if it's the same color shade used on the 280s.  Sanded the panels, sprayed Rust-Oleum Ultra Cover Flat Gray Primer, wet sanded, sprayed Dupli-Color Perfect Match BFM0360 Dark Shadow Gray (CX) replaces T299, let sit for a day and then sprayed with Rust-Oleum Ultra Cover Matte Clear.  I'm pleased with the results in terms of color and texture.
