rcv

First start today!

Recommended Posts

After almost 2 years of slowly rebuilding the engine, I finally got my '70 240Z to start up today!  This is the first time I've ever seen the car run, so I'd love some feedback from you all with more experience on how it sounds.

The car starts up pretty easily, even with the choke completely disengaged.  The RPM seems to drift all over the place though, so I had to keep messing with the fast idle screw to keep it around 2,000 (just above Tom Monroe's recommended 1,500 minimum).  It sounds kind of rough to my ears, but again I've never heard the car run properly so I really have no idea.  This was originally my (soon-to-be) father in law's car and he thought it sounded a little rough but not terrible.  I messed with the timing a little bit and settled on ~15 degrees of advance, but the RPM is wandering around so much that it's hard to know if any adjustments are helping or hurting.

I only got around 10 minutes of runtime today because I was running out of a gas can rather than the tank, and I emptied 2 gallons of gas in 10 minutes. I'm pretty sure all of that gas is just going back in the tank through the return line though, as there's no noticeable smoke from the exhaust.



Questions:

  • How's it sound? Any concerns from you all?
  • Any concerns about the RPM wandering around, or is this normal for a newly rebuilt engine?
  • I was running water from my garden hose through the open radiator.  After my runs today, I just let it drain out and put on the cap and drain plug. Any issues with leaving the remnants of hose water in there?  I'm planning on continuing my break-in next weekend, so I'd rather not fill it up with coolant just yet. I also don't want the thing to rust solid over the week.
  • What are your favorite guides for setting timing?  Should I try to set timing before or after synchronizing my carbs and getting the mixture set?

Thanks everyone - you've all been a huge help so far!

Videos:

- Very first start! After a few unsuccesful cranks, I handed the keys to my father-in-law-to-be who started it up almost immediately.  He claims the car remembers him.



- Here's me starting it. I reved it to ~3,500RPM before I got ahold of myself and dropped it back down to 2,000



Here's a quick walkaround of the car.  I'm watching the RPM with my timing light, then bring it in closer to get some engine sound.  I then walk around to the exhaust to capture that as well.





  • Like 3

Share this post


Link to post
Share on other sites

On second thought maybe set the valves to spec first. You won't be running the moror during that process so the carbs are irrelevant. Take the plugs out and write out a "go by" board. Some come up together or damn close and you can do them out of sequence just X them off as you go.




Share this post


Link to post
Share on other sites

Sure that sounds reasonable. Think it’s worth doing before I run the car any more, or should I let it run for another 20min or so to break it in further before seeing the lash again?

Share this post


Link to post
Share on other sites

The cam lobes are the part that usually gets damaged after a rebuild, on these engines for sure, and others.  Usually it's recommended to let it sit at about 1500-2000 RPM for 20 minutes to let the lobes and pads wear in with good lubrication.  You guys compressed 20 minutes at 1500-2000 down to about three at 3000-4000 it looks like but it's probably fine.  p.s. it does sound good though...

p.s. #2 it's not going to rust over a week with just water in it.  Actually, if you fill it with water you might find some leaks by next weekend.  It's not the water that causes rust it's the oxygen in the air.  So, filled with water would be no big deal unless you get a freeze in Sherman Oaks.

https://www.melling.com/wp-content/uploads/2017/03/Camshaft-Break-In-Proced-Rev4-12-07.pdf

Edited by Zed Head
  • Like 1

Share this post


Link to post
Share on other sites

The camshaft is original - I haven’t had the budget to replace it yet but I had the head rebuilt by a local reputable shop (Valley Head in Northridge) so it does have new pads. I only ran it above 3k briefly, the rest of the time was between 1500-2500, so hopefully it’s ok. I’m also using the high zinc break in oil from Lucas so hopefully that’s helping things ease in.

Share this post


Link to post
Share on other sites

So I’ve been tinkering with the tuning trying to get it to idle well, but haven’t made a lot of good progress. It seems like it’s been running rich - there’s some darkish smoke coming out of the exhaust, and it really doesn’t want to start with the choke on. I readjusted the lash cold this morning hoping that would help, but the adjustments were minimal and it hasn’t seemed to make much of a difference. I also sprayed some starting fluid around the manifold and carbs and didn’t get any change while running, so I don’t think there’s a vacuum leak.


I’ve been pressing on those maintenance buttons below my carbs to adjust the mixture, and the RPMs go up every time I do, so I’ve been screwing my mixture knobs in and in and in.  At this point they’re screwed all the way in and the car seems happier for it. It’s starts up immediately and idles around 1000-2000 with both my idle screws all the way out.  That doesn’t seem right. My carbs were rebuilt by Paltech but I’m wondering if something is wrong there - maybe the needles aren’t seated, or something is wrong with the jet tube. Any thoughts on where I should start looking?


Here’s how it starts up now with the mixture knobs as lean as they’ll go:


PS before you ask, yup I’m sure the chokes are pushed all the way in 😋

Edited by rcv

Share this post


Link to post
Share on other sites

The disable button makes the rpm raise? That is odd, it makes mine run half on everything.

My easy thing first suggestion would be to poke on the floats through the fuel inlet with the red straw that comes with WD-40. They maybe  stuck in the bowls from shipping dry?

  • Like 1

Share this post


Link to post
Share on other sites

If the mixture nuts are all the way up, the needle valves are stuck open or the floats are set too high

  • Like 2

Share this post


Link to post
Share on other sites

@siteunseen yup from what I’ve watched/read this means I’m too rich.

Your theory is that the floats aren’t ever shutting off the fuel supply, and so the pump is just force feeding fuel through the jets?

When you say “...through the fuel inlet” how do you mean? The fuel inlet is bent and there should be that grosse (sp?) jet there. Do you mean go in from the bottom?

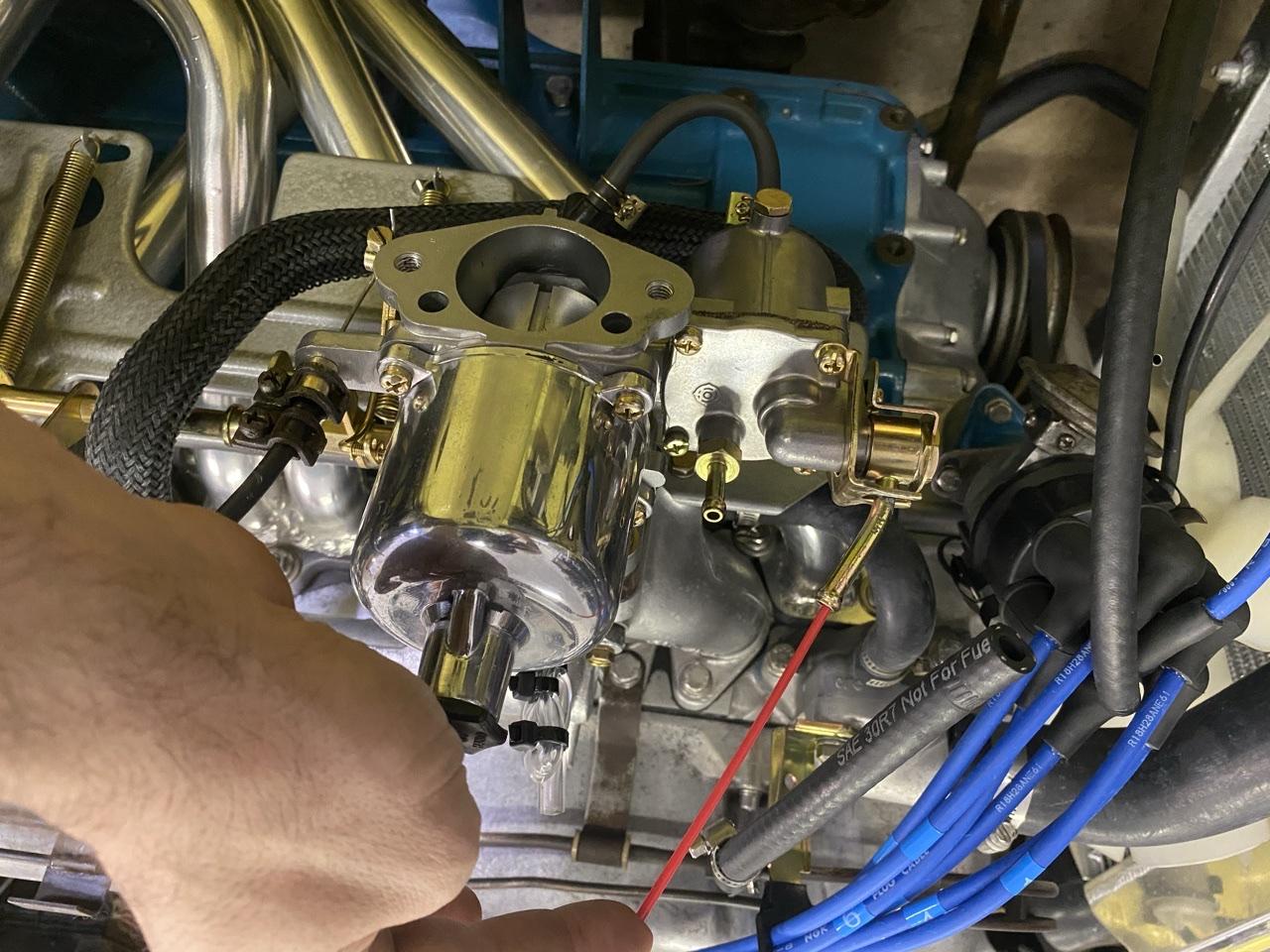

I poked my straw through the bowl vent, and on the rear carb I can feel it bounce a bit but it feels rock solid on the front. I think you may be on to something. I’ll open up the float bowls tomorrow and see what I can see.




Share this post


Link to post
Share on other sites

I'm sorry! The vents will work just as well and much easier. The "ins" have the jets on the other side. STUPID, STUPID, STUPID!

Thank you, I get confused on Saturdays in the fall. I'm lying. I'll be confused Monday a.m

Those are some beautiful carbs, Paltech does good work.

Edited by siteunseen

Share this post


Link to post
Share on other sites
1 hour ago, rcv said:

I’ve been pressing on those maintenance buttons below my carbs to adjust the mixture, and the RPMs go up every time I do, so I’ve been screwing my mixture knobs in and in and in.  At this point they’re screwed all the way in and the car seems happier for it. It’s starts up immediately and idles around 1000-2000 with both my idle screws all the way out.  That doesn’t seem right. My carbs were rebuilt by Paltech but I’m wondering if something is wrong there - maybe the needles aren’t seated, or something is wrong with the jet tube. Any thoughts on where I should start looking?

So all of that sounds like a significant rich condition. What needles are you running? Stock N-27 or something else?

Also, your comment about the needle seating is important... It is possible to install the needles too deep in the suction pistons and if that happened, it can result in a rich mixture.

Share this post


Link to post
Share on other sites

Hah no problem I got the gist. Paltech’s plating work is really really nice. I’m just hoping I can get them to run as good as they look.


I pulled the top off the front bowl and now I’d like to adjust the level but I’m a little confused. I think the “Just SU” video instructions only apply to his ball valve, so I’ve been following the instructions in Aaron Neubauer’s video (see below).

Following this process, my floats want to cut off air flow from my biological air compressor well before the .55” mark which would mean there should be less fuel in the bowl, not more right? Does this look like the right process to you all?







Share this post


Link to post
Share on other sites

@Captain Obvious no idea what the needles are - they’re whatever Jeff put in when he rebuilt them.  The part number is written on the fat end of the needle right? Do I need to pull them out of the piston to read them?

Share this post


Link to post
Share on other sites
3 minutes ago, rcv said:

@Captain Obvious no idea what the needles are - they’re whatever Jeff put in when he rebuilt them.  The part number is written on the fat end of the needle right? Do I need to pull them out of the piston to read them?

Paltec should have taken care of this. May need to look but not right away in my opinion

Share this post


Link to post
Share on other sites

I’ve got both float bowls opened up and at first glance it’s obvious they have very different fuel levels in them:





Using my “blow on it until the valve cuts off” method I’m measuring the front level at 0.7” and the rear at 0.4” from the top of the float to the bottom of the bowl lid.  This is consistent with the levels in the bowls at least, and I’m hoping this is a big part of my problem. It’s still very weird to me that the front carb wanted to go leaner too, but maybe it was sucking extra fuel through the balance tube?

Can anyone confirm that my measurement method seems reasonable? If so I’ll get them adjusted and try to start her up again tomorrow morning









Edited by rcv

Share this post


Link to post
Share on other sites
14 minutes ago, rcv said:

@Captain Obvious no idea what the needles are - they’re whatever Jeff put in when he rebuilt them.  The part number is written on the fat end of the needle right? Do I need to pull them out of the piston to read them?

Yes, the part number is written on the fat end of the needle, and yes you need to pull them out to read them.

That said, however... I wasn't thinking you needed to go out and pull the needles right away. I was thinking more along the lines of looking at the literature that came with the carbs from the company that rebuilt them and seeing if there was a listing on there of what needle they used. Failing that, a phone call to the co. would be my next idea.

As far as the installation depth goes, you ought to be able to see needle by looking down into the carb throat. Might need a little right angle inspection mirror to see deep enough, but you ought to be able to see if the needles are installed to the proper depth without too much muss/fuss. And if you can't get a good view of them that way, all you have to do is pull the suction cover off and pull the piston out of the carb for a look. Worst thing that would happen is you might have to replace some damper oil if you spill it.

  • Like 1

Share this post


Link to post
Share on other sites

I’ll give Paltech a call early next week if I can’t get things solved by then. I checked his website and there’s no mention of what he uses, and I don’t think he sent me any literature along with the carbs.


Here’s some pictures looking down one carb throat if it helps. A little hard to focus, but I can try to borrow a mirror if you think clearer shots would help

1F06DF6A-90DD-4470-8AB4-5B3A5E89D730.jpeg8693DB28-60DE-461D-85AD-D2D9BB455E68.jpegA500D5AB-E64D-4F12-9547-C936636D4F22.jpeg

Share this post


Link to post
Share on other sites

Good pics. I can't tell if the needle depths are spot from just pics, but they look good to me. The typical mistake is that they are installed with no shoulder visible and you do not have that issue. They're at least close, so that's good.

As for which needle it is, I think it's worth a phone call. Many people replace the original N-27s with SM needles. Some people end up with great results doing that and others end up running rich with the SMs.

  • Like 1

Share this post


Link to post
Share on other sites

 The major concern at this time is the float levels. I'd work on that first. The needle installation looks OK.

  • Like 1

Share this post


Link to post
Share on other sites

3 hours ago, Mark Maras said:

The major concern at this time is the float levels. I'd work on that first.

Yup that’s today’s task. The FSM recommends turning the float and lid upside down on the work bench and just eyeballing when the “lever seat contacts the valve stem” and getting that to happen when the top of the float is 0.55” from the bowl lid.  The video I linked above instead recommends blowing through the fuel inlet and setting the float so that airflow stops at 0.55”.  Unfortunately there’s a lot of variability between these methods, and even the “blow” test differs quite a bit depending on whether I start with the float up or down.

For example, measuring the current float height on my rear carb (after adjustment via FSM method) gives me:

FSM Method: 0.552”

Blow Method (while lowering float): 0.617”

Blow Method (while raising float): 0.498”






Share this post


Link to post
Share on other sites

If you have the newer style needle valves they wont support the float. The blow in right side up and raising the float until air stops is the best way I found to adjust the tang.

Share this post


Link to post
Share on other sites

I just adjusted both via the FSM method and now the car won’t start at all. I pulled the float lids off and both bowls are bone dry. 😐

I’m going to try the blow method next and see if that gets me anywhere better.


@siteunseen I just read through your linked post, and think I get it. You’re using an electric fuel pump to push fuel through the float while it sits on a glass. Then you just measure the fuel level in the glass when it stops, right? I’m I reading the FSM right when it says the fuel level should be 23mm from the roof of the lid? I don’t have an electric pump, but any reason it wouldn’t work if I pull off my mechanical pump and actuate it manually?

Share this post


Link to post
Share on other sites

Also here are some pictures of my float in case anything sticks out to anyone. This front float has definitely seen better days.


9C46035C-7B5F-4C7C-95C5-2036977EEABD.jpeg76094781-ADDA-432A-AFA3-A8B2CF54AFC0.jpegFB0DC5F8-86F7-4654-A2BF-5A0C0A2C3284.jpegCD879606-42E9-42FF-83F3-C1A9C941EE42.jpeg4E4D7BE2-990A-481C-8A6E-5D14294B8CB1.jpeg
