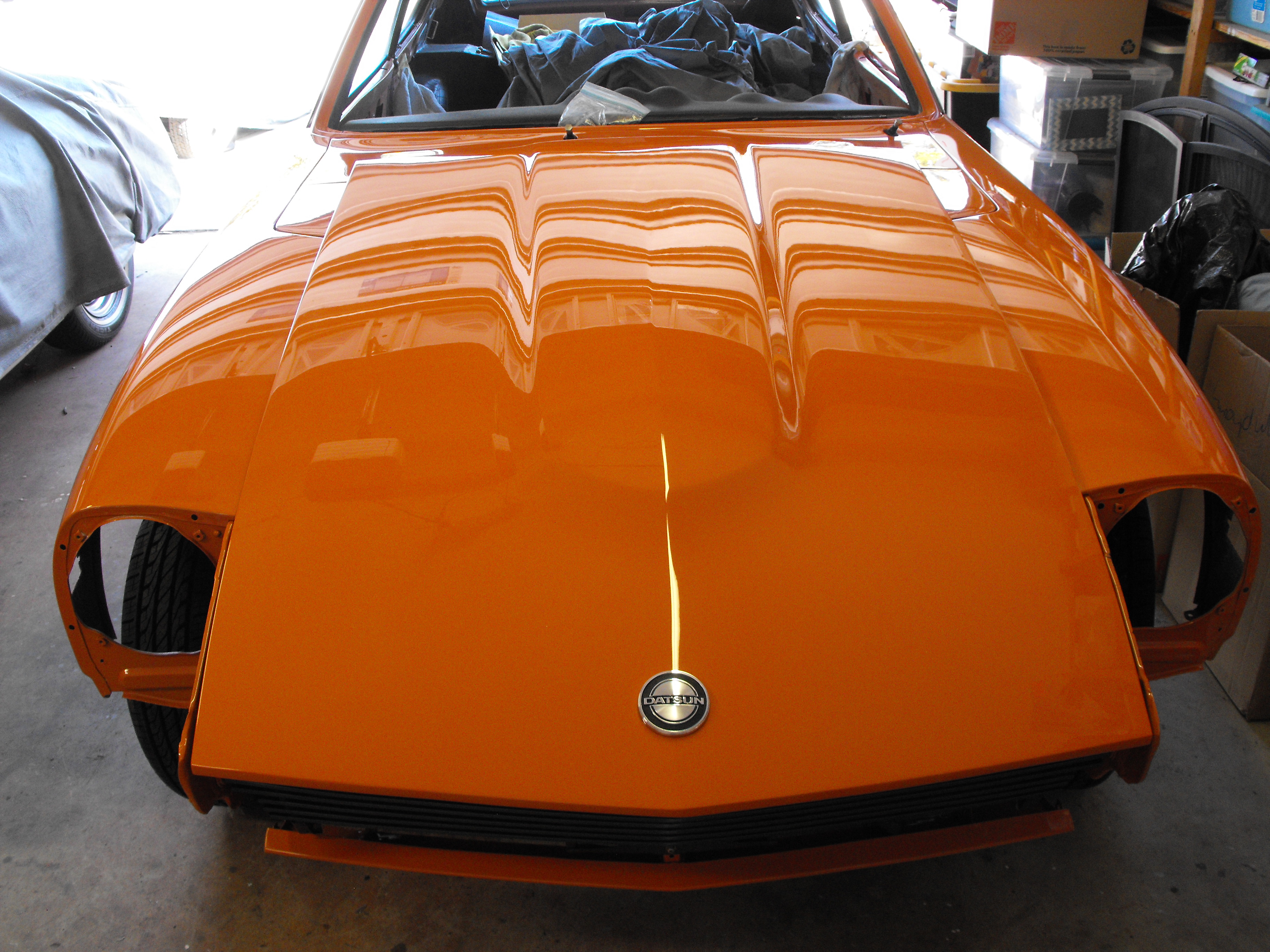

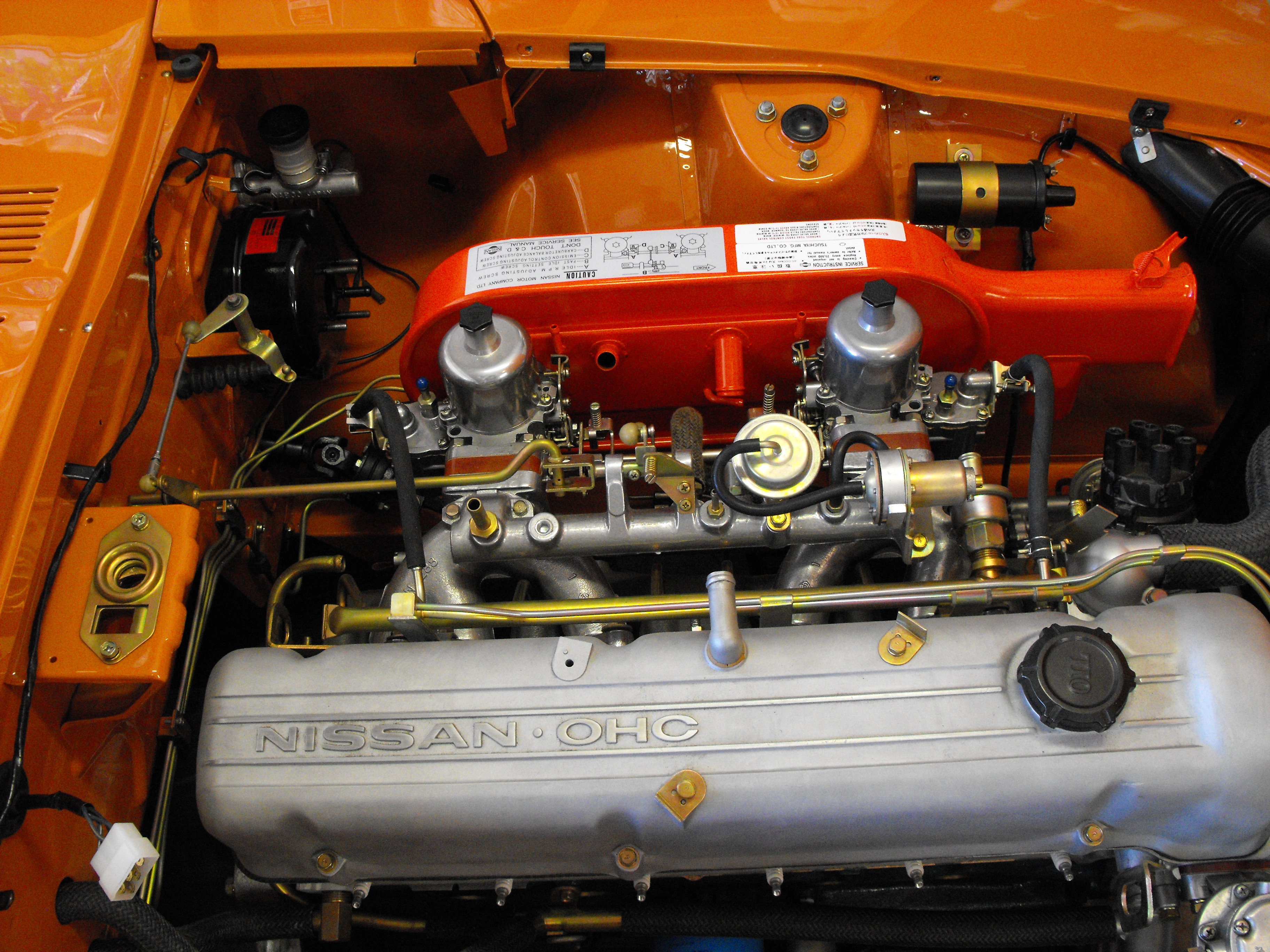

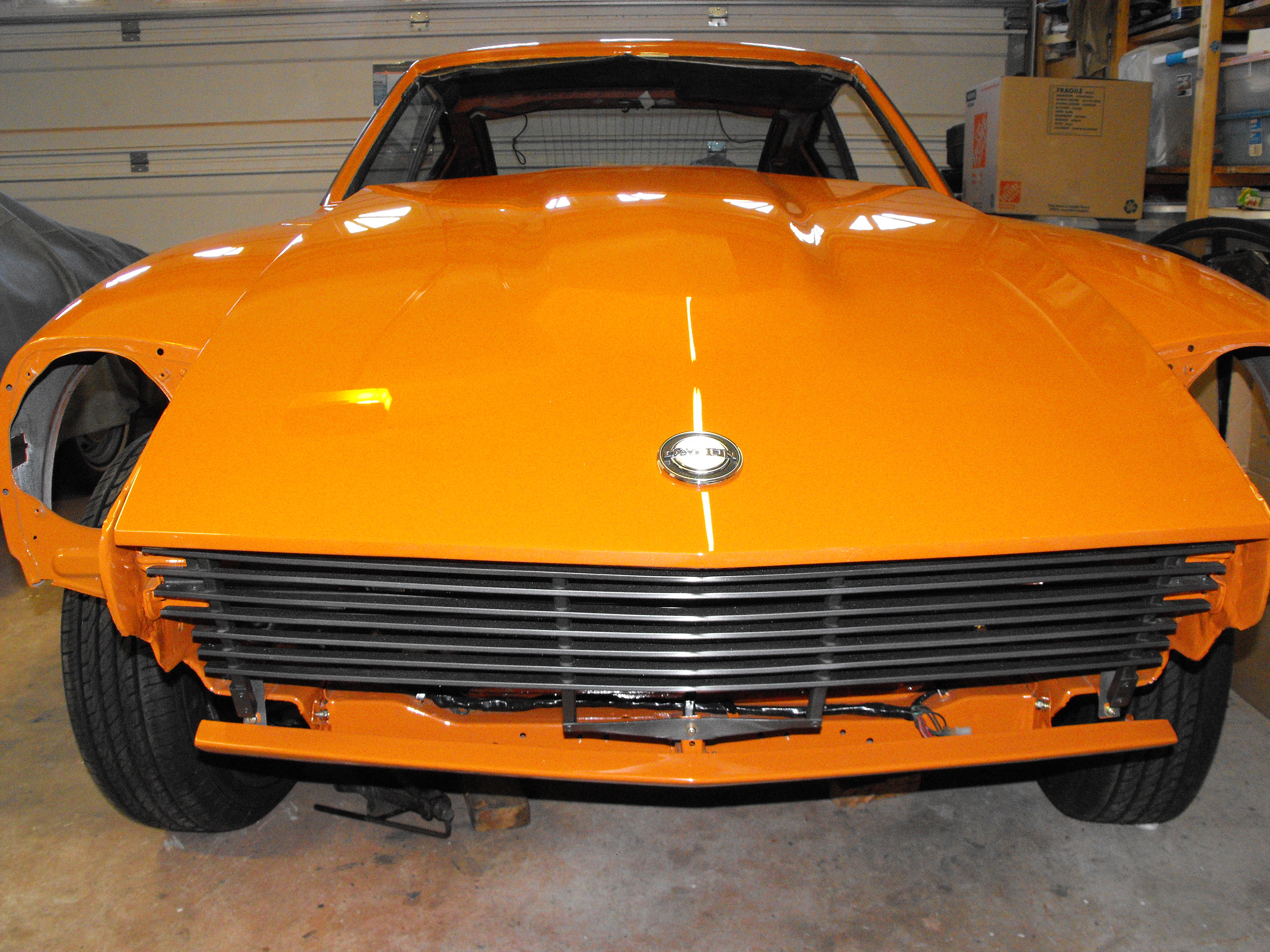

motorman7 Posted November 4, 2017 Author Share #325 Posted November 4, 2017 Just a few quick pics. Got the hood and some decals on. 3 Link to comment Share on other sites More sharing options...
dmorales-bello Posted November 4, 2017 Share #326 Posted November 4, 2017 Hood looks beautiful and the color is vivid! Loving it. Sent from my SAMSUNG-SM-G925A using Classic Zcar Club mobile Link to comment Share on other sites More sharing options...

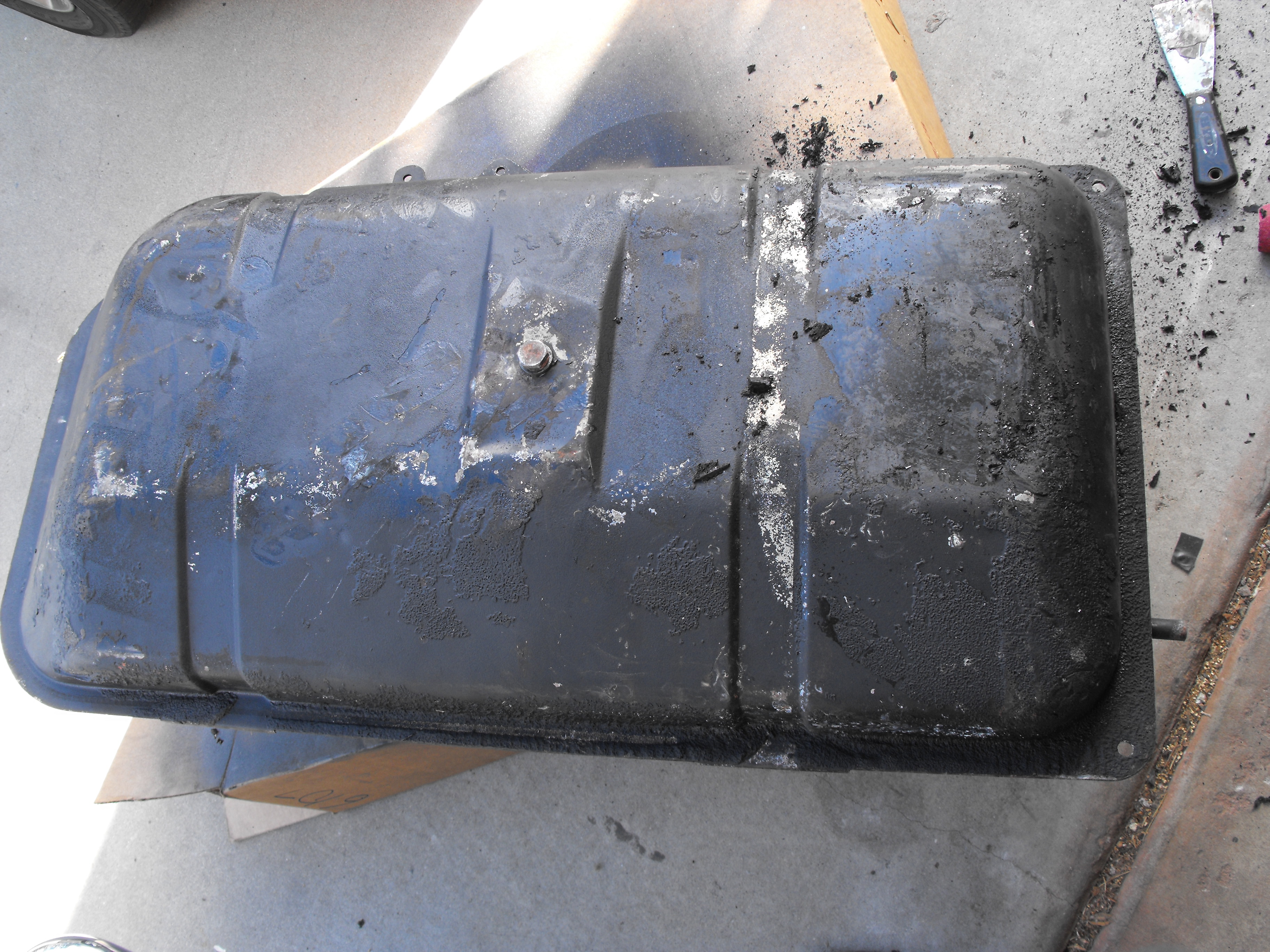

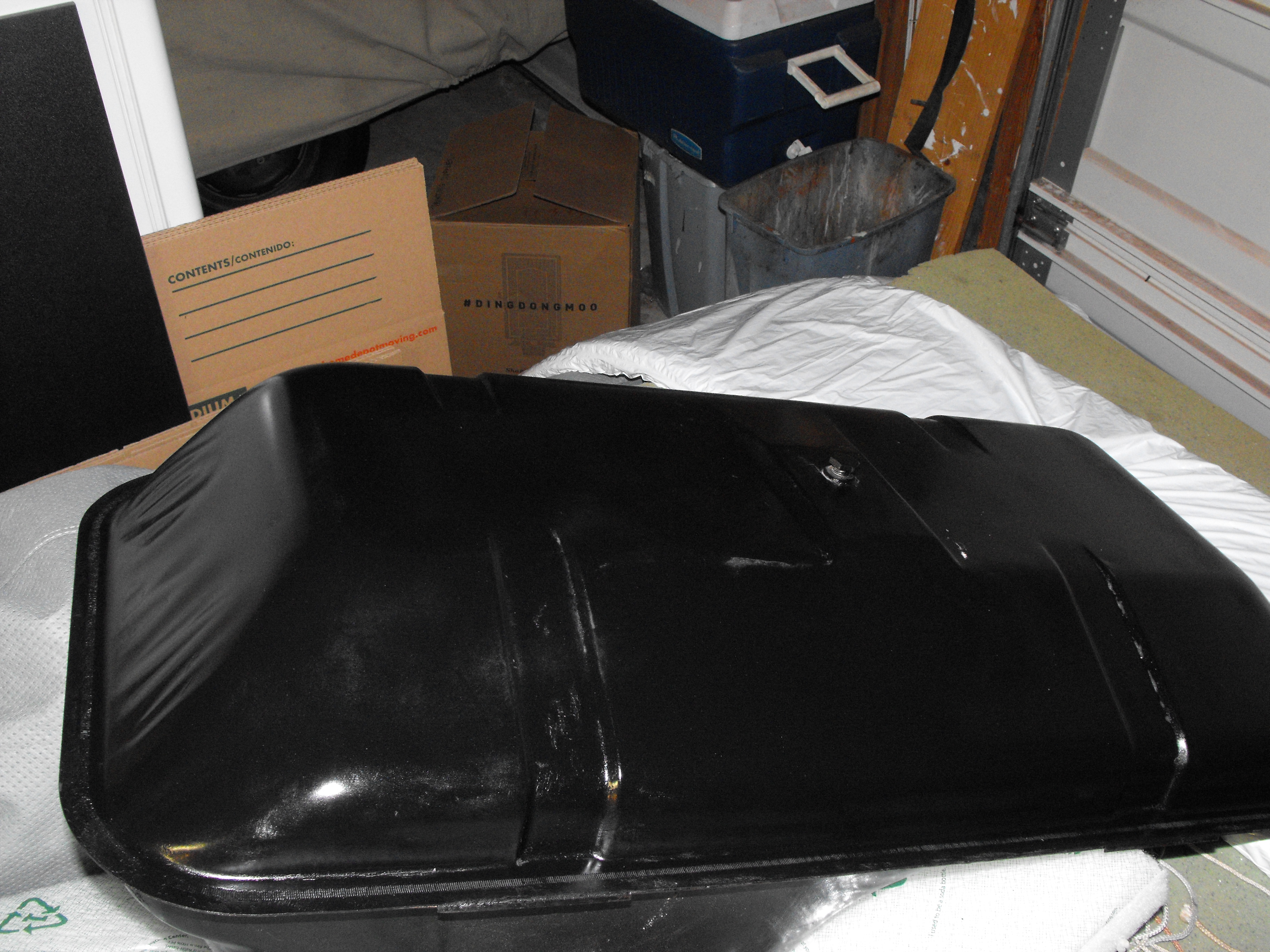

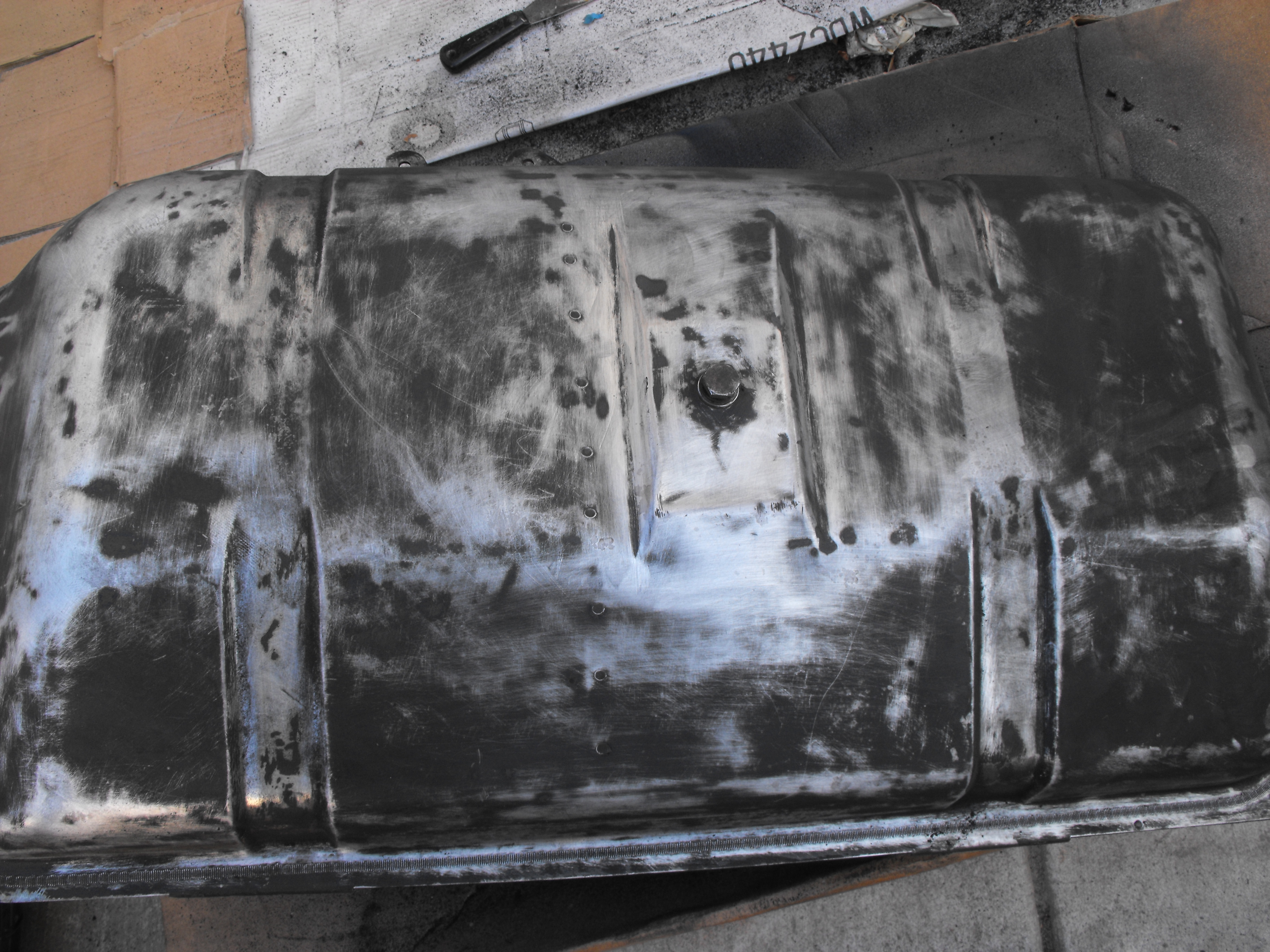

motorman7 Posted November 6, 2017 Author Share #327 Posted November 6, 2017 (edited) I spent a while cleaning up the fuel tank. It had quite a bit of undercoat covering it so I got rid of that with a putty knife and wire wheel. After that I sanded it. There was a small dent near the flat part of the drain plug so I used filler to make the area flat. I would have preferred to have pushed it out with a rod through the filler port or sensor port, but the baffles were in the way. Anyway, after getting it cleaned up I started painting, but ran out of paint (The tank is pretty large). Will pick up another can tomorrow and finish the paint. I put the flex hydraulic lines in for the front brakes and also put on the left front valence and bumper brackets. I was thinking I could put the bumper on tonight but I wont get the right valence till Friday. That needs to go on first. No fancy pics this time. Edited November 6, 2017 by motorman7 Link to comment Share on other sites More sharing options...

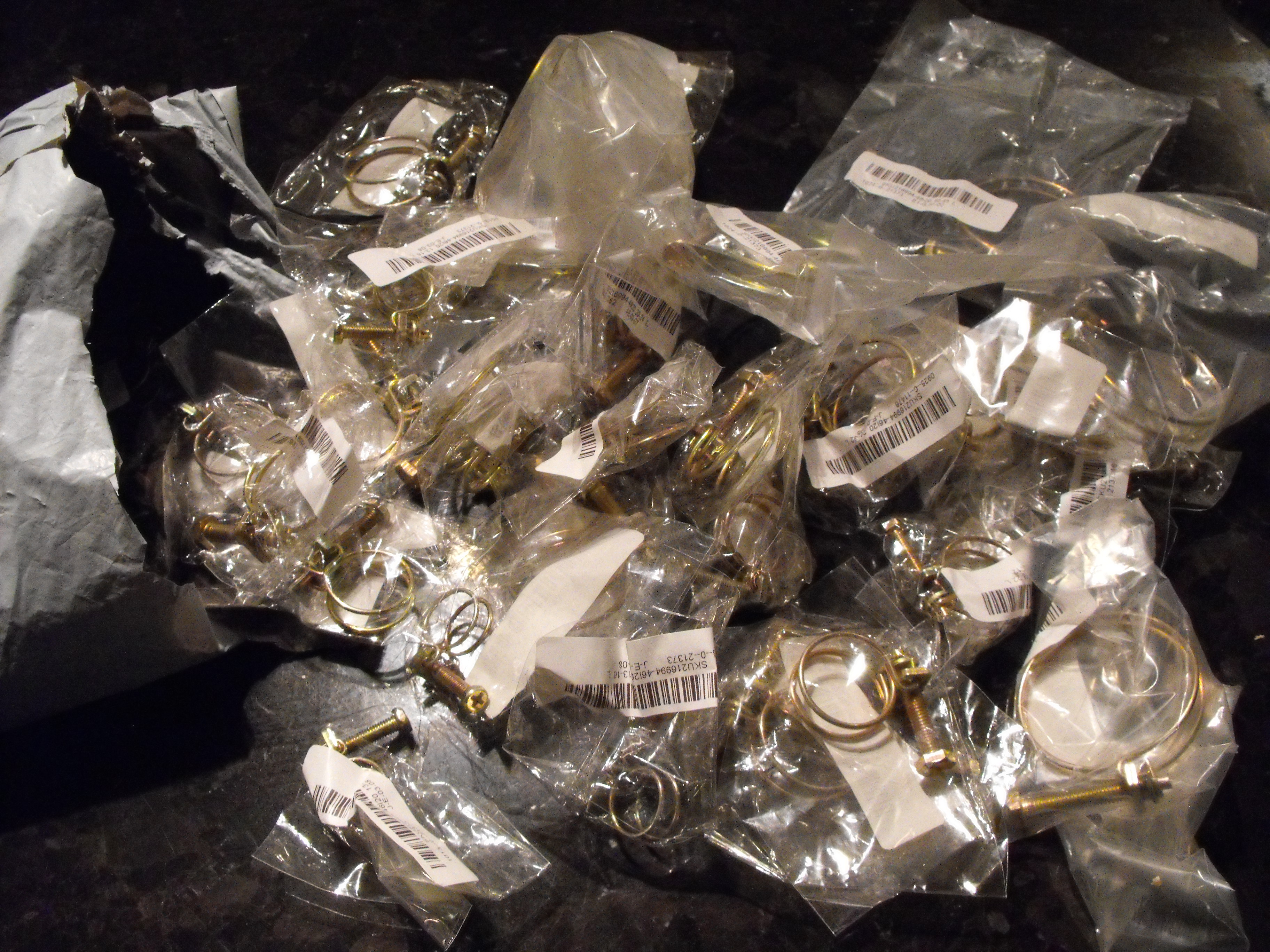

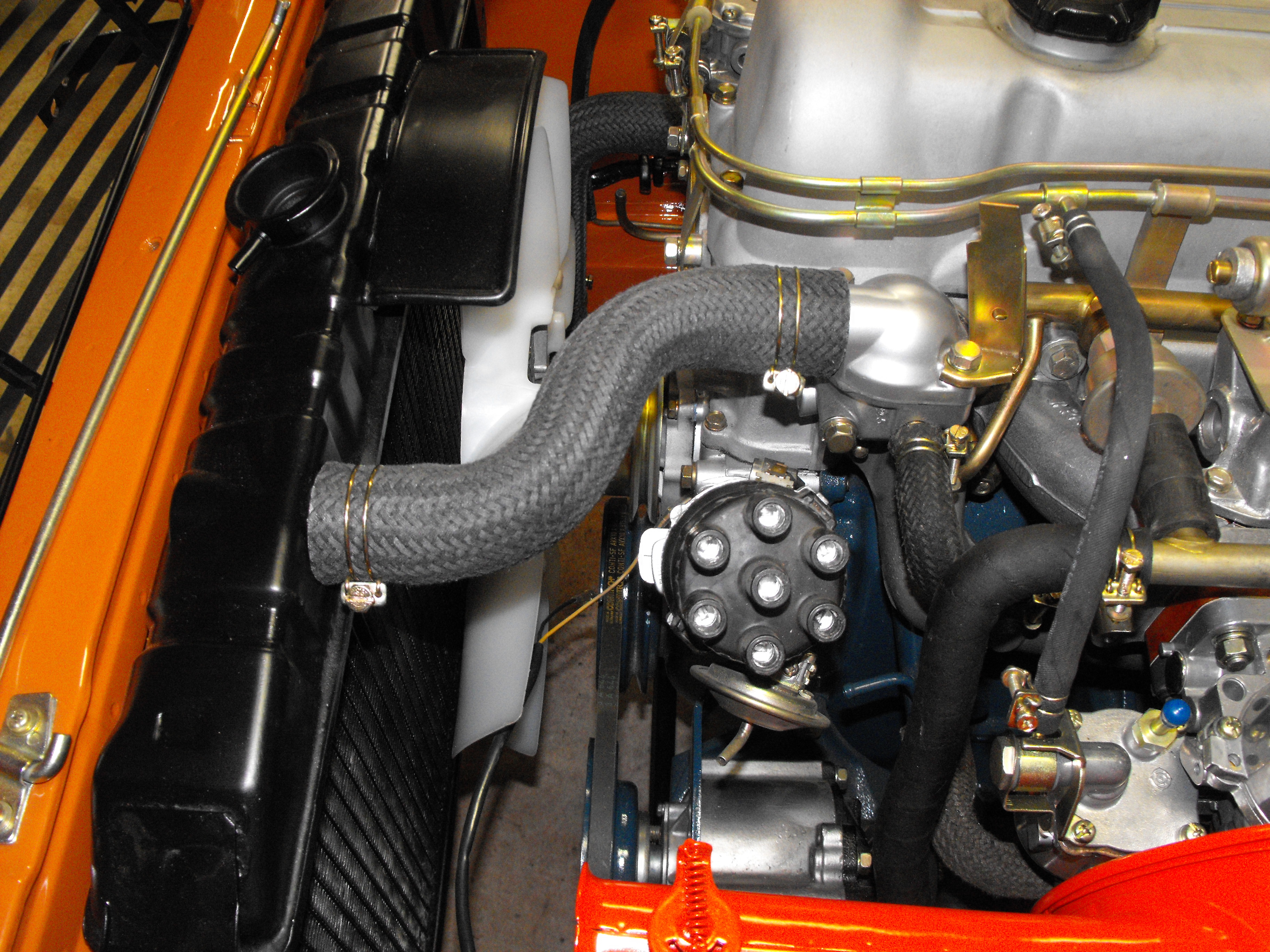

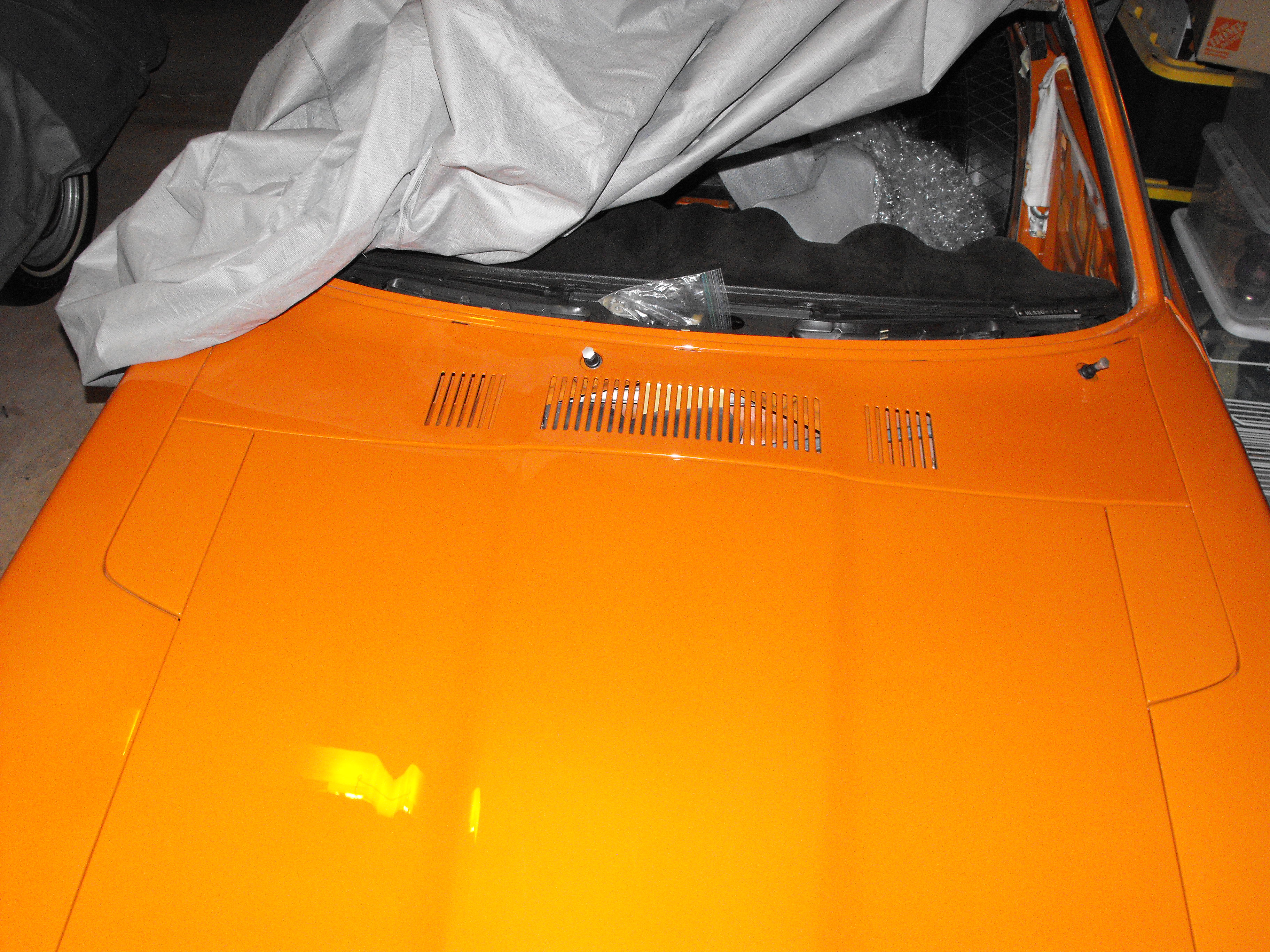

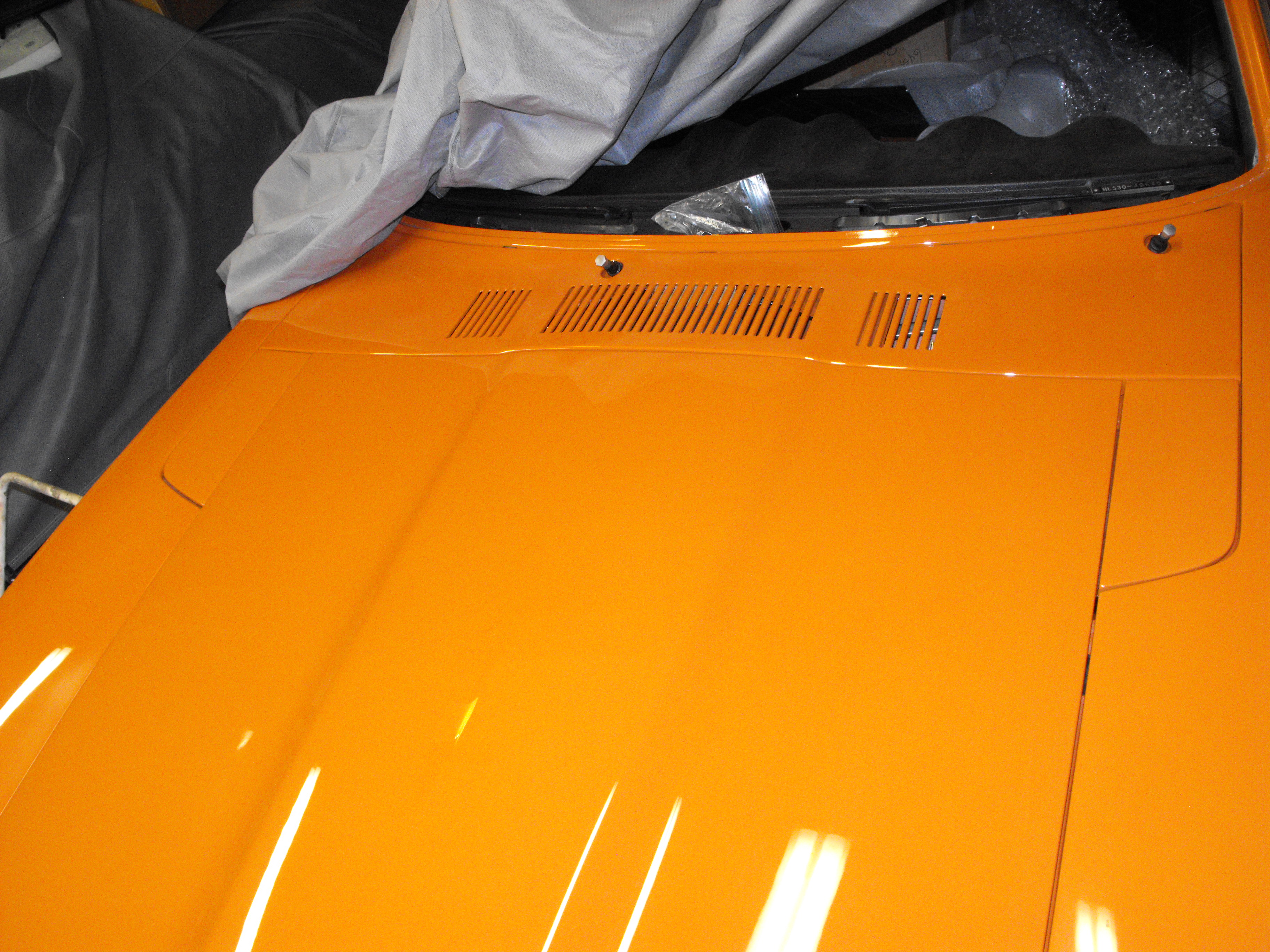

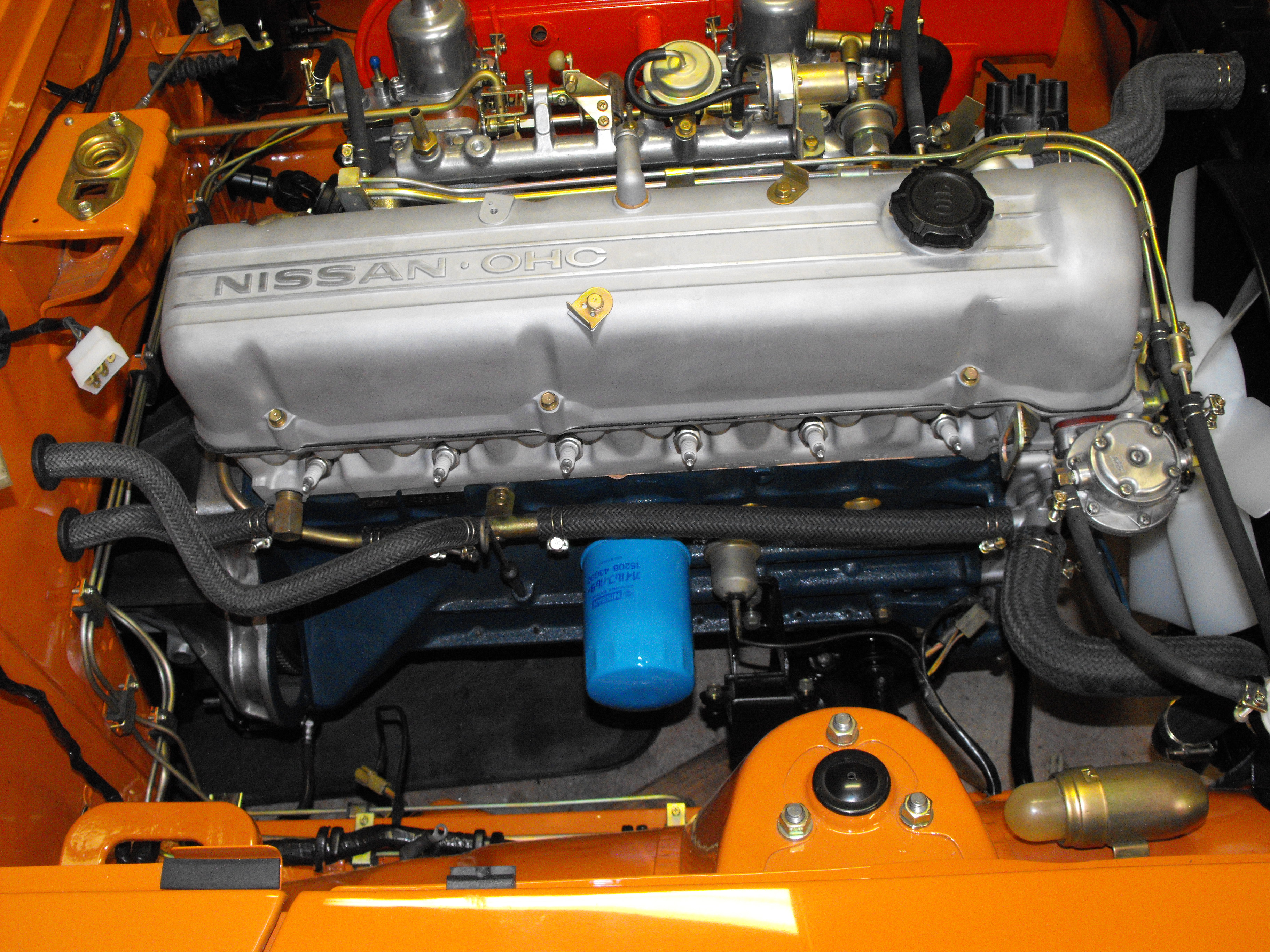

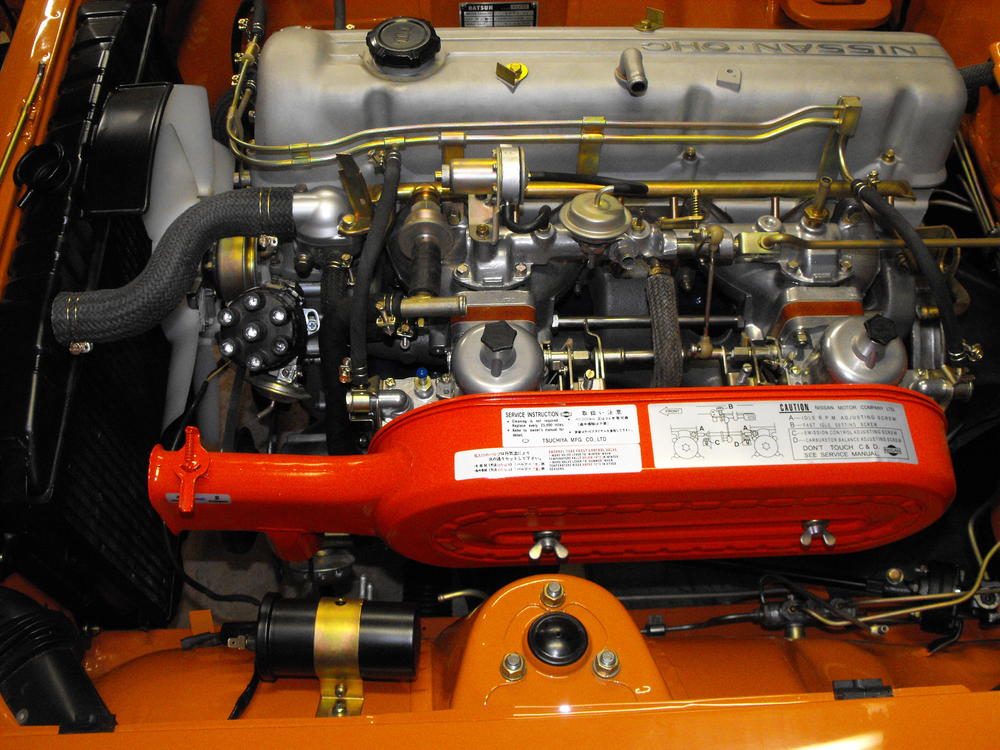

motorman7 Posted November 10, 2017 Author Share #328 Posted November 10, 2017 Got the clamps in. Nice engine jewelry. They look nice and are each individually bagged. This really is a good way to go if you want the wire clamps and are not in a hurry. I think the order took about 2 weeks to arrive. I did put a spot of grease on the threads as they seemed to run tight in the little attach plate. Otherwise, the clamps work well. Attached are a couple pics of them installed. Also got the hood aligned. The gaps look very consistent. Pics are below. Link to comment Share on other sites More sharing options...
grannyknot Posted November 10, 2017 Share #329 Posted November 10, 2017 Too nice to drive! Link to comment Share on other sites More sharing options...
Namerow Posted November 10, 2017 Share #330 Posted November 10, 2017 7 hours ago, motorman7 said: Got the clamps in. Nice engine jewelry. They look nice and are each individually bagged. Who did you source the clamps from? (I can't read the tags in the photo -- looks like just a bar code). Link to comment Share on other sites More sharing options...
motorman7 Posted November 10, 2017 Author Share #331 Posted November 10, 2017 On 10/26/2017 at 3:39 PM, motorman7 said: These are the clamps (QTY and size) that I ordered off of e-bay for the hose in the engine bay. Cost was less than $50 for 42 clamps, not bad. I measured the diameter of each hose using my calipers and ordered clamps that were in the range. Double Wire Hose Clamp Pipe Clip Screw Bolt Tight Fitting Classic Zinc 9-120MM ( 351393130624 ) Clamp Diameter: 25-29Mm Quantity: 4 ITEM PRICE: US $4.64 Clamp Diameter: 40-45Mm Quantity: 6 ITEM PRICE: US $7.38 Clamp Diameter: 13-16Mm Quantity: 12 This item has been shipped. ITEM PRICE: US $12.60 Clamp Diameter: 28-32Mm Quantity: 4 This item has been shipped. ITEM PRICE: US $4.84 Clamp Diameter: 20-24Mm Quantity: 10 This item has been shipped. ITEM PRICE: US $11.50 Clamp Diameter: 18-22Mm Quantity: 8 This item has been shipped. ITEM PRICE: US $8.88 The link in blue is where I ordered the clamps from. Cost is a little over $1 each. Not bad. 1 Link to comment Share on other sites More sharing options...
duffymahoney Posted November 10, 2017 Share #332 Posted November 10, 2017 I bought some as well. Thanks! Link to comment Share on other sites More sharing options...
rcb280z Posted November 10, 2017 Share #333 Posted November 10, 2017 Me too! Link to comment Share on other sites More sharing options...
duffymahoney Posted November 10, 2017 Share #334 Posted November 10, 2017 I ended up getting a few of the smallest size for the fuel lines. Which you didn't list. I have 80% or so of my stock ones replated, but a few were broken or missing. Link to comment Share on other sites More sharing options...
dmorales-bello Posted November 10, 2017 Share #335 Posted November 10, 2017 Just copied your order. Thanks for taking the trouble to post the link and list. Link to comment Share on other sites More sharing options...
motorman7 Posted November 10, 2017 Author Share #336 Posted November 10, 2017 2 hours ago, duffymahoney said: I ended up getting a few of the smallest size for the fuel lines. Which you didn't list. I have 80% or so of my stock ones replated, but a few were broken or missing. Yes, I noticed that fuel line OD seems to vary between brands and styles. The cloth wrap stuff I am using is a smaller OD than the standard Auto part store tubing. The small clamps will fit the cloth wrap line better. Also, it is fairly simple to make the clamp diameter smaller if they need to be reduced. You can cut off a small portion of the two wires that protrude through the plate and reform the wire into the u-shape, making the overall diameter smaller. Link to comment Share on other sites More sharing options...
