duffymahoney

Super cool!

So cool! Fun build and I love following along. Gosh I hate facebook compared to forums.

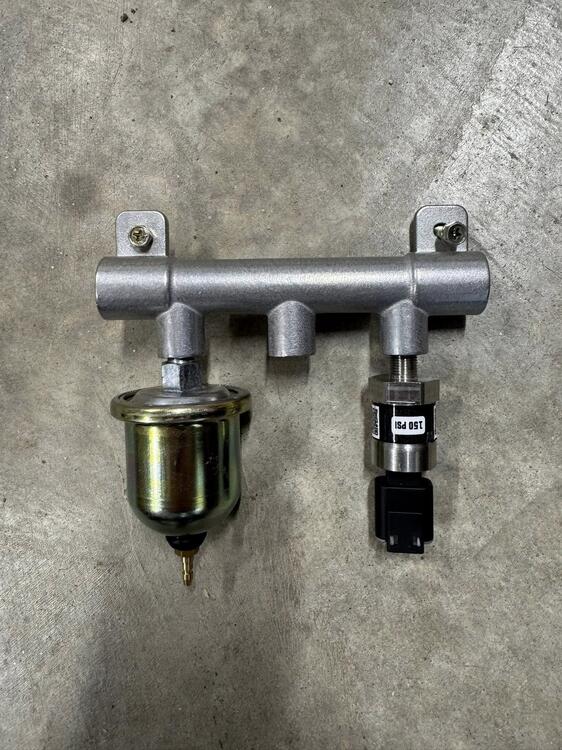

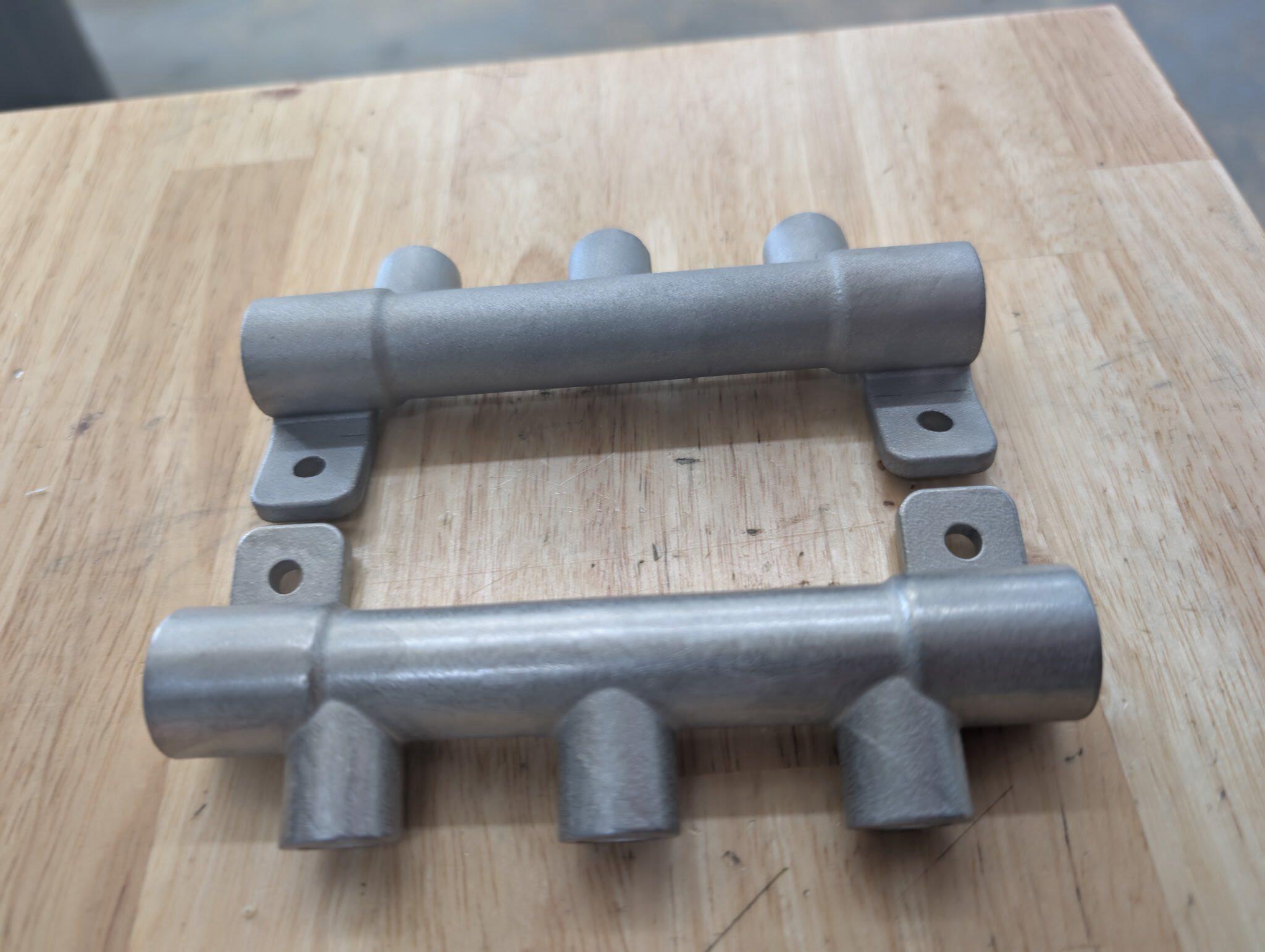

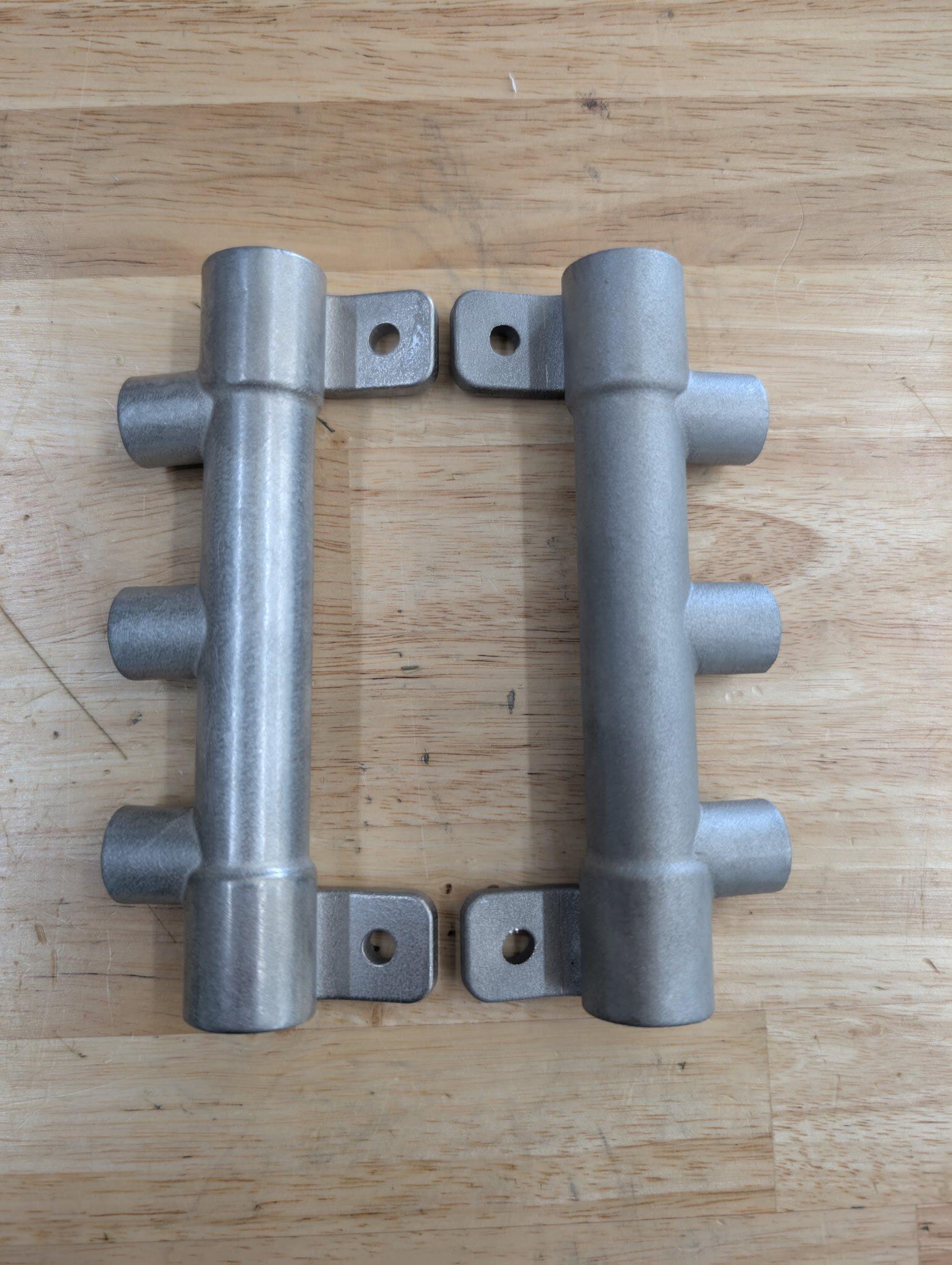

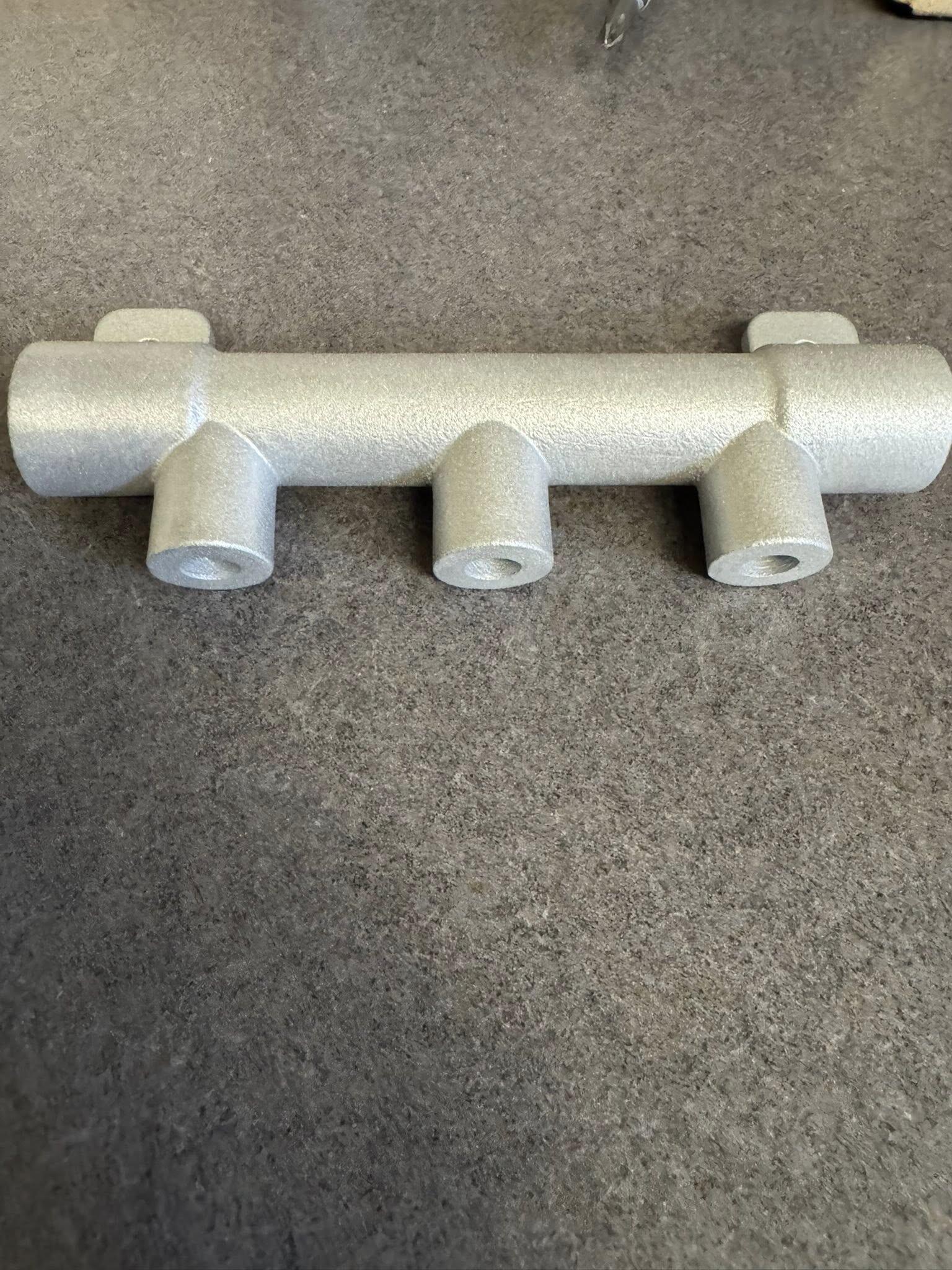

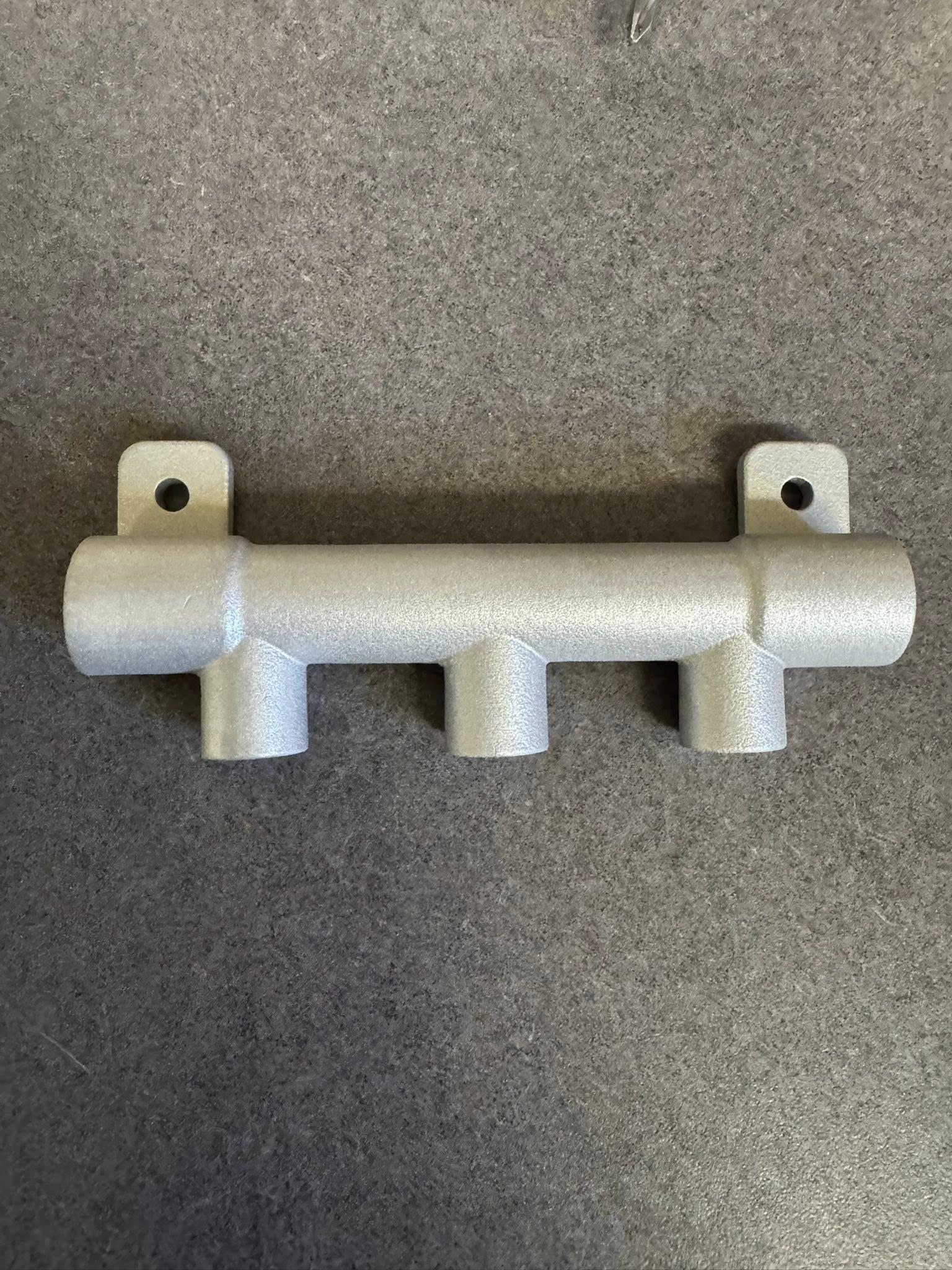

I got my Datsun Z Car Series Oil Sending Unit Relocation / Remote Block done! I have only one for sale now, but more are on order. I am pretty proud of this design. Three outlet remote oil sending unit block. Metal 3D printed out of aluminum to look stock and mimics the 240z, 260z and 280z brake proportioning block design. Block has 3 outlets, all are 1/8 NPT. Comes with a custom length -3AN hose and one 1/8 NPT -3AN fitting and either a 1/8 BSPT or 1/8 NPT for the engine block side of the hose. Stock sending unit on a 240z is BSPT, this will require a NPT sending unit like this. [https://zcardepot.com/products/oil-pressure-gauge-sender-240z-260z-280z-70-77?variant=32184292737137](https://zcardepot.com/products/oil-pressure-gauge-sender-240z-260z-280z-70-77?variant=32184292737137) No sending units come with this order. Pictures of sending units are just for reference. Link: https://www.m2racing.com/shop/p/datsun-z-car-series-oil-sending-unit-relocation-remote-block

Thanks! Pretty darn happy with how it all came out.

No idea on that one.

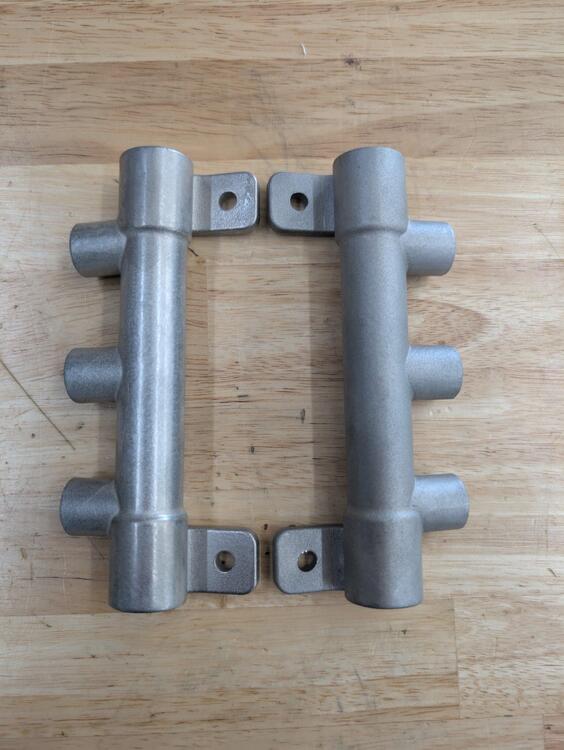

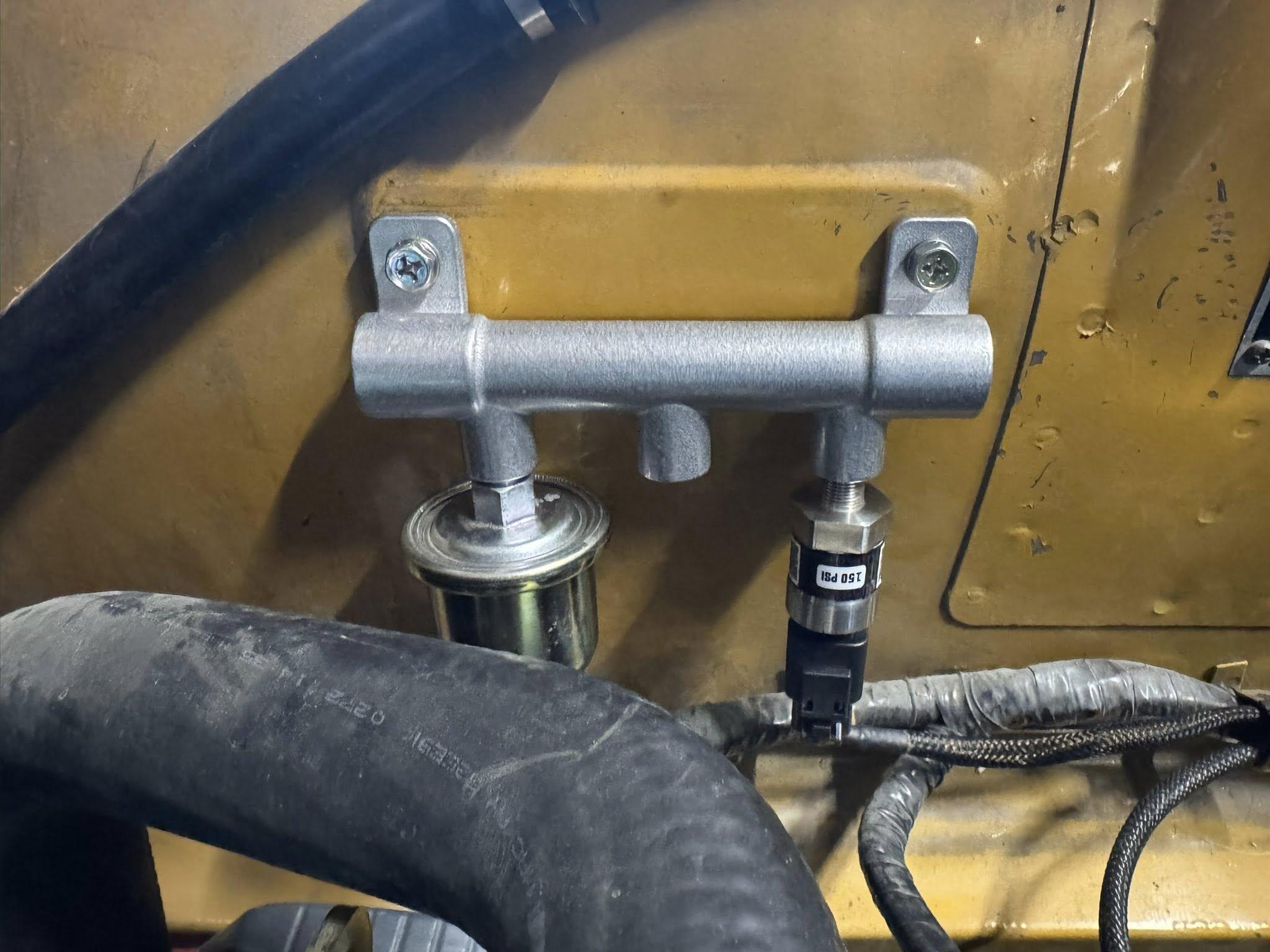

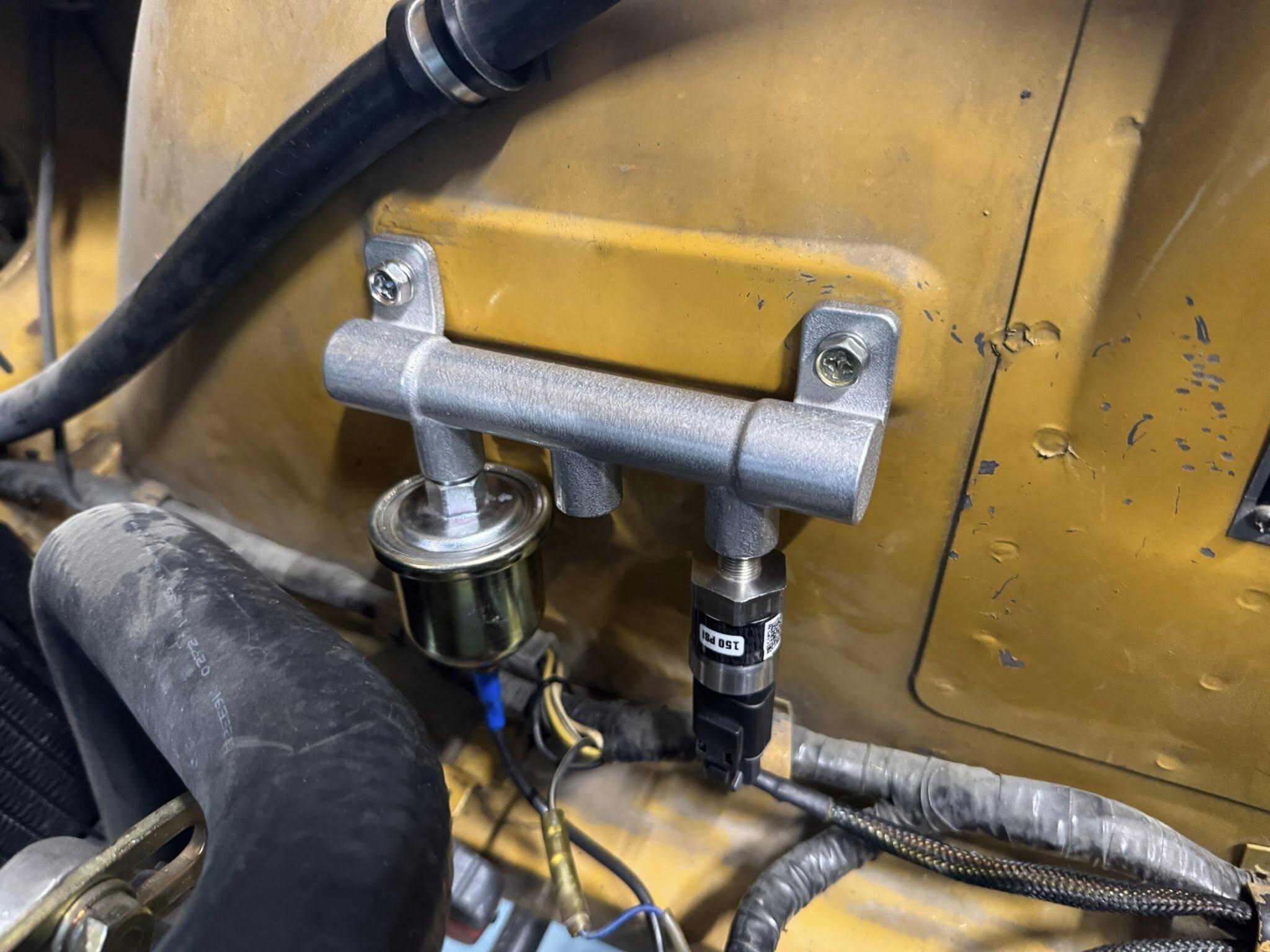

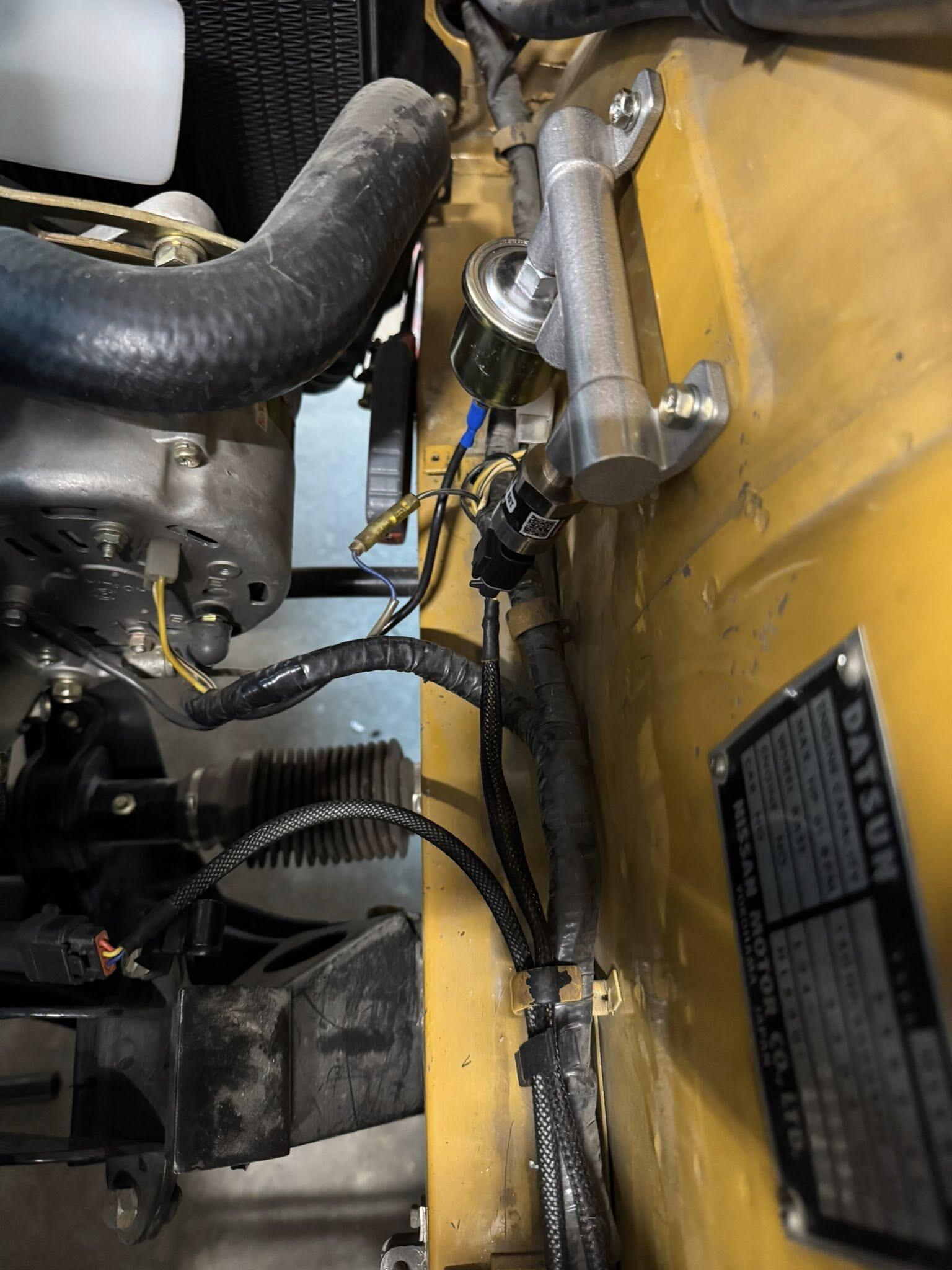

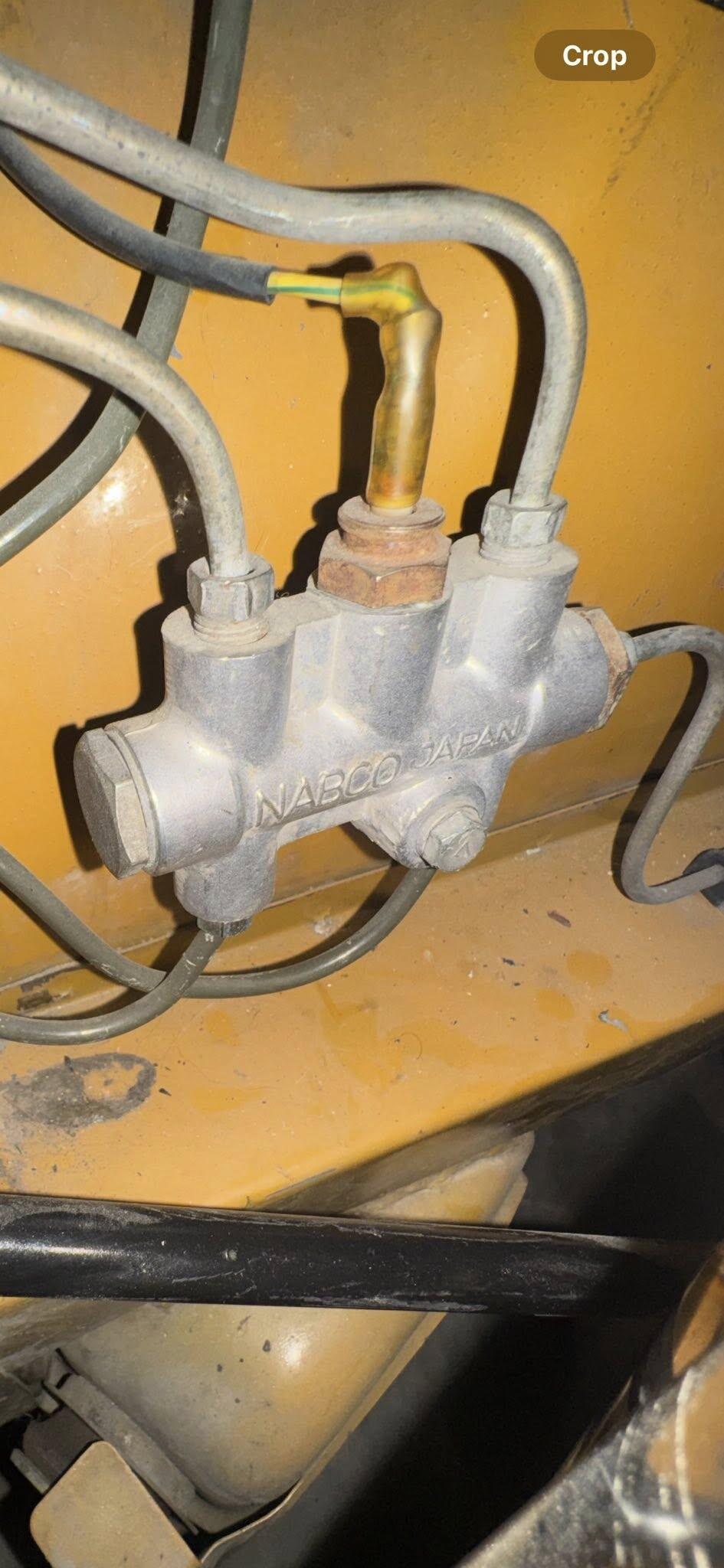

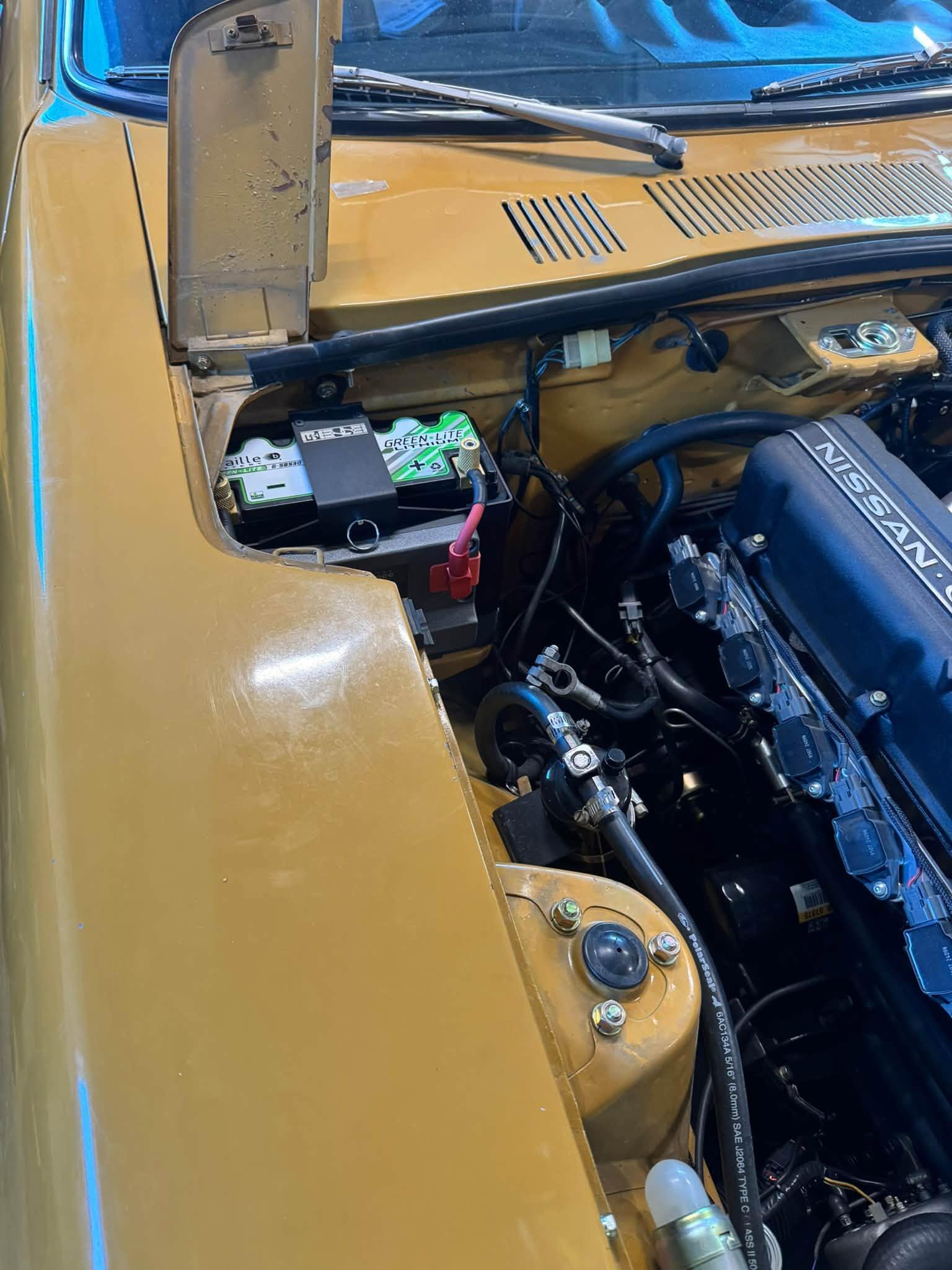

Here is something fun/ silly I have been thinking of and finally made. It’s a remote oil pressure distribution block made to look like the stock 240z brake prop valve. I previously had a steel T In the block, that broke off and then when I was using an easy out I cracked my stock block bung. I said never again! 3D metal printing is neat stuff. I had it tumbled to look even more cast. I run stock gauges and my ecu needs its own signal. This location allows stock wiring to also work.

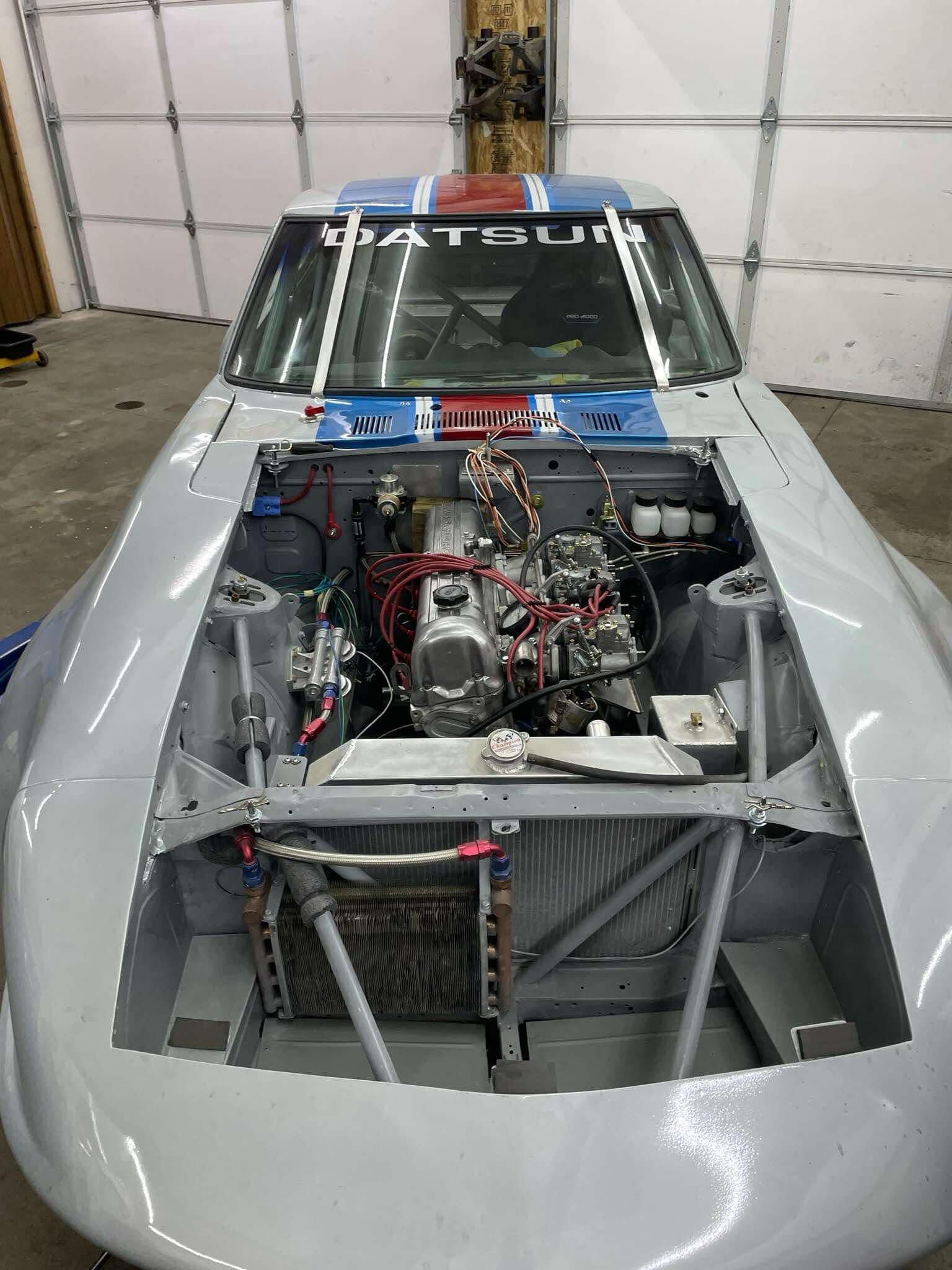

Man that is a sexy z car

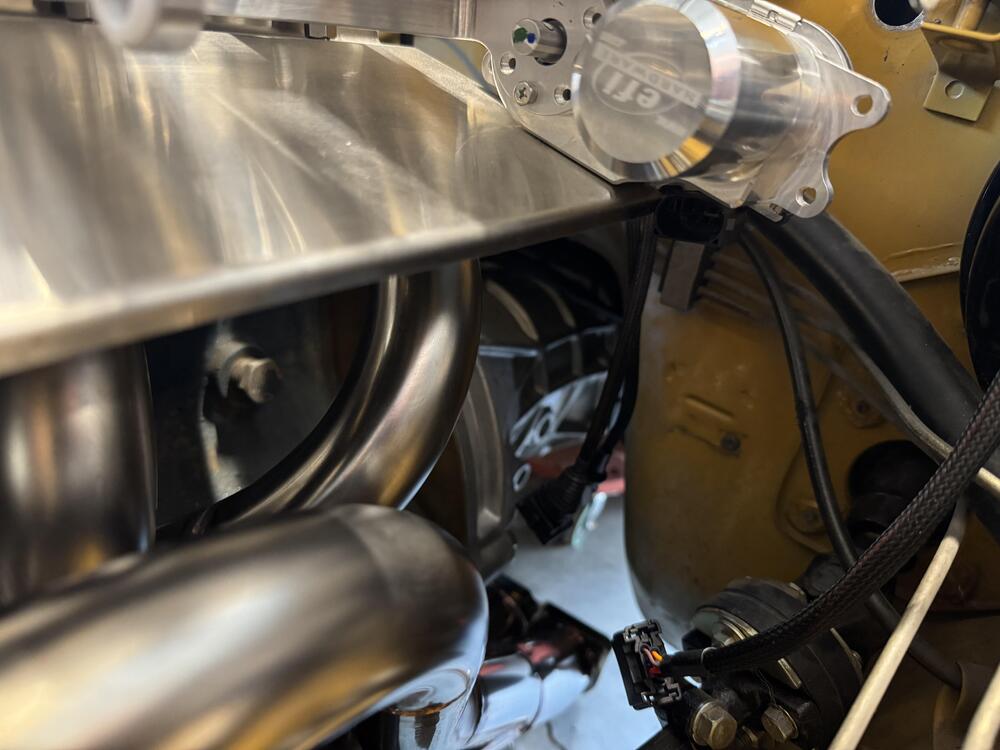

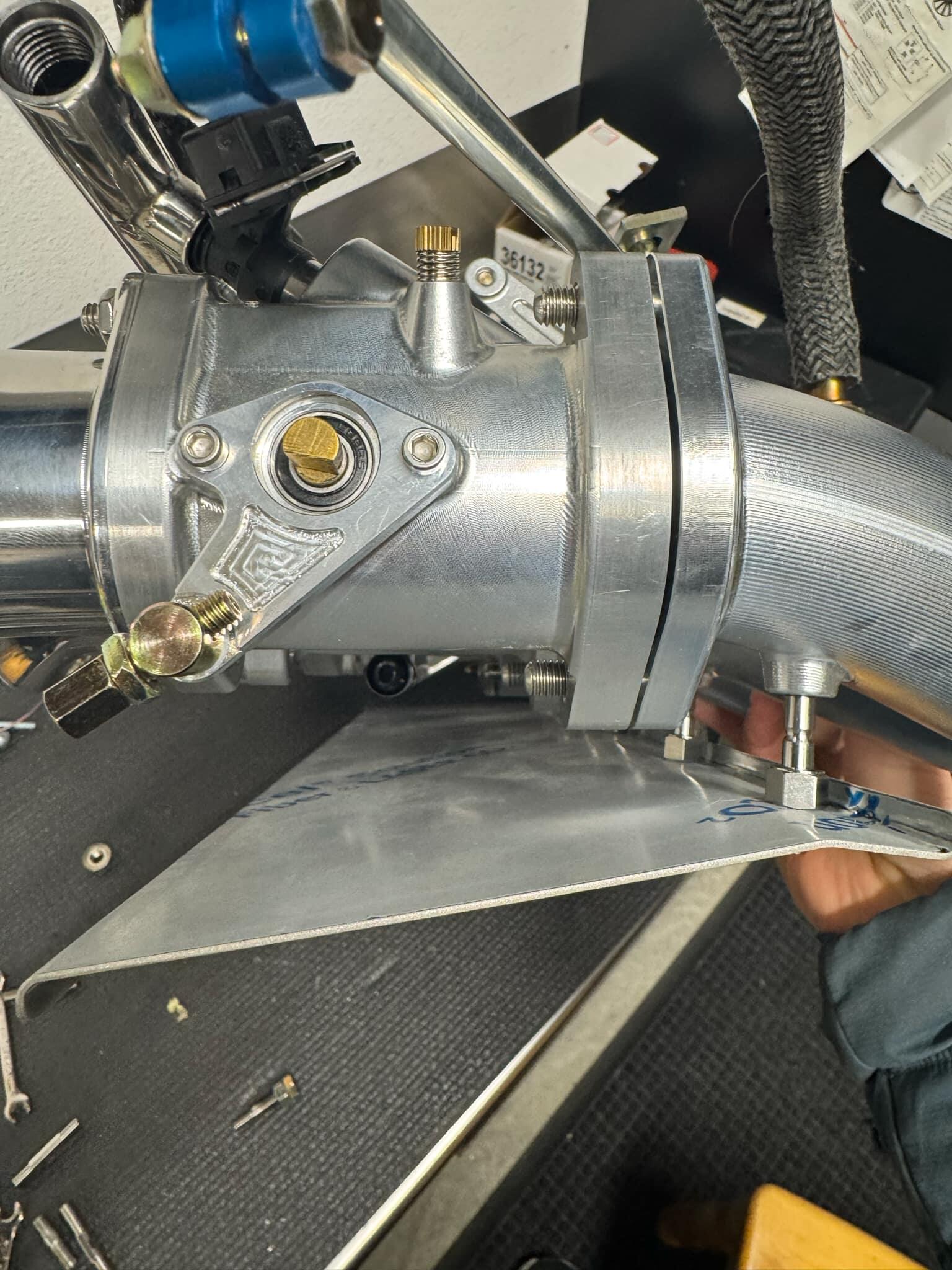

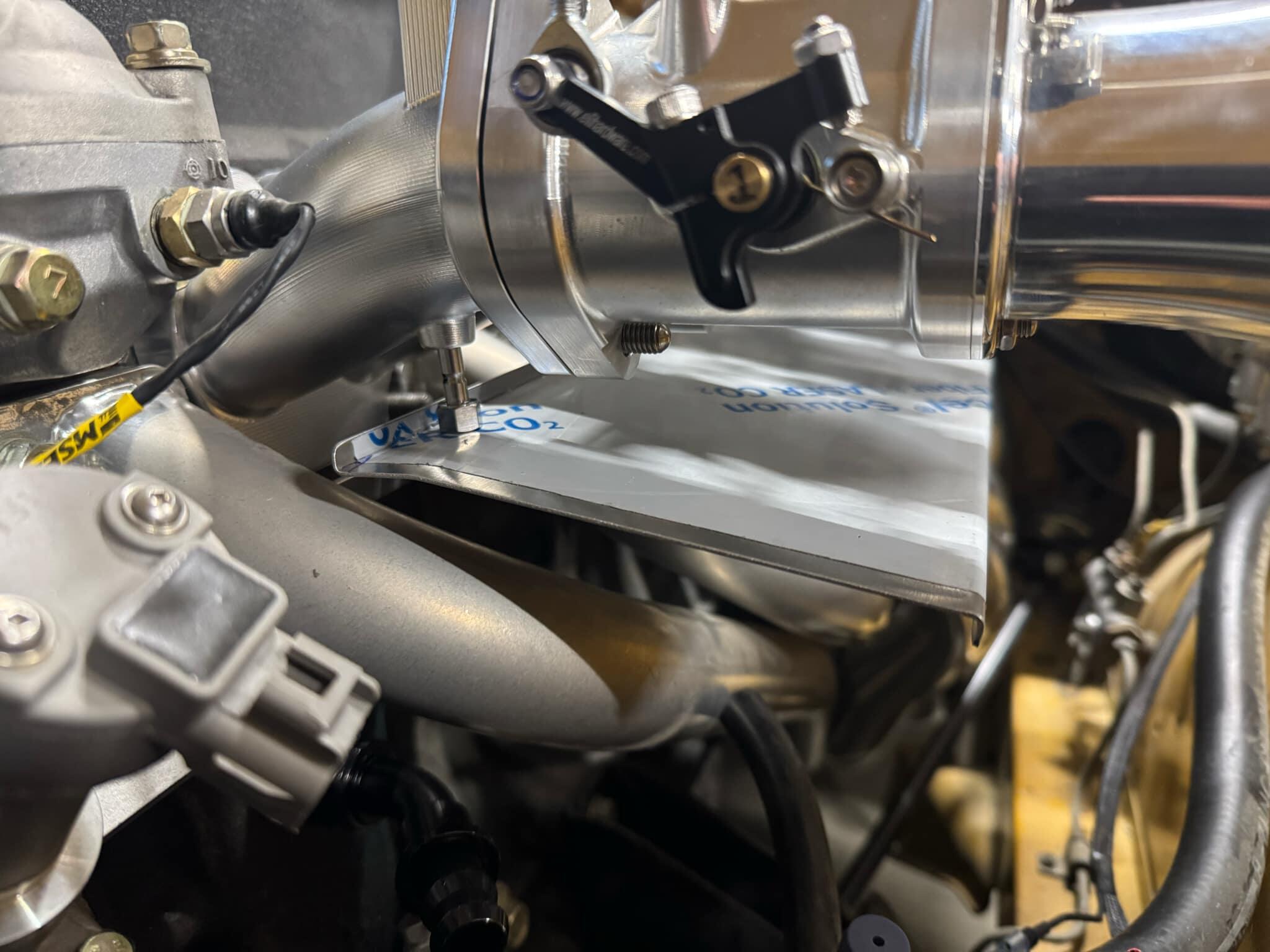

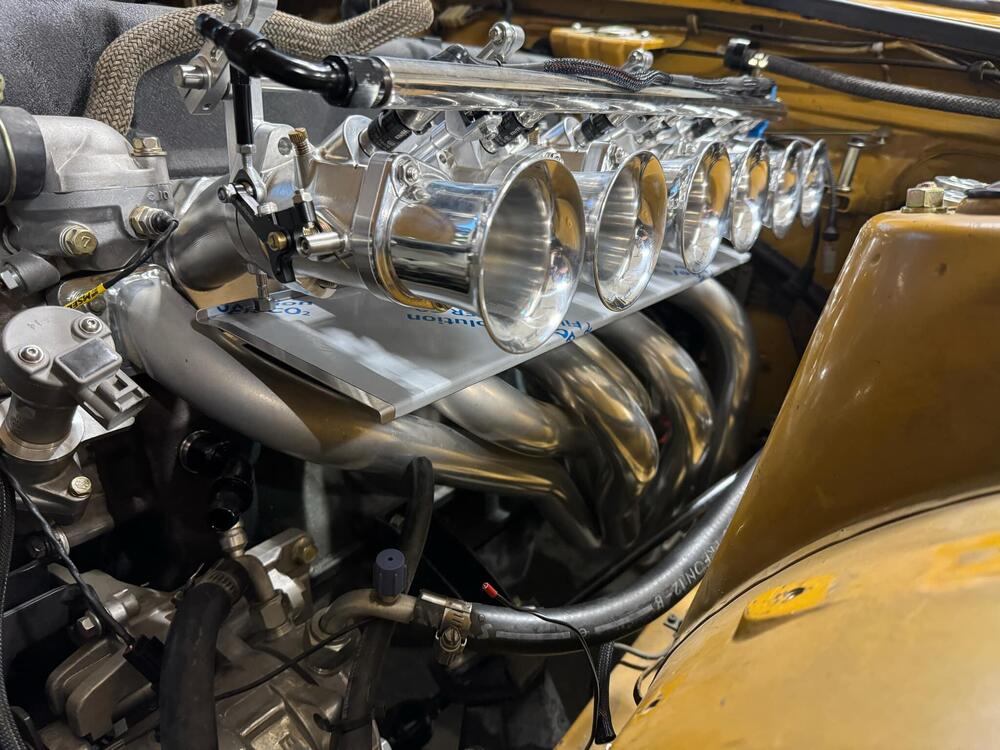

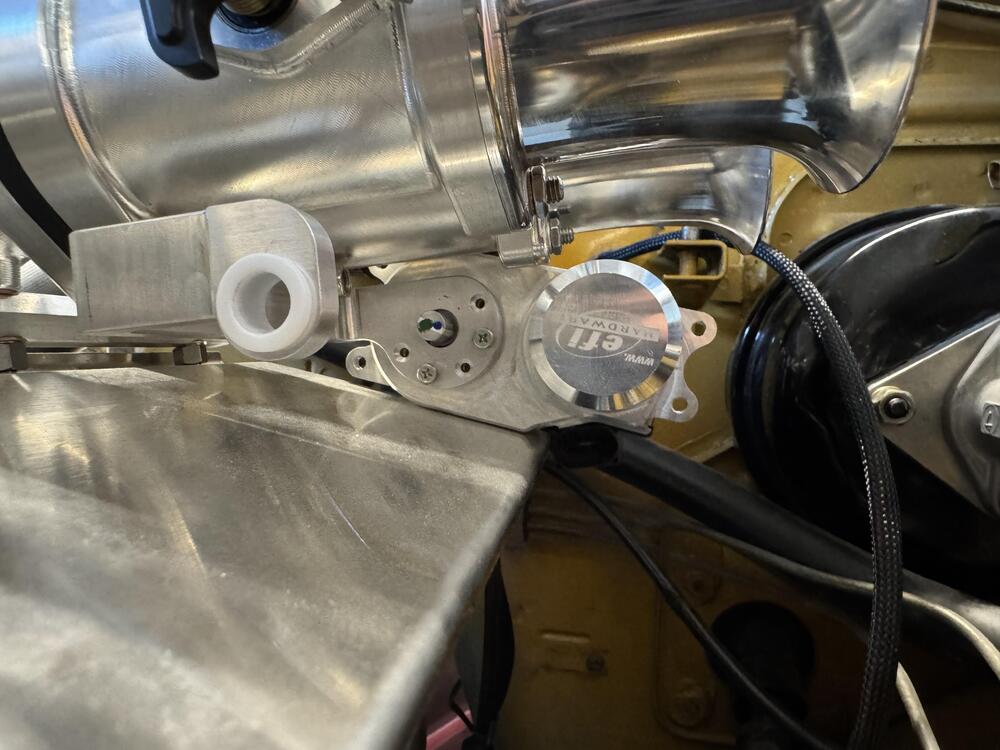

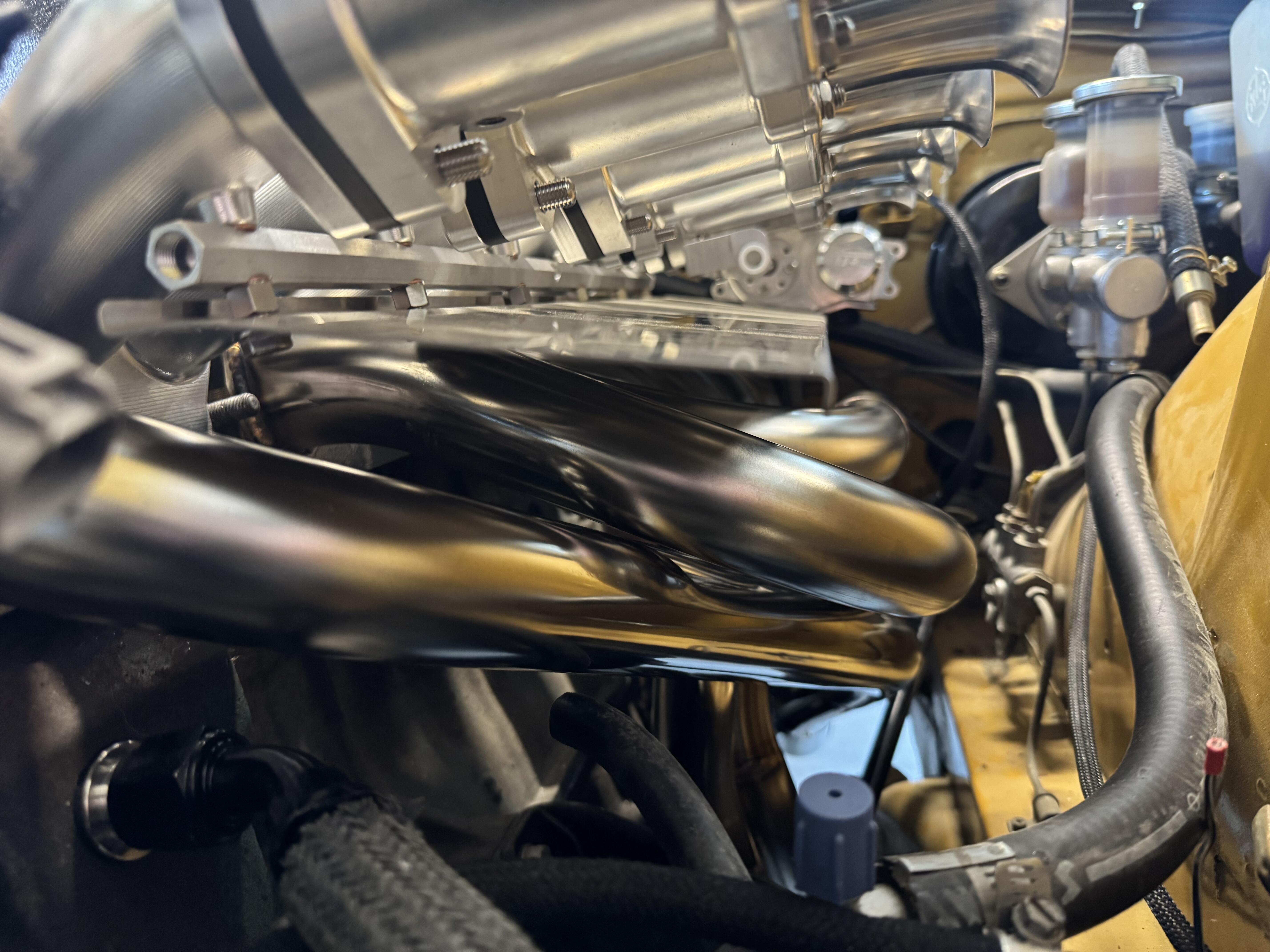

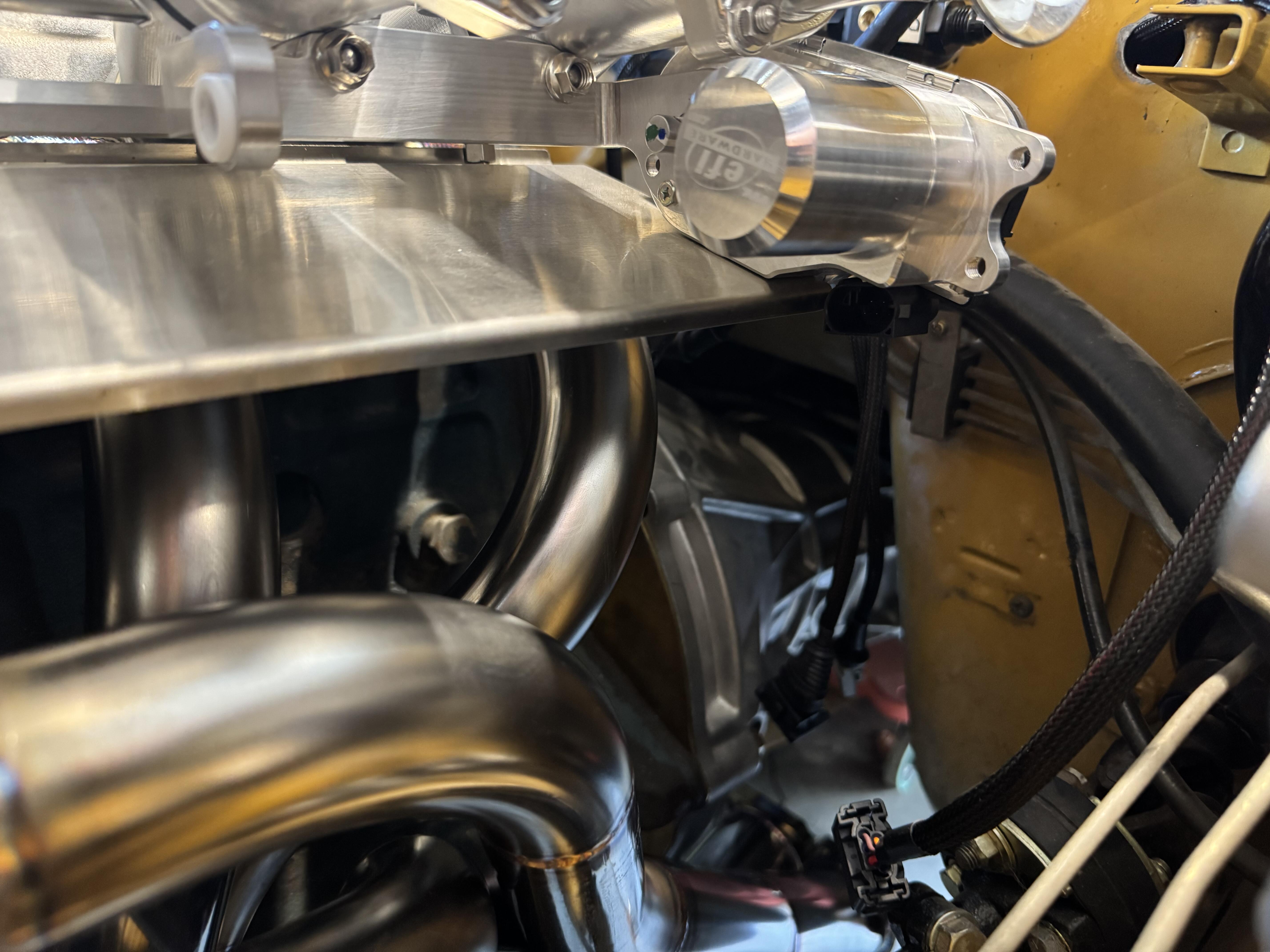

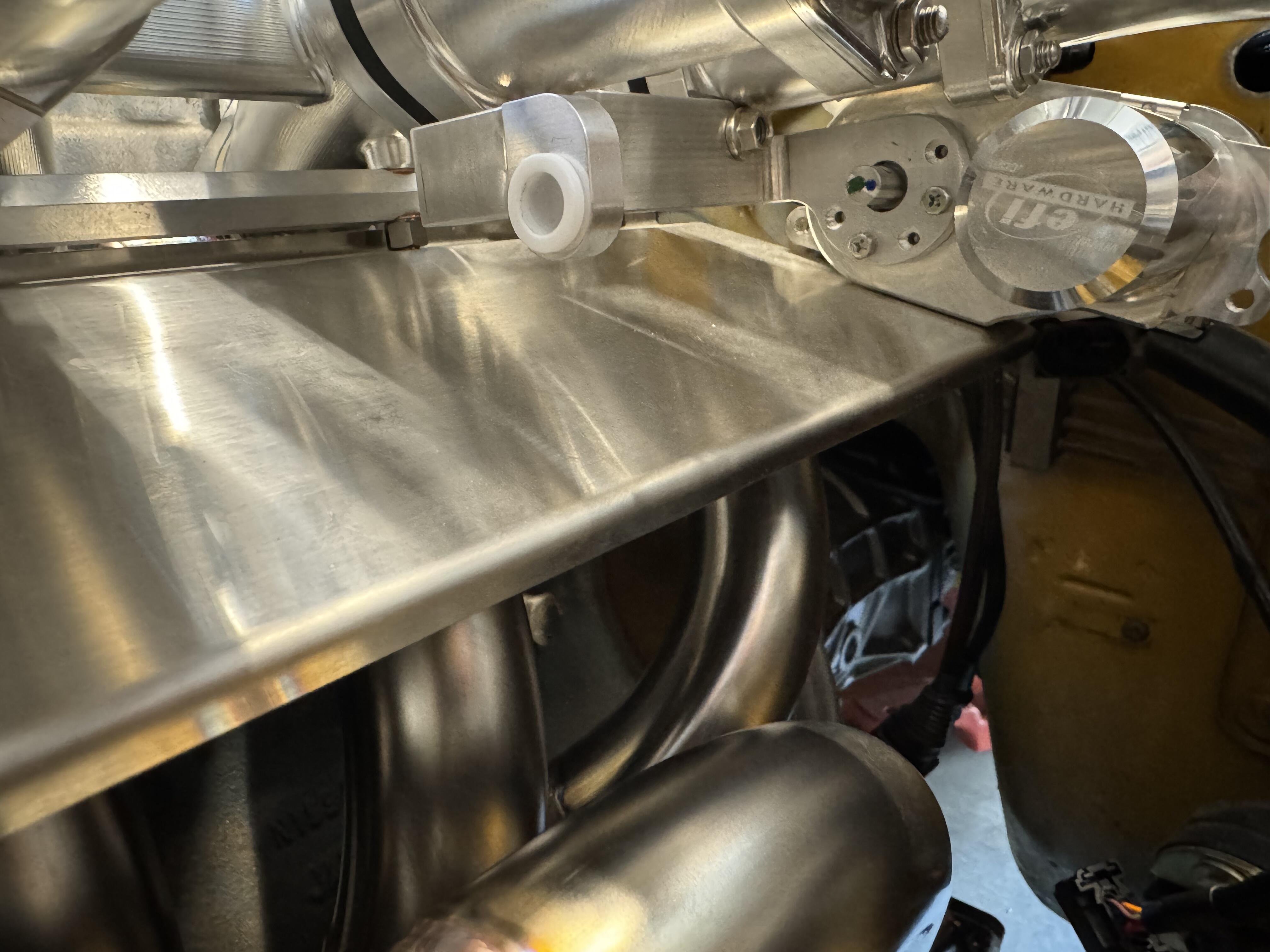

I love it when a plan comes together! Fully operational below dcoe throttle body actuator for DBW ITB. Mostly hidden!

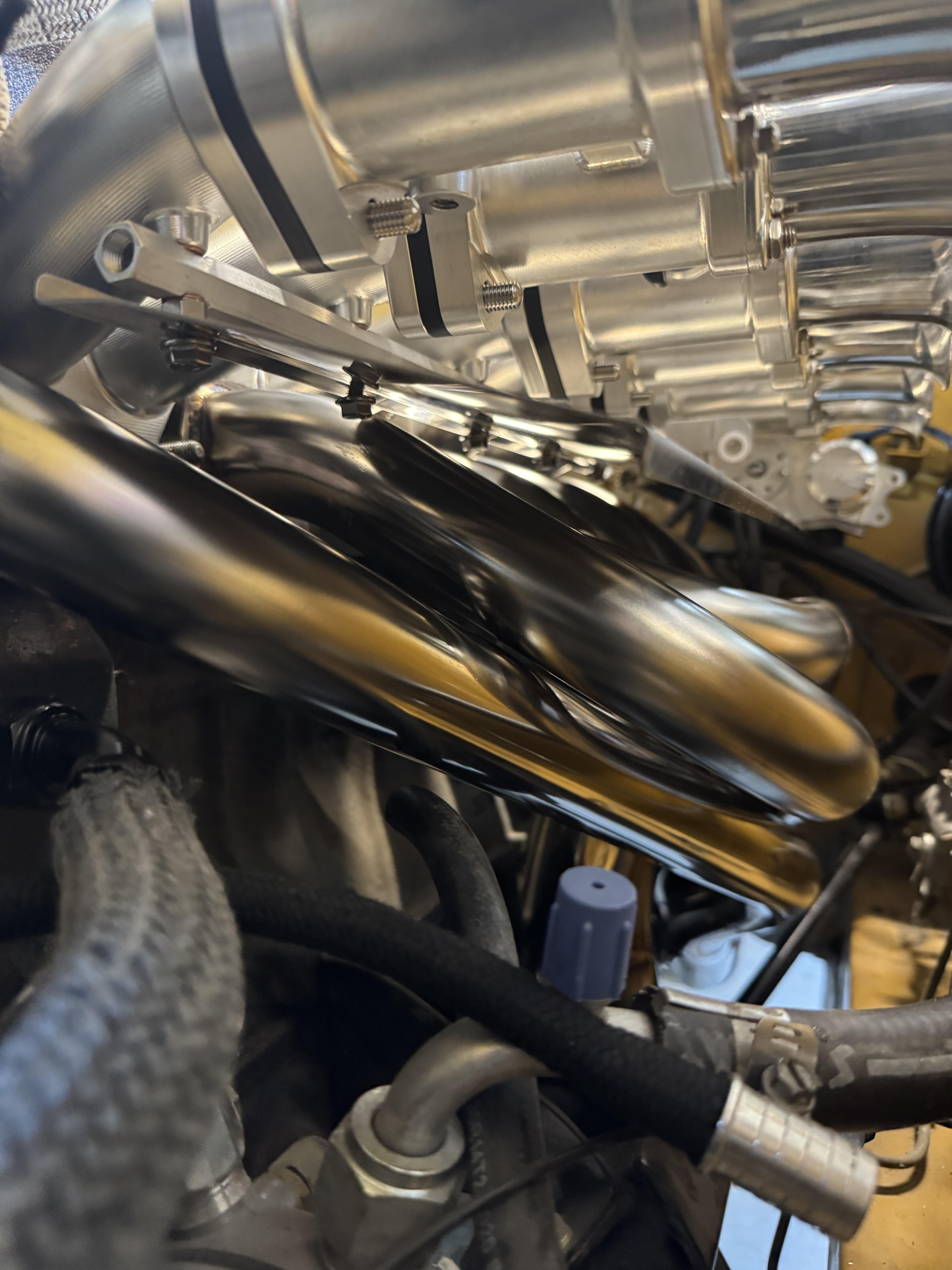

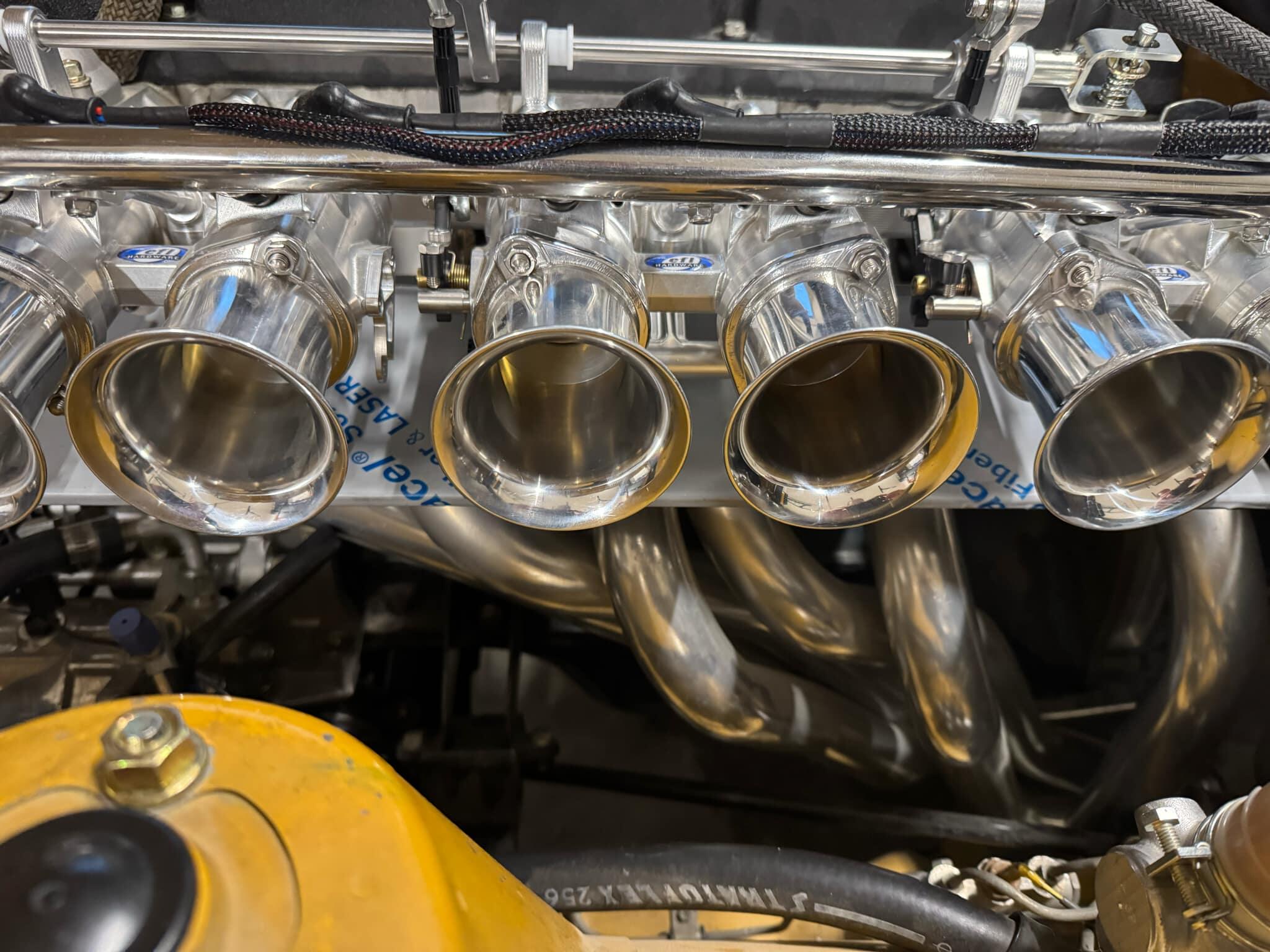

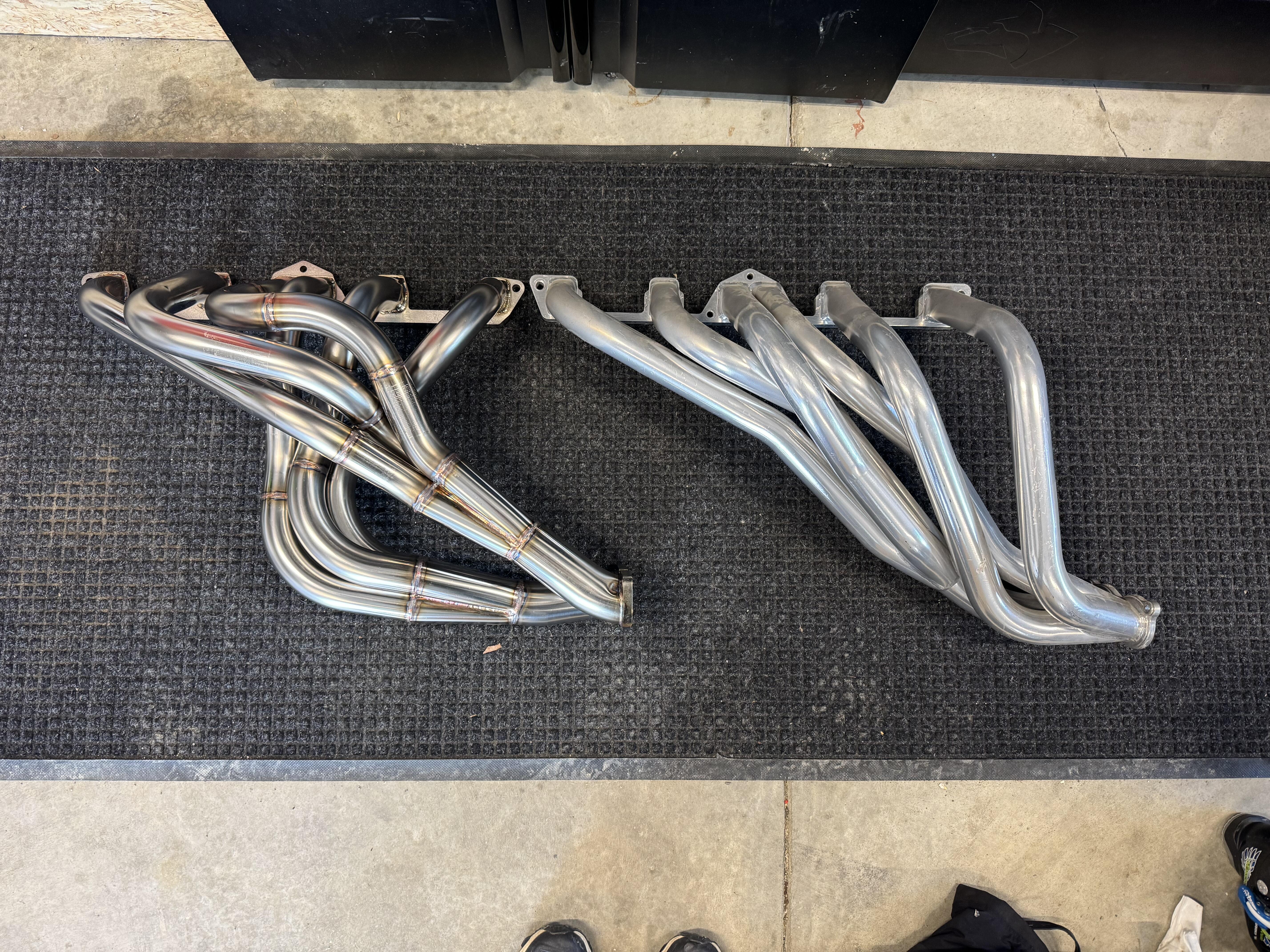

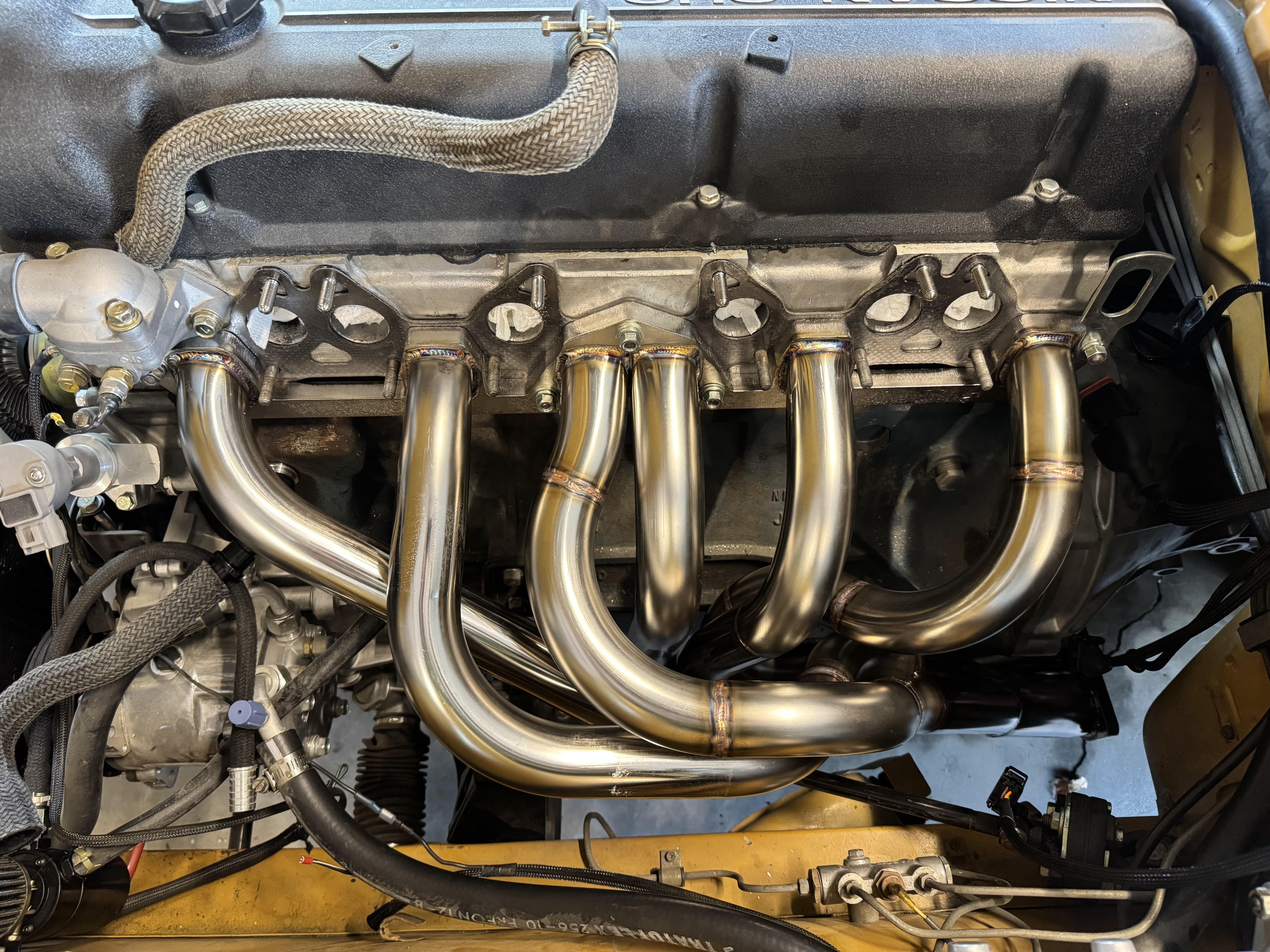

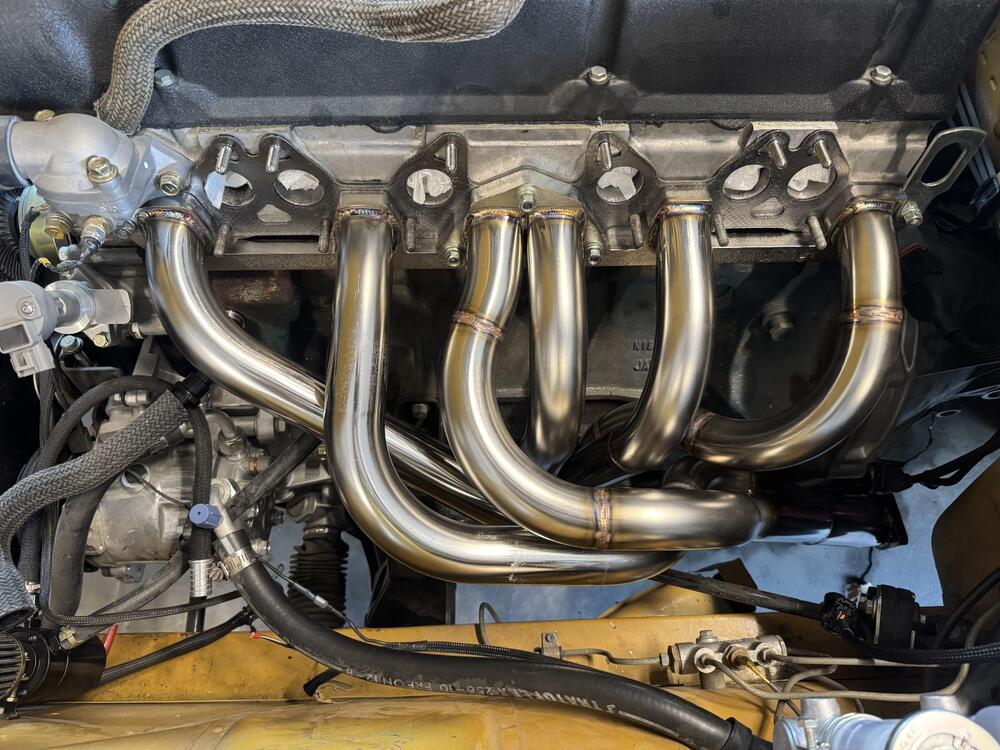

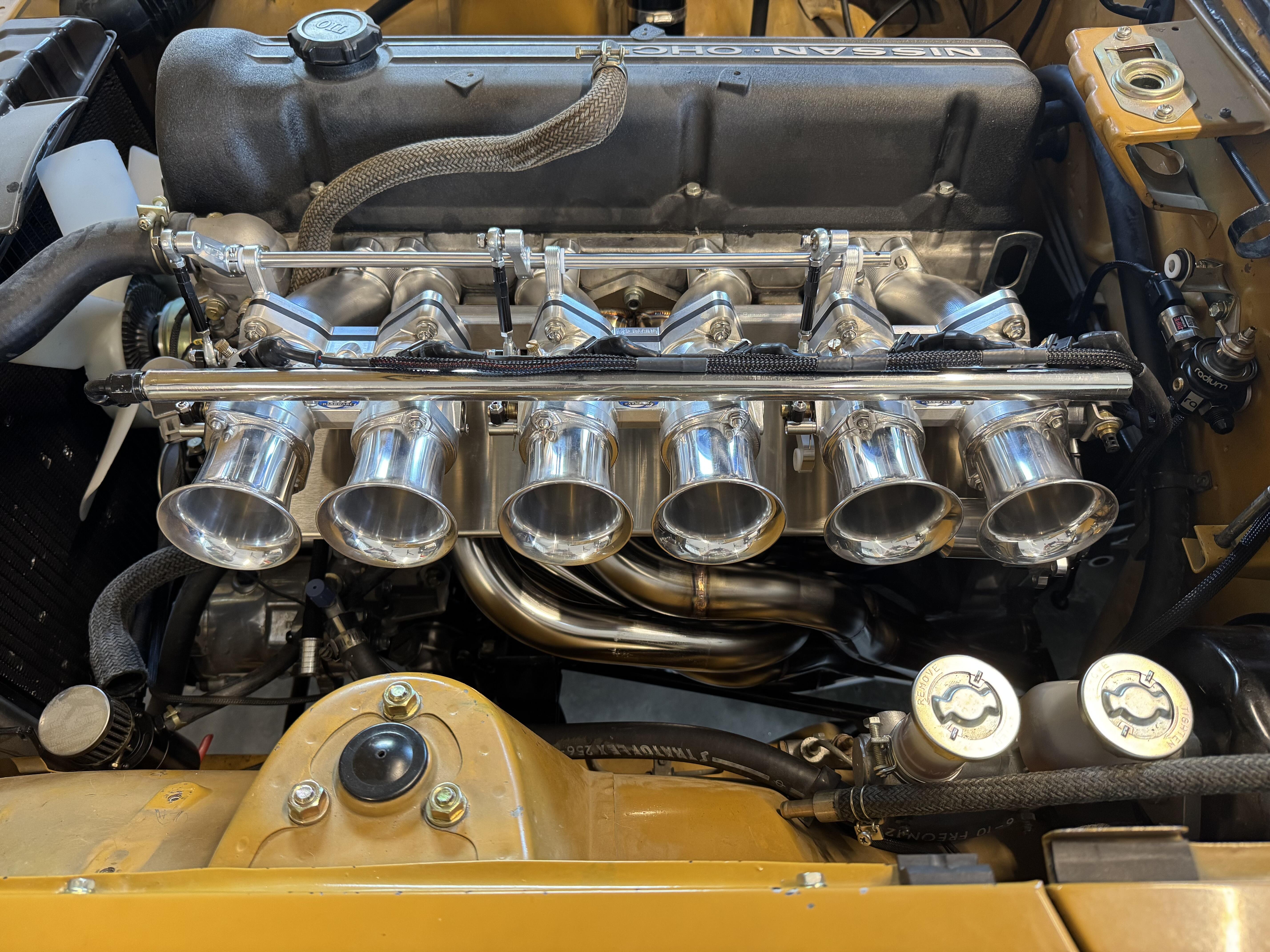

Well I decided to pick a new header. I wanted the header to give my room on port 5-6 for my lower mounted actuator and also get out of the way of the throttle bodies a little more. I decided on the Kameari drag 45mm. Which I purchased through Binh Nguyen. The header design gives me plenty of clearance for my actuator and throttles! Pretty darn happy with it overall. Prior I had a now moth balled Fujitsubo header. Which had a terrible runner design for a lower actuator.

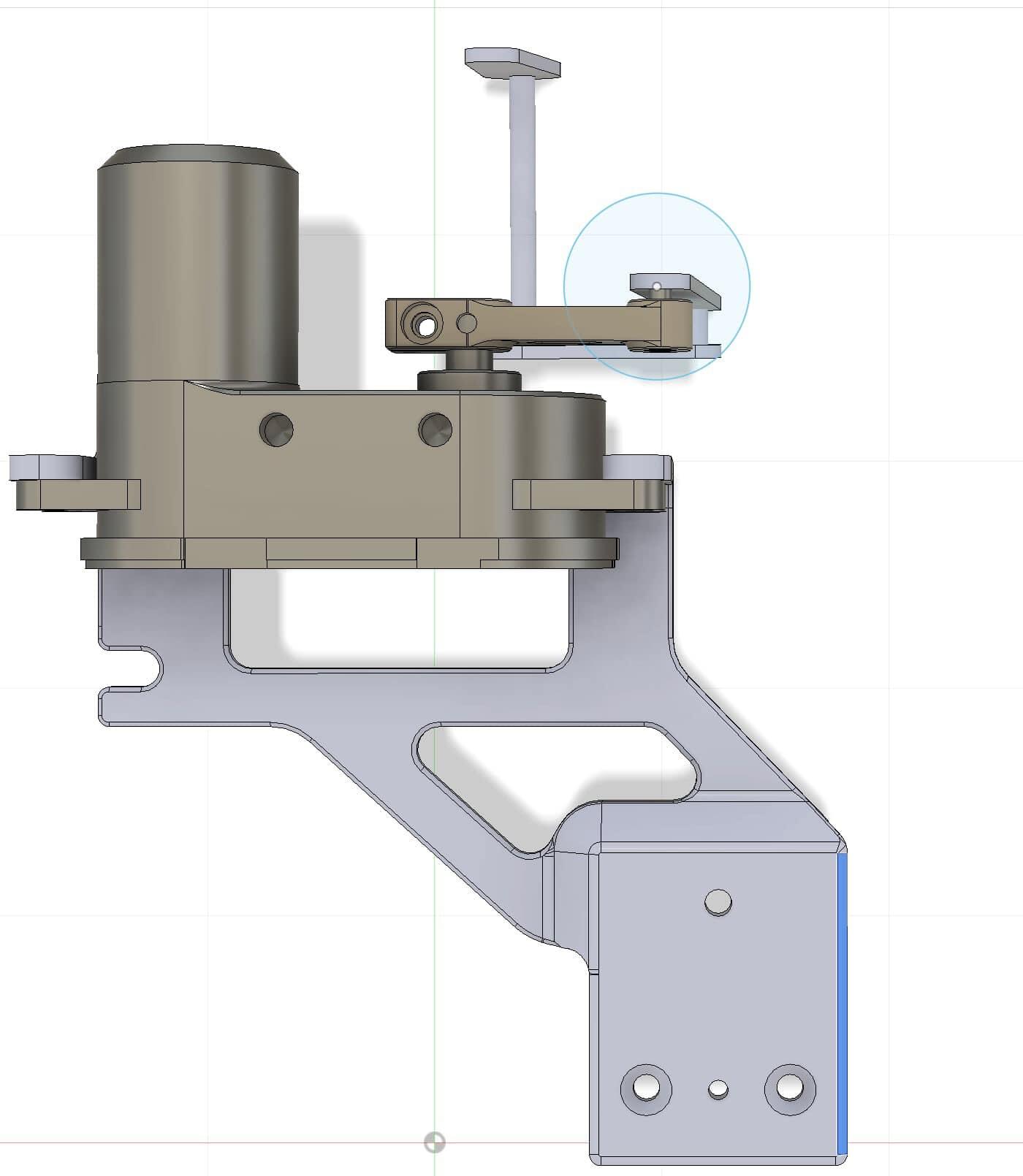

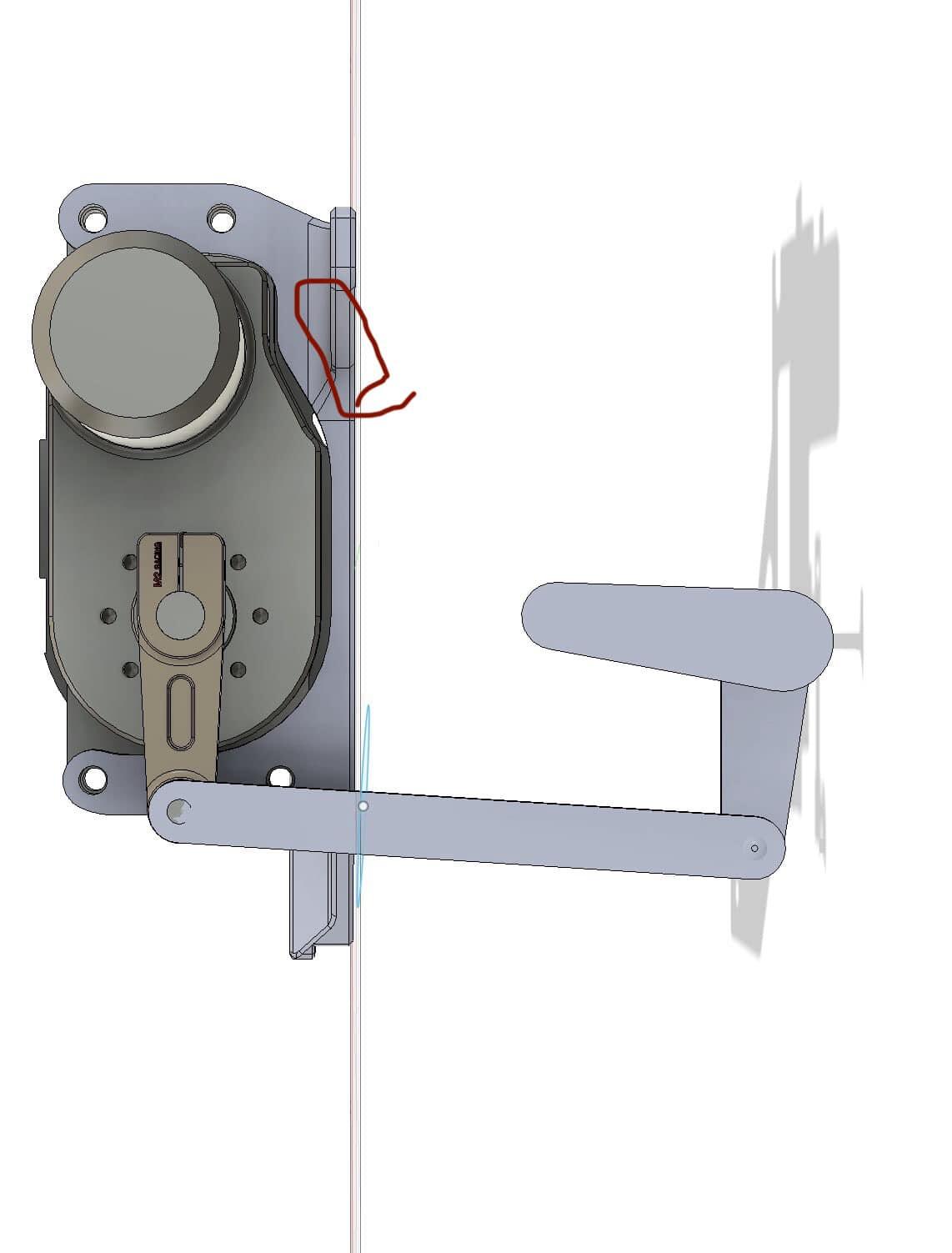

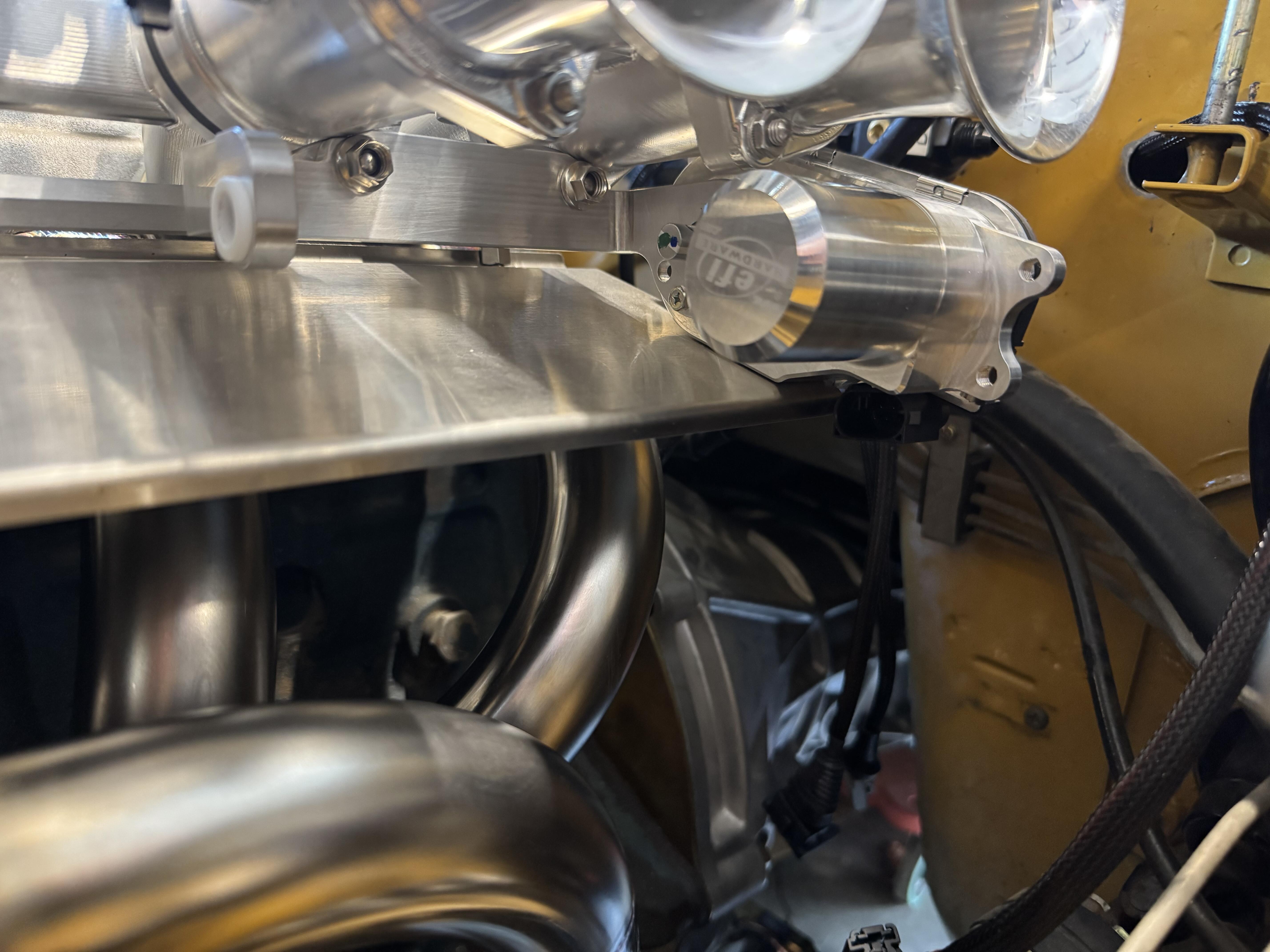

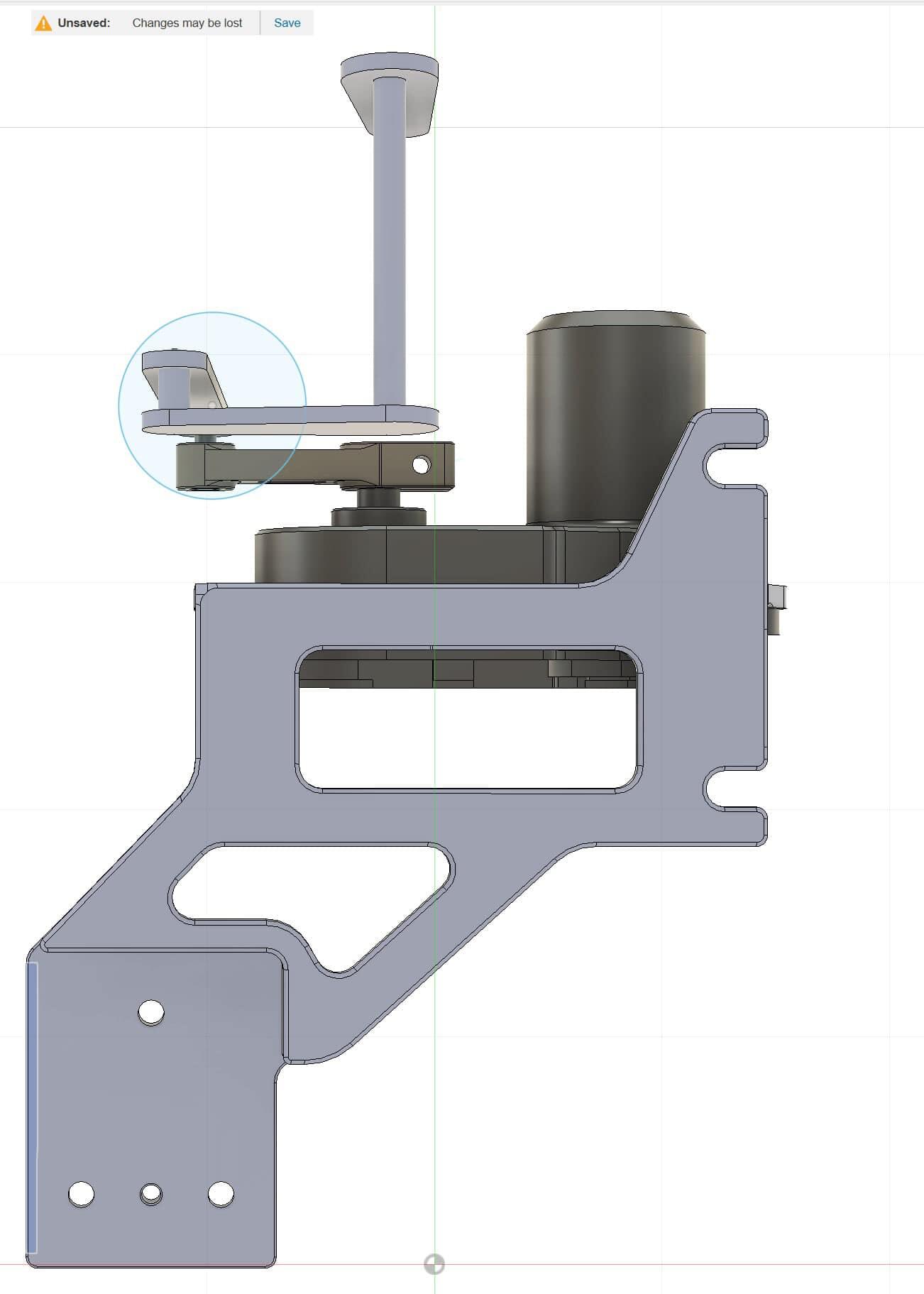

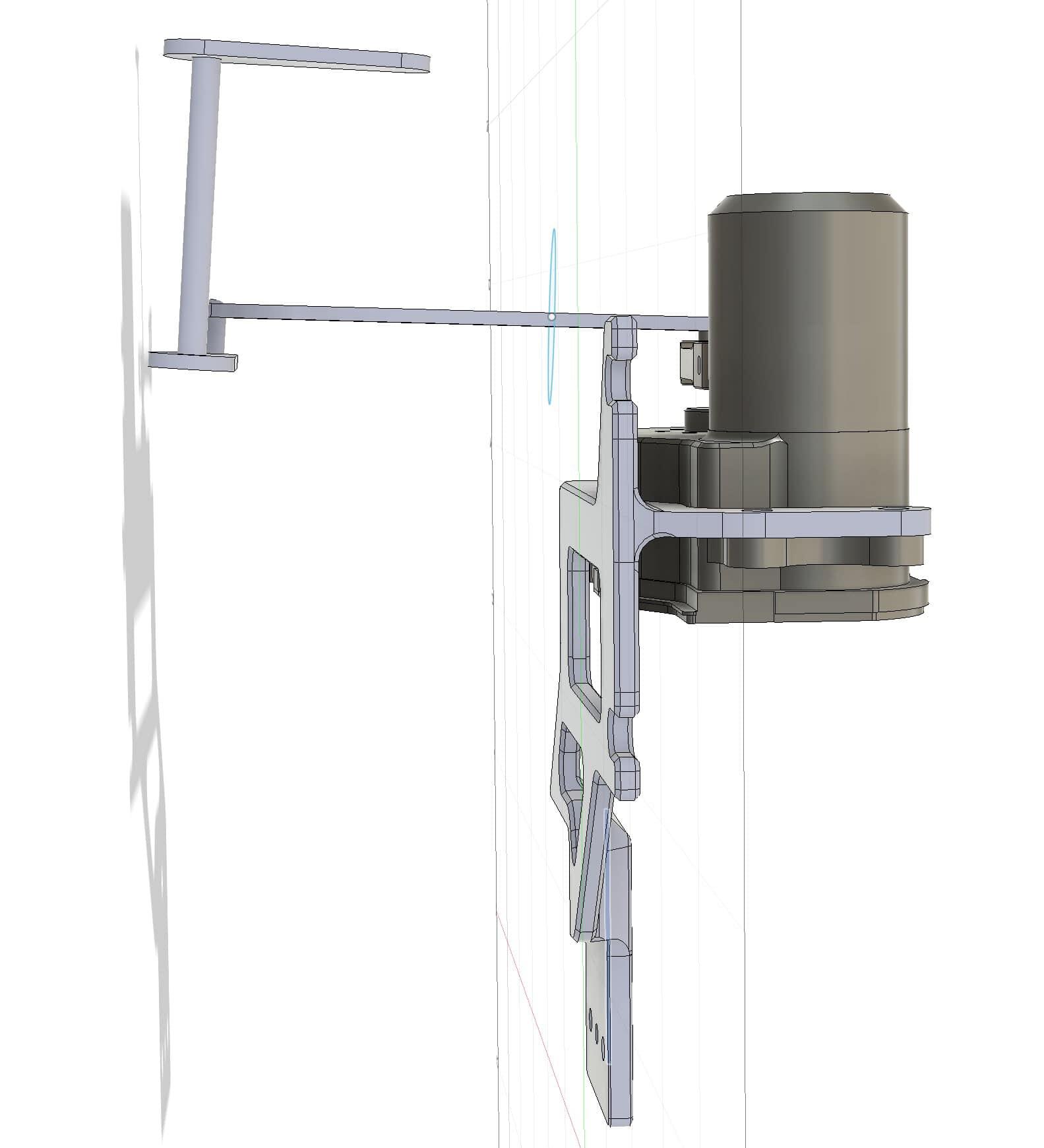

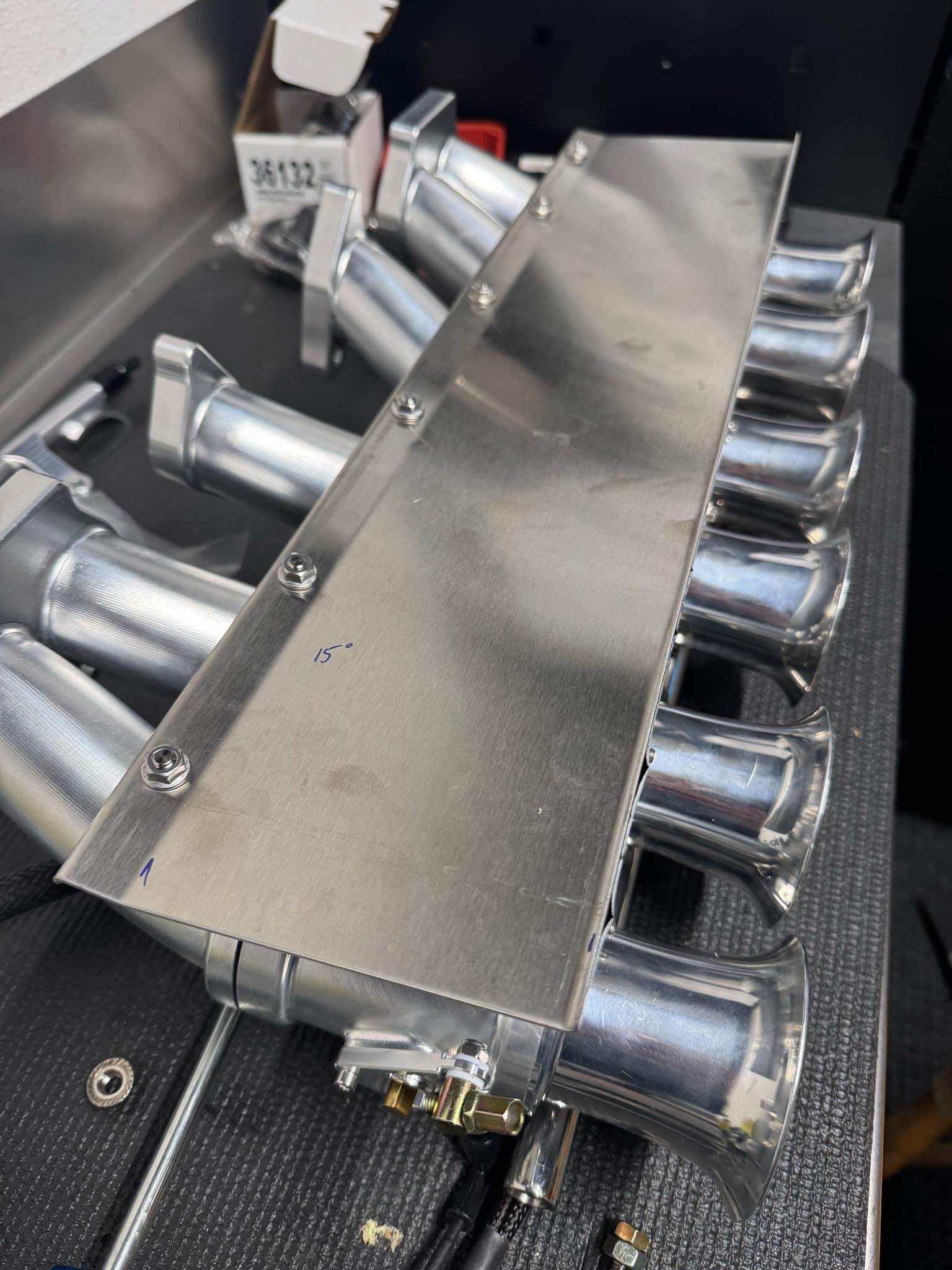

240z hidden drive by wire actuator for my ITB setup. This is design number 4. This plan utilizes a Efi hardware actuator. The goal is the same length arm to the bell crank and distances from shafts and the rod. So the rod passes through the firewall evenly and doesn’t walk from left to right. This will mount to the pedal plate and the steering box mounts. So behind the firewall Prior designs walked too much in the hole and I don’t want that.

I bought them as well!

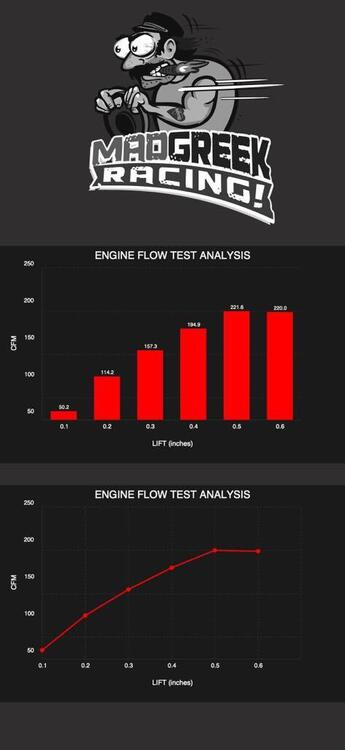

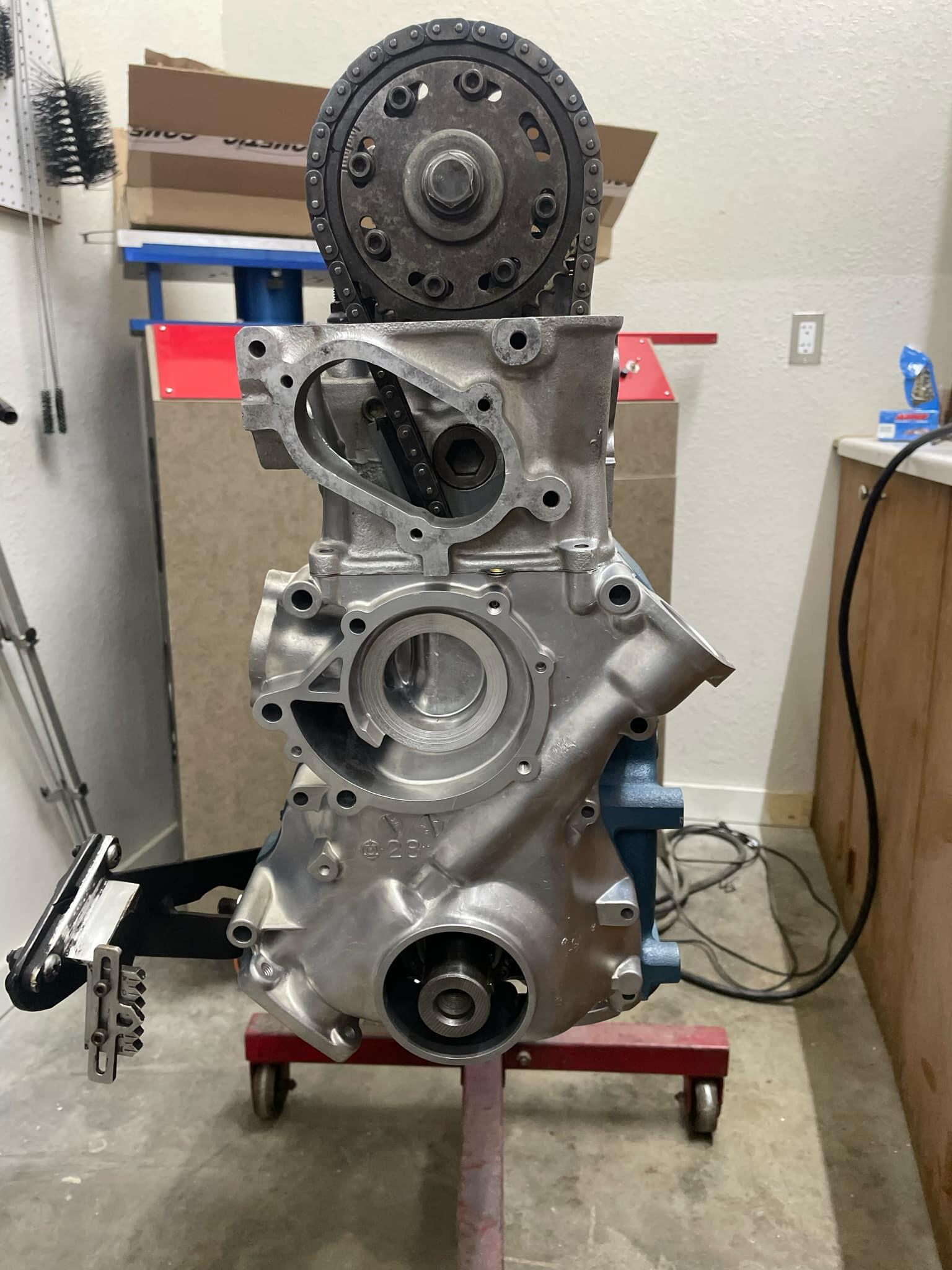

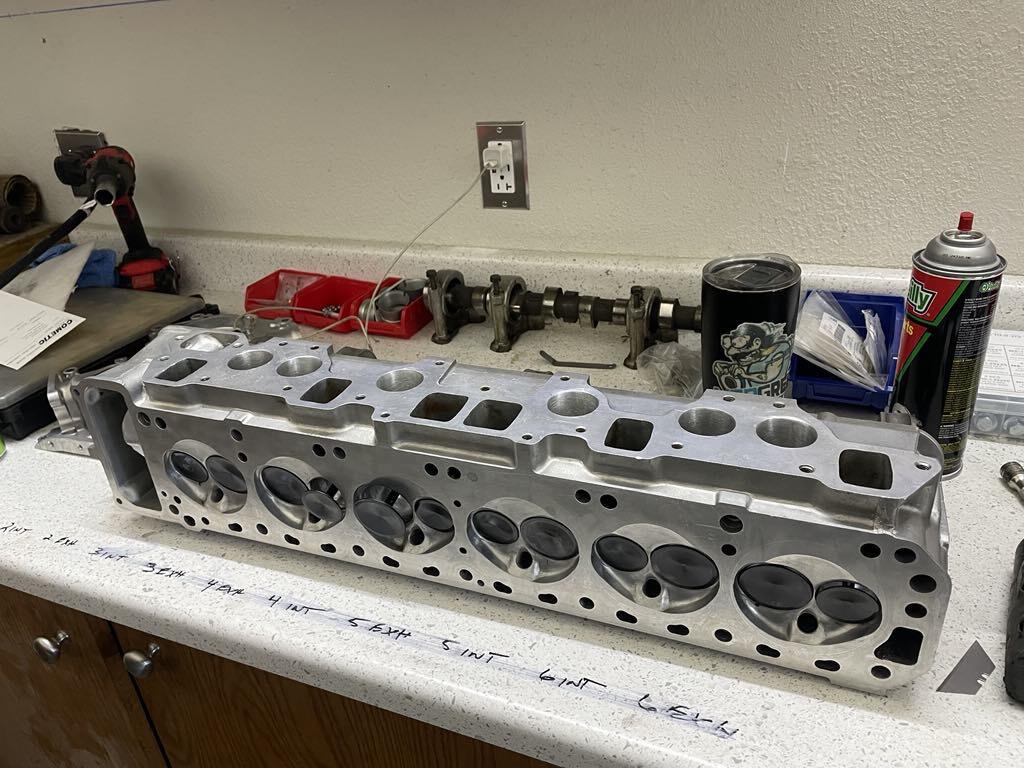

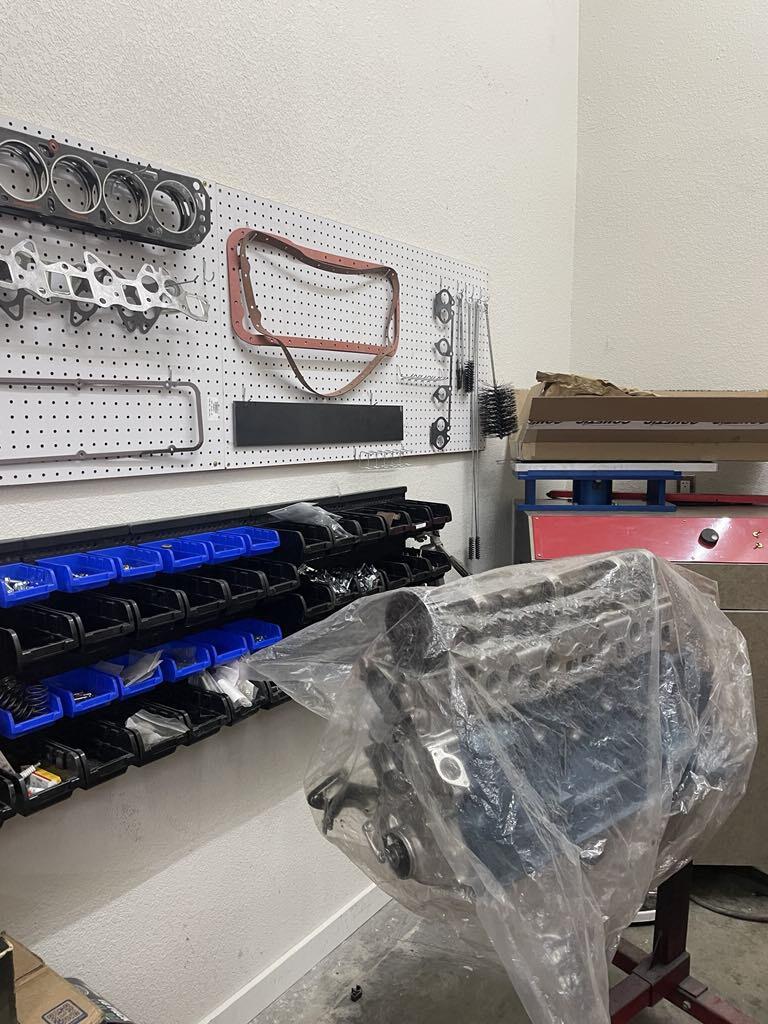

A little update on my 3.1L! This motor was actually finished 3 years ago, but was tragically in a shop fire. Luckily the engine wasn’t too close to the flames and it was spared. It’s getting close to finished and then going into my 1971 240z! My 3.1L 10.2:1 compression ratio 88.5mm bore. N42 block. Sonic tested. LD crank by marine crankshaft. Crank Off-set grind to 84.6 stroke. Finish rod journals @ 1.8889" Thrust Finish 1.27”R & R plugs with threaded plugs Dynamic Balance Ion-Plasma nitride, straighten & micro-Micro polish all journals E31 head. Port work by Andrew Kazanis Dsi valves, titanium retainers. Isky springs. Bonk cam. I got it in NOS or near new condition prior to porting. Rebello JE Eagle pistons and toyota rods 221 CFM flow at .45-.5 lift. With rougAndrew Kazanis sizes. Mine is 88.5x88.5x.25x3.14159x 84.6x6 /1000 = 3122cc Thank you Andrew Kazanis for all the help and your magically porting work.

You can get a oil temp sensor, oil pressure is a must sensor for the ecu.

Sweet! Working on the actuator, I am now trying the efihardware one.
