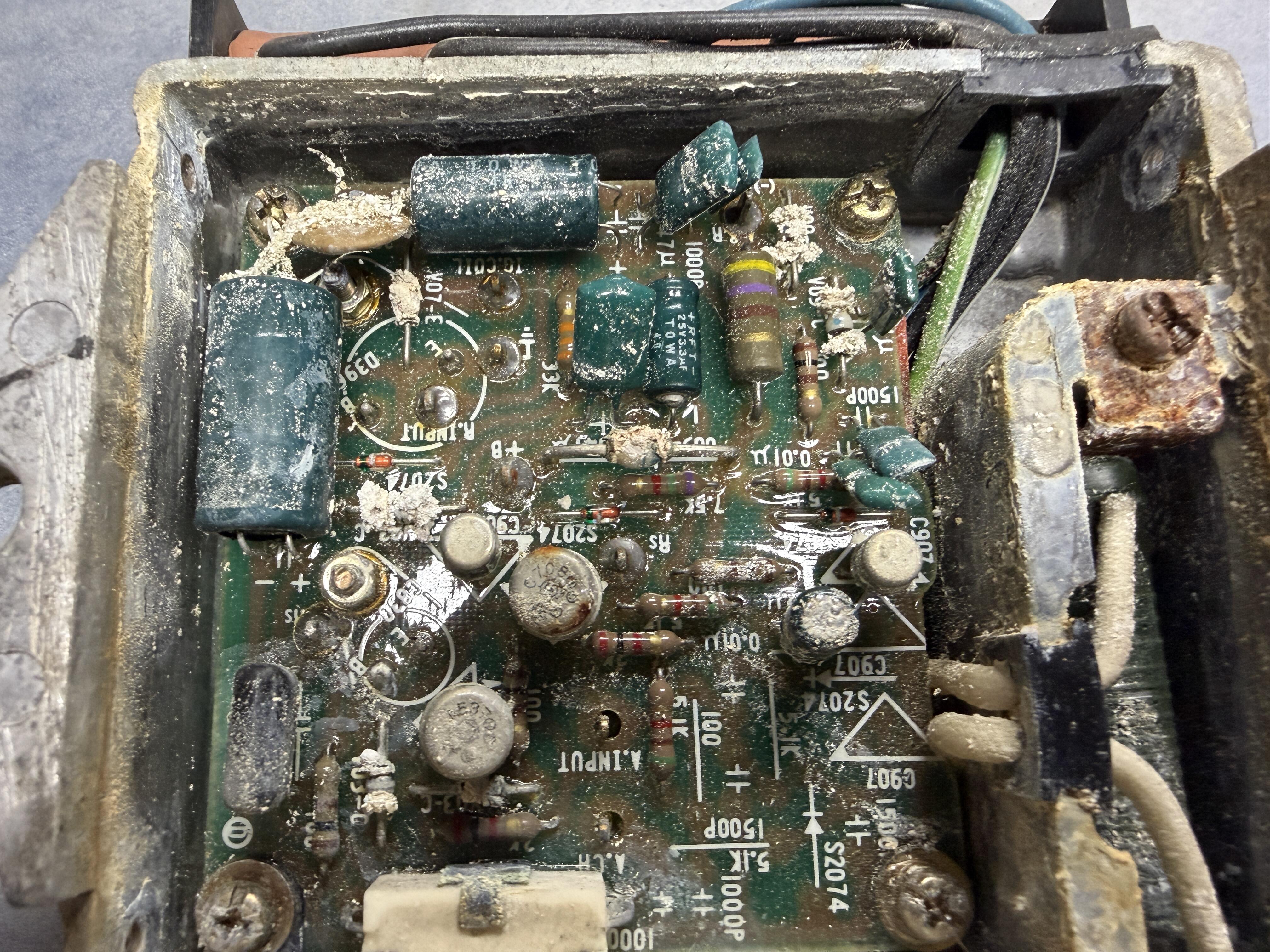

well, looky what I found.... Some carb cleaner and it will be good as new I guess I ll be having fun with the HEI

Yes, sub axles. Driver side sitting 3/16" outside the carrier side versus the passenger side which is flush to the carrier side.. Explanation was due to the internal spacers.

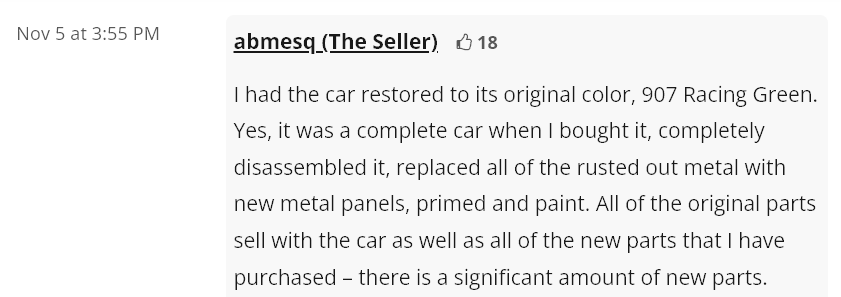

The seller says it was put back to original color. The pictures of when it was red show green on the firewall and the floor. Overall, in the comments, there is much enthusing over a pile of parts. A shiny paint job will do that.

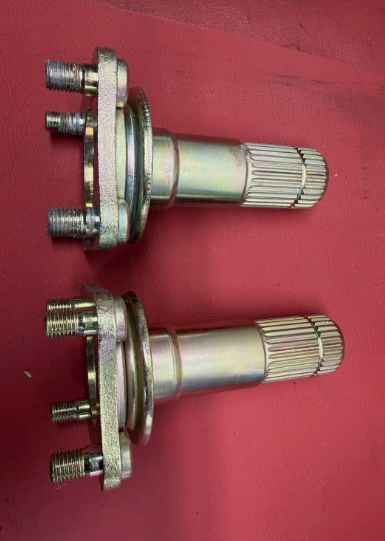

Pictures would help. When you say yoke do you mean flange? And when you say yoke again do you mean "stub axle"? Nissan calls them flange assemblies, most people call them stub axles. The original axles are of different lengths, side to side. Sounds like you're rebuilder might have put a long one where a short belongs. Notice the different part numbers from the carpartsmanual. https://ebay.us/m/jAyp3m Datsun Z Differential Gear, Pinion & Cover (R200)

Had a local gear shop (recommended in the Z community) rebuild a R200 LSD (clutch style) 3.7. picked up the diff and noticed the driver side yoke was not sitting flush with outside edge of the side seal. Passenger side was flush to the outside edge of the seal. Can tug on the yoke by hand and it pop's out. It engages the clip but is not solid in place. Passenger side needs a slide hammer puller. Took a mic measurement inside the carrier to the clip the diver side is just under a 3/16" shorter to the clip. Both yokes are the same length swapped the yokes no change in diver side, clip in style yokes. The shop has suggested this is due to the carrier offset? assume internal spacers? Running Z Car Garage CV axles. Anyone experience this issue? Under the cars weight and load should I worry about the yoke pop out?

I'm a big fan of having a vacuum gauge on the balance tube (and plugging the emmissions holes). If the engine isn't healthy, it doesn't matter how the carbs are tuned. Compression, Timing, then Carbs. The vaccum gauge is a wonderful tool to see the health of the engine. I

Yes. Gasket and heat shield in one goofy thing..

While it looks nice and will make a good starting point why was the color changed to a non Datsun Z car color? The late Paul Taylor's 240 has emerged from the shadows and is for sale @ Carolina Muscle Cars for 125K.

Not odd at all. It's the same reason that British Standard threads were used on a "Japanense" car in the 1950s and early 1960s. Nissan's tie-up with Austin. Wait 'til you hear about Imperial wheel diameters and PCDs... https://www.nissan-global.com/EN/HERITAGE_COLLECTION/short_story/en_p13-01.html

Perfectly? That seems unlikely. It's odd enough that a British thread pitch would be used on a Japanense car in the late 60's/early 70's. Why would British be used on the block and US on the balance tube? Chaos! Your thread chaser might cut some new threads though. People have used NPT in the oil pressure sender hole and made it work. Soft metal will distort.

I salvaged a fitting, barb to male taper thread. A 1/8" NPT 27 threads tap lines up perfectly with the fitting I just pulled. That's what I'm going to chase the threads with, using lots of teflon tape, and install 1/8 pipe plugs. I have lots of brass hex stock available, I'll probably just make my own plugs.

That one is tempting....my favorite color.

Here's a puzzle for somebody. Comes with a car cover. No reserve. https://bringatrailer.com/listing/1971-datsun-240z-330/

I used BSPT fittings on the N33 balance tube I have in my 260Z when I was doing the fuel injection conversion.

Read the articles here about the GM HEI module, if you find that your wiring is smoked or the factory Transistorized Ignition Unit (TIU), aka ignition module, is gone. You can run wires in the engine bay directly from that terminal block with the green and red wires. https://www.classiczcars.com/articles/electrical/

Is BSPT a possibility? The prevailing internet Z forums' "wisdom" is that the oil pressure sending unit holes are BSPT. JIS VS BSP: What's the different ?Before choosing a suitable thread standard, it is necessary to understand from various aspects. This article will introduce the difference between JIS and BSP, so that you can better choose the thread

Hello - I got them available- let me know if you are still interested

I used aluminum aircraft rivets - and like your pop rivets, I should have used a semi-tight washer on the squishy end. The sheet metal on the contacts is really thin. I also "re-squished" the (original) rivets on the bulb holders.

You'll probably find they are JIS tapered pipe threads. Nissan used them on the 240Z in a number of locations in differing sizes, including for grease fittings.

Just to let you know, what appear to be bolts plugging the holes in the balance tube are actually tapered pipe plugs. They have a different pitch than most metric bolts and if you force a metric bolt into the hole, you will ruin the threads. I know, I'm working on a 240z that somebody plugged the holes with ordinary bolts, now I have to correct their damage.

Some of the holes had real taper plugs, pipe threads. Two of the taper holes were about 10mm and somebody had forced straight thread bolts into the taper holes, ruined the threads. I might be able to chase them and put in 1/8" taper pipe plugs. I don't know that the bolts made a good seal. I"ve verified that some of the threaded holes are 1/8" NPT 27, I'll chase the threads and with teflon tape will repair the holes. I have a 1/8" to barb adapter I can connect my vacuum gage, haven't used it in years. Jim

Sounds like you're saying things have been just fine then something changed. As opposed to the brakes having always bothered you. If it was mine I'd find the source of the sudden problem before "upgrading" anything. Otherwise you could add the upgrades and end up with the same problem, never solved.

I included a photo. I circled all of the ports in the vacuum manifold, I think they call it something else. I bought the 240z assembly used on ebay, so somebody had messed with everything, I mean everything. They plugged many of the threaded ports where things, mostly emission items attached. They did not use Teflon tape, and I don't even know if the threads matched. I'm thinking about removing all the plugs, which in some cases are just bolts. If the threads are not right, correct them and use teflon tape to seal the threads. It would be easy to seal off the vacuum lines going to the master vac and transmission.

I agree with Patcon. I'd cap off everything you don't really need right now, including the brake booster and the transmission. And yes, I think a vacuum gauge could be helpful. You should be in the 17-20 inches of vacuum at idle. If you're at 10, there's a leak somewhere. I also think pics could be helpful.

Oh, and I'd be hard pressed to believe it's a malfunctioning check valve. If you're off the gas pedal when you're on the brakes (as you most likely are), the check valve won't really matter because the manifold vacuum is high (because you're off the gas pedal). Does the idle go up a little bit when you press the brakes sitting at idle? That's a typical sign of a torn diaphragm.
