Float level advice, please.


Recommended Posts

I'm getting ready to put the motor back in after a YEAR!!  My dumb a** thought it would be a few months. :o  Anyway, I'm getting the fuel supply worked out.  Drained the year old gas from the tank, flushed the carbs then checked the float levels with clear tubing.


Question?  They're mounted level on a wall and the rear has a taller float valve (actually doubled up washers) so could you all look at my pictures and tell me what you think?  The front is a little short but I think that may be because of the way they're mounted, level.

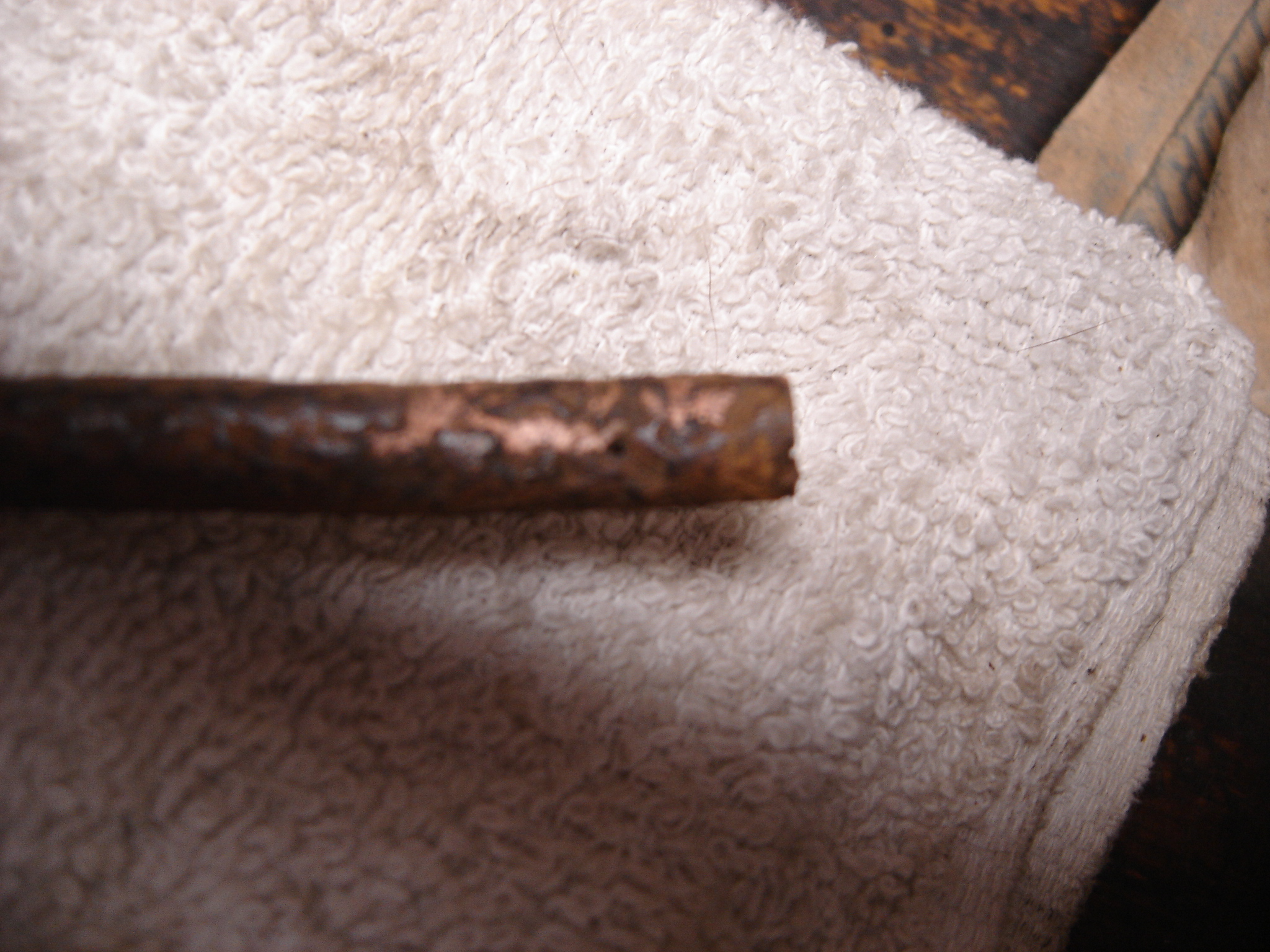

I cut out the rotten fuel line under the battery too.  Found a small pin hole.  That stuff looks like zinc plated copper tubing?

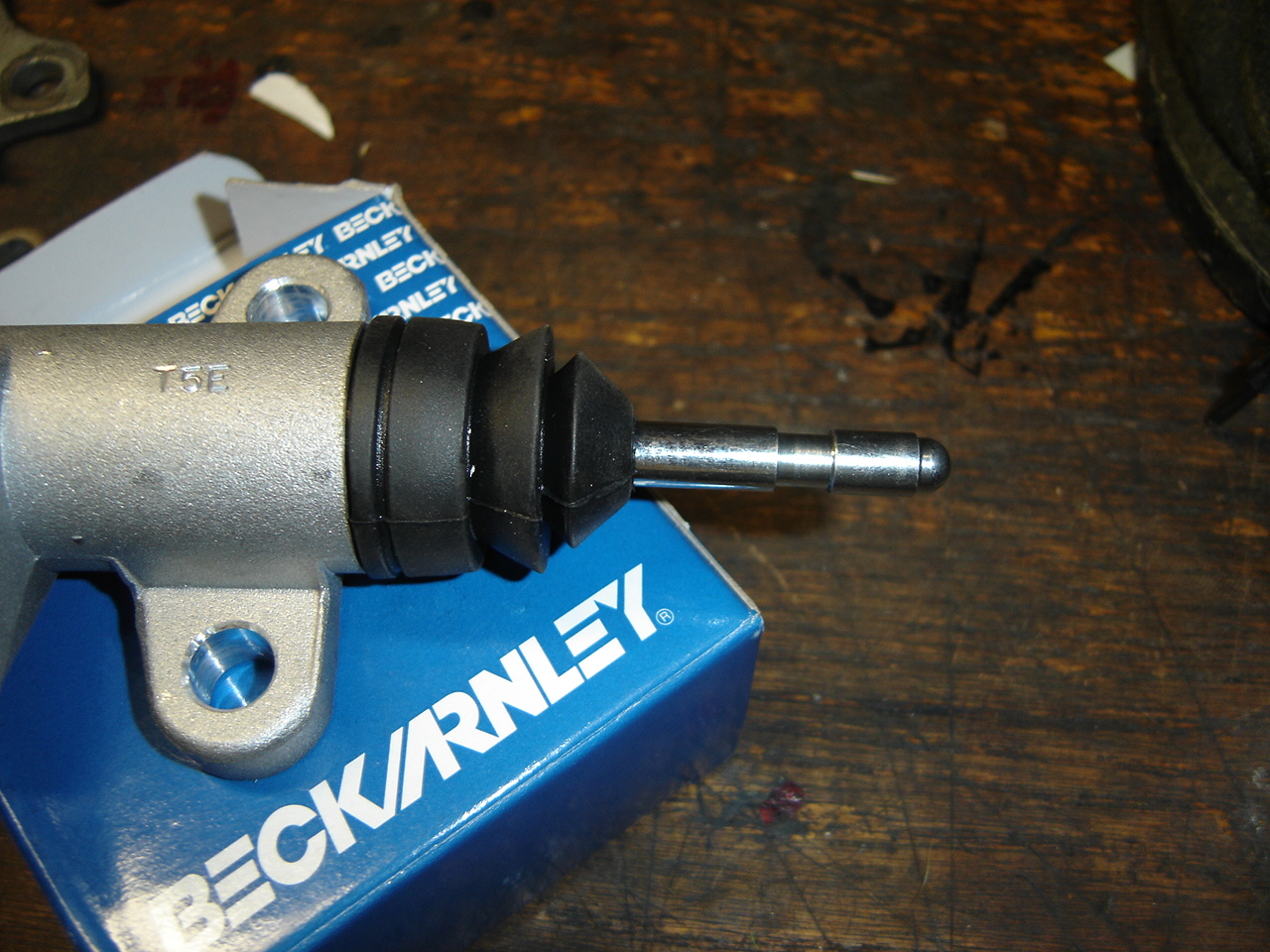

One more thing, is this the right end for the slave cylinder's push rod?


Appreciate any directions/opinions.  Thanks, Cliff. :)






Link to post
Share on other sites

 The slave cyl. rod on the Series 1 was adjustable. Don't know about S 2. I do know that I love having an adjuster on the slave cyl. It allows the clearance between the release bearing and the pressure plate to be set just where the pedal feels right.

 I'm confused about your reference to float valves and the rear being taller. Since the actual float valve (needle and seat) is hidden in the float bowl, Are you referring to the fuel level in the tubes, vent tubes on top or something that I'm missing?

Link to post
Share on other sites

Sorry Mark, I was excited!  I did some things yesterday that had me at a stand still, I was a little nervous doing them.  Fooling with gas and an electric fuel pump straight wired to a battery, fumes and such. :D

I'm putting a 5spd in place of the 4spd and when I bought the clutch kit I went ahead and bought a slave cylinder and hose for a '78.  I'm pretty sure I have the push rod right after looking at some pictures on the inter web.

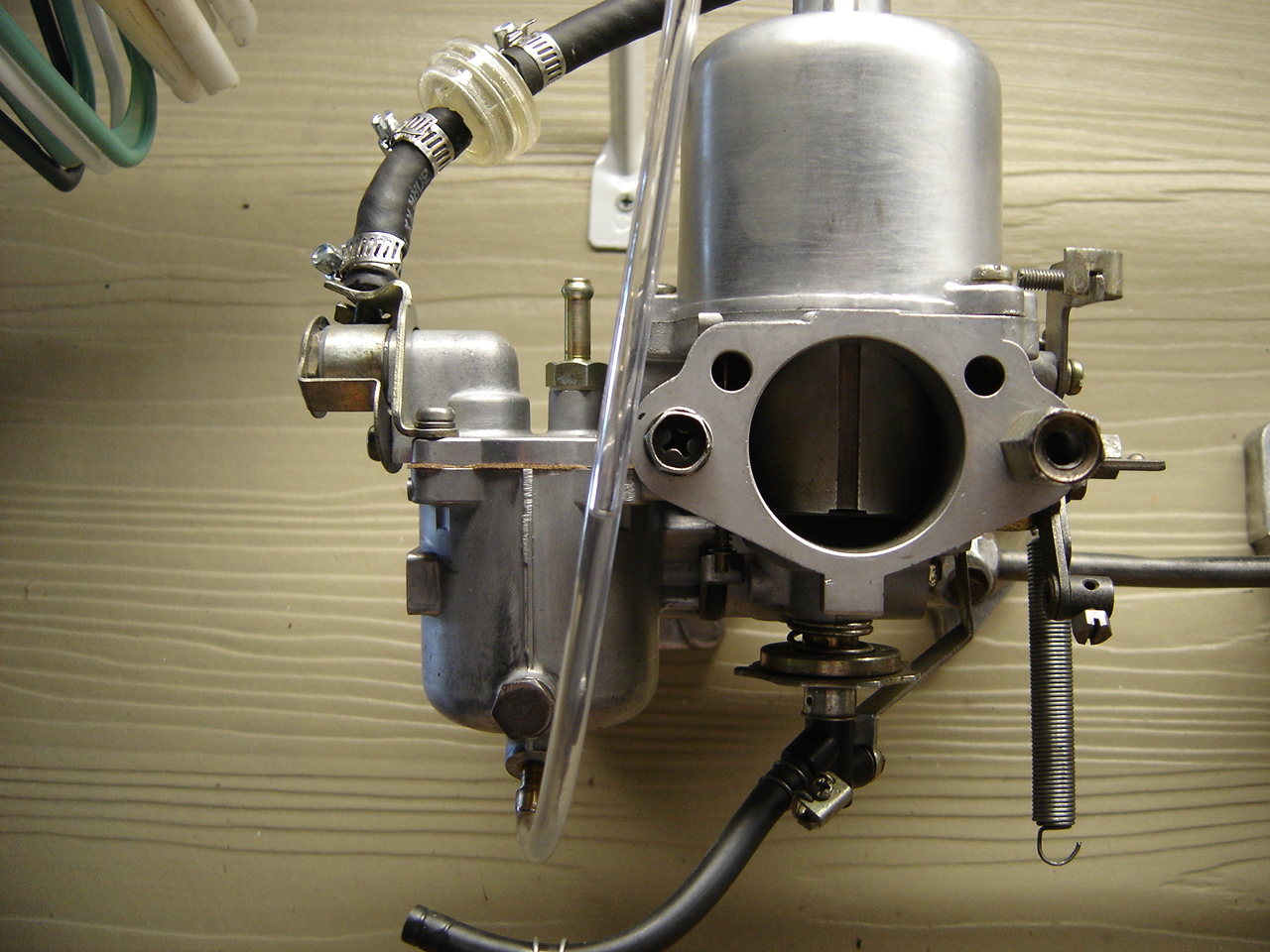

Those carbs are mounted level and I'm trying to use the clear tubing to measure fuel level in the float chamber.  I'm gonna tilt the rear down and try to replicate how they'd sit in the car.  Here's where I need them to be and after looking at this, I may be pulling the lids off. :(

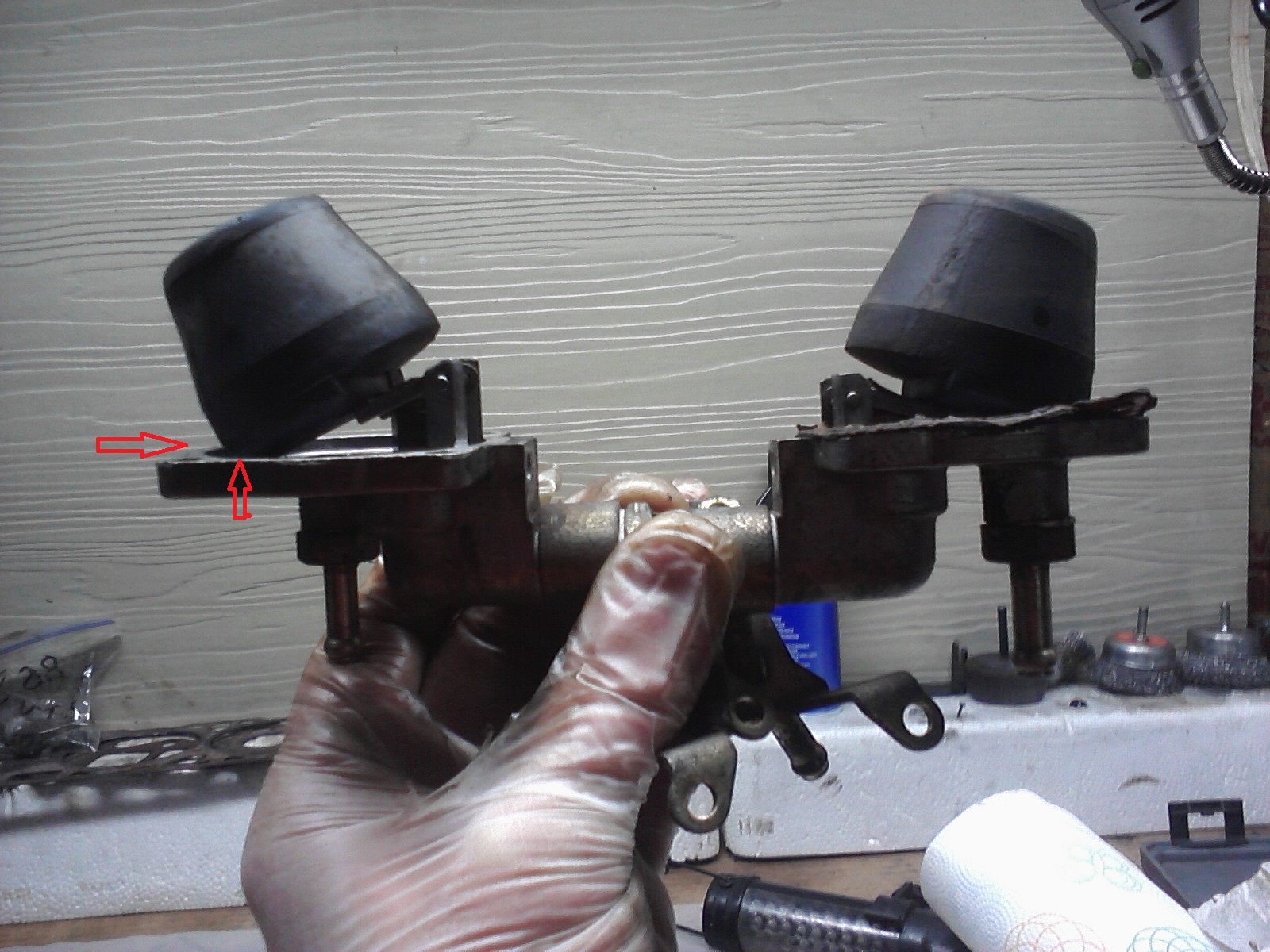

Thanks for the picture @Jarvo2 and @zKars


Link to post
Share on other sites

others may chime in w/different opinions, but i found that the only way i could get the float levels right was on the car. something about the angle that the engine is tilted i think... i spent hours fiddling w/clear tubes like you have and in the end wound up using the method of turning the adjustors down the correct amount and adjusting till the fuel was at the top of the jet opening. i've got a thread on here somewhere that explains it... turned out to be the most accurate solution for me.

  • Like 1
Link to post
Share on other sites

I've read that.  I remember somebody saying it was hard to see the fuel?  I'm gonna slant the carbs on the wall and get as close as I can before I put them on.  Then I can do it the way you're talking about. :)

Hey [email protected], while I have your attention how about answering a few questions?  I'm going to go ahead and put the header on while it's outside the bay.  Did you do that too?  Did you remove the steering rod?

'preciate it.  Cliff

Link to post
Share on other sites

my MSA 6-2-1 header is very close to the TC rod connection and would probably interfere w/the steering rod as well during install - i put the header in first, lightly bolt to the downpipe flange to keep it in place, slip in the motor then bolt 'em all together. for me it's better to have more room in the "hole" and less things on the motor to get snagged/damaged on the install. putting the steering rod back together after the engine/header are in place seems like a pita for my fat hands...

Link to post
Share on other sites

My float setting experience is the same as what Rossiz wrote. After fiddling with clear tubes for quite a while, weeks actually, the only way I have been able to predictably set the floats is to pull the domes, turn down the mixture knob 10 turns, and set the fuel level to the top of the fuel nozzle. Yes, it is a bit hard to see but here is what helped me (and my soon to be 50 yr old eyes).

Optimize your eye sight for reading. For me it means removing my contact lenses. For some it may mean reading glasses, etc.

Use a flash light.

Rock the car a bit as you lean over and view the nozzle tops. This will let you see the fuel moving in the nozzle.

Squeeze the fuel hose that connects the float bowl to the nozzle. This will let you see the fuel level rise and fall a bit.

Use an electric fuel pump. You should be able to run the fuel pump and not overflow the nozzle.

The bending of float tabs, removing and reinstalling is a pain but eventually you will get it set. Small changes make a big difference.

I have only done this with the carbs mounted on the engine in the car. Can't envision how one would achieve the same angles on a bench.

The good news is that after setting my floats meticulously, I was able to adjust the mixture / nozzles around the 2 turn mark and get good color using a color tune spark plug. The car runs great now too.



Link to post
Share on other sites

what he said.

it's actually pretty easy to see the fuel level - when it gets up to the top of the jet, the meniscus (little concave section of liquid) inverts/flattens and is quite visible with a small flashlight. you can do it in the reverse order as well: start turning the nozzle down, counting the turns while watching for the fuel to hit the top of the nozzle - it should be exactly 10 turns (10mm). if it's less, you're rich/the float is set too high/too much fuel in the bowl, if it's more, you're lean/float is set too low/too little fuel in the bowl. sounds trickier than it is. hardest part (for me) is remembering how many turns i'm at w/the nozzle...

i found this method to be very precise and it gives repeatable results. i do have an electric fuel pump, which makes it easier as you don't have to crank the engine to fill the bowls at the correct pressure.

  • Like 1
Link to post
Share on other sites

Thank you @jonathanrussell and @rossiz.

When I get them back in the car I turn the nozzle down 10 turns from the top and leave it there, adjusting the float tabs until I get it level with the top of the nozzle.  I think I'll get new floats when I do this, glue the cork gasket to the lids and hopefully never have to do it again.

I put a four foot level on my other 240 yesterday, marked where the bubble was then stuck it up to the wall and drew a line that closely matches the tilt of the motor in car.  Today I plan on re-mounting the carbs to the new position and checking them with the clear tubes.  I'm thinking that'll get me close enough until I get the engine back in.  I honestly don't think they're bad off, if at all.  I rebuilt them and set them to .55", drove the car a few times pulling 6,200 rpms at the most.  Decided to freshen the motor up then.  Glad too, alot of loose nuts I found when disassembling.  6,200 would have found those loose nuts for me after a couple of times. :D

Link to post
Share on other sites

Well I can't test my new cassette deck unless someone brings me a cassette (no Kiddy tapes please), so I've got time to chime in on this.. ;)

Please everyone remember that float bowl levels while the engine is RUNNING is what is important. The static level while the engine is off is determined by when the float valve decides to close as the bowl fills.

In the running case, there is a steady or perhaps some open/close cycling of the float valve as fuel is drawn out the bottom and comes in the top to meet demand of what's leaving.  The fuel level in the jet tube is always at the top of the bridge during running, that's how fuel gets to the air rushing in. Or the other way, the pressure drop due to air rushing over the bridge draws the fuel into the air stream from the jet tube. HOW MUCH fuel the engine gets is just the position of the needle in the jet.

So in my humble opinion, while running, The bowl level just needs to be such that enough fuel is available to keep supplying the demand of the current pressure drop.. It's exact level, or matching level in both bowls isn't really that important. As long as the flowrate into the bowl is always higher than the rate exiting, the car runs just fine.

Now I'd love to be proven wrong. Someone set the floats perfect to spec, go drive and record AFR's across some operating range and note performance, then set the front float down 2mm and back one up 2mm and see if anything changes.

The only thing that changes is the small difference in back pressure generated from the height difference of the column of fuel in the jet tube verses the bowl level. If both level differences in each carb aren't the 'same', then there is a teeny weeny flowrate difference as fuel flows up the jet tube. Is this difference enough to affect performance? I doubt it.  But then again I only know how to calculate flowrates in oil wells......

Lets see, about 8.5 kpa pressure change per meter of height for gas, so a 2mm difference is about .00004 kpa, so...  ARGHHHH I'm retired.... I'm not doing this

Link to post
Share on other sites
10 minutes ago, zKars said:

As long as the flowrate into the bowl is always higher than the rate exiting, the car runs just fine.

Now I'd love to be proven wrong.

OK, fine.

If the flow rate into the bowl was higher than the rate exiting, it would overflow out the tube into the air cleaner.

How'd I do?  :P

Link to post
Share on other sites

For me, the 10mm method (without the engine running obviously) works and accomplishes a couple of key things. First and most fundamental, this method allows me to adjust mixture to around 2 turns down on both carbs and have an idle that is slightly rich based on a colortune sparkplug reading….plus other techniques documented where you lift the piston and analyze what happens to engine speed and recovery. Second, this method allows me to achieve a good colortune mixture off idle, at 3k rpms for instance, dependent of course on the needle profile being used. Also, if the fuel float level is set higher or lower, then it quickly becomes impossible (for me) to adjust the mixture to be more rich or more lean. And, if the fuel float level is set higher or lower, then a given piston/needle position ends up meeting the fuel float level at an unintended position. So, I am sure everyone has their own technique, and there are many, but for me this method makes logical sense in my brain and yields good results where mixture screw turns actually cause logical changes in mixture.



I am no expert at all on the science and theory of how SU carbs work but I don’t really see how having the engine running matters. There is no fuel pressure once fuel is past the needle valve. The fuel float level should (in my mind at least) remain fairly constant as long as the fuel pump can pump enough volume to keep up with consumption…..but without overwhelming the needle valve.

  • Like 2
Link to post
Share on other sites
6 hours ago, jonathanrussell said:

The fuel float level should remain fairly constant as long as the fuel pump can pump enough volume to keep up with consumption…..but without overwhelming the needle valve.

I'm no carb expert either, but my read is that the whole purpose of the float and the valve is to keep the level in the bowl constant under all conditions from idle to WOT and every point in between.

Link to post
Share on other sites
42 minutes ago, Captain Obvious said:

I'm no carb expert either, but my read is that the whole purpose of the float and the valve is to keep the level in the bowl constant under all conditions from idle to WOT and every point in between.

"Level"  is at the top of the mixture screw jet. It's no more complicated than the innards of a toilet tank. If the water is too high, bend the float rod (or tab, SUS) down. Set the level where ever you want it. But the fuel (float) level is always best set at the top of the jet (2 1/2 turns down), with the car level. Then if you raise or lower the jet to fine tune the mixture the carbs will be sensitive to small adjustments.

Link to post
Share on other sites
  • 3 months later...

Quick bump for a quick question. I am setting the carbs up (off the car for now) with a Ztherapy tune up kit.  The grose jets included must be different from the ones used back when they shot the video.

In the video, they describe a good starting setting to be 9/16" from the top of the float to the housing cover.  Unfortunately, the spring in my grose jet is not strong enough to support the tiny weight of the float resting on it. Because of this, I can't really set the float level based on this method.

I had assumed that the intention of that 9/16" setting was that it should be a 9/16" gap between the float and the housing at the point where the grose jet toggles from OPEN to CLOSED.

So I blew threw the grose jet, and moved it up and down until it shut off. I then set that shutoff points height to equal a 9/16" gap. So my grose jets initial setting prior to any experimentation is that 9/16" gap which straddles the actuation point.

Hope this gives me a decent start to fire up the car for the first time. This would make my fuel level 9/16" + height of the float, down from the top of the float housing cover.




Edited by DaveR
Link to post
Share on other sites

You can take the spring out of the new valves and stretch it to make it stronger.  Are you sure your floats don't have fuel in them?

Blow and suck on the fuel inlet bung to check their operation before you put them back on.  With the pin up you can blow through, pin in you can not,

You can polish the aluminum pretty good with this stuff,


Link to post
Share on other sites

Errr, floats are REALLY light, so yes I am pretty sure there is no fuel in there. They are clean and not puffy.

I may need to take the spring out of the jet though, because right now there is a bit of travel on the plunger before actuation occurs. So with the pin up I can blow through, with the pin in slightly I can blow through, with the pin in deeper I cannot blow through.  My pin's first 1/16" - 1/8" or so of travel does not effect its ability to shut off.

Another interesting fact, I have to hold it downward to do my test properly... leading me to believe my spring isn't properly returning the float to an open state even with just the miniscule weight of the pin on it. Honestly, it's not impossible that there isn't a spring in there at all. I didn't check it out.

I'll investigate the spring issue tonight, something definitely seems off in the jets.

Edited by DaveR
Link to post
Share on other sites

Yes, take it apart for sure.  They sent me a bad one and I had a helluva time trying to figure it out, my first time ever fooling with one.  I called and explained the deal and they overnighted one to me.  Good people to do business with.

You did notice the different heights between the front carb and the rear one right?  I think I ended up just adding one extra washer onto the front.  It needs to be deeper in the float chamber to make up for the fuel sloshing back when you accelerate.  If I remember right??? :rolleyes:

Link to post
Share on other sites

Support your local brewery I see:

Ol' Factory Pils - 5% ABV

Traditional in concept with a Two Roads twist…dry hops. We use a combination of classic German as well as American hop and malt varieties in our Pils. We renovated a 100 year-old factory building and designed this Pils to have “extra” aroma…so, pardon the pun! Crisp…refreshing…refined.

2015 GIBF silver medal- Continental Pilsner

:)

Link to post
Share on other sites
3 hours ago, Captain Obvious said:

Support your local brewery I see:

Ol' Factory Pils - 5% ABV

Traditional in concept with a Two Roads twist…dry hops. We use a combination of classic German as well as American hop and malt varieties in our Pils. We renovated a 100 year-old factory building and designed this Pils to have “extra” aroma…so, pardon the pun! Crisp…refreshing…refined.

2015 GIBF silver medal- Continental Pilsner

:)

Another haircut.

Link to post
Share on other sites
  • 2 weeks later...
On 7/27/2016 at 1:53 PM, siteunseen said:

Yes, take it apart for sure.  They sent me a bad one and I had a helluva time trying to figure it out, my first time ever fooling with one.  I called and explained the deal and they overnighted one to me.  Good people to do business with.

You did notice the different heights between the front carb and the rear one right?  I think I ended up just adding one extra washer onto the front.  It needs to be deeper in the float chamber to make up for the fuel sloshing back when you accelerate.  If I remember right??? :rolleyes:

This is the first I had heard about the different heights of the float level (front to back Carb). Is that really a thing? The only thing that could have been different about the housings would have been the "ears" on the float housing cover possibly having some higher or lower through holes for the pivot pin.  I honestly didn't check which one is in which location.

Also, i opened up the grose jets and attempted to stretch to the spring out a bit.  Didn't have much luck and I think I would have deformed the spring way too much if i pulled it any further. The first bit of the pins travel really has no strength to it. Sinks down with almost no effort so its no surprise that the float (however light it may be) pushes it down. This is the case with both sides (both jets)

Should the float be resting on the retaining clip? Seems to be contrary to what I've read, but what do i know.


Edited by DaveR
