Is a L28 Internal or External balanced? new flywheel?


Recommended Posts

Hi Guys,  I've got a question and i think i know the answer but not sure haha..

As i'm slowly ending the resto of my 280zx slickroof i'm considering a light flywheel on the L28.

I think the flywheel and crank are balanced apart of each other as they can be bolted together on more than one way? (6) ..

I was thinking of putting one of my spare flywheels on a lathe and get rid of a few pounds haha..  Looked at a Fidanza flywheel but i think they are to light! (and also expensive!)

And another question is do i need to re-balance the thinner flywheel? Has anyone here experience with this?

THanks! Mart.

Link to comment
Share on other sites


IMO, proper balancing of the rotating assembly includes the front pulley, crankshaft,flywheel, and clutch assembly.  If I went to all the expense and effort of a lightened flywheel, I would balance the entire assembly.  And as you say, if you can bolt it together in different locations, you should mark the pieces for any reassembly.

  • Like 2
Link to comment
Share on other sites

2 minutes ago, 26th-Z said:

  And as you say, if you can bolt it together in different locations, you should mark the pieces for any reassembly.

I took a look (again)  in the serv.man. (L20A-L24-L26-L28 series engines) and there is nothing about marking any of the rotating parts before taking it apart..

As i can see that the crankshaft and the flywheel have both theire balancing drilled holes i asume that they are balanced apart..

It would be a good idea to balance it all together as a extra..  (But just don't think i'm gonna take it all apart AGAIN! 🙈)

I don't know how much a standard flywheel weighs, but i think it's more than twice the weight of a Fidanza ( seen 10,4 10,7 and 13 Lbs.) say almost 6 kg.  a original is over 10 kg easely..

On second thoughts.. i think i leave it alone haha..

Link to comment
Share on other sites

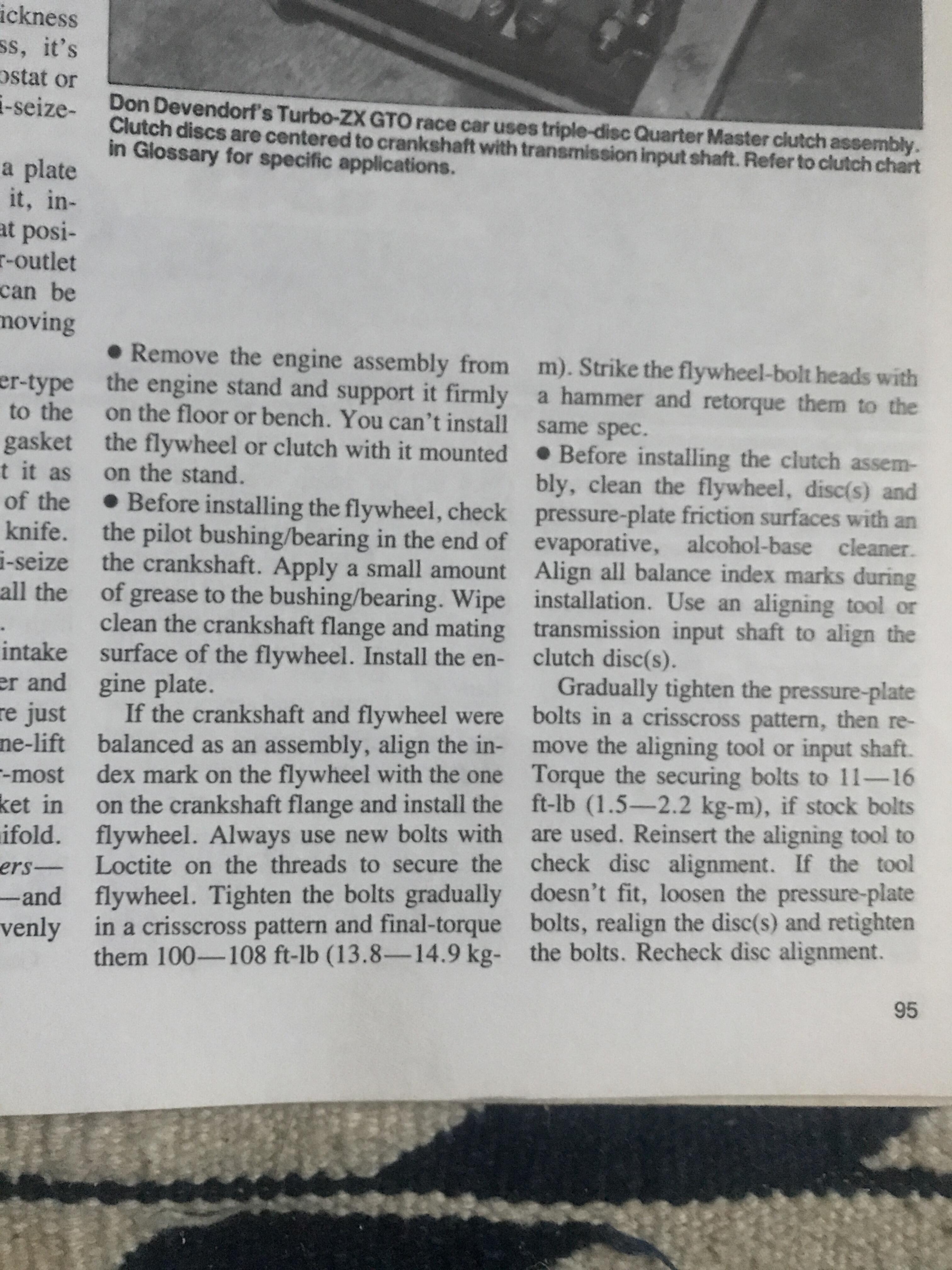

“If the crankshaft and flywheel were”

I just installed the fidanza flywheel to my “used” motor, I did not balance them (at all neither separately or as a unit)

I think it would be BEST to balance them as a unit. I wonder what process a machine shop performs todo this, do they balance them separately then assemble them together and balance them again?


Link to comment
Share on other sites

When I build an engine for the race Z I have my machinist balance everything as a unit, damper pulley, crank, flywheel and clutch cover (the disk isn’t done as it will never stay matched to the rest). The damper is keyed, so it doesn’t need to be marked, but the crank, flywheel and clutch cover are marked with a center punch so they can always be reassembled in the position they were in at the time of balancing.





  • Agree 3
Link to comment
Share on other sites

11 minutes ago, 26th-Z said:

And if you really want to go whole hog, equal the weights of all the connecting rods and pistons.

I should have mentioned that my machinist always does that too, including the rod bolts and caps. In all the time I’ve been building engines the stock Nissan rods have never required adjustment to get them equal in weight. I forget the tolerance, but if memory serves me, a few tenths of a gram.

  • Like 2
Link to comment
Share on other sites

8 hours ago, dutchzcarguy said:

And another question is do i need to re-balance the thinner flywheel?

Seems like you would, since the cross-sectional mass ratio (I made that term up) will be different on the side with the drilled balance holes compared to the side without.

  • Like 2
Link to comment
Share on other sites

Thanks guys for the answers, i have not dicided yet but i take a fidanza or the original...i think the last, i like a engine that i can drive with 800rpm in high gear hahaha...  I often did this with my first 280zx (in the '90's..) and it astonished me every time again that i could drive that car till i was at home ON the driveway in 5th! without any stumble! (just don't floor it on low rpm's and all is well..)

Link to comment
Share on other sites

I'm pretty sure our stock flywheels are single mass. So when you replace it with a lightweight single mass I believe it is not supposed to make more noise.

However, I replaced my stock flywheel with the Fidanza one, had it all balanced, and now I have a bit more chatter in the transmission. Perhaps my transmission is a bit worn? Not sure,but it shifts good, doesn't wine at speed or have any noticable problems. Just a bit more noise. Now after 4,000+ miles I don't notice it.

  • Like 1
  • Thanks 1
Link to comment
Share on other sites

I can't rember the total weight of the rod and piston assembled but I used the ones that had the same stamped numbers on the cups and rod caps. I chose to grind off a gram or two off the outer longer length of the rods to get them equal. I had the the flywheel resurfaced and balanced by the machinest but bolted up the the clutch kit straight out of the box.

It gets close to 7,000rpm and is smooth, no vibration at all. Make sure and have your throwout bearing pressed on from your machinest. I used the old one to drive a new one on my first time and it whines in neutral unengaged. Works great but is annoying to me.

Heres something I found on a 2.4 build, good read.



  • Thanks 1
Link to comment
Share on other sites

11 hours ago, siteunseen said:

have your throwout bearing pressed on from your machinest.

NISSAN calls them the releasebearing? and i'm surprised that you needed to press them on? I just fit it to the axle and ready..

And btw, i don't have a machinist..  (My engine needed just a clean up.. (after 120000km.))  I only took the head to a machinist to clean it in a special washing machine.

  • Agree 1
Link to comment
Share on other sites

10 hours ago, dutchzcarguy said:

NISSAN calls them the releasebearing? and i'm surprised that you needed to press them on? I just fit it to the axle and ready..

And btw, i don't have a machinist..  (My engine needed just a clean up.. (after 120000km.))  I only took the head to a machinist to clean it in a special washing machine.

In my neck of the woods throwout and release means the same thing.

And the special washing machine is called a chemical vat at our machine shops. But your's could have been some kind of ultrasonic thing like for transmission parts?

How you like me now? LOL

Party on Wayne!




Edited by siteunseen
  • Haha 4
Link to comment
Share on other sites

On 1/26/2022 at 12:23 PM, dutchzcarguy said:

I only took the head to a machinist to clean it in a special washing machine.

No no... it was just like a giant (flat) dishwasher, one with a basket i it and a spaying and turning water and sope spraybar thingy... hahaha ...

15 hours ago, siteunseen said:

How you like me now? LOL

Party on! Cliff!!  😂

  • Haha 1
Link to comment
Share on other sites

On 1/27/2022 at 4:50 AM, dutchzcarguy said:

a spaying

On 1/27/2022 at 4:50 AM, dutchzcarguy said:  😂

Spaying?


Afraid she will get pregnant and deliver a litter of pups?

🙂





  • Haha 1
  • Confused 1
Link to comment
Share on other sites

Spraying soap thingy. You are way above me. I can only read English, you can do Dutch and English. Party on! :beer:

Oh yeah, spaying is what we do to female animals to keep them from getting pregnant. It's way better than males, we cut their testicles off. My boy dog doesn't have anything to lick and when I was a kid we were so poor if I didn't have testicles I wouldn't have had anything to play with.

Lost in Translation (film) - Wikipedia

  • Like 1
  • Haha 3
Link to comment
Share on other sites

2 minutes ago, siteunseen said:

Spraying soap thingy. You are way above me. I can only read English, you can do Dutch and English. Party on! :beer:

Oh yeah, spaying is what we do to female animals to keep them from getting pregnant. It's way better than males, we cut their testicles off. My boy dog doesn't have anything to lick and when I was a kid we were so poor if I didn't have testicles I wouldn't have had anything to play with.

Lost in Translation (film) - Wikipedia

Why don’t they just give the boy dogs a vasectomy? Then they would still have the gonads hanging there.

  • Agree 1
Link to comment
Share on other sites

1 minute ago, Mark Maras said:

 My uneducated guess would be literally cutting off the source of hormones that can have a negative effect on behaviour.

Since they did that he's been the sweetest dog ever. When he dies, and I'm already prepared for it this time, I'll get another boy and do the same exact thing. His "lipstick" pokes out every know and then but not aggressive at all. He's the best!

Link to comment
Share on other sites

9 minutes ago, siteunseen said:

I don't know but that makes more sense although they did offer me some prosthetic balls for Buddy. :facepalm:

He also got a small tatoo as a marker that he'd been neutured, Smoothe as a horses nose down there and they gave him the green mark. WTF?

Cliff, here's a dog tattoo video for your viewing pleasure.  https://www.aspcapro.org/resource/video-spayneuter-tattoo-application

  • Like 1
Link to comment
Share on other sites

24 minutes ago, psdenno said:

Cliff, here's a dog tattoo video for your viewing pleasure.  https://www.aspcapro.org/resource/video-spayneuter-tattoo-application

Good info, thanks for sharing but WHY do they do it? It's like that redneck flat tire joke, "guy pulls up and sees a lady standing by her flat tire and says you gotta flat tire? No, I let the air out."

My dog has no balls and now a tatoo to prove he has no balls. ROFL

Edited by siteunseen
  • Haha 1
Link to comment
Share on other sites

1 hour ago, Racer X said:

Why don’t they just give the boy dogs a vasectomy? Then they would still have the gonads hanging there.

Oh yeah Racer X, down here in the Deep South these redneck hunters put rubber bands on the boys balls cutting off the blood flow. Balls fall off so they won't get injured chasing racoons or deer or whatever. Don't want to scratch their nuts on a briar but put rubber bands on them for a month. Even worse they "cull" the females to save money on dog food. Use your imagination on my "cull" remark. It ain't good.

Edited by siteunseen
Link to comment
Share on other sites

22 hours ago, siteunseen said:

Good info, thanks for sharing but WHY do they do it?

They mentioned that some male reproductive organs don't show externally and they want to avoid any future misunderstanding.  Personally, I think a Milk Bone Biscuit tattoo would be more appropriate than the straight line.

Edited by psdenno
  • Like 2
Link to comment
Share on other sites

30 minutes ago, psdenno said:

They mentioned that some male reproductive organs don't show externally and they want to avoid any future misunderstanding.  Personally, I think a Milk Bone Biscuit tattoo would be more appropriate the the straight line.

Okay it gets to the Xs and Ys.

Hermaphrodite dogs! Damn...

https://www.petplace.com/article/dogs/pet-health/hermaphrodite-and-pseudohermaphrodite-in-dogs/

This thread went to the wild side. I'm sorry my Dutch friend but some lobe in my brain isn't in the right place.
