Checking correct fuel level at Round Top 3 screw SU CARBS Float bowls

[Randalla]

I just received the final components for my Float-Sync tool this morning, and now have roughly 25 sets available for sale. Save yourself $5.00 by ordering directly from my website at datsun.floatsync@gmail.com. Price, including shipping, is $70.95. Product is also available on E-bay for $74.95. Thanks for the interest and the kind words of my previous customers.

[jalexquijano]

On 4/5/2020 at 3:51 PM, siteunseen said:

Bend it down towards the float for more fuel.

Make it look like speed bump. Not a ramp.

Well once again i tried to use the plastic glasses while i wait for my float syncs to arrive. I marked the 23mm measurement from the top downwards with a pencil. I guess front one needs some bending. Im afraid i bend it to much and mess it up. I guess its better to leave it as it is unless you can point out how to accomplish this safely. First pic is rear carb.

[Randalla]

Sorry, I see I said "website" for ordering, in my previous post. I should have said email address-  datsun.floatsync@gmail.com.

[Zed Head]

On 4/5/2020 at 1:32 PM, siteunseen said:

The fuel in your tube should be level or even with the top of that rectangular square in this photo. The green arrow points down to a red line on bottom. In between 2 red lines that say "23mm".

The lowest red line in that photo.

If I had these carbs I'd probably drill and tap a hole in the side of the bowl for a sight glass.  Just a thought.  there's probably cheaper and smaller out there somewhere, but here's an example.

https://www.amazon.com/Motorcycle-FLUSH-MOUNT-Sight-External/dp/B014X8YE60

Here's some fancier ones - https://www.mcmaster.com/sight-glass/sights-4/

Edited April 9, 2020 by Zed Head

[zKars]

No simple task to mount a flush style sight glass into the side of a curved fuel bowl, with a float very close to the inside of the wall. Too bad the correct level is at the top edge of that flat rectangular area, rather than in the middle.....

If I could find the couple that Philip gave me about 5 years ago when we discussed this last, I’d actually go try this....

Edited April 9, 2020 by zKars

[jalexquijano]

22 minutes ago, zKars said:

No simple task to mount a flush style sight glass into the side of a curved fuel bowl, with a float very close to the inside of the wall. Too bad the correct level is at the top edge of that flat rectangular area, rather than in the middle.....

If I could find the couple that Philip gave me about 5 years ago when we discussed this last, I’d actually go try this....

Can you point out where exactly is the 23 mm mark?

[zKars]

The top of the rectangular block on the side of the bowl is very close.

[siteunseen]

6 hours ago, jalexquijano said:

Well once again i tried to use the plastic glasses while i wait for my float syncs to arrive. I marked the 23mm measurement from the top downwards with a pencil. I guess front one needs some bending. Im afraid i bend it to much and mess it up. I guess its better to leave it as it is unless you can point out how to accomplish this safely. First pic is rear carb.

I used small need nosed pliers on the sides of the tang.

I'll try and get a picture when I get home. About an hour. Stay "tuned".

[Randalla]

Sorry, I see I said "website" for ordering, in my previous post. I should have said email address-  datsun.floatsync@gmail.com.

[Randalla]

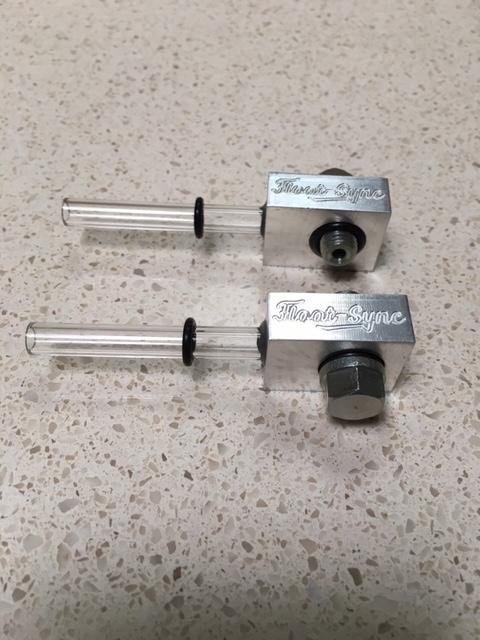

zKars had a great thought using rubber "O" rings on the outside of the site glasses to mark the desired fuel level. I headed down to my local hardware store to look for a pair that would be the right size. For those interested in doing the same, the size I found that seems to work well is 3/16" x 5/16" x 1/16." It's a stretch fit, but they will likely stay put as a result. The only down side is they are 1/16" thick so you can't see the whole tube. I intentionally did not scribe or mark lines when designing the tool as I know some may want to experiment with different levels. The "O" rings are a nice solution, as they can be easily moved to suit individual users.

[siteunseen]

I used a gallon paint can stir stick under the float mounting bracket. They fit good and are soft wood. Slide one under there and push down the tang with your finger.

When it looks like this you should be very close. Good luck.

[jalexquijano]

Thanks. I thought all i had to do is push it down with my finger. I really dont want to mess the ramp form.
