original jute material

[Taz0162]

So what happened to this thred? what was the consensus for a viable place to order Jute that can be cut to the correct shape as needed? are there measurements of the patterns used somewhere?

[redzedsled]

Refer to Post #99 dated 10-13-2012 on the previous page within this thread.

[redzedsled]

Hello guys and gals... here attached please find a 2-page PDF template of the rear tool box area for a Series I 240Z. Each page contains a left and right pattern. It has been test-fitted and is very accurate. Enjoy...

jute mat 70-71 FINAL.pdf

[Mikes Z car]

redzedsled,

Thanks! Can this be used for making a carpet piece? Does anyone know if the carpet needs to be a little bigger than the jute so it hides the jute underneath it?

Mike

[redzedsled]

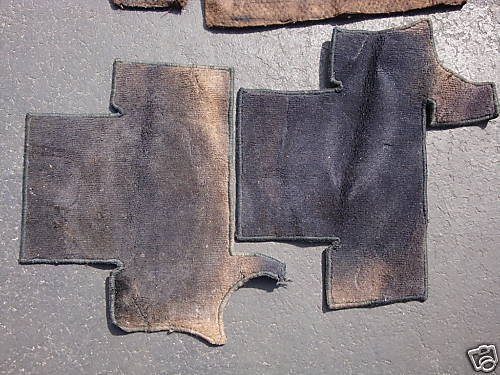

No this will not make the carpet template, it was much different. The later model Series II used a two-piece jute whereupon the other piece went directly under the seat and the other piece went in behind the seat. In the 70-71 pattern it was a one-piece unit which went under the seats and behind and around the plastic tool box doors directly behind the seat. This of course is where the jack and tools were stored on the early cars. The jute was definitely "undercut" smaller such that the carpet would not show the jute underneath. I am sure there are other message threads with respect to Series I carpet reference pics, but please see attached as an example...

Edited April 25, 2013 by redzedsled

[Taz0162]

is there a pdf template for 1972 240Zs produced yet?

[zed2]

Any recent development to report on the Jute topic?

Thanks,

Keith

[zed2]

On 4/24/2013 at 5:23 PM, redzedsled said:

Hello guys and gals... here attached please find a 2-page PDF template of the rear tool box area for a Series I 240Z. Each page contains a left and right pattern. It has been test-fitted and is very accurate. Enjoy...

jute mat 70-71 FINAL.pdf

Did anyone produce a pdf of the front and rear deck jute mat?

Thanks,

Keith

[zed2]

Jute per Andrew (aka abas) https://www.classiczcars.com/forums/topic/8002-original-jute-material/?&page=4#comments post #79 - a April 1970 240Z

Jute per Allen (aka z8987) https://www.classiczcars.com/forums/topic/66275-new-gold-standard/#comments Post 4 - a July 1970 240Z





Anyone have photos of other Series 1 front jute available?

Keith

Edited January 24, 2022 by zed2

[zed2]

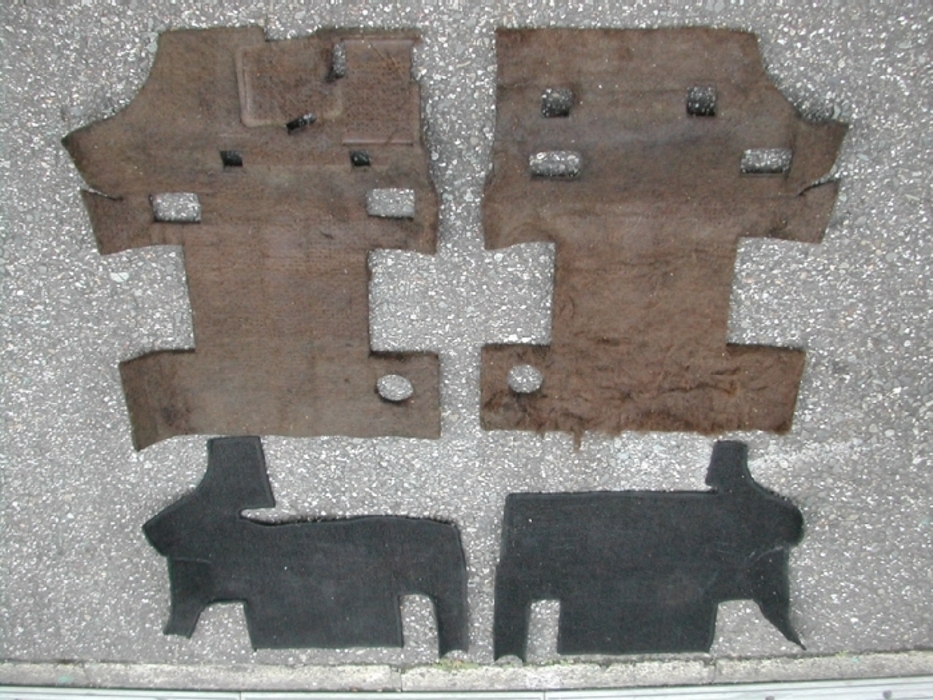

Jute in Serial No 4684:

This is the earliest VIN jute photo I have found.

Baring any other information, I will create my template based on the above.

Keith

[kats]

12 hours ago, zed2 said:

Jute in Serial No 4684:

This is the earliest VIN jute photo I have found.

Baring any other information, I will create my template based on the above.

Keith

What a beautiful, intact mats they are !
Thanks Keith , I am also very interested in original early carpets and jute pads.
Kats

[zed2]

Kats,

Are you aware of any JDM floorboard stamping that would necessitate the jute cutouts indicated by the red circles in the photo below?

Thanks,

Keith
