Speedometer Cable O-Ring Size?


Recommended Posts

My speedometer cable o-ring must have finally failed after 44 years and my car is leaking trans fluid.  Does anybody know the actual diameter and cross section of the o-ring?  I could buy one from Z Car Depot, but I'd rather not pay a bunch of shipping and wait weeks for a $3 part if I can find the same o-ring at the local hardware store.  Of course I gave away four transmissions before I moved to AZ last year and they all had the mounts and o-rings attached.  Story of my life.  🙂

Link to comment
Share on other sites


6 hours ago, Jeff G 78 said:

Of course I gave away four transmissions before I moved to AZ last year and they all had the mounts and o-rings attached.

yes.. but they had all also old rings in it i bet.. haha so no worry's..  i bought a universal box with LOTS of rings once for a few bucks and there is always a ring in there that fits..  Take out the old one and you know what you need..

Oh and btw... a transmission is around 1500 euro's overhere... oeps sorry 🙈

Link to comment
Share on other sites

On 1/15/2022 at 6:39 AM, dutchzcarguy said:

yes.. but they had all also old rings in it i bet.. haha so no worry's..  i bought a universal box with LOTS of rings once for a few bucks and there is always a ring in there that fits..  Take out the old one and you know what you need..

Oh and btw... a transmission is around 1500 euro's overhere... oeps sorry 🙈

Good answer….Get a box of assorted sizes. You’ll have all the O rings you’ll ever need.

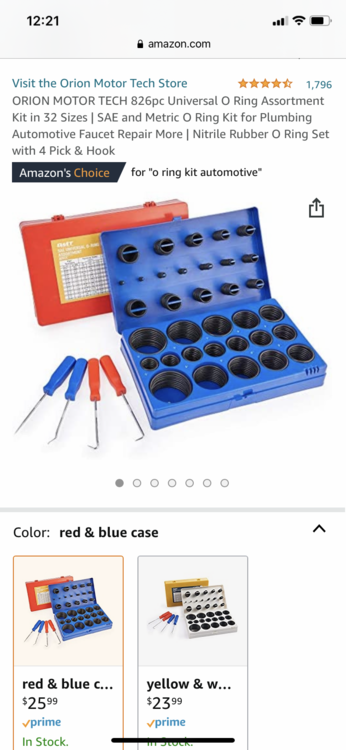

Just type in O Ring Kit on Amazon…770 pieces for $11.00. 👍



Edited by Diseazd
  • Like 1
Link to comment
Share on other sites

7 hours ago, EuroDat said:

O-ring size is 24x2.5mm (ID x Cross section). NBR or Viton material.

O-

Thanks!  That's exactly what I was looking for. It doesn't look like the local hardware store or HD/Lowe's have the right one. Amazon has it in a 50 pack in the right material or in some of the big variety kits, but I'll end up spending $20. I guess I'll just order through zcardepot.

  • Like 1
Link to comment
Share on other sites

I found something close at the local True Value Hardware today.  It is SAE and measures 3/4" ID (19.05mm) x 15/16" OD (24mm) OD x 3/32 (2.4mm) cross section.  I figure it was worth $0.79 even if it only works for a while.  The manufacturer's assortment box had no information about the material properties, so it's likely nitrile rubber and not Viton.  It will buy me time until I get a real one from Nissan or ZCD.  Thanks all!

Now I need to fit my MSA exhaust to my AZC 6 into 1 header.  I know it won't be a direct fit to the AZC header and I want to include a SS flex pipe and probably a resonator as well, so some fabrication will be needed.  Hopefully I can get the oval muffler to fit better than the same system on my old late 260 race car.

Link to comment
Share on other sites

It should be 24mm ID. O-ring are measurdd by inside diameter on a general rules. I have an international o-ring list. It might help with finding onethat comes close. Like @siteunseen said close is good enough as long as is is not too small.

Link to comment
Share on other sites

9 hours ago, EuroDat said:

It should be 24mm ID. O-ring are measurdd by inside diameter on a general rules. I have an international o-ring list. It might help with finding onethat comes close. Like @siteunseen said close is good enough as long as is is not too small.

Crap!  I knew I should have written the size down.  I was out and had to go to the hardware store for other stuff and then remembered to look for the O-ring.  Thanks for the smack into the side of the head to wake me up!  🙂

Link to comment
Share on other sites

HI Jeff, The size is not any standard O-ring size which makes it hard to find a supplier.

You could try an AS standard o-ring. The AS568 standard is very common in the USA. Ask for a AS568-119 (23.47x2.62mm). The cross section is a little bigger, but the o-ring also has a slightly smaller ID which will compensate.

If the cross section is too thick and you can't fit the adapter without damaging the o-ring an alternative would be one size smaller AS568-118 (21.89x2.62mm). When you stretch the o-ring out to ID 24 it will reduce the cross section size enough to fit.



O-ring Standards Overzicht.pdf O-ring sizes.pdf

  • Like 2
