Starting Carb Conversion: Flat Tops to Paltechs

Recommended Posts

I bought this Z (1973 240z, white/red, build date 10/1972) in April from the original owner, and have been working on restoring. (Will post some interior pics soon, hopefully.)  As some of you know, like @Captain Obvious and others, the original flat tops were neglected and this car has been driven about 5K at most, in the last 20+ years.

So, after some input from the board, and looking around, I settled on the Paltech round top SU carbs.  They are beautiful.  In fact, I'll have to clean/polish/replace the rest of the engine compartment elements to keep them from looking crappy by comparison.

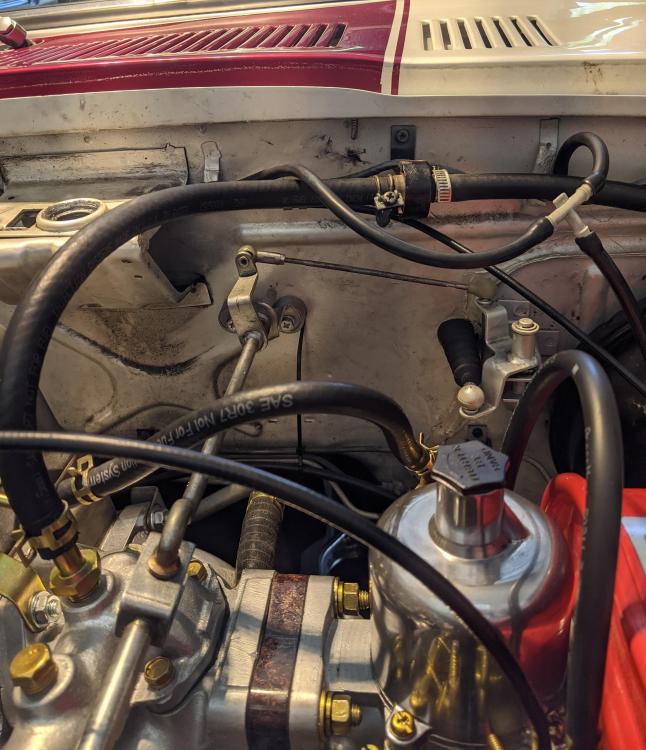

I an not a mechanic, but consider myself handy.  I need some help on where to start.  See pics.

Q1:  I know where several of these Paltech hookups map to on my ''73, but not all of them.

Q2: I'm assuming the whole EGR crap can go away now - i.e., the wiring, coming from the distributor to the EGR mechanisms. Any tricks/concerns in the process?

Q3: I've read on the forum that certain '72 models have water ports on the mounting between the carbs and the manifold. I have not taken mine off yet, but I'm assuming it will be obvious.

Q4: Any other gotches, must-do's, don't forgets greatly appreciated!









Share this post


Link to post
Share on other sites

1&6 fuel in

2&7 float vents to air cleaner

3&5 coolant lines

4 vacuum line to brake booster

8 positive crankcase ventilation

Edited by SteveJ
fixed a goof
  • Like 3

Share this post


Link to post
Share on other sites

Wow. Shiny.

Yes, all the EGR stuff can go away. Not that it matters to the discussion, but the control for the EGR doesn't actually come from the distributor. It comes from a relay mounted to the front right engine compartment, under the coil (I think). But whatever.  Haha!

You don't currently have any water passages between the carbs and the manifolds. And you still won't after you put the new stuff on. They're four screw round tops and there are no water passages through the carb faces.

I'm sure there will be some small gotchas along the way, but let's deal with them as they come up.

Share this post


Link to post
Share on other sites

Thanks, guys. I believe, as an aside, I could also do away with the ugly heat wrap on the fuel rail now that I'm going to the round tops with the heat shield, carb/manifold spacers blocks, etc?

I've seen posts about going to piano wire for the choke cables, but for now I'm going to keep these and keep applying cable lubricant. Seems to be helping.

Edited by Dadsun

Share this post


Link to post
Share on other sites

Forgot. Your mention of the choke cables reminds me...

Unless they are loose in the box somewhere, you don't have the clamps that fasten the ends of the choke cables on the round tops. The flat top clamps are different and won't transfer over.

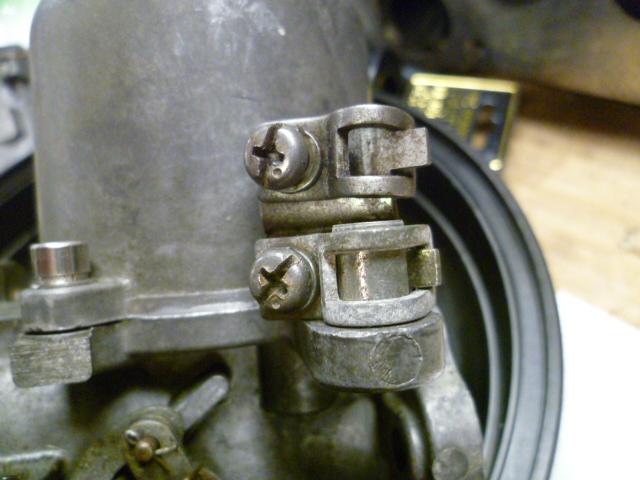

Edit - Found a pic. They look like this:

Edited by Captain Obvious

Share this post


Link to post
Share on other sites


Maybe it's the angle or the gasket...but the carburetor spacer look like it's sagging a little in the middle.  Hopefully it isn't cracked.



Share this post


Link to post
Share on other sites

That sag is on all four sides of four screw carb isolators.  I believe it was intentional as the sag looks the same on all four. Three screw carb isolators are flat on three sides and a different shape on the bottom for the water passage.

  • Like 2

Share this post


Link to post
Share on other sites
13 hours ago, Dadsun said:

Thanks, guys. I believe, as an aside, I could also do away with the ugly heat wrap on the fuel rail now that I'm going to the round tops with the heat shield, carb/manifold spacers blocks, etc?

First, let me comment that those carbs and manifolds are true automotive jewelry - absolutely stunning!

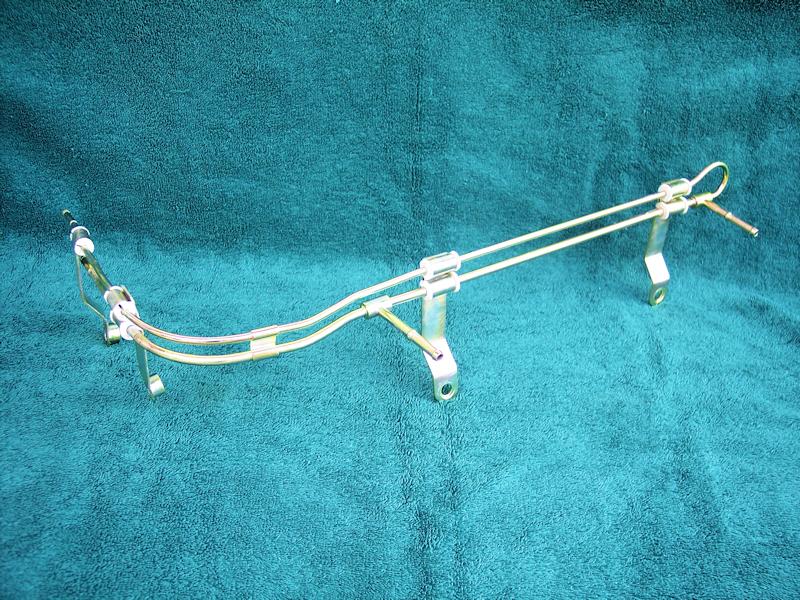

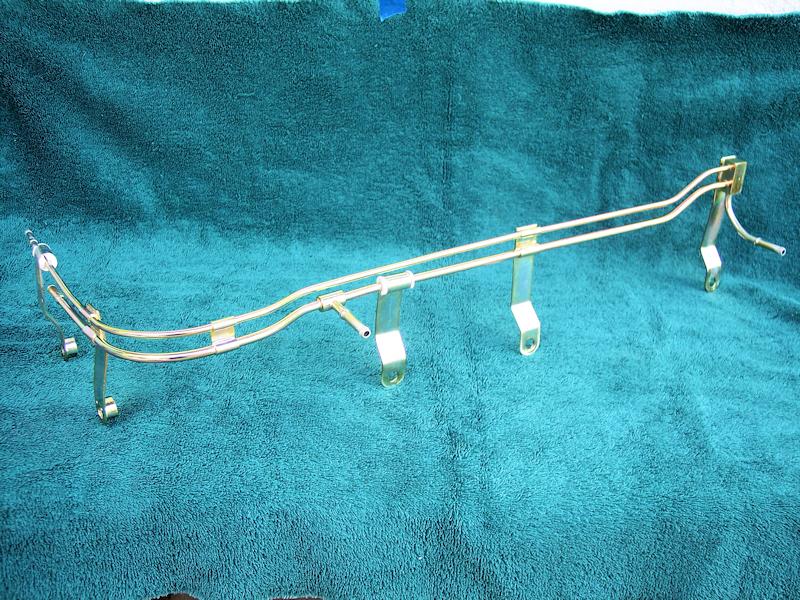

Your mention of the fuel rail caught my attention so here are a few observations. The supply nozzle positions for the flat-tops are substantially different than for round-tops so I recommend you get a fuel rail from a '70-72 model car - the pic is a Series 2 style from the later '71's and 72's. The rail is longer and correctly positions the nozzles for the feed to the floats. As @Patcon mentioned, the asbestos wrap is a big caution. They put it on the '72's and later, carbed and injected. It has an adhesive that will have melted around everything, expect to find significant corrosion under it. Also, the wrap contributes to deterioration of the nylon insulators for the mounting tangs. I've restored quite a few of these rails and faced all of these issues.

Jim

Rail 71-72 A.jpg

  • Like 2

Share this post


Link to post
Share on other sites

I'd like to move to a round top fuel rail at some point. Sounds like it's not on the critical path at the moment, but would be ideal.  I've already taken off my flat top rails once and re-wrapped them with new heat shield foil wrap when I was restoring the gas tank and cleaning all of the fuel lines.  I didn't realize the old dilapidated wrap was asbestos. Ugh.

I've texted the Paltech guy to see if he has choke cable brackets.  They were not in the box. 😞

Share this post


Link to post
Share on other sites

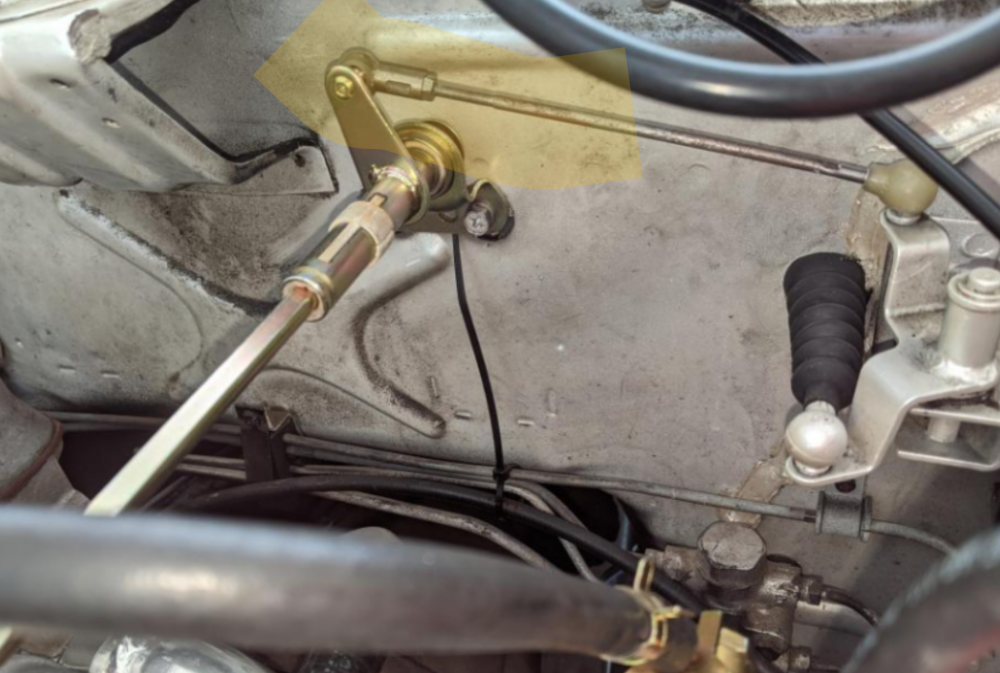

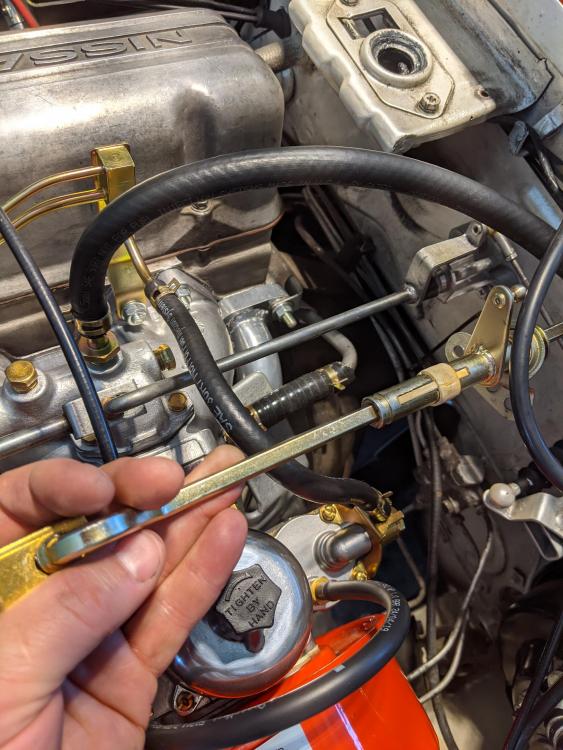

An update... I've acquired the choke cable clamps, and removed the EGR housing at the top of the manifold. I am trying to sort out the differences in the flat tops hookups and round tops.

Q1: Are there any other connections I should be expecting besides the 8 noted above (plus 2 choke cables and the 1 throttle arm)?  [Edit: I also found the small distributor vacuum capsule line hookup]

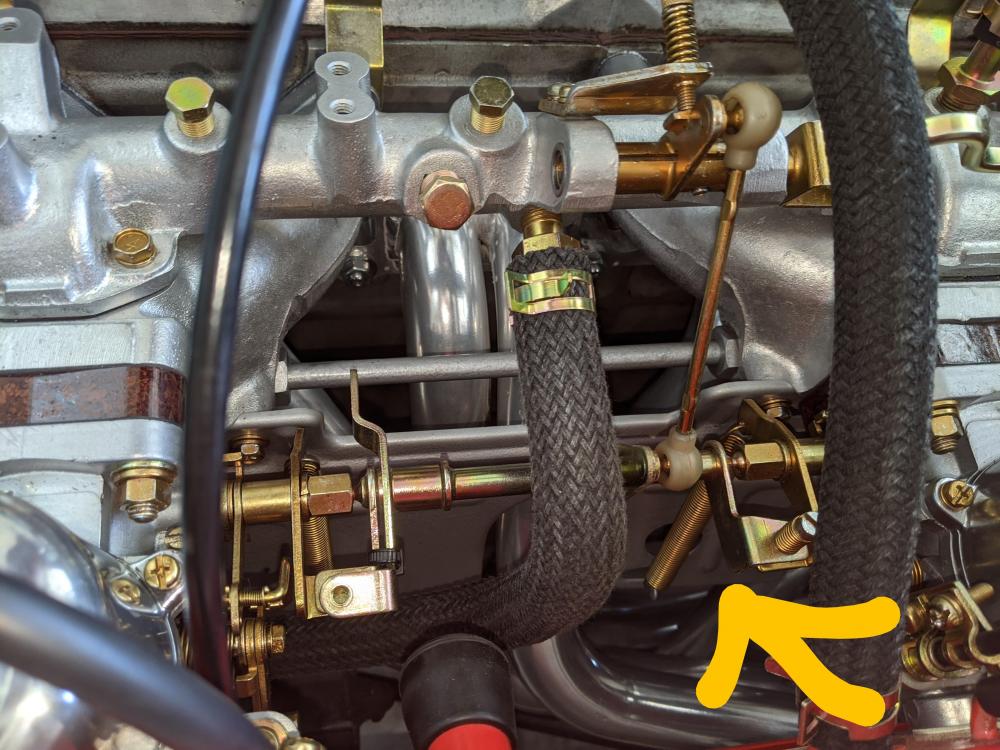

Q2: Coolant lines: It looks like the flat tops had four (4) coolant line connections and the round tops just the two (2) noted above, so I will need to cap/swap out a couple of connectors coming off the coolant lines to the new carbs. Any tips or links to parts that you've needed? See pics of the 4 current connections:



Q3: Two (2) EGR wires run off into a bundle and I'm looking for the relay.  I'm assuming I can just snip them and wrap them off instead of removing the relay?

Q4: See air filter housing back.  I know that #1 and #2 are the lines to float vents.  And #3 connects to the hose to top of valve cover.  What are #4 and #5?  #4 looks like it takes my breather housing rubber plug (currently sitting on #3).

Thanks for any help!


Edited by Dadsun

Share this post


Link to post
Share on other sites

I found the free hanging vapor flow valve hose that goes to #5. See pic. It is in the blue zip tie. Thanks. Sigh, so many hoses to replace.

The other hose within the blue zip tie goes to the crankcase and it looks like the big port there is where my PCV hose from carb linkage is, according to diagram I found, supposed to connect? It is currently not connected to anything. The flat tops setup I inherited had the PCV hose going straight to the air cleaner housing.

Also, I've been reading about wrapping my headers, since they'll be exposed, and some even wrap the heat shield to prevent percolating in the carbs. Any thoughts on this?


  • Like 1

Share this post


Link to post
Share on other sites

I have my pvc to the block and the balance tube as shown here. What kind of headers? Mine are heat coated already and do not get hot at all. The carbs are actually cool to the touch, more on top though. LOL




Edited by siteunseen

Share this post


Link to post
Share on other sites

I'll say something on percolation that will get some disagreements I'm positive. I've never had, heard of actual heat problems. It always ends up being something else. Low float bowl levels more than anything. The guys that race use electric pumps to keep the fuel flowing and cool through the return line.

We've all read about heat causing problems, ad nauseam to the extreme.

 Wrapped headers, youtube heat shields, electric fans and more. Wound up being low fuel level.

Share this post


Link to post
Share on other sites

@siteunseen - thanks.  I have no background knowledge here, so it's good to hear that.  I have thought about taking the headers off (they are the standard 3-2-1, which are stock headers, as far as I know) and sending them to get Jet Hot coated instead of wrapping.  But, that's like $400. I just figured if some see it as a problem then now is the time to address it.

But, if the braintrust on this forum think no wrap or coating is necessary, then that's good to know. I have an electric fuel pump back just off the gas tank.



  • Like 1

Share this post


Link to post
Share on other sites

I went ahead, since my header was rusty and fugly, and shipped it off to Jet-Hot in OKC. Two week turnaround. $225 plus one way shipping.

In the meantime, I'm going through hoses and coolant lines. See pics. What is this inline valve in the coolant line near the break booster (where it connects to a hose that runs around under air filter housing to thermostat)?



Share this post


Link to post
Share on other sites

I believe that is the thermostat for the carb water. If it works its a rare part for those wanting to run flat tops

Share this post


Link to post
Share on other sites

Ok. So I can take it out. Btw, Do people sometimes just cap off the intake coolant lines on the round top setups? Talked to a guy in a Datsun shop in Georgia who said it's common. As for now, I plan to run the coolant through the intake manifold.

Share this post


Link to post
Share on other sites

Maybe somebody else will confirm. I wouldn't think twice about deleting manifold heating

  • Like 1

Share this post


Link to post
Share on other sites

I plugged mine off. Car runs great. The carbs are cool to the touch now. The thing is most of those thermostats fail to close up when heated allowing the hot coolant to run through constantly. Plus you remove potential leak spots. That 90 degree hose at the rear of the head is suspect #1.

Share this post


Link to post
Share on other sites
