Picked up some hen's teeth in Portugal :) (not Mags sadly)


240260280

Recommended Posts


20 hours ago, 240260280 said:

I think it should go to Steve Nixon for the community.

I think it would be great if Steve would make a mold of it. I don't know if he would be willing to reproduce it but the mold would be a good start.

@nix240z

  • Like 1
Link to comment
Share on other sites

My rebuilt booster came with a brand new rubber diaphragm, so it's clear that there are already people who make that part. The problem is availability to the commoner not in the brake rebuilding business. I think it would be a lot easier to cultivate a relationship with someone who already makes this part than to pull a mold off an existing part. Someone here on the forum must know a guy, who knows a guy, who knows a guy's cousin in that business who would like to make a few extra bucks selling parts instead of complete units.

And don't forget that the poppet valve and seal that rides on it are an issue as well. That's what I think is wrong with mine. Works most of the time, but occasionally still sticks. (Thankfully it has only happened on the first brake push of the day and I'm still in the driveway.)

  • Like 1
Link to comment
Share on other sites

Some details @kats may like:

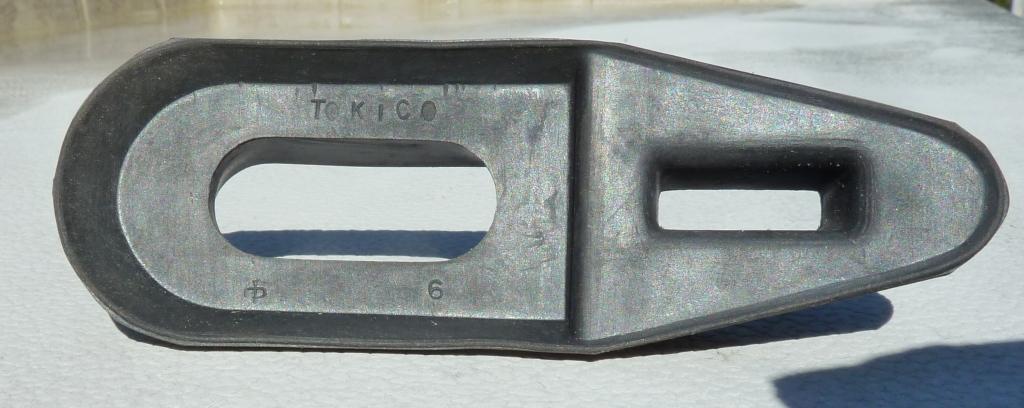

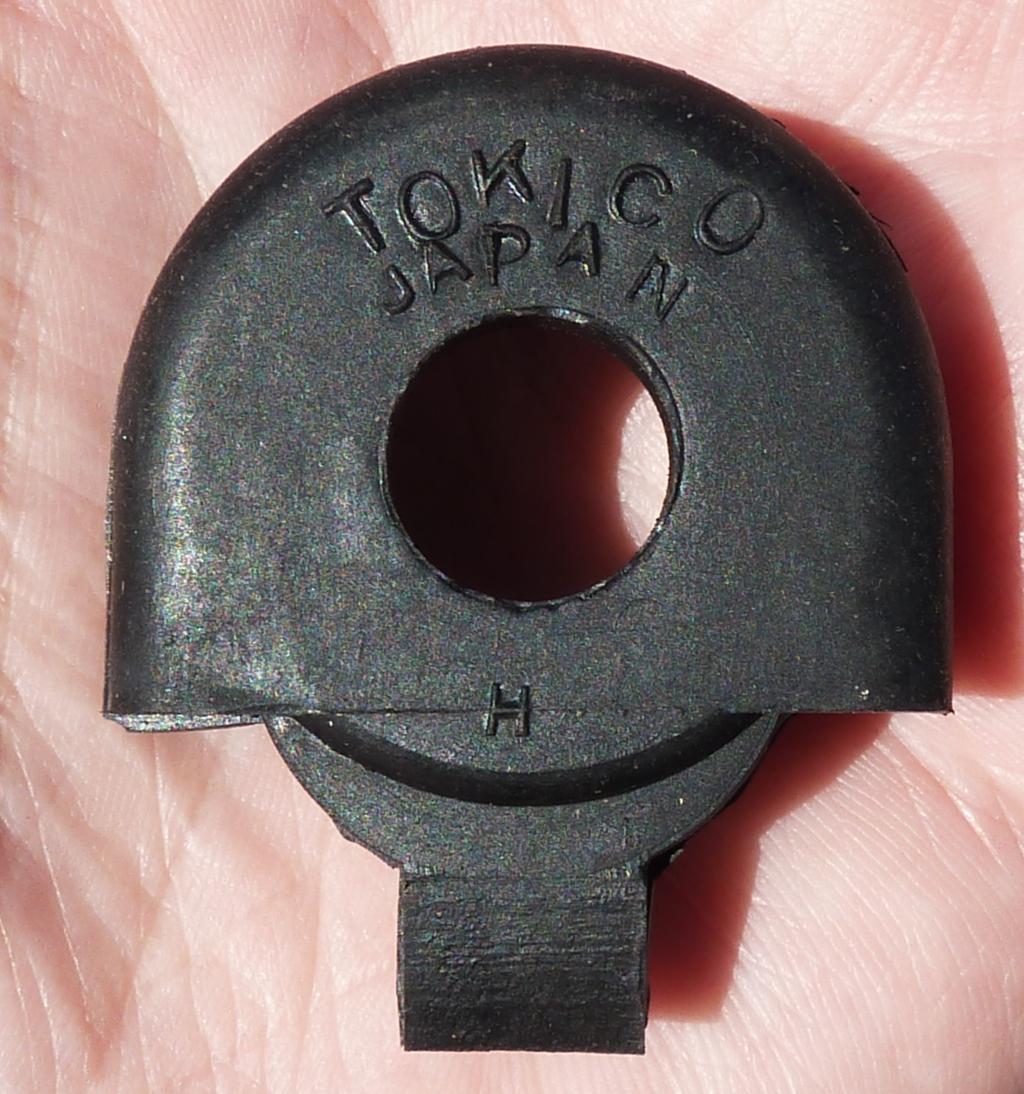

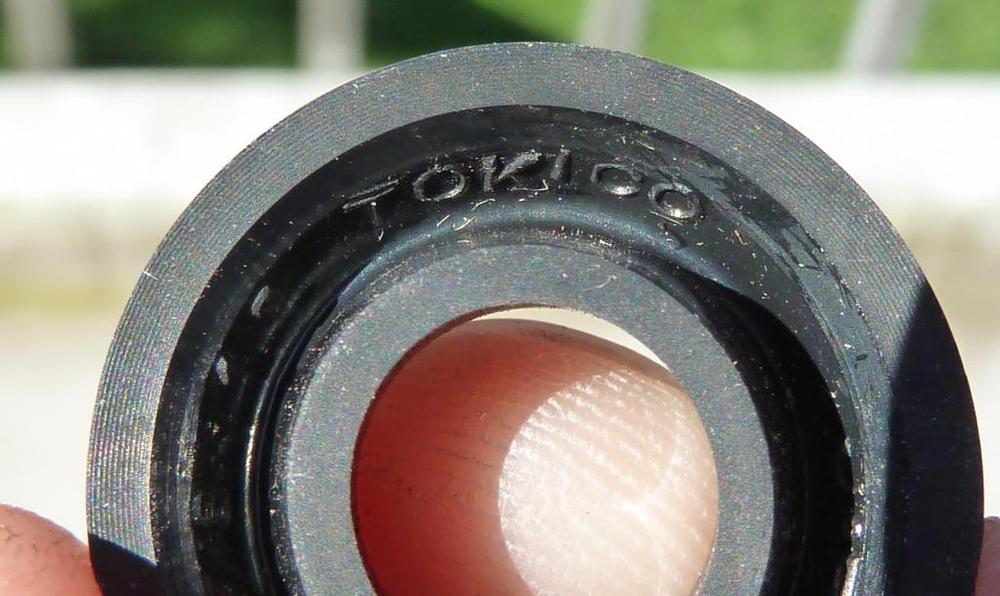

It is interesting that both Tokico and Hitachi  made some of the rubber parts. Hitachi part numbers seem to start with "222-"

The parts were purchased in 1974.

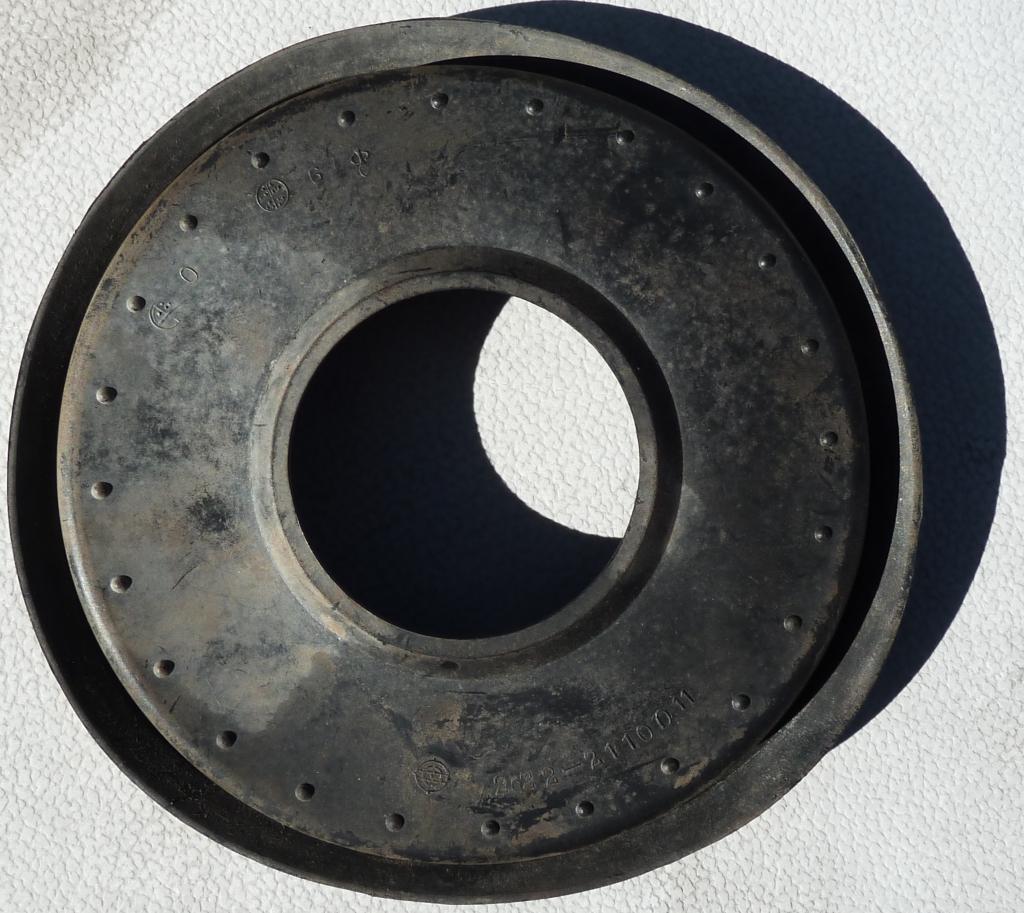

The diaphragm below is 6" diameter.

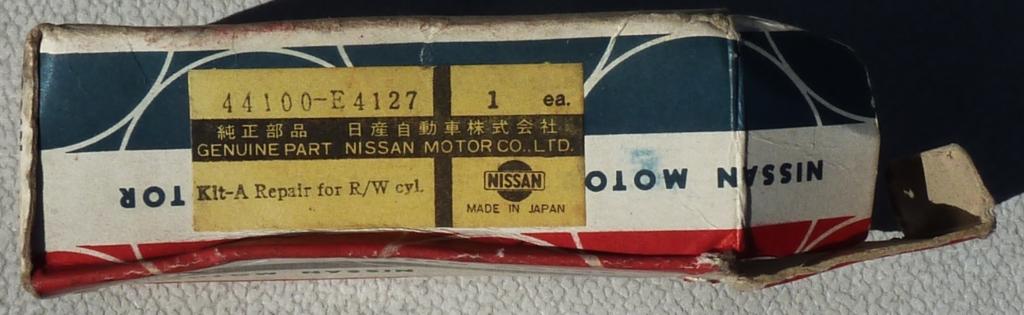

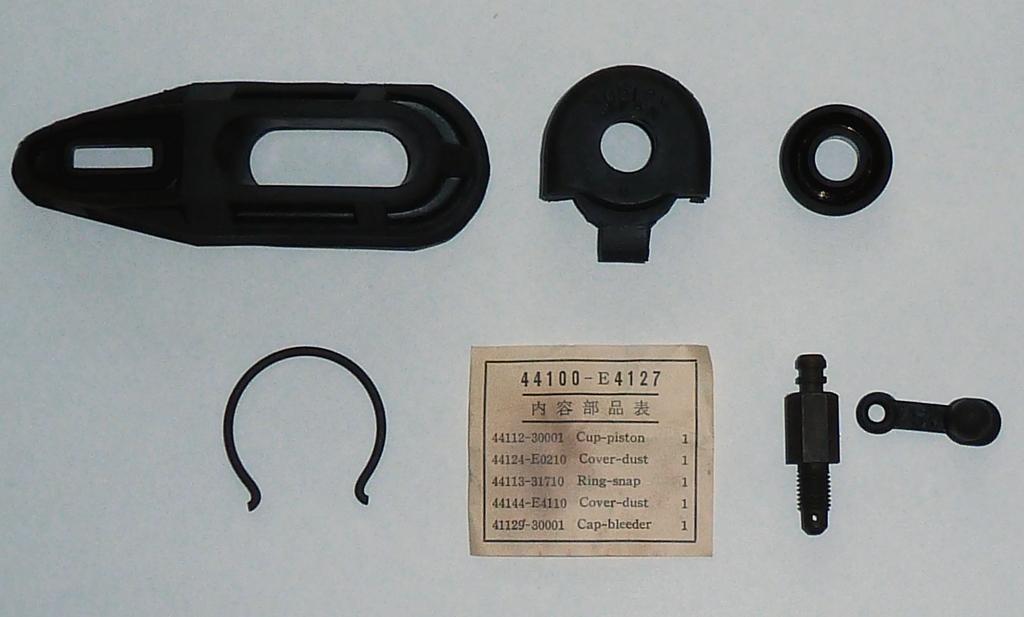

44100-E4127 Kit-A


44100-E4127 (Kit-A)

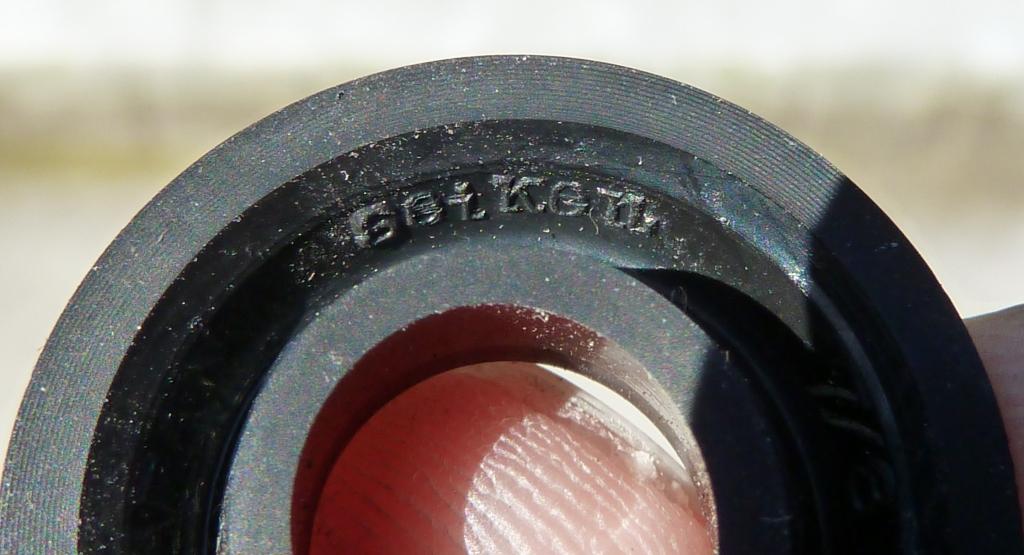

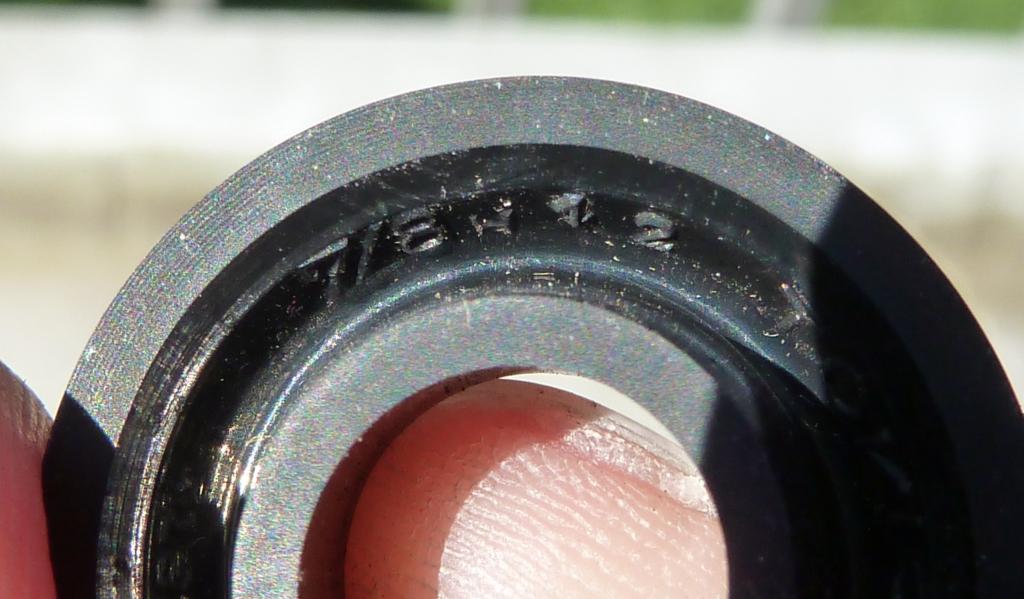

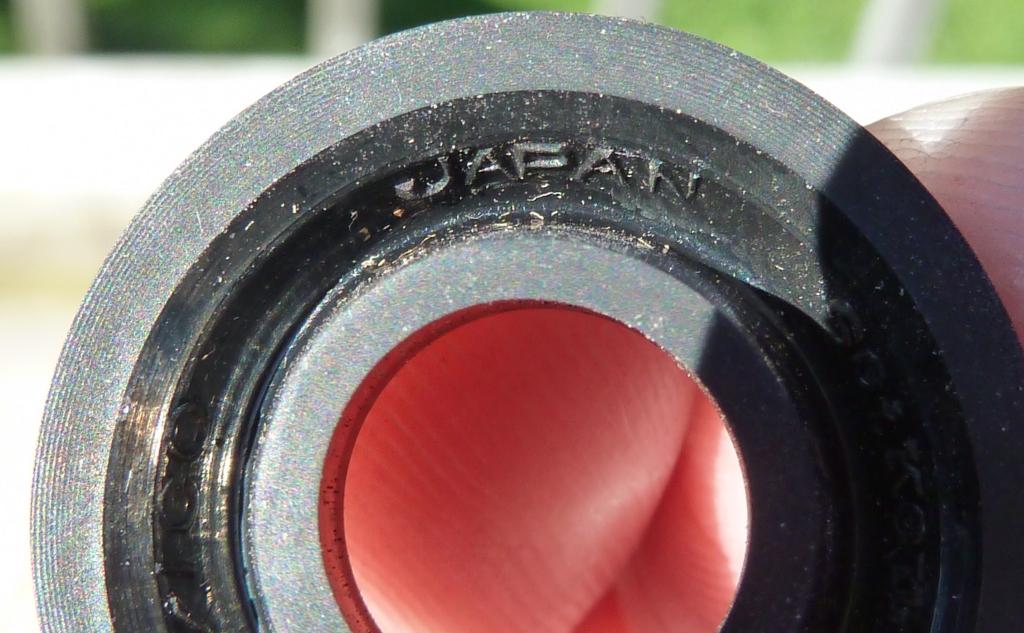

44112-30001 Rear 7/8 Wheel Cylinder Seal

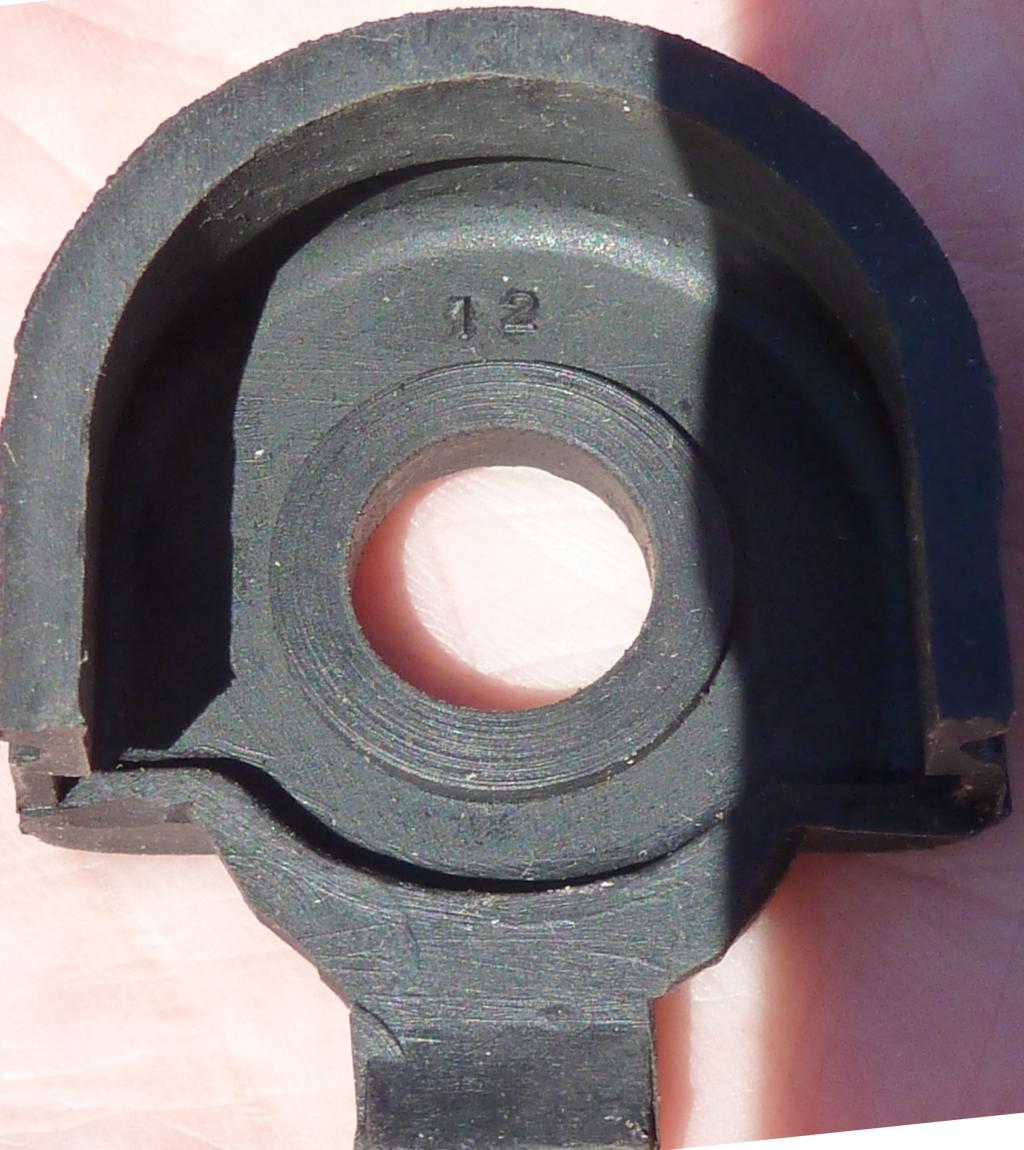

44124-E0210 Dust Cover

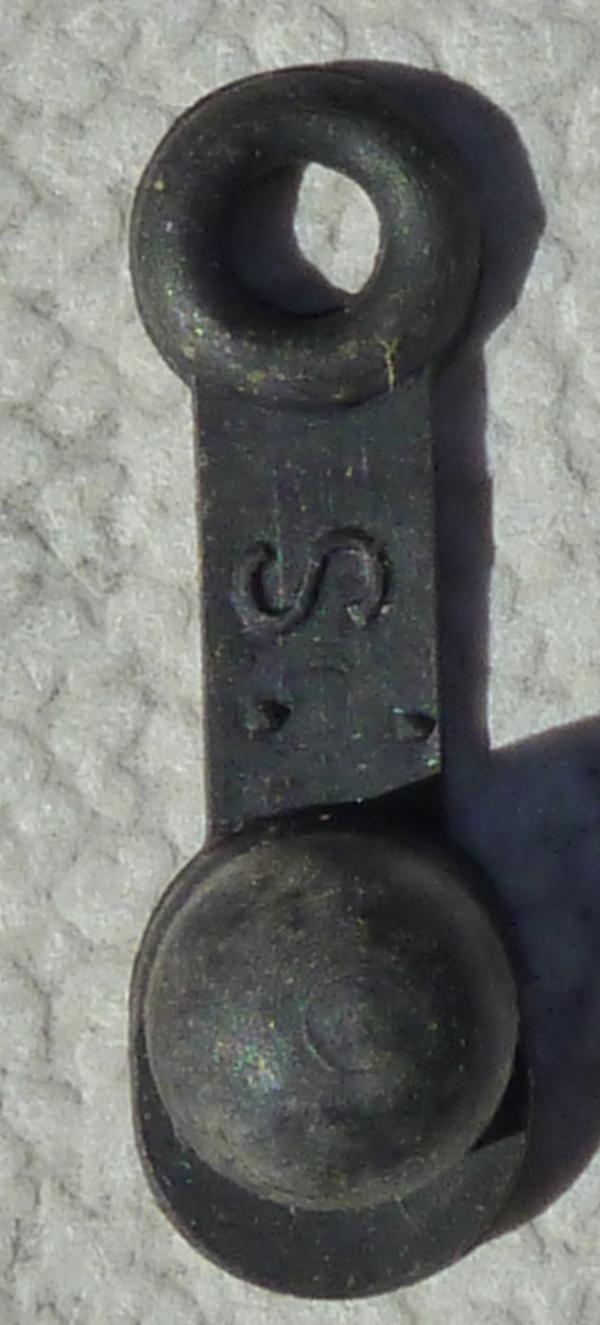

41129-30001 Bleeder Cap


44144-E4110 Dust Cover

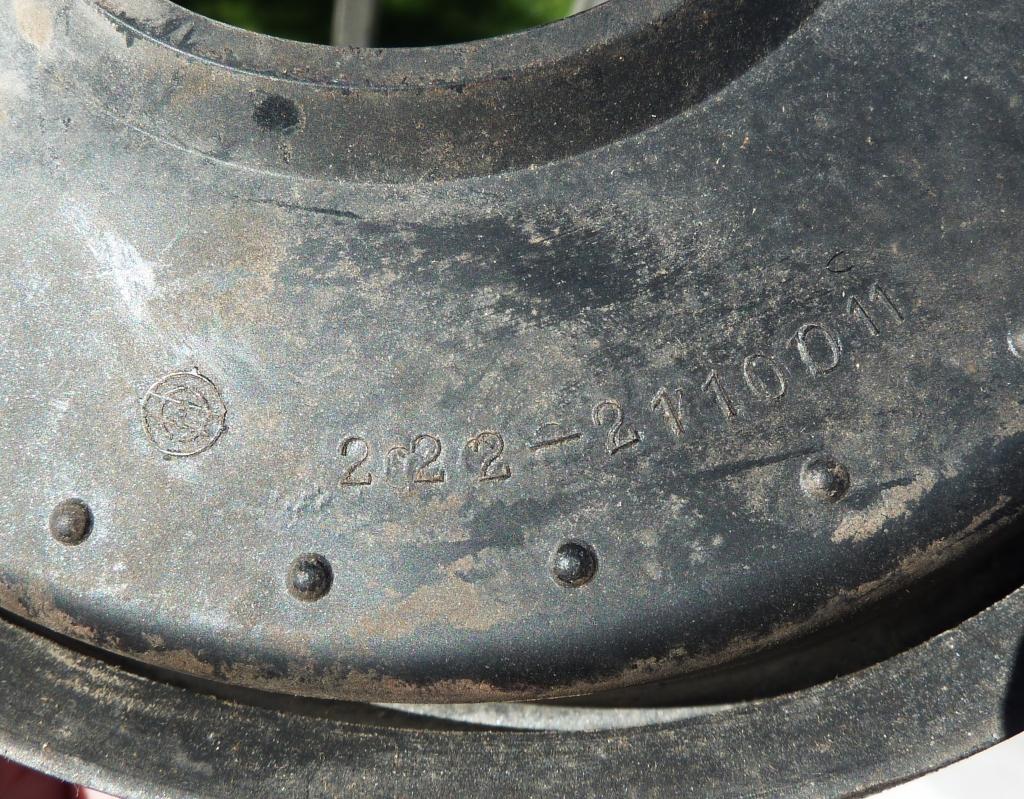

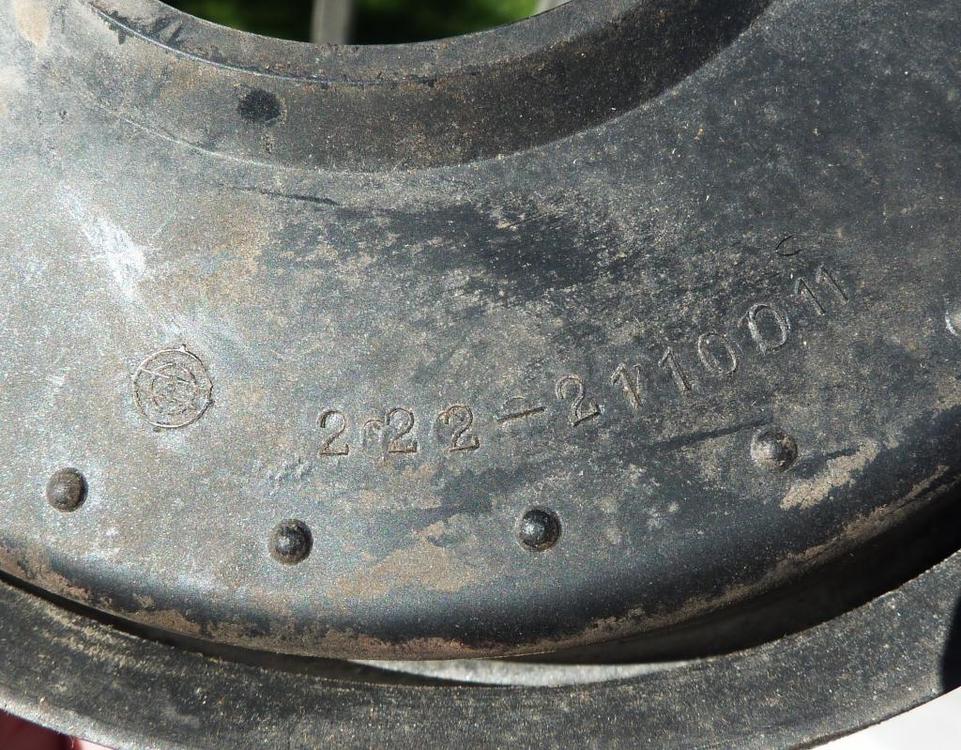

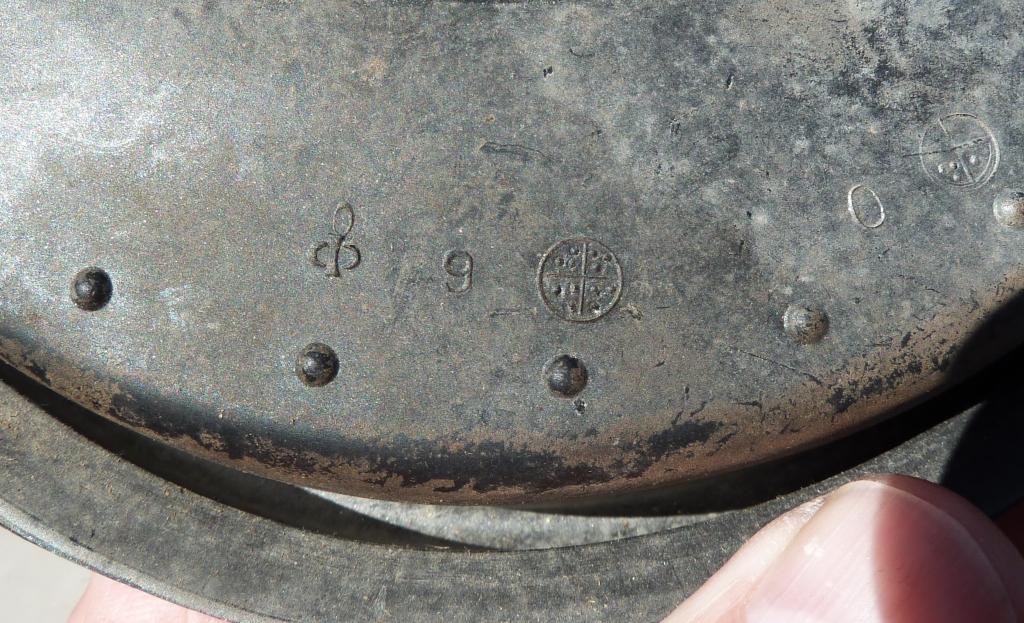

222-2110011 6" Hitachi Brake Booster Diaphragm

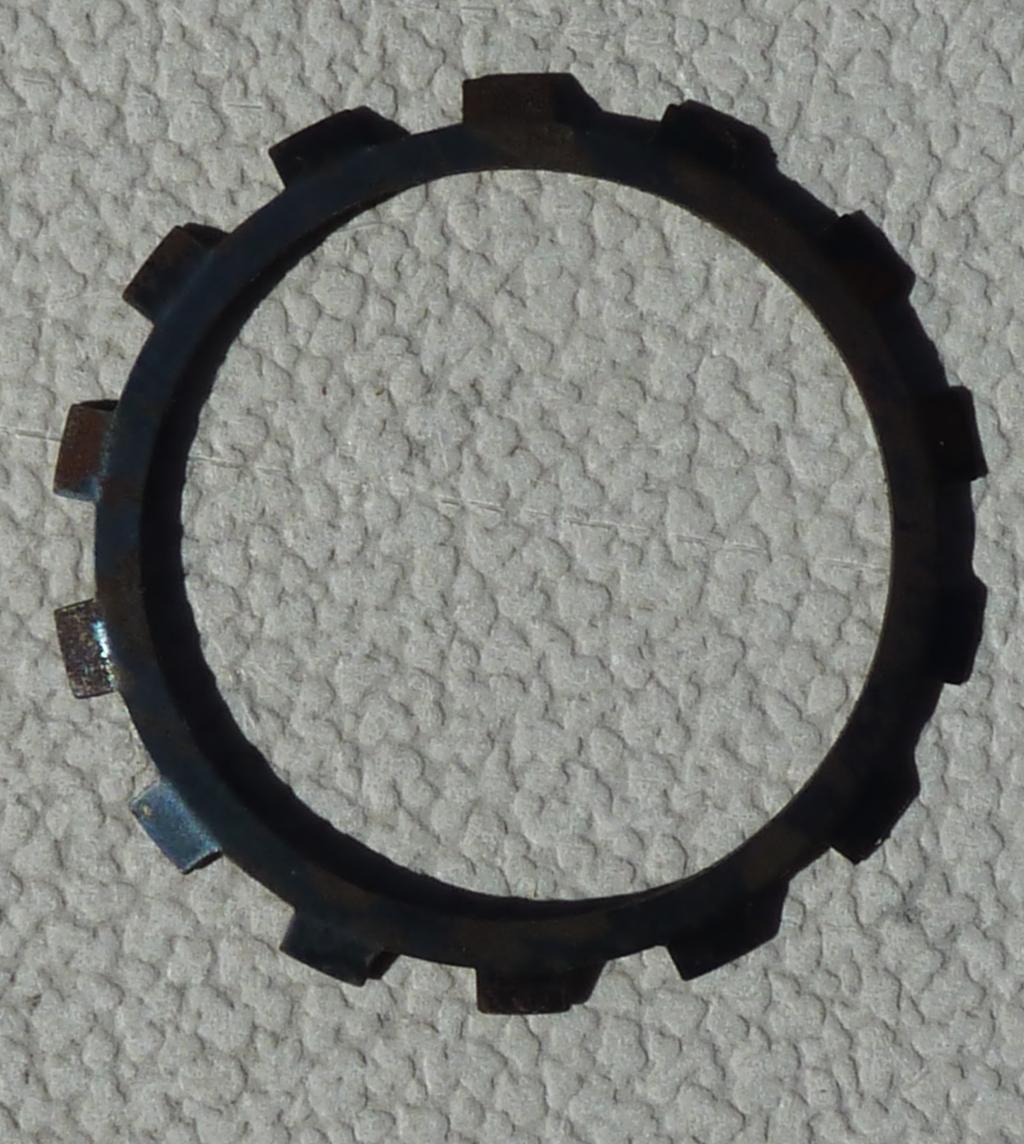

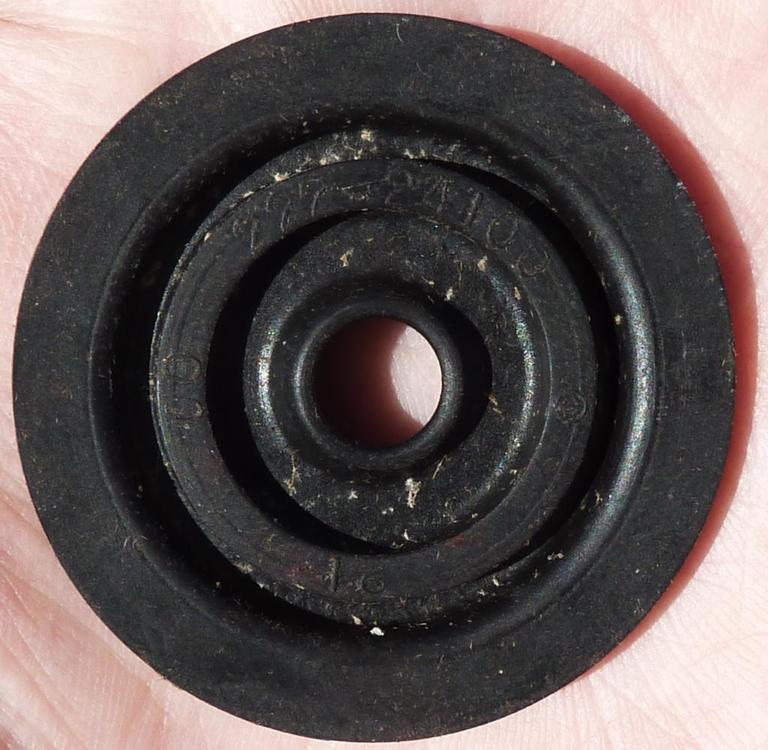

222-24100 6" Hitachi Brake Booster Front Seal

Edited by 240260280
  • Like 2
Link to comment
Share on other sites

Cool pics!

Never heard of the Lombardi OTAS. Thanks for that. Looks a lot like the Lotus Europa minus the Frenched headlights.
http://mycarquest.com/2012/07/otaslombardi-grand-prix-cars-in-pennsylvania.html
https://en.wikipedia.org/wiki/Lombardi_Grand_Prix
https://en.wikipedia.org/wiki/Lotus_Europa#Series_1

Edited by Captain Obvious
Added a link for the Europa
  • Like 1
Link to comment
Share on other sites
