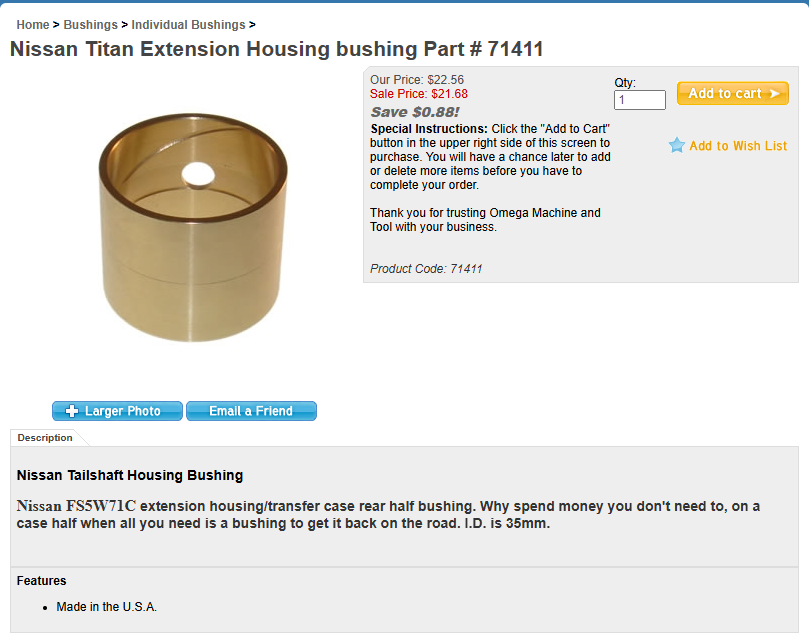

No, I am investigating my transmission rear bushing. I have two of these on hand I bought years ago: https://sales.omegamachine.com/Nissan_FS5W71C_Extension_Housing_Bushing_p/71411.htm I slipped one onto the old prop shaft yoke and it fits nicely. Not loose and not tight. I will have more time later tonight to measure ID and the OD of the new yoke. I'd say the new yoke is deflecting a good 0.030" to 0.040" up and down (total) inside the tail of the transmission right now. I am thinking I may need to pull the transmission tail section out of the car to do this bushing replacement.

Seems unlikely that the engine would use so much fuel when accelerating that fuel pressure would drop. Probably learn what you need to know just blipping the throttle by hand with the hood open. You could connect to the cold start valve hose. It's basically "on the rail" and sees what the injectors see. Don't forget to block the hole in the manifold. Never mind, no need to remove the valve. Just the hose. Good luck.

I purchased this a few days ago. I'll start there BETOOLL 0-140PSI Fuel Injector Injection Pump Pressure Tester Gauge Kit Car Tools (Master)

Can't tell where the seal is riding in your picture but here is a picture of an old early 240Z shaft I picked up that had a groove from a worn seal, for reference. Gives an indication of factory engagement. The wear pattern in your picture is very weird.

I'd fix this first. Besides the bushing, the fit of the splines should control play also. Are you sure that you have enough engagement?

Have you driven it yet with the new setup?

I just semi-permanently installed the electric fuel pressure gauge in my car. My job (and helping the parts cannon crowd) has conditioned me to have more diagnostic info readily available.

After replacing the insanely expensive cracked windshield in our 2025 Mazda CX-70 next week, I’m going straight to a shop to get Tera Shield installed on it. ZRAuto. Claims its three layers, clear for ever, blah blah blah. No idea about price yet. If it saves me one windshield it will pay for itself. That’s the brand the place I’m going to uses. I’ve looked online, and found a couple of retailers selling DIY kits in the $200 USD price range. Might try the DIY stuff on the Datsun just to say I did it.

... and appropriate.

The Good 'ol Boy way as was told to me by Fastwoman. Cost maybe $10? Don't drive around busy streets while watching the gauge, find a nice backroad and there won't be any issues.

I was quoted C$240 for the windshield film, installed. This was on top of the paint protection film work. Very reasonable.

Shimming the entire crossmember downwards creates a problem because it won't squish the front control arm bushings to hold them in place. It might be possible, but you would have to shim where the crossmember clamps those bushings as well. After thinking about options for a few days, I ended up grabbing a later front diff isolator (I had a spare) and modifying it. I flipped it around to work with my differential which is in the stock position (not moved back like the 72 model). I didn't take many pictures, but basically, I cut off the ears, flipped them over and swapped sides. I was very careful to tack and position them level to each other and in an adjusted (and equal) front to rear orientation. The net result was to lower the differential at this mount location by nearly 1/4", and to remove some of the angle that was manufactured into it. For the propeller shaft, I replaced the front yoke with a new one and got a local shop to balance it. I painted it and the mount: After installing both, and placing spacers between the body and the transmission crossmember, I took some angle measurements: pinion flange, crankshaft dampener, driveshaft tube in that order: I would have liked to have lowered the front of the differential a bit more, but the diff housing was nearly touching top plate of the diff isolator. And, I would have to add a much thicker spacer between the body and the transmission crossmember to get it down to 88.2. The bolts are quite long though, so maybe I will. Now the not so good news. There seems to be quite a large amount of movement of the new transmission yoke inside the tail of the transmission. I am concerned that the bushing in the tail shaft is excessively worn. This picture was concerning when I saw it. Maybe because of excessive wear in the bushing in the tail of the transmission, my driveshaft with improper u-joint angularity was vibrating around much more that it should have. I'll need to check for a wear specification. The 240SX transmission I the one thing on this whole car that I did not fully rebuild! Ugh!

Interesting, how much is the installation of this product? I might be interested.

I don't recall seeing any yellow double wire clamps on the car originally - hoops or otherwise, at least not yellow like the plating we see today. I was at Caffeine and Octane and a couple of guys who used to plate stuff as their business commented on my yellow chromate /zinc plating. They said something about how difficult it is to replicate the original yellow plating because the chemicals are different or something like that. They said we all have to put up with the 'really yellow' plating we have now. I am unsure of the accuracy of that statement. Others, especially original owners, should chime in here if possible, but my recommendation would be to go with clear zinc for all the hose clamps on the car because if you go with yellow chromate, you'll almost certainly end up with a much more yellow color than anything you see that originally had a very slight yellow tint. With my examination of the hardware on my car I found few if any exceptions to: clear zinc: all JIS (cross in the head) screws all clamps coil bracket spare tire hold down door latches and catches some lock washer and flat washers - as used with JIS screws I believe the hardware list I uploaded has the color listed. It is not exhaustive, but it is extensive.

The redneck way is to use a long piece of hose. I took a different direction. I went a 0-30 from this brand: https://www.glowshiftdirect.com/elite-10-color-100-psi-fuel-pressure-gauge/ If you want a cheaper alternative: (Wrong part removed) https://www.ebay.com/itm/176895594944?_trkparms=amclksrc%3DITM%26aid%3D1110006%26algo%3DHOMESPLICE.SIM%26ao%3D1%26asc%3D20200818143230%26meid%3D5a579eb1d3964f638fde15fc3eb8a2e0%26pid%3D101224%26rk%3D4%26rkt%3D5%26sd%3D176367258697%26itm%3D176895594944%26pmt%3D1%26noa%3D1%26pg%3D2332490%26algv%3DDefaultOrganicWebV9BertRefreshRankerWithCassiniEmbRecall&_trksid=p2332490.c101224.m-1 I can't vouch for the quality, though.

Forgive me if this is an obvious question but how could I see it when driving. I want to see what happens when I press the gas quickly.

The fuel pressure gauge should go between the fuel filter and the fuel rail.

Not sure if anyone is going to see this as it is so old. I finally got around to working on the car again. I just bought a fuel pressure tester. Where do I connect it? Is it the cold start valve?

I'm only considering this to give some protection for my brand new OE windshield. I won't normally be driving in the rain so I'm not worried about the wipers scratching the film. Even if I have to replace it in a few years I will have a little peace of mind when I go on road trips.

I would think plastic film, regardless of material, would be more prone to being scratched than glass. The mohs hardness scale (used to describe hardness of minerals) lists glass as 6.5 out of 10. A steel knife is 5.5. This means that glass can scratch steel but not the other way around. Unfortunately quartz is 7 so if you are at the beach, be carful how you wipe the sand off your windshield. Sorry for the earth science lesson, I'm a retired geologist.

In addition to paint protection film, I'm going to have windshield protection film applied on #957. Has anyone tried a product called Clearplex for windshields? My installer recommends it. He has done both of my Audis in the past, but only PPF. Madico, Inc.ClearPlex: Ultimate Windshield Protection FilmSafeguard your windshield with ClearPlex Classic and Contour, the optically clear film that protects against rock chips, debris, and UV rays while maintaining visibility and safety.

@AZ 240 Care to chime in?

I completely agree with you. PDF manuals are much more convenient..

Perfect....Many thanks...very appreciated

Long time not on here... I had a TON of trouble figuring out how to install them on my 75 Z since the instructions sucked. It is slightly different and I had some other custom parts, but I took this assembly stack picture to document how I put mine together... hope this help.
