280z Steering Wheel Vibration


Ownallday

Recommended Posts

I know this has been discussed in the past but the solutions haven't worked out for me. I have a 1978 Datsun 280Z. Pretty much all the bushings have been replaced with polyurethane. I have replaced the inner and outer tie rods, front wheel bearings, ball joints were replaced 2 years ago less than 5k miles. I have tokico lowering springs, I also have technotoytuning front and rear control arms. I also have a momo steering wheel. I have a pretty bad vibration coming from the steering wheel. I should also add that I've balanced the tires at least 5 times at this point, and the alignment has been done although I do have about -2 degrees of camber front and rear camber left side is about .4 degrees off compared to the other side which is most likely causing my car to pull to the right. Any other solutions. I do believe my struts are blown but to my knowledge blown struts shouldn't cause vibration. Possibly driveshaft? The car does have the lovely clunk in the rear when accelerating from a stop. I can't tell if there is play in the u joints/half shafts but there is play from the yoke inside the driveshaft (I can rotate it a couple degrees) not sure if that's normal. Any help would be appreciated. Below is a video of the the steering wheel vibration looks like at approximately 65mph.



Link to comment
Share on other sites


 I've never had a steering wheel vibration that was caused by anything than a problem in the front. I did chase a severe vibration in the body (85 mph +)(not the steering wheel). I installed six u-joints but didn't cure the vibration until I found a small dent in the prop shaft. I believe the clunk and steering wheel vibrations are two separate problems.

  • Agree 1
Link to comment
Share on other sites

You've addressed quite a few of the possible vibration issues but you didn't mention how old your tires are. You may have flat spots or out-of-round conditions not detected or cured by balancing, also possible slop in the steering rack. These cars are extremely sensitive to all of these issues. As to the rear end clunk, you likely have a failed differential mount. Get the car on a lift and see if you can move the front of the diffy up and down. Be cautious about getting a replacement solid mount that does not have the rubber insulator.

  • Like 1
Link to comment
Share on other sites

Years ago when I worked in a tire shop we static balanced and re-balanced a customer's car because it had a vibration at speed. We finally re-balanced the tire on a machine that could go up to 80mph. That worked. Now I don't know whether or not that can be done today, but it might be worth a try. Your vibration looks like a tire issue. Have you tried switching your tires front to back?

However, I had a vibration like yours on my Zed and traced it to a bad wheel bearing. No matter how I tightened and re-tightened it just kept coming back. I finally replaced all the wheel bearings, torqued them to spec, and the problem went away. Hope this helps. Good luck.

Cheers, Mike

  • Like 1
Link to comment
Share on other sites

2 hours ago, Mark Maras said:

 I've never had a steering wheel vibration that was caused by anything than a problem in the front. I did chase a severe vibration in the body (85 mph +)(not the steering wheel). I installed six u-joints but didn't cure the vibration until I found a small dent in the prop shaft. I believe the clunk and steering wheel vibrations are two separate problems.

Noted, I was leaning slightly towards the driveshaft anyways as my next solution. I have no idea if it's ever been replaced so it won't hurt to replace it. I heard the clunk can sometimes be caused by the driveshaft and possibly the axles.

1 hour ago, jfa.series1 said:

You've addressed quite a few of the possible vibration issues but you didn't mention how old your tires are. You may have flat spots or out-of-round conditions not detected or cured by balancing, also possible slop in the steering rack. These cars are extremely sensitive to all of these issues. As to the rear end clunk, you likely have a failed differential mount. Get the car on a lift and see if you can move the front of the diffy up and down. Be cautious about getting a replacement solid mount that does not have the rubber insulator.

The tires are about 1 year old, less than 7k miles on them. The tread is pretty much 80% on them. I use to have movement in the steering rack but went away after replacing to polyurethane bushings. I can't remember if I've replaced that mount or not. I know I did the moustache bar mounts though. I'll most likely order a oem diff mount that be safe eitherway.

1 hour ago, Pop's Z said:

Years ago when I worked in a tire shop we static balanced and re-balanced a customer's car because it had a vibration at speed. We finally re-balanced the tire on a machine that could go up to 80mph. That worked. Now I don't know whether or not that can be done today, but it might be worth a try. Your vibration looks like a tire issue. Have you tried switching your tires front to back?

However, I had a vibration like yours on my Zed and traced it to a bad wheel bearing. No matter how I tightened and re-tightened it just kept coming back. I finally replaced all the wheel bearings, torqued them to spec, and the problem went away. Hope this helps. Good luck.

Cheers, Mike

I heard of something like that, I work at a Toyota dealership so I have the luxury of balancing the wheels. I have tried rotating the tires already and there isn't a difference at all.

I replaced them about 3 months ago but I will go ahead and recheck the torque on them. Last time I did it I remember torquing them properly. Thank you for the input. I'll see if I can find a better balancing machine shop.

  • Like 2
Link to comment
Share on other sites

Do you feel play in the rack itself? I see where you changed the inner and outer rods. Had a 240 years ago and the issue was the rack it self had slop in it. Just throwing another variable out there.

Link to comment
Share on other sites

6 minutes ago, Yarb said:

Do you feel play in the rack itself? I see where you changed the inner and outer rods. Had a 240 years ago and the issue was the rack it self had slop in it. Just throwing another variable out there.

Aside from inner and outer tie rods and poly bushings for the rack and steering shaft, I haven't touched anything else. I can't feel or see any play, I tried moving the tires side to side and no free movement from the rack or wheels. I checked this after I did my inner and outer tie rods. Originally the rack had play and after doing those two things the play went away.

Link to comment
Share on other sites

Are the tension\radius rods from the lower control arms to those brackets on the frame of the car tight?  I had one come loose once and caused a vibration, although it became apparent at lower speeds and had a severe pull to the side of the affected loose tension rod.  My car is a ZX, but as far as I can tell, the S30 has a similar setup.


Link to comment
Share on other sites

1 hour ago, Yarb said:

That’s a good thing. Is it more of a vibration or a wheel shake your feeling?

It's mostly in the steering wheel, the car has a super slight vibration from the car itself which is where I think the driveshaft might be causing that there or possibly my blown struts. Or just the more stiff suspension setup I have too. Not really sure.



37 minutes ago, Reptoid Overlords said:

Are the tension\radius rods from the lower control arms to those brackets on the frame of the car tight?  I had one come loose once and caused a vibration, although it became apparent at lower speeds and had a severe pull to the side of the affected loose tension rod.  My car is a ZX, but as far as I can tell, the S30 has a similar setup.


Yeah the s30 has those tension rods. I last checked a couple months ago but I checked the tightness with the car in the air, today I'll double check the tightness on those on the alignment rack. My car does pull to the right.

Link to comment
Share on other sites

One more possibility. I chased a bad vibration for over a year until, almost as a last resort, i checked the spacers I was using on the front wheels. They were only 3/8 or a 1/4 thick, but they were SO BADLY MADE (cheap cast pot metal) that their thickness varied SO much that the wheel had enough run out to cause the vibration. Bought some 1/4 aluminum flat plate, drilled the damn holes myself and TOTALLY solved the steering wheel vibration.

Bent or out of round rims can also cause the run out too.

Just jack the car up at each wheel, rig up a pencil or something to “just touch” the rim near the edge and rotate the tire and watch the clearance to the pencil tip as the tire goes around. Should be dang near no variation, maybe 0.05 at most. A runout gauge is the best thing to use of course but just as a check you can almost hold your finger there and check.

  • Like 3
Link to comment
Share on other sites

I had a vibration in my 1976 car after I hit a pot hole and blew the tire the fall of 76.  I chased it for at least 2 years and the dealer said it was a bent front axle, so they replaces the whole strut and I still had it for at least 10 more years.  I finally checked the hub that had the baring outer race and it was spinning in the hub.  I replaced the hub and most of it want a way,  finally moved the aluminum wheel (original Appliance) from the front to the back (the wheel did have a small amount of movement from the pot hole on the outer rim) and purchased new 205 70 14 tires and all gone now except at about 70 mph.  I don't drive that fast too often so I'm good.  Good luck with you hunt.

Link to comment
Share on other sites

I also have chased the elusive, speed-sensitive steering wheel shake.

The problem came directly from a wheel-balance problem - BUT! it's not as simple as just rebalancing.

The problem was the wheel weights were not distributed symmetrically about the imbalance.  Since any balancing process will never be absolutely perfect, the slight inaccuracy of this particular balancing effort worked very well up to about 55mph.  Above that speed, the car acted as though it would explode.  Definitely hit a resonant frequency.

If the weights had been selected and applied more carefully (shall we say?), the inaccuracy would have been significantly reduced.

In the end, a perfectly acceptable balance was achieved by using bolt-plate balance fixture as oppsed to the typical centered balance fixture.  The difference being each wheel is balanced based upon its mounted center.



  • Like 2
Link to comment
Share on other sites

On 4/17/2022 at 12:51 PM, ETI4K said:

I also have chased the elusive, speed-sensitive steering wheel shake.

The problem came directly from a wheel-balance problem - BUT! it's not as simple as just rebalancing.

The problem was the wheel weights were not distributed symmetrically about the imbalance.  Since any balancing process will never be absolutely perfect, the slight inaccuracy of this particular balancing effort worked very well up to about 55mph.  Above that speed, the car acted as though it would explode.  Definitely hit a resonant frequency.

If the weights had been selected and applied more carefully (shall we say?), the inaccuracy would have been significantly reduced.

In the end, a perfectly acceptable balance was achieved by using bolt-plate balance fixture as oppsed to the typical centered balance fixture.  The difference being each wheel is balanced based upon its mounted center.



So the problem was mostly the wheel balance, I rebalanced the wheels and used road force and found the wheels were out of balance when using road force compared to just spinning. This solved about 50%-70% of my shaking at the steering wheel at least based on todays test drive. I now believe the rest of the shaking might possibly be coming from either the hub or struts. You can literally push the struts in with your pinky zero force and they don't come back up after and I have a feeling with lowering springs might be causing some vibration in that area that is transferring back to the wheel. As for the hubs they had a lot of surface rust, I tried to clean them today with what I had but they still felt somewhat ruff after, probably causing the wheels to not sit fully flush but could be wrong. Going to order Koni Yellow Adjustable struts and see how much that helps and clean up the hubs better.

  • Like 2
Link to comment
Share on other sites

  • 2 weeks later...

Came back to add onto something else that helped reduce the vibration. Finally replaced all 4 struts with Koni Yellow Adjustable struts. WOW! What a difference that made! I honestly think the struts I had in the car might've been the original ones from the 70s! However adding new struts reduced my vibration by about another 50%. So I'd say I only have about 15-25% of the vibration left in the steering wheel from before. Now I only feel vibration when going from approx 40mph to 60 mph but it's a lot less noticeable and doesn't really bother me at all anymore.

  • Like 2
Link to comment
Share on other sites

for me it was going back to steel rims and new tires. I never tried the new tires on the slotted alum mags, so it may have been just a defect in the old tires. I have the orig struts (the stock rebuildable ones) on the front and some non gas filled carts on the back. I have ZERO vibration at any speeds. My guess is the tires, I may go back to the slotted mags if I lose another wheel cover, I have thrown 2 now and its getting aggravating.

Link to comment
Share on other sites

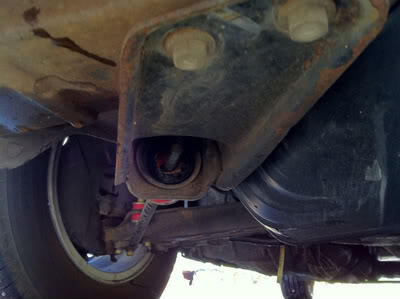

I had the same problem like you, and I did change ever thing from rack, to struts, to bushings, tie rods, and even springs. it turn out my drivers side floor board was week with some rot starting and since I replace the floor pan the car is perfect now!!!

  • Like 1
Link to comment
Share on other sites

1 hour ago, Dave WM said:

for me it was going back to steel rims and new tires. I never tried the new tires on the slotted alum mags, so it may have been just a defect in the old tires. I have the orig struts (the stock rebuildable ones) on the front and some non gas filled carts on the back. I have ZERO vibration at any speeds. My guess is the tires, I may go back to the slotted mags if I lose another wheel cover, I have thrown 2 now and its getting aggravating.

I've been wanting to throw my wheels out of the question for a long time but I don't have any friends with wheels that would fit my car. I currently have gold Enkei wheels which you cannot find anywhere anymore and I really love how they look on my car so I didn't want to buy new wheels unless I know they are the problem. I finally have a friend who is getting some new rota wheels and a tire setup that would fit my car in about a month. Going to try his wheels see if that changes anything. I had a friend that had mags, should've got them off him as a spare set would've looked pretty sweet with my color.

1 hour ago, kully 560 said:

I had the same problem like you, and I did change ever thing from rack, to struts, to bushings, tie rods, and even springs. it turn out my drivers side floor board was week with some rot starting and since I replace the floor pan the car is perfect now!!!

I have not change the rack itself, the only thing I touched were the inner and outer tie rods rack wise and poly bushings. I want to suspect the possibility of the steering shaft U joint being bad but there are not any replacement joints aside from one that needs to be welded by the looks of it.. My driver side floor was actually rusted really bad a couple years ago, I had a new floor and rail added to the cars driver side. I might have to double check the torque on my tension rods as I have the Technotoytuning Tension rods. I also know that my Driveshaft has a bit of play but from what I see the 78 280z driveshaft u joints cannot be replaced so need to save up a little more money and purchase a new driveshaft and see what that does.

Link to comment
Share on other sites

I chased for years with the same problem.  I also did the Technototytunning tension rods and there front adjustable lower control arms . mine was more of speeds around 65mph was the worst. the only shake I get now is when the car sits to long [ like 1-2 months sitting ] then I will need to warm up the tires for 2-3 miles then it is perfect. the tires must get a flat spot after sitting for a while. as I found out any thing that shakes or has play will effect it. I spent several years chasing that problem, changing and replacing all those parts until 1 day I was under the car and saw that little bubble of under coating down under the drivers seat.  it was a 6" x6" rust starting and weaken the floor board. since I change that whole floor board things are perfect now. but like you ever part I changed was for the better and I can not tell you how many alignments and balancing jobs I had done . do not give up you will find it and then you will say $^!# that was it .

Link to comment
Share on other sites

16 hours ago, kully 560 said:

I chased for years with the same problem.  I also did the Technototytunning tension rods and there front adjustable lower control arms . mine was more of speeds around 65mph was the worst. the only shake I get now is when the car sits to long [ like 1-2 months sitting ] then I will need to warm up the tires for 2-3 miles then it is perfect. the tires must get a flat spot after sitting for a while. as I found out any thing that shakes or has play will effect it. I spent several years chasing that problem, changing and replacing all those parts until 1 day I was under the car and saw that little bubble of under coating down under the drivers seat.  it was a 6" x6" rust starting and weaken the floor board. since I change that whole floor board things are perfect now. but like you ever part I changed was for the better and I can not tell you how many alignments and balancing jobs I had done . do not give up you will find it and then you will say $^!# that was it .

MMM, a lot of people told me they think my tires are bad but I actually drive the car pretty often so it's not sitting too long. I'll do some more testing as the weeks go by and replace the rest of the things that I have yet to in order to see what fixes it. Whats weird is hearing all these problems of rust in the floors causing shaking but when I had a hole in my floor board and frame rail I had zero shake from the steering wheel. I will 100% update what else fixes the shake on this post to help any future people who have similar problems but part of me believes the rest of the shake is potentially my driveshaft and axles even though the entire car doesn't have vibration. Gad you found your issue haha.

  • Like 1
Link to comment
Share on other sites

Once upon a time on my old 73 240z I put Michelins on my car after I wore out the factory Toyo's and with them came a steering vibration at about 60+MPH. I tried rotating and rebalancing and nothing would correct the vibration. After putting up with it for a couple of years I replaced the Michelins with BF Goodrich Radial T/A's and low and behold the vibration was gone!

  • Like 1
Link to comment
Share on other sites

I had the same issue and discovered it was the wheels.  Both sets I had, had their lug nut holes wallowed out a bit and were somewhat ovular.  So even though the lug nuts were on there tight, the wheel could still move a millimeter or so in the lug nut hole creating the steering wheel vibration.  I did the same as you in replacing basically the whole front of the car and having the tires balanced multiple times until I tried other wheels.

  • Like 1
Link to comment
Share on other sites

On 5/8/2022 at 9:27 AM, w3wilkes said:

Once upon a time on my old 73 240z I put Michelins on my car after I wore out the factory Toyo's and with them came a steering vibration at about 60+MPH. I tried rotating and rebalancing and nothing would correct the vibration. After putting up with it for a couple of years I replaced the Michelins with BF Goodrich Radial T/A's and low and behold the vibration was gone!

Very weird so our cars are prone to change drastically depending on the tires. Might have to swap out my tires see what changes. Currently running Hankook RS4 225/45R15. I always questioned if the sidewall was too little for this car. Might have to try Toyo R888 225/50R15 next as most people I know with Z cars run that setup. Glad yours was a simple fix that was found way later haha.

On 5/9/2022 at 3:01 PM, chaseincats said:

I had the same issue and discovered it was the wheels.  Both sets I had, had their lug nut holes wallowed out a bit and were somewhat ovular.  So even though the lug nuts were on there tight, the wheel could still move a millimeter or so in the lug nut hole creating the steering wheel vibration.  I did the same as you in replacing basically the whole front of the car and having the tires balanced multiple times until I tried other wheels.

The wheels I have currently have lug holes that were apparently repaired. My friend ran them on his 240z before selling them to me and his car was perfectly fine and I also had another friend test fit my wheels on his Z and it was fine too. This was before I got my Hankook Tires.

Link to comment
Share on other sites

4 hours ago, Ownallday said:

Very weird so our cars are prone to change drastically depending on the tires. Might have to swap out my tires see what changes. Currently running Hankook RS4 225/45R15. I always questioned if the sidewall was too little for this car. Might have to try Toyo R888 225/50R15 next as most people I know with Z cars run that setup. Glad yours was a simple fix that was found way later haha.

The wheels I have currently have lug holes that were apparently repaired. My friend ran them on his 240z before selling them to me and his car was perfectly fine and I also had another friend test fit my wheels on his Z and it was fine too. This was before I got my Hankook Tires.

Gotcha, we're in different baskets then

Link to comment
Share on other sites
