Towing WITH your Z

Recommended Posts

Years ago I had a tow hitch on my ZX, so when Dad decided he had enough of me sleeping till noon the first summer out of high school, and not really having any direction, Dad decided (kicked out gently) it was time I got educated, and I went off to A&P school to be an airplane mechanic.

So me and my 81ZX with a Uhaul trailer headed down the road.

So, my question is, since that was over 25 years ago, and I'm sure I dont remember how it really towed, has anyone been towing with their Z? I also believe it was the dual axle trailer as well, because I brought a couch.

I want to install a hitch system on my 240z I'm restoring for a teardrop camper. Does anyone have any experience doing anything like this? ZX being the slightly bigger car, I'm not really sure on what a 240 will do, if anything for towing.

PS, I have the Borg Warner 5 speed I'm putting in the 240, along with a slightly bored out 2.4.

Edited by DC871F

Share this post


Link to post
Share on other sites

 This guy seems to be taking all of his track equipment with him. Fast forward a bit into the film. The question I have is where do you mount the tow ball off of?

Share this post


Link to post
Share on other sites

I sold once a trailer hitch for a 240z, it had a beam from left to right (going to the main beams?) ...  were the bumper attaches? (laying inside the bumper outside the car.) And two brackets that went to the floor just in front of the gas tank, they were made of 1  1/4 a 1 1/2 inch tubing going under and round the gastank.. it was a original BRINK  (a maker of trailer hitches , i believe a Dutch.. made in Holland brand..?).

I've never had one for 280zx but i've seen one that only had a beam accross and went to the hooks under the bumper? i don't think that is very strong? On the other hand.. if you can pull a car with one hook.. two might be strong enough for a trailer hitch? 🙂

Edited by dutchzcarguy

Share this post


Link to post
Share on other sites

I just brought home a 71 Z that had a tow package attached.

it consisted of a 3/4 x 3” thick tow bar that attached at two points. The front was bolted through the spare tire well via a cross bar and two 7/16” stove bolts, and the rear was hung from the rear bumper with a 5/16 bolt. Yup, nice long bolt, straight through. Ouch

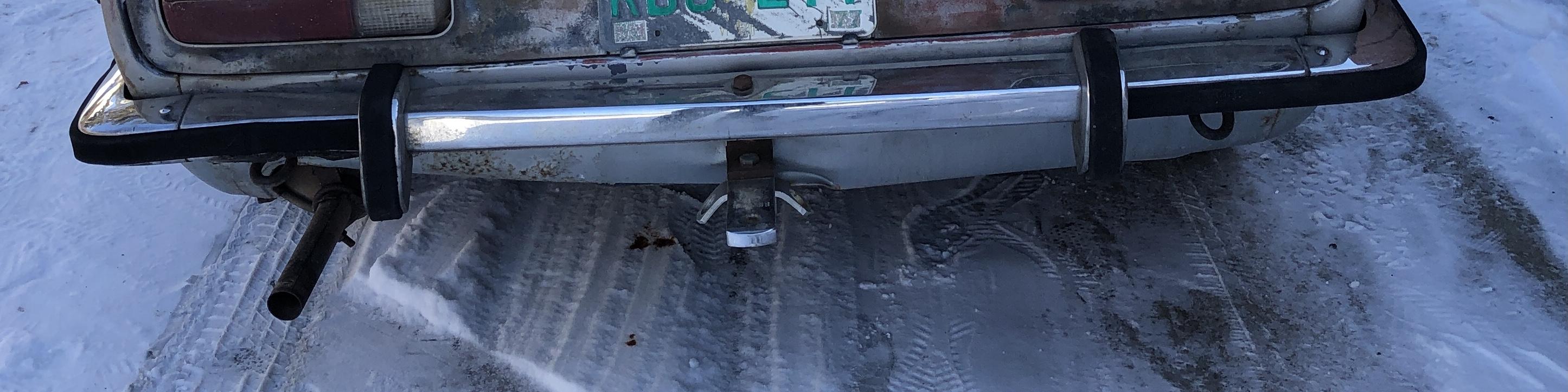

This is the only picture I have handy. You can’t see the big a$$ bar that runs under the spare tire well. It looks to be made for the car, the bar is bent in very specific places to fit tightly against the bottom.

I have removed the bar from the car. It’s in the recycle bin at the moment.


Edited by zKars

Share this post


Link to post
Share on other sites

So... done a lot of searching and found at last a picture (paper one..!) from a 1972 240z of mine out of 1991!  It shows how the hitch was attached  ... more or less..




Closer look...


It was a orig. BRINK hitch and the nominal weight for it was 50 kg down on it and 900 kg max trailer weight.. as far i remember..  This was my first 240z and was to rusty to repair.

Share this post


Link to post
Share on other sites

1 hour ago, dutchzcarguy said:

So... done a lot of searching and found at last a picture (paper one..!) from a 1972 240z of mine out of 1991!  It shows how the hitch was attached  ... more or less..

imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce5imageproxy.php?img=&key=e3750d425d330ce520201122_153837.jpg



Closer look...


It was a orig. BRINK hitch and the nominal weight for it was 50 kg down on it and 900 kg max trailer weight.. as far i remember..  This was my first 240z and was to rusty to repair.

So did the bumper mount over that horizontal bar to cover it?

Awesome pics.

Share this post


Link to post
Share on other sites
1 hour ago, zKars said:

I just brought home a 71 Z that had a tow package attached.

it consisted of a 3/4 x 3” thick tow bar that attached at two points. The front was bolted through the spare tire well via a cross bar and two 7/16” stove bolts, and the rear was hung from the rear bumper with a 5/16 bolt. Yup, nice long bolt, straight through. Ouch

This is the only picture I have handy. You can’t see the big a$$ bar that runs under the spare tire well. It looks to be made for the car, the bar is bent in very specific places to fit tightly against the bottom.

I have removed the bar from the car. It’s in the recycle bin at the moment.


Not worth being saved?

The ZX with the plastic cover I certain didnt have that set up with the vertical bolt. Looks like the sheet metal got all jillywhacked because of it as well, a little too much flexing.

Share this post


Link to post
Share on other sites

It cant be this easy, can it?



U-Haul: 1972 Nissan 240Z Rear Wheel Drive trailer hitch components

Hitch

Sportframe 1 1/4 inch Rec (Powder Coat)

  • Class 1 hitch
  • Max weight: 2,000 lbs.
  • Manufacturer Part Number: UHI24953CH
  • Part number: UHI24953CH
  • Hitch image shown is for display purposes only and may not reflect the actual hitch for this vehicle.
  • Please note:
    U-Haul is the only known company with a hitch that will fit your vehicle. However, these trailer hitches are built as ordered, so please allow 6 - 8 weeks to complete the manufacturing process.
$179.95


  • Like 1

Share this post


Link to post
Share on other sites
5 minutes ago, Patcon said:

Quite possibly, yes

Just from looking at their pic, it seems it would work. Bolt the vertical supports on the square tube on either side of the spare tire well.

Whether a a hole needs to be cut in the rear valance is another question. I have been mentally preparing myself for that, came up with a plan to make a removable hatch on the rear valance.

Share this post


Link to post
Share on other sites

Their disclaimer states the actual hitch may differ from the image. I suspect it will..

Share this post


Link to post
Share on other sites
11 minutes ago, 240260280 said:

Matchbox TP-21 Datsun & Motorcycle Trailer met. blue mint rare french  blister | eBay

RDTW Collectables Official Dealer of Diecast Cars and Trucks Tullytown Pa  #1 Hobby Shop: M2 Machines DATSUN - Auto-Trucks 1.64 scale Release  32500-S75 - HOBBY EXCLUSIVE - 1978 Datsun Tow Tr

Ok, thats hilarious. I have the z and the motorcycle matchbox in my closet somewhere. I want to say its a 260z 2+2 right hand drive.

I lived in Japan in the early mid 70s being my dad was Navy, and have plenty of old Japanese toys still somewhere in boxes.

Edited by DC871F

Share this post


Link to post
Share on other sites



This is what I had on my 240Z.  Bolted to the bumper mounting locations.  Main bar is 2"x2" and 1/4" thick, weighs a lot.   Used to tow a 4x8 trailer rated for 1000 lbs.

I also used it as part of my rotisserie, that's what the parts welded to the top of the bar are.  With slight trimming the bumper fit over this, leaving just the hitch and the shorter 2" bar in the center visible.


Edited by jwtaylor
spelling

Share this post


Link to post
Share on other sites

5 minutes ago, jwtaylor said:



This is what I had on my 240Z.  Bolted to the bumper mounting locations.  Main bar is 2"x2" and 1/4" thick, weighs a lot.   Used to tow a 4x8 trailer rated for 1000 lbs.

I also used it as part of my rotisserie, that's what the parts welded to the top of the bar are.  With slight trimming the bumper fit over this, leaving just the hitch and the shorter 2" bar in the center visible.


How did the 240 pull? Did you have the 4 speed in it?

Share this post


Link to post
Share on other sites

I had 4 speed then switched to the 81 5 speed.  Both seamed to to be fine.  I never fully load the trailer to 1000 lbs, may of had around 750 lbs a few times.  Braking distance defiantly was longer so use caution .

Share this post


Link to post
Share on other sites
28 minutes ago, jwtaylor said:

I had 4 speed then switched to the 81 5 speed.  Both seamed to to be fine.  I never fully load the trailer to 1000 lbs, may of had around 750 lbs a few times.  Braking distance defiantly was longer so use caution .

Great thanks. I'm doing a rotisserie restoration, so maybe bigger and better brakes when I get to that phase.

Share this post


Link to post
Share on other sites
9 minutes ago, 240260280 said:

Perhaps dial in your rear shoe gap to minimum when towing and bleed your 4 brakes to minimize long braking scares.


What the hell, looks like an M1 rolled over it.

Share this post


Link to post
Share on other sites

Here is what I have left of the towing bar I removed.

If anyone really wants them, just ask. Bit heavy. Price of shipping.



Share this post


Link to post
Share on other sites

I bought a 240Z a while back that had a tow hitch on it, here's the only picture I seem to have of the tow hitch.  Looks to be the same as @zKars'.




  • Like 1

Share this post


Link to post
Share on other sites
18 hours ago, DC871F said:

So did the bumper mount over that horizontal bar to cover it?

Yes it did!..  But the hitch had also 2 tubes of 1 1/4 " steel tubing going to the floor just in front of the fueltank and was bolted with 2 12mm bolts to the floor of the 240z.  These pieces of steel tubing were going under the tank, not over the tank. They had a sort of Y shape, the lower part beiing the hitch.

I would not use a hitch that only connects on the bumper bolts on the back..  you need also the two tubes going to the front..  The one on my pics did have that, only not visible. I looked for pics of the demontaged hitch.. none found sadly.

Share this post


Link to post
Share on other sites
6 hours ago, dutchzcarguy said:

Yes it did!..  But the hitch had also 2 tubes of 1 1/4 " steel tubing going to the floor just in front of the fueltank and was bolted with 2 12mm bolts to the floor of the 240z.  These pieces of steel tubing were going under the tank, not over the tank. They had a sort of Y shape, the lower part beiing the hitch.

I would not use a hitch that only connects on the bumper bolts on the back..  you need also the two tubes going to the front..  The one on my pics did have that, only not visible. I looked for pics of the demontaged hitch.. none found sadly.

Thanks.

It went under the fuel tank then down the rear valance, and then it came out onto the horizontal tube to the bumper mounts? Pretty strong.
