Dave WM

un sticking fuel injectors

    Recommended Posts

    This is off the intake manifold on my spare engine. I am toying with the idea of trying to get it running on the existing parts to base line it before any decisions are made as to rebuilding the engine.

    So 1st order of business is to get the fuel injectors working. So far I am up to 3 working. here is a video of my setup to unstick some frozen injectors. The 3 remaining hard cases are now off the rail so I can get some PB blaster down the inlets hoses. The one under suction did NOT come unstuck. I will run them for several hours and see if anymore come unstuck. If not I will try the suction approach again, but will use my 2 stage vacuum pump rather than the little hand held job. I was hoping the reverse flow would work better since I presume there is spring loaded plunger that would be pulled up by the vacuum, assuming its stuck down (closed). I did try rapping them with the back of a large screw driver, in an attempt to shock break them.

    I also have the bolt buster induction heater, that seems like a last ditch method as I have no idea of how it would effect them. I could try holding the large body in the center of a ring and give it a few seconds just to see what happens.



    Edited by Dave WM

    Share this post


    Link to post
    Share on other sites

    Suction would act on on a very small area, the pintle seat.  Probably not much force generated, atmospheric pressure on that small area.  I've tapped some open, with a heavy screwdriver.  You could probably just tap them upside down on a board or soft surface also.  The spring holds the pintle down, the solenoid pulls it up.

    You might even just blast them with a full unresisted 12 volts, a tap at a time, maximum magnetic field.  I know that people worry about having resistors in place but that's for current, which causes heat.  A short full current blast won't overheat them.  They still see 12 volts before they're grounded, they just don't see maximum current when the resistors are in place.

    Pretty sure you know all of that, it's just a reminder.

    Share this post


    Link to post
    Share on other sites

    This sounds like a good Arduino project.  The thing would pulse the injectors using 12V and a MOSFET.  You could add a momentary  pushbutton to start a single cycle, or a toggle switch to start continuous pulsing.

    Otherwise, I'd probably put some leaner through the injectors with light pressure or gravity-feed.  if you set up a glass reservoir and recycle the cleaner, you could see when they are un-stuck or spraying well, then have your work pay-for itself by cleaning injectors for others.  🙂   FYI-  I've been told by a few "technicians" that you can't clean injectors- you must replace them.  😠

    Edited by TomoHawk

    Share this post


    Link to post
    Share on other sites

    I will give the shock treatment another try. Good point about the area of the pintle restricting just how effective pulling a vacuum is.

    Share this post


    Link to post
    Share on other sites
    3 hours ago, 240260280 said:

    Use carb cleaner. It works nicely.

    This works to unstick, I just assumed it would not work other than as a cleaner?

    Follow up on the all night soak in PB blaster (injector body soaking in cup, and have PB blaster in the inlet fuel line. After all night none of them freed up, I bumped the current up to about  .8 amps.

    The bodies were a little bit warm to the touch after the all night, so I will keep a close eye on the temps at the higher current. It would be nice to know exactly what is the failure, gummed up old fuel or rust. My guess is fuel but that is just a guess.





    Share this post


    Link to post
    Share on other sites

    Back when I had my Z32, I dissected a couple failed 300ZX injectors (different style), but I've never done any autopsy work on a 280Z injector. I'd be happy to do so if you (or someone else) wants to send me a surplus injector or two.

    I would have to dig out my Z32 injector box to be sure, but I don't think they used stainless steel. I think it's carbon steel, and therefore susceptible to rusting. I assume they believe that situation won't occur as long as the internals of the injectors are constantly bathed in dry fuel not containing any water. Just like the gas tank.

    But if the car sits for a long time with the system open, water can accumulate where the fuel is/was. Just like the gas tank.

    The point is... If they didn't make the internals out of a magnetic stainless, then there may be some rust inside inhibiting movement.

    Share this post


    Link to post
    Share on other sites

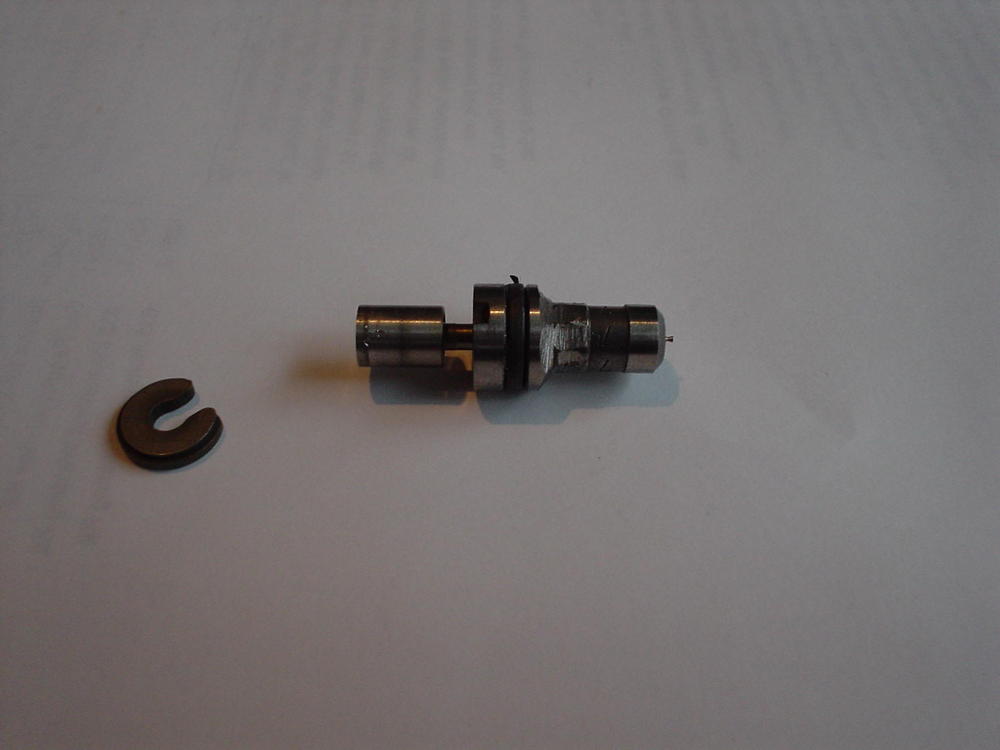

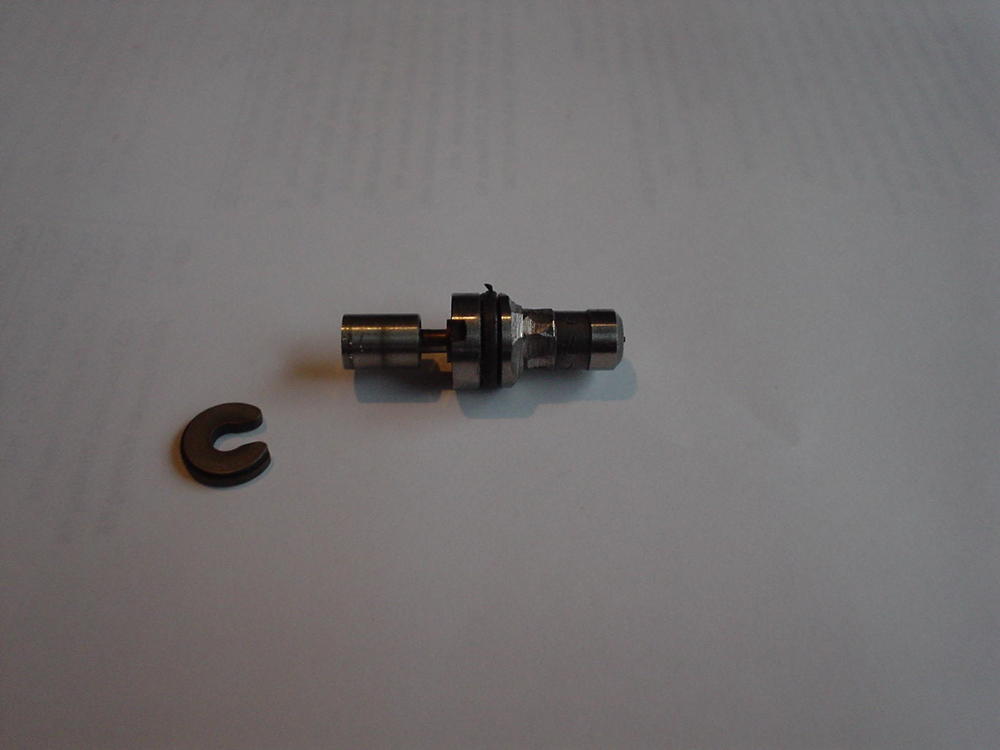

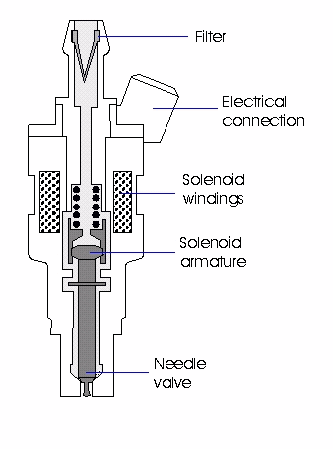

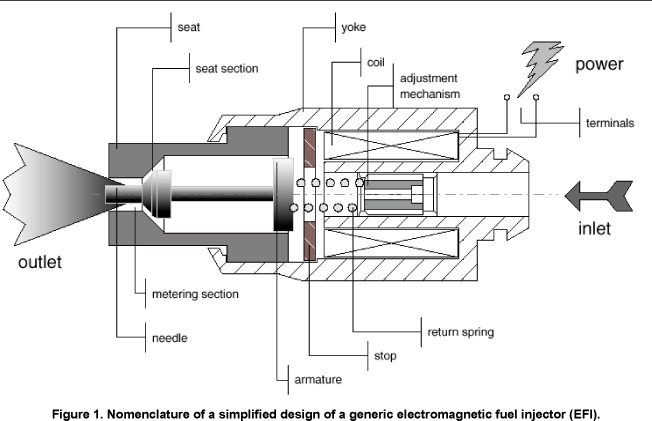

    there was a ebay ad for remanufactured 280z injectors. The ebayer insisted that they do it right, even had pictures of a disassembled one. It was hard to tell exactly what was there but it did look like the correct injector. had the long pin, some kind of circlip etc... internals.

    I was always under the assumption that they can NOT be disassemble with out destruction. they seem to be crimped together. I never followed up on the ad since I decided to just get mine cleaned at a local marine shop.

    Share this post


    Link to post
    Share on other sites

    looks like if you could get a cylinder shaped pushing tool over the needle (to avoid damage) but inside the body you may be able to tap the plunger. I am sure trying to push it on the needle itself with enough force to break the jam would no doubt damage it. I am wondering about that ebay ad now as it seem there is no way to disassemble with out destruction. It all seems to be crimped together, not intended to be serviced. I also doubt a tool thin enough to do what I am describing would be strong enough to exert the force needed as well. Oh well I will keep soaking an running the 1/2 wave current thru them just to see what happens.

    Edited by Dave WM

    Share this post


    Link to post
    Share on other sites

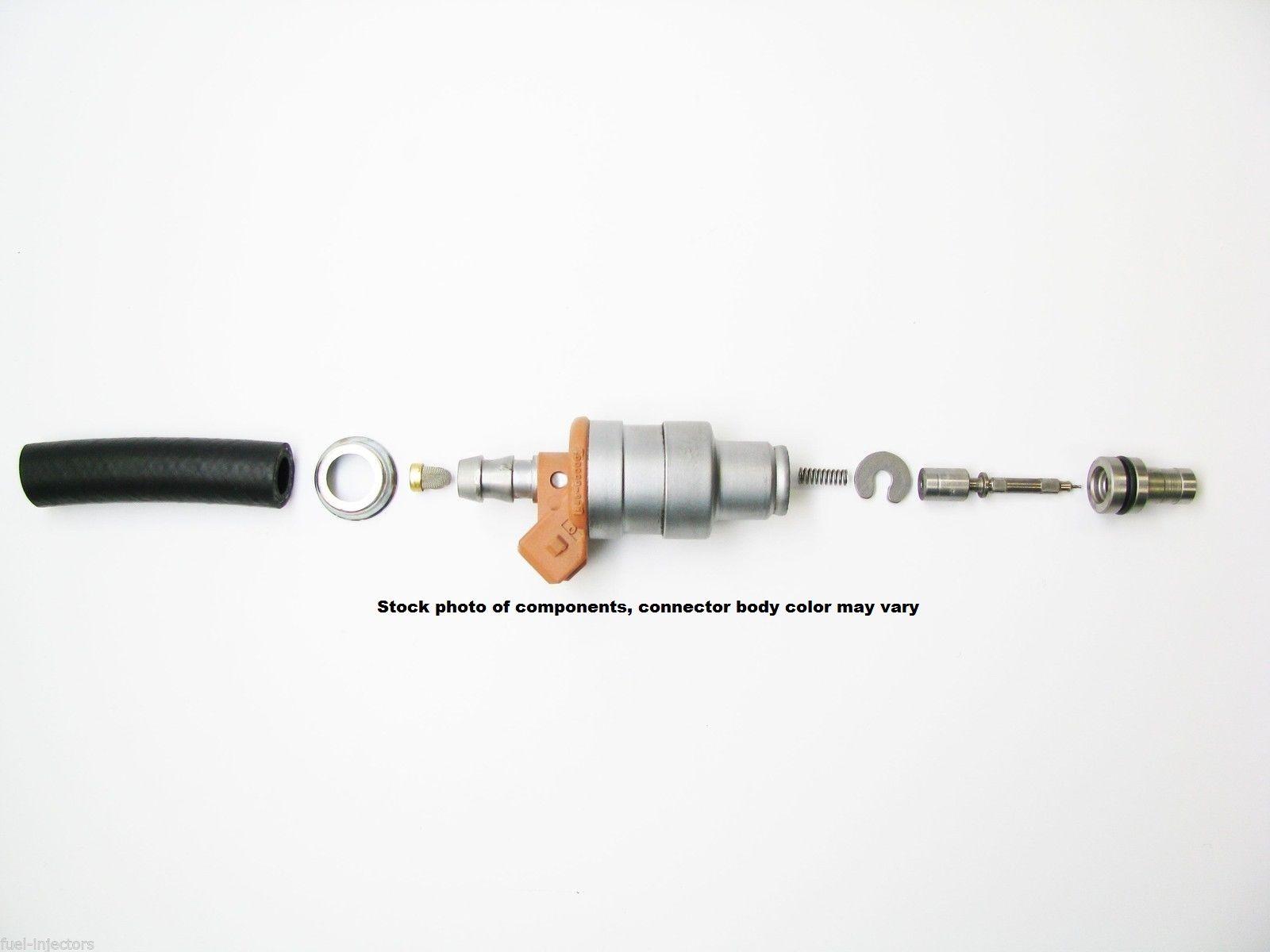

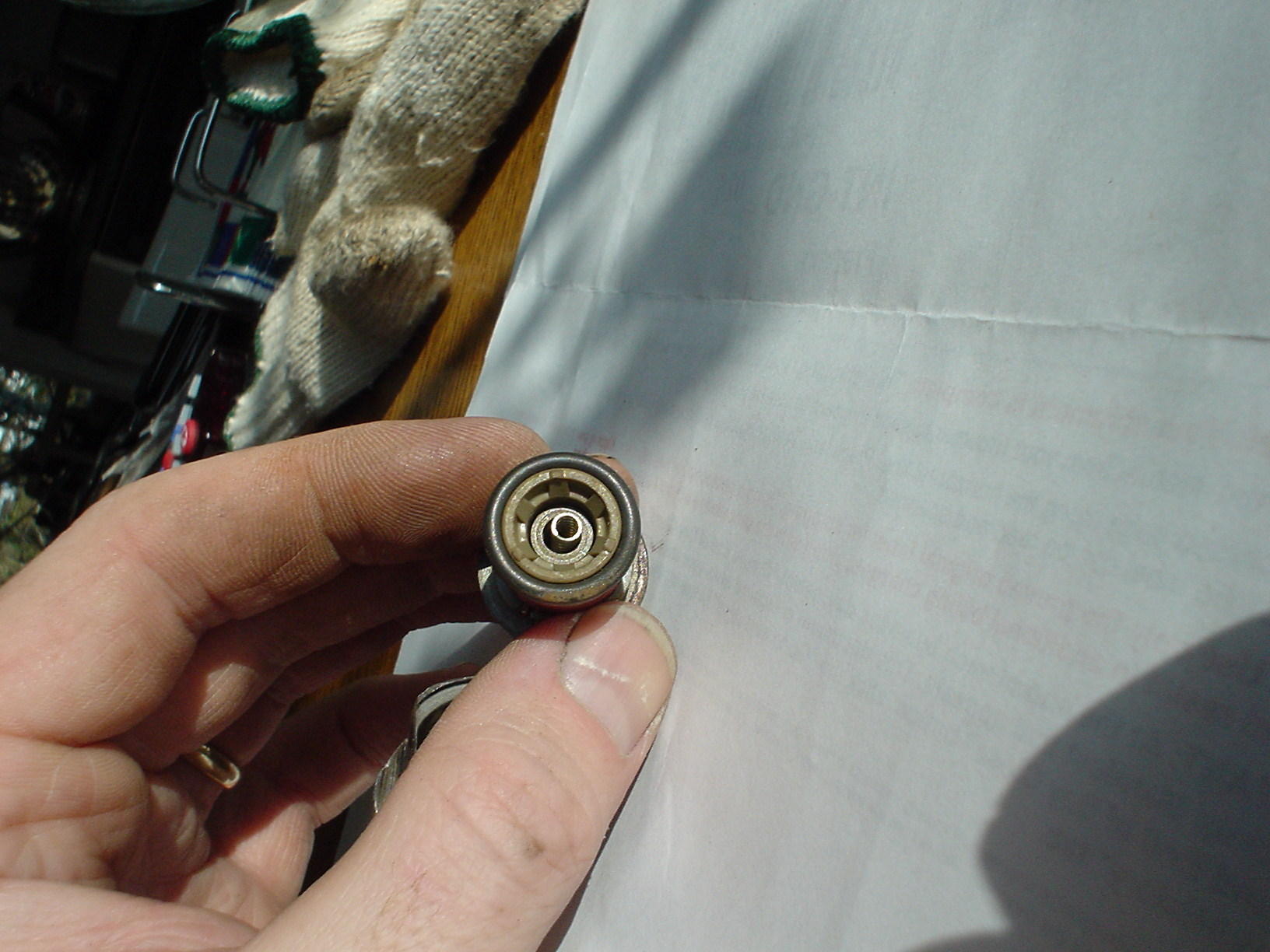

    is that a threaded hole in this pic? I removed the filter and can see what looks like a hole, maybe that one, and if threaded, perhaps a screw can be inserted to use as a tool to pull back on the plunger.


    Share this post


    Link to post
    Share on other sites

    Mass + inertia. Bang the top on the top of your work bench.  Then shake it like a tiny shake weight.

    Here's a note from a guy who did a bunch of work on some Z stuff.  He posted a lot back when the internet was just words on a blue screen.

    https://yarchive.net/car/injectors.html



    I have problems with the concept right off the bat because I've seen
    bosch injectors rust literally before my eyes after getting a bit of
    water in them.  I have one here in which, being lazy, I dipped the tip in an
    aqueous solution in the ultrasonic cleaner.  The pintle rusted and stuck
    literally before I could dry it.  JGD]

    Share this post


    Link to post
    Share on other sites

    success. Tried the banging, no joy, used a bolt extractor, the drill bit that came with it was a perfect fit, so I tried the bolt extractor, got it to bite used some vice grips to hold it and then bang on them (think slide hammer) still nothing. then I just took the same drill bit and tapped it into the center body (went pretty deep) seemed to catch on something, used the vice grips and in a process of banging, twisting I heard it free up. hook back to the tester and buzz away. put it back on the juice (see the video) pulled a vacuum and it would suck up the PB blaster. I could control the flow by turning it on and off. going t let it soak in the PB blaster for a while with it running.

    Will try the remaining 2 that are stuck and eventually use cleaner and spray to check spray pattern.

    Edited by Dave WM
    • Like 4

    Share this post


    Link to post
    Share on other sites
    2 hours ago, Dave WM said:

    is that a threaded hole in this pic? I removed the filter and can see what looks like a hole, maybe that one, and if threaded, perhaps a screw can be inserted to use as a tool to pull back on the plunger.



    It is the spring. 🙂




    Share this post


    Link to post
    Share on other sites

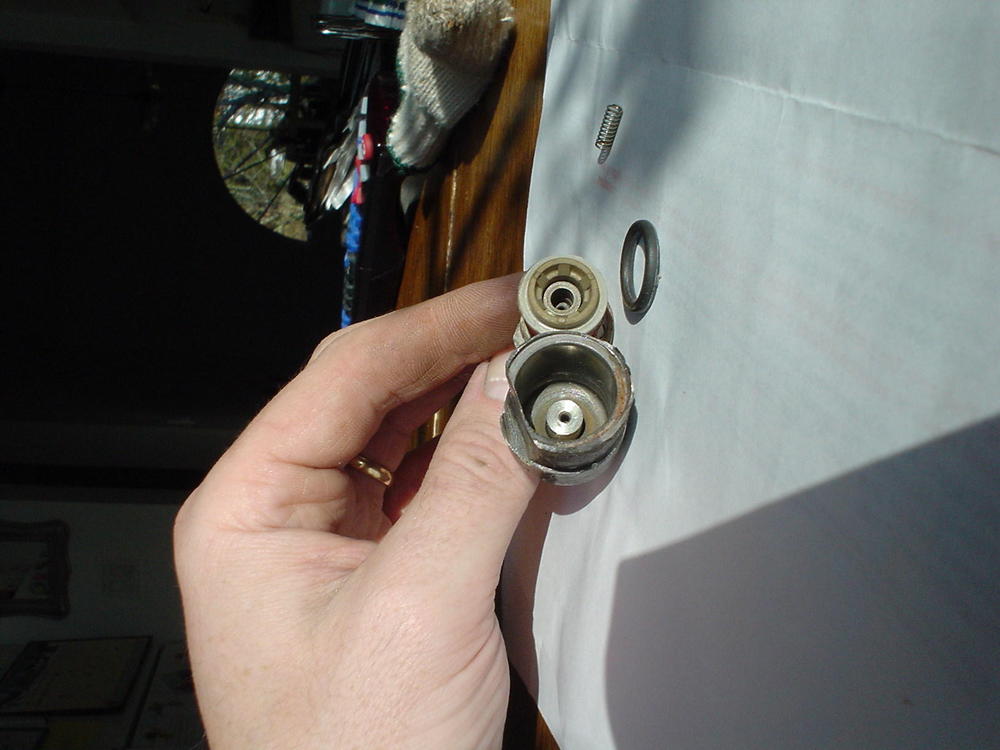

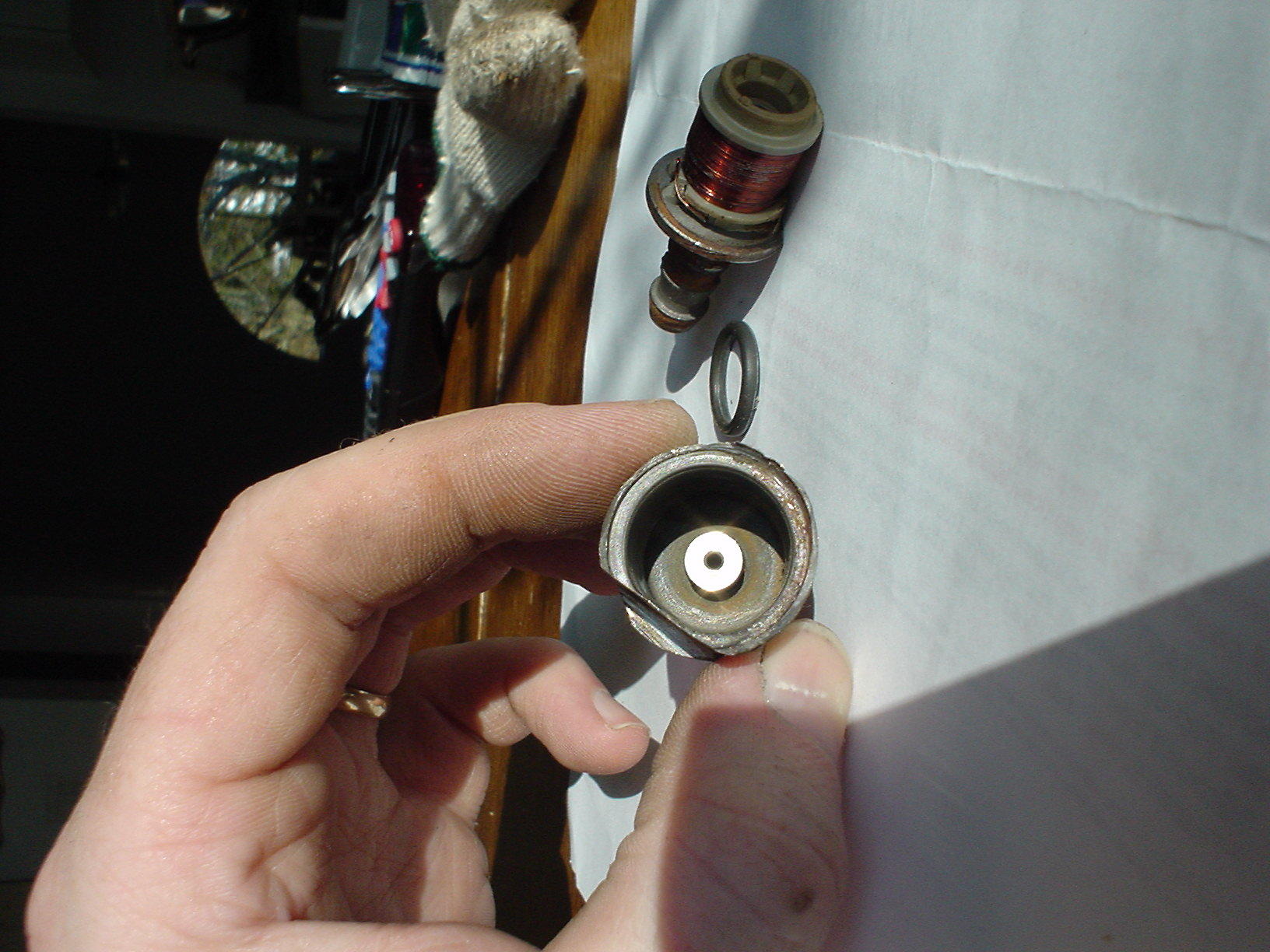

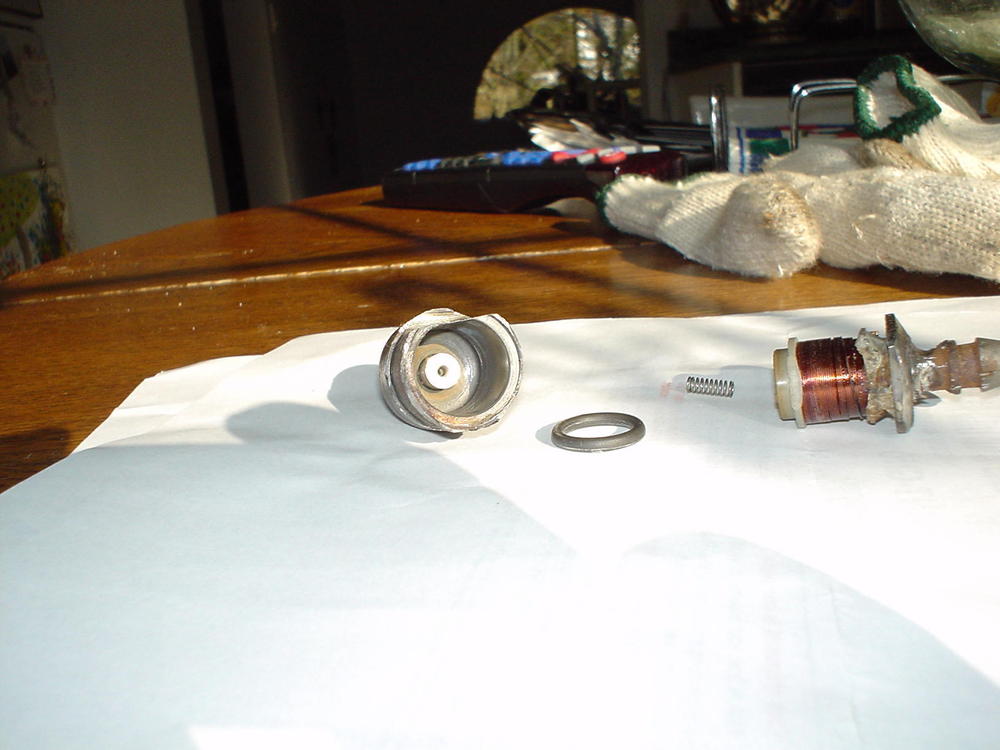

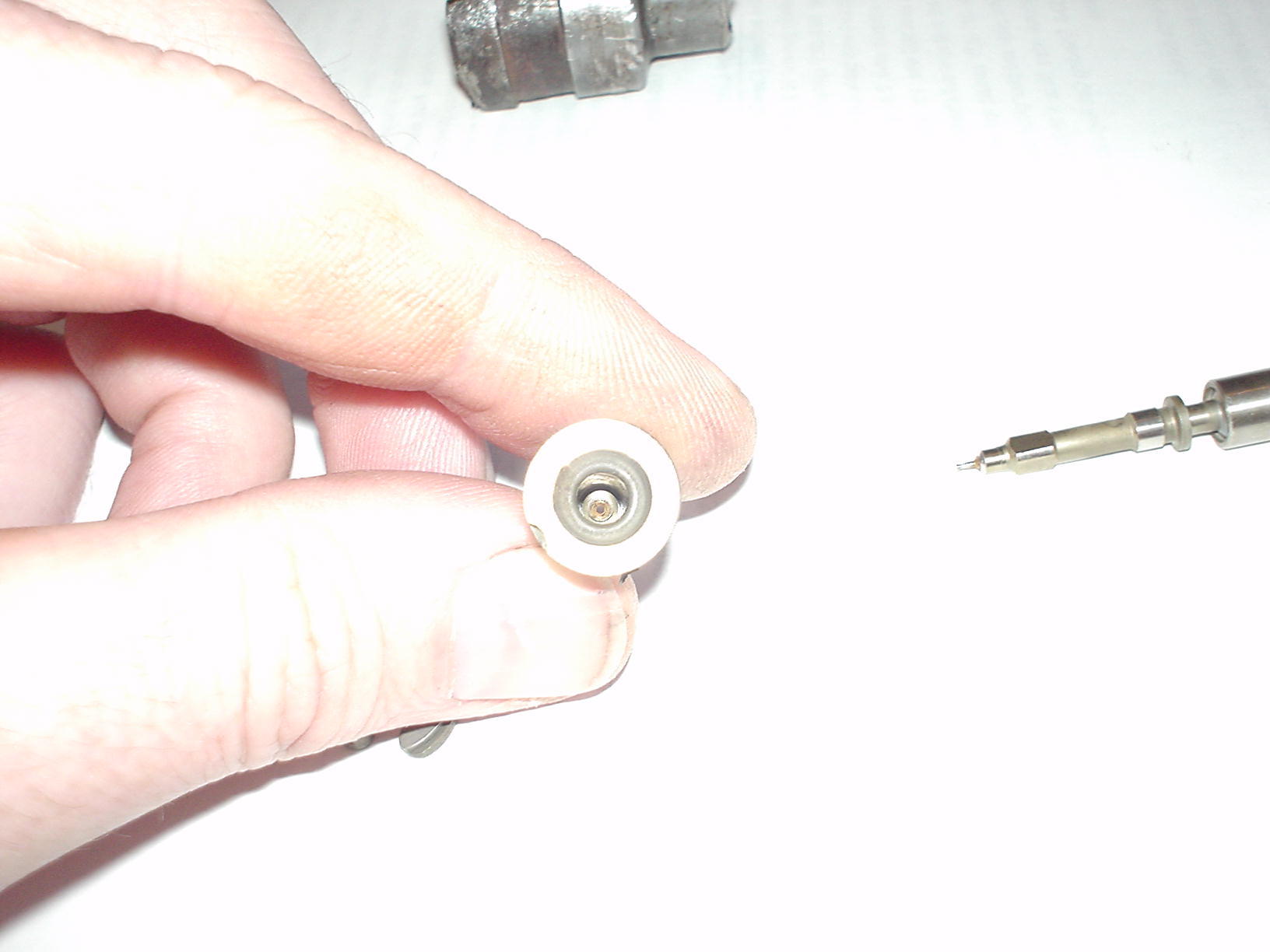

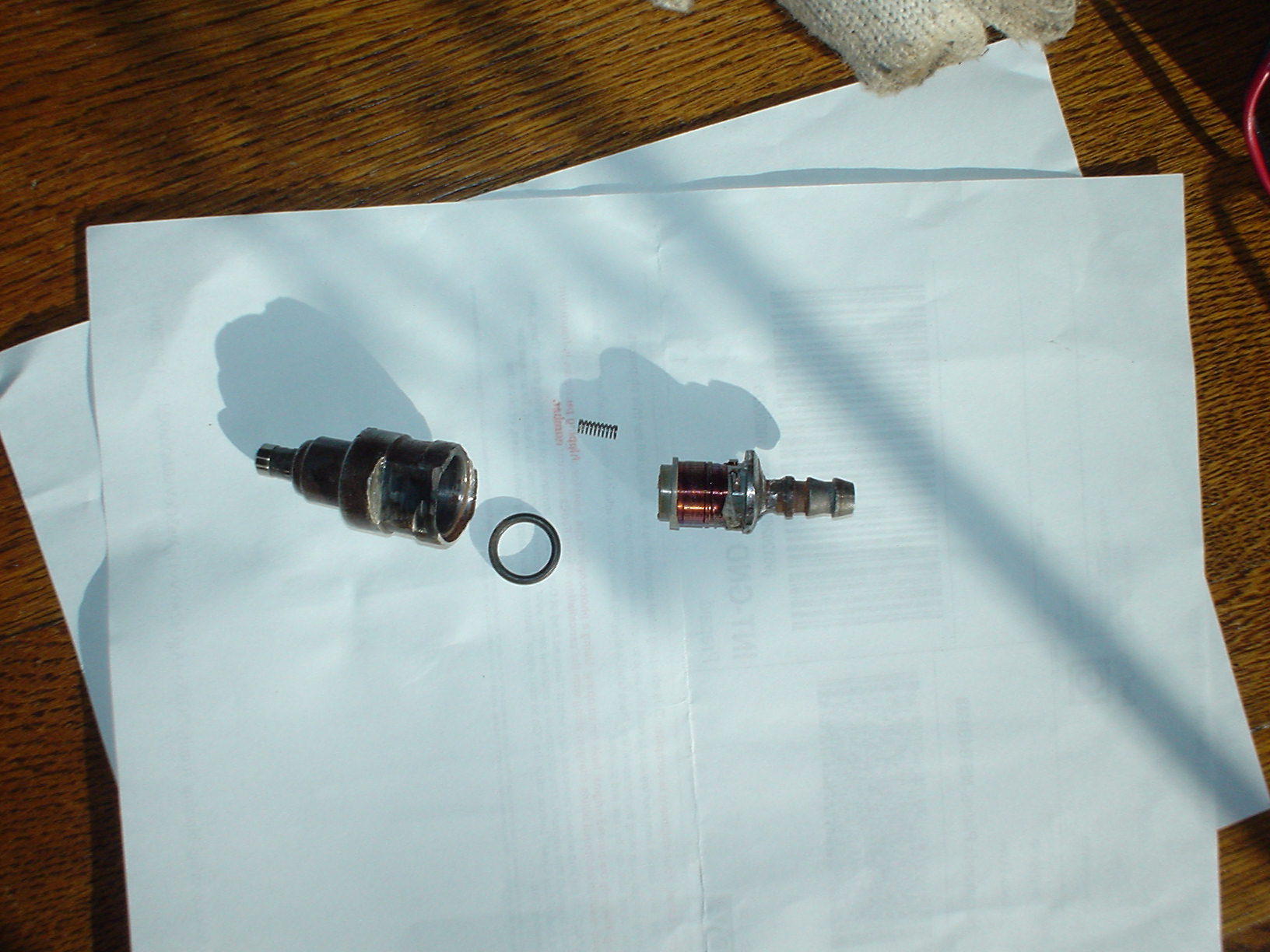

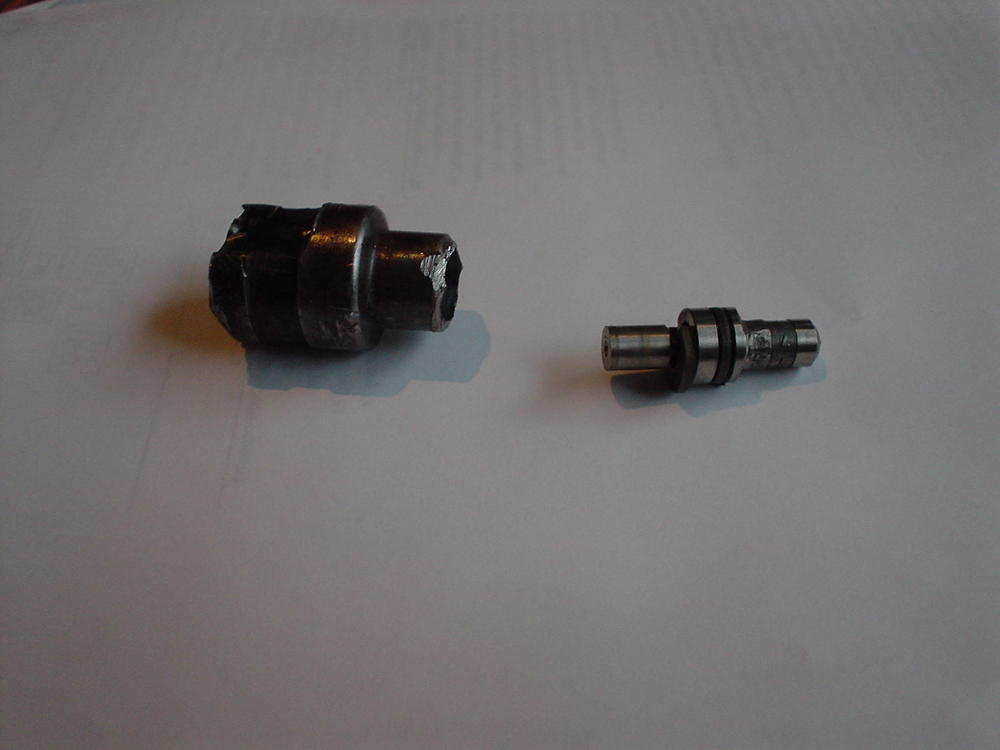

    I must have grabbed the wrong pic. it would be the hole observed from the unassembled injector that you would see if you removed the filter and look down the inlet.

    Share this post


    Link to post
    Share on other sites
    1 hour ago, Dave WM said:

    Will try the remaining 2 that are stuck and eventually use cleaner and spray to check spray pattern.

    The early factory injectors just squirt a stream.  Pretty crude, disappointing.  Volume and balance are the key, I think.

    Share this post


    Link to post
    Share on other sites

    thanks ZH that is what I was thinking. I do a flow test to see volume more than anything. Measure out the amount of fluid over a period of time.

    Share this post


    Link to post
    Share on other sites

    trying something new, I have a working injector zip tie the body to a non working. Hoping the vibes from the working one will help jar loose the non working one.

    Share this post


    Link to post
    Share on other sites

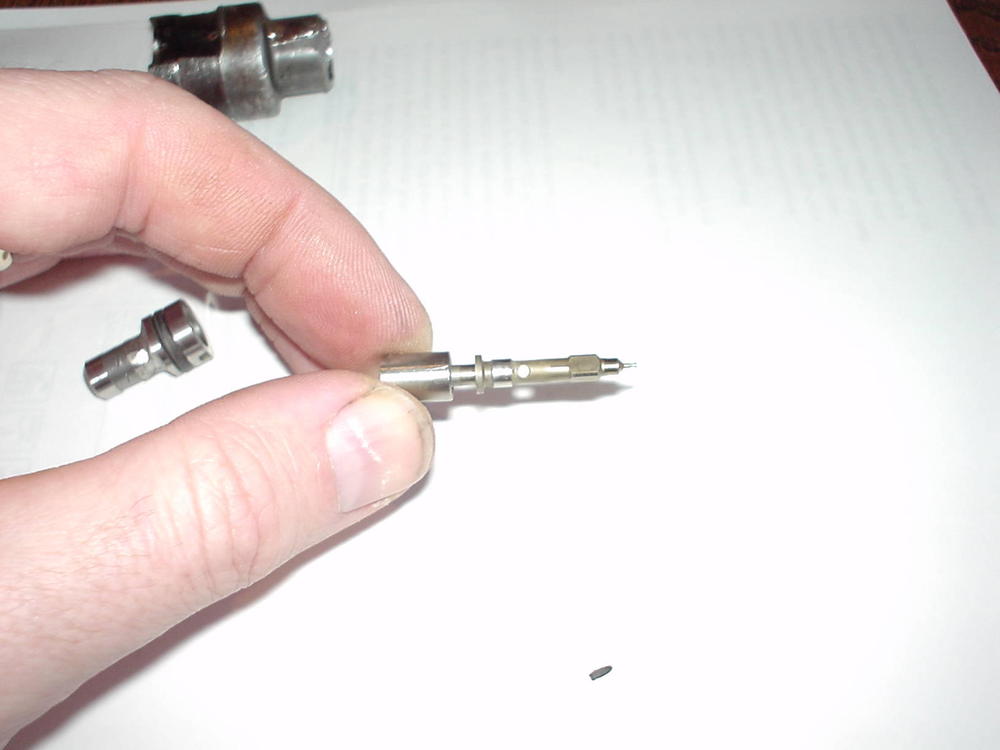

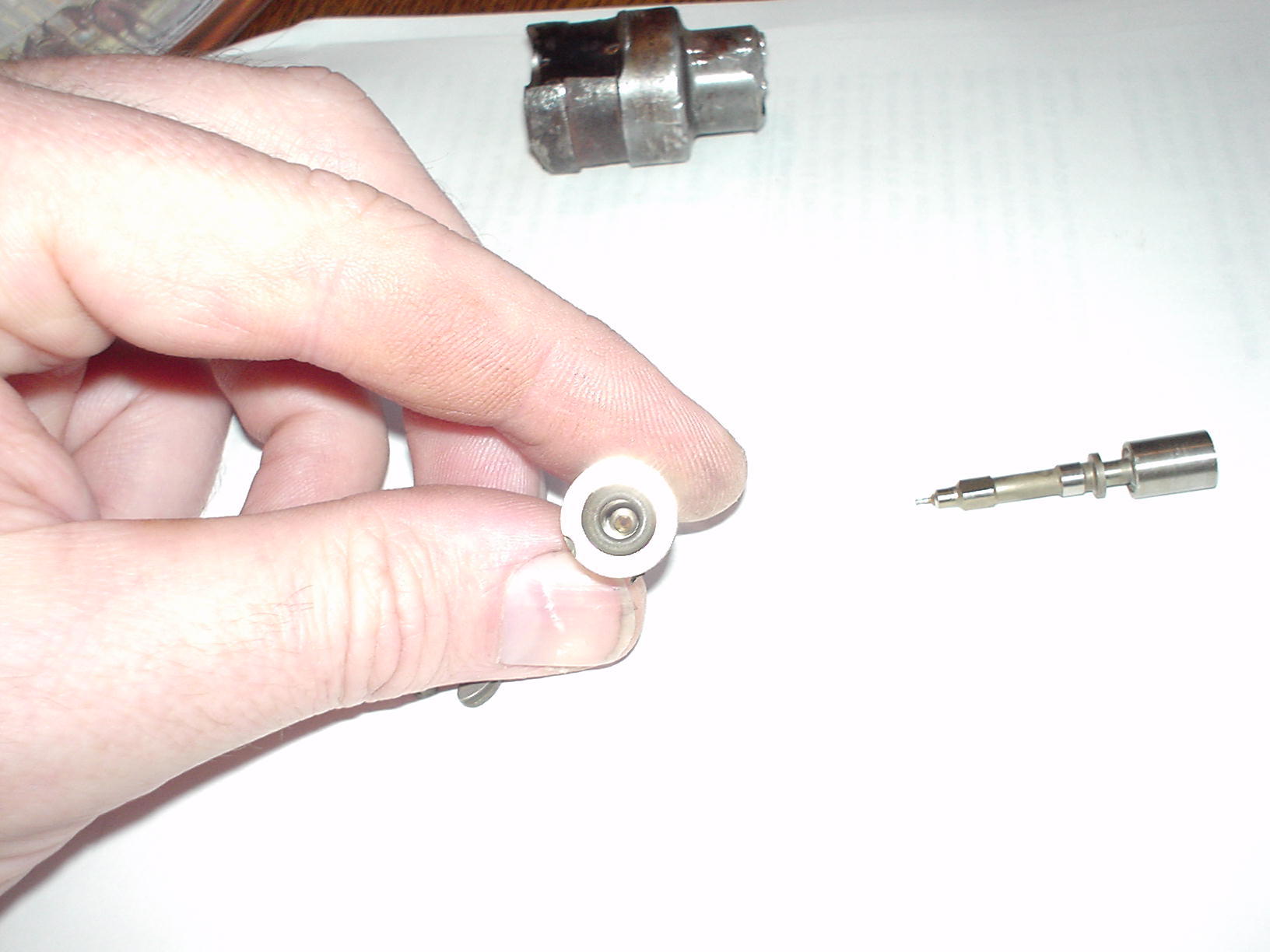

    The tip of the plunger doesn't really stick out of the end during normal operation? Like this? There's normally something else covering the outlet end of the injector, isn't there?





    Share this post


    Link to post
    Share on other sites

    I think that the tip of the plunger is called the pintle and it's often protected by a pintle cap.  You can buy the pintle caps separately.

    I think that this link below, Z1Motorsports, might be a "Rick-roll" link.  The header shows "never gonna give you up" but I have sound muted.  Beware.

    Not sure why they call it a pintle.  There's supposed to be a gudgeon involved. https://en.wikipedia.org/wiki/Pintle

    https://www.z1motorsports.com/fuel-rail-and-injectors/z1-motorsports/fuel-injector-cap-early-style-p-3225.html


    • Like 1

    Share this post


    Link to post
    Share on other sites

    I am still working on them 4 are clicking loudly, 1 a soft click  the other still stone quiet. I have them soaking in the nasty stuff they sell in 1 gallon paint cans with a basket, they have been in there for a couple days at about 1.5 amps which is way more than needed, but at this point its just an experiment.

    • Like 1

    Share this post


    Link to post
    Share on other sites
