Guys, anyone know how to fix the BCCD wire?  Or do I need to find a new solenoid?

Also, thought I'd share a tip.  I needed to do some touch up painting in the engine bay.  I bought a Master Airbrush Model G22 on amazon.  It was 25 bucks and it works great.  I highly recommend



[mailnome]

I’ve got two that are not quite as separated and I’ve thought about getting/using some liquid electrical tape

Edit: I can’t remember the brand I used before for something different, but it was thick and dried to a soft rubber consistently kinda like RTV/silicone. I thought about using Plasti Dip and just noticed they make a electric tape version.

Sent from my iPhone using Tapatalk

[gotham22]

thanks mailnome, I will give it a try.  Hoping the wire itself still works.  fingers crossed





[gotham22]

Making great progress getting all the engine parts back together.  Ran into a couple of wiring questions, hope you guys can help

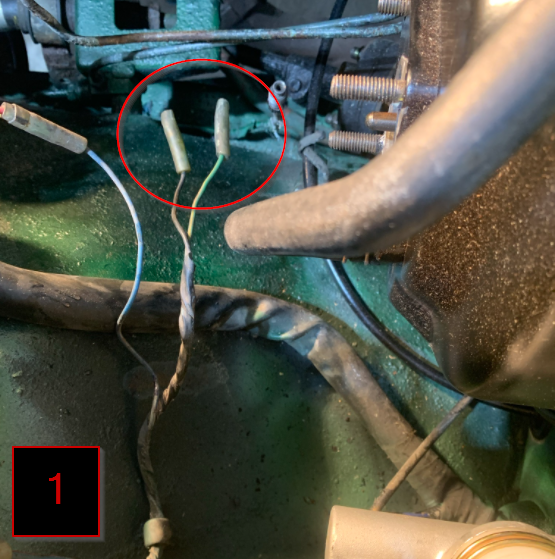

1.  I have two bullet connectors near the brake master cylinder and I do not know where they connect to

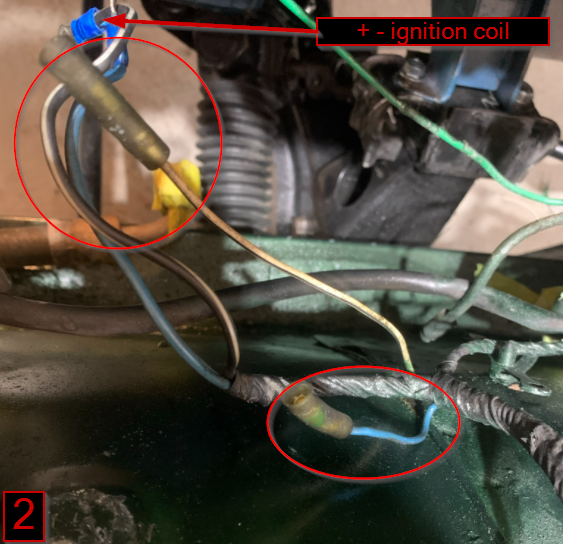

2. where do the white and blue wires with bullet connectors go to?

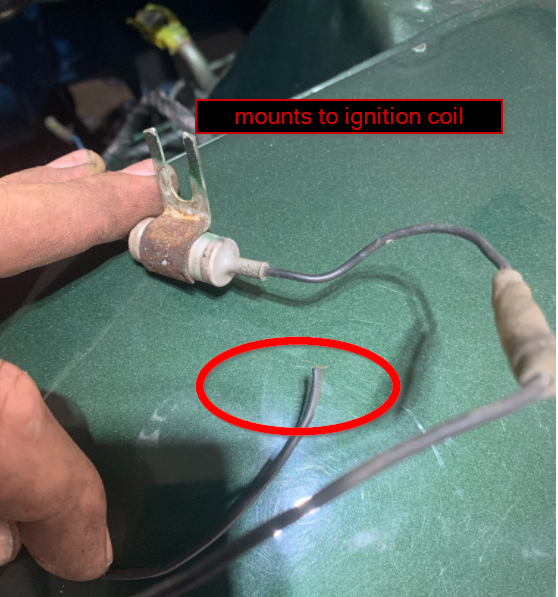

3. this wire is broken and I am not sure where it goes

[gotham22]

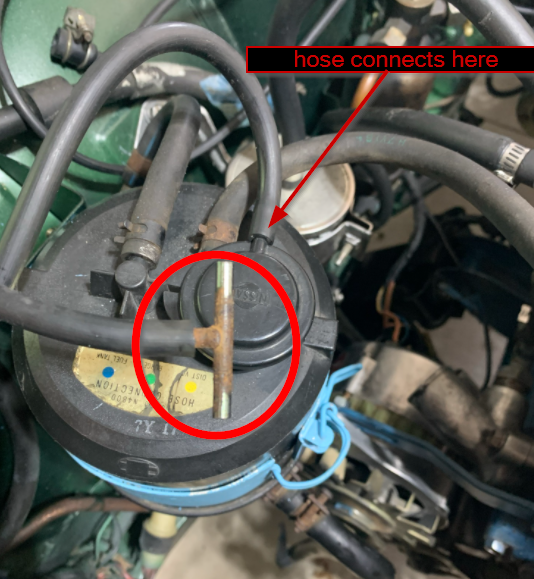

One more question regarding the charcoal canister.  Does anyone know what connects to this t-fitting?



[Zed Head]

The distributor's vacuum advance and the ported vacuum source on the bottom of the throttle body.

Ported (throttle blade controlled) vacuum runs both of those.

Edited May 10, 2021 by Zed Head

[siteunseen]

Mine's a '77 with a ZX distributor so no help with the last two questions and a maybe on #1 at the brakes. My green/yellow stripe goes to the proportion valve down low. Mine is unhooked and I'm almost positive it was done so the brake light inside the gauge would go off. There was another wire under the passenger's seat I unhooked to finally get it to quit burning. I check the fluid all the time and rarely drive it but when I do it has good braking for that old of a car. Not a big fan of caution (idiot) lights on the dash. Fuel, temp and oil pressure is all I care about. 👍



2 hours ago, gotham22 said:

Making great progress getting all the engine parts back together.  Ran into a couple of wiring questions, hope you guys can help



1.  I have two bullet connectors near the brake master cylinder and I do not know where they connect to

2. where do the white and blue wires with bullet connectors go to?



3. this wire is broken and I am not sure where it goes



Edited May 10, 2021 by siteunseen

[siteunseen]

Closer...

[grannyknot]

13 minutes ago, siteunseen said:

My green/yellow stripe goes to the proportion valve down low.

Brake warning switch

[siteunseen]

4 minutes ago, grannyknot said:

Brake warning switch

What does it warn me of?

[grannyknot]

4 minutes ago, siteunseen said:

What does it warn me of?

That one of your brake line circuits has a leak and now you are using the other circuit to do all the braking.

[Patcon]

7 minutes ago, siteunseen said:

What does it warn me of?

If one of the two circuits fails
