Existing FS5W71B Bearing/Seal Size Inventory?


Recommended Posts

I am having a FS5w71B transmission rebuilt and I am trying to provide the shop with a complete inventory of bearing and seal sizes before they open it up. Has anyone already done this? I have the part numbers for all of this stuff taken from the Car Parts Manual site, but that doesn't give me the ID/OD/Width info and weather or not any of them are sealed.

I suppose I could just get a rebuild kit, but I wanted to have this on hand to ensure everything goes smoothly once they get to it. Does anyone have this info on hand? I've dug through the forum and can't find it.

Edited by Matthew Abate
Link to comment
Share on other sites

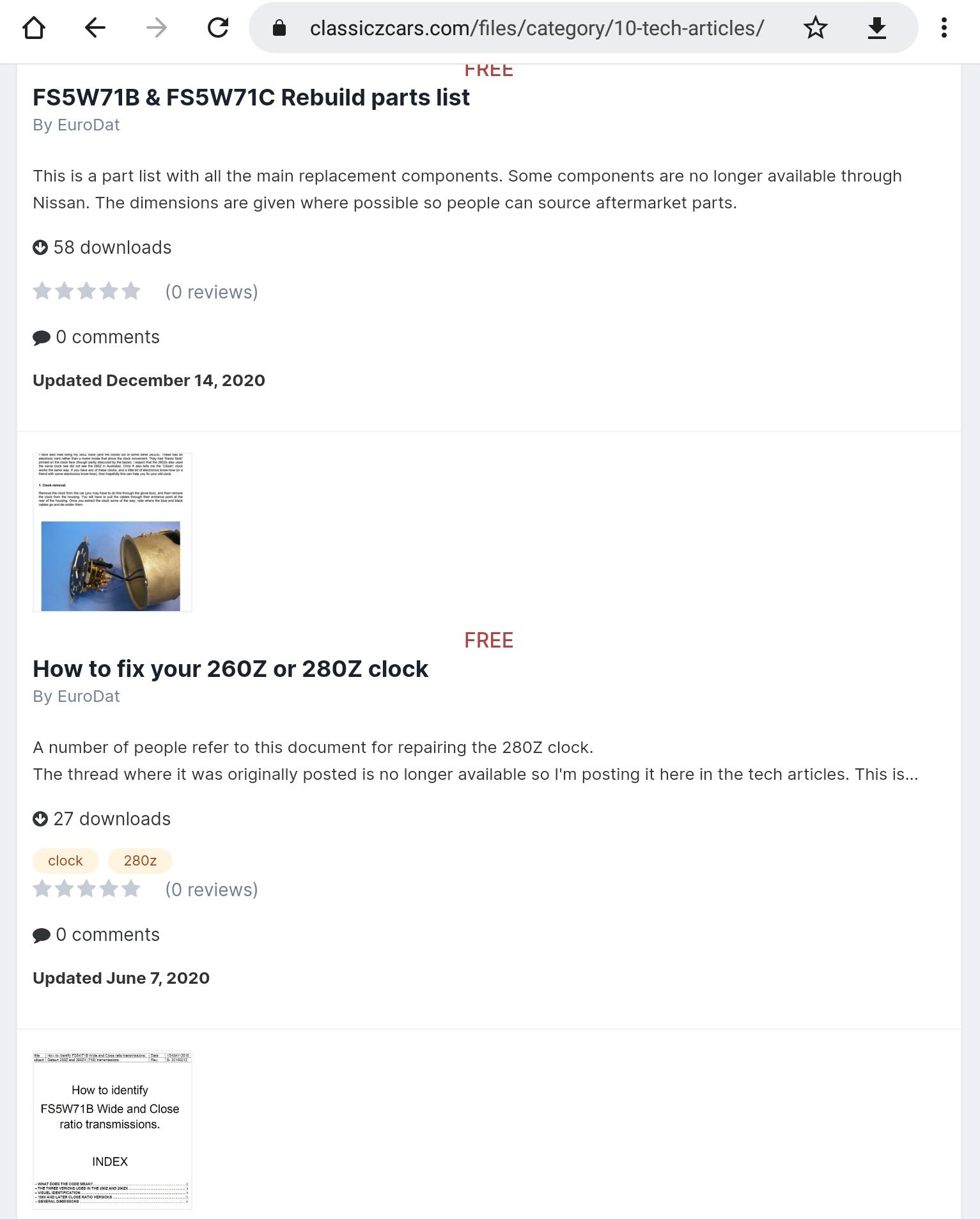

@EuroDat did, I think.  I tried to find it but can't.  It should be in the Downloads area somewhere but I can't figure out how things are categorized there.  Don't know how to search just the Downloads area either.

Anyway, it's out there somewhere.

Link to comment
Share on other sites

1 hour ago, Matthew Abate said:

I am having a FS5w71B transmission rebuilt and I am trying to provide the shop with a complete inventory of bearing and seal sizes before they open it up. Has anyone already done this? I have the part numbers for all of this stuff taken from the Car Parts Manual site, but that doesn't give me the ID/OD/Width info and weather or not any of them are sealed.

I suppose I could just get a rebuild kit, but I wanted to have this on hand to ensure everything goes smoothly once they get to it. Does anyone have this info on hand? I've dug through the forum and can't find it.

None of the original bearings were sealed.

If you source aftermarket o-rings and seals, make sure they are NBR or viton (FKM / FPM).

Link to comment
Share on other sites

Ohh I just did this, I would use Eurodats part list for OEM part numbers, or on the right side it has the bearing number (e.g. 6305 c3) and order high quality bearings from an online distributor.

I bought a bk104 bearing from Transmission Parts Distributors it had one wrong size bearing, it gave me a larger bearing for the fs5w71c. All of the bearings in this kit were from Nachi, they were very smooth.

  • Like 3
Link to comment
Share on other sites

Thanks for the help everyone!

I went ahead and made an updated version of EuroDat's spreadsheet with links to where I was able to source OEM Nissan parts so peope can copy the part numbers instead of transcribing them from the screenshot. I didn't get everything on the list, and some of them may not pan out (the ones from Amayama Japan / Part Souq, specifically) but I have a ton of this stuff on order. I'll let you know how it goes.

FS5W71B Rebuild Parts List
Fiche ID Nissan Part Nr. Replacement Description Nissan Amayama Japan   Amazon Ebay Size QTY Notes
Tranmission Gear
32203 * 32273-N4800   BEARING - Main Input Shaft   Amayama Japan   Amazon   ID 30 x OD 72 x W 19mm 1 6306 NR C3 (with snap ring)
32276 * 32273-36900   BEARING - Main Input Shaft, Adapter Plate   Amayama Japan     Ebay ID 30 x OD 72 x W 19mm 1 6306 C3
32275 * 32203-14360   BEARING - Main Input Shaft, Extension Housing Courtesy Parts Amayama Japan     Ebay ID 25 x OD 52 x W 15mm 1 6205 C3
32272 * 32272-36910   BEARING - Pilot, Input / Output Shafts   Amayama Japan     Ebay Needle 1 Same as BEARING - Reverse Idler Gear
32264R / M / U 32264-14601   BEARING - Needle, Main Shaft Gears Nissan World Amayama Japan     Ebay   3 1st, 2nd, & 3rd
32604M * 32604-P0100   RING - Baulk, 1st, 2nd, 3rd, & 4th Gears Courtesy Parts Amayama Japan         4
32544 * 32604-E9801 32604-36N21 RING - Baulk, 5th Gear   Amayama Japan         1
32241B 32354-E9803   NUT - Main Shaft, Left Hand Thread   Amayama Japan         1 280ZX Close Ratio 5-Speed
32241B 32354-A7400   NUT - Main Shaft, Right Hand Thread             1 280Z Wide Ratio 5-Speed NLA
32241B 32354-E9804   NUT - Main Shaft, Right Hand Thread (Early 280zx)             1 Replaces 32354-E9800 & 32354-E9802 NLA
Counter Gears
32219 * 32219-E9020   BEARING - Counter Shaft, Front Courtesy Parts Amayama Japan   Amazon (CA)   ID 22 x OD 56 x W 16mm 1 63 / 22 C3
32219M * 32203-E9800   BEARING - Counter Shaft, Adapter   Amayama Japan   Amazon   ID 25 x OD 62 x W 17mm 1 6305 C3
32231 * 32319-N4870   BEARING - Counter Shaft, Rear   Amayama Japan Part Souq     ID 20 x OD 47 x W 14mm 1 6204 C3
32283 * 32272-36910   BEARING - Reverse Idler Gear   Amayama Japan     Ebay Needle 1 Same as BEARING - Pilot, Input / Output Shafts
32210A 32236-E9500   NUT - Counter Shaft, Right Hand Thread Nissan World Amayama Japan         1
Transmission Case
32112 * 32112-08U01   GASKET - Front Cover Courtesy Parts Amayama Japan         1 Replaces 32112-E9001
32137 * 32137-E9000   OIL GUTTER Courtesy Parts Amayama Japan         1
32113 * 32114-Y4000   SEAL - Front (NOK: AH1679G) Courtesy Parts Amayama Japan   Amazon   30 / 45 x 8mm 1
32136 * 32136-U010A   SEAL - Rear Extension (NOK: 400402N) Courtesy Parts Amayama Japan   Amazon   35 / 50 x 11mm 1 Replaces 32114-20100 & 32114-E9000
- NISSAN-62   BUSHING - Rear Extension (Omega Machine & Tool P/N: 71411)           ID 35mm 1 DON'T USE (SKU: 303066)
Transmission Shift Control
32849C 32855-H1010   BUSHING - Control Pin Courtesy Parts Amayama Japan         2
32861 32861-N4200   BUSHING - Control Lever Courtesy Parts Amayama Japan         1
32862 32862-E9801   BOOT - Control Lever Courtesy Parts Amayama Japan         1
32850H 32858-U6702   SEAL - Striking Rod, Inner           14/20 4.2mm 1
32710N 32710-14600   SEAL (O-RING) - Striking Rod, Outer Courtesy Parts Amayama Japan       24 x 2.5mm 1 Same as Speedo O-Ring
- NLA   SEAL (O-RING) - Reverse Checking Assembly           22 x 2.5mm 1
32852 32852-24901   SPRING - Return   Amayama Japan         1
32831N 32830-20100   SPRING - Checking Courtesy Parts Amayama Japan         3
Speedo
32703 32703-78101   PINION - Speedometer, 17T (Black) Nissan World Amayama Japan       3.54:1 Diff. 1
32703 32703-78102   PINION - Speedometer, 18T (White) Courtesy Parts Amayama Japan       3.70:1 Diff. 1
32710 32710-14600   SEAL (O-RING) - Speedometer Pinion Courtesy Parts Amayama Japan       24 x 2.5mm 1 Same as Striking Rod O-Ring
32709 32709-14600   SEAL - Speedometer Pinion Courtesy Parts Amayama Japan       10/16 x 4.2mm 1
* = Parts in Major Overhaul Kits
Red = Parts No Longer Available Through Nissan
O-Ring Sizes are Inner Diameter + Cross Section
Edited by Matthew Abate
  • Like 1
Link to comment
Share on other sites

  • 4 weeks later...

I received the last of the parts I ordered for the 5-speed overhaul on Sunday this past weekend, so three weeks total wait time. Not bad considering one of the bearings was lost in transit to Courtesy Parts and had to be ordered again. Not as fast as ordering a quest kit, but I went above and beyond what's available in those, plus it's all OEM.
