260z horn, signals, wipers not working

[Zed Head]

Can't tell which side of the harness you're looking at.  Does it go in to the body harness or does it go to the switch?

[Shawninvancouver]

Spoke to the who rebuilds the levers.  It’s ground for hi low beam. Goes in between two reds.

[Zed Head]

One down...

[Shawninvancouver]

yup also the broken wire off the turn signal area also fixes that..  so signals now work...

next thing is   WHY DID SOMEWONE PUT A WiRE FROM BLACK WHITE ON IGNITION TO THE GREEN AT THE SIGNAL RELAY???

ALso... NO RUNNING LIGHTS...    THAT WIRE on relay goes up to ignition and taps into a black/white..  were they getting no power to signals???

[siteunseen]

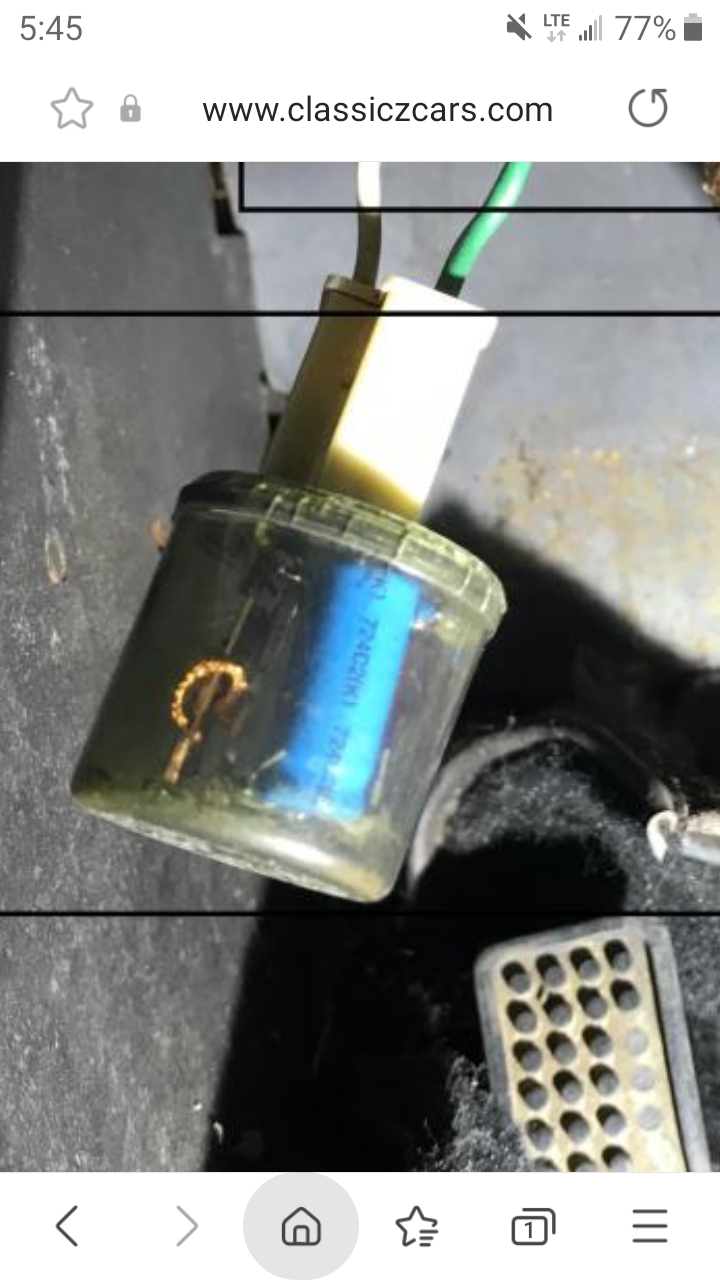

What the hell is that? A fuel filter.

You're going to need a lot of help and you'll get it here. Walk lightly my friend. It took me a year at least before these wunderful guys accepted me into their fold.



Edited June 22, 2021 by siteunseen

[Shawninvancouver]

That’s a turn signal relay. Put a new one in and signals work. Now trying to figure out why someone tapped a wire in there from the black white by ignition key.  Any ideas??? Still have no horn no side markets.

[Zed Head]

On 6/21/2021 at 12:46 PM, Zed Head said:

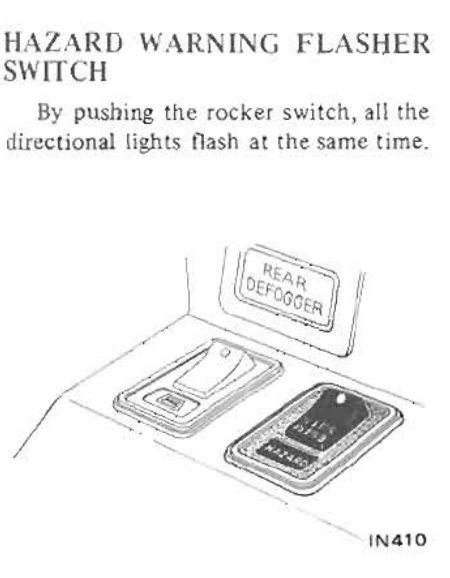

It's a flasher.  I'm going to guess that somebody tired tried to bypass the Hazard switch.  @SteveJ

The Hazard switch seems to have some complex circuits inside, I've never had one part, but the Green wire seems to be involved.  The switches get dirty inside and stop working.  I'm going to guess that somebody was bypassing the Hazard switch.  Does the Hazard switch cause the lights to flash?

[Shawninvancouver]

ohhhh  the hazzard switch does work..  i cant recall which lights flash...

i just now got the two rear side markers working  -after i took of the steering wheel controls and some wires bounced around the rear side markers are now on.. but no power to the front markers... any ideas on that??  what is this relay box on drivers side engine compartment below the coil...  ??

what is that for???

[Zed Head]

8 minutes ago, Shawninvancouver said:

but no power to the front markers... any ideas on that??

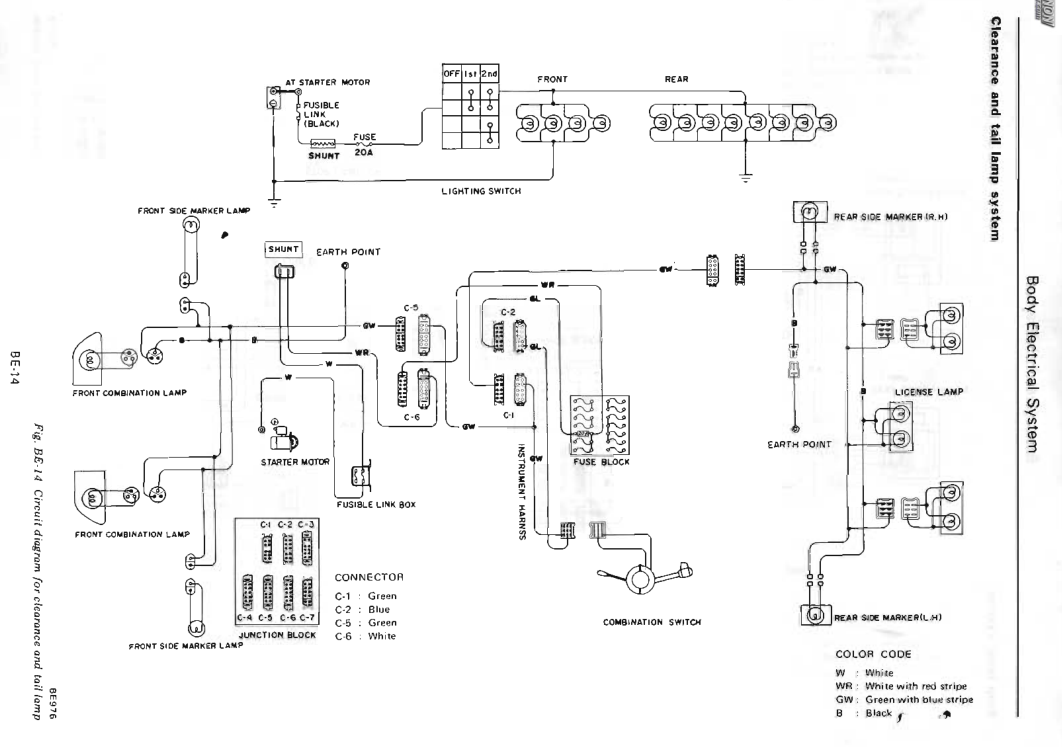

C-5 or earth point.

[Shawninvancouver]

is that for a 260?

[Zed Head]

'posed to be.

https://www.classiczcars.com/files/category/12-260z/

[Shawninvancouver]

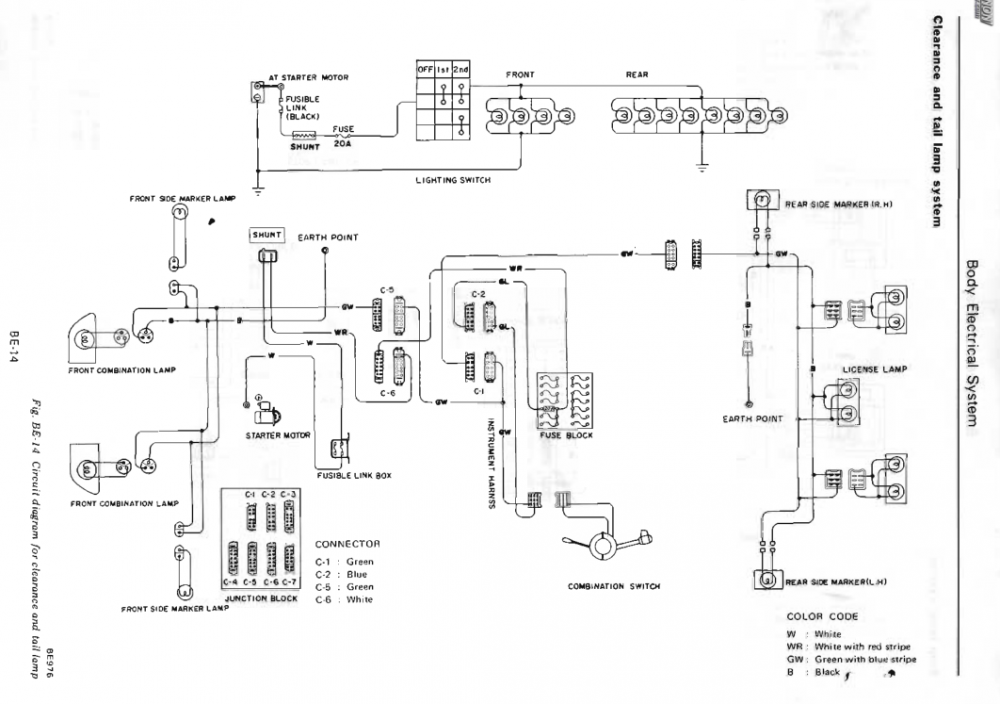

ok zed  - i found that diagram now...  clearance and tail lamps.. i was looking for side markers or something  else,....  so my silly question is - i see the ground i want to check on the diagram   - in red. but how do i actually find that wire...?????

what in the world do i look for?? please teach me..

Edited June 23, 2021 by Shawninvancouver
