Shawninvancouver Posted June 21, 2021 Share #1 Posted June 21, 2021 many things not working, horn, signals, wipers, power antenna, no sound from radio... where do i start? replaced all fuses.. are there relays for these? can i get them easily? fuse box a bit oxidised.. maybe clear it? after market steering wheel.. i assume they would have made sure the horn was working when it got put in.. Link to comment Share on other sites More sharing options...
Patcon Posted June 21, 2021 Share #2 Posted June 21, 2021 8 minutes ago, Shawninvancouver said: after market steering wheel.. i assume they would have made sure the horn was working when it got put in. Not necessarily! Diagnose one at a time. Use a meter check for voltage and ground 1 Link to comment Share on other sites More sharing options...
Shawninvancouver Posted June 21, 2021 Author Share #3 Posted June 21, 2021 ya.. will try to check them all.. but can you get standard relays?? also my steering column clamshell is open and maybe a few plugs undone.. another thing to check.. Link to comment Share on other sites More sharing options...
Zed Head Posted June 21, 2021 Share #4 Posted June 21, 2021 3 hours ago, Shawninvancouver said: maybe a few plugs undone 3 hours ago, Shawninvancouver said: many things not working These two things are probably related... 2 Link to comment Share on other sites More sharing options...
Shawninvancouver Posted June 21, 2021 Author Share #5 Posted June 21, 2021 ya.. i will examine the steering wheel clam shell area with plugs.. also if you can help me i can not find a good image of the 260z relays beside the fuse box right side of passenger foot area.. thanks Link to comment Share on other sites More sharing options...
240dkw Posted June 21, 2021 Share #6 Posted June 21, 2021 (edited) Shawn: you can down load the FSM for a 260 here. http://www.xenonzcar.com/s30/fsm.html and the Owners Manual http://www.xenonzcar.com/s30/files/260zownersman.pdf Edited June 21, 2021 by 240dkw Link to comment Share on other sites More sharing options...
Shawninvancouver Posted June 21, 2021 Author Share #7 Posted June 21, 2021 (edited) ok..so here is whats going on... checked all fuses... on fused with no power are headlights - as they were not on.. so all fuses worked.. horn does not work, windsheild wipers click, washer, clicks, no fan, no signals no dome lights.. and no guages.. fuel , volts , etc.. all dead here are some photos of wires .. relay under drivers feet.. rest in the steering colum... does black need to be somewhere or grounded? does red go to black connectors?? wire off from signal stem... could there be one fuse causing all this?? or one relay ?? any ideas... Edited June 21, 2021 by Shawninvancouver Link to comment Share on other sites More sharing options...

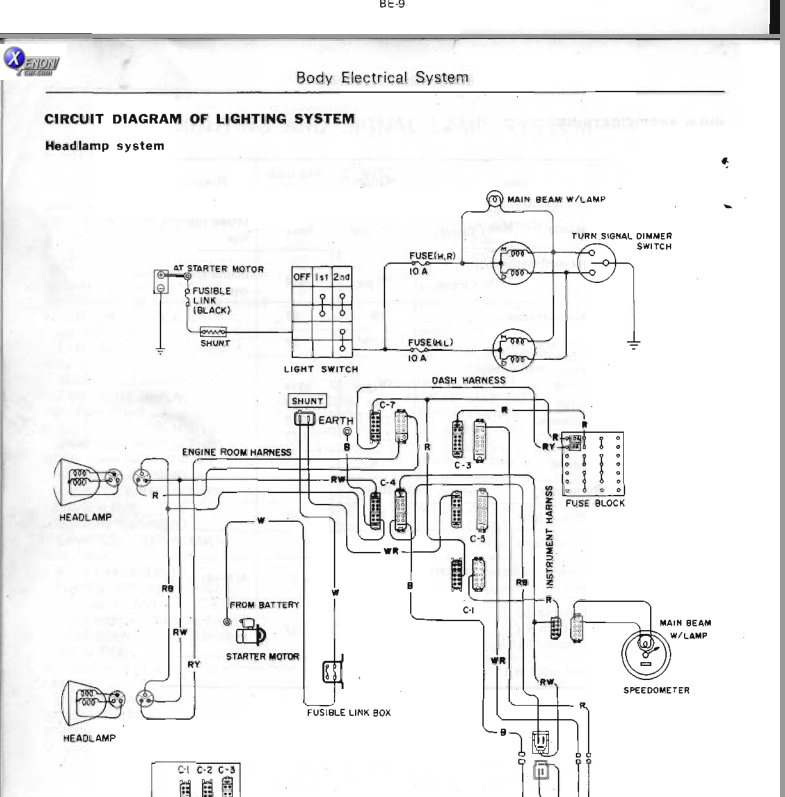

Zed Head Posted June 21, 2021 Share #8 Posted June 21, 2021 Somebody has been hacking around in there. No easy solutions. Find a friend who knows electrical and get those wiring diagrams ready. The Body Electrical chapter has good ones. Link to comment Share on other sites More sharing options...
Shawninvancouver Posted June 21, 2021 Author Share #9 Posted June 21, 2021 does that black dead end get grounded? does the spade connector go in the rubber sleeve with female spade? does that relay look like something?? is that green wire near that relay all the guages?? and signals dont even work when i hold wire on place it needs to be soldered to... can there be one fuses causing all this?? a fusable link? a fuse??? Link to comment Share on other sites More sharing options...
Zed Head Posted June 21, 2021 Share #10 Posted June 21, 2021 15 minutes ago, Zed Head said: Somebody has been hacking around in there. No easy solutions. Find a friend who knows electrical and get those wiring diagrams ready. The Body Electrical chapter has good ones. 1 Link to comment Share on other sites More sharing options...

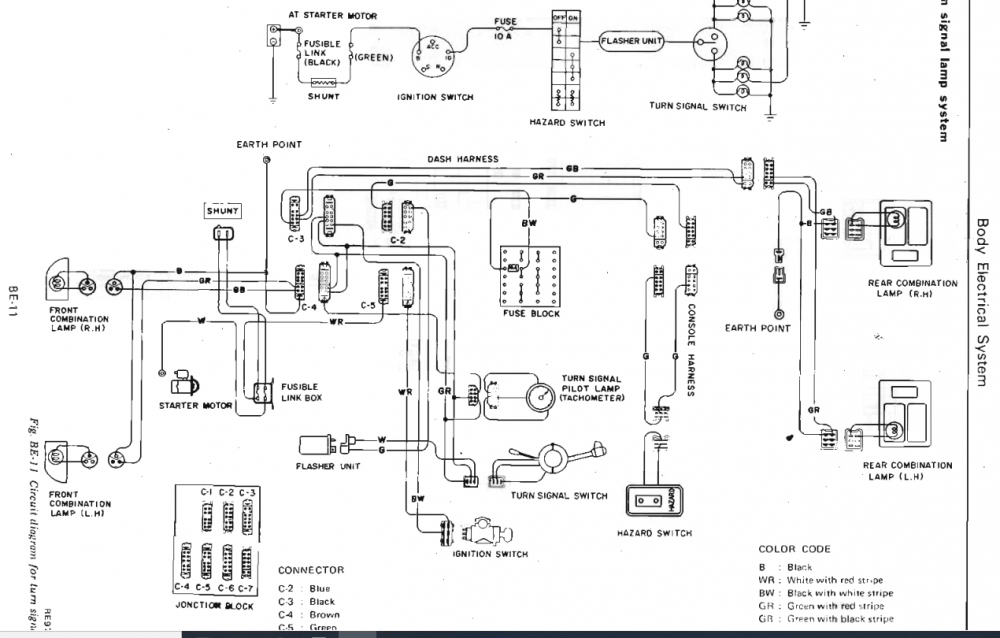

Zed Head Posted June 21, 2021 Share #11 Posted June 21, 2021 (edited) 16 minutes ago, Shawninvancouver said: does that relay look like something?? It's a flasher. I'm going to guess that somebody tired tried to bypass the Hazard switch. @SteveJ Edited June 21, 2021 by Zed Head Freudian Link to comment Share on other sites More sharing options...
Shawninvancouver Posted June 21, 2021 Author Share #12 Posted June 21, 2021 (edited) nope..hazards work but when they flash the stereo lights also flash.. was that an option back then??? what about the black dead end??? Edited June 21, 2021 by Shawninvancouver Link to comment Share on other sites More sharing options...
