Help with Front Bumper mount Area


Recommended Posts

Just wondering if someone who has a untarnished original car can share the shape of the below area? I’m looking at building my rotisserie and feel I need to sort out the damage my car has before mounting the rotisserie to it. At some point it had a front end collision, most damage was on the RHS. Repairs to the area seem..... how do you put it....unprofessional, low rent, shithouse...

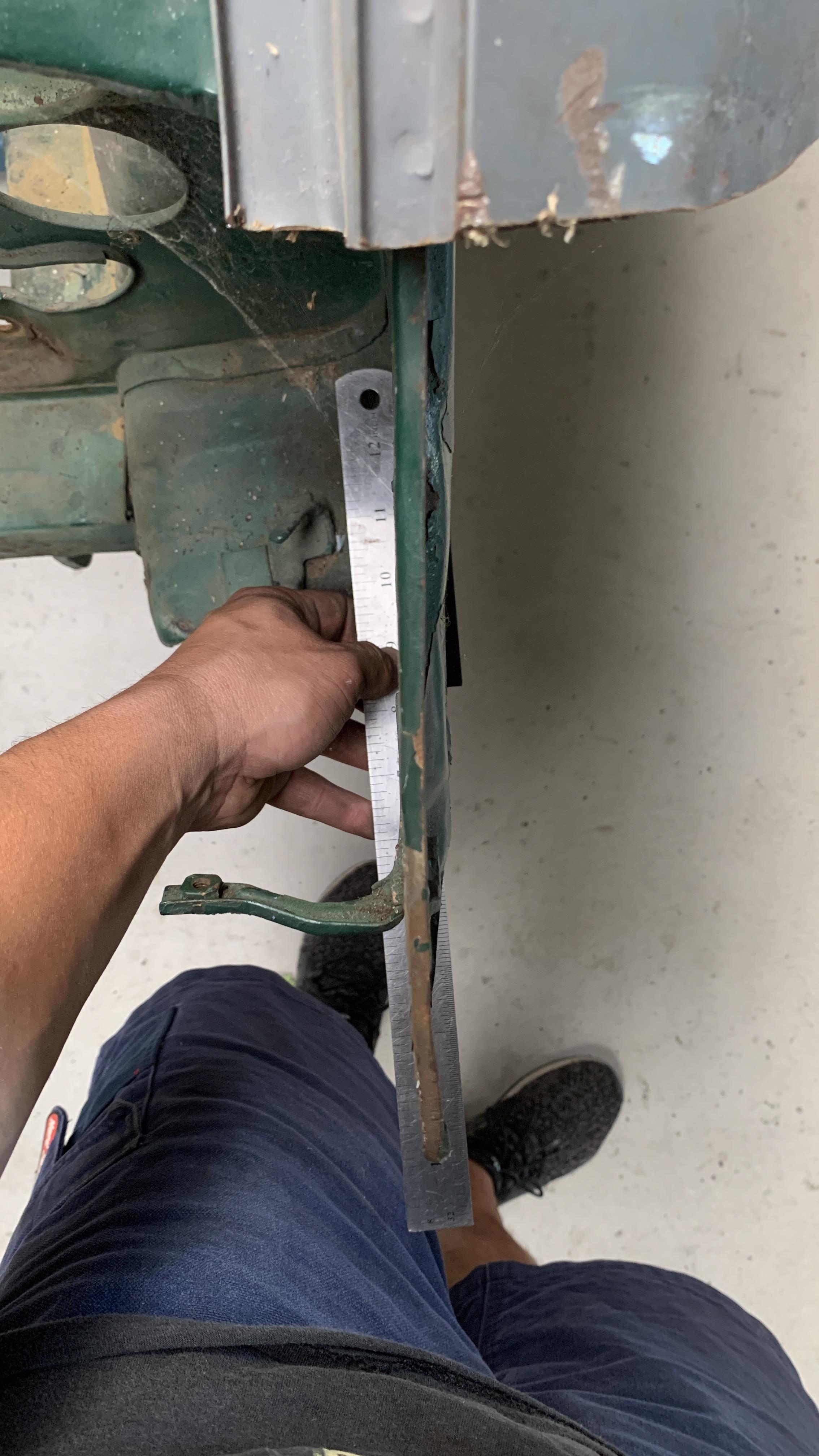

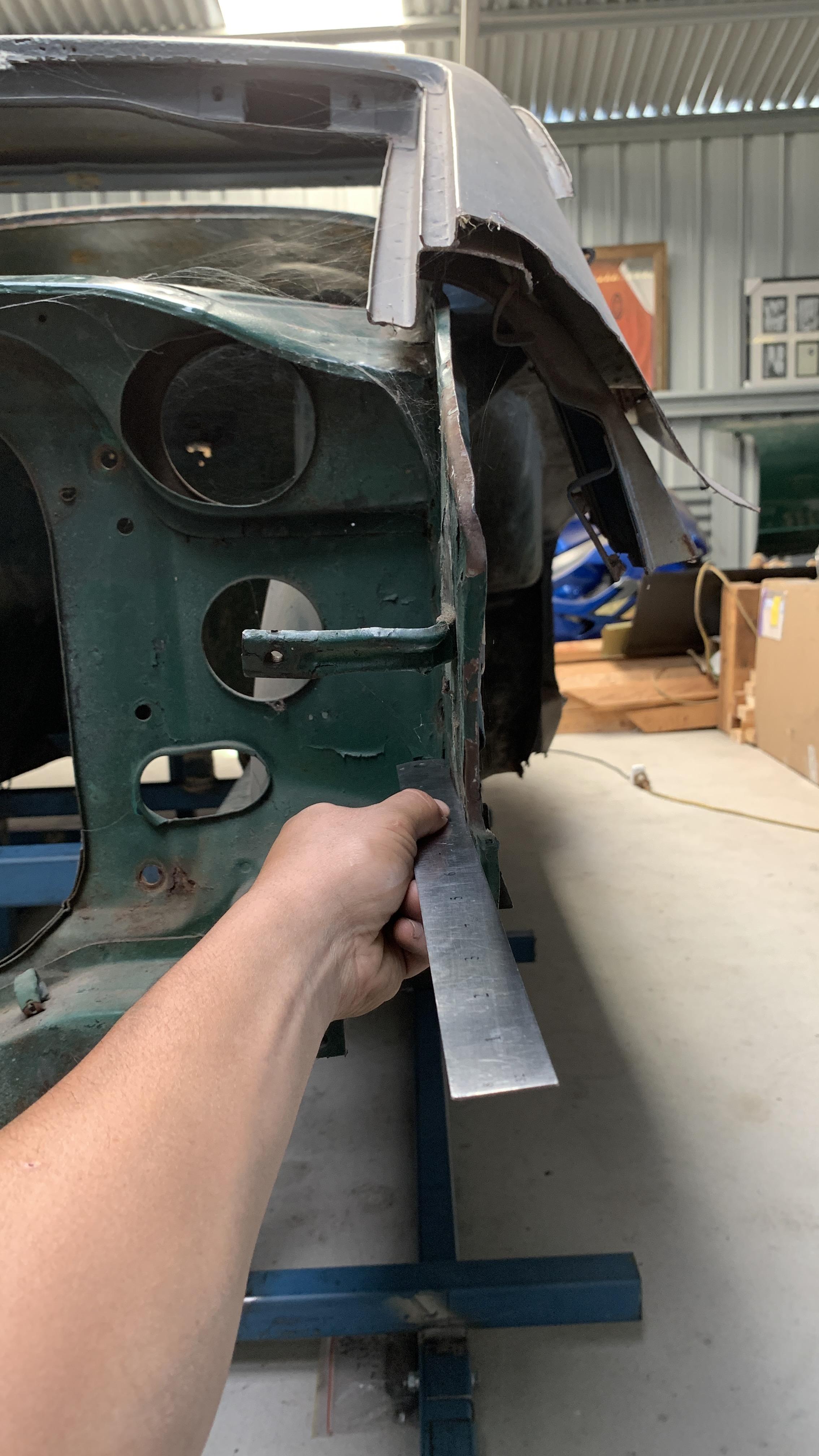

in particular I need to know if the vertical panel that the front bumper mounts to should be perfectly straight up and down. As you will see mine kinks outwards where the bumper mount holes are. And I need a rough guide on the radius of the curve from the vertical panel to horizontal that leads to the lower grille mount.

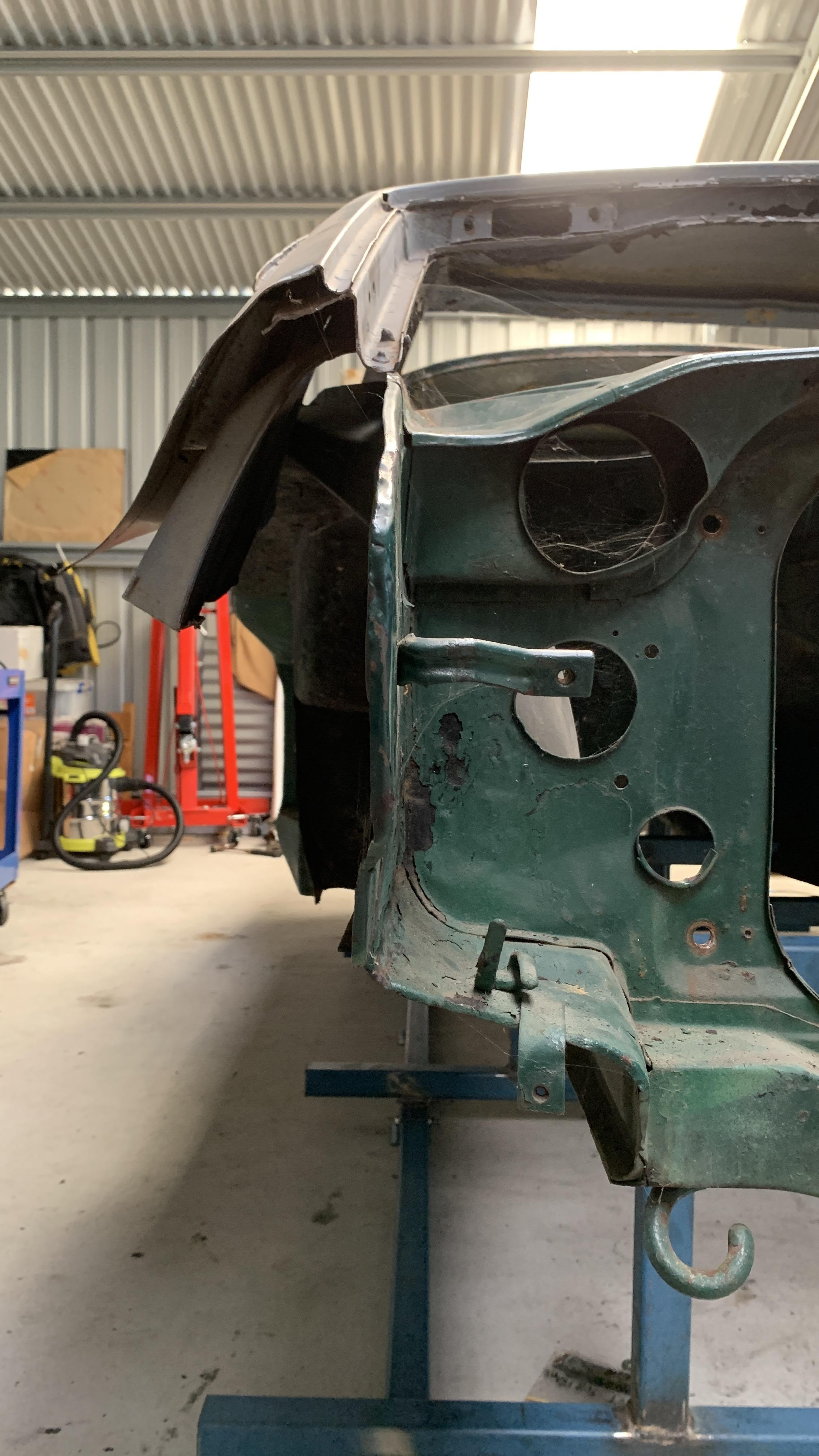

also need a photo from this angle, I believe the sharp edge shouldn’t be there and the shape is incorrect.



ryan



Edited by 240ZBUILTBYME
Link to post
Share on other sites

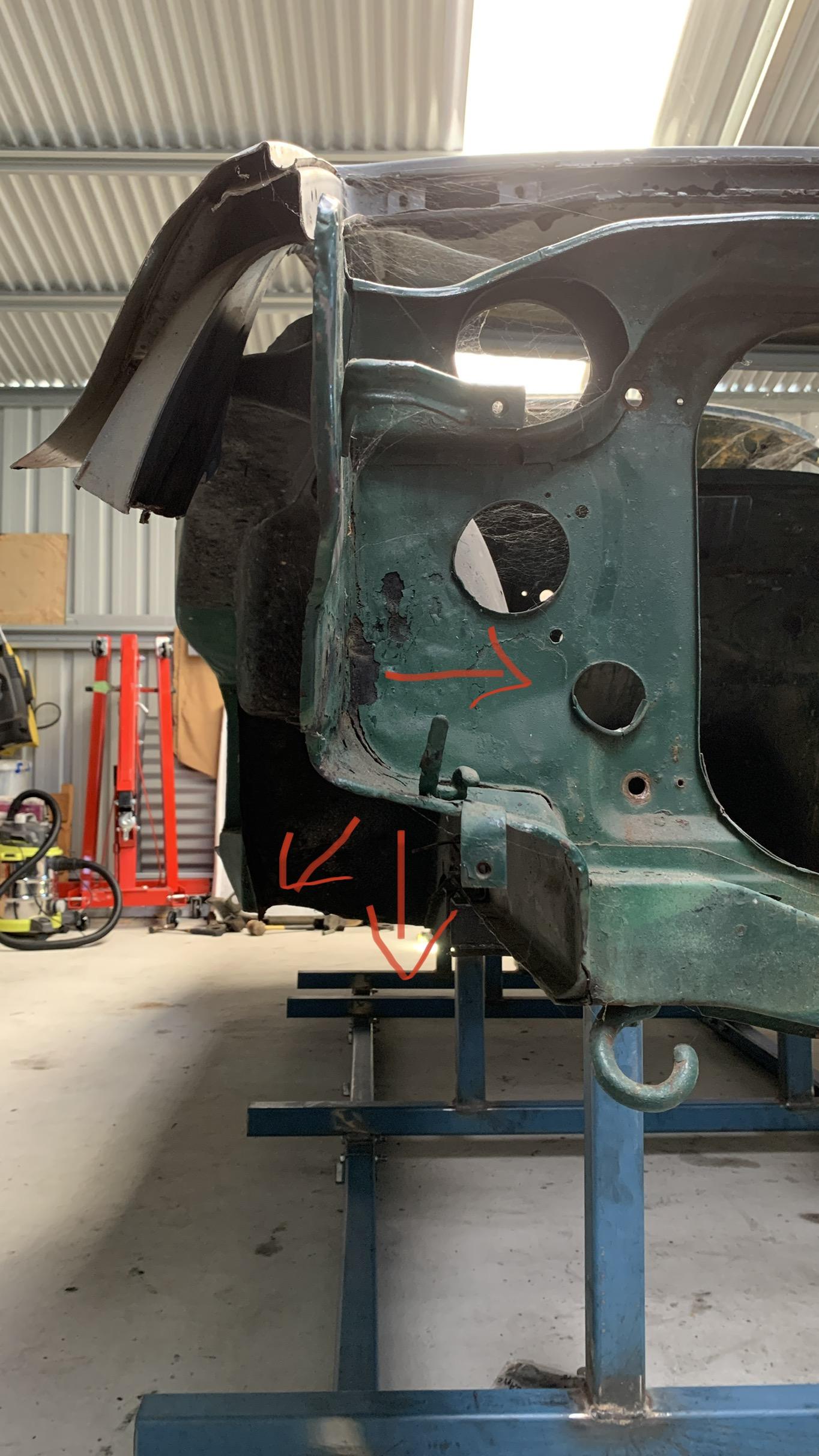

My plan is to work the panels in the following directions to bring back to square. I will then reinstall the front end to make sure everything fits. If anyone has done this repair before or has any tips I’m all ears!



Link to post
Share on other sites

Cannot give you any measurements, but there is a few photos of the area in my build thread that might help.



  • Like 1
Link to post
Share on other sites

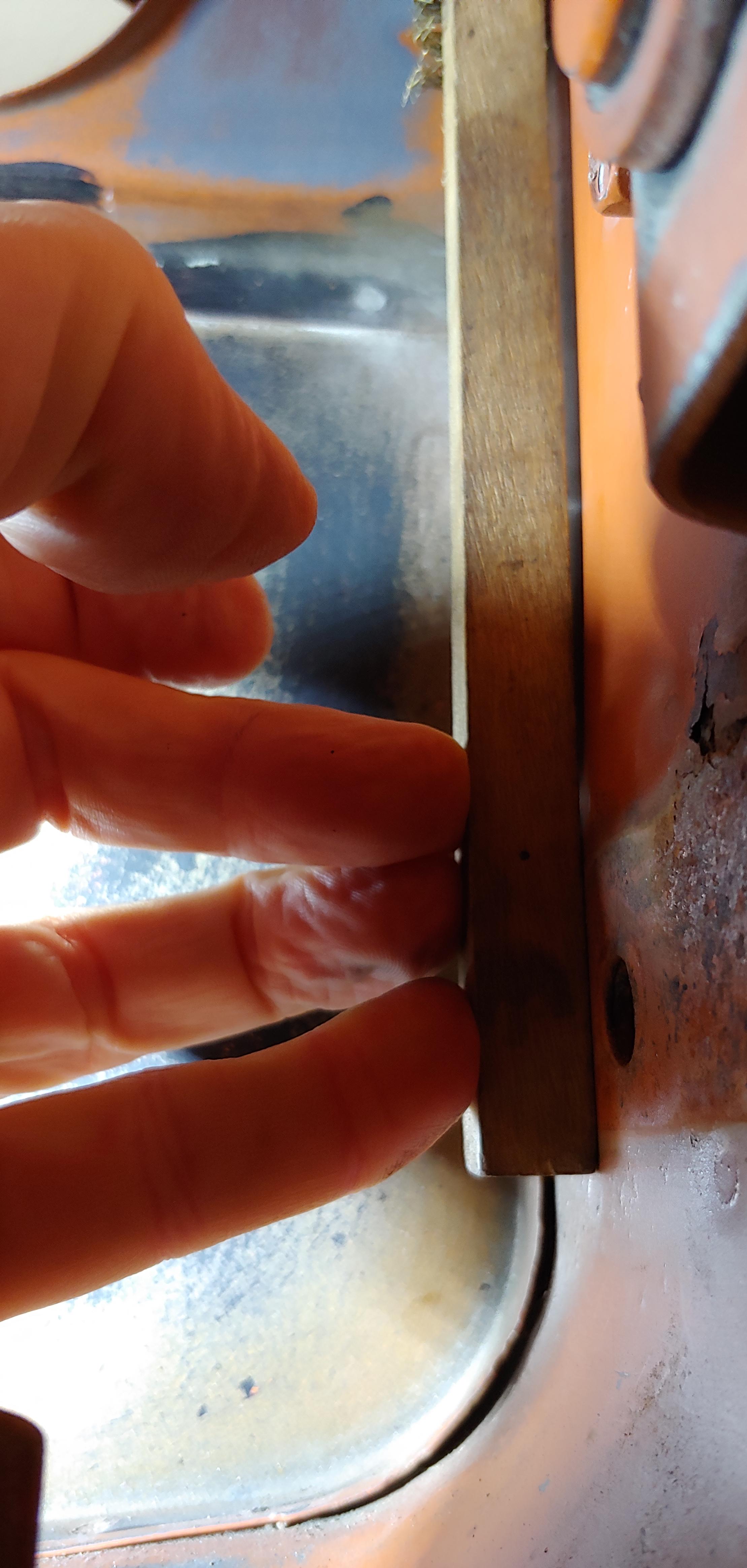

Here are a few measurements from my '70. The area where the bumper mounting bracket mates, is vertical.


Please note that the vertical steel section above the surface where the bracket mates, is parallel with an offset of about 2-3mm.

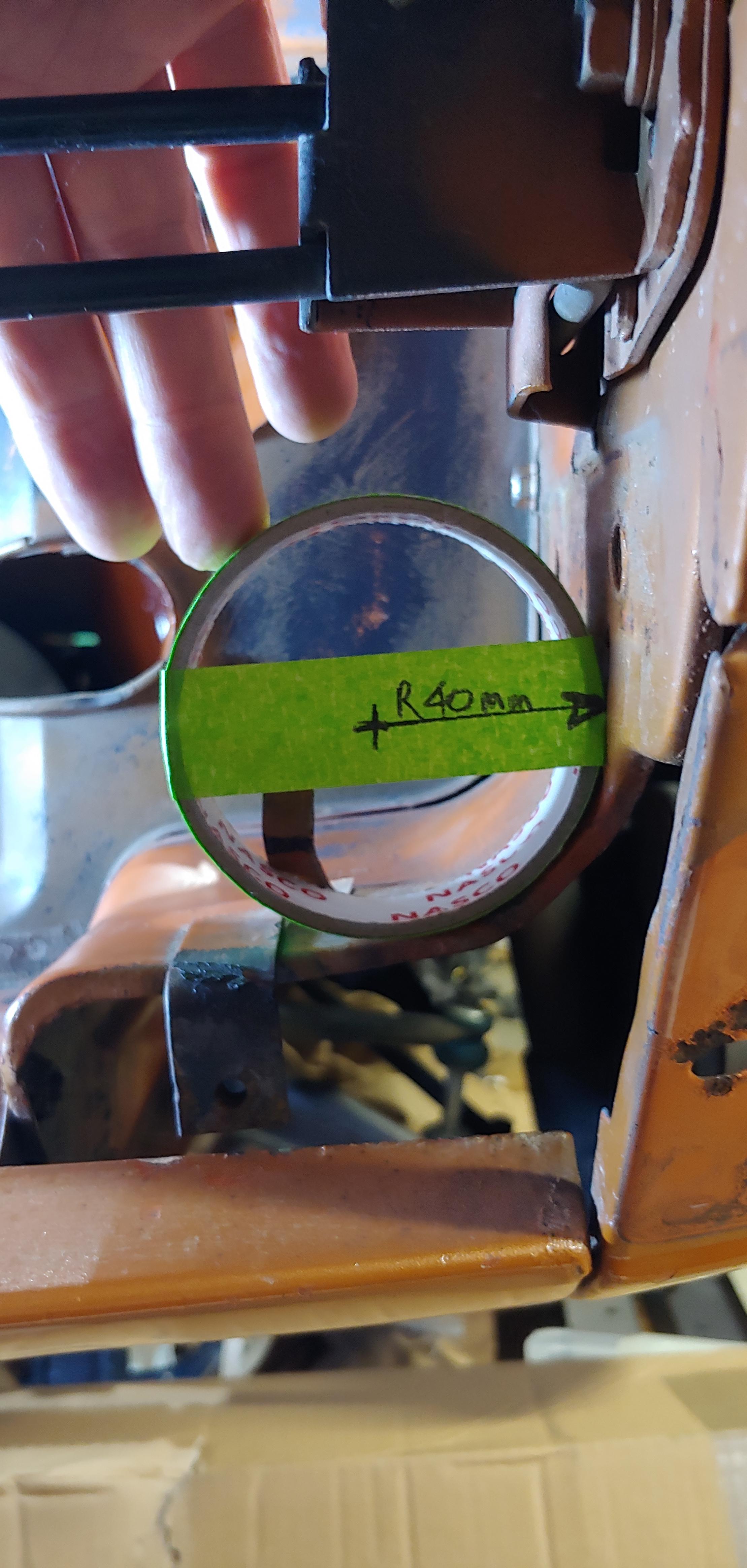

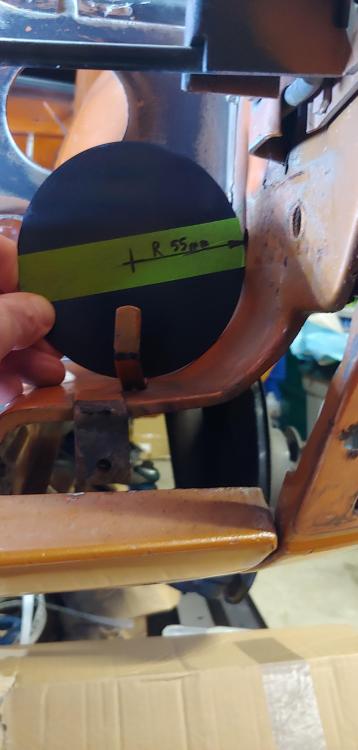

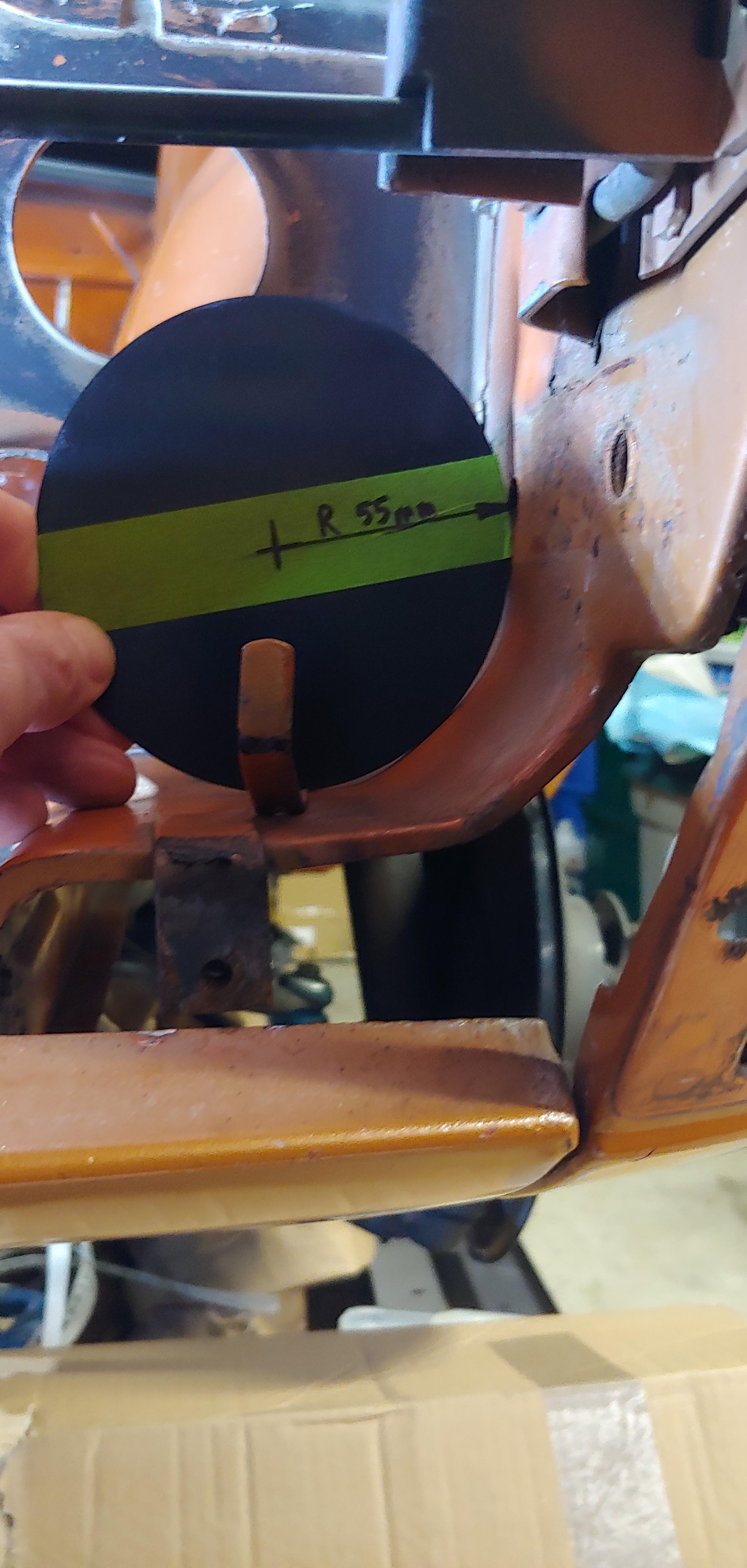

The radius you wanted varies, I measured about 55mm in line with the back bracket hole and reduces to a radius of about 40mm at the leading edge. Hope this helps

Mike




  • Like 3
Link to post
Share on other sites
4 hours ago, CanTechZ said:

Here are a few measurements from my '70. The area where the bumper mounting bracket mates, is vertical.

Please note that the vertical steel section above the surface where the bracket mates, is parallel with an offset of about 2-3mm.

The radius you wanted varies, I measured about 55mm in line with the back bracket hole and reduces to a radius of about 40mm at the leading edge. Hope this helps

Mike

Mike you’re a bloody legend mate!  Could not have asked for better measurements/references! Thanks so much for going to all that effort!

Ryan

Link to post
Share on other sites
8 hours ago, 240dkw said:

Cannot give you any measurements, but there is a few photos of the area in my build thread that might help.

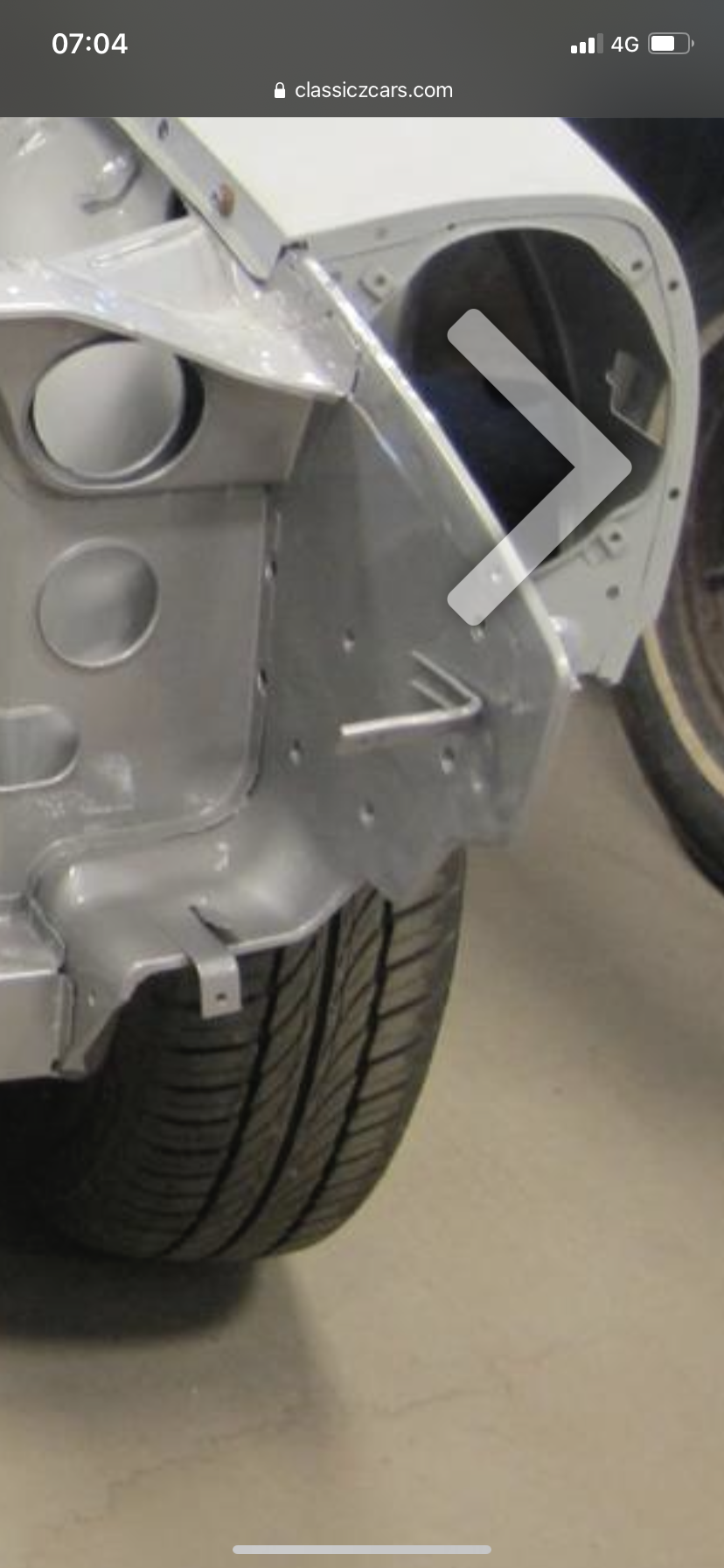

Thanks DKW. I quickly went through your thread and found these:


yours appear from the photos to be dead straight up and down with no offset as Mike mentioned.

On another note great work with the rust repairs! I plan to go through and read your thread properly when I get some time.

I think I may reattach my bonnet hinge mechanism while I try to repair.

Link to post
Share on other sites
7 hours ago, 240ZBUILTBYME said:

while I try to repair.

Try.. "we say overhere" ... is what the doggies do..!!  😉    You just repair that!   Not trying.. just be confident and DO IT!  :pow:

You'll get there!  We all know it's a lot of work but in the end you get it done.

  • Like 1
  • Haha 1
Link to post
Share on other sites
11 hours ago, 240ZBUILTBYME said:

.... yours appear from the photos to be dead straight up and down with no offset as Mike mentioned.

Hey Ryan, after seeing the pictures from Dan, I had a closer look at my car and found It doesn't have the offset on the RH side. The offset on the LH side must have been due to some minor old damage? It was strange how straight and even the offset is, although it does appear to be opposite to the top edge of the stiffening doubler plate on the far side. So much for my "bloody legend" status, LOL.

  • Like 1
Link to post
Share on other sites
42 minutes ago, CanTechZ said:

Hey Ryan, after seeing the pictures from Dan, I had a closer look at my car and found It doesn't have the offset on the RH side. The offset on the LH side must have been due to some minor old damage? It was strange how straight and even the offset is, although it does appear to be opposite to the top edge of the stiffening doubler plate on the far side. So much for my "bloody legend" status, LOL.

Nope. Still a bloody legend Mike! Haha

thanks for taking a further look though! How funny, it looked perfectly offset from your photos.

so I think we can safely say that panel should be dead flat & vertical. Thanks again

Ryan

Link to post
Share on other sites

Re-shaping those bent sections back to the correct, radiused contour might be a challenge.  I'm concerned that the metal won't move much in response to hammer-and-dolly treatment.  @ConVerTT did some significant work on this area of his Z and would probably be well qualified to advise.

  • Like 1
Link to post
Share on other sites
4 hours ago, Namerow said:

Re-shaping those bent sections back to the correct, radiused contour might be a challenge.  I'm concerned that the metal won't move much in response to hammer-and-dolly treatment.  @ConVerTT did some significant work on this area of his Z and would probably be well qualified to advise.

Thanks @Namerow Yes this is also my concern, the metal looks stretched from whatever impact it suffered or from the attempted repair to the area.

my thoughts are attempting to use heat and shrinking the area along with stud welder and slide hammer work. My theory is if I shrink the curved area it will pull the kinked vertical section back into line somewhat.

 I also remember Kent replacing this area in his thread, I might trawl through his thread. I guess failing an attempted repair, replacement of the metal is always an option.

Ryan

Link to post
Share on other sites

When I look at it, the curve is too abrupt on Ryan's car. So if you make the area nicely curved it should distribute the metal out allowing the vertical sides. The way it's supposed to be, That's at least how it looks. I think some dolly work would move it but you could easily stretch the metal. Shrinking might help but you will have to keep your shrink areas very close to each other to prevent other problems.

I think the best idea is to find some schedule 40 pipe that is close to the right diameter. Use it as you dolly to reshape the area

  • Like 1
Link to post
Share on other sites
  • 2 weeks later...

We think alike. LOL


He's going from bottom to bottom on the holes. "No $^!# Sherlock". I can hear you saying right now.

Edited by siteunseen
  • Haha 1
Link to post
Share on other sites
On 4/4/2021 at 7:51 AM, 240ZBUILTBYME said:

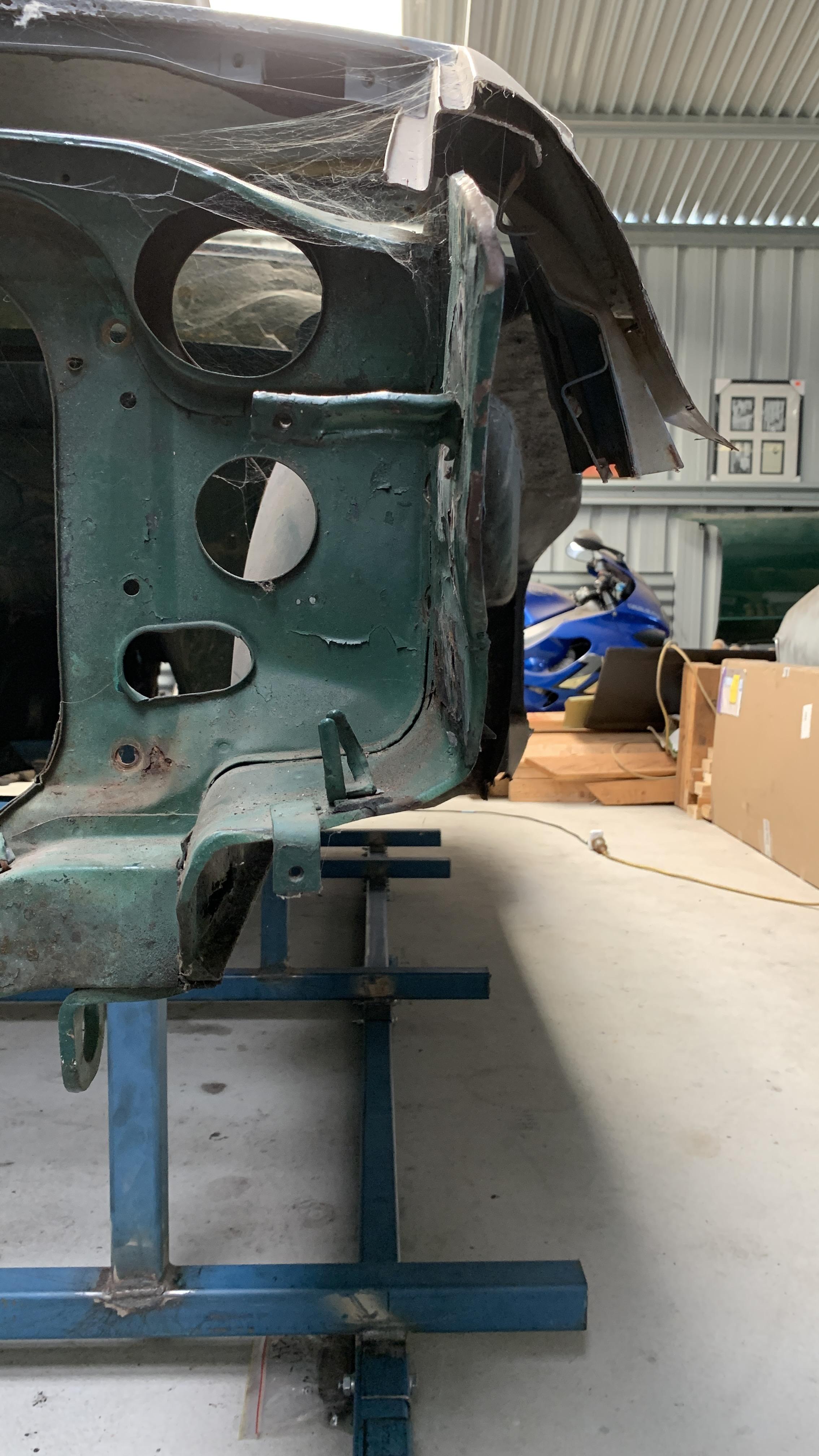

Holy cow Ryan, how long has that roof panel been sitting there? Those cobwebs are wild. The spiders there must be quite active.

How big are they?



Link to post
Share on other sites

Hahaha a while, maybe 6-8 months?

they’re daddy long legs so not very scary. The only scary spiders in oz are the funnel webs (big and poisonous but only on the east side of oz ) and the white tails (flesh eating venom). But bites are very rare. The red backs can make adults sick and can kill very small children. Again very rare to be bitten.

snakes are a risk where my car is stored as it’s on a big bit of land. Mostly dugites which are quite venomous and can be aggressive. I’m yet to see one but my dad has killed a few.

but I’d much rather face those than a grizzly or mountain lion lol! When I was in Yosemite hiking I was terrified of seeing a bear!

  • Like 1
Link to post
Share on other sites
3 hours ago, 240ZBUILTBYME said:

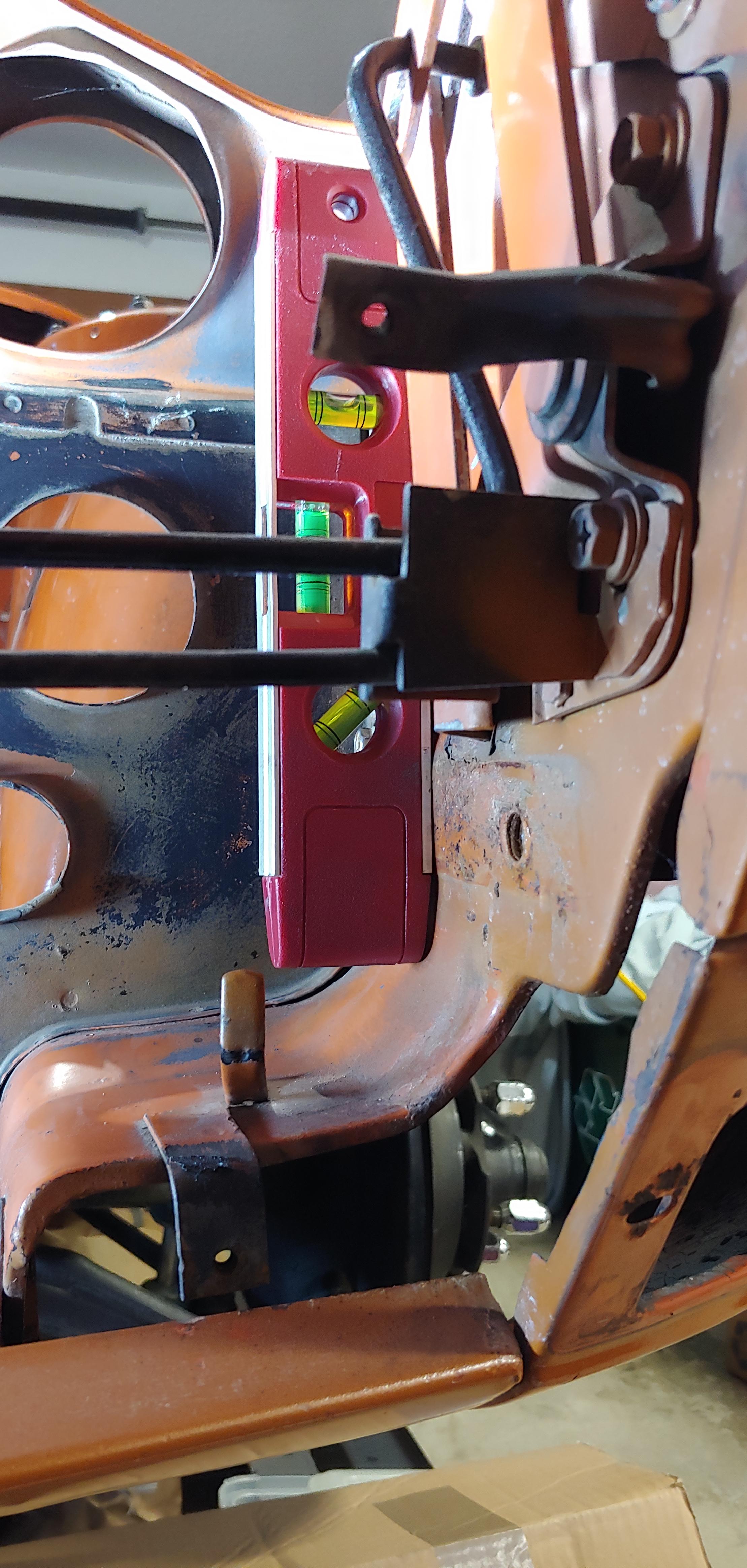

Cheers mike, so bumper bolts are level with frame rail is that right?

Hey Ryan, best I can measure that's correct.

Cheers

  • Thanks 1
Link to post
Share on other sites
19 hours ago, CanTechZ said:

Hey Ryan, best I can measure that's correct.

HUH??  WHAT?? 🙊

Unless the car in these pic are upside down ... then you can mearsure it this way but as i can see the airbubble in the spirit level IT'S NOT!  You CAN'T use a spirit level that way!  In the middle green glass is a small bow.. this has to be with his bow always UP..

Am i the only one that sees this????

You have to measure this with the spirit levels top side your holding it upsidedown.. this never works! 🙈

Bumper Bracket Holes.jpg

In both pictures you have to keep the spirit level right up not upside down!  OEFFF!!!  🙈

Edited by dutchzcarguy
