JLPurcell

Brake proportioning valve assembly

Recommended Posts

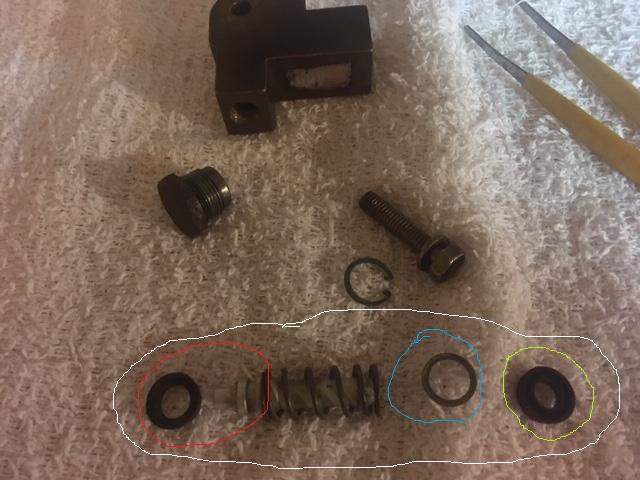

I want to make sure I reassemble the proportioning valve in the rear of the car correctly. I know that it is actually more of a delay valve, but known as a proportioning valve. My question is which direction does the inner (red) seal go and on the other end what is the order of the washer (blue) and seal and direction of the seal (green). Thanks for the help.






Share this post


Link to post
Share on other sites

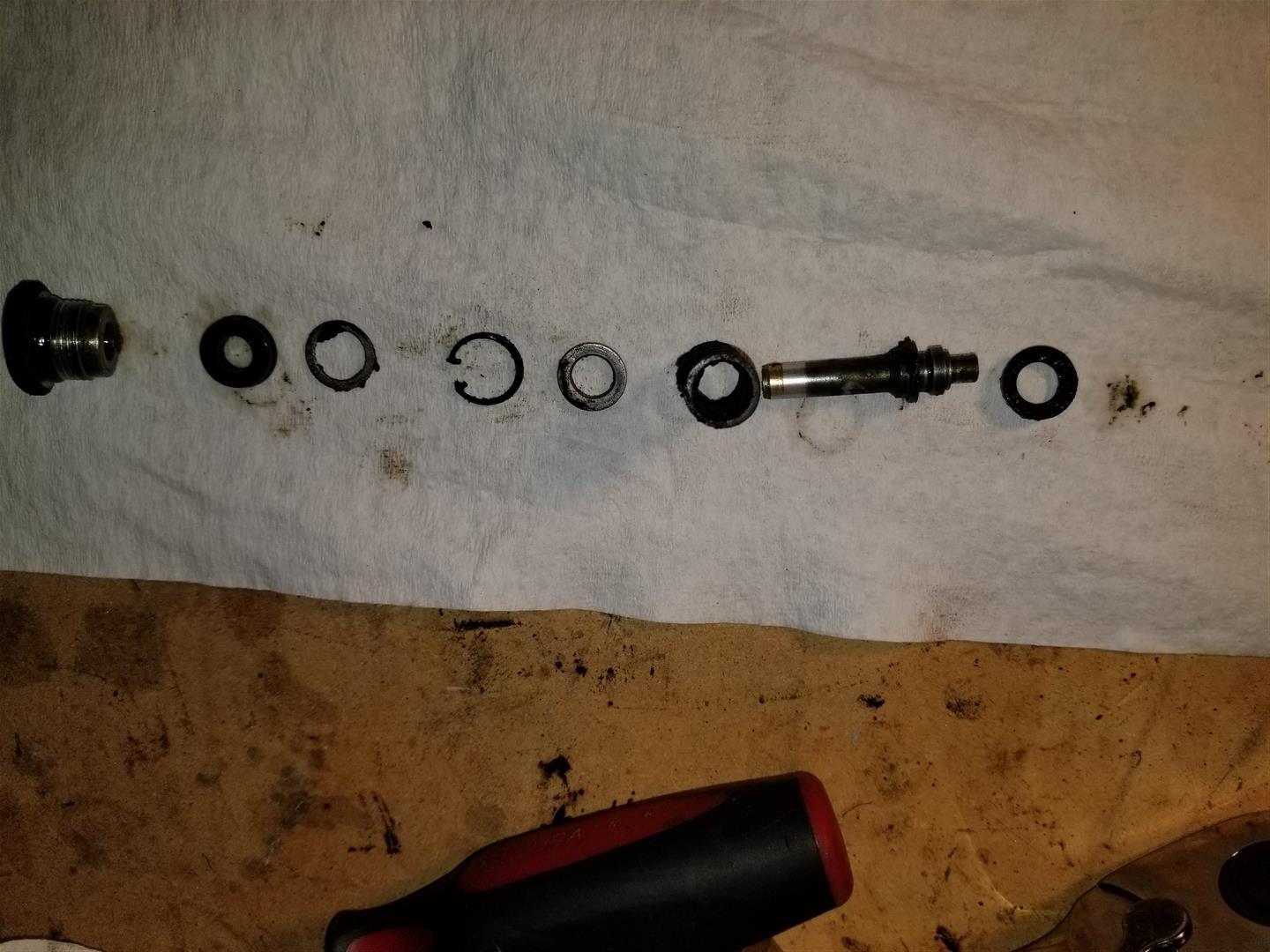

When I rebuilt mine, I took some photos after disassembly and made sure I kept things in order so I think this should help you. My photo isn't the best but ...the order starting from the outside hex bolt/plug goes....

1) Hex plug. 2) Seal with flat side out and U cupped shape in. 3) smaller washer. 4) snap ring. 5) larger washer. 6) spring. 7) shaft (see photo for orientation). 8 ) Seal with flat side in and U cup shape pointing toward the hex plug/out.

Essentially the U / cupped shape of the seals both point toward the center.

I used a 5/16 socket to push the assembly down and cause the snap ring to re-seat when I reassembled. I used the MSA seal kit but really I think the original seals were just fine. Mostly what I accomplished was cleaning out 45 years of gunk.

Proportioning Valve.jpg

Edited by jonathanrussell
specify socket size
  • Like 2

Share this post


Link to post
Share on other sites
50 minutes ago, jonathanrussell said:

When I rebuilt mine, I took some photos after disassembly and made sure I kept things in order so I think this should help you. My photo isn't the best but ...the order starting from the outside hex bolt/plug goes....

1) Hex plug. 2) Seal with flat side out and U cupped shape in. 3) smaller washer. 4) snap ring. 5) larger washer. 6) spring. 7) shaft (see photo for orientation). 8 ) Seal with flat side in and U cup shape pointing toward the hex plug/out.

Essentially the U / cupped shape of the seals both point toward the center.

I used a 5/16 socket to push the assembly down and cause the snap ring to re-seat when I reassembled. I used the MSA seal kit but really I think the original seals were just fine. Mostly what I accomplished was cleaning out 45 years of gunk.

Proportioning Valve.jpg

Mine seems to be missing the "larger" washer. Could you give me the details (measurements) for the washer. I will have try and match something up or does anyone have a complete valve or the washer for sale. Thanks jlp

Share this post


Link to post
Share on other sites

I wish I could but 1) the valve is reassembled and installed in the car and 2) I am on an extended trip and am away from my car/garage/parts.

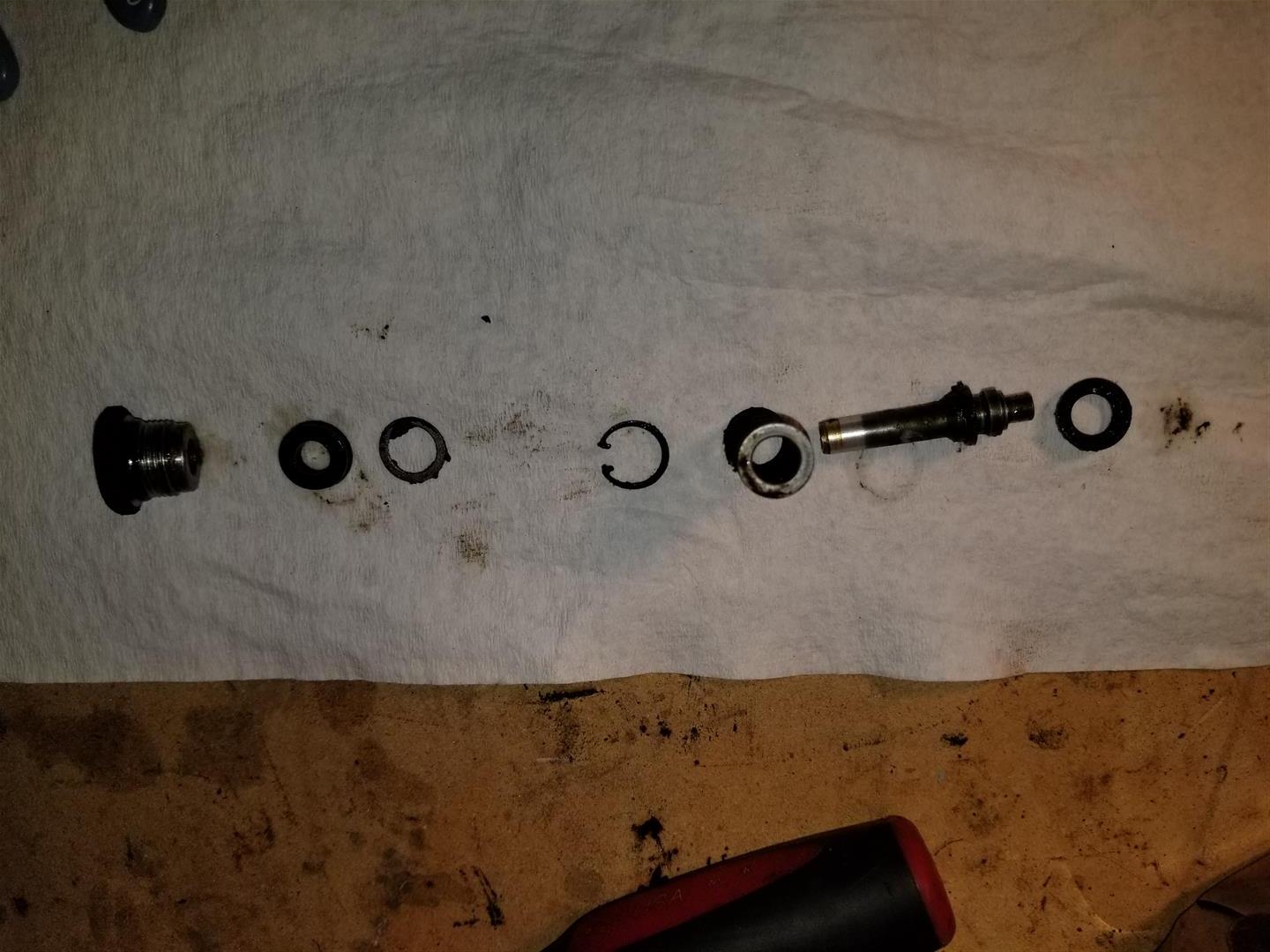

Here is another photo with the larger washer sitting on the spring. Looks like it is about the same diameter as the spring. Its primary purpose seems to be to give the snap ring a solid surface before the spring.



Proportioning Valve 2 (Large).jpg

  • Like 1

Share this post


Link to post
Share on other sites
10 hours ago, grannyknot said:

I just did this last month but damned if I can remember,  @Namerow will know.

Can't help with this one.  I was involved in some commentary about techniques for seating the snap ring, but that's about it. JR's disassembly photos look pretty definitive, so I expect that that part of the mystery has been solved for you. The missing washer looks pretty generic, provided that you can find one with approx. the right OD and ID.  Alternatively, @zKars might have a complete valve assy to offer from his used parts stash.

Share this post


Link to post
Share on other sites
49 minutes ago, Namerow said:

Can't help with this one.  I was involved in some commentary about techniques for seating the snap ring, but that's about it. JR's disassembly photos look pretty definitive, so I expect that that part of the mystery has been solved for you. The missing washer looks pretty generic, provided that you can find one with approx. the right OD and ID.  Alternatively, @zKars might have a complete valve assy to offer from his used parts stash.

Let me know if you need one.

Share this post


Link to post
Share on other sites

There are some close up pictures here, page 4
