280z Bosch Relay Correlation? Stock Relay vs Porsche Relay


Recommended Posts

I wanted to see If anyone knew if their was any correlation between these two relays. One is the stock 280z fuel relay as we know it (under drivers side dash) and the other is a Bosch Fuel injecton relay for Porsche-VW. Bosch one is significantly cheaper than stock AND appears to have the same pinout. What are your thoughts?

download (1).jpg

download (2).jpg

Edited by kyle146
bad title
Link to post
Share on other sites
  • kyle146 changed the title to 280z Relay Correlation????

I have a vague memory of @EuroDat posting about this.

You should put "Bosch relay" in your title.  That will catch the eye of the people who know.

  • Like 1
Link to post
Share on other sites
  • kyle146 changed the title to 280z Bosch Relay Correlation? Stock Relay vs Porsche Relay

Here you go, with one old post.  It was SteveJ, and maybe Captain Obvious before him.  Not sure if EuroDat is in there or not.

(The Share thing is not working right, try this one.)  Just go to post #42, Share is messed up.



Edited by Zed Head
Link to post
Share on other sites
7 minutes ago, Zed Head said:

Here you go, with one old post.  It was SteveJ, and maybe Captain Obvious before him.  Not sure if EuroDat is in thee or not.



What a good read! I only stumbled upon this correlation based on the pinouts. I really want to purchase a relay form amazon now and test out those findings. Trying to find stock EFI relays has gotten expensive.

Link to post
Share on other sites
4 hours ago, Zed Head said:

Just came across this one.  Who knows what the innards look like.  The problems don't show on the outside.

https://www.ebay.com/itm/174753879999?hash=item28b02497bf:g:JK8AAOSwzOhgjcRl

I just ordered a Bosch unit to test it out. luckily nothing is currently wrong with my relay right now but if the Bosch one works, its just cheap insurance at that point!

Link to post
Share on other sites

According to the documentation, there are two diodes and resistor inside the original fuel injection relay.

For me, the question is "Does that Bosch relay have those three two additional internal components?"

Edited by Captain Obvious
There are two diodes, not just one
Link to post
Share on other sites
55 minutes ago, Captain Obvious said:

According to the documentation, there's a diode and resistor inside the original fuel injection relay.

For me, the question is "Does that Bosch relay have those two additional internal components?"

What are the ramifications of not having those components?

Link to post
Share on other sites

The chances are that if it is in the Nissan relay, you'll find it in the Bosch relay since the Nissan system is a licensed copy of the Bosch.

  • Like 1
Link to post
Share on other sites
1 hour ago, SteveJ said:

The chances are that if it is in the Nissan relay, you'll find it in the Bosch relay since the Nissan system is a licensed copy of the Bosch.

Im going to take that chance, I will  follow up with my results. Based on the fact that Nissan used a licensed version of the Bosch system. Will follow up with results this week when new Bosch relay comes in the mail.

  • Like 1
Link to post
Share on other sites

I have been using the Bosch version since 2012 without any issues what so ever. I can't open it without damaging it, so can not say anything about the internals. I did remove the cover from one of my working spare JECS relays.

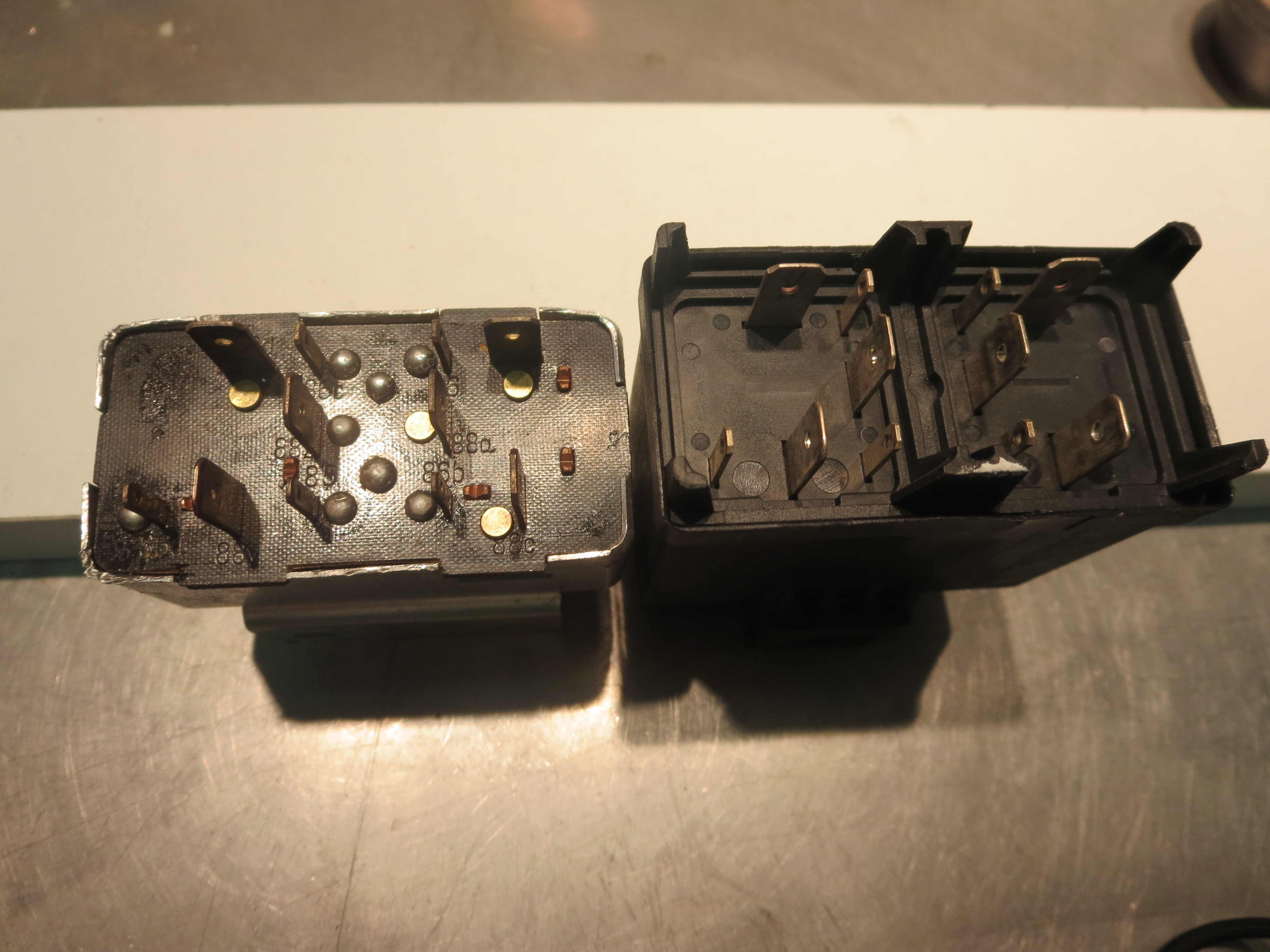

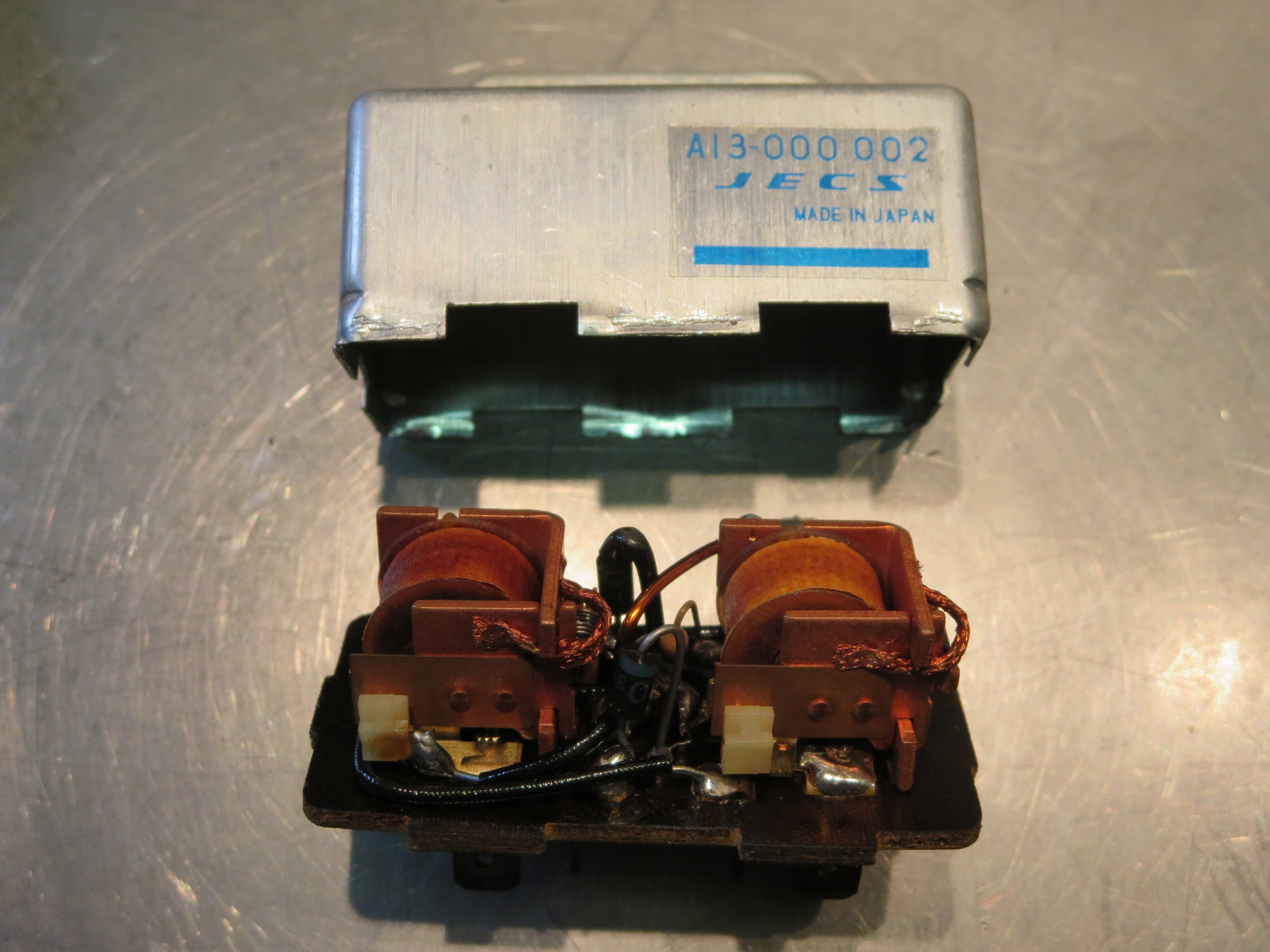

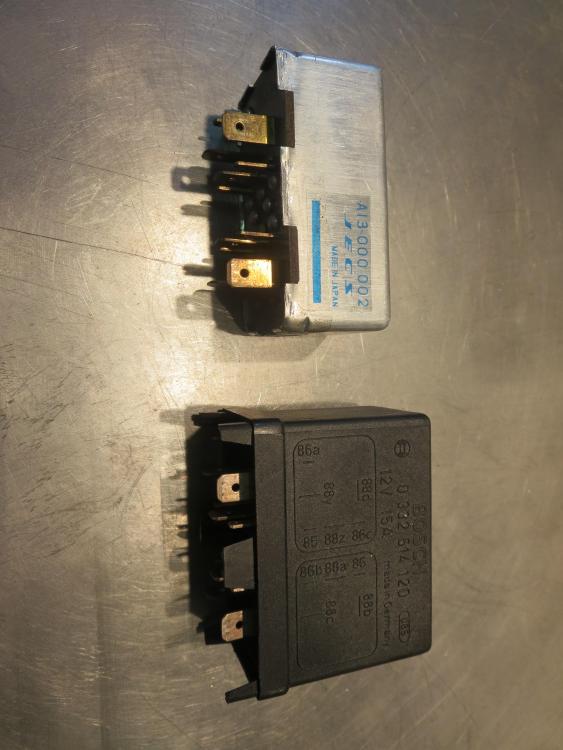

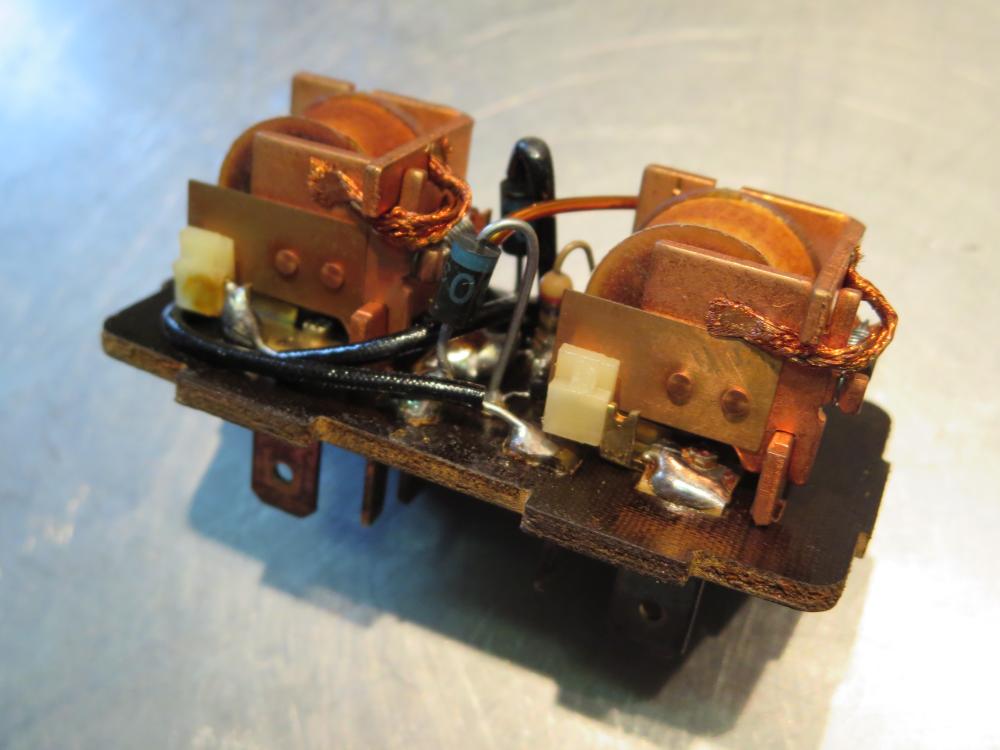

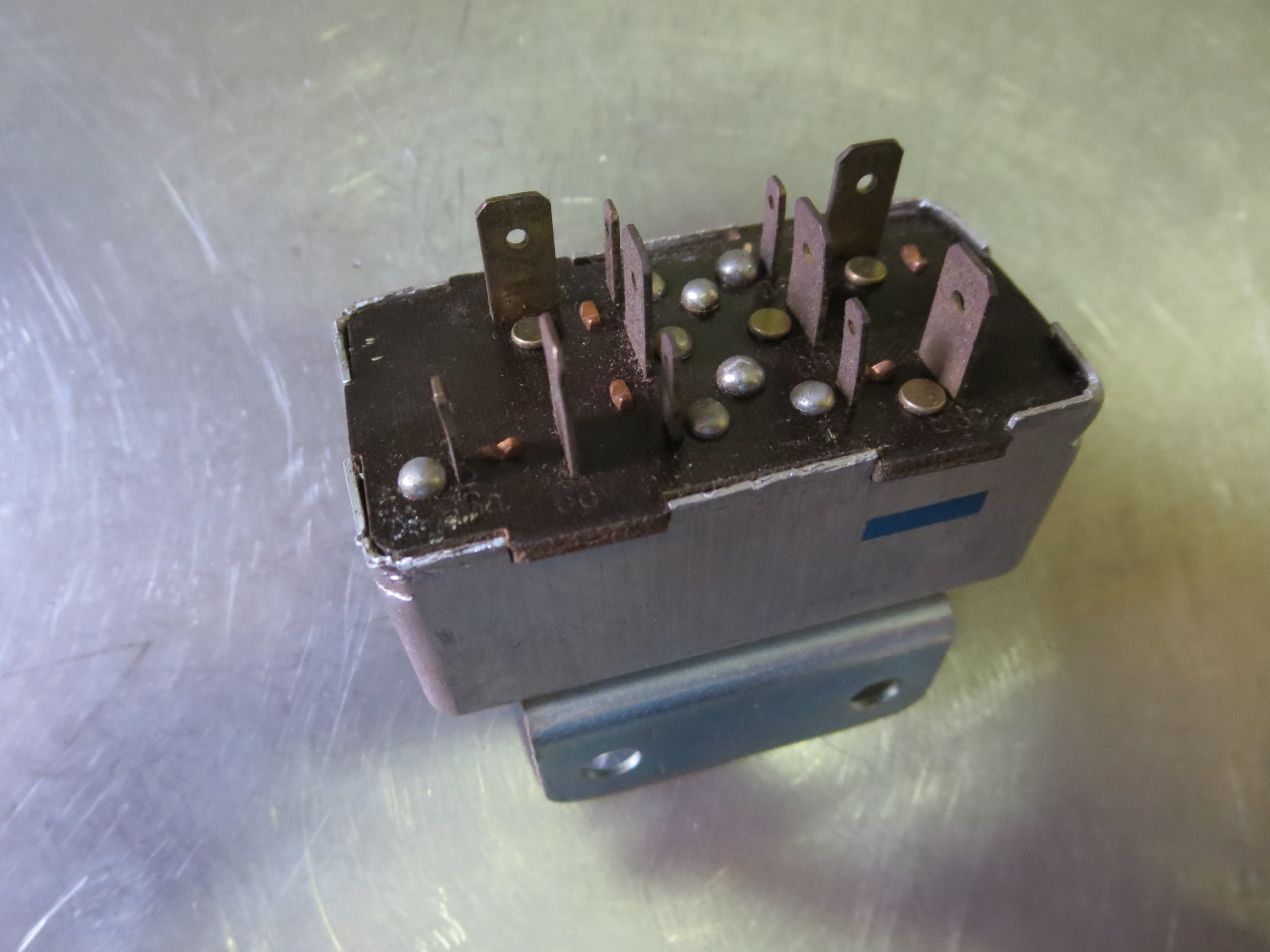

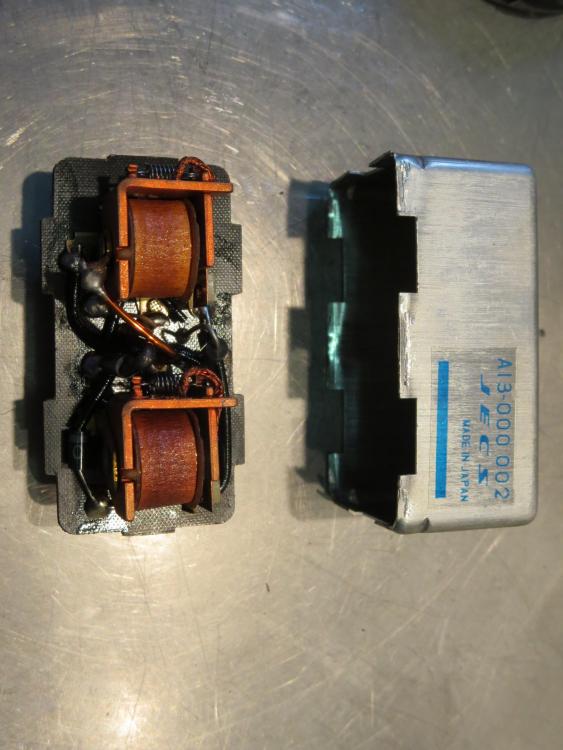

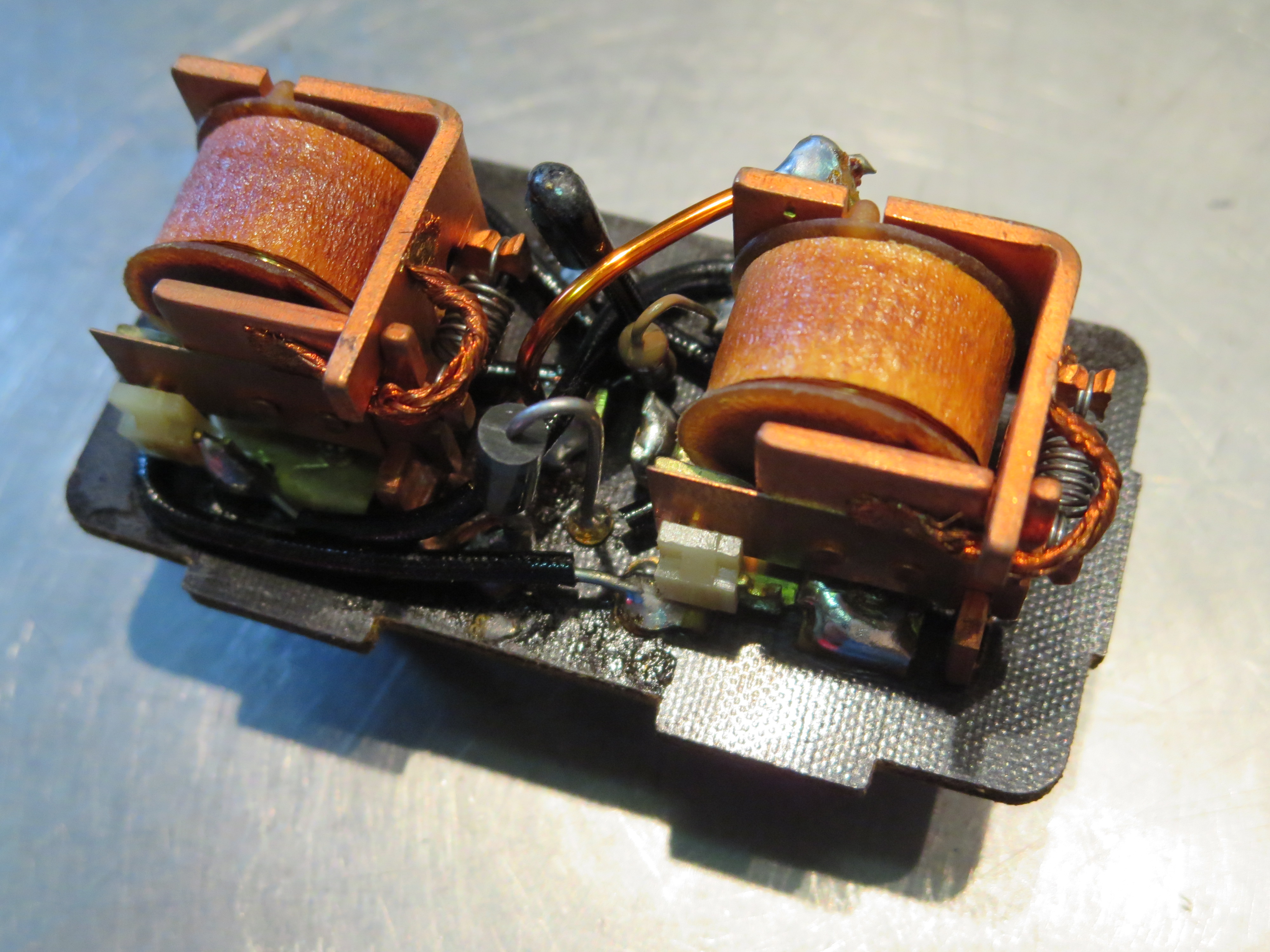

Here are some of my photos.










  • Like 1
Link to post
Share on other sites

There's a 120 and and a 121.  The 121 says "Jetronic", the 120 doesn't.  Wonder if diodes/resistors is the difference.  I know that their typical 5 pin relays come in different flavors.  Same basic functions, just some have a few extra parts inside.  Usually they show it on the cover, but these don't.

Edit - the 121 has 13 pins vs 11 for 120.  Not sure how that affects things.  Haven't studied the pin diagram.

https://www.amazon.com/Bosch-0332514121-BOS0332514121/dp/B006NYJ328

https://www.amazon.com/Bosch-Automotive-0332514120-Relay/dp/B004Z0W1C6

Edited by Zed Head
Link to post
Share on other sites
3 minutes ago, Zed Head said:

There's a 120 and and a 121.  The 121 says "Jetronic", the 120 doesn't.  Wonder if diodes/resistors is the difference.  I know that their typical 5 pin relays come in different flavors.  Same basic functions, just some have a few extra parts inside.  Usually they show it on the cover, but these don't.

https://www.amazon.com/Bosch-0332514121-BOS0332514121/dp/B006NYJ328

https://www.amazon.com/Bosch-Automotive-0332514120-Relay/dp/B004Z0W1C6

The pinouts on that 121 don't seem to match up, maybe a later year revision?

Link to post
Share on other sites

Only real way to compare is to open the Bosch relay..  just my opinion.  Would be great info for others if you're willing to sacrifice a good relay.  😉



Link to post
Share on other sites

Some work with a meter and a battery, should do the job.  Measure resistance and direction.  A fun project.

Link to post
Share on other sites
17 minutes ago, Zed Head said:

Some work with a meter and a battery, should do the job.  Measure resistance and direction.  A fun project.

Exactly. Does anybody have a spare Bosch relay they want to send me for testing?

Link to post
Share on other sites
53 minutes ago, grannyknot said:

Having parted a few BMW's I have quite a collection of Bosch relays, what kind do you want?





Well, the intent was to test the EFI relay. Do you happen to have one of those that match the ones earlier in this thread?

Link to post
Share on other sites
1 hour ago, SteveJ said:

Well, the intent was to test the EFI relay. Do you happen to have one of those that match the ones earlier in this thread?

I think so, it's still attached to the wiring harness, I'll drag it out tomorrow.

Link to post
Share on other sites

Yes, I believe with a power source and some crafty meter work, one could determine if those extra components are included with the Bosch unit. I suspect they are.

Oh, and by the way... There are two diodes inside the assy (not just one), so I edited my post above.

10 hours ago, Patcon said:

What are the ramifications of not having those components?

Hmmm... I'd have to look into that, but I bet the ramifications are unpleasant. Probably not "light the car on fire" unpleasant, but maybe "fuel pump runs when it shouldn't" kind of unpleasant. If you want me to dig into it, let me know.

Link to post
Share on other sites

LOL.

Yeah, it kinda makes me wonder a little too. There have been people who have "constructed" a fuel injection relay out of two independent generic relays. I wonder if those people included those additional components.

Link to post
Share on other sites
Posted (edited)

Well judging by this site:

https://www.ratwell.com/technical/DoubleRelay.html

that @SteveJ posted on another thread, it breaks down that relay and its components and even lists out what is inside that version. Stating that it could be made by hand if someone wanted too. It even talks about L- Jetronic and each pinout

Edited by kyle146
Link to post
Share on other sites
