5 Speed Transmission inspection and possible rebuild.

[Zed Head]

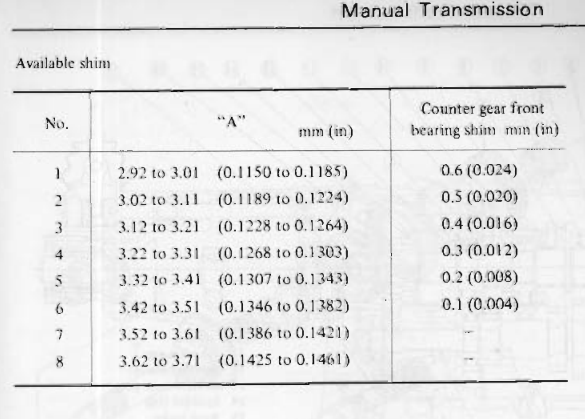

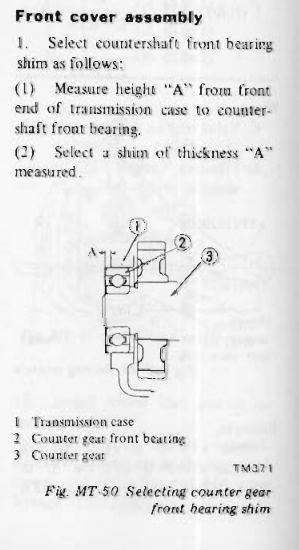

Just thought of this - don't lose the preload shim in the countershaft bore in the front cover.  It might be stuck in there, hidden, but you'll need it and the odd sizes aren't available anymore.

[Av8ferg]

ZH, thanks. I saw that shim when I pulled the cover. I have it in a safe place, where my kids can’t find and lose


Sent from my iPhone using Tapatalk

[Captain Obvious]

2 hours ago, Av8ferg said:

I have it in a safe place, where my kids can’t find and lose

Haha!! Good thinking!

[Av8ferg]

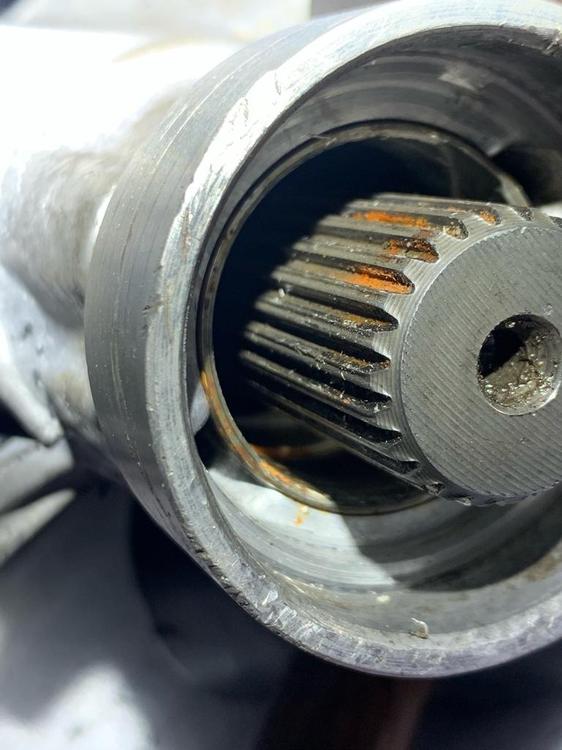

BTW, I might hold off on buying that Omega Bushing that EuroDat had in the parts list. I don’t see how it’s a problem. Am I missing something? I put the rear housing back on after calling a transmission repair shop. The guy said do a test fit see if there is play? Noting even touches this bushing as far as I can see. What have I missed? He said he can replace it but to see first is there is play and unless I’m missing another part that comes in the other side I can’t tell if this is required or not. I feel like an idiot. The transmission idea was beyond my pay grade. I just want it to go away with minimal risk. I tried hammering it how using a socket that fit right on the bushing lip. Didn’t budge and I didn’t want to mushroom to end of the bushing so I stopped.
See pic.




Sent from my iPhone using Tapatalk

[Dave WM]

its play in the drive shaft to bush you want to look for

[Dave WM]

I recall it being kinda scary getting it out. understand the fear factor. Did you decide what you are going to do about the remaining bearing shield? Your shop guy may be the way to go. on the bushing removal you need a socket that fits well. A press would be better to avoid mushrooming, but IIRC I was able to hammer it (scared while doing).

[Dave WM]

Sneek into a harbor freight with it and the socket, demo the press to yourself (if anyone ask), and bingo, done.

[Dave WM]





[Dave WM]

ah my video reminds me of using the cool heat process to help with removal as well

[Av8ferg]

Nice explanation Dave.  What BTW is “Coal Juice, you refer too?  I think I can do this.  So you heated the flange before trying to tap it out?   How hard we you wailing on this before it started moving?  I guess this a the prudent thing to do.  I’ll try not to Jerry Lewis the hell-out of this thing.  Once you start you’re committed....no going back.  Did you get the same omega Bush that EuroDat had mentioned?

[Zed Head]

Slip the slip yoke in to the end of the transmission and wiggle it around.  You should also check the slip yoke surface for wear, it can get grooved if somebody let the seal wear out.  I haven't seen a spec for play, I think it's kind of a gut feel thing.

It will feel looser without the seal in place.

[Av8ferg]

I don't have a yoke available.  Its in the car.  I guess I'll just roll the dice and try not to screw this up and follow Dave WM.   Also, I'm going to leave that other side of the bearing in.   When the transmission blows up driving to Nashville going over the mountains (if that ZCon happens), I'll then have time to reflect on my decisions I made today.
