joe newsom

New connectors

Recommended Posts

Try Vintage connections.  The site is kinda wonky and you have to dig a little but the products are good from my experience.

Share this post


Link to post
Share on other sites

Joe, If you decide you're going to place an order with Eastern Beaver, would you send me a PM first? I'd be happy to piggyback onto an order and share the shipping costs.

Share this post


Link to post
Share on other sites
Joe, If you decide you're going to place an order with Eastern Beaver, would you send me a PM first? I'd be happy to piggyback onto an order and share the shipping costs.

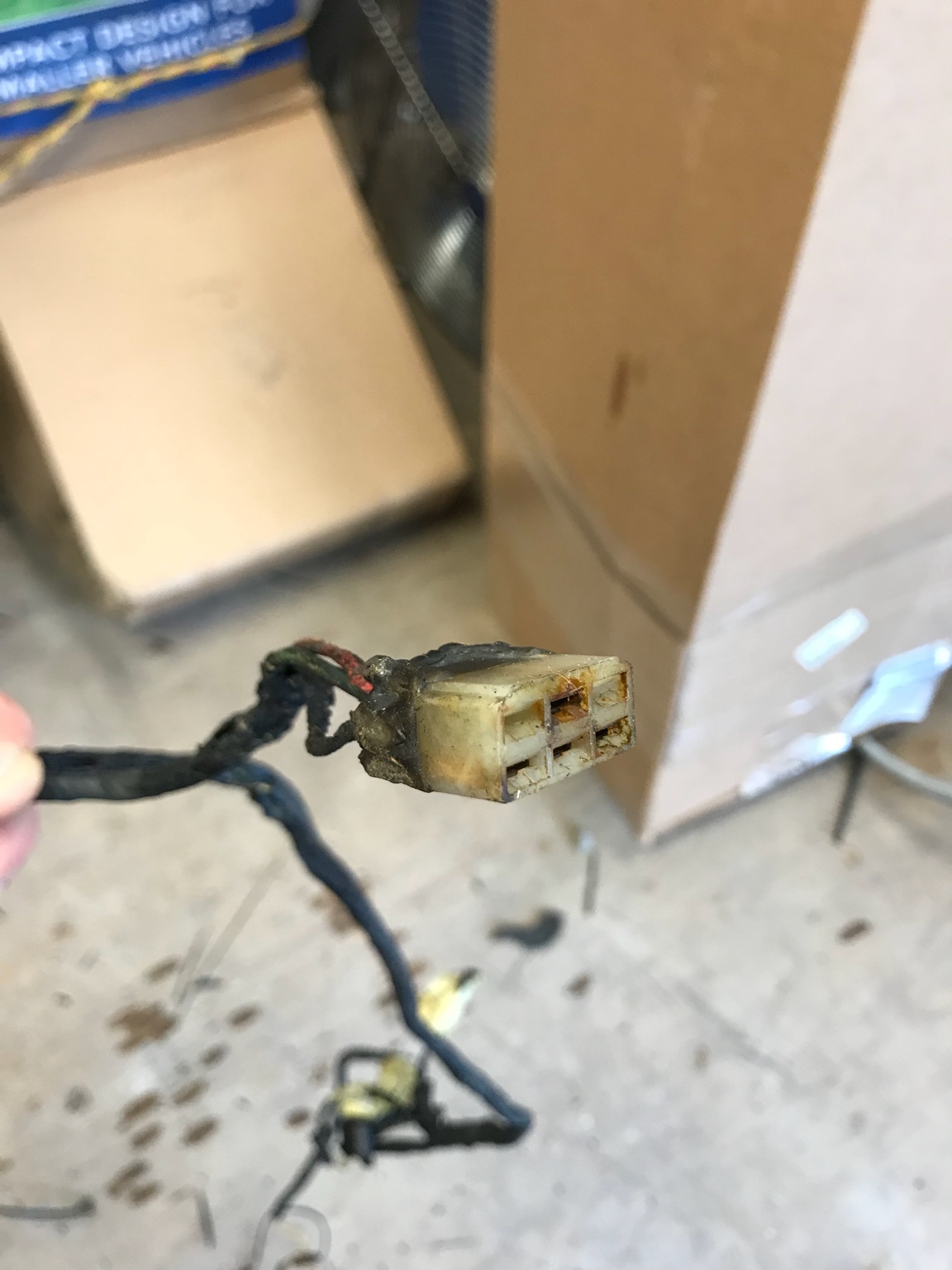

CO I am thinking the order I do will be from Vintage Connections. Their site seemed to have the parts I need. The Eastern Beaver seemed more geared towards motorcycles. Unless I am missing something.. I am trying to replace about 30% of my engine harness connections.


Sent from my iPhone using Classic Zcar Club mobile

Share this post


Link to post
Share on other sites

This connector style is one that vintageconnections does not carry that Eastern Beaver does (a Canadian reference if you're wondering...). These are used on the white and white red main power feeds such as the Fusible links and at the inter-harness connectors at the firewall and fusebox.

http://www.easternbeaver.com/Main/Elec__Products/Connectors/312_Connectors/312_connectors.html


Share this post


Link to post
Share on other sites

Joe, No problem. Thanks for considering it anyway.

There would be a little bit of stuff I could use from Vintage as well if you still want a piggyback.

And one other place that hasn't hit this thread yet is Cycle Terminals (http://www.cycleterminal.com/)

Interesting your comment about Eastern Beaver though. I found that one to be the least cycle specific of the three sources. I also found them to be the ones with the best collection of Yazaki parts (which is what Datsun used almost exclusively throughout). Some of the Yazaki stuff can be sourced from other sources and it's almost identical. But then there is some Yazaki specific stuff that doesn't cross well.

Share this post


Link to post
Share on other sites

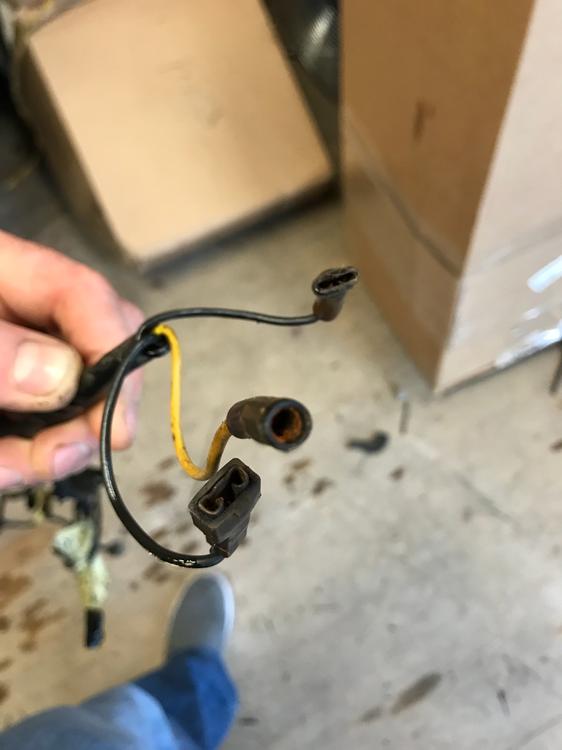

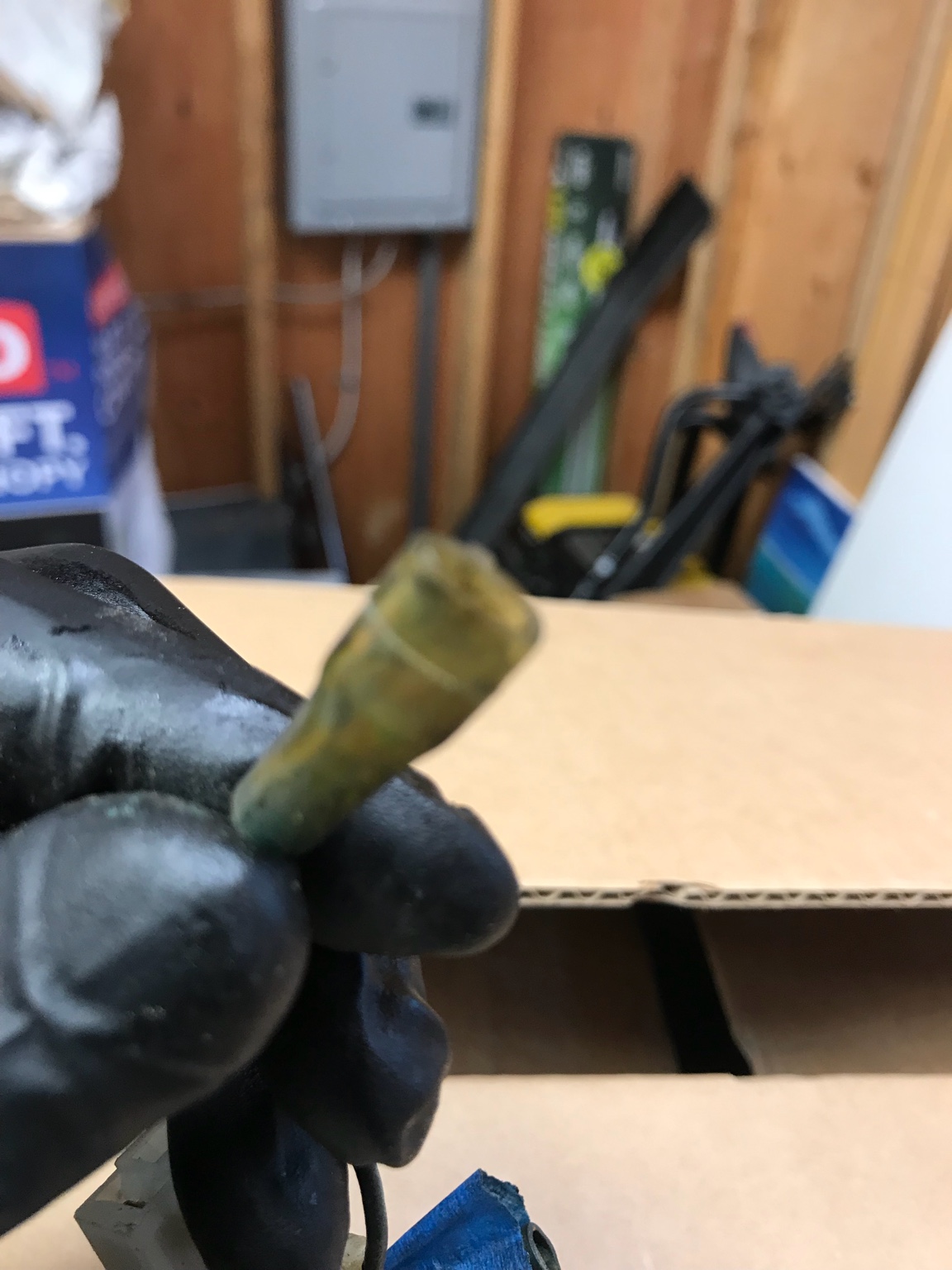

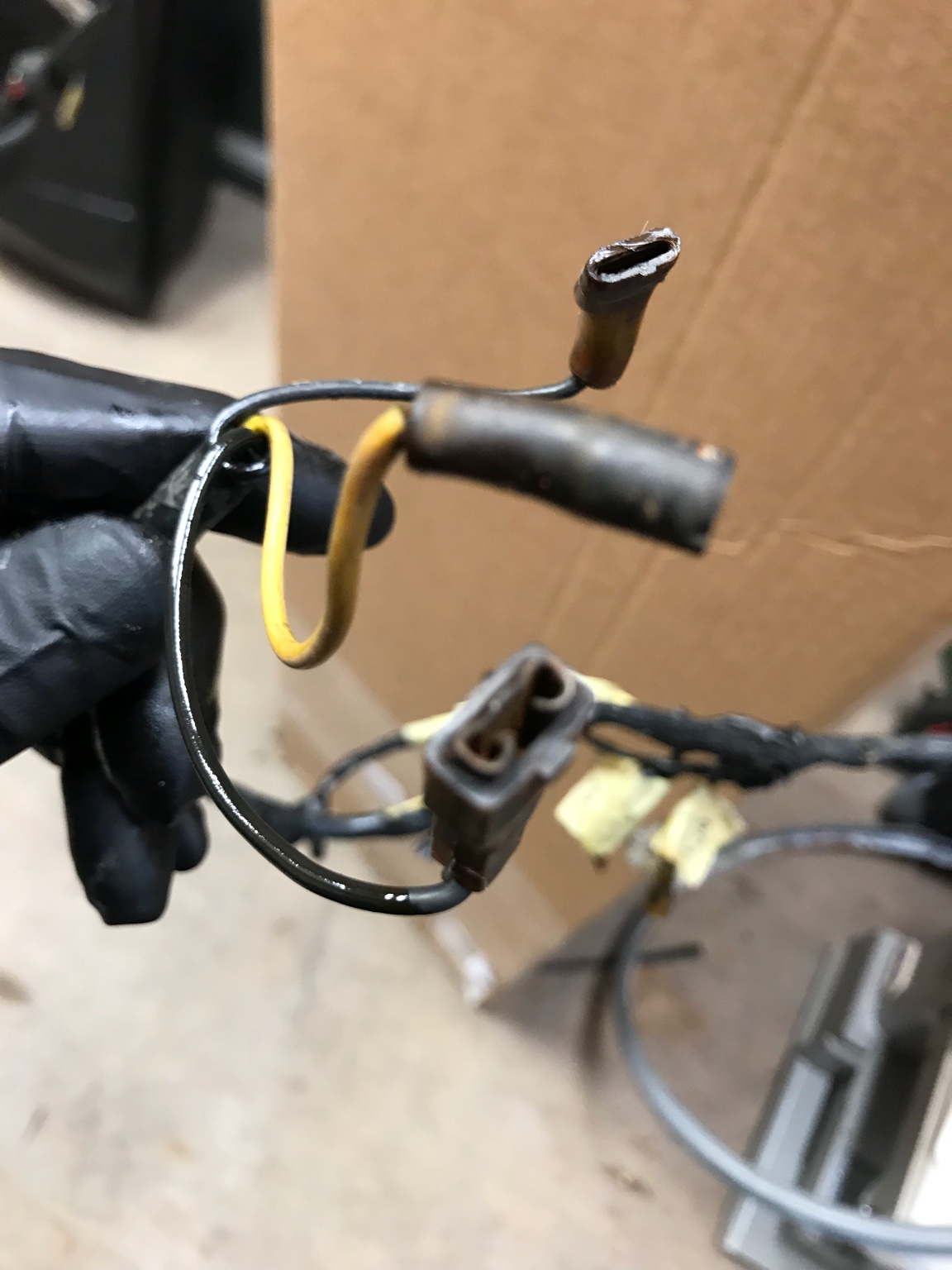

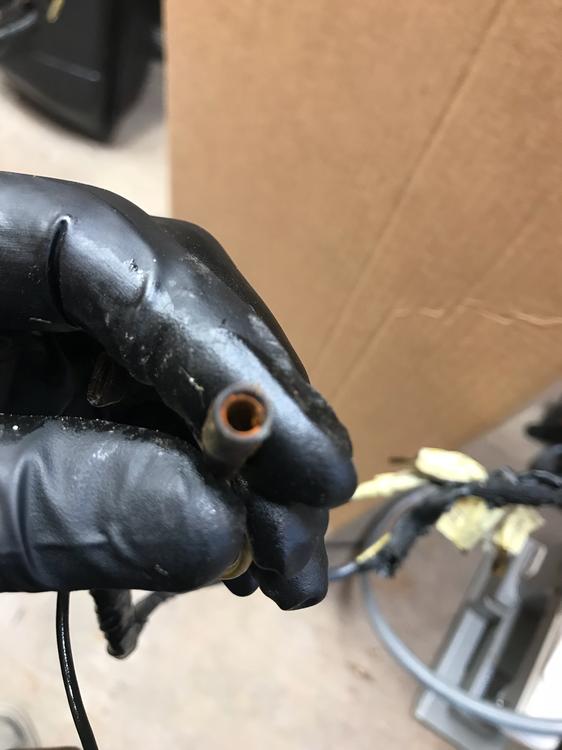

Joe, From Vintage? I could use some of the bullet connectors like the ones in your pics. Maybe ten pairs male and female?

If you buy a quantity of 25 or 100 of each male and female, I'd love to split them with you. I believe you (we) are looking for the 4mm variety:

Male bullet connectors and sleeves:
SB1 (18-16 AWG)

Female bullet connectors and sleeves:
SS1 (18-16 AWG)
  • Like 1
