grannyknot Posted February 5, 2017 Author Share #277 Posted February 5, 2017 5 minutes ago, Captain Obvious said: Also what is that residual pressure valve? Never heard of that... I'll have to read up. But in the meantime, won't any residual pressure in the rear lines encourage the rear shoes to drag? Is that an alternative in case the rear auto adjusters don't work right? The 4-6" that the hand brake handle moves only translates into 1/10" at the pads, having the shoes drag a bit will ensure that the full 1/10" is able to be used. With all the problems that have been encountered when changing to rear discs I just want to make sure I have done everything I can to make sure they work the first time. Can't get the car on the road without a safety certificate, can't get a safety certificate without a mechanic pulling up on the hand brake. It has to work and it's easier to do it now then later. Really it's only half a pound per pad. Link to comment Share on other sites More sharing options...
Namerow Posted February 6, 2017 Share #278 Posted February 6, 2017 Re pix of your dash, it looks like you intend to pit it back in the car as a completely assembled unit (i.e. gauges, hvac vent tubes, and glove box all in place). I assume that you've used this procedure before and it works, so my question: Will you put the heater/blower assembly in the car first, followed by the dash assembly? Or will it be dash first, heater/blower after? Also: For the mod to the park brake handle, how much additional thread length did you add to the adjuster rod? And where in the system is the return spring that Captain O. was talking about? (or is that specific to a rear disc set-up?) Link to comment Share on other sites More sharing options...
Captain Obvious Posted February 6, 2017 Share #279 Posted February 6, 2017 When I lowered my parking brake handle, I didn't need to add anything to the adjuster rod. Thankfully the rod already had enough adjustment length that all I had to do was readjust the linkage, but didn't have to modify it any way. Hopefully granny will have the same ease in that regard. The return spring I was talking about was something that I added at the base of the handle assy inside the car. More details in this thread:http://www.classiczcars.com/topic/49952-parking-brake-handle-return-spring/ But here's one pic: Link to comment Share on other sites More sharing options...

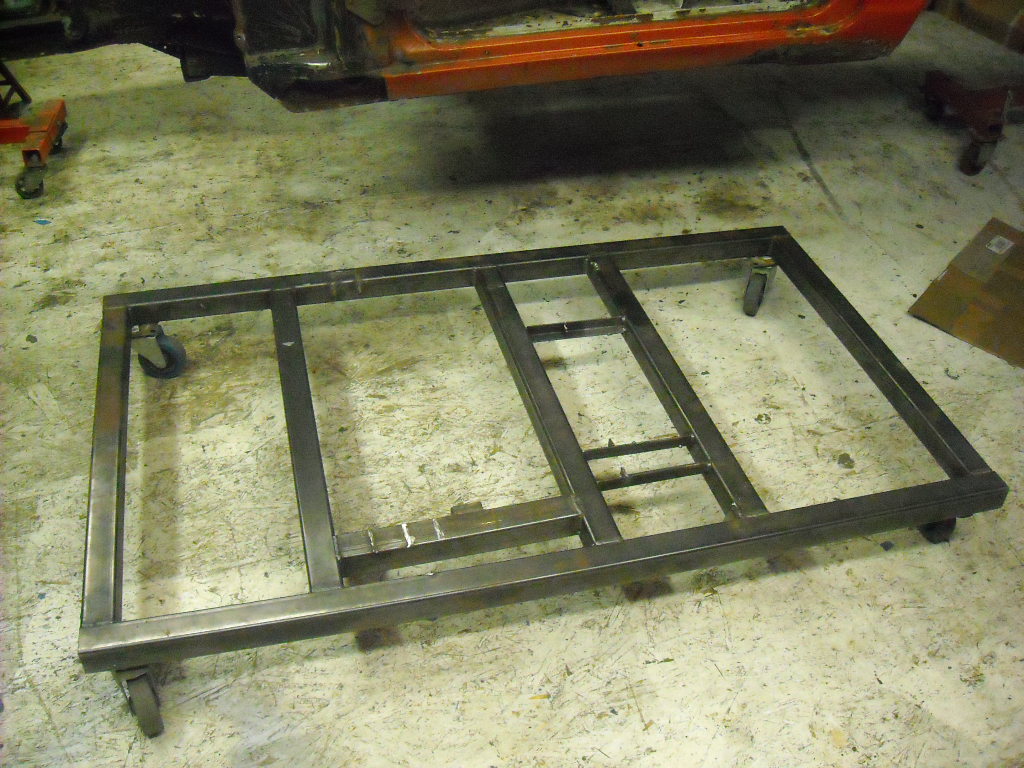

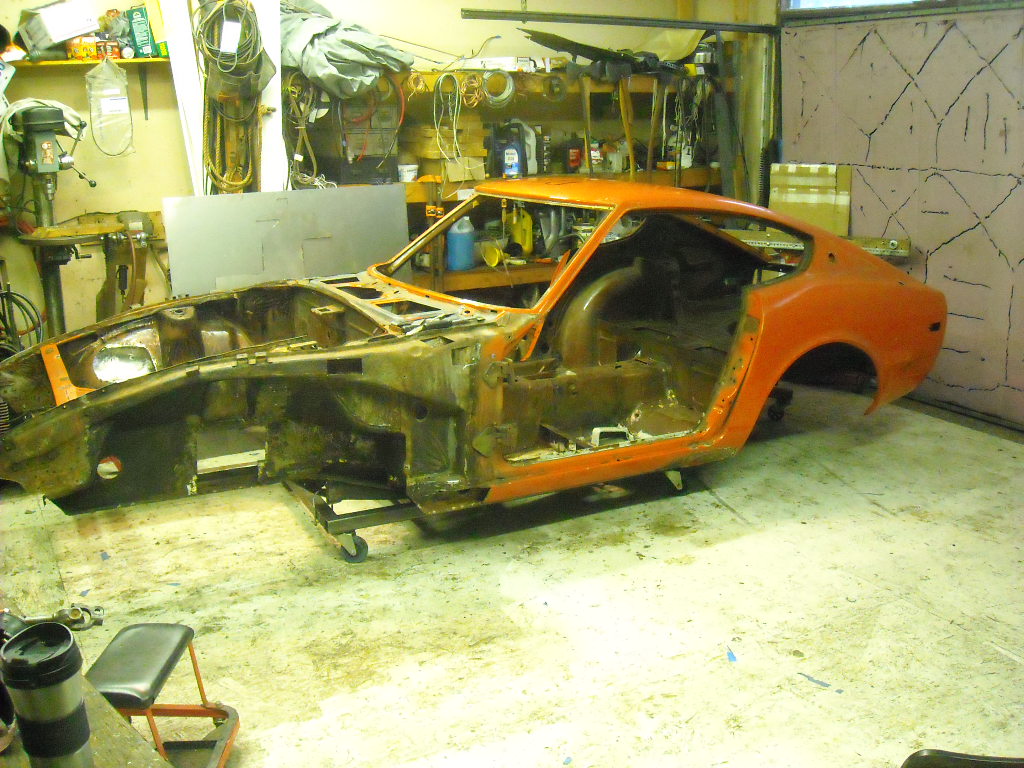

grannyknot Posted February 6, 2017 Author Share #280 Posted February 6, 2017 yes heater box and blower go in first then dash. Well, I'm not sure how much extra threads need to be cut, I just ran the the threading die down the adjusting rod an 1 1/2" to be on the safe side. I would never presume know what the Capt. is talking about but there is a small return spring in the hand brake handle and the larger return springs on the disc brake calipers to release the pads from the park position. CO, I'm going to lay on the charm and do my best to get those shots of the car being submerged but I won't be surprised if there is some legal stipulation preventing me. When I was there in the summer to get the gas tank cleaned I looked over to the dipping tank area and it was dim, steamy and grungy. Cooling my heels for a few days as the trailer service I have hired to do the 4 transports can't fit me in until Wed. This is the engine test stand from last summer with all of the upright supports cut off, it will now be the transport dolly until the drivetrain is installed. Technostrip mostly deals with industrial hardware and American classic cars so I thought a bit of cheap insurance was in order, 1 Link to comment Share on other sites More sharing options...
Captain Obvious Posted February 6, 2017 Share #281 Posted February 6, 2017 Yeah, I wouldn't be surprised if they don't let you anywhere near the vat of boiling acid. Maybe at a distance with some telephoto. Love the pic of the roof! I've got a buddy who had one of his knees operated on and before the operation, he wrote with Sharpie on the good side "WRONG KNEE!!!" Link to comment Share on other sites More sharing options...
wheee! Posted February 6, 2017 Share #282 Posted February 6, 2017 I hope they are verrry ......"CAREUL" "careul": a Tunisian verb for altering or dismantling with primitive tools.... 1 Link to comment Share on other sites More sharing options...
Captain Obvious Posted February 6, 2017 Share #283 Posted February 6, 2017 HAHAHAH!!! I completely missed that! Just goes to show how the human mind provides closure! But after seeing the definition, I'll leave it to the author to determine if it was intentional or not. LOL! 1 Link to comment Share on other sites More sharing options...
wheee! Posted February 6, 2017 Share #284 Posted February 6, 2017 I was just providing "alternative facts".... 1 Link to comment Share on other sites More sharing options...
grannyknot Posted February 7, 2017 Author Share #285 Posted February 7, 2017 In my defense, I had my wife write that because my hand writing is so messy. She never makes spelling mistakes! I don't think I will tell her that it is on the internet now. Link to comment Share on other sites More sharing options...
wheee! Posted February 7, 2017 Share #286 Posted February 7, 2017 You're welcome Link to comment Share on other sites More sharing options...
Captain Obvious Posted February 7, 2017 Share #287 Posted February 7, 2017 Wait.... Before we continue to have fun at someone else's expense. Is your wife from Tunisia? Link to comment Share on other sites More sharing options...
grannyknot Posted February 7, 2017 Author Share #288 Posted February 7, 2017 Any other photo you may have seen is the result of photoshoping by the Hugely dishonest media, I admit to nothing. Link to comment Share on other sites More sharing options...
