Blitzed

thank you again.

Any advise on the drive shaft slip yoke. Grease inside on the spines? nothing in the FSM on reinstallation.

Thank you, buttoning up the trans re-install wanted to make sure. Not a job I want to do again.

Hi All, Happy New Year! wasn't smart enough to take a photo of vent tube arrow direction on the 5 peed trans, assume pointing to the rear like the diff? Also I'm not seeing any service data in the FSM for the drive shaft slip yoke. Should it be greased? Thanks,

Congrats, Thank you for detailing your journey, your details have helped many along the way. Good luck with the parts developed through the process, all great solutions. Now get out and drive her. Cheers!

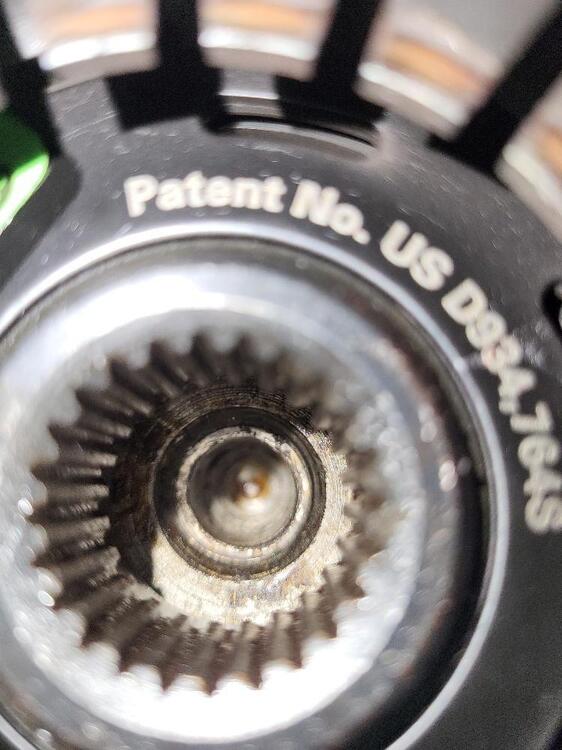

Yes, Pilot bushing, see pic.

All is new, fork, springs both , ball etc.. and all was intact when I removed the trans yesterday, nothing was lose or fell out of the bell housing. Questioning the length of the bearing sleeve as there are different lengths and not sure of the math behind flywheel circumference = bearing sleeve length. Thanks.

Hi All, Happy New Year. New rebuilt engine with throw out bearing noise (knocking, rattle) with clutch in neutral (pedal out), clutch pedal depressed noise goes away. L28 with a close ratio 5 speed (80-83) Non turbo car. New action clutch, lighten fly wheel. I have all three length sleeve's (38,31,28 mm). The sleeve installed is the correct length for the trans (38mm) but maybe not the fly wheel circumference. Hoping someone has done the math. Flywheel 15.24 cm Radius = 95.756 cm circumference. Thank you,

Hilarious, experienced all the same issues minus DBW. Really cool he documented the process, it's a journey. Congrats on the coil bracket.

All, Thanks for the info. Dropped the R200 in the car, your are correct, the driver side side axle is shorter than the passenger side. Installed the short axle in the CLSD, engaged flush and installed in the car. never run a clutch diff before. Are there better oils and weights to run in a CLSD? Spent the dollars on Red Line 75-90 w full syn for the open diff but not sure this is correct for the clutch unit? Any help would be welcome. Thanks again.

Thank you for info. Will locate the correct sub's. CLSD R200 diff came from a large parts sale. Someone may have mixed parts and installed the incorrect sub's into the carrier to sell as a complete diff.

Thank you, removing a R200 3.9 open, I'll check the sub lengths on this diff.

Both axles are the same length on this diff. we flopped them just to make sure, same result, driver side sits out.

Yes, sub axles. Driver side sitting 3/16" outside the carrier side versus the passenger side which is flush to the carrier side.. Explanation was due to the internal spacers.

Had a local gear shop (recommended in the Z community) rebuild a R200 LSD (clutch style) 3.7. picked up the diff and noticed the driver side yoke was not sitting flush with outside edge of the side seal. Passenger side was flush to the outside edge of the seal. Can tug on the yoke by hand and it pop's out. It engages the clip but is not solid in place. Passenger side needs a slide hammer puller. Took a mic measurement inside the carrier to the clip the diver side is just under a 3/16" shorter to the clip. Both yokes are the same length swapped the yokes no change in diver side, clip in style yokes. The shop has suggested this is due to the carrier offset? assume internal spacers? Running Z Car Garage CV axles. Anyone experience this issue? Under the cars weight and load should I worry about the yoke pop out?

Very cool components, DBW should solve a bunch of tuning / drivability (cool start, idle speed and tip in) issues with the ITB's. Look forward to seeing the results. Andrew

Ok. here's some pics. The rebuilt steering rack (assumed reassembled with assembly lube) and shipped ungreased. Pics shows a zerk fitting below the steering shaft spline. Does the stock rack not have this zerk fitting in this location? When gunning grease into the zerk fitting, How much is enough (original question) where should I see it ooze to know it's fully greased? Re small bolt: read in the thread someone installed a second zerk fitting in the factory breather hole, passenger side. See pic. Sorry, not a ton of info in the FSM. Thanks, Andrew

Ok searched greasing the steering rack on the site, here we are. 73 240z, purchased a rebuilt steering rack ungreased. What is the procedure? how do you know it's greased enough? Single grease fitting under the steering shaft spline. Do I need to add a second grease fitting on the passenger side small bolt? Thanks.

Thanks all, Confirmed blown head gasket over multiple cylinders. All piston tops steam cleaned on the intake side of the head. First pic is piston #6 how the piston top should look on a high mileage engine, covered in carbon deposits. Second pic is piston #3 nice and clean with drops of coolant on top. #3 was also the lowest compression reading at 150 PSI. It gets worst #4 and #2 have small portion of the piston top cleaned as well, all on the intake side. So the entire center section of the gasket failed. Confusing how all the test I ran where negative to coolant in the oil, carbon dioxide in the coolant. So where did the milky foam go? In my catch can venting the valve cover and block, the dreaded milky foam was present when I opened the valve :(. The engine starts and runs fine, not smoking???????????? Open the wallet and rebuild.

Thanks all, These engines can send you down a trail. Will report back on the head bolt retorque and the new valve stem seal maintenance. Will check the seal on the radiator cap but I've put to bed any external coolant leaks with the cooling system with all previous testing preformed. Another internal coolant leak test preform. Parked the car on my driveway incline (engine elevated) with a large coolant bleeder sealed in the cap neck and the bleeder tank full let the engine idle for 20 mins, opening the heater core valve. After the thermostat opened (140) rev'd the engine and idled for another 10 mins (160) closed the heater valve and rev'd again, zero bubbles or air escaping into the bleeder tank.

This started with loss of radiator fluid. Not running a closed system or overflow tank so not sure if it's just evaporating or steaming out the cap tube. Not a lot but I'm topping off more than usual. Nothing visible on the block, water pump, hoses or floor. So I'm checking for a blown head gasket. Engine runs fine. Next question is it steaming or white smoke out the exhaust, yes, cold starts only for a few minutes. once up to temp gone and restarts at temp no white smoke. California climate, it's not very cold, 50's. I've run every test on the radiator, pressure test, holds 15lbs for 24 hours. Chemical carbon dioxide test at the radiator cap, negative, stayed blue. Put the pressure tester back on and put 10lbs in the system, rev'd the engine to 6K rpm, no change in fluid pressure. Even checked the oil with the sizzle test. Heated a piece of tin and dropped engine oil from the dip stick on the tin, just smoked like oil should, if it's sizzles and crackles there is coolant present. All negative. No milky substance in the radiator fluid or oil, all is clean. So moved to compression testing, could be chasing my tail. The valve cover will come off to inspect and change the valve stem seals. I know, not a fun job. Will inspect all other components while preforming the service and retorque the head bolts.

Thanks Zed, N42 head, the pistons look dished from what I can see from the spark plug hole. Will borrow a engine video scope to confirm. It's a high mileage engine so the compression number should be low. With dished piston what should the PSI numbers look like? I've seen 155-170 range range 8.3.1. First test was a warm engine. Was going to run through a cool engine comp test. The compression tester is a OEM with a 15" hose, rental from Autozone. So not sure how accurate? ITB's so when I use a airflow synchrometer (in the horn), cylinder # 4 highest comp, lowest airflow reading.

Need some data. Purchased 73 240Z with a transplanted L28 N42 NA engine, from the mid 80's (high mileage engine). Have zero history of the parts used in the engine. What PSI compression ratio's should I expect on an old rebuild not knowing dome or flat piston. How can I verify the piston config? All seam to be in the 155 psi range # 4 cylinder is the highest at 162 psi . Interesting that # 4 with highest compression pulls the lowest vacuum number on the airflow meter at the intake? Thanks.

Read my post from 5/1/2023. Tried everything vibration would not go away. The stock (I said stock) Z suspension control arms with rubber bushing were designed for max 28lbs -30lbs tire air pressure on narrow tires. You're probably running a wider tire with a manufacturer suggested air pressure of 32lbs or 36lbs. I don't race but have been told most car drivers will reduce air pressure on the track. So just reduce your air pressure to 24lbs in the fronts and 24lbs in the rear and see if the vibration goes away. If so, begin to add pressure 2lbs at a time to find the tipping point with the tire pressure / suspension and the vibration. I'm running 25lbs fronts and 26lbs in rears on the street (15 60 205), no vibration. Is the car harder to steer at low speeds, yes but the steering wheel is much more enjoyable at driving speeds. Took it a step further and had the wheels (rim), tire, hub and rotor dynamically balanced (single wheel dyno) on the car. Downside, wheel must remain in the same position on the car, mark on the hub and no rotation. Good luck.

Very cool, congrats.
