Calling old timers: can you tell me about these?

    Recommended Posts

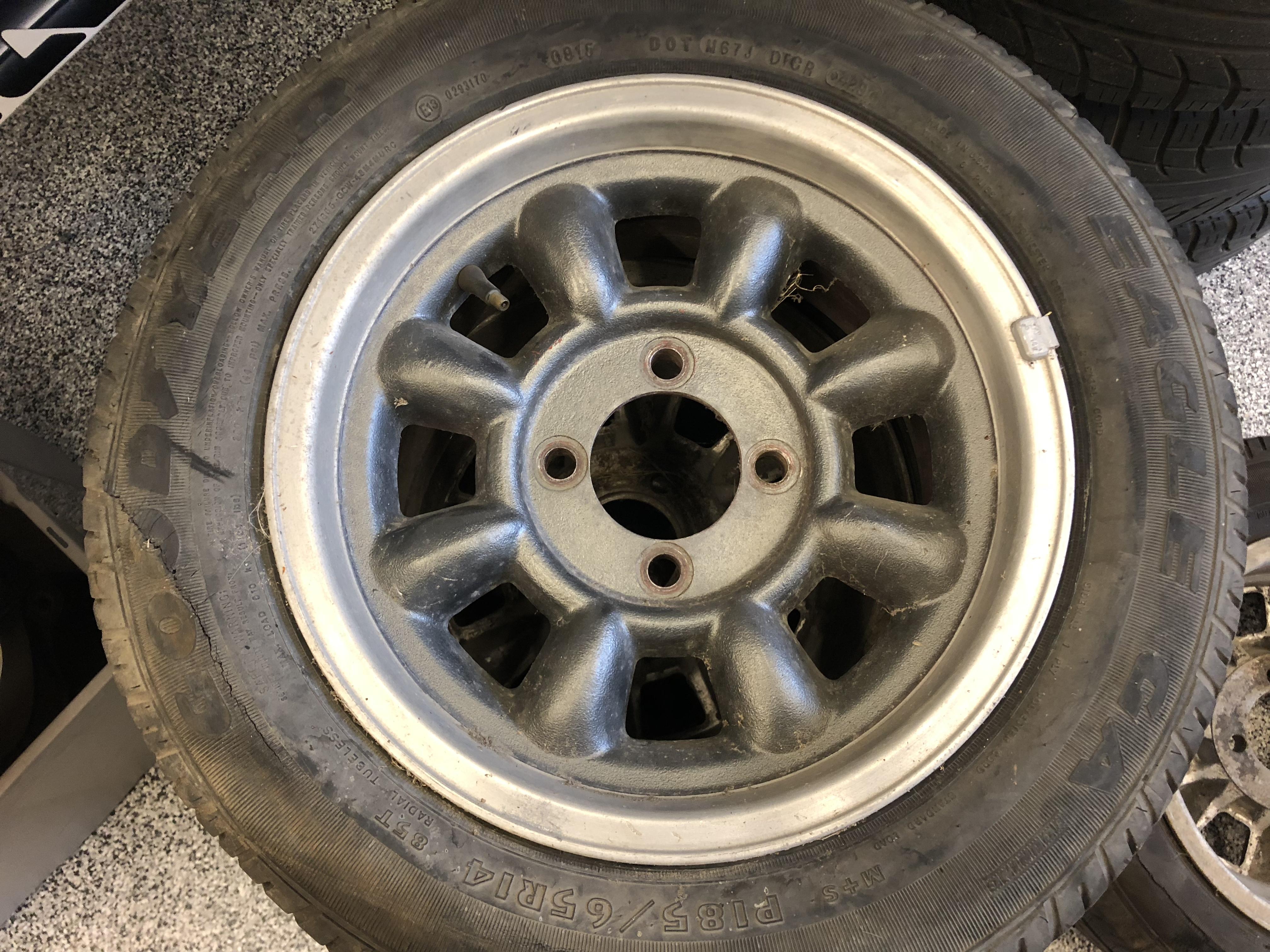

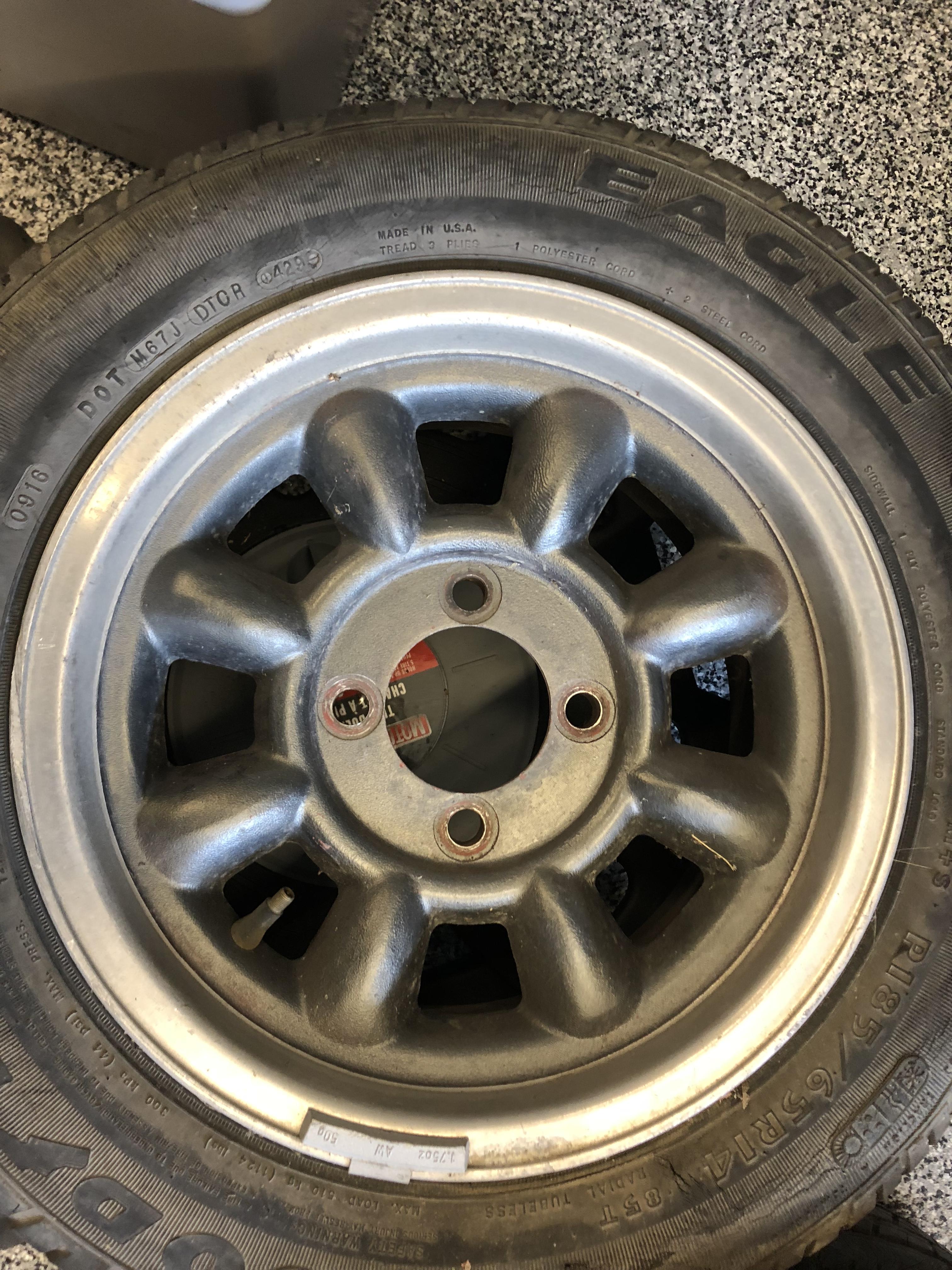

    These wheels were on my 72 when I bought it.  I figured they were just cheap knockoffs and I didn’t pay any attention at all until this morning when I moved them.  They are very light and are some kind of alloy (non-magnetic), which seemed odd given their (apparent) age.

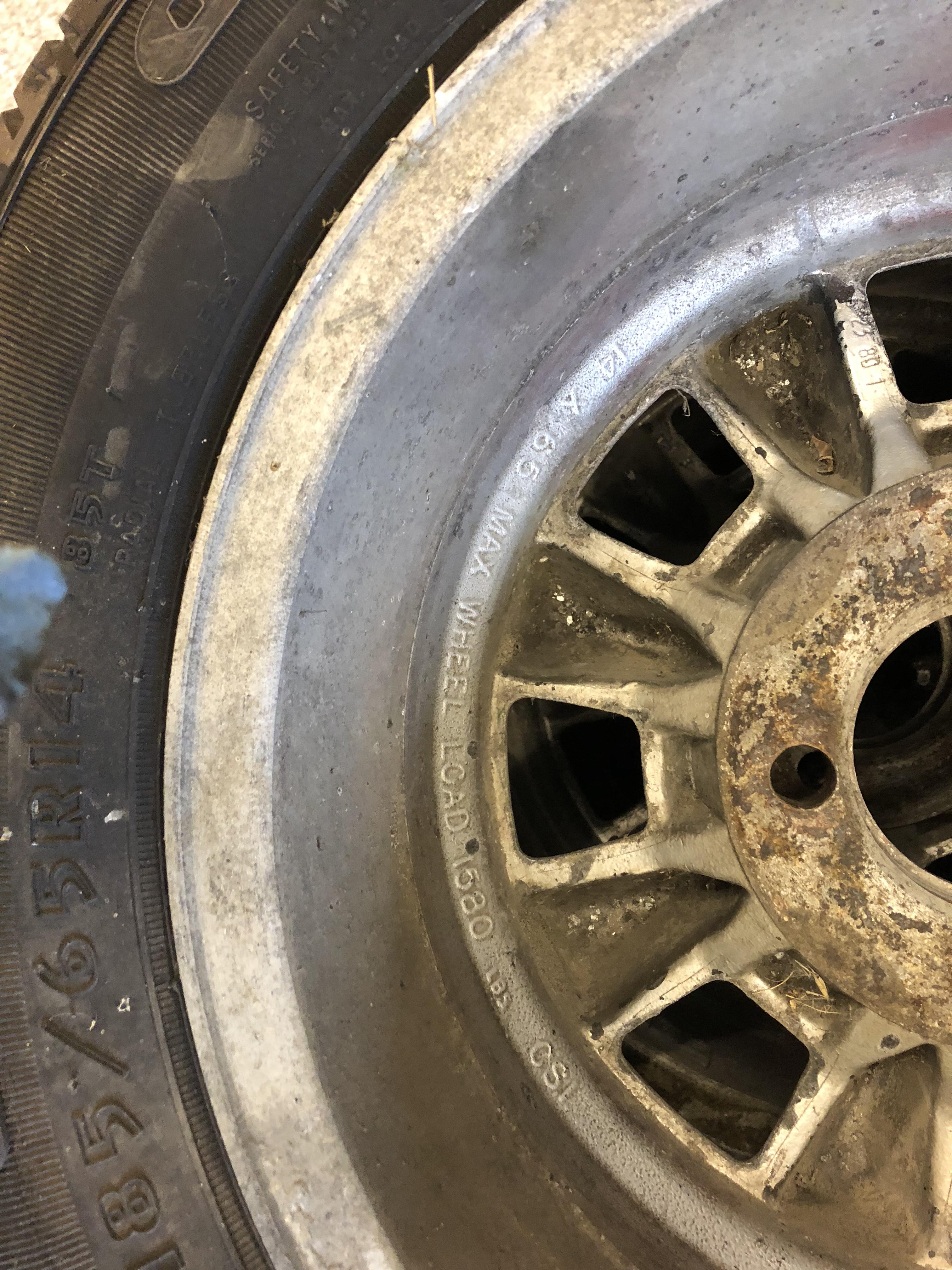

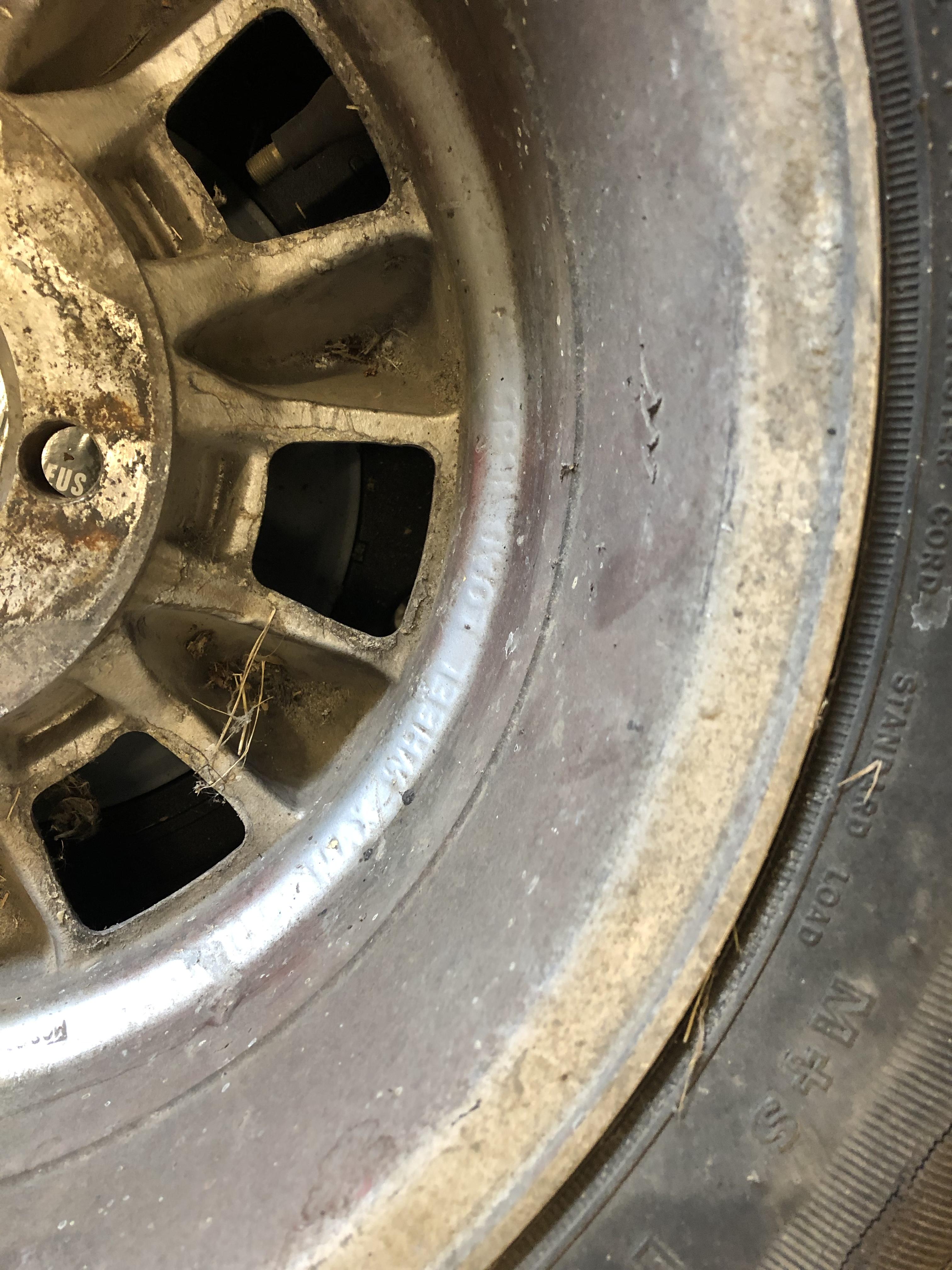

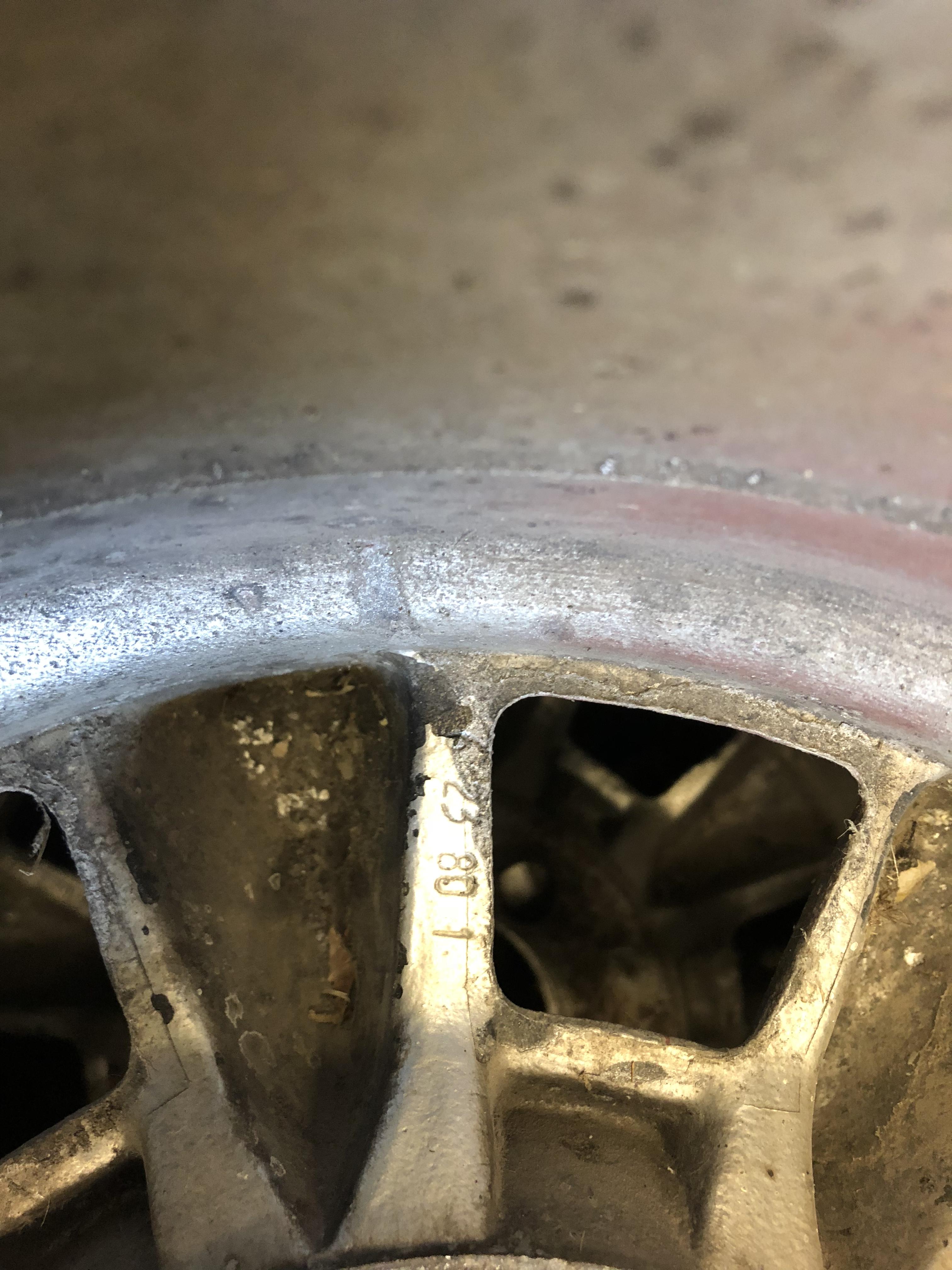

    These are the only markings:  it looks like “14x65 MAX WHEEL LOAD 1580 CSI “ and a serial number or date maybe “ 6 23 80 1”

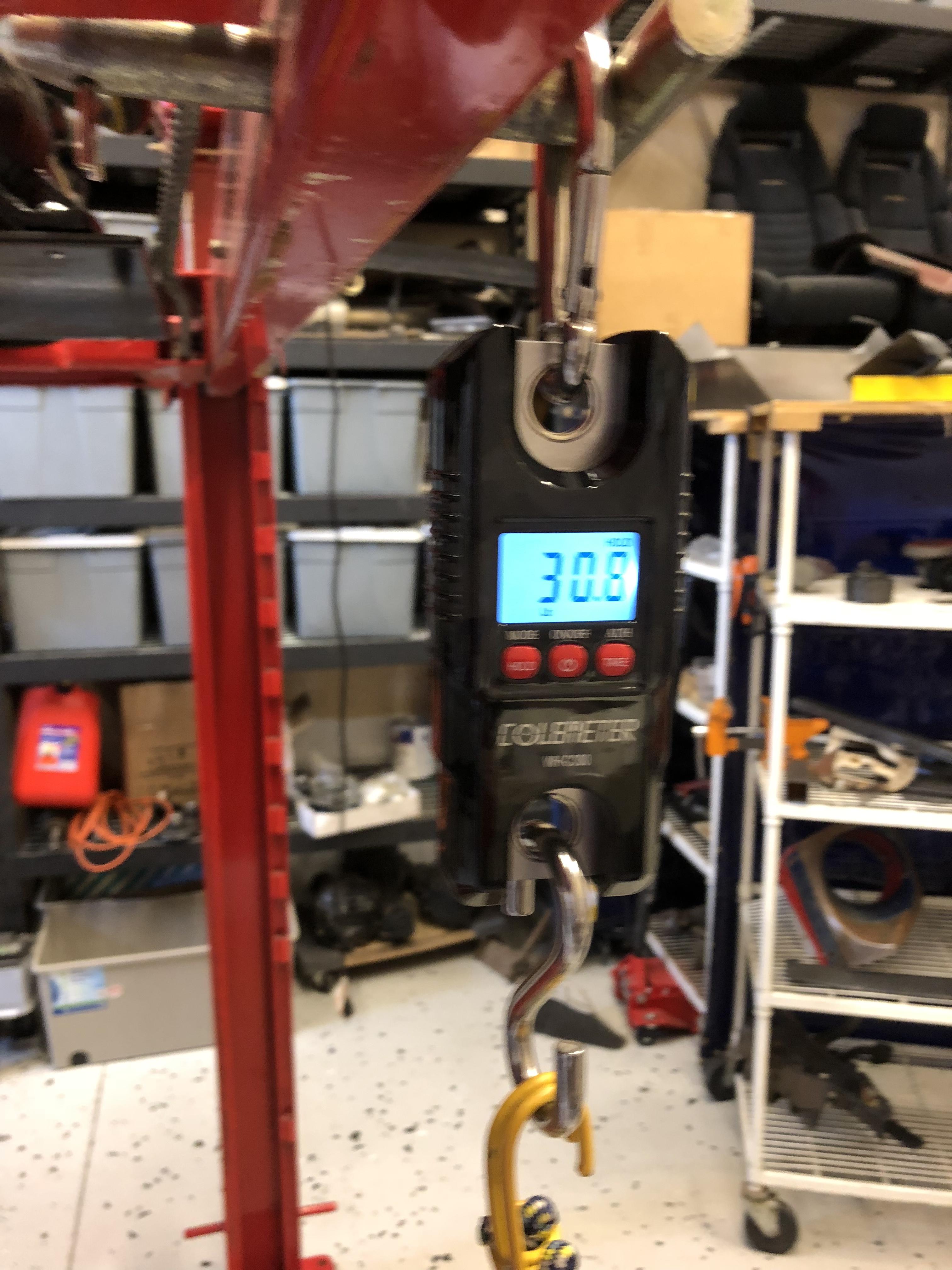

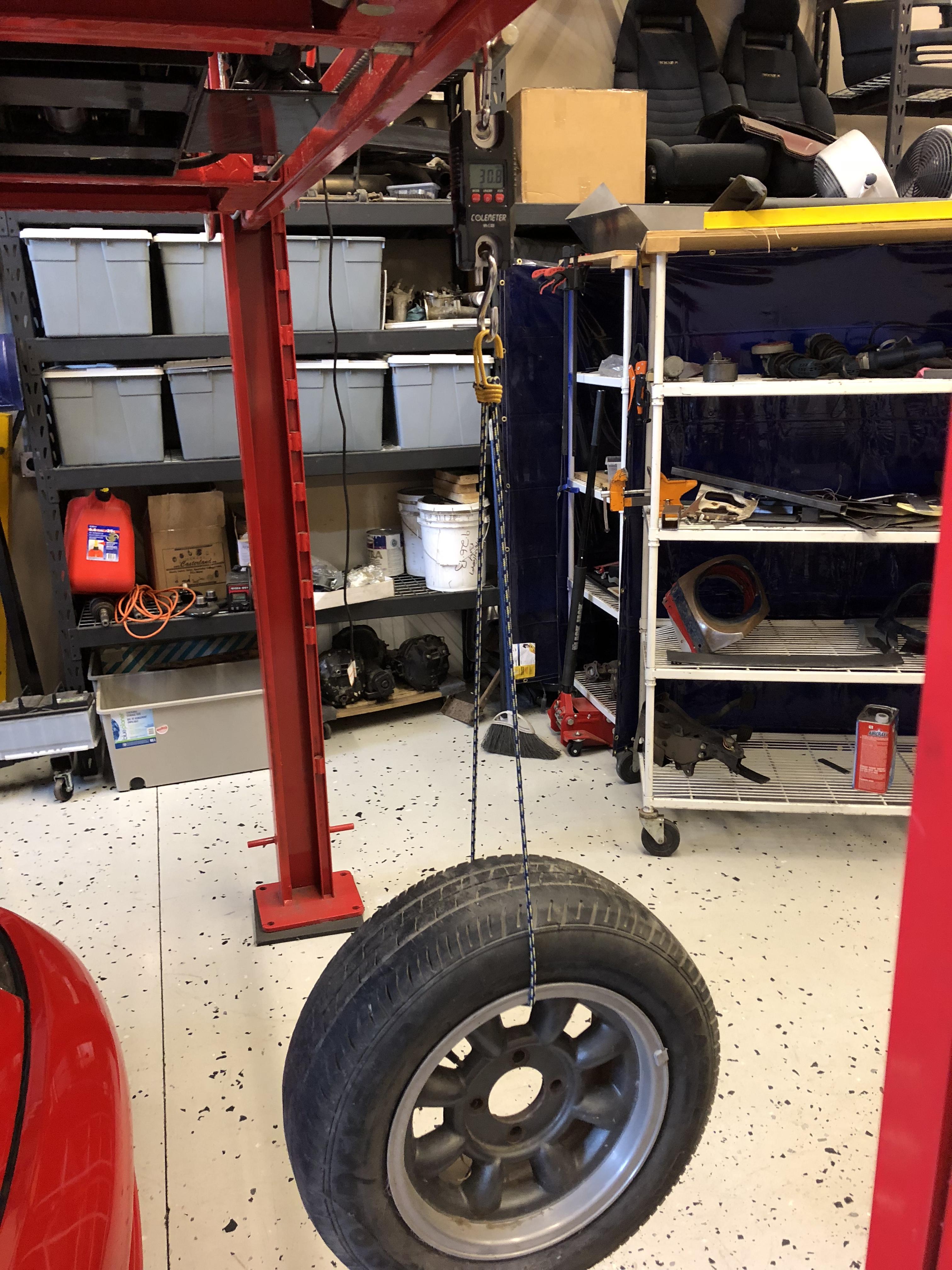

    They weigh in at 30.8 lbs with the rotted old 165/65r14 eagle tire still on, so I figure the wheel must be in the 13 to 15 lb range?

    The 7109497E-5CB2-4A63-8CDF-C5265951B472.jpeg


    Can anyone fill in the details for me?  Are these anything unusual? Or nothing special?

    Thanks

    Share this post


    Link to post
    Share on other sites

    They look very much like Minilites to me - but I defer to somebody with "wheel" knowledge of the subject.

    I was going to say knockoffs, (but they have lugs) - in this case the better term would probably be "replicas".

    Edited by Persimmon240

    Share this post


    Link to post
    Share on other sites

    Well.. whatever they are, someone felt that they were worth copying.   One of them is a forgery ...A good forgery, but a forgery nonetheless.  Here are the details.

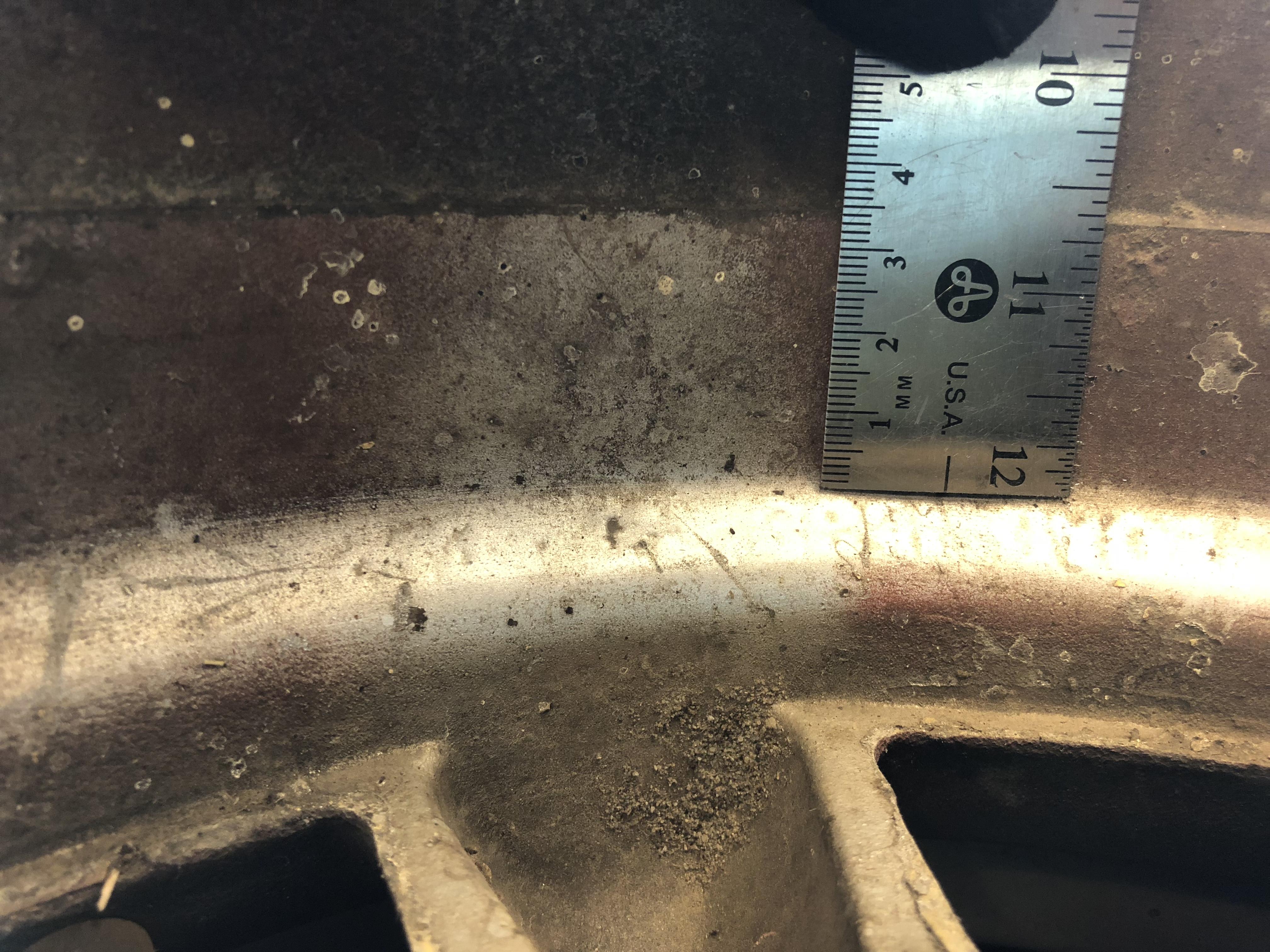

    1) Font

    3 wheels have this font and are stamped “CSI”


    The 4th wheel has this fatter, less precise font and no “CSI” stamp

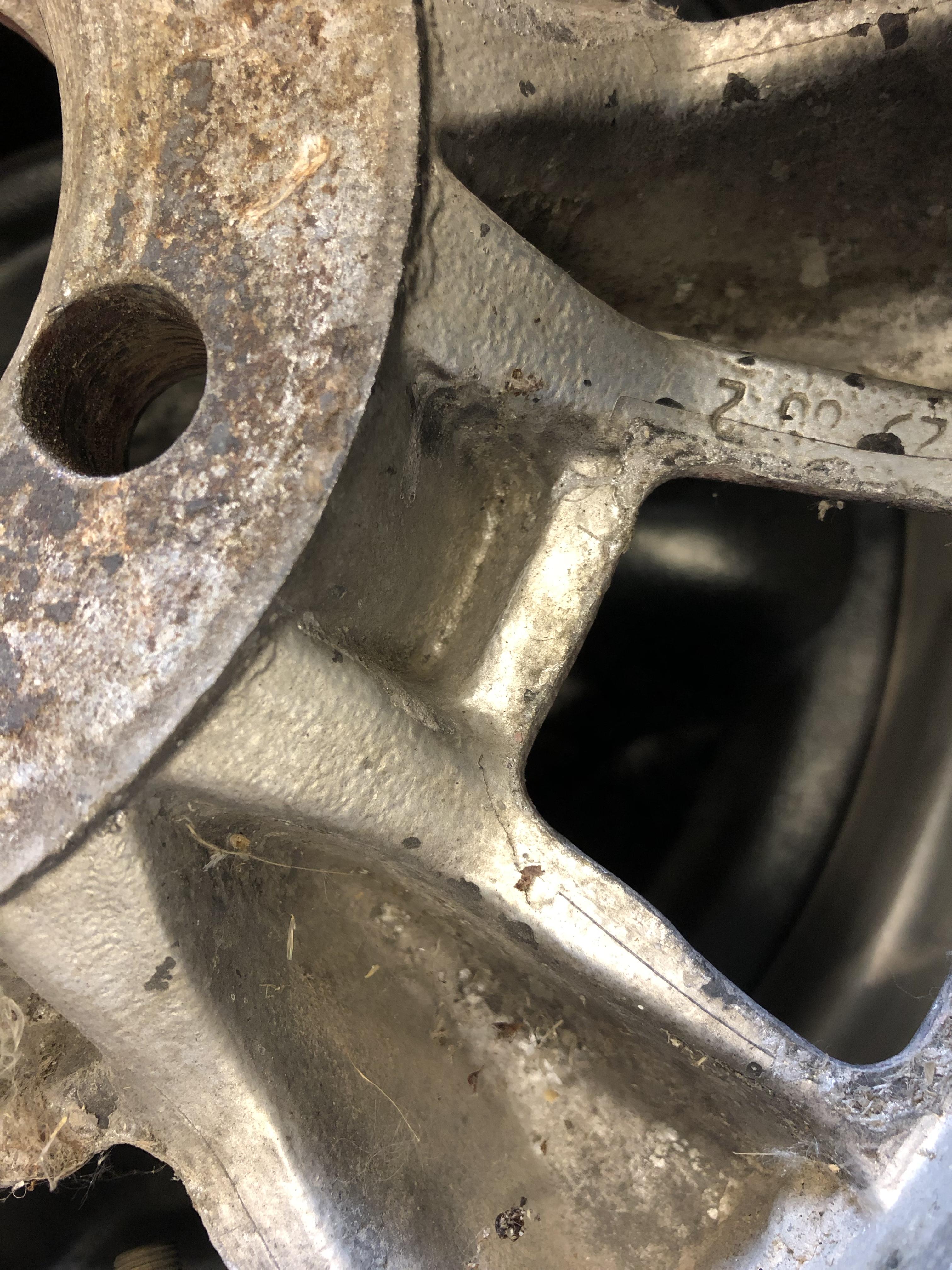

    2) Date stamp

    Three wheels are date stamped.  The forgery is not.

    3) casting

    Three look like this ...

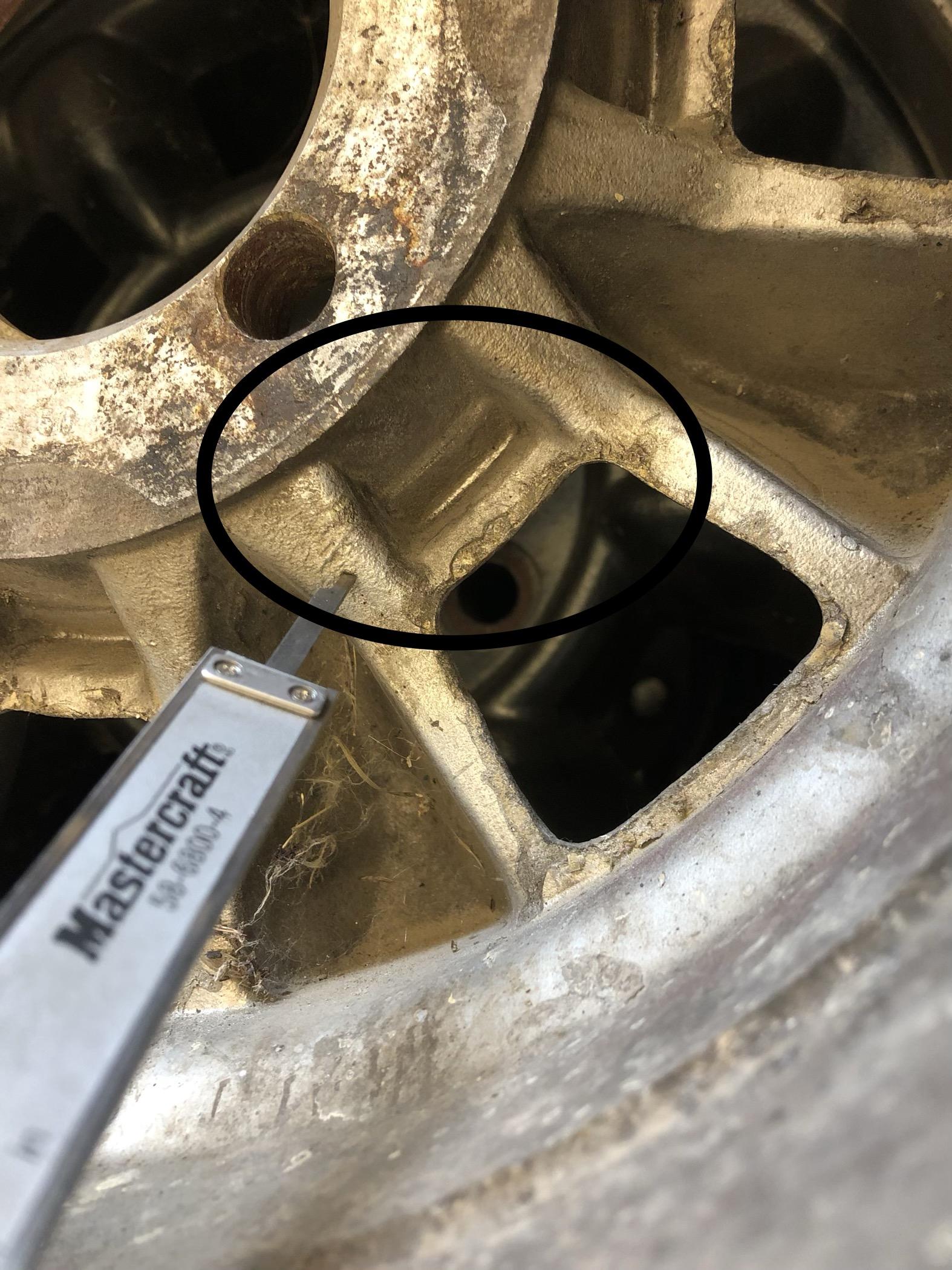

    And one looks like ...  (ridged area in the circle)




    And three ...


    and one ...


    Hmmm...the plot thickens ...




    Share this post


    Link to post
    Share on other sites

    Let's assume that the odd one is perhaps a replacement. So you figure CSI stands for Crime Scene Investigation(!) - or Carroll Shelby Incorporated  (nah, he never used an acronym on the wheels he produced).

    This is just for your edification... try putting a drop of vinegar on an unpainted spot on each wheel. If the vinegar stays clear then they are aluminum - if it turns dark, then the wheel is magnesium.

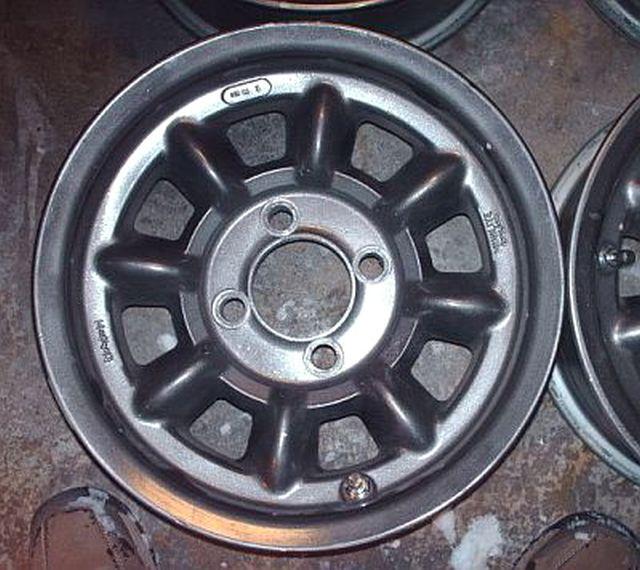

    There were (and still are) a lot of "reproductions" of the original Minilite style. Look at the current Panasport wheels for example.

    Share this post


    Link to post
    Share on other sites
    40 minutes ago, Persimmon240 said:



    This is just for your edification... try putting a drop of vinegar on an unpainted spot on each wheel. If the vinegar stays clear then they are aluminum - if it turns dark, then the wheel is magnesium.



    Thanks for shortening my evenings homework 😀

    Share this post


    Link to post
    Share on other sites

    Always remember, Google is your friend.  Do a google search for "CSI Panasport Wheels" and see the many pictures.

    Dennis, An Old timer

    • Like 1

    Share this post


    Link to post
    Share on other sites

    You usually find Date of Manufacture stamped on Magnesium wheels - not so normal on aluminum.

    The vinegar has to be on the metal - not on any sealed or painted surface. Many magnesium wheels are sealed and painted...

    Share this post


    Link to post
    Share on other sites
    26 minutes ago, Carl Beck said:

    You usually find Date of Manufacture stamped on Magnesium wheels - not so normal on aluminum.

    The vinegar has to be on the metal - not on any sealed or painted surface. Many magnesium wheels are sealed and painted...

    Thank you!  Science project tomorrow 😀

    Share this post


    Link to post
    Share on other sites
