I have a handful of parts that I got with my car that were loose when it showed up. Can anyone identify them for me so I can install/replace them? See below:



The first picture (one on top) is choke cables and the second is the choke lever which is mounted on the center console and gets attached to the "loop" part of the choke cable.

Picture 5 is a clamp which holds the brake booster vacuum line in place and attaches to the firewall.  Picture 6 is also a clamp and holds the brake booster valve and is also attaches to the firewall.

Not sure on the others.

Hope that helps.

Mike.

Pic 8 (last) looks like the foam pads that go under the cowl that is between the hood and the windshield.

Edited February 22, 20179 yr by CanTechZ

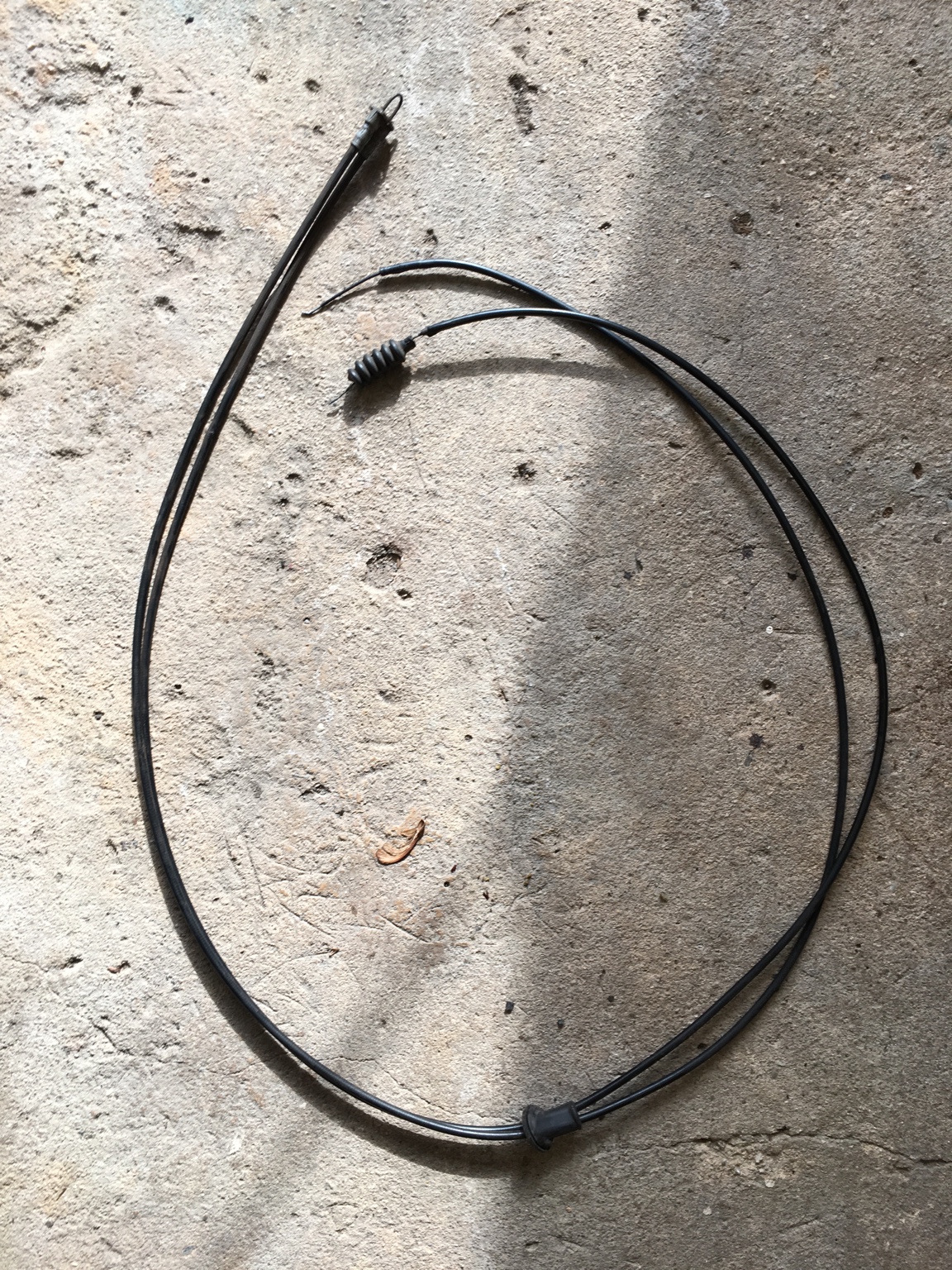

choke cable

choke lever

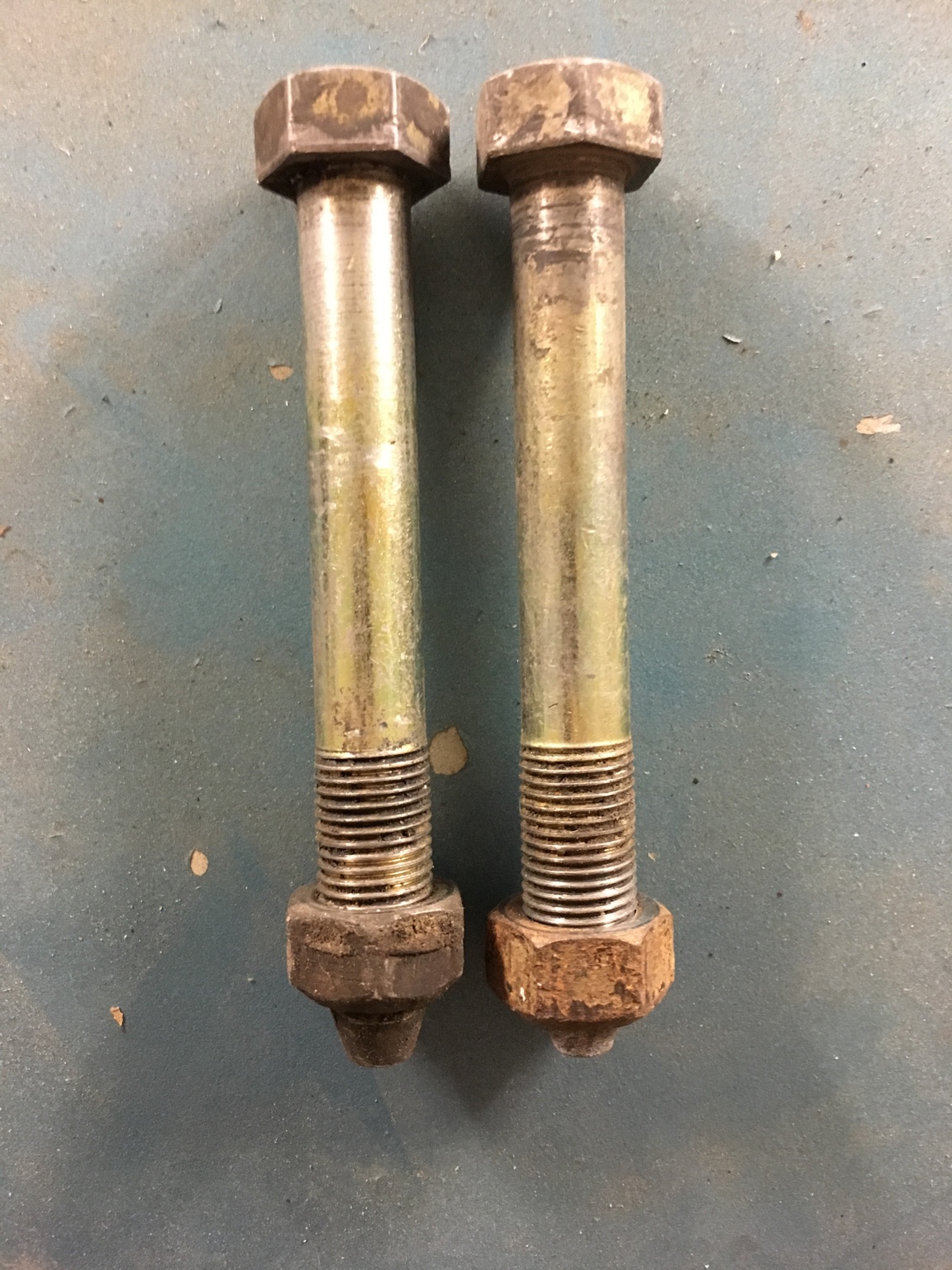

transmission crossmember bolts

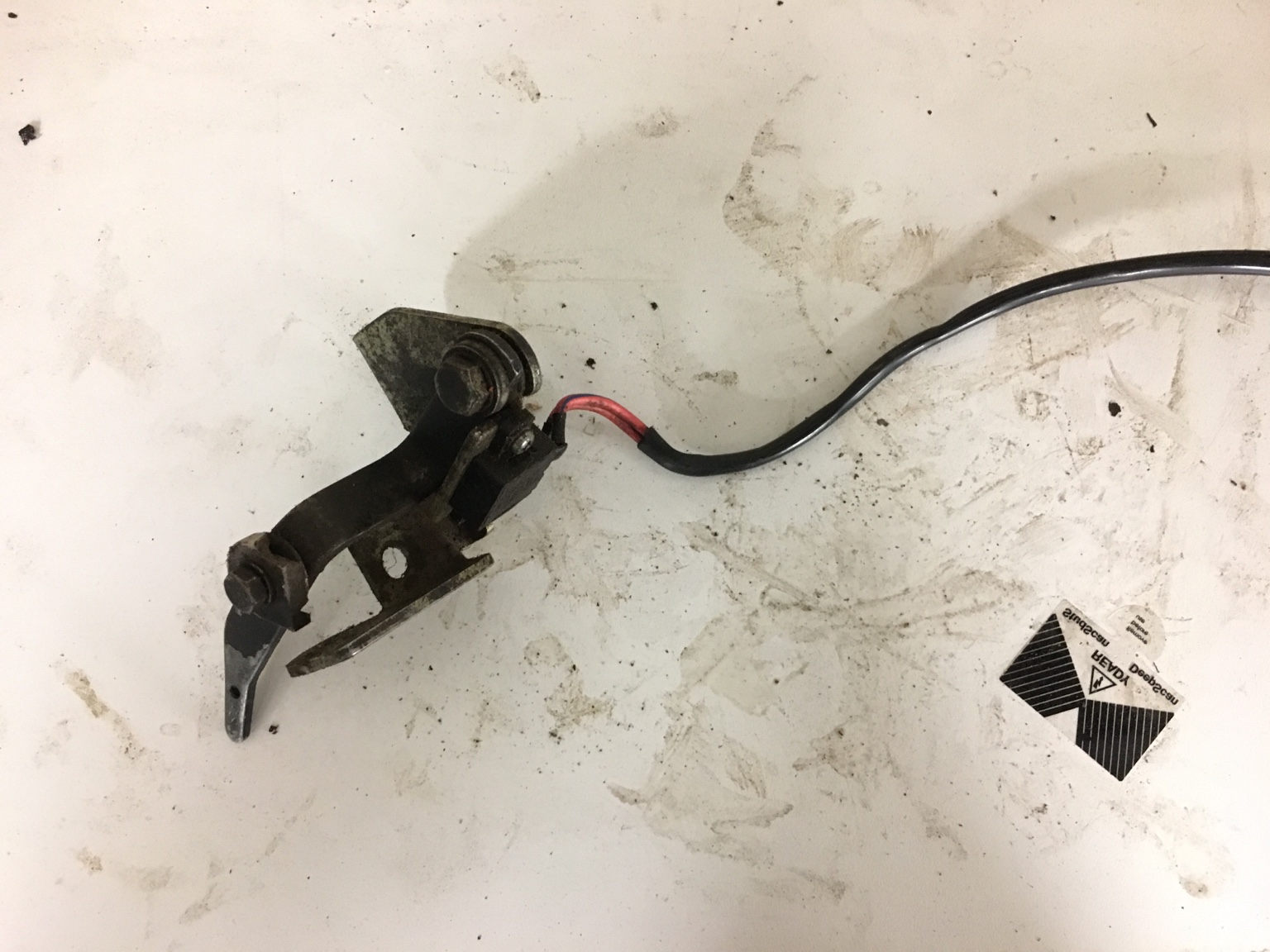

carb throttle rod mount - bolts onto firewall

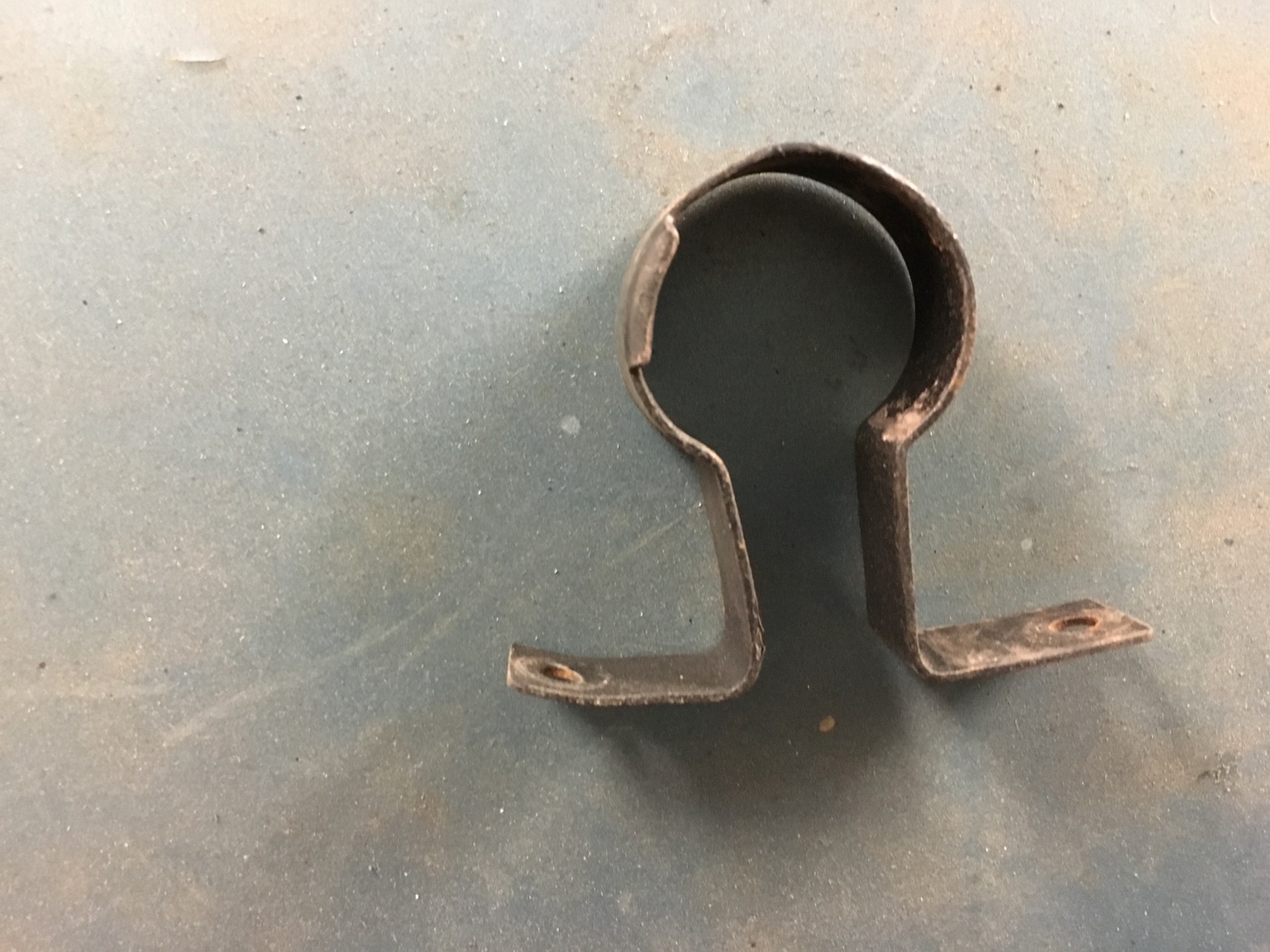

something to hold a hose

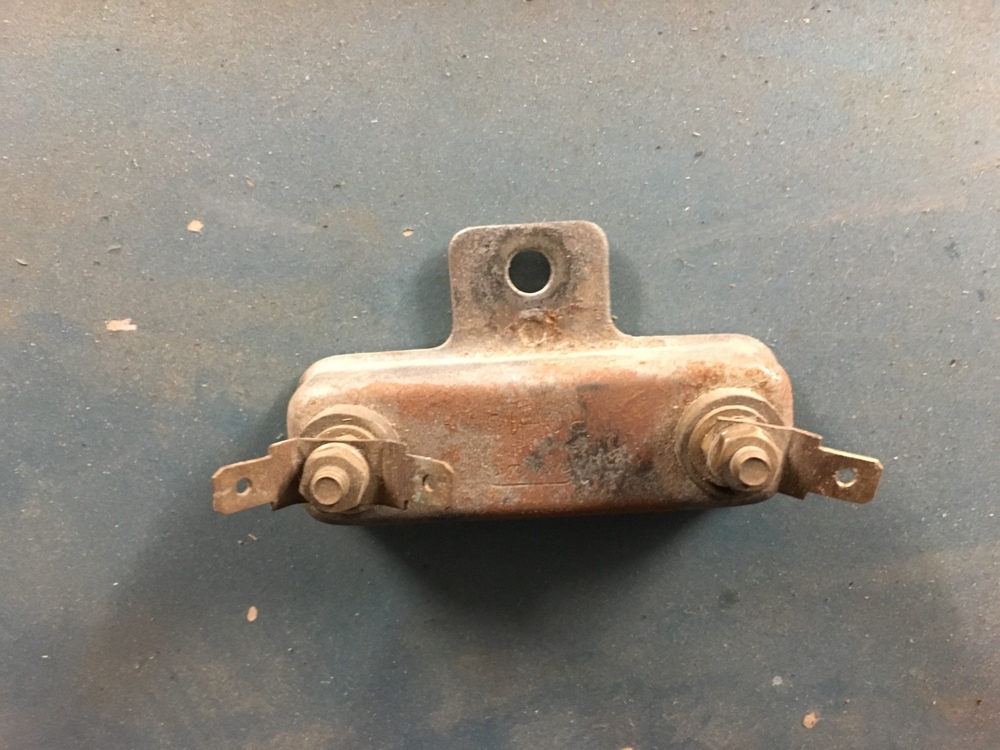

ignition resistor by the coil

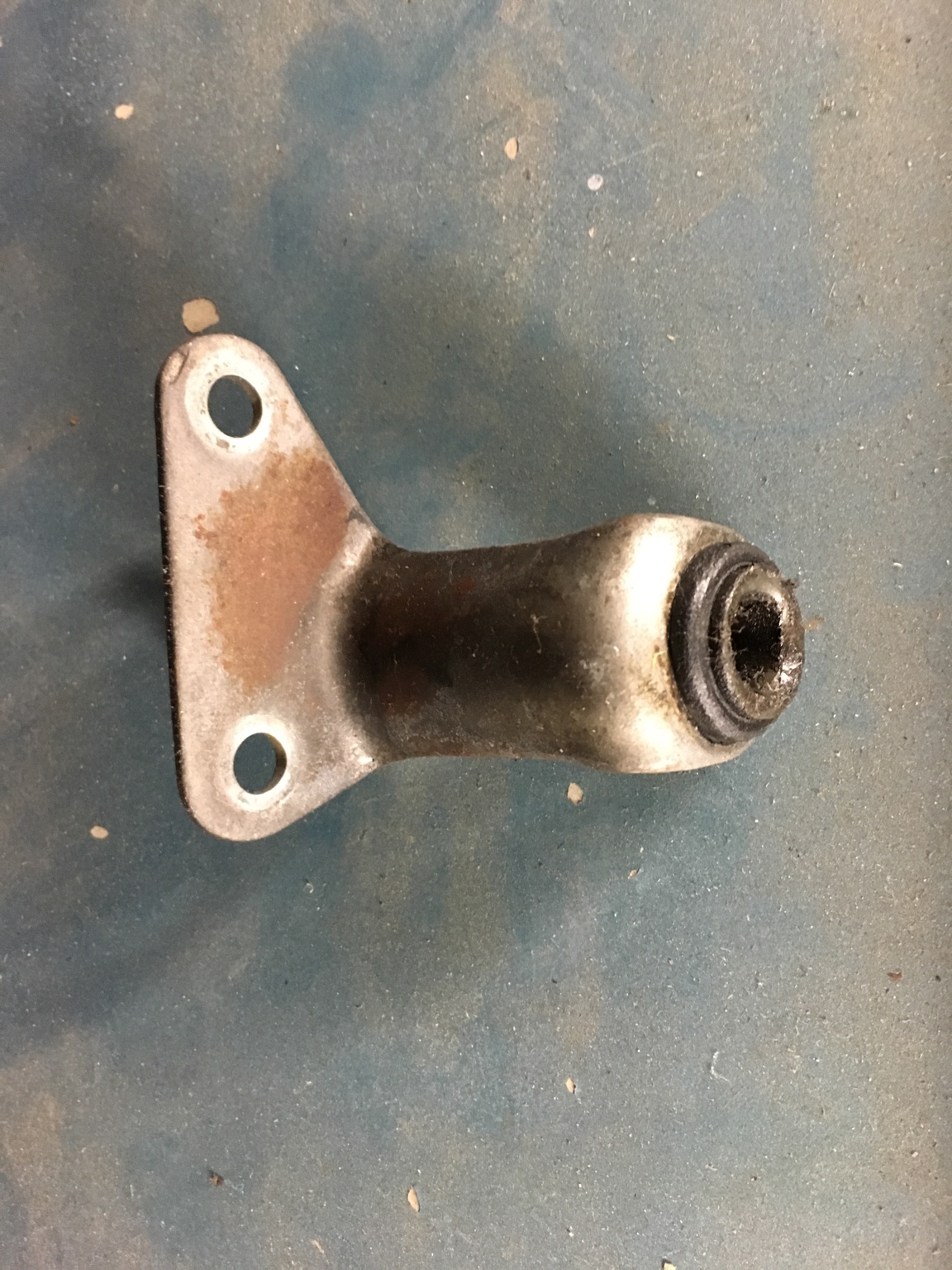

brake booster check valve bracket - mounts to firewall

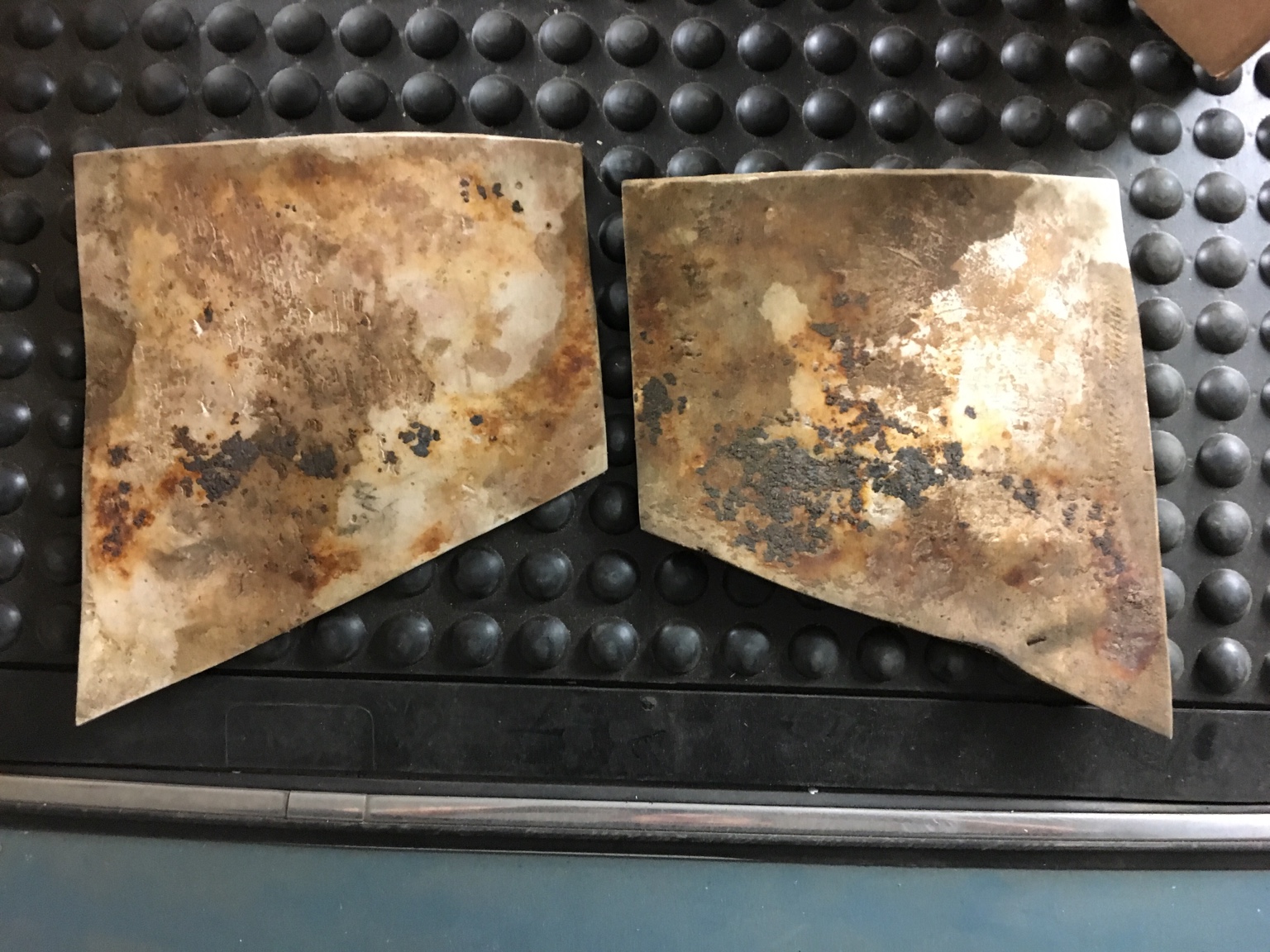

pads that go under cowl at either end

Chuck



Edited February 22, 20179 yr by cbuczesk

You'd be better off using the choke lever mounts that Art Singer sales on ebay, $30-$40?

They screw down on the transmission tunnel in front of the ashtray hole not the plastic console like the OE one in your 2nd picture.  That's one of the best aftermarket Z parts out there in my opinion.
