Diseazd

I used one of those snap on rubber wine bottle cork (sealer). they come in all kinds of colors.

I agree with Westpak.....Total Seal are the best I've used.....I didn't use the gapless rings though.....just went with their regular rings. Nissan rings are my second choice......the oil rings and spacers are so nice on either set of rings. Hastings oil rings suck, as do ITM rings. I use Nissan rings with ITM Pistons and throw the rings away.

I love it......It says "Not Actual Engine Shown". Of that you can be sure........you'll get an engine that resembles Frankenstein's brother!

.........use plenty of that zinc cam lube, and any other slick lube you can apply (). It'll protect both cam surfaces and rocker surfaces until that VR 1 arrives to do it's job! They look beautiful!

Thanks Steve......Z Doc builds a really nice head.....those stainless steel swirl valves look great don't they. Engines are a piece of art if done correctly.

Cliff.....I use a Nissan P79 head gasket. We drill out the orafice for the stock fuel pump and use the stock mechanical fuel pump. I always use the MSA turbo head bolts and the stock oil pump.

Stock lash pad thickness is just under .120 inches.......they are concave and sit down on the valve stem. New lash pads are usually flat across the bottom. If you were that far back on the wipe pattern, you'll need to start with a thicker lash pad (assuming the builder used a stock lash pad). I'd start by measuring the thickness of what he used ( you have to get inside the concave bottom to the flat top of the lash pad). Then I'd order one of each .130, .140, .150. ......then check the wipe pattern on each valve to make sure they all require the same lash pad. Put rocker and lash pad in an egg carton to keep in order.

Oh yes.....sorry to get off subject......Mike said his L28 block N42 head works without detonation. Why wouldn't you go for biggest displacement? The SU's are so simple and efficient.....you'll love em! If money isn't a problem, send em off to Ztherapy.....they'll come back like new. BTW, you said the L24 was bored over by .050 inches. I've never heard of a .050 over bore......010, .020, .030 , .040 and .060, but never .050 over. Is that right?

Rossiz.......Here's what your P79 will look like. This one is shaved and shimmed.

Getting my Dad's cherry picker tomorrow to pull the block out. I can't believe I wouldn't wait and get them both together. Stupid mistake I'll never repeat. No problem Cliff.......just put a section of chain on your hoist.......put a head bolt and washer through the chain on number 1 driver side and number 6 passenger side. The chain will rise up to the washers and stop......lift her out.

Good description Blue.......Just like driving a 911......engine in the back allows for a deeper sloping hood. Very neat!

Nice eh? Look at those jewels and tell me why you wouldn't use em. I wanted to make Brenda a necklace out of them.....too heavy!

Post pics of your rockers siteunseen.......I agree......they look like new, and break in like new.

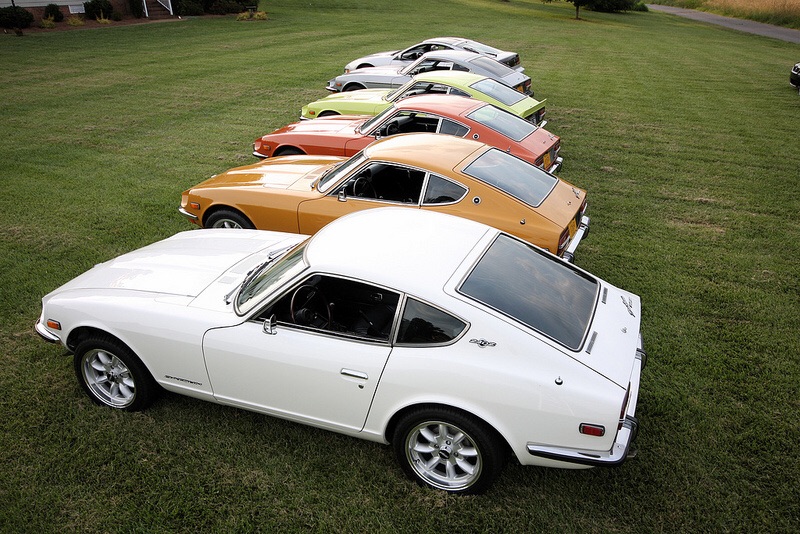

Beautiful.........They are so fun to drive.....9000 rpm redline really is intoxicating. Mine sleeps with 5 Z's......Z's are pretty cool too...eh?

Steve....Thanks....I tried that 6 times......no luck. The only thing I can think of is that my user name is not my password. I tried everything....I suck at electricity and IT. I depend on you for that stuff.....don't ever leave the forum Steve. I just want to mail em the check and be done with it!

I haven't been able to register for ZCON......it won't let me log in.......says my email address is the same as a previously used email (probably from Savanah). I registered for 4 nights at the Hilton, and have emailed about the difficulty logging in to register for ZCON.......I hope I can just mail them a check if they can't get me signed on. Anyone else having trouble? I want to make sure I can get my share of the ZCON Tennessee Whiskey?

Couldn't prove it by me.....I sent 36 old rockers to them for back up, not counting the engines running them now. Every one looks like a brand new rocker......perfect. When I geometried the rockers, the marker lines wipe out perfectly straight on each end of the rockers.......they wouldn't do that if they weren't symetrical. Also, if you grind duration and lift on a camshaft, I would think the grind on a rocker would be a piece of cake.......of course it's important to send undamaged rockers. Finally, I've checked cam wear on all five of my engines......absolutely no wear whatsoever on the cam lobes or rockers. I'm a fan of Delta rockers.....at $3.00 each they are a real bargain! Of course this is IMO.......

Just wanted to post pics of my rockers from Delta Cams......I think they look awesome and have worked perfectly on all the engines I've installed them in.

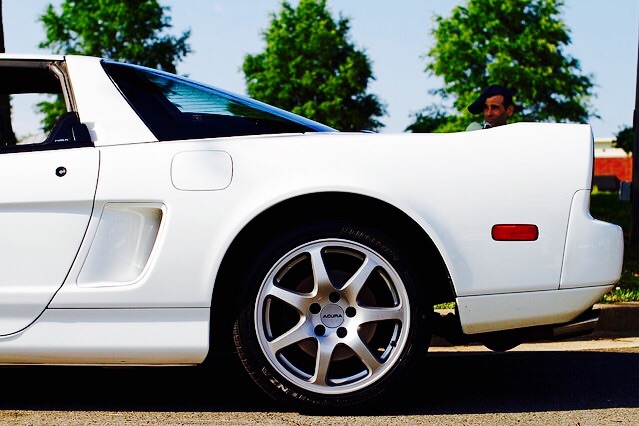

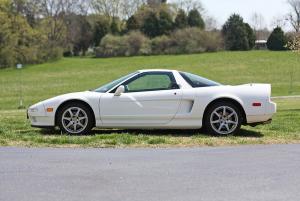

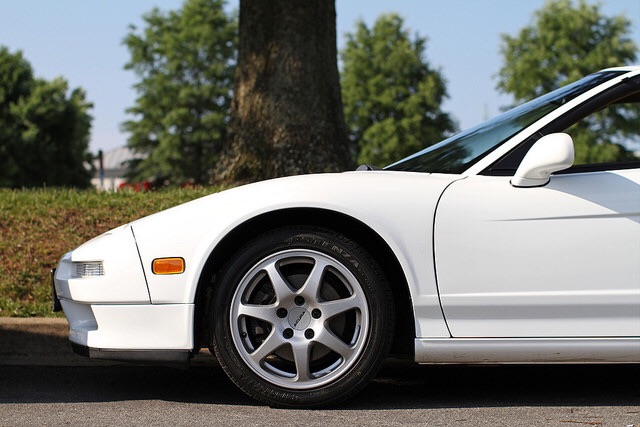

The NSX is an incredible car! I just love everything about it. Regarding the engine......in that case I'd use the L28 flat top with the N42 head......go with a stock cam, so you can go back with all the stock head parts. Keep the rockers and lash pads in the order you remove them.

Why not go back with the L24 head. Oversize valves in the L28 head will collide with your cylinder walls unless you overbore or notch the block. The stock L24 with stock L24 head will make plenty of power when rebuilt to spec.......especially compared to what you're driving now!

Just booked ZCON ......Brenda and I are going to arrive Wednesday July 15th .....leaving Sunday July 19th. If you're going, why not let us know the dates you'll be there and we should get some one to be in charge of getting the Classic Zcars members together......I nominate SteveJ! Eiji will be there the same dates. Any other confirms (no maybes)?

Looks great Steve......

Your notches in the block look pretty deep........does the top ring fall short of the notches ATDC?

112 yellow is the so called lime green.
