How can I unseize a wiper motor????

[Shawninvancouver]

Hmmmm. You had clicking on yours before ???  Contacts on relay look ok. How do I bypass relay? Where do I hook wires??

[Shawninvancouver]

We hitch wires??

[Shawninvancouver]

Do you recall??

[Freez74]

There are two black wires coming out of the motor housing, one is for low, the other is high speed.  If you take the cover off the relay, you can access them.  Connect 12V to either wire and ground the motor housing, it will run if the motor is good.  If it does run, clean the relay.

[Shawninvancouver]

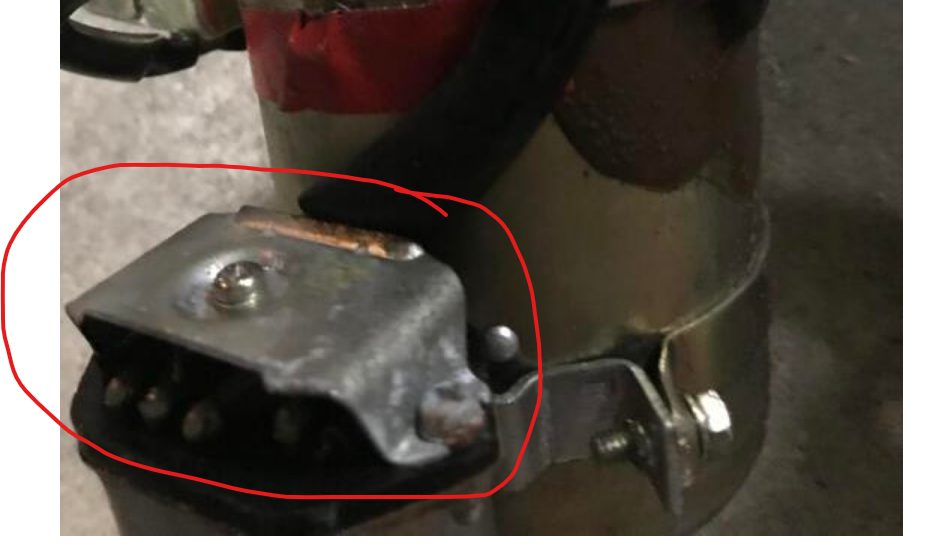

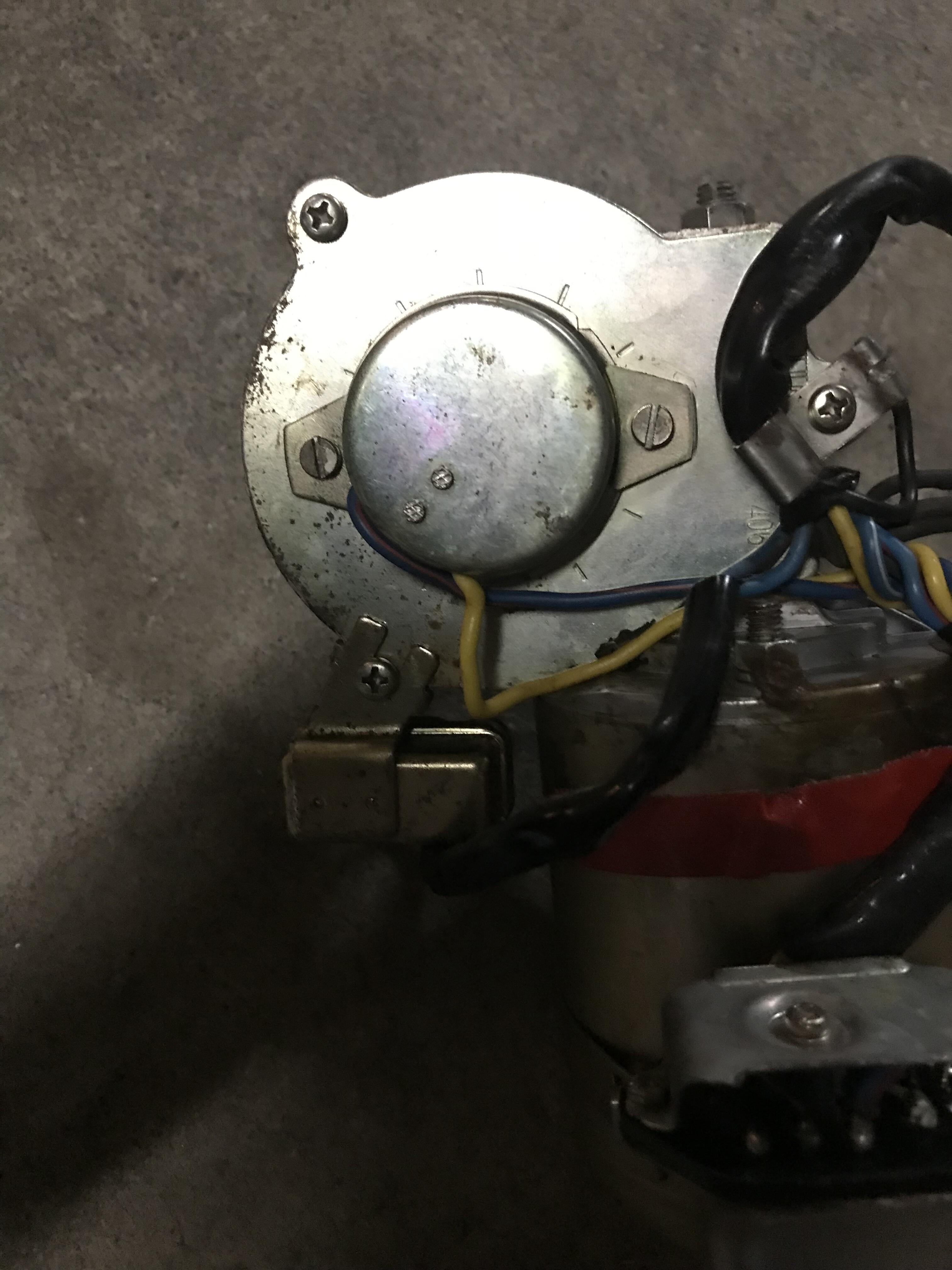

if you can see in my top photo it has 3 black wires coming out of the motor... how do i test the motor???

[Zed Head]

Remove this cover.  You''ll probably see the wires.

[Shawninvancouver]

Nope. Wires go from motor out the harness to the plug. Not to the relay. I think one wire goes to relay and two to the plug.

[Zed Head]

Your emphatic "nopes" don't encourage further help.

Which Vancouver are you in?  These guys fixed my wiper motor.

http://www.philbingroup.com/philbin_rebuilt.htm



Edited August 3, 2021 by Zed Head
