74 260z what are the relays in photo??

Recommended Posts

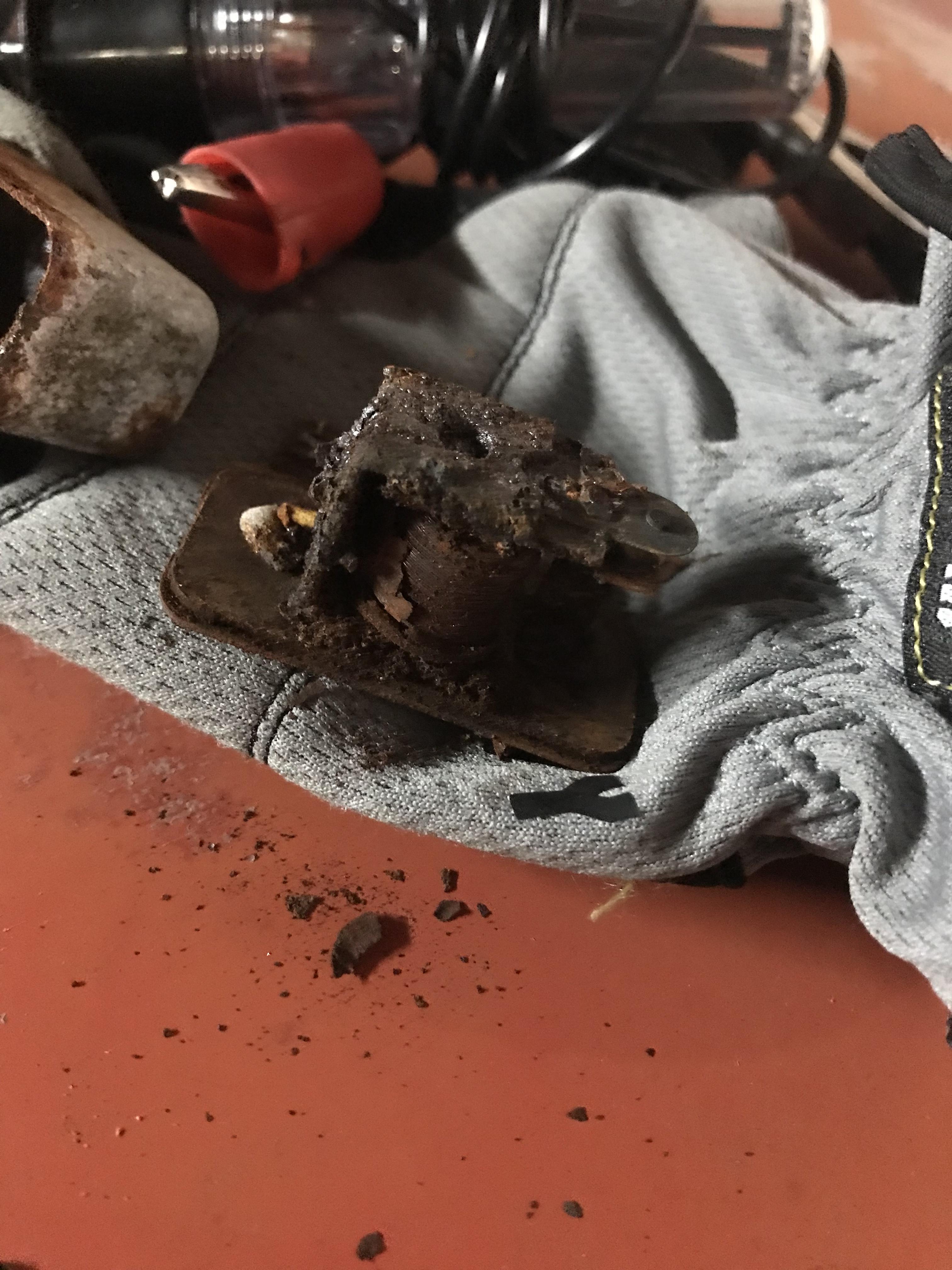

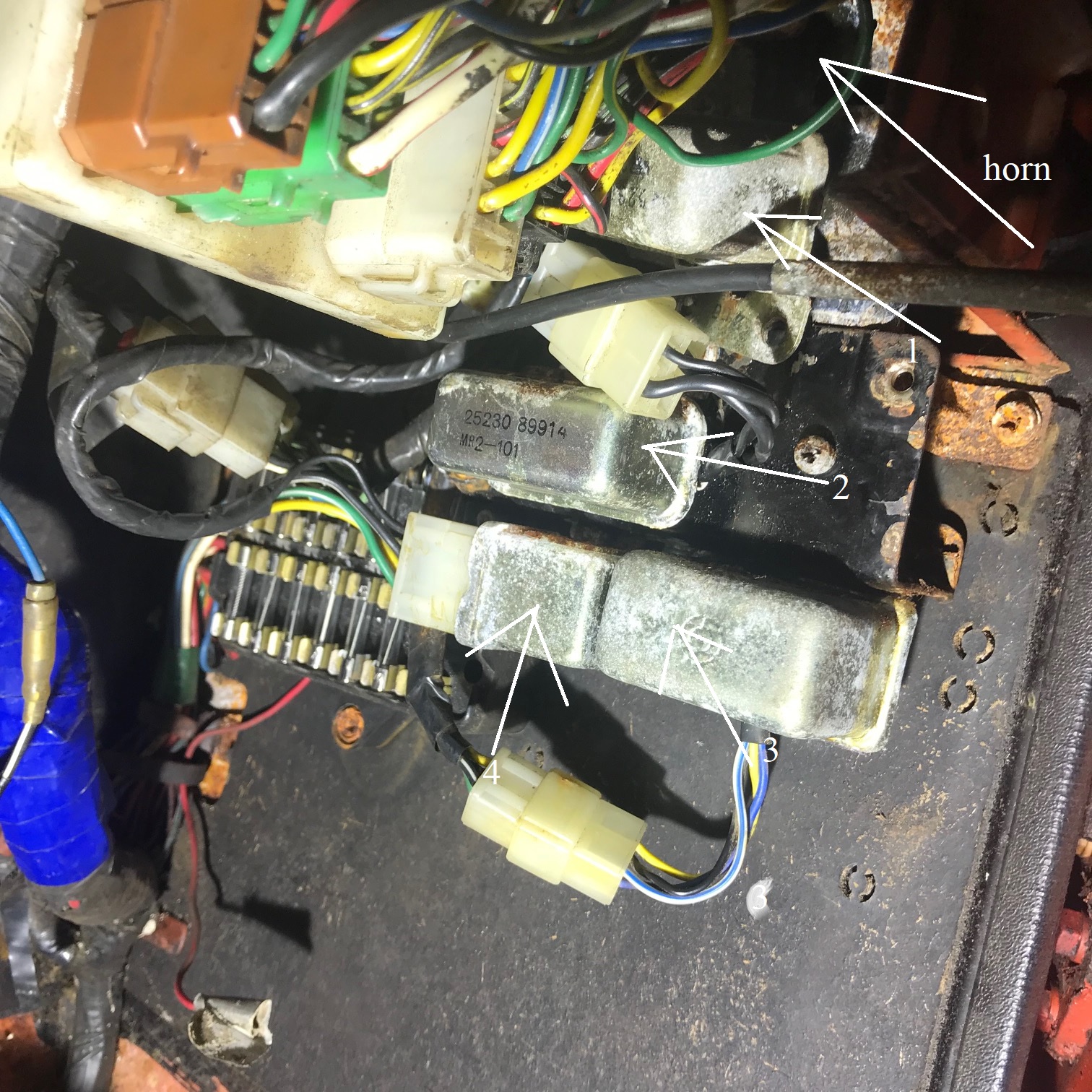

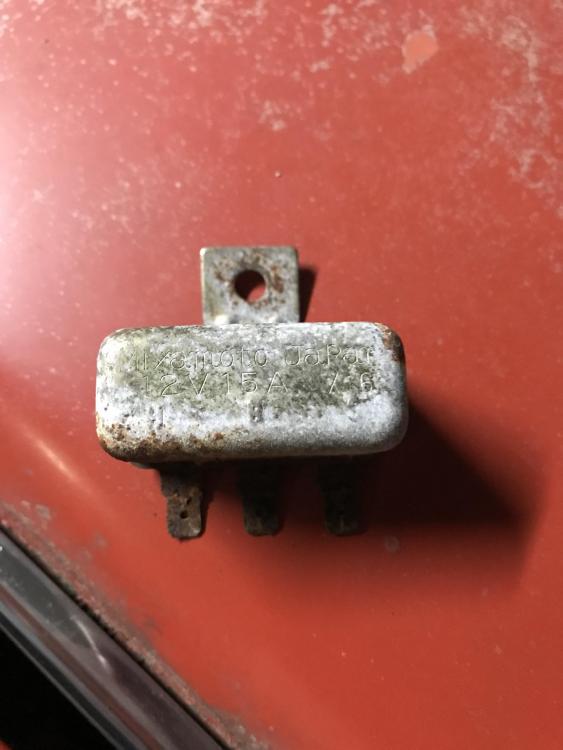

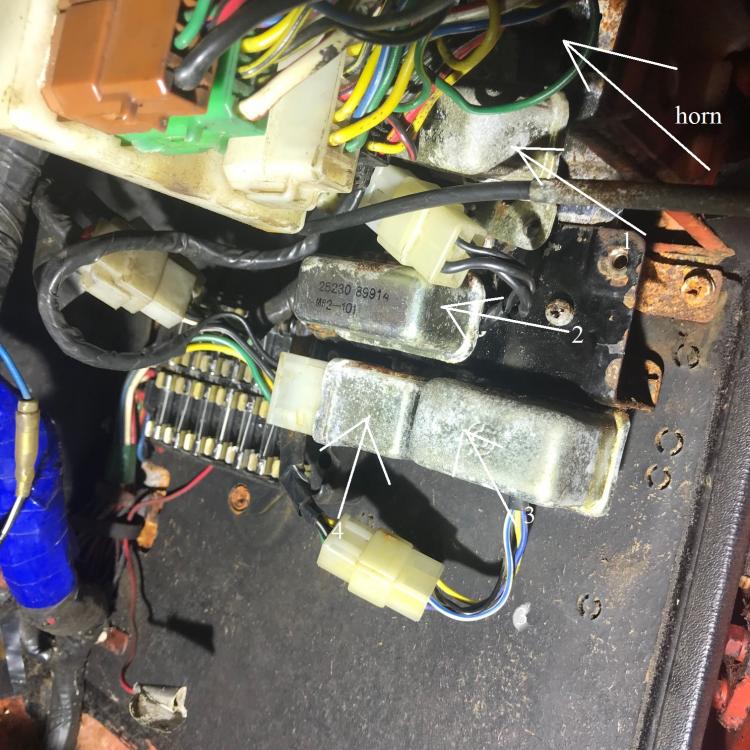

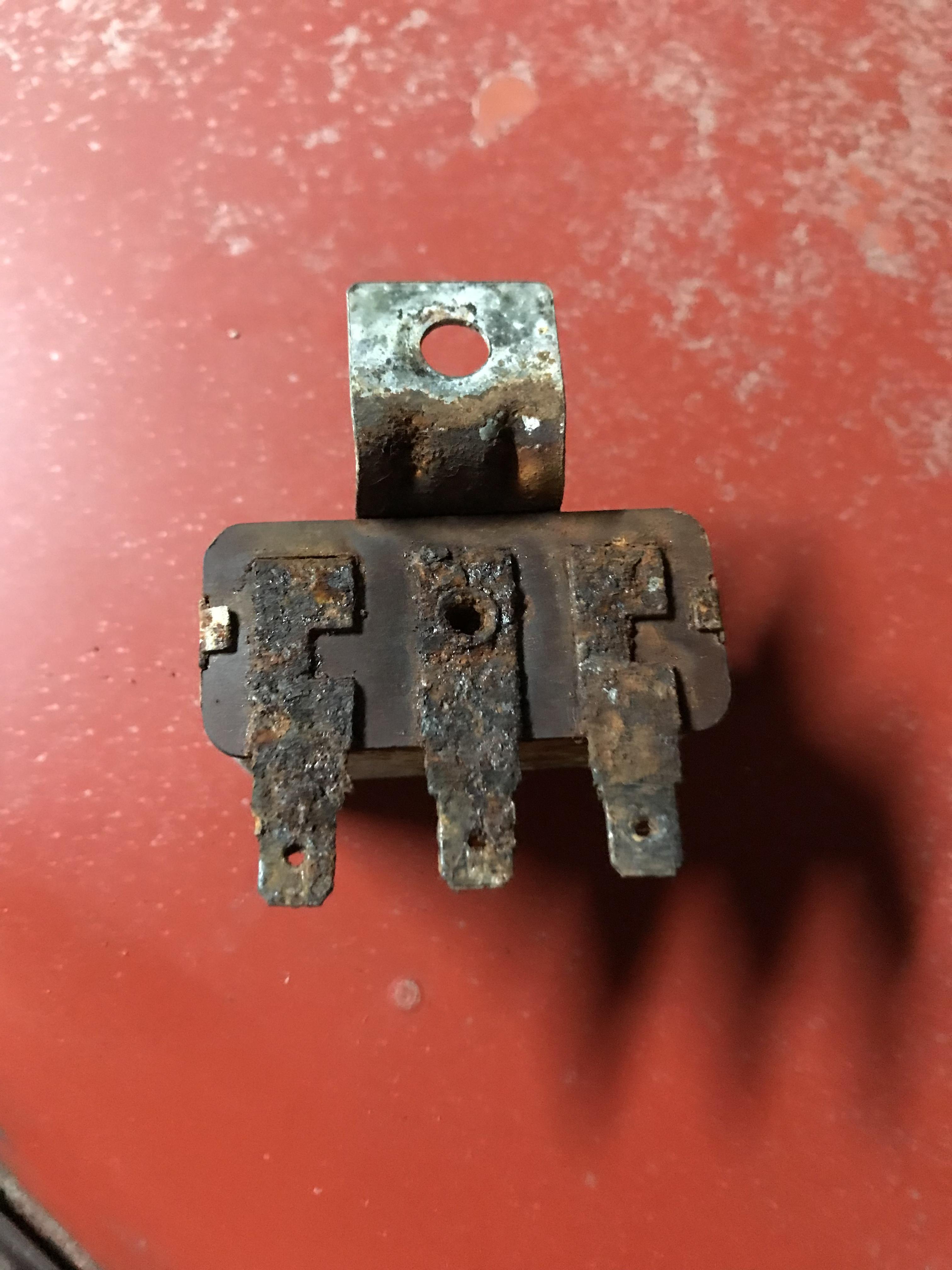

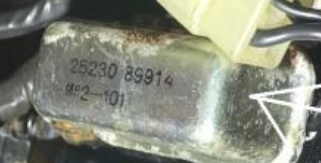

I have now removed the horn relay from way way up top. not seen in photo.. now im trying to figure out what the other ones are..

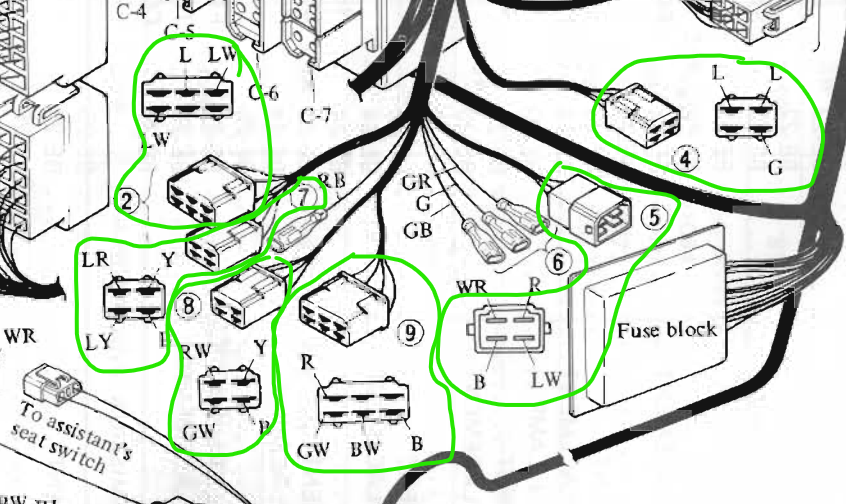

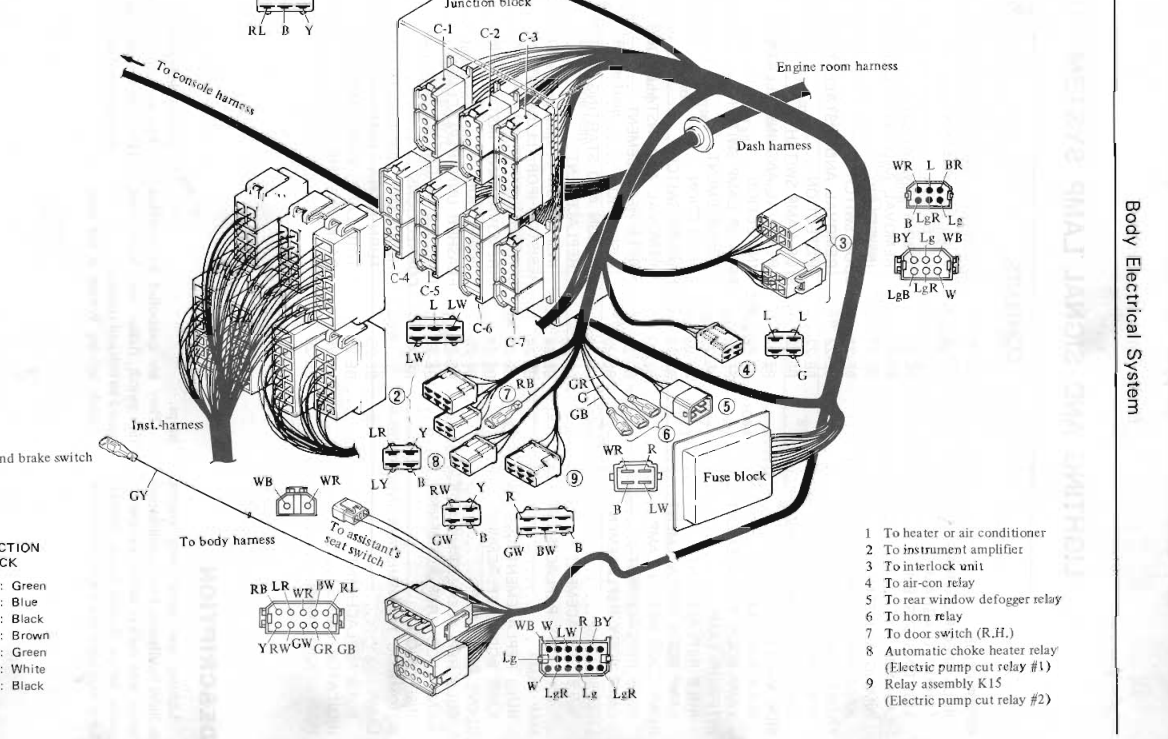

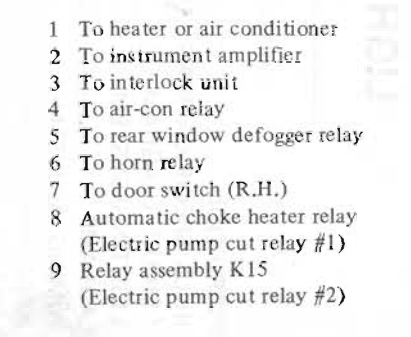

i know one is fan, one is defrost one is wiper.. whats the other and which is which..  the images in the fsm are totally wrong..can ya help me out..??



Link to comment
Share on other sites

The FSM sometimes has errors, but to say that all of the images are wrong seems off. What is the build month of your car, you may want to download the 1973 or 1975 manual and see if the relay panel images are closer to what you have.
