75 280Z won't run.

    Recommended Posts

    75 280Z was running before I swapped my 5 speed, engine was rebuilt 1 year ago and running fine but I don't know if timings are correct never care to check it.

    Now my idiotic mind played. So upon the process I did replaced oil pan gasket, rear main seal and the oil pump gasket because it is leaking oil everywhere. I know that I had to put engine in TDC before removing the oil pump, now my mistake I forgot to put it back correctly so it probably messed up the timing??? Second I pressure washed the bay because I want it to be clean after the swap.

    Now swap is completed, crank the engine, spark yes, fuel yes. Engine sputters and won't run.

    Went back to fix oil pump and dizzy orientation the correct way 11:25 short tang on left side. Dizzy rotor on point with #1 plug on dizzy cap. Cylinder #1 at TDC.

    When engine at TDC crankshaft is way off.

    So when I made the mistake of not putting the correct orientation of the oil pump prong the first time will it offset the crankshaft right away?

    I have not checked the crank position after I corrected oil pump and dizzy timing.



    Share this post


    Link to post
    Share on other sites

    Are the first 2 cam lobes pointed up?

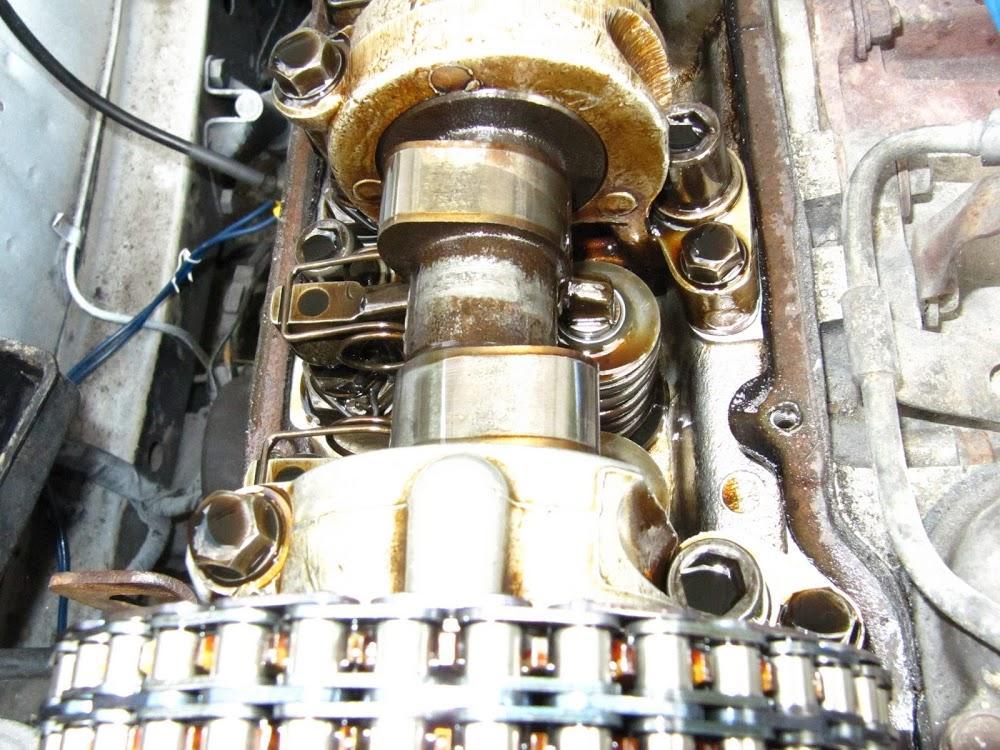

    Image result for 240z cam lobes at tdc

    http://atlanticz.ca/zclub/techtips/timing/mechtime.html

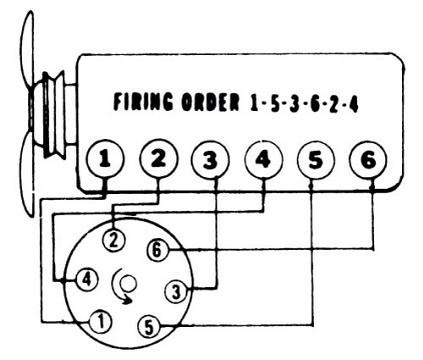

    Image result for 240z firing order

    If it's at TDC the pulley should only be able to go on with the slot for the square key pointing straight up.

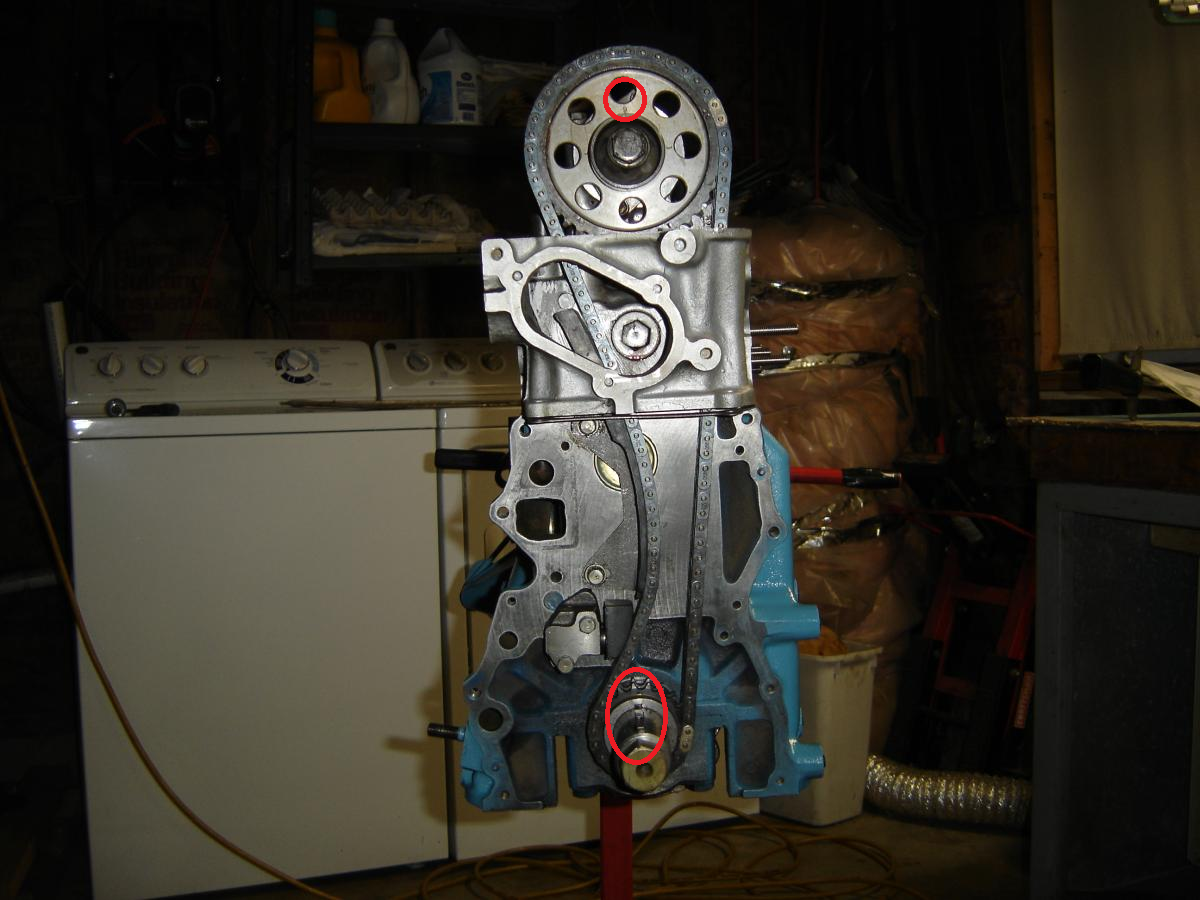

    Image result for tdc siteunseen classiczcars.com

    Is your AFM plugged in and sealed up good?  You should check your vacuum and fuel pressure.

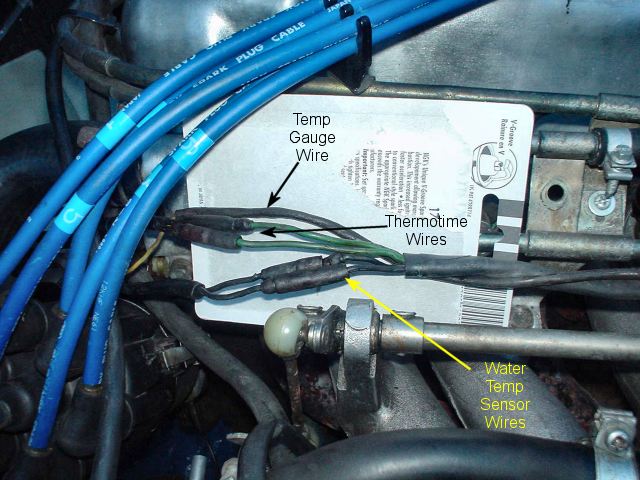

    Make sure these aren't crossed up too.

    Image result for 280z tps adjustment classiczcars.com

    Edited by siteunseen

    Share this post


    Link to post
    Share on other sites
    11 hours ago, @honti10 said:

    When engine at TDC crankshaft is way off.

    So when I made the mistake of not putting the correct orientation of the oil pump prong the first time will it offset the crankshaft right away?

    I have not checked the crank position after I corrected oil pump and dizzy timing.

    Your timing mark is the crankshaft position.  You installed the oil pump gear in the wrong position.  Best to take the oil pump back off and reinstall it and the distributor drive quill correctly.

    Share this post


    Link to post
    Share on other sites

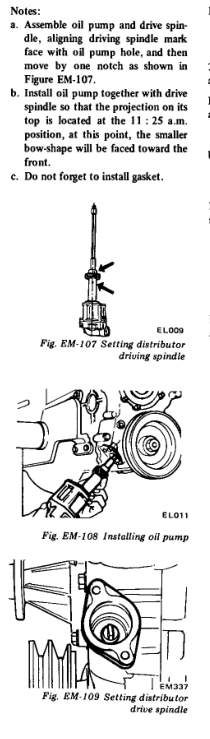

    I just noticed that the FSM never really says to have the timing mark at zero when installing the oil pump.  It must be assumed that things are done directly after installing the timing chain.  No wonder so many people have problems.  They left out the most important part, for people doing only the oil pump work.


    Share this post


    Link to post
    Share on other sites

    TDC COMPRESSION STROKE!!!!!!

    Pull #1 plug and shove a vacuum plug that just fits the hole in there. Turn over motor till that sucker shoots across the room- you found compression stroke . Now line everything up

    • Like 2

    Share this post


    Link to post
    Share on other sites
    59 minutes ago, siteunseen said:

    Best money I've ever spent, legally. LOL

    It was rebuilt a year ago. I just messed up during the 5 speed swap.



    Share this post


    Link to post
    Share on other sites
    7 minutes ago, madkaw said:

    TDC COMPRESSION STROKE!!!!!!

    Pull #1 plug and shove a vacuum plug that just fits the hole in there. Turn over motor till that sucker shoots across the room- you found compression stroke . Now line everything up

    For visual verify isn't that when the first 2 lobes are up-ishy looking?

    Share this post


    Link to post
    Share on other sites



    4 hours ago, siteunseen said:

    For visual verify isn't that when the first 2 lobes are up-ishy looking?

    It certainly is. Bunny Ears... (ish)

    • Like 1
    • Haha 1

    Share this post


    Link to post
    Share on other sites

    My point is you don’t have to remove the valve cover to find TDC compression stroke.

    Edited by madkaw
    • Like 1

    Share this post


    Link to post
    Share on other sites

    Hey guys update on my engine, so I found out that when my engine is rebuilt, instead of the 153624 order on the dizzy cap my mechanic did backed it up with 5 on 1and has a different timing I don't know how did he position the oil pump drive shaft tang during the rebuild. That's is why I can't ever make it run with the OE set up.

    Was just wondering what drive shaft tang position it was in before. The mistake I made when I pulled my oil pump. Should've pulled the dizzy first and marked the tang hold it with vice grip. Well atleast I learned something.

    • Like 1

    Share this post


    Link to post
    Share on other sites

    1 hour ago, @honti10 said:

    Hey guys update on my engine, so I found out that when my engine is rebuilt, instead of the 153624 order on the dizzy cap my mechanic did backed it up with 5 on 1and has a different timing I don't know how did he position the oil pump drive shaft tang during the rebuild. That's is why I can't ever make it run with the OE set up.

    Was just wondering what drive shaft tang position it was in before. The mistake I made when I pulled my oil pump. Should've pulled the dizzy first and marked the tang hold it with vice grip. Well atleast I learned something.

    What?? And that makes sense to you why?

    Share this post


    Link to post
    Share on other sites

    Yes, it is running now, settings based on FSM. No wonder I can't make it run. My mechanic has the entire spark plugs backed up, instead of regular 153624 he put it like this. Well its running perfect before! Dropped that pump, put it 11:25 won't run! Was just dumb enough not to notice in the beginning that it was set up that way! I just couldn't understand how the heck he put the oil shaft tang.


    • Like 1

    Share this post


    Link to post
    Share on other sites

    Hey guys update on my engine, so I found out that when my engine is rebuilt, instead of the 153624 order on the dizzy cap my mechanic did backed it up with 5 on 1and has a different timing I don't know how did he position the oil pump drive shaft tang during the rebuild. That's is why I can't ever make it run with the OE set up.

    Was just wondering what drive shaft tang position it was in before. The mistake I made when I pulled my oil pump. Should've pulled the dizzy first and marked the tang hold it with vice grip. Well atleast I learned something.
