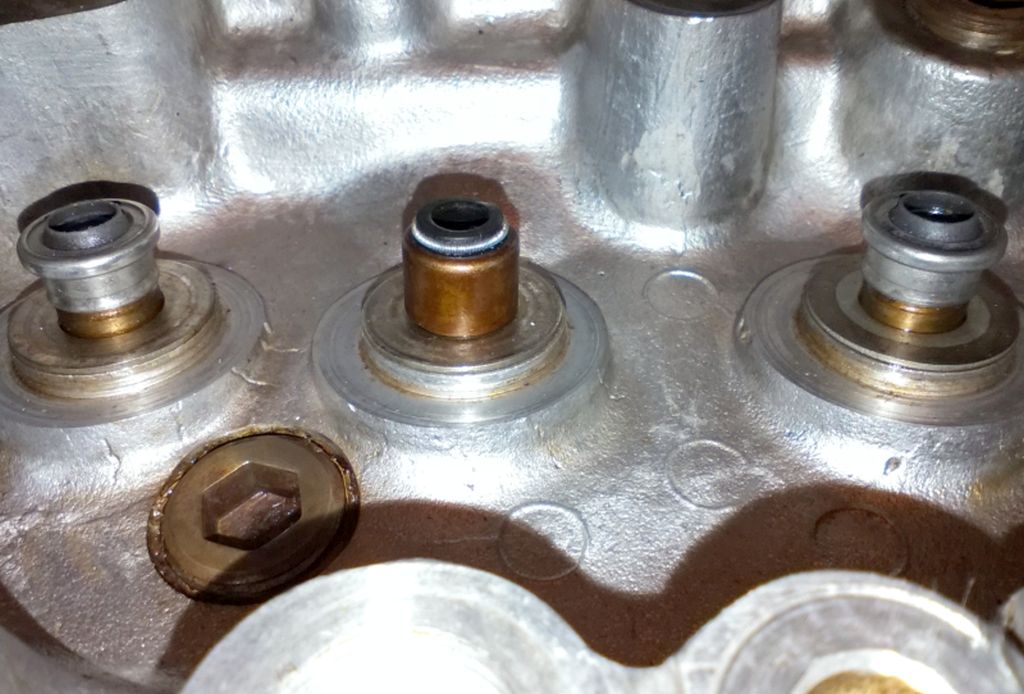

Take a look at the seals that were put on this E88 head.

And 2 seals are not the same as the rest on top of that.

The copper colored valve seal in the center is an A-Series  ( Datsun A-12 ,A-13, A14, A-15. A-12a ) . It's a good seal and gives a bit more clearance to the valve spring retainer when a higher lift Cam is used.



The other two silver colored seals appear to be some kind of aftermarket seal. Possibly a Ford V6.

I read some posts about Ford valve seals on HybridZ, maybe that's what this is.

Edited November 25, 201510 yr by gogriz91

Here's those Ford seals on hybridz I bet you're thinking of.  I've never seen any with a "hat" like that.



I can't find anything close to those "top hat" looking seals, curious I am.

I can't find anything close to those "top hat" looking seals, curious I am.



Interesting possibilities. This head came from Georgia.

I guess they do things different down there.

I can't find anything close to those "top hat" looking seals, curious I am.



That's a nice collection.  Where'd it come from?



I only see Chrysler and GM as USA market, all the others are foreign.  No Ford.



Maybe the odd ones are installed upside down.

That's a nice collection.  Where'd it come from?



I only see Chrysler and GM as USA market, all the others are foreign.  No Ford.



Maybe the odd ones are installed upside down.

I pulled it off Google while I was looking for one like your's.



It very well could be for a Ford?  I know the Ford Ranger PU used the seals I posted above for their 6 cylinder motor, they are called Viton seals and were discussed on hybridz.org.  http://forums.hybridz.org/topic/68120-problem-with-viton-valve-seals/



I thought they were upside down too but the rubber seal around the top is pointing up.  I don't know about you but I would want 12 of the same type.



A very popular adverb for us Southerners to use is bass ackwards.
