zhead240

seat spacers

Recommended Posts

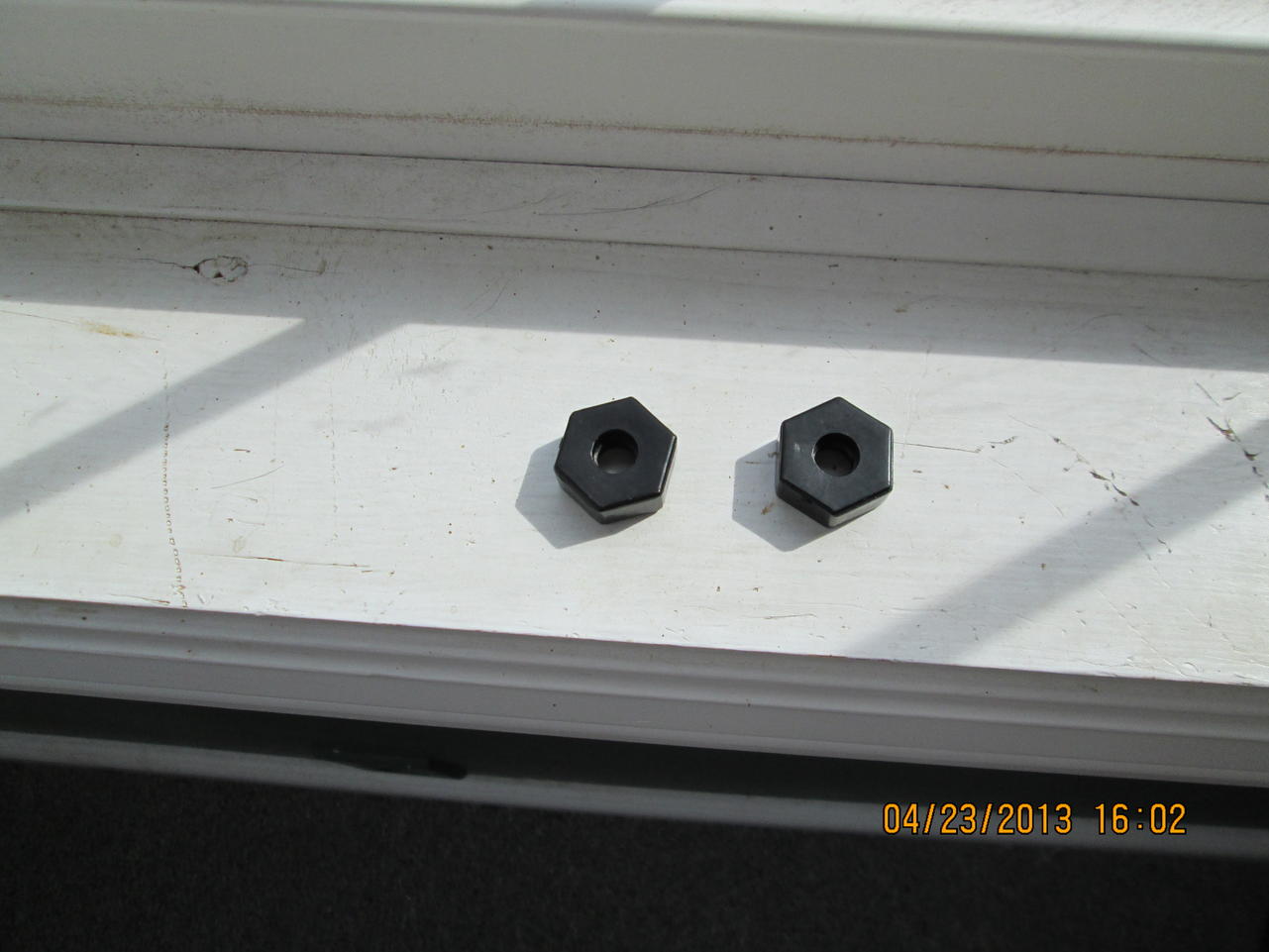

are these the seat spacers? when I removed the seats one spacer was on top of the seat bracket, the other was screwed under the nut and washer. can I put both spacers above the seat bracket to raise the seat? is that what it's for?


Share this post


Link to post
Share on other sites

You can play with the number of spacers at the front and rear to change the angle of the seat bottom to suit your tush. Try different combos to see what you like best. Any spacers not used on top of the rail should be installed under the rail so as not to lose them.

Share this post


Link to post
Share on other sites

im trying to tighten the rear left nut on  the driver and the rear right nut on the Passenger seat on my 1972 240z  but it seem useless, All the other 3 nuts of each seat are tight and have their plastic spacer also. Could the nut be damaged or am i missing something here? I have attached some pictures as reference. The 4 plastic nuts must be tight. However, this is not happening with these 2 nuts. Anyone?



Edited by jalexquijano

Share this post


Link to post
Share on other sites

Although the plastic spacers are threaded, they are not intended to actually secure the seat mount bolt to the floor bracket - that is the job for a metal washer and nut.  The spacers are threaded more as a convenience to keep them in place on the shaft of the rail bolt.  If the metal nut won't tighten, then something is damaged - either the threads on the nut or on the rail bolt.

Share this post


Link to post
Share on other sites

I thought it only had a plastic circular washer and a plastic nut fastened to the bolt. Let me see if i can take a closer picture of what i have there.

Share this post


Link to post
Share on other sites

The black plastic hex nut under the front frame rail is just being stored there. It could be move to the top side of the rail like the other two to make the seat slant more. The metal nut on the under side of the seat bracket is what tightens the seat down. the rear seat studs are the same way. The metal nuts in the rear can be difficult to access! they are way up under the cupped seat brackets. Remove the black hex nuts to tighten the metal nuts. then replace them on the studs so they don't get lost!

Share this post


Link to post
Share on other sites
