Alternator upgrade (MSA) - engine won't start and plug is HOT

Featured Replies

I bought the alternator upgrade kit from MSA for my 1970 car. It's a 280ZX rebuilt alternator with a pre-built adapter that plugs into the wiring harness.

Not sure what's going on. here are my observations:

  1. engine cranks, does not fire. Was running normally earlier today before swapping alternator.

  2. After cranking a bit, I went to inspect. The white plug that fits into the wiring harness was hot. In a way that didn't need normal, and felt short-y.

  3. disconnected battery

  4. checked continuity between car ground and case and E post: ok.

  5. reconnected battery for test: getting 12+ V at the B post

  6. Didn't know what to check with the little 2-wire T plug.

  7. no continuity between B and E post / B and casing.

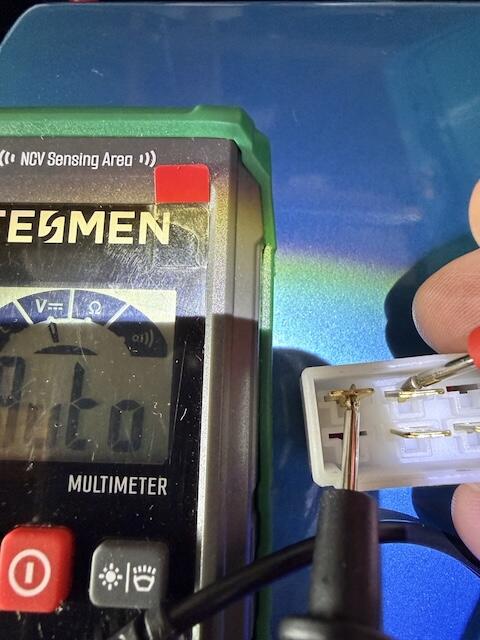

  8. On the adapter plug, with the stick-out-y bit at the bottom, the bottom pair of plus show continuity. The top 2 do not.

have the plug out and the battery disconnected until I know what's going on.

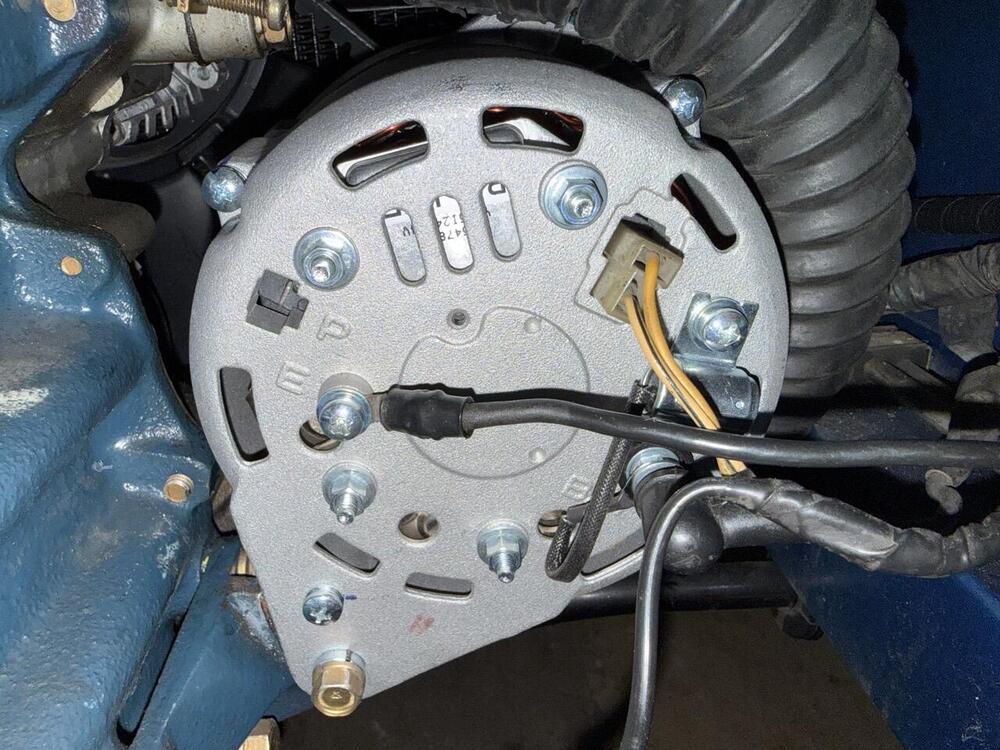

IMG_2177 Large.jpeg

IMG_2178 Large.jpeg

I tried this upgrade years ago and while I did not have the problems you are seeing I did have one issue: my ammeter was non-responsive/dead! I reversed course and opted for a reman 60A Hitachi externally regulated alternator and new voltage regulator from Rockauto. All is well.

On the alternator measure resistance to ground on both pins. You might have a short circuit in the alternator. New does not guarantee good.

One pin goes through the windings and the other measures output from the alternator. Both should have some resistance. I think that S should probably have infinite resistance. Not sure, but it should definitely not be low resistance to ground since it's connected directly to the battery. I would also measure resistance between BAT and E.

I would also turn the key on and see if the new white connector gets hot when it's disconnected. There could be a short inside the connector.

ZX alternator pinout.


  • Author

With everything disconnected from alternator and battery also diaconnected: bottom pin (vertical one) has 7.9kohm to case. top pin has nothing to case. power pole has 4.3 kohm to case. with battery connected and alternator still disconnected and key to ON the MSA adapter doesn’t get hot. waited about 3 mins on that.

No clues there. Maybe the plugging in of the parts causes some internal connections that shouldn't be there.

I'm not actually clear on where that new connector goes. I've only worked on 76 and newer Z's. Edit - I guess it's at the old VR. I'd check that connector for problems. A dirty/corroded connection or bad wire terminals could cause heat. There are old stories out there about overheating adapters though.

I'd probably plug it all back together, turn the key on and see if it gets hot. That will separate starting activity from simple key On activity. Break the problem down in to pieces. Starting draws a lot of amps and sometimes a poor connection on the starter cables will cause excess current on other circuits. That's why the battery cables are so big. They're really just for the starter.

https://www.thezstore.com/product/178/alternator-upgrade-adaptor-70-72-240z


Edited by Zed Head

S
Sponsored
Advertisement
Go Ad-Free
No ad showing? Ads help support ClassicZcars. If you use an ad blocker, please consider allowing ads on this site or Go Ad-Free.
  • Author

The alternator came with an 800 number to call and unbelievably someone answered right away on a Saturday afternoon. He said the 2-pin readings were normal but the power pole resistance to ground meant it had a problem. Said send it back to z store.

  • Author

Put the old alternator back in for now, we'll see what MSA says on Tuesday. Should have just got the plug from MSA and bought the remanufactured unit locally. ah, well...

Reman products don’t have a good track record no matter where you buy them. Unfortunately you have shipping involved. Hopefully they will send an RMA with a shipping label.
