Transmission mount bolts


Sailor Bob

Recommended Posts


On the transmission mount cross member my 7/70 has M10x1.25 x 25mm long JIS type cap screw with 14mm hex size. Plus lock and flat washers.

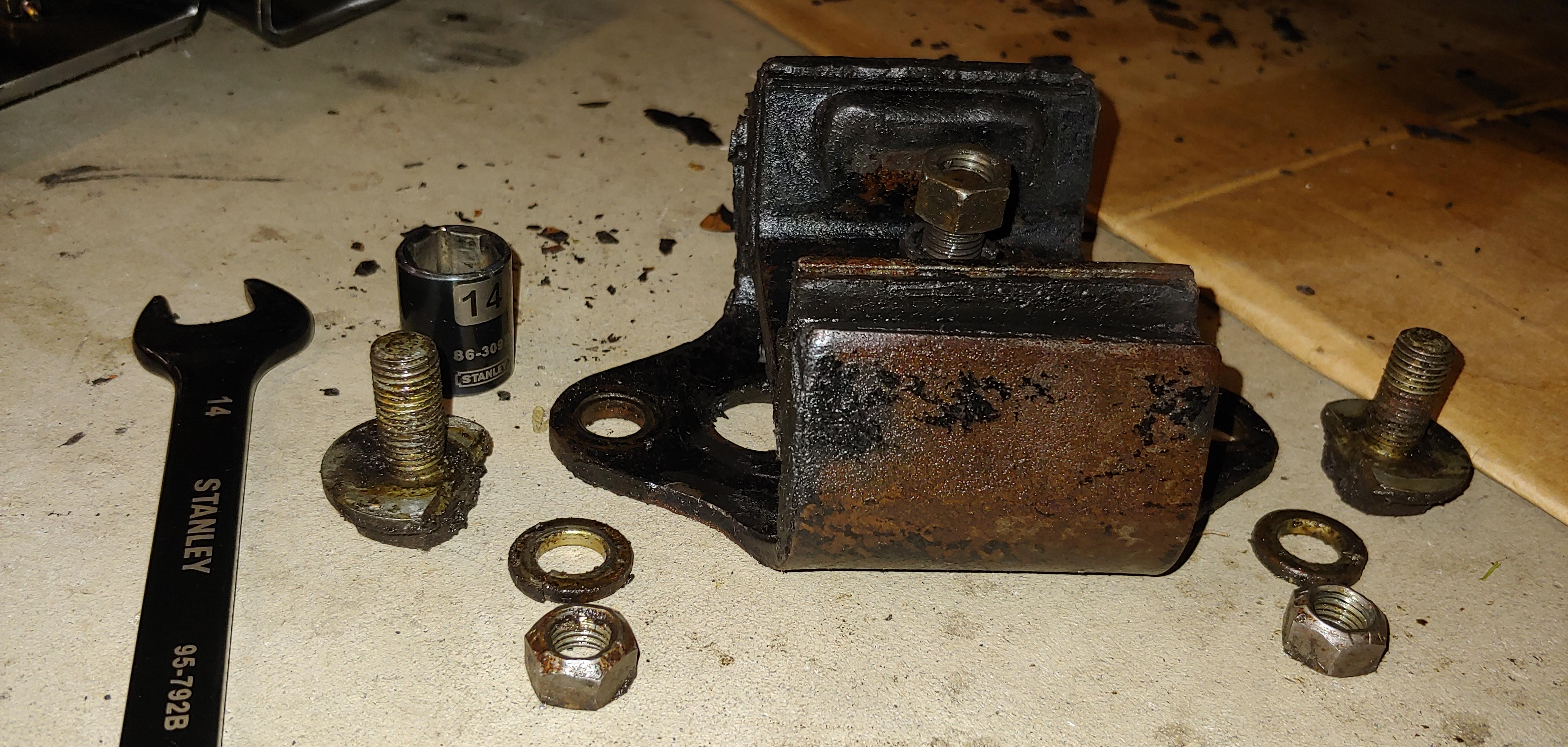

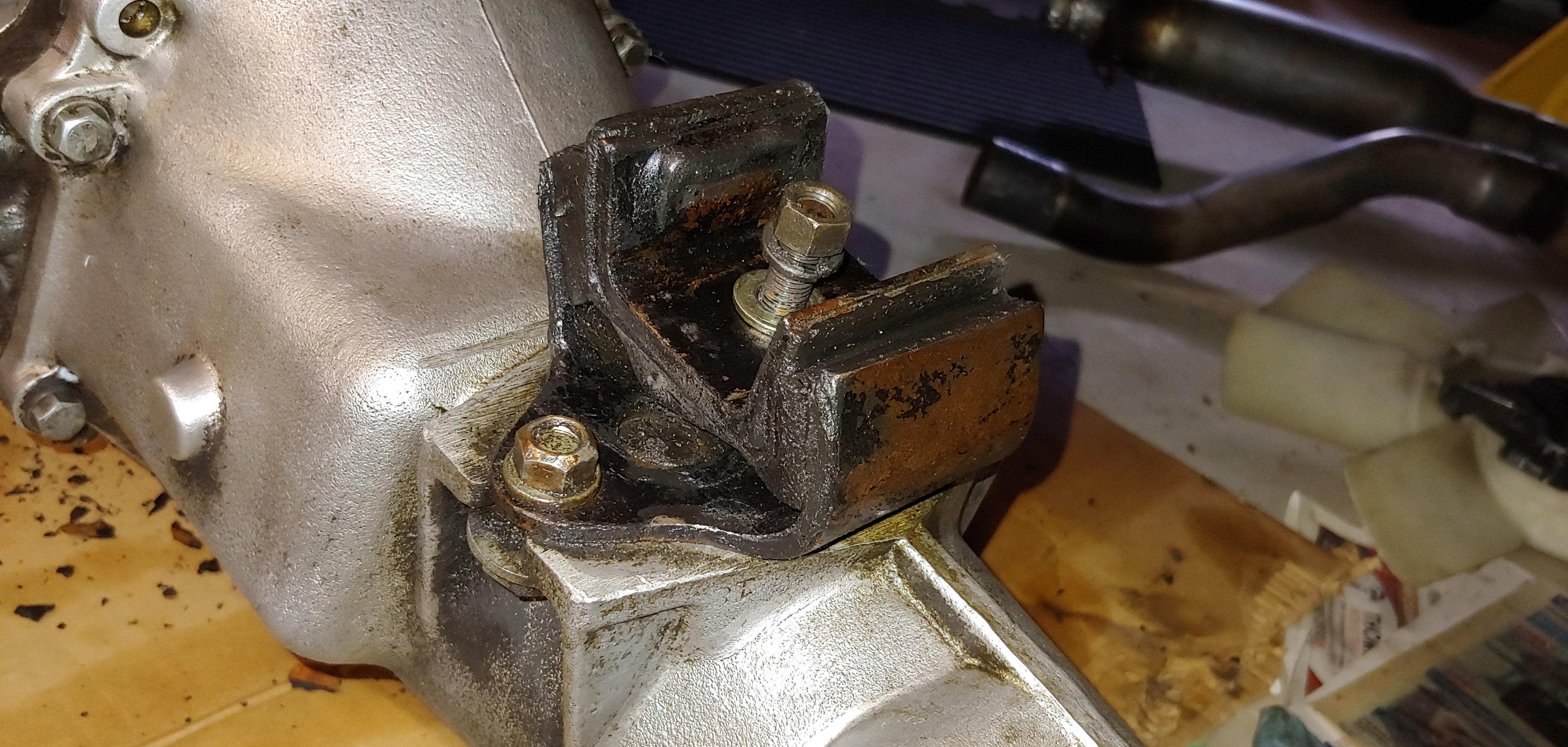

The actual  transmission mount on mine has two M10x1.25 x 25 flanged head cap screw. The head has a larger head, 19mm hex and 28mm OD flange, the flange and head is clipped. Plus lock washer and M10x1.25 Nut, JIS type (14mm hex). These bolts seem a little short, see picture before I removed them.



Link to comment
Share on other sites

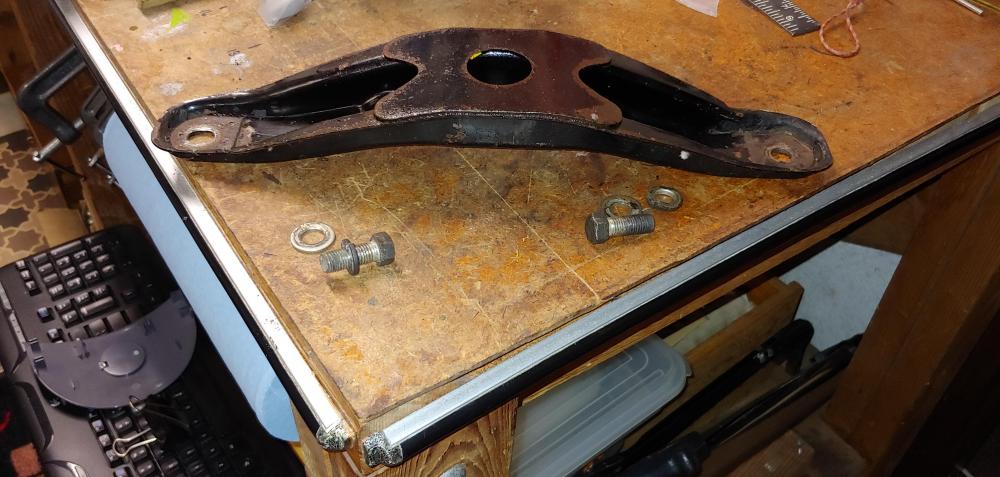

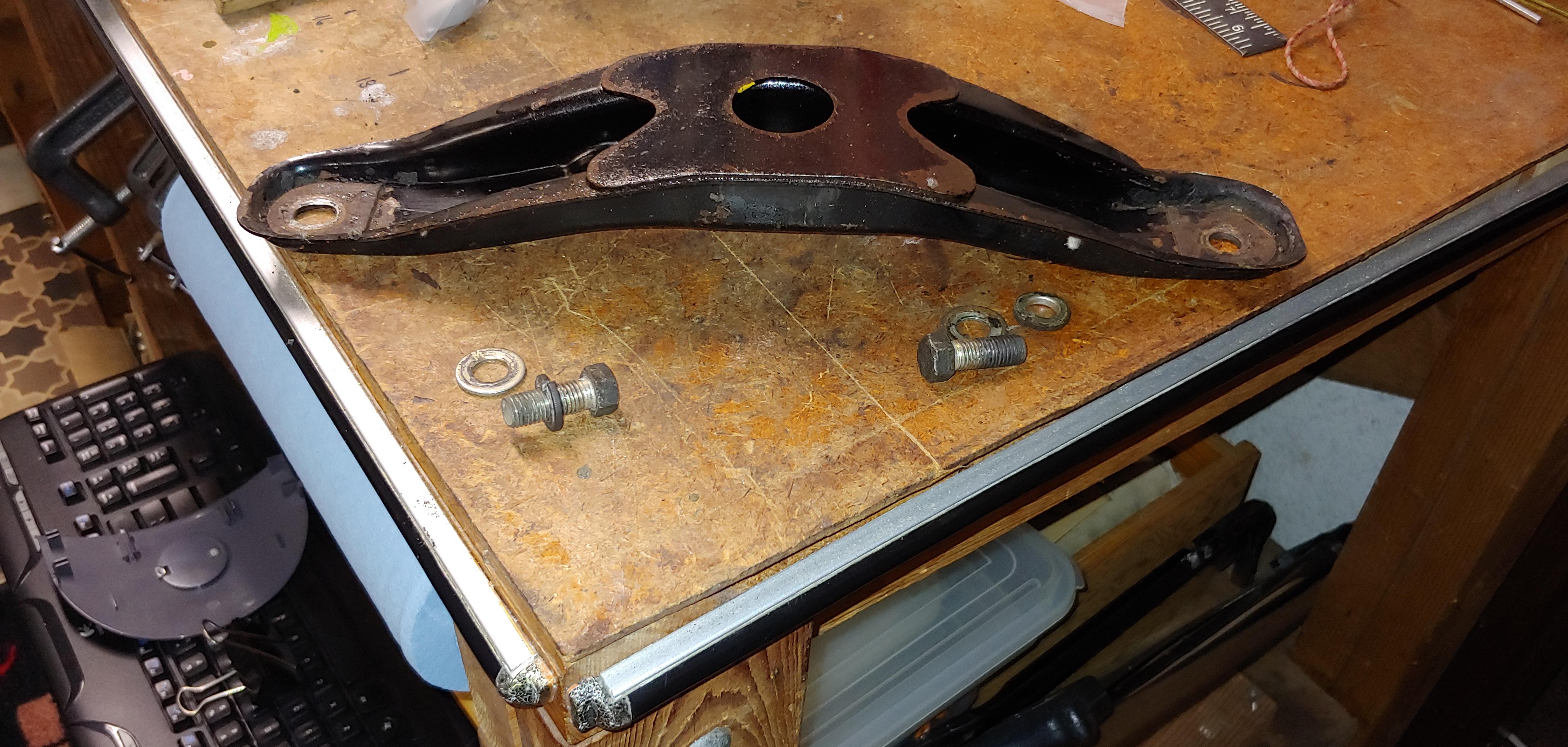

I should have been more specific. I have a 73 built in july 72 it has a cross member with a bushing on each side. The bolts pass through the bushings. They appear to be around 3.5 inches long.ED142B1F-E0F6-433A-A147-85F4EA7ED8E7.jpeg

Edited by Sailor Bob
Add details
Link to comment
Share on other sites

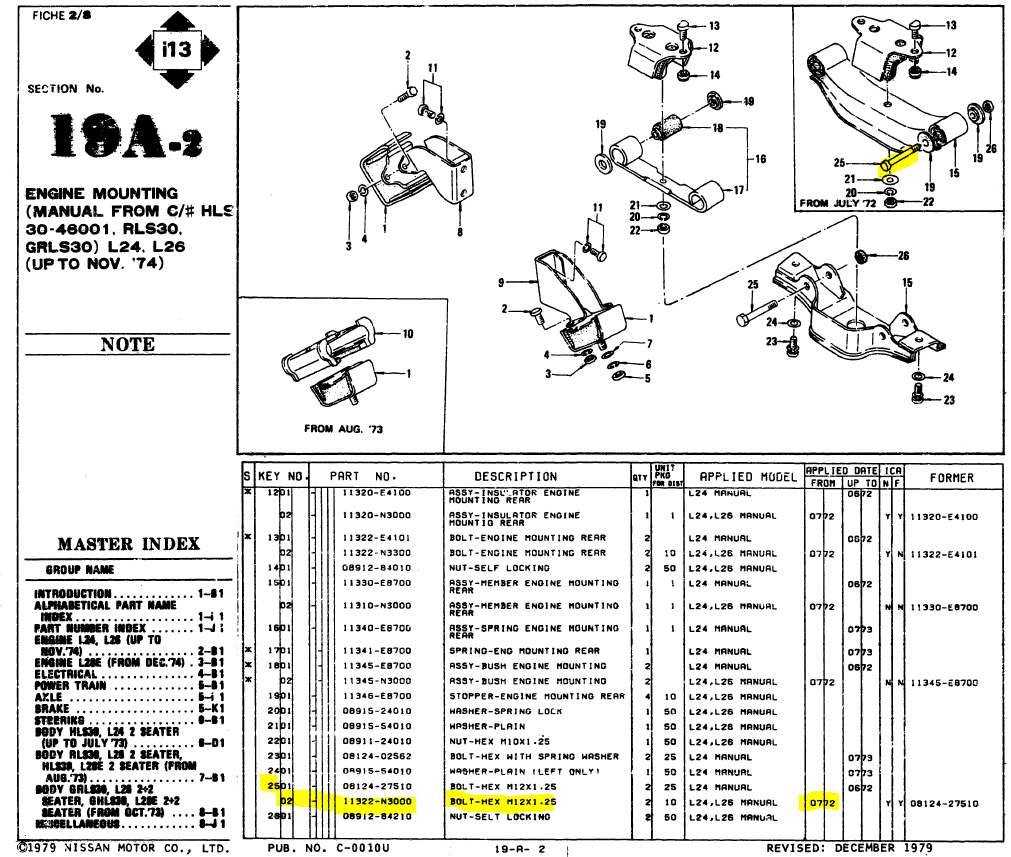

Here is a page from the parts book, I thought I might be able to decode the part number but as of 7/72 the part number is not an NES type, it does show that it will be M12x1.25. Funny the bolt up to 6/72 has an NES part number (08124-27510) that decodes as Hex Head Bolt, Medium Carbon, M12 x 75mm long, zinc plated.


Edited by CanTechZ
Link to comment
Share on other sites

  • 4 weeks later...

All back where its supposed to be. Fluids next, Rad goes in tomorrow.
Not sure why i didnt check the tranny filler plug befor installing. Its solid. Pretty frustrating.. any advise ?


Edited by Sailor Bob
