Hello,

so I was cleaning my turn signal switch and happen to break the circuit board as I was trying to pry it open to clean the contacts.


is there any way I can repair this? Any type of conductive adhesive I can apply? What type of services could be able to restore this piece?  I would gladly buy this piece as well if anyone is selling it!

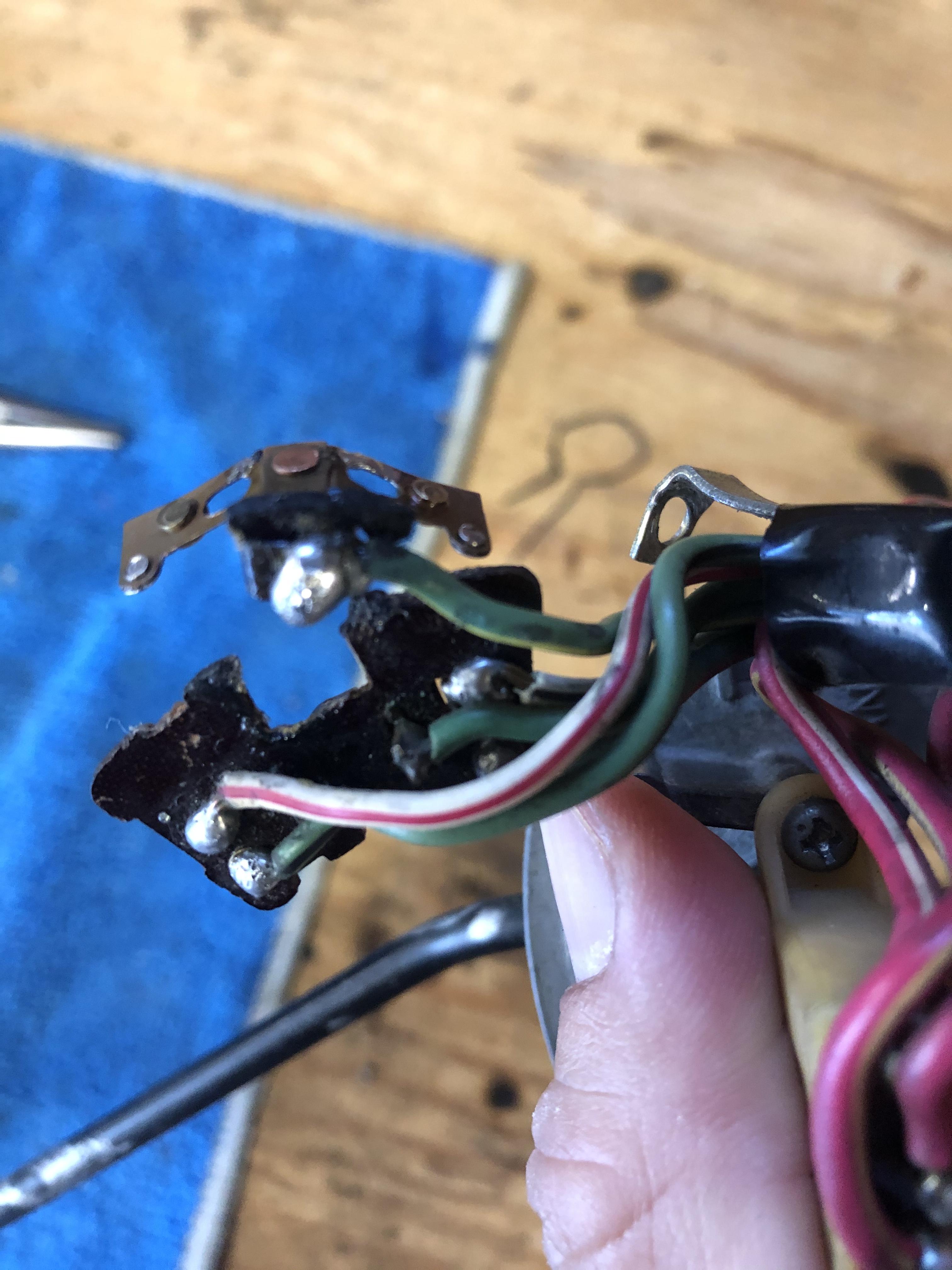

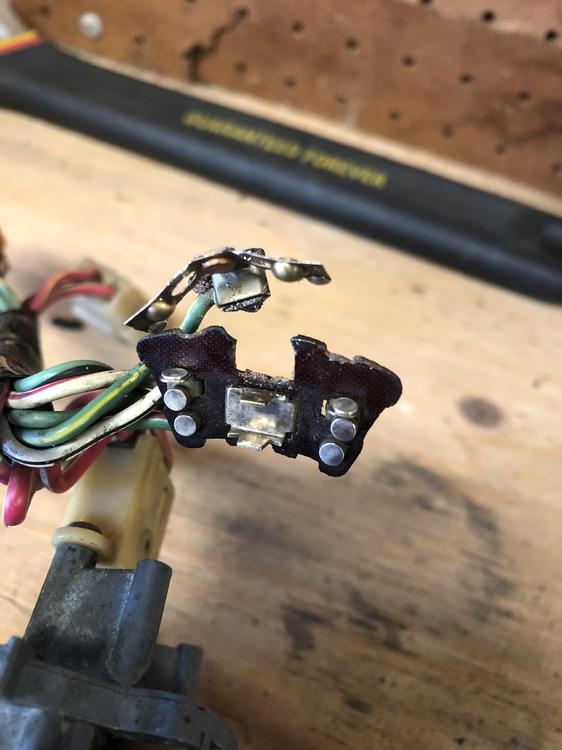

I have attached a few photos here as well.  Thanks!







Edited August 11, 20206 yr by Phengvang18

You might be able to glue a stiff backing material on to it to get the pieces together and aligned then repaint the circuits using conductive paint.  Looks like a tough project though.

https://www.amazon.com/Silver-Conductive-Adhesive-Electronics-Circuit/dp/B086VMYK4Z

https://circuitscribe.com/products/10g-brush-screenprinting-conductive-silver-ink-beta

I think I have one I can send you? what year was your can manufactured?

The switch body/wiring is the same 70-73.

1 hour ago, 7tooZ said:

I think I have one I can send you? what year was your can manufactured?

 Mine is a 1970, I appreciate the help


I actually just bought a new set from a seller for 150 dollars. I should’ve waited..

Over the images bump...

You can repair that with Plastic Welder Epoxy and it will be stronger than f@#$.

Just make sure that each of the 3 sides is epoxied in place and the 2 pieces of the circuit board are lined up.

It might help to unsolder the brake wire from the broken piece first.

Remove any excess cured epoxy with a Dremel or the like, and reassemble carefully.

P.S. JB Weld Plastic Epoxy is okay but I prefer Plastic Welder.



Good luck!
