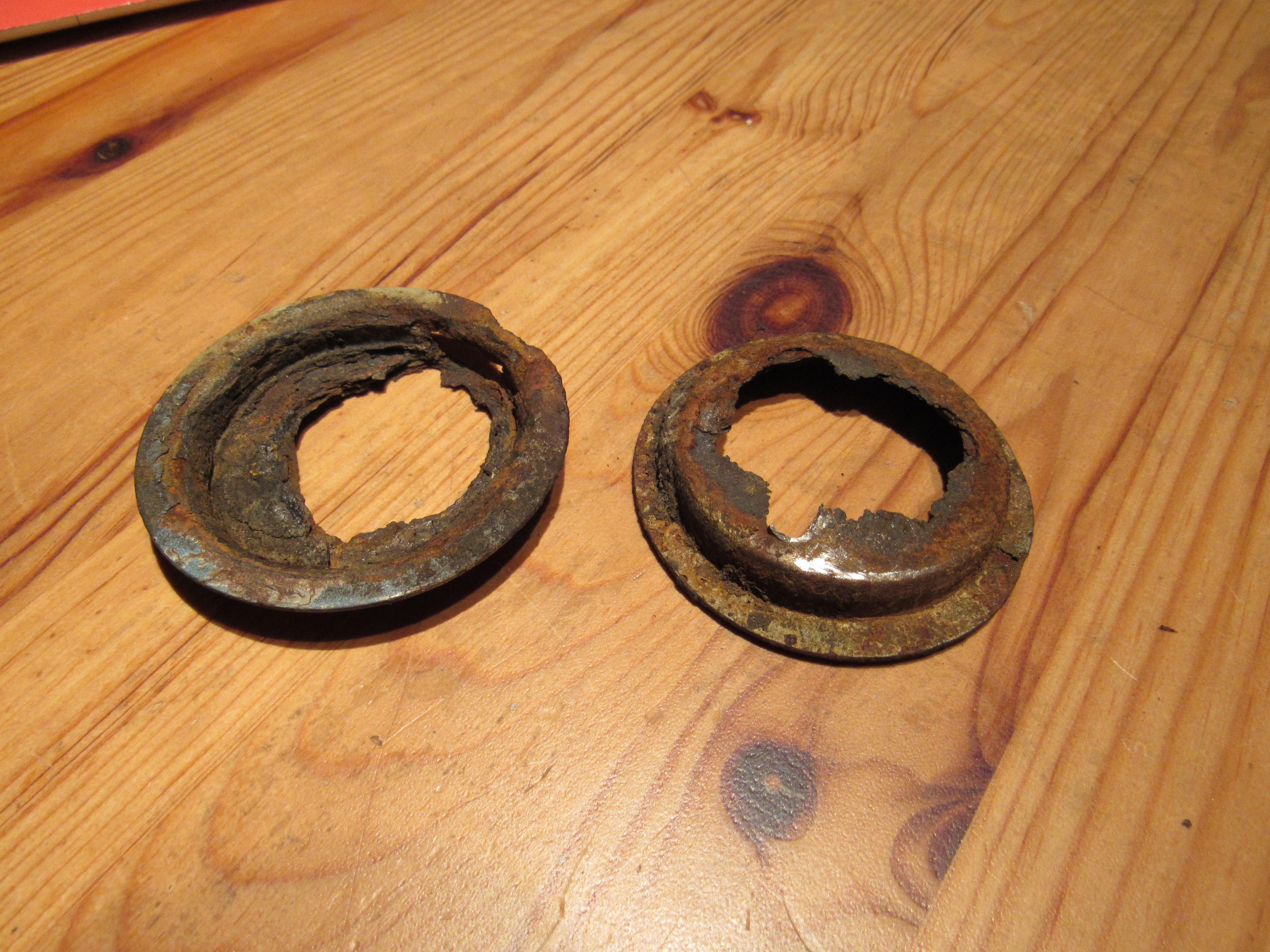

I need to make up a couple of the T/C rod rubber bushing locator-flange thingys,  can anyone tell me what the diameter of the central hole is? It is somewhere between 13-20mm.

Thanks,



I just measured mine and got 20.63mm.

26 minutes ago, grannyknot said:

I need to make up a couple of the T/C rod rubber bushing locator-flange thingys,  can anyone tell me what the diameter of the central hole is? It is somewhere between 13-20mm.

Thanks,



What's wrong with those????

2 hours ago, rturbo 930 said:

I just measured mine and got 20.63mm.

Thank you

2 hours ago, Patcon said:

What's wrong with those????

smart arse

20 hours ago, grannyknot said:

smart arse

?

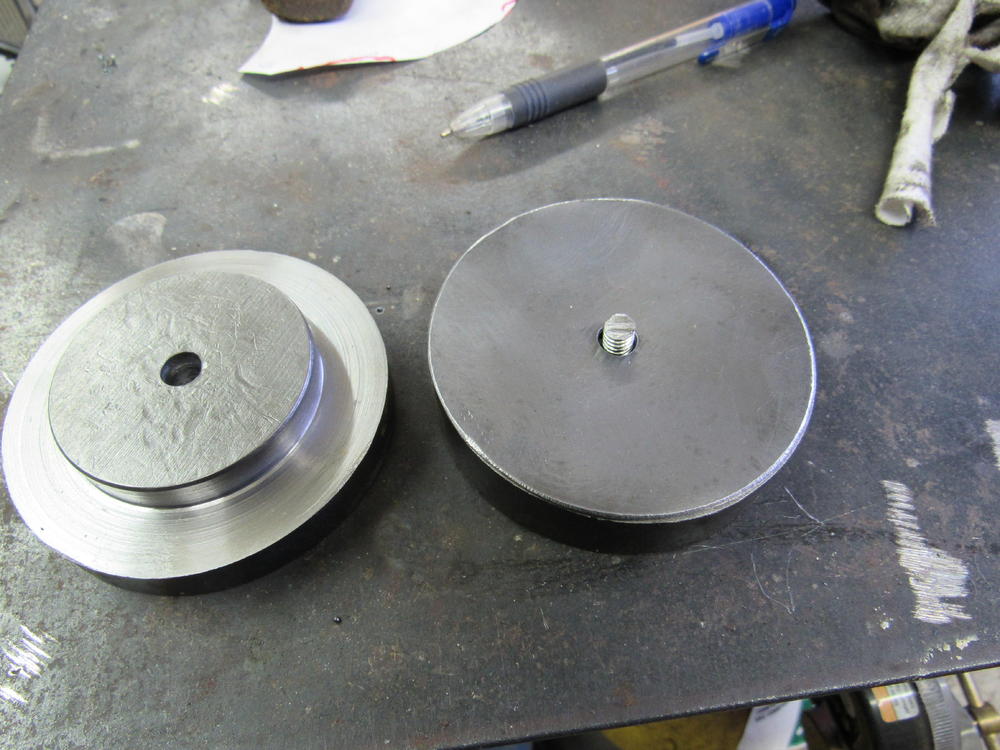

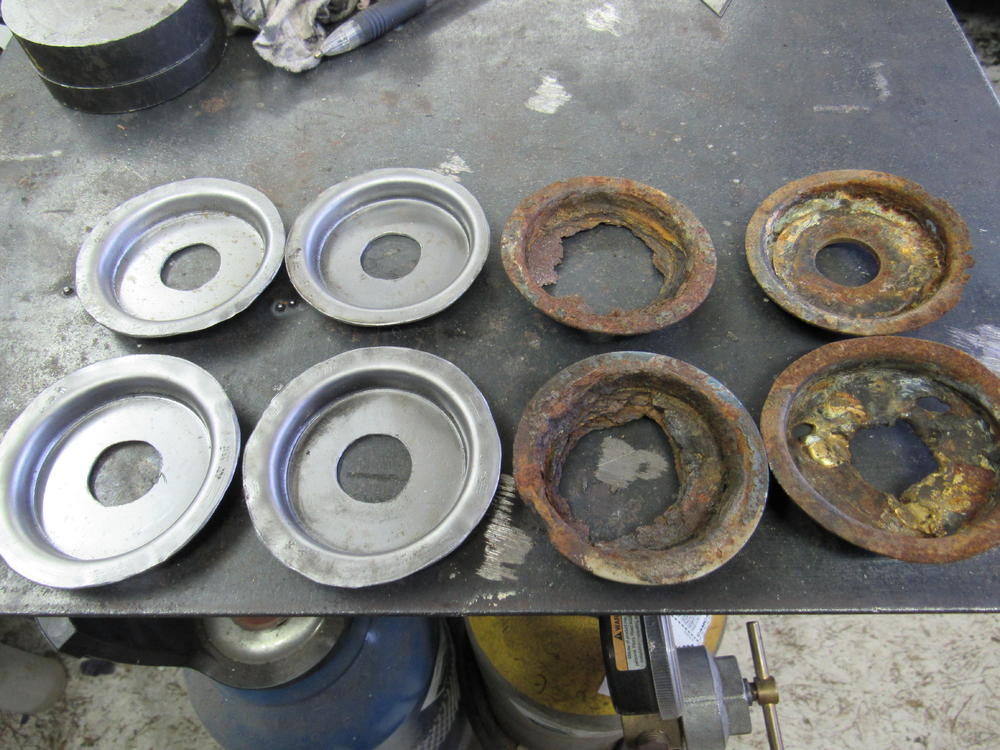

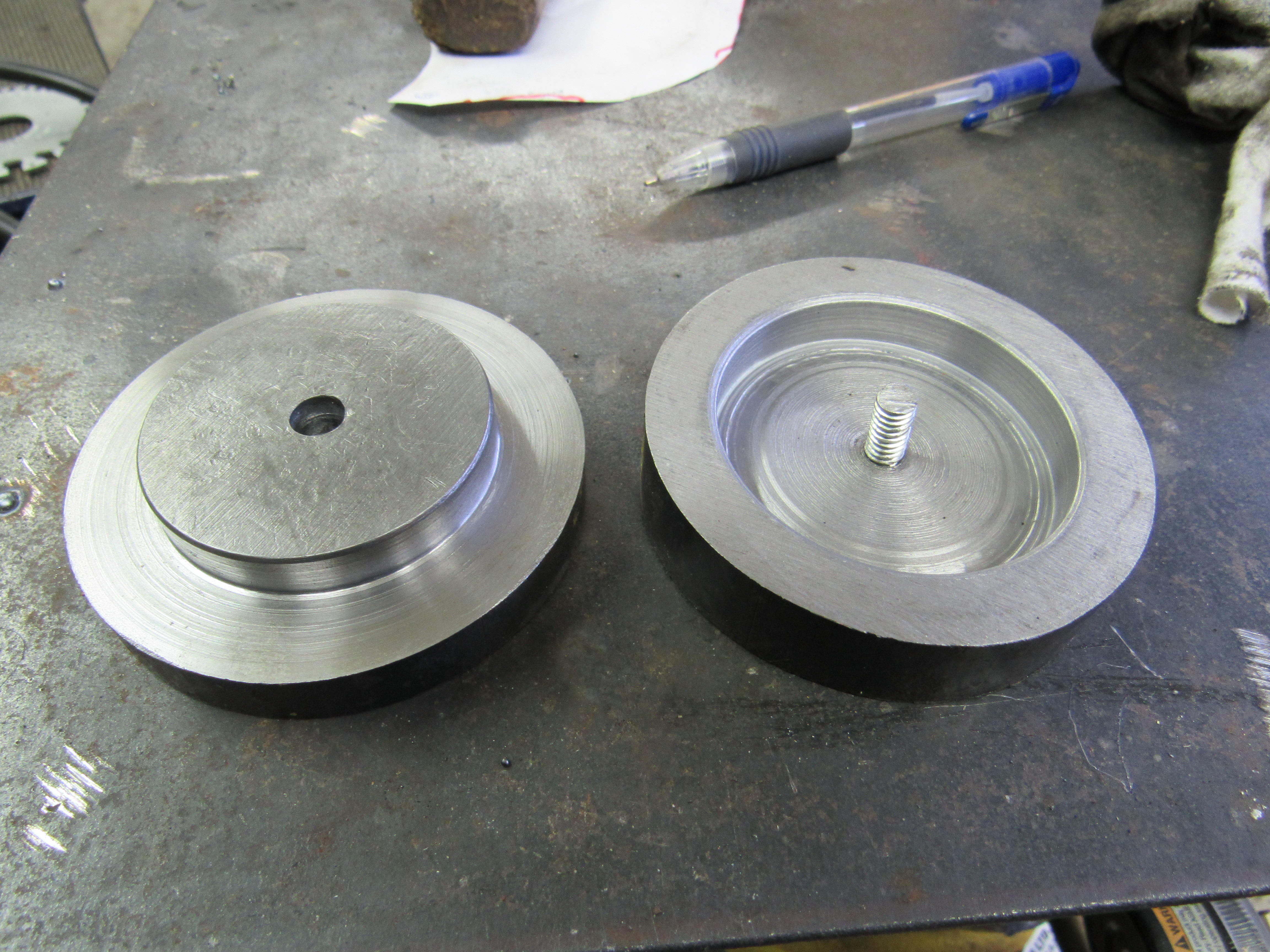

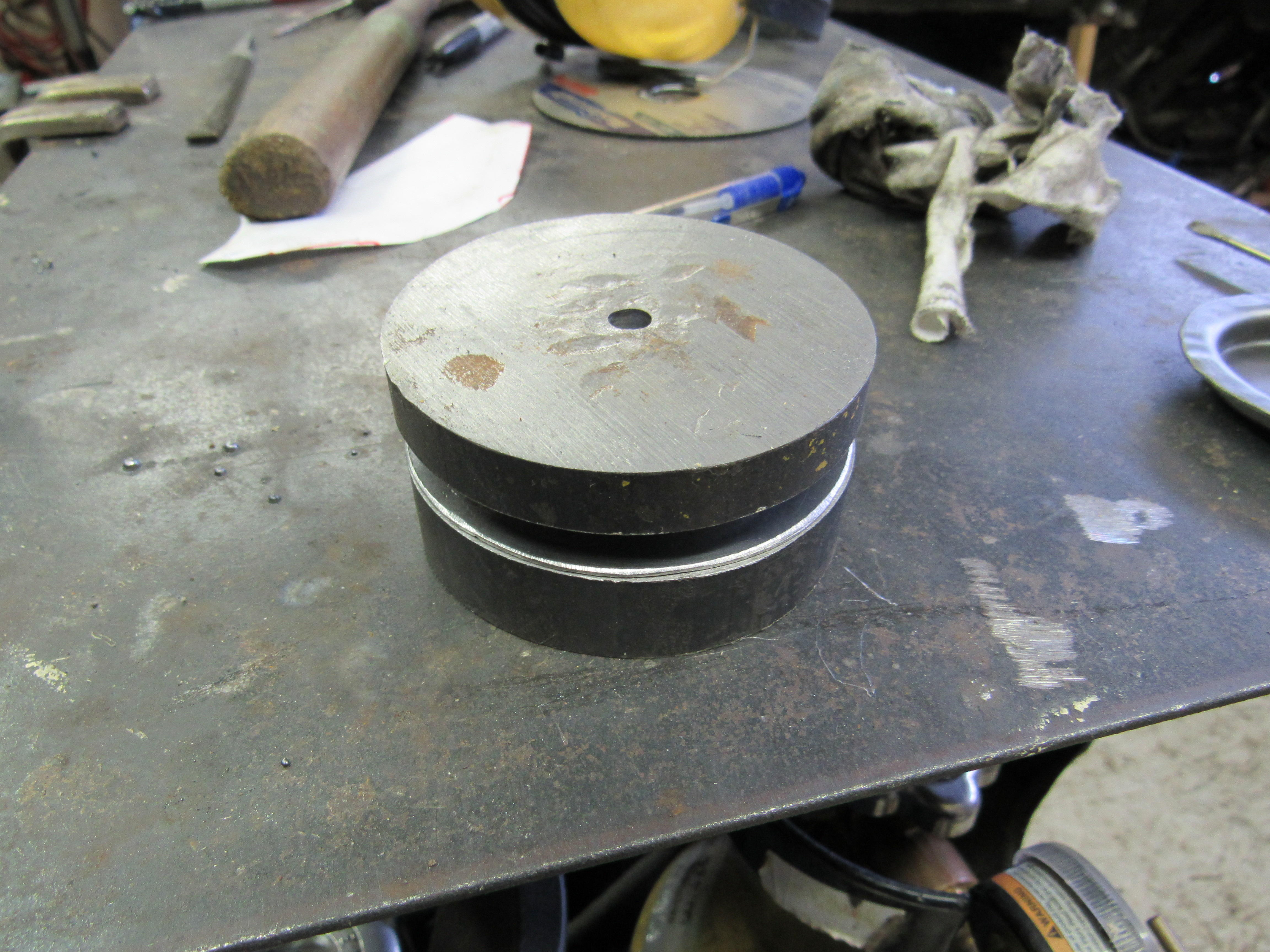

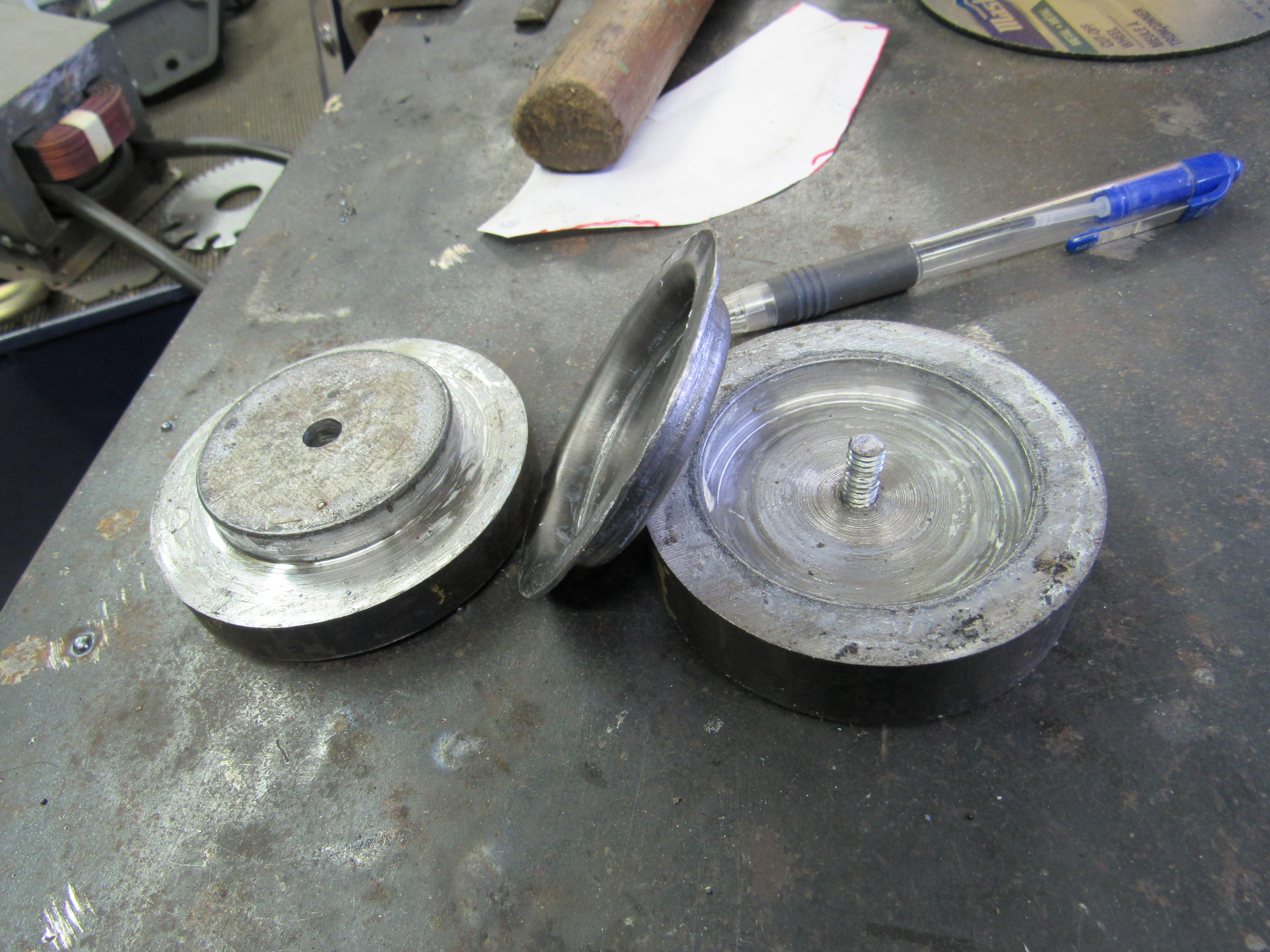

So I made up a two piece press on the lathe for shaping the T/C rod bushing collars, I thought at first my big vise would do the job but then ended up with the press on the anvil using a sledge as a hammer. The blanks are 16ga sheet metal, same as the originals.

If anyone has a need I can punch out a few more, start to finish, about an hour to make 2





Dude!!!!

That is super cool.

Nice work. Makes you wonder how you managed to live all those years without a lathe, right?
