Elliott000

Discussion on idea for "air horn" fix

Recommended Posts

Hey guys, so I posted originally about these in my rusthole thread. Ive found these pictures today and want some z enthusiast responses before I decide my route. I was going to do my best to re create the air horns that go over the wheels but it WILL suck. This guys has cut them off and sheeted it in which add rigidity in the vertical load plane but will it cause weakness that one should consider in the lateral plane?



This would be the easy way out, And yes I understand these are the fresh ait vents on this year of car but   Im not picky about it either way. windows down will be drafty enough.



Thoughts



8F93D2B0-D0E3-4D36-B7F1-90E40D42145B-1691-000002B38123129F_zpsab91a820.jpg008DD184-CB99-4F44-98C0-D260DE960FFB-1691-000002B36059AE1B_zps16231724.jpg

Share this post


Link to post
Share on other sites

That's a really bad idea! They are much stronger as tube type assemblies. If it was that easy to make it right, the factory wouldn't have gone to all the trouble in the first place. Always remember, car manufacturers are notoriously cheap. The don't install "extra" or "unnecessary" parts

  • Like 1

Share this post


Link to post
Share on other sites

I agree, that's why I wanted to discuss it here. I was thinking if I flattened it and added some form of angularity maybe it would or could be better. I already cut some templates to trace and cut the upper steel. Since im no pro level tin basher, I was thinking I might not be able repeat the same round contour but I do have the ability to box it.

Sent from my SM-N950W using Tapatalk

Share this post


Link to post
Share on other sites

You really do need a box structure in that area, plate won't do the job. Building a complete boxed arch like that is pretty high level fabrication but if you don't care what it looks like under the fender you could build it in bite size sections adding each one on to the other and the inner fender at the same time. It might not be pretty but it will work.  With that kind of rot your car may have already sagged a bit, I would support the car under the sub frame only taking cross directional measurements as you go.

  • Like 1

Share this post


Link to post
Share on other sites

That might help make sense of a measurement between strut towers. On the manual it says I can't remember now but my width is 1/4" smaller than factory spec where as the dimensions down at the bottom where the crossmember bolts up are bang on. Should I attempt to spread this to stock figures while I'm at it? Not sure how I would balance out the spread. Car is currently level, i could plumb bob down once I finish the lower frame and make it right I suppose. Similar to when I had to fabricate the axle swap in my truck.... Patience and lots of measurements LOL

Sent from my SM-N950W using Tapatalk

Share this post


Link to post
Share on other sites

If you don't spread it the hood will probably not fit. The engine bay sides are bowing in from the car being on the rotisserie. Get it off the rotisserie and recheck it. I would block it up without using the front of the car. If you have to spread it you check measurements diagonally to say the hood latch to make sure it's square. Did you find the FSM diagram with the dimensions in MM?

Share this post


Link to post
Share on other sites

I have the measurements listed in the FSM. yesterday when I started on the engine bay frame rails I took it off the rotisserie. It now sits supported at the rear bumper and right where the subframe ties to the floor so that I could cut out the front rails unimpeded. Essentially the engine bay section at tis time is free hanging.

Sent from my SM-N950W using Tapatalk

Share this post


Link to post
Share on other sites
4 minutes ago, Elliott000 said:

I have the measurements listed in the FSM. yesterday when I started on the engine bay frame rails I took it off the rotisserie. It now sits supported at the rear bumper and right where the subframe ties to the floor so that I could cut out the front rails unimpeded. Essentially the engine bay section at tis time is free hanging.

Sent from my SM-N950W using Tapatalk


Good! If your measurements are still off, then you will need to spread it before you weld it up. Be careful to not pour the heat to it as you weld or you may get some unintended results. Try to replicate the factory dimensions as close as you can.

  • Like 1

Share this post


Link to post
Share on other sites

Thanks guys I appreciate all the help. I'd hate to get this thing together in a year or two and the friggin hood won't go on!

Sent from my SM-N950W using Tapatalk

Share this post


Link to post
Share on other sites

If I were you, I'd make a wood buck in the shape of the air horn, and then get some sheet metal and start hammering it over. Learn how to shrink and stretch. Could be a fun learning experience.

  • Like 2

Share this post


Link to post
Share on other sites

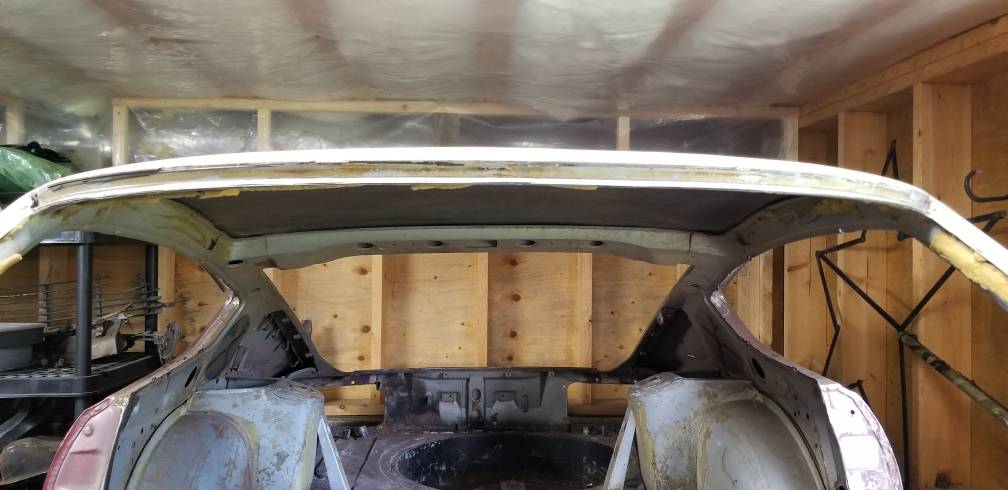

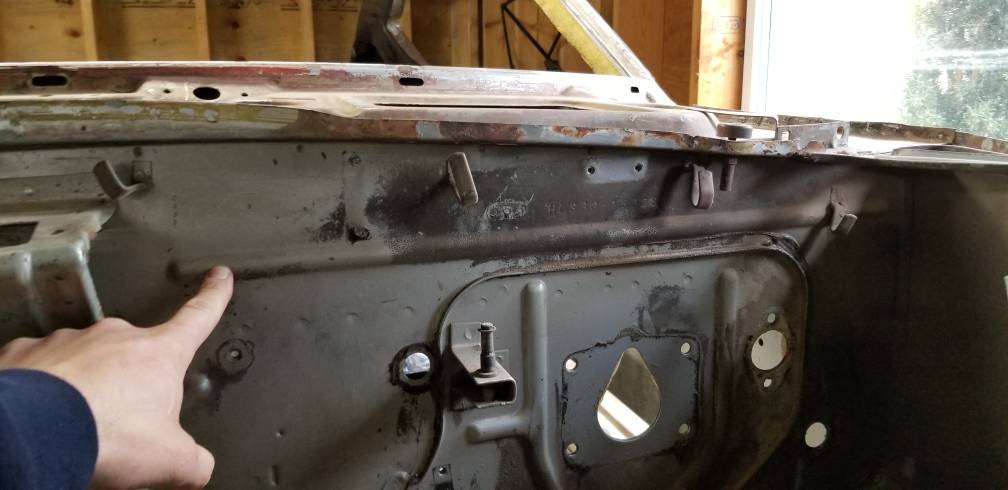

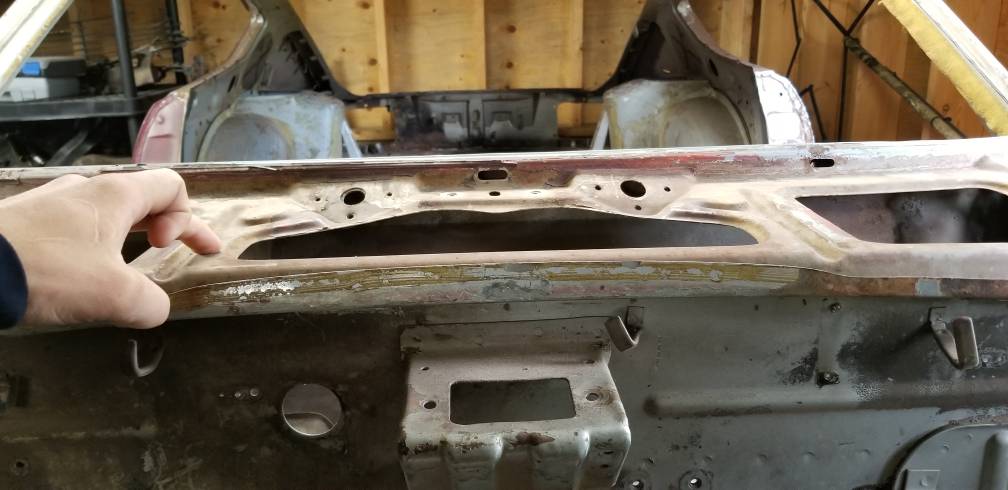

Wheres the best spot on the car to consider it "level and true" I want to have it flat for measurements. See attached pics for my thoughts. That bump in the firewall? Shes straight accross, i was thinking the panel under the cowl as its not dented of buggered or the upper windshield line. I just want the car level before I start shooting elevations with these lower frames rails20180501_090400.jpg20180501_090408.jpg20180501_090415.jpg

Sent from my SM-N950W using Tapatalk

Share this post


Link to post
Share on other sites

How about leveling with the doors sills, front to back and left to right, then back check with these other areas you picked out

Don't use the seams in doors. Get some small blocks to level off of and use a long straight edge to span across.

Share this post


Link to post
Share on other sites



1 hour ago, Patcon said:

How about leveling with the doors sills, front to back and left to right, then back check with these other areas you picked out

Don't use the seams in doors. Get some small blocks to level off of and use a long straight edge to span across.

I like this idea in principle.

The assumption that the door sill surfaces are flat, front to rear, is probably a good one, but should maybe be tested with a straightedge, just to be sure.

The assumption that the door sill surfaces were designed to be parallel to the OE front frame rails' top surfaces is probably also a good one, but hard to prove.  You may need to take this as an article of faith.

The straightedge strategy that Patcon is suggesting would require you to get the support points for the two straightedges (one front, one rear) up high enough so that the they will clear the transmission tunnel.  Maybe a pair of 1"-thick rectangular panels (MDF?) cut to 9" x 30" on an accurate panel saw (like the big ones at Home Depot or Lowes), then crossbraced with a few of lengths of 1 x 2 to hold them vertical, parallel and at the right separation distance.  Once set down on the door sills, you'd now have something substantial on which to lay the straightedges.

Question:  How do you now use these door sill straightedges as a datum to see whether the frame rails run parallel to the door sills?  More straightedges?  Laser?  Strings?  Plumb bobs?

Share this post


Link to post
Share on other sites


This would suggest the door sills are parallel to the datum line.

When you work on a frame rack. The rack can be assumed to be the datum line. So you measure to the rack. If your concrete floor is very flat you could use that. The floor in my shop is not that flat (>1/16"). Strings might work if they are tight enough not to sag. A nice long metal straight edge might be better. A piece of angle iron or tube stock. I have a laser level but I don't think I would trust it to be accurate enough for this kind of work...

  • Like 1

Share this post


Link to post
Share on other sites

I leveled the car with 6" blocks and a straight edge across the door/rocker sills which are straight. The tops of the rear strut towers aswell as the rear trunk deck are all level aswell at this position so that's positive. Moving forward, the existing frame rail accross to where the old one was is level but things are about 3/16 out of whack at the very front so she's got a bit of a twist to it. I'll have to check the manual later today and see where all the datum measurements line up. I think what I will do is hang a fixture ill make under the car and that will be my zero mark then ill install the frames as needed. I'll also try to figure out a true center line. It has suffered some damage at the front so I'd like to triple check everything. On the datum topic. Where is the "position c" physically on the car, in the picture with measurments. There's multiple holes and such under there haha.



Back on topic with the air horns... Ill box those. Im not going to try and tackle the round edges but I will keep the form and dimensions the same



Sent from my SM-N950W using Tapatalk









Share this post


Link to post
Share on other sites
8 hours ago, Elliott000 said:

Should I attempt to spread this to stock figures while I'm at it?

I have made quick and cheap pushers/pullers with threaded rod an a turn buckle.

7 hours ago, rturbo 930 said:

If I were you, I'd make a wood buck in the shape of the air horn, and then get some sheet metal and start hammering it over. Learn how to shrink and stretch. Could be a fun learning experience.

That's what I would call high level fabrication, would love to do that kind of thing but I would probably stretch the hell out of the thing.

  • Like 1

Share this post


Link to post
Share on other sites

I will try to look tomorrow for "C"

Share this post


Link to post
Share on other sites
I will try to look tomorrow for "C"
Is it one of the holes on the bttm

Sent from my SM-N950W using Tapatalk

Share this post


Link to post
Share on other sites
This would suggest the door sills are parallel to the datum line.
When you work on a frame rack. The rack can be assumed to be the datum line. So you measure to the rack. If your concrete floor is very flat you could use that. The floor in my shop is not that flat (>1/16"). Strings might work if they are tight enough not to sag. A nice long metal straight edge might be better. A piece of angle iron or tube stock. I have a laser level but I don't think I would trust it to be accurate enough for this kind of work...
Patcon thanks for all the input. I agree on that drawing showing that the sills can be my level plane. That being said, thier "zero" appears to be the sheet metal floor? That's a tough one because I've replaced the floors therefore it will likely be a couple mm difference than stock. I think with the engine frames I want to be bang on. Just trying to figure out what to call zero then add the measurements to my level plane on top of thier numbers

Sent from my SM-N950W using Tapatalk

Share this post


Link to post
Share on other sites

Made the new recesses for the cross member. Ill be triple measureung and comparing tomorrow before I center punch any holes. I'll probably cut in the sub frame connectors too and then weld it on the bench. I've got a center line and plumb bobs off the strut towers for reference measurement. BUT i do have a discrepancy of 7mm or about 5/16 of an inch on the dimension between towers. I think tomorrow I will fab a bar and bolt it in there to hold em at the 913mm spec while I build all this20180502_192836.jpg1525314643638.jpg1525314691539.jpg

Sent from my SM-N950W using Tapatalk

  • Like 2

Share this post


Link to post
Share on other sites

I've fabricated the driver side rail now and tacked it in place. I'm about 1/16 out of square on the engine bay but I think ill roll with it. Everything seems to line up with my center and outside lines I'm using for reference. I'll fabricate the lower rad support then tackle how I will fix the twist on the upper strut tower pieces of structure. The pass side is pretty straight but the driver side goes low kinda like this guys situation but ot quite as bad and the opposite direction. front-angles-large.jpeg

Sent from my SM-N950W using Tapatalk

  • Like 1

Share this post


Link to post
Share on other sites

Really need a frame rack to twist it or some good jack stands some "D" rings on the concrete floor and some good chain pullies. With some creativity it can be done without a frame rack, just slower and a little more difficult

  • Like 1

Share this post


Link to post
Share on other sites

That's what i was thinking. I have to either anchor the main body/chassis to the ground or I can fab up and basically anchor it from the ceiling so she can't lift. Then jack the side that's low slow n steady till it recovers in the right spot. Im just worried about creating elsewhere

Sent from my SM-N950W using Tapatalk

Share this post


Link to post
Share on other sites

You could just plant a cherry tree in the middle of the shop. I've heard they make great anchors for dent removal and straightening.  @Patcon



  • Like 1

Share this post


Link to post
Share on other sites
