77 280z Water Temp Sensor Issue, Runs Very rough


Samson

Recommended Posts

First thing I notice from the pictures is the throttle return spring is totally incorrect, both in its location and style.

Really? Hmm. Is this big throat throttle body's return spring mechanism same as a stock throttle body? The routing/placement, what is the proper way to fix this? I looked other pictures, and the spring I have thats hooked onto the intake manifold that loops over the throttle linkage shouldnt be there, correct?

Link to comment
Share on other sites

I have a 77 also. I am unsure what a big throat throttle body is, so I am just comparing youre picture to my car. Could you upload a whole engine bay photo?

If you remove the spring (the one in the third photo) will youre throttle return? It is starting to look like this may be one culprit.

Link to comment
Share on other sites

I have a 77 also. I am unsure what a big throat throttle body is, so I am just comparing youre picture to my car. Could you upload a whole engine bay photo?

If you remove the spring (the one in the third photo) will youre throttle return? It is starting to look like this may be one culprit.

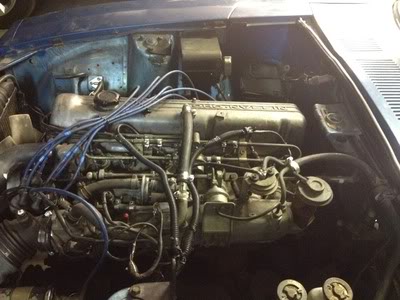

Big throat throttle body as in the "60mm upgraded throttle body" MSA offers. Do you have a picture handy of your throttle linkage setup? I will try and remove the spring in the third photo tomorrow see how that goes. As for the whole engine bay photo this is the only engine bay photo i have when the previous owner sent to me, it's kinda blurry.. i will get updated pictures though. Just bought a valve cover gasket, feeler gauge, timing light and some sea foam. Hope to do a valve adjustment and check the timing on this car I'm new to all this ignition adjustments. Even more afraid to pull the cover off and mess with the valves. Question, when i'm adjusting the first exhaust valve (i know you're suppose to put it on TDC which allows the cam lobe to point up? Correct? So pretty much every single valve (Exhaust & Intake) i want the cam lobe pointing up to make the adjustment from #1 all the way to #6 cylinder?


Edited by Samson
Link to comment
Share on other sites

After work tomorrow I will compare youre setup with mine. I am sure that spring does not belong there, at least it is not stock.

I am not an expert on valve adjustment. Check some of the other writeups. I have tried adjusting the valves hot, as it should be done but I am not fast enough so what I have done is adjust them cold then I warm the engine and check for the hot specs. Adjusting the valves is not hard, it can actually be sort of fun if you are in the mood. eachl lobe should point up when you check clearance. use a remote starter to make life easer. Also it will be a good time to visualy inspect the valve train.

Also do not be alarmed if the rockers seem to be loose when there respective lobe is up, this is normal.

Link to comment
Share on other sites

After work tomorrow I will compare youre setup with mine. I am sure that spring does not belong there, at least it is not stock.

I am not an expert on valve adjustment. Check some of the other writeups. I have tried adjusting the valves hot, as it should be done but I am not fast enough so what I have done is adjust them cold then I warm the engine and check for the hot specs. Adjusting the valves is not hard, it can actually be sort of fun if you are in the mood. eachl lobe should point up when you check clearance. use a remote starter to make life easer. Also it will be a good time to visualy inspect the valve train.

Also do not be alarmed if the rockers seem to be loose when there respective lobe is up, this is normal.

Yeah, i figured that spring isn't suppose to be there.. I was planning to adjust the valves cold, since i know for a fact i'd work pretty slow ha. Okay i think i feel a little more comfortable doing it now. With the remote start, from what i've been reading people say it turns over a little bit too quick?

Here's a video of the car i took the other day when it was having a "fast idle"

Link to comment
Share on other sites

  • 2 weeks later...

Just to check in so far what i've done. Had valves adjusted, timing set, CO % at idle adjusted to about .70% had someone put a gas analyzer on it while adjusting the AFM bypass screw, i mean the car runs damn good now (well to me at least) doesn't reek of fuel idling as bad as before, EGR replaced. Took the car to get smogged again and it still failed! Only the HC's seemed like it lowered compared to last results went from 400ish to around 220 at 15mph and 25mph, still it's not the max emissions, for HC it's like 180ish.. the CO were 6% at 15mph and 25mph max is 1.36%. Went through the fuel injection bible again with the help of a member here on the forum. Did the tests for CO too high poor gas mileage, everything checks out OK, only thing that's off a little is the AFM tests they're about 20-30 ohms off. I doubt that'd have that big of a difference for the CO% to be so dang high? Tested the TPS aswell and i think i was doing it right.. for pins 3-18 at ECU connector the part throttle is that like "barely" moved? It says it should show no continuity. When i have the throttle depressed about hallways from the throttle body linkage (Pushing down) it shows continuity as it says it should for (WOT) but wouldn't it be the other way around? Throttle depressed half ways no continuity, throttle depressed ALL the way continuity? I'm pretty much stuck. Only other possible components i can think of is a leaking injector causing to pour too much fuel when car is in motion?

Edited by Samson
Link to comment
Share on other sites

I've also measured the AFM: i referred to the EFI bible pages (49-51) Okay, the measurement #1 was pins 6 & 8 now this was from the ECU plug( All three measurements were) which was 321 Ohms the EFI bible says measurement should be at approxiamtely 180 Ohms so.. that is definately not righ?, measurement #2 which is pins 7 & 8 257 Ohms EFI states should read (Continuity, small resistance) measurement #3 Pins 8-9 measured 145 Ohms EFI bable states should read approximately 100 Ohms. I haven't actually measured from the AFM itself but i did clean out the flap which Air flow Meter Cleaner.

These numbers are more then 20-30 ohms off. Looks like 40 and 45 off. I'm not positive but I think that it's the ratio between the two numbers that matters most since it's a voltage splitting device. I think that the ECU uses the ratio between what goes out and what comes back to determine where the AFM vane is. The spec. ratio is 1.8 (180/100), your ratio is 2.2 (321/145).

What is the number on your AFM? The guy that put the big throttle body on might have also installed the wrong AFM. Should be A31-060-001 I believe.

Link to comment
Share on other sites

These numbers are more then 20-30 ohms off. Looks like 40 and 45 off. I'm not positive but I think that it's the ratio between the two numbers that matters most since it's a voltage splitting device. I think that the ECU uses the ratio between what goes out and what comes back to determine where the AFM vane is. The spec. ratio is 1.8 (180/100), your ratio is 2.2 (321/145).

What is the number on your AFM? The guy that put the big throttle body on might have also installed the wrong AFM. Should be A31-060-001 I believe.

Oops, sorry should've noted it i purchased another Reman AFM from a member on a forum it looks relatively new here are the numbers i got when i tested this AFM. From pins 6-8 i got 214, pins 7-8 i got 204 ohms pins 8-9 i got 126 ohms. Is it possible that the wiring is bad? May need new re wiring? So now it's 214/126. Also measured the Air temp sensor and it was 1514 ohms had engine warmed up for about 10 mins and the engine temp was about 100 degrees somewhere in that range. But this is measured from ambient air temperature? It was about 50 degrees Fahrenheit specs says should be 3.25 - 4.15

Product # on my AFM now is MF20090

EDIT: Checked if the CSV was leaking too, removed it from manifold started car no drips, nothing was dripping or spraying out.

Edited by Samson
Link to comment
Share on other sites

Kind of confusing, I went back and see in Post #9 that you had measured 180 and 100 with the AFM removed. Was that the replacement AFM or the old one? Now you're at 204 and 126. Is that the connector or at the AFM? Post #9 suggested that your AFM was fine but that you had bad wiring connectins.

For the temperature sensors higher resistance adds fuel. The spec. from the FSM is actually 3.25 kOhms to 4.15 KOhms, so your 1.5 kOhms is actually reading a little lean. If the leanness isn't causing a miss then it shouldn't hurt the emissions. A lean miss can hurt emissions though.

The TPS is just a three position switch that tells the ECU if the throttle is at idle, mid-range or open. The continuity measurements need to match exactly what the FSM calls for. More fuel is added at idle and at open throttle. In the middle the ECU uses the AFM. Your failing the test at the mid-range so the TPS could be the problem.

Did the PO do any other "mods" like a different camshaft or bigger injectors? The "big-throat" throttle body doesn't add much without them. You might check the other engine parts to see if they are stock. I think that FastWoman was right and you'll just have to keep fixing the PO's "upgrades". Looks like you're making progress though.

Link to comment
Share on other sites

Kind of confusing, I went back and see in Post #9 that you had measured 180 and 100 with the AFM removed. Was that the replacement AFM or the old one? Now you're at 204 and 126. Is that the connector or at the AFM? Post #9 suggested that your AFM was fine but that you had bad wiring connectins.

For the temperature sensors higher resistance adds fuel. The spec. from the FSM is actually 3.25 kOhms to 4.15 KOhms, so your 1.5 kOhms is actually reading a little lean. If the leanness isn't causing a miss then it shouldn't hurt the emissions. A lean miss can hurt emissions though.

The TPS is just a three position switch that tells the ECU if the throttle is at idle, mid-range or open. The continuity measurements need to match exactly what the FSM calls for. More fuel is added at idle and at open throttle. In the middle the ECU uses the AFM. Your failing the test at the mid-range so the TPS could be the problem.

Did the PO do any other "mods" like a different camshaft or bigger injectors? The "big-throat" throttle body doesn't add much without them. You might check the other engine parts to see if they are stock. I think that FastWoman was right and you'll just have to keep fixing the PO's "upgrades". Looks like you're making progress though.

Yes, that was the old AFM when i purchased the vehicle that it was installed already everything from post #19 to now is what the vehicle has installed now or whats been done so far. Now that i think of it my AFM connector is cruddy and old there was alot of corrosion on the terminals when i first removed it to swap the AFM i have installed now. I sprayed electrical contact cleaner and cleaned it as best as i could've.

From looking at my recent smog results at 15mph it was 270 and 279 at mph. Maximum is 214 @ 15, and 181 at 25. It is indicating a low-key lean mixture or small misfire but with the CO so high in the 6% range that's also whats making it shoot so high, no? I could be wrong.

Reviewed the FSM again and it just says when testing pins 3, 18 put the pedal to the floor and should show continuity, same thing if i were to do it from the throttle body right? In that case it is showing continuity.

No other mods, when i have valve cover removed its stock cam shaft, one thing i did notice on the intake valve #1 the cam lobe was like gouged right at the corner i wouldnt say a massive chunk was missing but it was about a half an inch knick not in the middle of the lobe but right at the edge i should've got a picture but i totally forgot. Another "mod" the PO did was rewired the whole FI system. It's not pretty. There's tons of excess wires, but the other tests i was doing that the fuel injection bible stated for High CO were checking out OK. Except for AFM from results posted above and the TPS which i'm iffy about. Is it possible how the Fuel injectors are wired to be stuck open? I did the measurements were the voltage checks and #1-#6 all showed battery voltage.

Link to comment
Share on other sites

I think that your HC numbers are pretty close. Small changes will probably get you there. Do you have the vacuum hose connected to your fuel pressure regulator and does the FPR work correctly? Fuel pressure should be ~36 psi with the hose disconnected and 28-32 psi with it connected, at idle.
