Zs-ondabrain

R-T diff mount Group Buy

Recommended Posts

This Group Buy is for the Over the diff mount currently known as the "R/T Mount" That is typically sold on HybridZ.org by a great member named RoostMonkey. I've chosen to make and sell the Mount, not for a profit of any real amount, but as a secondary option to those who cannot find him, or wait for him to build them and ship them.

I asked him about patents and such and got this for an answer....

"No, I dont have a patent. Actually I used Ron Tyler's basic design ( hence the name " RT mount" ) with his permission and added my own little details to make what I feel is a slightly cleaner product. Theres nothing to stop someone from doing the same. If your thinking of making these, do us all a favor and make them better ( if possible ).Dont just copy this design. I only do this to help you guys out and to put a little cash in the Z fund."

So In Honor of Ron Tyler and his original design, I will keep the R/T Mount name on the product, to make sure the originator gets his due respect and recognition. So here we go.........

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

This Group Buy is for the R/T Mount for the S30 Zcars.

Here's a link to some great info on the R/T Mount.. http://www.classiczcars.com/forums/showthread.php?t=35995

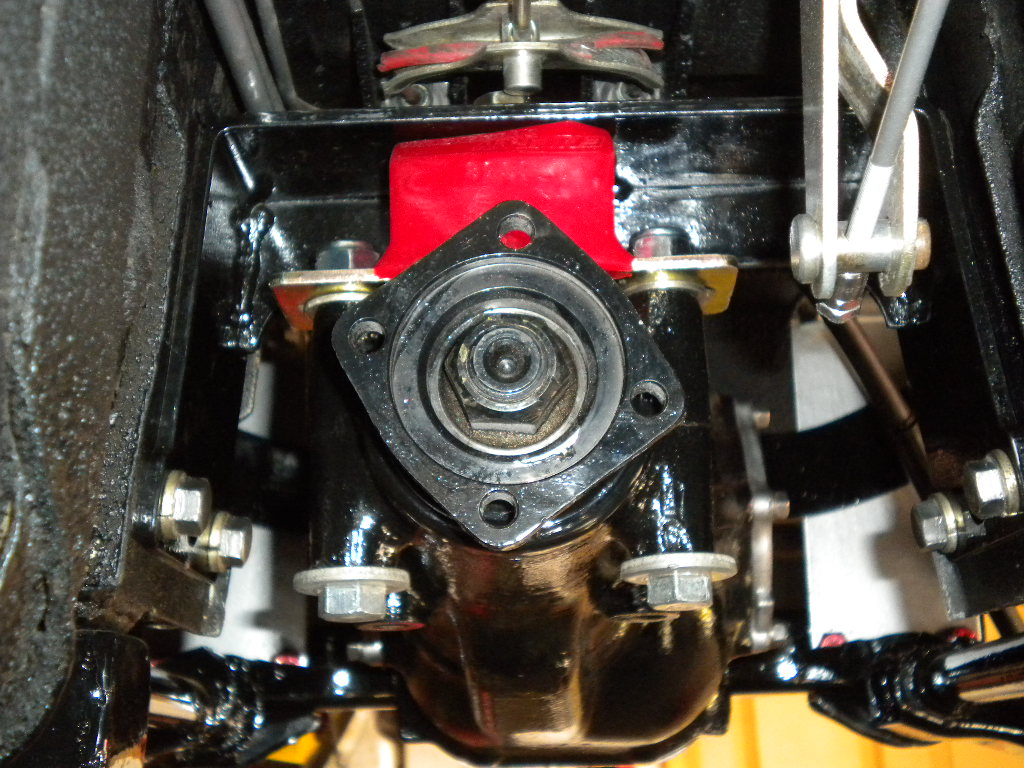

The mount is a 3/16" mild steel mount that bolts to the body of the S30, using the 4 bolt holes that the "Diff Strap" normally uses.

Normally, the stock or upgraded diff of the S30 (R180, R200 & LSD) is mounted to the car using the stock crossmember and a rubber/steel mount. The Nissan mount has been well known for failing under heavy stress, age or Horsepower, by means of the rubber seperating from the steel of the OEM mount. When this happens, the Diff typically makes a Loud and very apparent "THUD" against the driveline tunnel, scaring or irritating the driver and leaving only the Mustache bar to hold the diff in place. Not very safe at all.

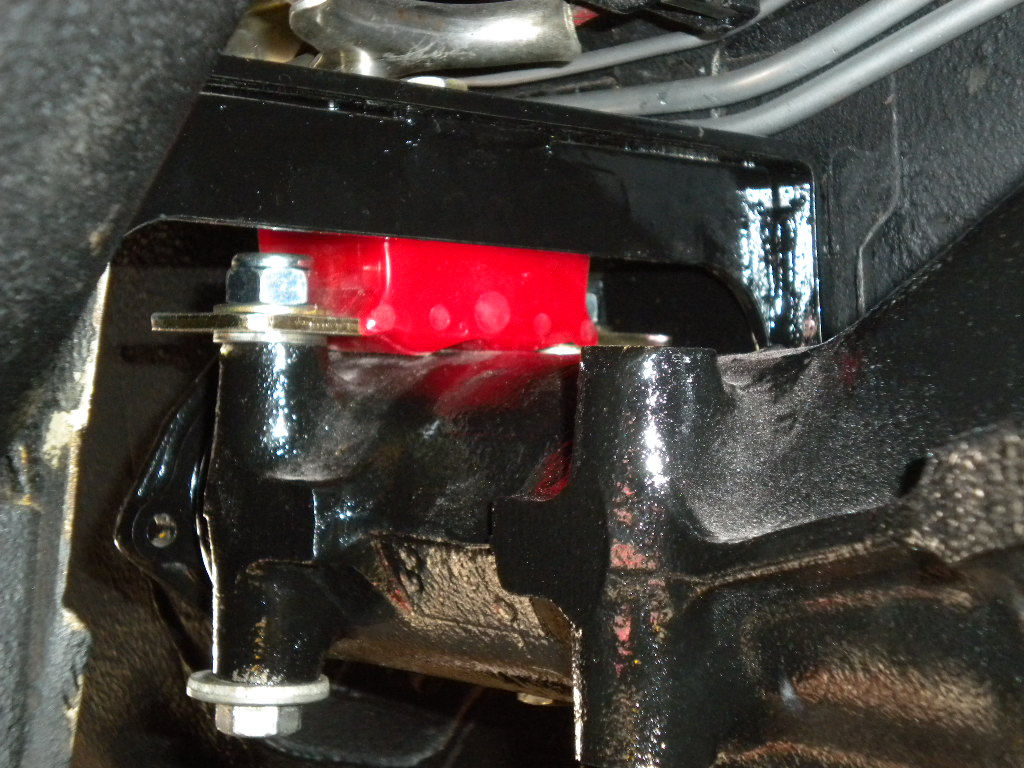

The R/T mount will allow the use of a GM Transmission Poly Urethane Mount and also lower the front of the diff by about 1" which is typically better for those who use the Tranny's bolted to an LS1, SR20DET, RB25, 26 and 30 DET and DETT's as well the Borg/Warner T5 and T56 trannies.

The R/T mount, sold by me, will be $60 and shipping inside the Continental US is included in the $60 price.

The Mount sold at HybridZ is $55 or $62 w/ PayPal. I don't work for a Metal Fab business so I don't get the opportunity of an in-house price. I will make barely anything on this project as I will be paying much more for the same mount and covering the price of shipping, fuel and packaging/stuffing, using the $60 payment.

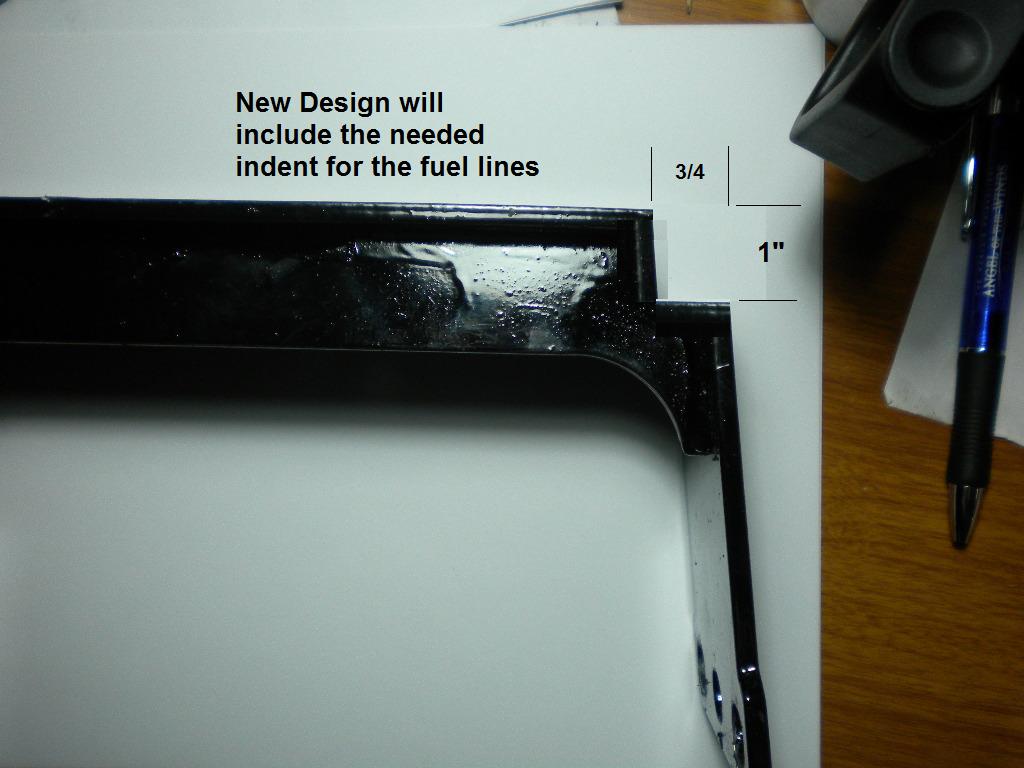

So as per RoostMonkey's suggestion and my own personal experience, I will be IMPROVING the mount. The fuel lines have to be raised on almost all S30's by about 1/2". The NEW Design will include a modification to the mount to account for this small issue. 2 more bends will be added to the design, giving the mount a 3/4"w X 1"deep indent on the upper right hand side of the mount, to allow the fuel lines to remain in their stock location, without alteration or modification of their original position.

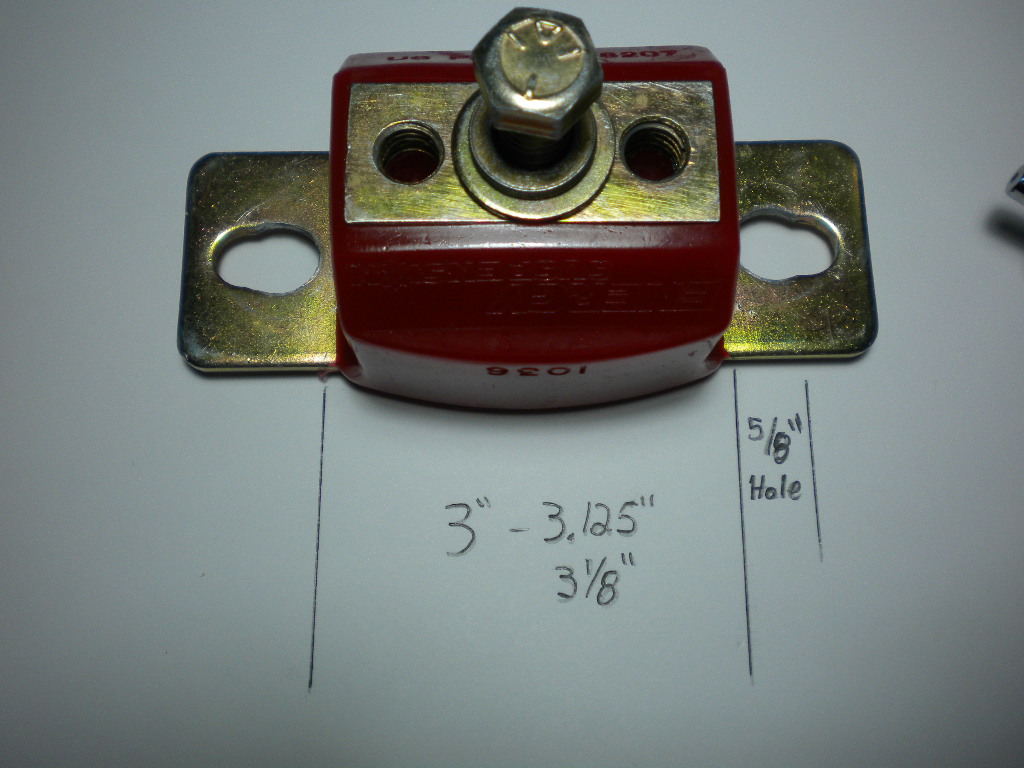

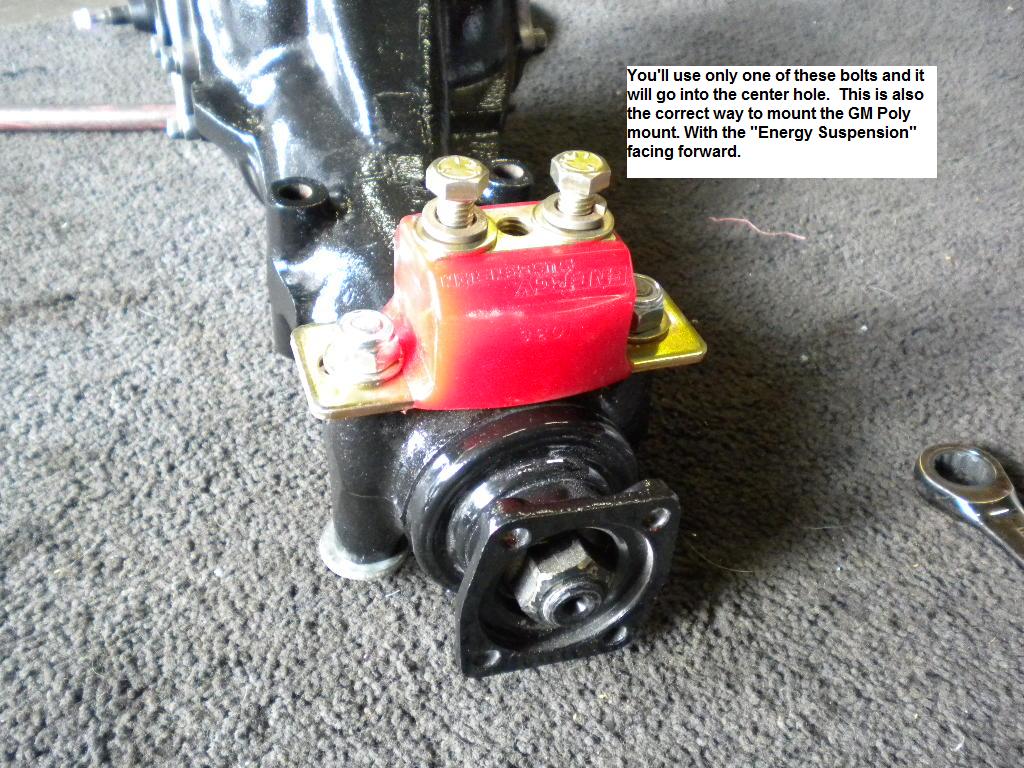

YOU WILL NEED TO ORDER A GM TRANS MOUNT FROM JEGS FOR $21+S/H and drill out the mounting holes a little bit to allow the large diff bolts to pass thru it **Pics Below** It is a "Fail Safe Mount" so even if the Urethane rips or seperates, the mount will NOT fail.

It has also been pointed out by a few members that a bump stop can used instead of the GM mount. This will allow the use of the stock mount and a bump stop mounted on the R/T mount, to essentially "Sandwich" the diff. This will eliminate both up and down movement of the diff.

Now the down side...... I do NOT have a PayPal Account I can only accept Cash, USPS Postal Money Orders or WalMart Money Orders Made out to David W. Irwin. Send your Payment with your order stating.........

Your Name

Return Address (clearly printed or typed)

Quantity

Mail your order to me at........

David W. Irwin

6421 105th St. NE

Marysville, WA. 98270

You can PM or Email me your request but money and an order in my hand, is what will get you your mount.

Todays date is Nov 10, 2009. I'm told that I will possibly be able to start shipping orders by next Wednesday, the 18th. Or maybe even sooner if possible. I'm ordering a batch of 50 in hopes of taking care of everyone at the general moment. I'll be on a net 30 so if you said you WANT one, and change your mind, it'll come out of my pocket. So please be kind to this somewhat broke individual and don't tell me you want one, then say, maybe? or next month. At a measily price of $60, you'll get a quality product that will bolt into your S30, improve the mounting of your stock diff, allow you to "up" your HP without worry of a torn mount.

I think I've covered everything. So feel free to start sending me your orders and payment and I will start shipping them out hopefully as soon as the 18th.








Edited by Zs-ondabrain
rewrite in proper form

Share this post


Link to post
Share on other sites

I'm looking for one for my 71Z...Haven't heard a response from him in over a week on the Hybrid thread.

Share this post


Link to post
Share on other sites
I'll take 3......Guy
I'm looking for one for my 71Z...Haven't heard a response from him in over a week on the Hybrid thread.

Well, that's a start. The more orders I get, the cheaper I can sell them for.

At 20, I can sell them for $60 w/ 2-3 day shipping in the US.

At 30, I can sell them for $55 w/ 2-3 day shipping in the US. Not 5 to 7 days like Roostmonkey does.

Anyone else? I know I need a second one for my own Z. (My 240Z)

Should I start a thread?

Dave

Edited by Zs-ondabrain

Share this post


Link to post
Share on other sites
Well, that's a start. The more orders I get, the cheaper I can sell them for.

At 20, I can sell them for $60 w/ 2-3 day shipping in the US.

At 30, I can sell them for $55 w/ 2-3 day shipping in the US. Not 5 to 7 days like Roostmonkey does.

Anyone else? I know I need a second one for my own Z. (My 240Z)

Should I start a thread?

Yeah, should probably move this into the Group Buy forum.

Share this post


Link to post
Share on other sites

I made the mistake of paypalling Roostmonkey. He added a comment to his Paypall thread saying to stop sending money. I've heard nothing else from him, so I am interested, Dave.

Share this post


Link to post
Share on other sites

So by my count,

I want........... (1)

ConchZ.......... (1)

vercingetorix... (1)

Motorman7..... (1)

Diseazd.......... (3)

SteveE.......... (1)

Zedyone_kenobi (1)

Z_Tyler_Z.......(1)

That's 10. 20 more and ya'll save $5. Or 10 more and we're good for an order of 20. Half way there in less than 6 hours. I figure another day or 2 and we'll have enough.

ARNE,

I don't wanna make it "Official" unless it's a sure thing. So if all of a sudden, orders start coming in via posts on this thread, then YES, move it to the group buy area. But lets see where this goes.

Dave

Share this post


Link to post
Share on other sites
Assuming it will fit my early 260, I'll take one also!

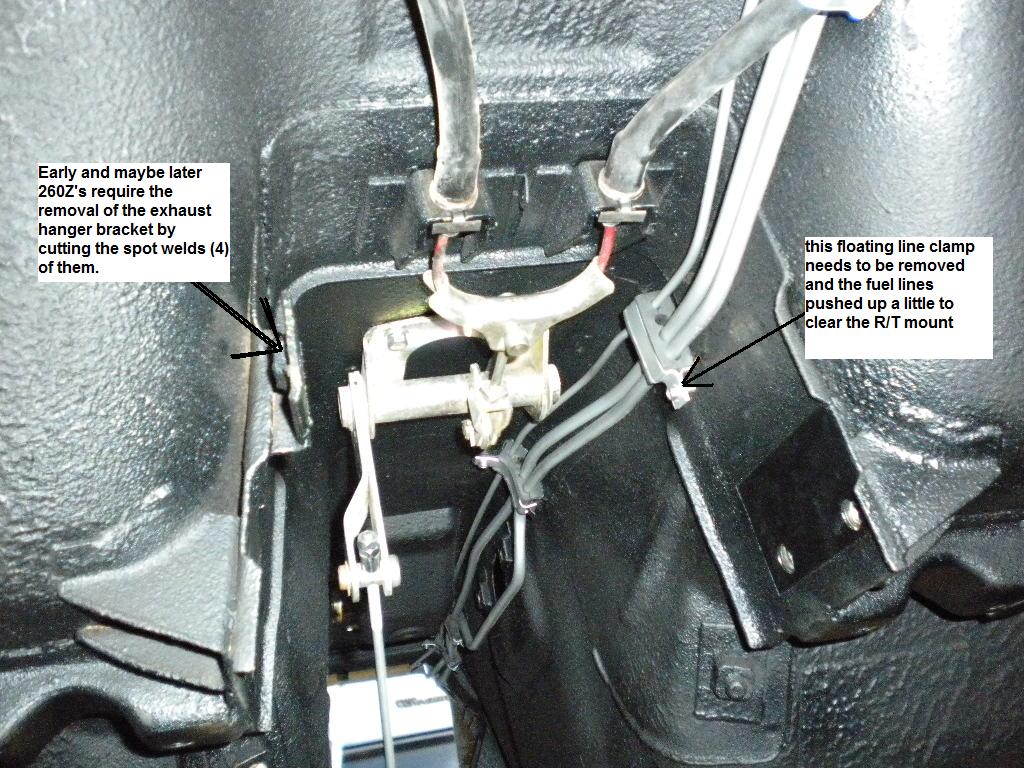

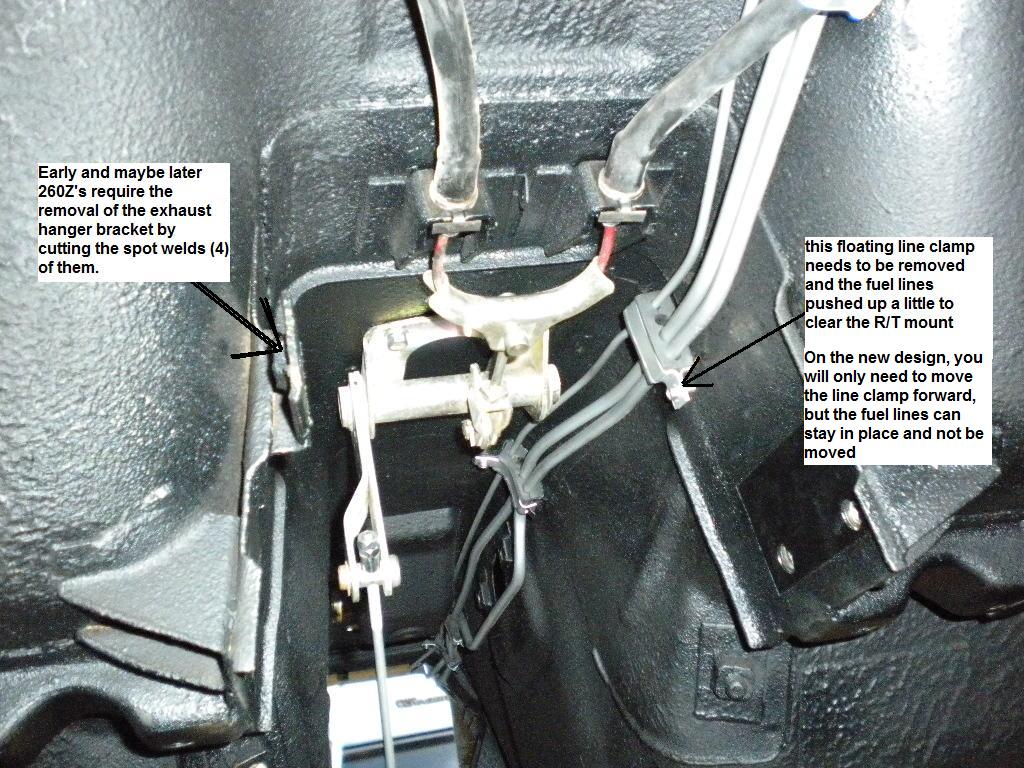

It will but you'll have to remove that exhaust hanger that is spot welded to the body, just above the drivers side, strap bolt holes. You'll also have to push your fuel lines upward, about an inch or so, after you remove the floating line clamp that sits above the passenger side, strap bolt holes.

Dave



Share this post


Link to post
Share on other sites

Seems like you could get these made up in a 40 batch, package it up with the appropriate GM mount and maybe offer a frame snubber option, and sell them through MSA like your wiring packages.

Share this post


Link to post
Share on other sites

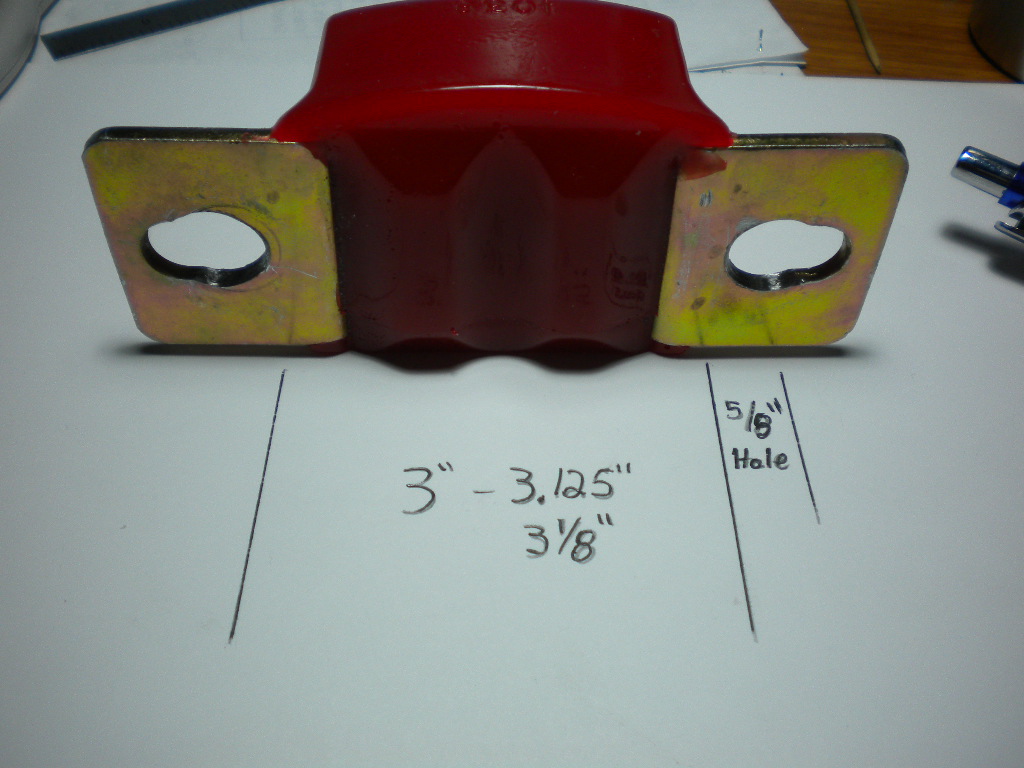

I've thought about it. And the GM mount actually needs to have it's mounting holes widened a little to clear the girth of the large diff mount bolts. The GM mount is only $22 at Jegs.

If I do a 40 order with the GM mounts, I'd be into it for about $2000. so I would need some definate orders before considering a large order like that.

If I charge $30 for the GM Poly mount, I would also enlarge the holes before shipping everything out. I figure the easier it is, the better it sells, kinda like the upgrades for the 240Z's. Plus it takes an aproval committee for MSA to commit to buying anything other than a test run quantity.

Plus, so as to not infringe on a name-sake. I'm thinking "ZS Mount" or Z/S30 Diff Mount"

Dave

Edited by Zs-ondabrain

Share this post


Link to post
Share on other sites

Dave, count me in as well. I am stalled on my rear end rebuild. I want to replace the mount while I am back there. I havent heard from the Hybrid thread in over a month and would like to get the mount asap.

Share this post


Link to post
Share on other sites

OK, I'll call my metal guy tomorrow and see what the time frame would look like. Damn, all I was looking for was interest. Now I might have to actually go thru with it. why do I do this to myself? why :stupid: why :stupid: why? :stupid:

ya'll know I love you guys ;)

Dave

Share this post


Link to post
Share on other sites
OK, I'll call my metal guy tomorrow and see what the time frame would look like. Damn, all I was looking for was interest. Now I might have to actually go thru with it. why do I do this to myself? why :stupid: why :stupid: why? :stupid:

ya'll know I love you guys ;)

Dave

I'm LMAO here! I think I said this same stuff after I started getting in deep in the Bolder Tint deal. Which is finally moving along nicely, BTW, but way more headache than I thought it'd be.

I might be interested in one too, Dave. You know my car and how I do my mods, how reversible is the RT mount? Could I go back to stock later without traces?

Share this post


Link to post
Share on other sites

Dave, am assuming this will work on a 70 Z with an 83 R200 diff and 5 speed tranny? I ask because the original holding strap does not work as everything is shifted forwards with the newer drivetrain. Am using a makeshift L-bracket to hold the diff/tranny down in its place, crude but effective for now. Your thoughts?

Share this post


Link to post
Share on other sites
Dave, am assuming this will work on a 70 Z with an 83 R200 diff and 5 speed tranny? I ask because the original holding strap does not work as everything is shifted forwards with the newer drivetrain. Am using a makeshift L-bracket to hold the diff/tranny down in its place, crude but effective for now. Your thoughts?
Good question! My diff is still in the stock '71 (more forward) location. So I'm thinking the RT mount would still fit fine as long as I don't move the diff rearward. Sound right?

Share this post


Link to post
Share on other sites

I want one now also. I'm not sure how long the other guy on HybridZ is going to take, but I didn't get a response from him in the thread.

I need a mount for my 1977 280z, and hope it's all plug and play, because I don't want to have to cut/re-weld, or drill new holes or something.

Share this post


Link to post
Share on other sites
Good question! My diff is still in the stock '71 (more forward) location. So I'm thinking the RT mount would still fit fine as long as I don't move the diff rearward. Sound right?

It has 3 holes in it so it fits regardless of what position the diff is in. At least the one I got from roostmonkey fits in my 70...

Share this post


Link to post
Share on other sites

The Mount is typically used more by guys with the R200, LSD or quaife LSD. So I know it works well for them. I also know that I have a stock R180 in my 260Z and the mount works great there as well. I just read 15 or more pages at HybridZ and it looks like NO ONE has had issues with all the different diff combinations.. R180's R200's SX and Infinity diffs.

I've also found that the flexibility (front and back movement) of the Mustache bar, allows for the fine adjustment of different types of diffs and mounts. Roostmonkey has it in his 70 ZXT and I've also read of it in all other years of S30's. Minor mods may be needed (like me having to remove the exhaust hanger bracket and moving the fuel lines up) but as said, they are minor mods and nothing seems to be permant or unreversable.

I know from doing mine that I could easily remove it and bolt the strap back in, if need be. My suggestion, when installing the mount, is to loosely instal the poly mount to the diff (just turn the nuts on) and then the top bolt that goes thru the rt mount can be screwed to the mount at a slight angle because of the width of the hole in the top of the RT. Basically, loosely mount everything and it'll bolt right up, then tighten it all down from there. I did it and it worked well for me.

and on the plus side, If someone orders it from me, and they find it won't work with their particular application, 1) it will still ne a "New" product and easily resold to the next guy or 2) return it to me for a full refund and I'll just resell it to the next person who want one. Pretty easy solution. OR 3) sell it to someone else and help them instal it for a small fee, see there, now ya made money and a new friend... LOL

Dave.

So by my count,

I want........... (1)

ConchZ.......... (1)

vercingetorix... (1)

Motorman7..... (1)

Diseazd.......... (3)

SteveE.......... (1)

Zedyone_kenobi (1)

Z_Tyler_Z.......(1)

260ZCaliCar.....(1)

MEZZZ...........(1)

ARNE.............(1)

Duffman.........(1) ??? Maybe

RT Hunter.......(1)

That's 15 as of 8pm on Monday. I'll keep updating and call the metal guy tomorrow (tuesday) and try and get an aproximate finish time on the first 30? or so. This is weird yet exciting all at the same time.

Dave

Edited by Zs-ondabrain

Share this post


Link to post
Share on other sites

You should PM those guys in the other thread at Hybridz.org that doesn't know already about this one. I saw some post of there that are interested.

Share this post


Link to post
Share on other sites
You should PM those guys in the other thread at Hybridz.org that doesn't know already about this one. I saw some post of there that are interested.

Ya, I lot of them are the same one that have already posted here, wanting one. That's one of the reasons I figured I'd see what the demand was here at ZCZZ. Truthfully, I'd like to see how far we get here before spreading too much word over there. If the orders pile up here, there should be a few straglers over there to take up the slack.

Share this post


Link to post
Share on other sites

I think I'd want to do mine with the stock lower mount and a top snubber, if for no other reason than it would be less noticeable that way. I'm kinda funny that way...

Share this post


Link to post
Share on other sites
I think I'd want to do mine with the stock lower mount and a top snubber, if for no other reason than it would be less noticeable that way. I'm kinda funny that way...

It's a great idea, kinda snug but definately would look stock to the untrained eye.

Actually, you'll hear of a lot of guys doing it that way.

Dave

Edited by Zs-ondabrain

Share this post


Link to post
Share on other sites

Dave, you can add me to the list, just please confirm what we are buying. I have seen different pics of brackets, etc, but want to see what it is you will manufacture and sell to us. Will the diff and tranny have to be removed to install, or is there an easy way to do this? Again, you can take the question marks away and add me to the list!

Share this post


Link to post
Share on other sites
