1976 Datsun 280Z - Wiring Diagram - Non-California 1.0.0

(1 review)

By LorenB667

1 Screenshot

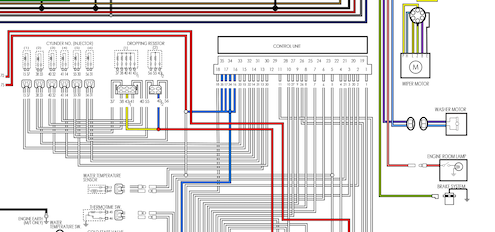

This is a wiring diagram created in Adobe Illustrated and saved as a PNG file. It is a large graphic file.

This does not include California specific or Automatic Transmission specific components.

This is for Federal, Manual Transmission, and Factory Air Conditioned 280Zs.

  • Like 1
Previous File WiringDiagramDatsun240Z-1972

User Feedback
Proficient

Seppi72


A very nice file to have and WAY more detailed than the FSM diagram for my 1972 car.  I especially like that it shows the various harness connectors used throughout.

Response from the author:

Thank you so much!
