ARA air conditioning installation instructions

[zed2]

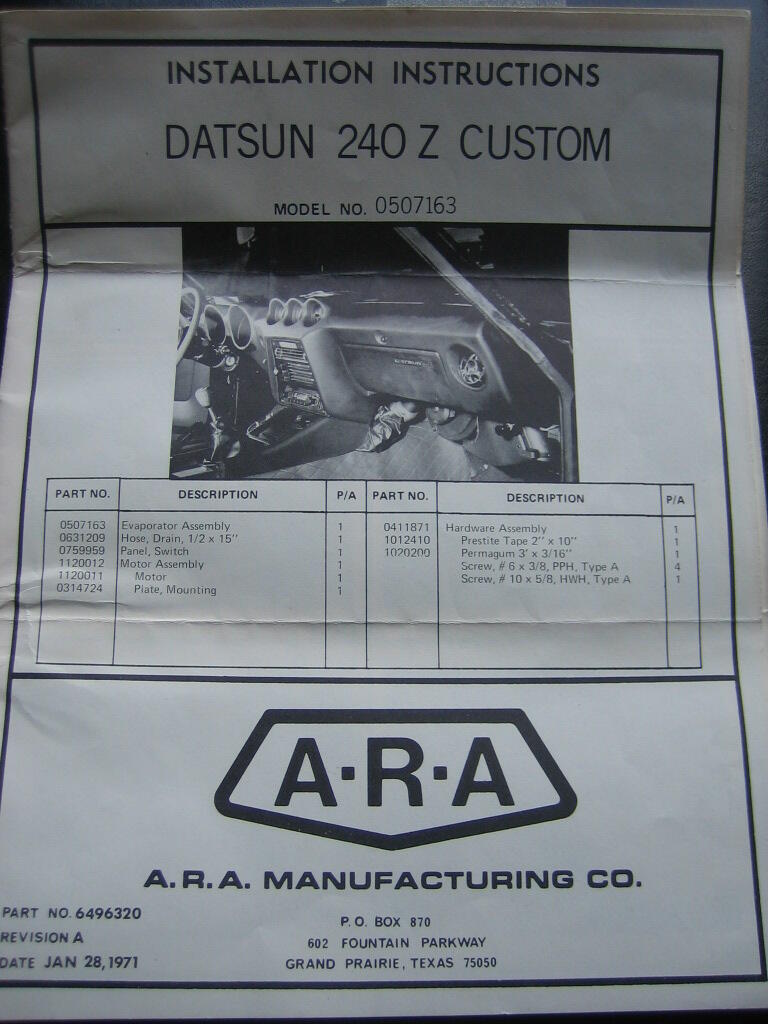

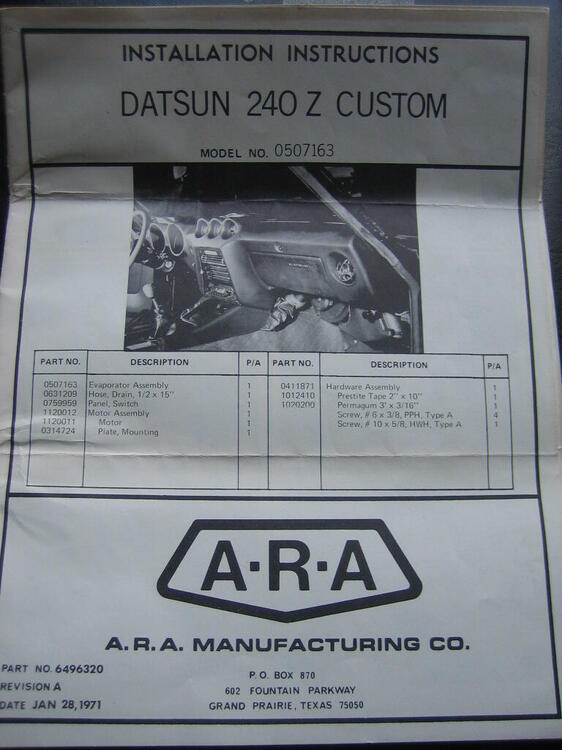

Does anyone have a pdf the complete 240Z ARA air conditioning installation instructions?  (Sadly, I found only Page 1 on the internet.)

Thanks,

Keith

[Patcon]

Hoover???

@240260280

[psdenno]

Here you go, my copy from when I had it installed in 1972.ara1.pdfara2.pdfara3.pdfara4.pdfara5.pdf

[Patcon]

Maybe move those into the technical resources section?

[psdenno]

Just now, Patcon said:

Maybe move those into the technical resources section?

Good idea.  I've carried that paper copy around for 50 years just waiting for someone to ask to see it and no telling how many more years I will be making it available.  😎

[zed2]

psdenno,

Thank you so much.  I am trying to remount the blower fan under the heater core and am not certain the attachment point of the left side blower fan mount.

ara5.pdf is not legible to the mounting point. Do you have any photos of the mounting?

Thanks,

Keith

[psdenno]

15 hours ago, zed2 said:

psdenno,

Thank you so much.  I am trying to remount the blower fan under the heater core and am not certain the attachment point of the left side blower fan mount.

ara5.pdf is not legible to the mounting point. Do you have any photos of the mounting?

Thanks,

Keith

I can try to get a cleaner scan of that page and will post if it works.  I removed the ARA A/C set up many years ago when I upgraded to a more modern system with a rotary compressor.  So, I'm unable to visually check for the attachment point you referenced.

Good luck with your project and thanks for the question.  It gave me an excuse to dig out old Datsun files.  November 2021 marked the 50th anniversary of when I bought my Z.  The ARA A/C was installed in 1972.

[zed2]

40 minutes ago, psdenno said:

 November 2021 marked the 50th anniversary of when I bought my Z.  The ARA A/C was installed in 1972.

Original Z owner....very impressive.

I've only owned mine for 35 years.

Keith

[psdenno]

3 minutes ago, zed2 said:

Original Z owner....very impressive.

I've only owned mine for 35 years.

Keith

Newby!  😎

[240260280]

https://www.zcar.com/threads/1972-240z-with-ara-air-conditioning.356474/
