1971 HLS30-14938 "Lily" build

Recommended Posts

I have been remotivated by Wheee! and siteunseen and others build threads. So I have decided to get serious about getting this car running and finished. So to keep up with the Jones or the Jones'n in Cliffs case I decided to start a build thread to sort of bring everyone up to speed on where I'm at...

Bought the car from a guy in Charlotte that had it shipped from out West. He is registered here but really spends more time at Hybrid Z

That was late 2008 or early 2009...

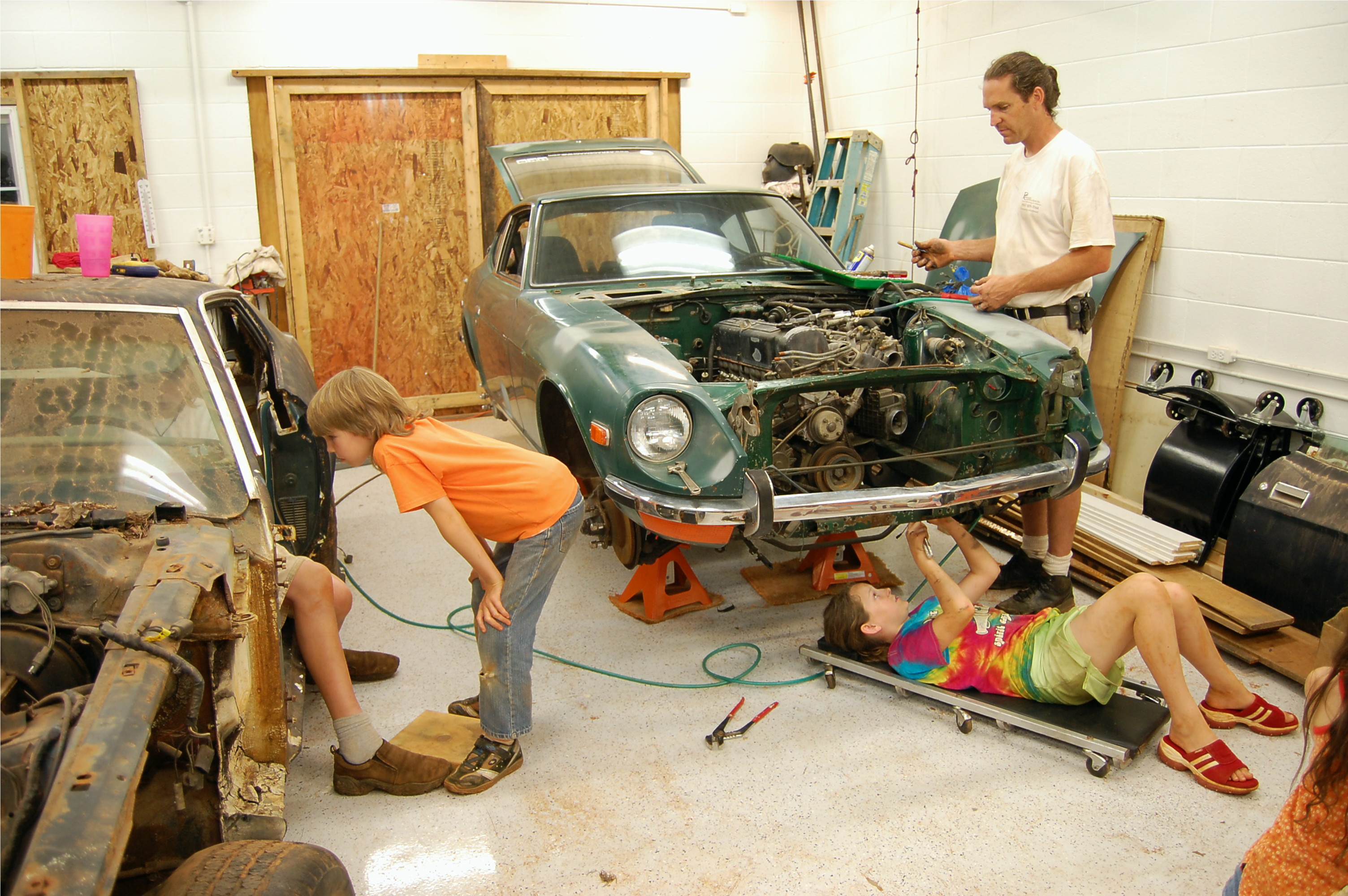

Stripping the car down Sept 2009090529c.JPG

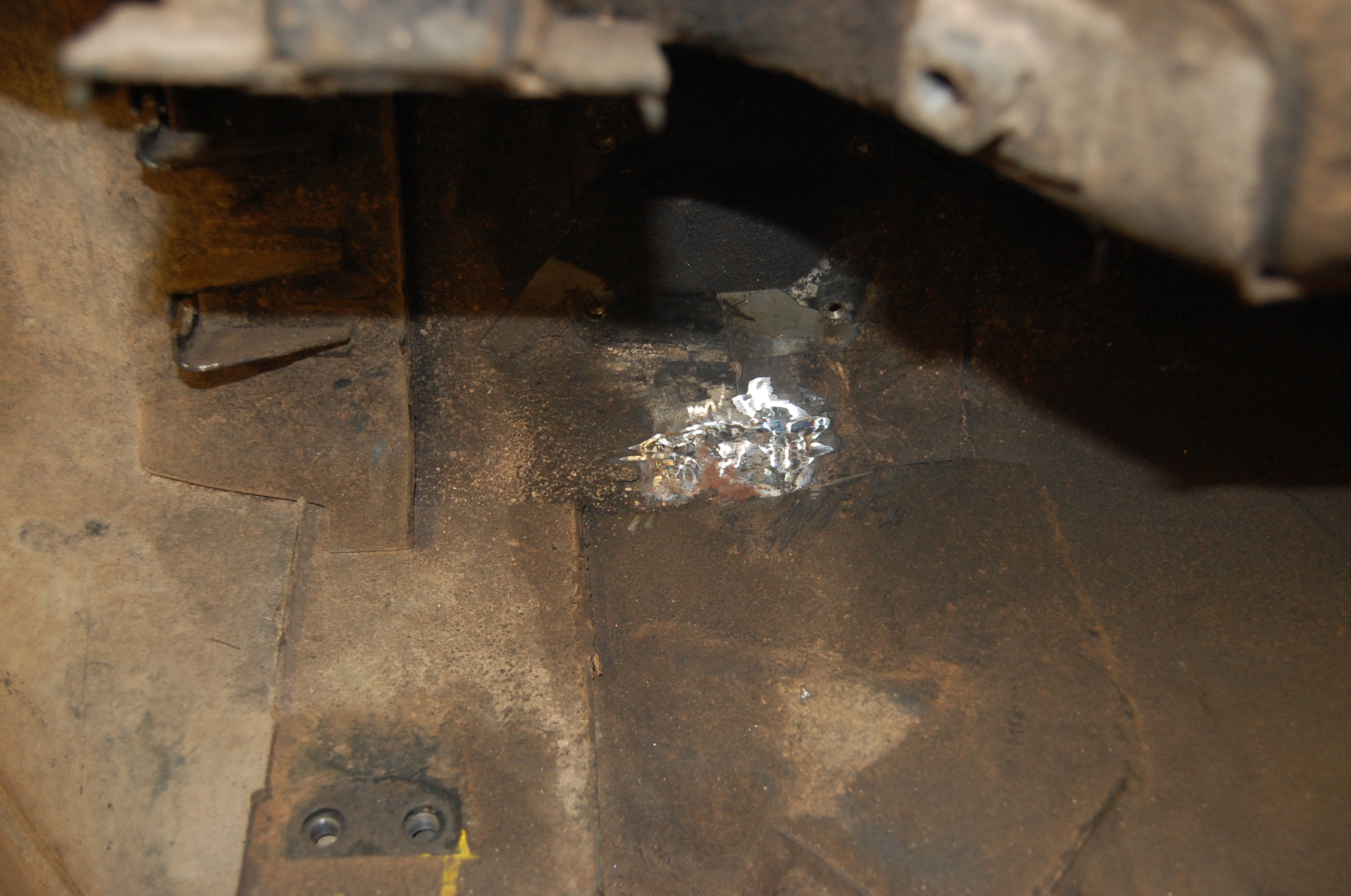

Chipping sound mat out January 2011

Don't you wish you could be that happy about chipping out sound mat LOL




  • Like 3

Share this post


Link to post
Share on other sites

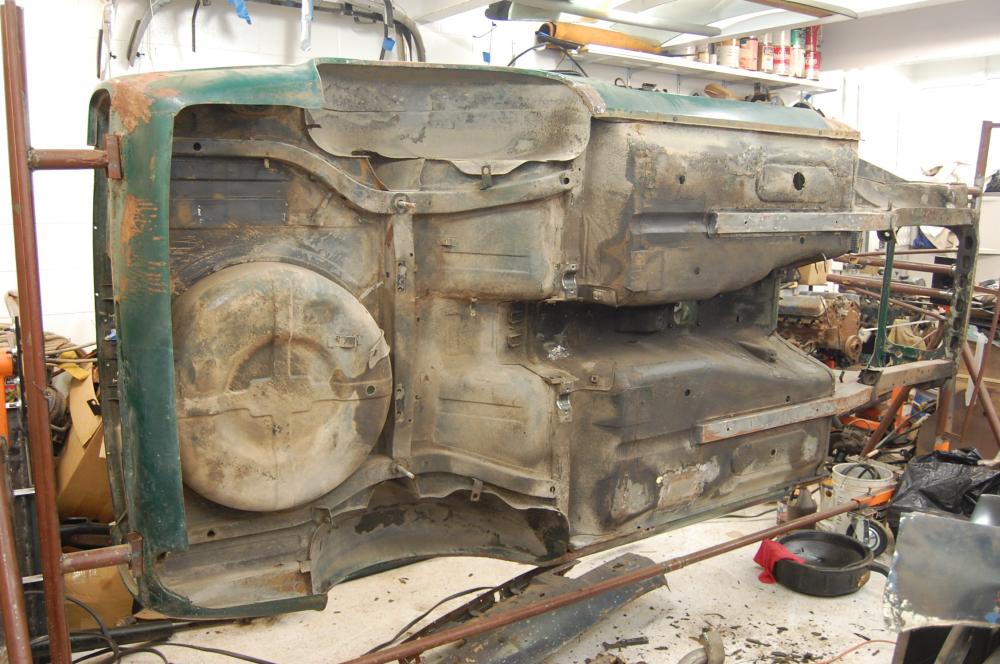

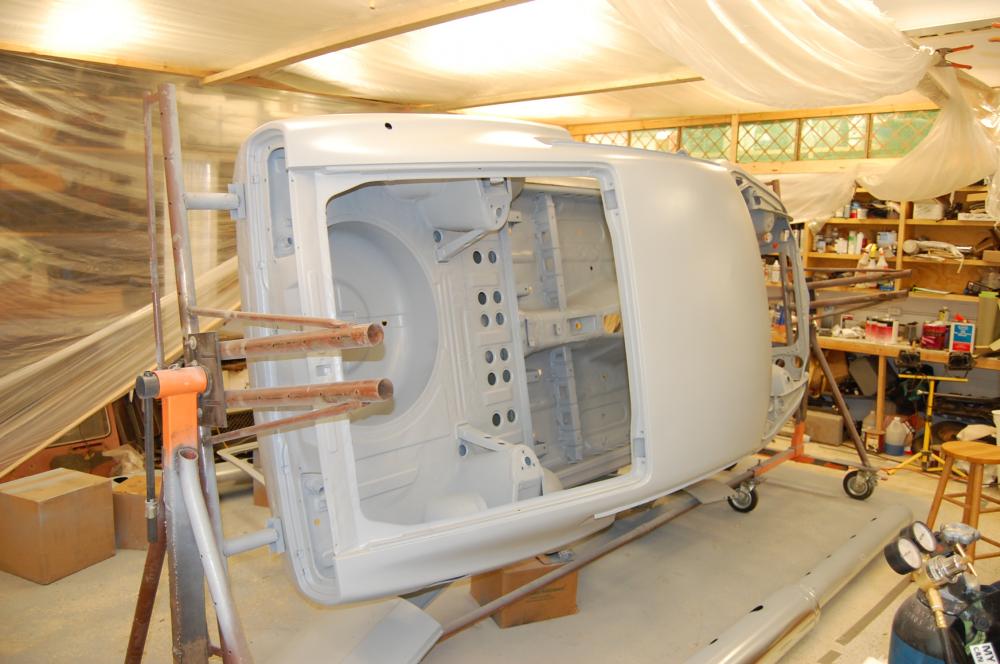

January 2011 up on the rotisserie and all stripped down

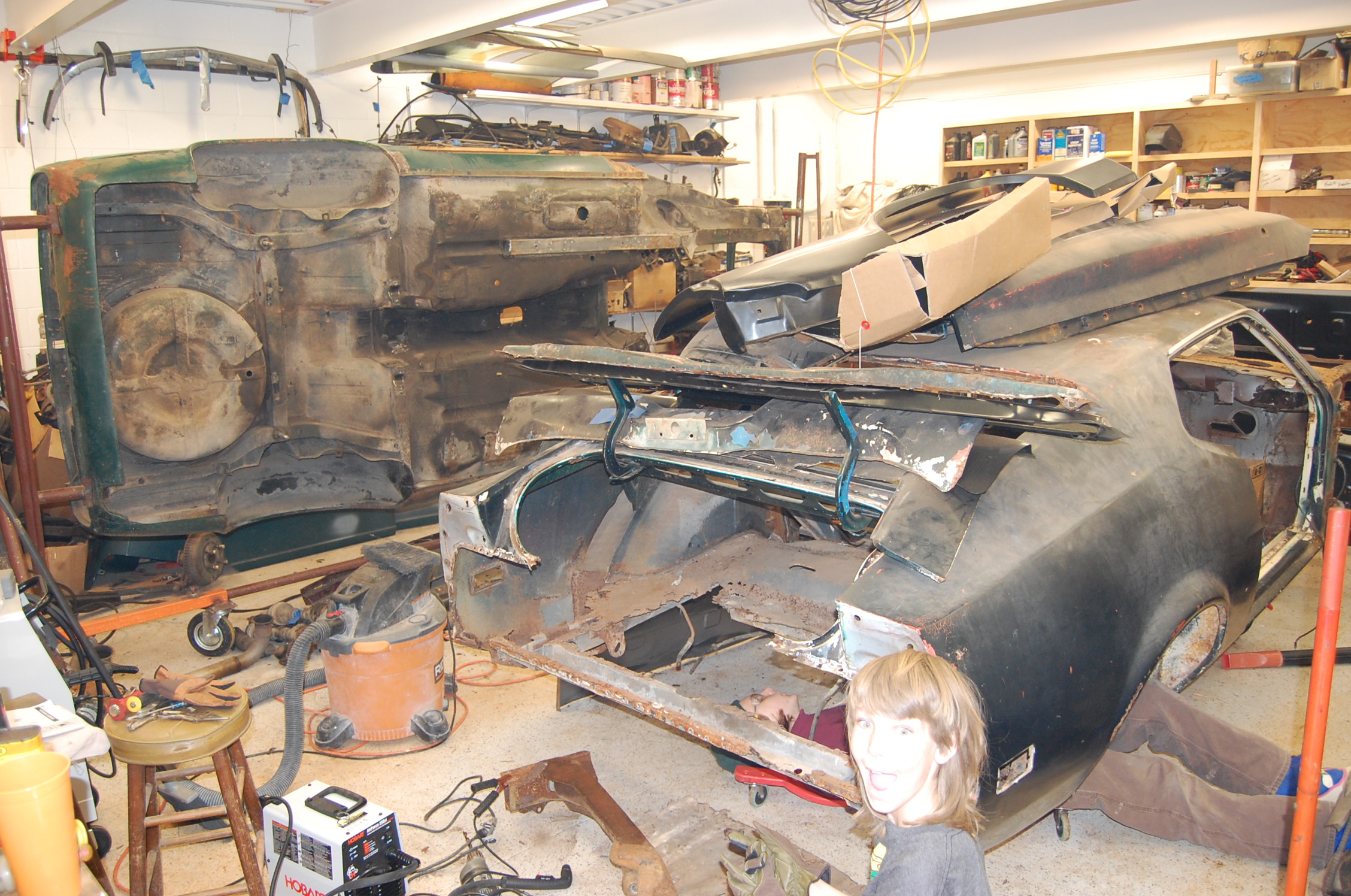

The shop was really crowded at this point. We eventually gave up on the Mustang...








Share this post


Link to post
Share on other sites

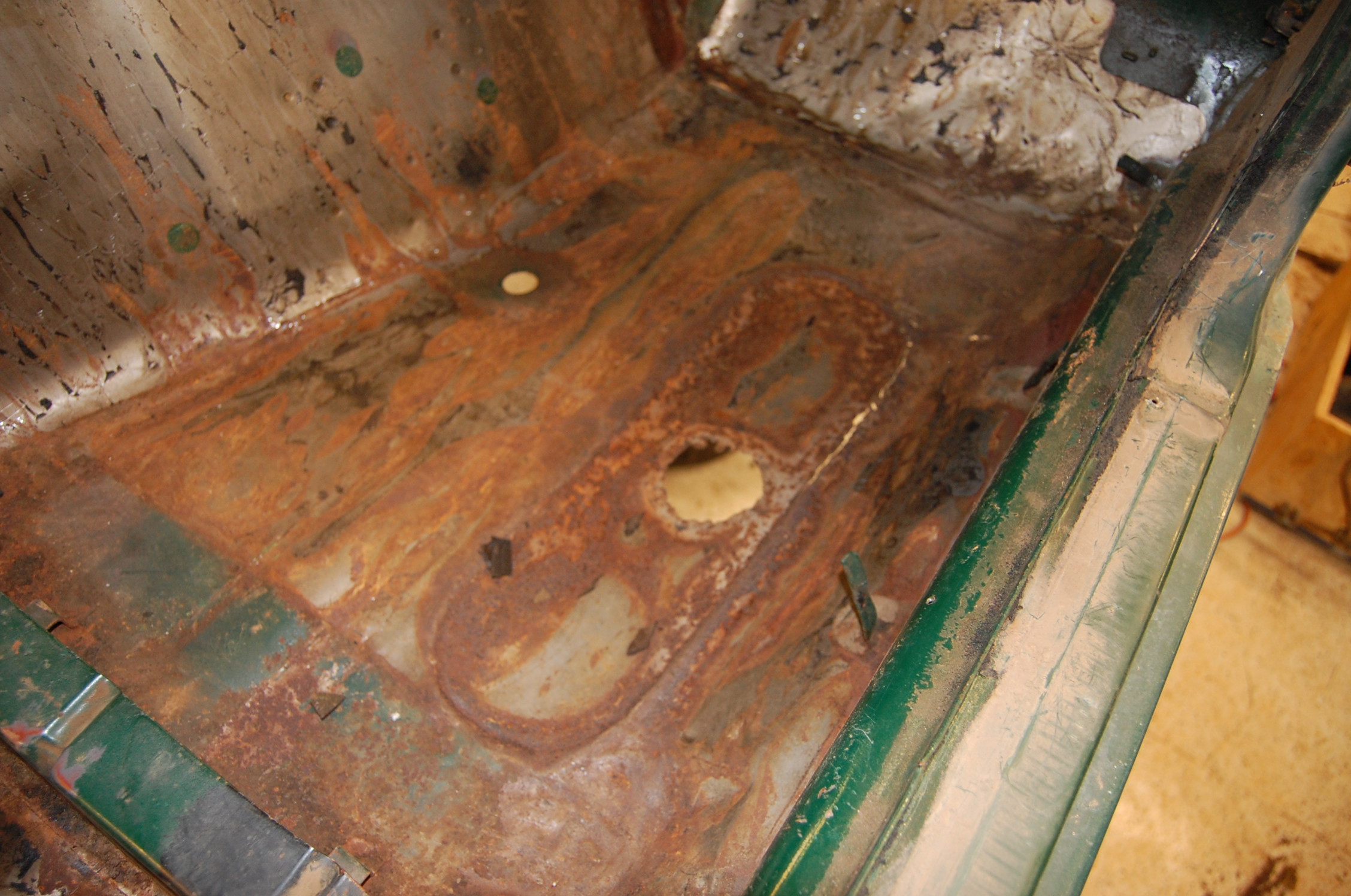

Even though the car came from out West the car still had some rust










It always makes me laugh when I see "rust free Z" in an add





  • Like 1

Share this post


Link to post
Share on other sites

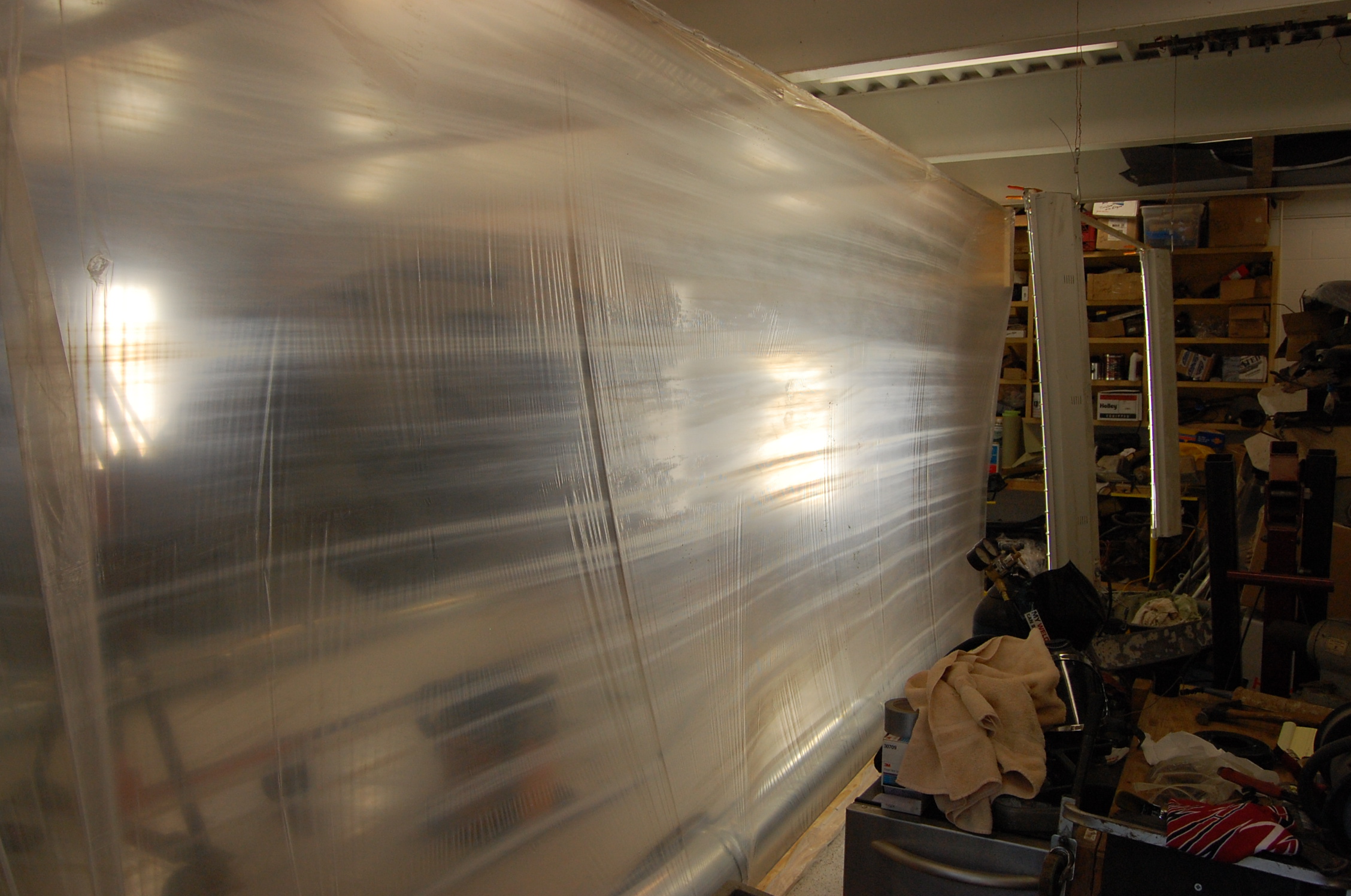

2013 the booth is up .4 mil poly and a few 2x4's




all media blasted. You can see the internal frame coating that dripped out before I primed the car...

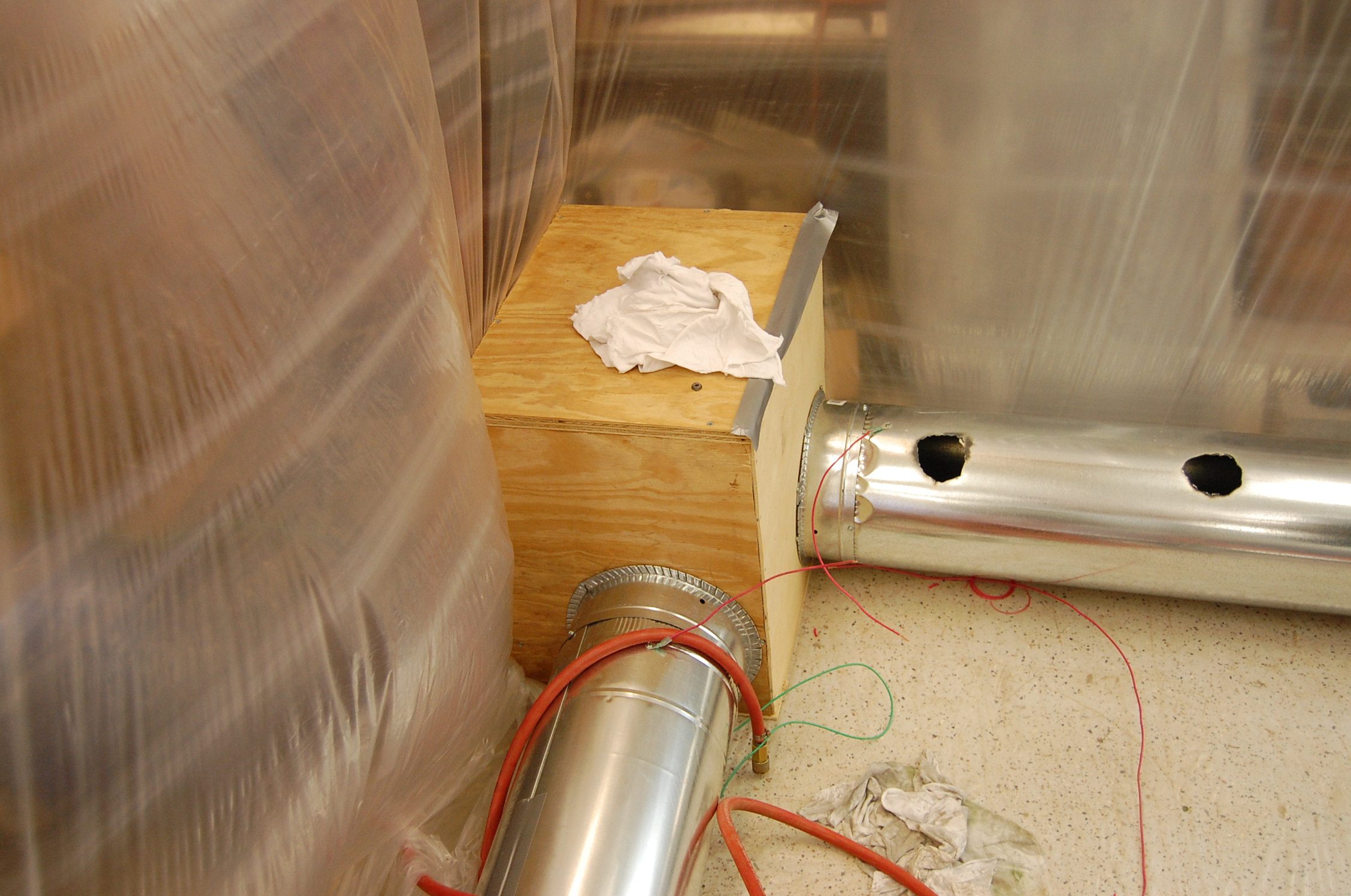

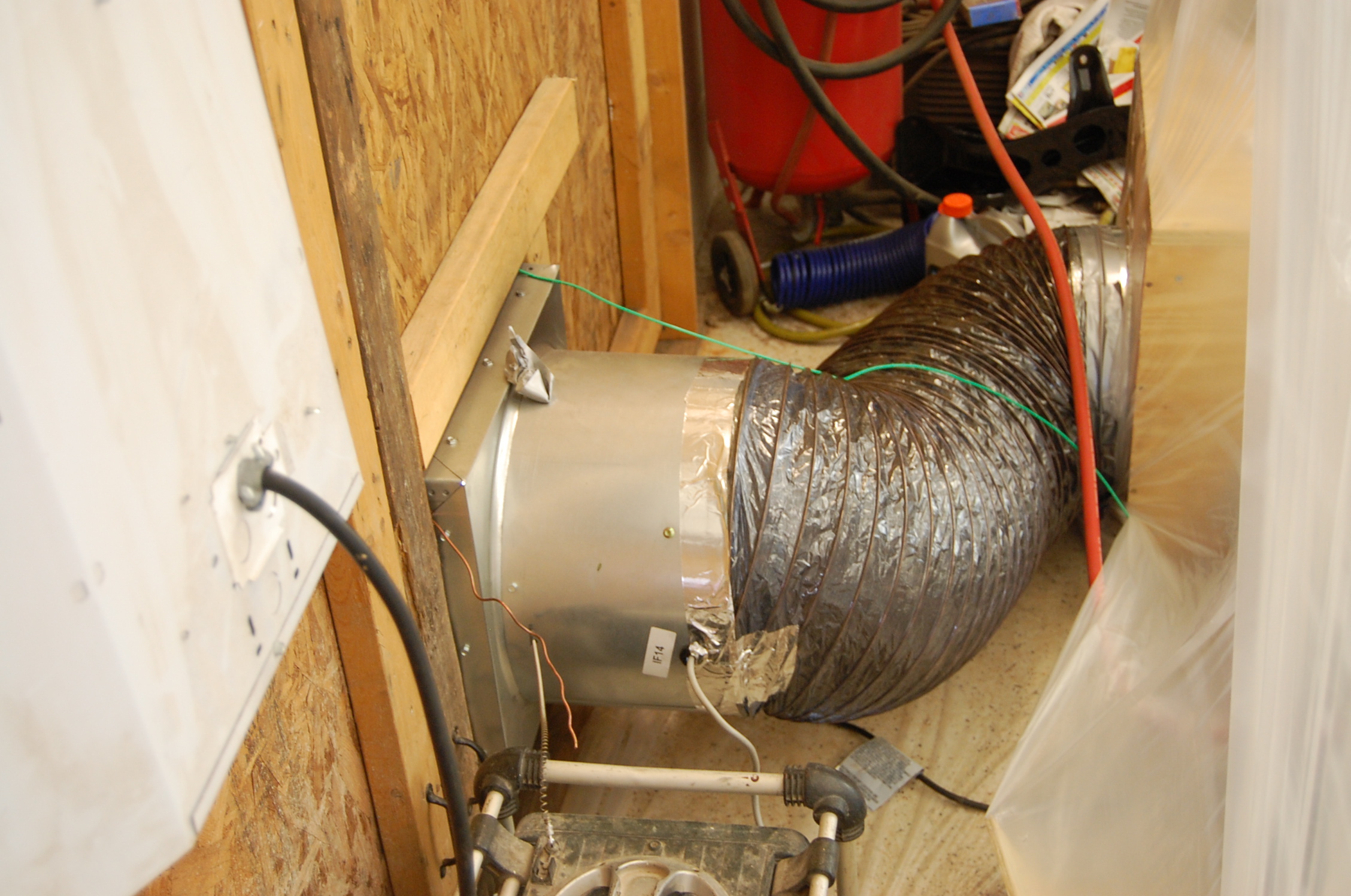

Built a box in the corner to hold a filter so the fan exhaust was screened...




  • Like 2

Share this post


Link to post
Share on other sites

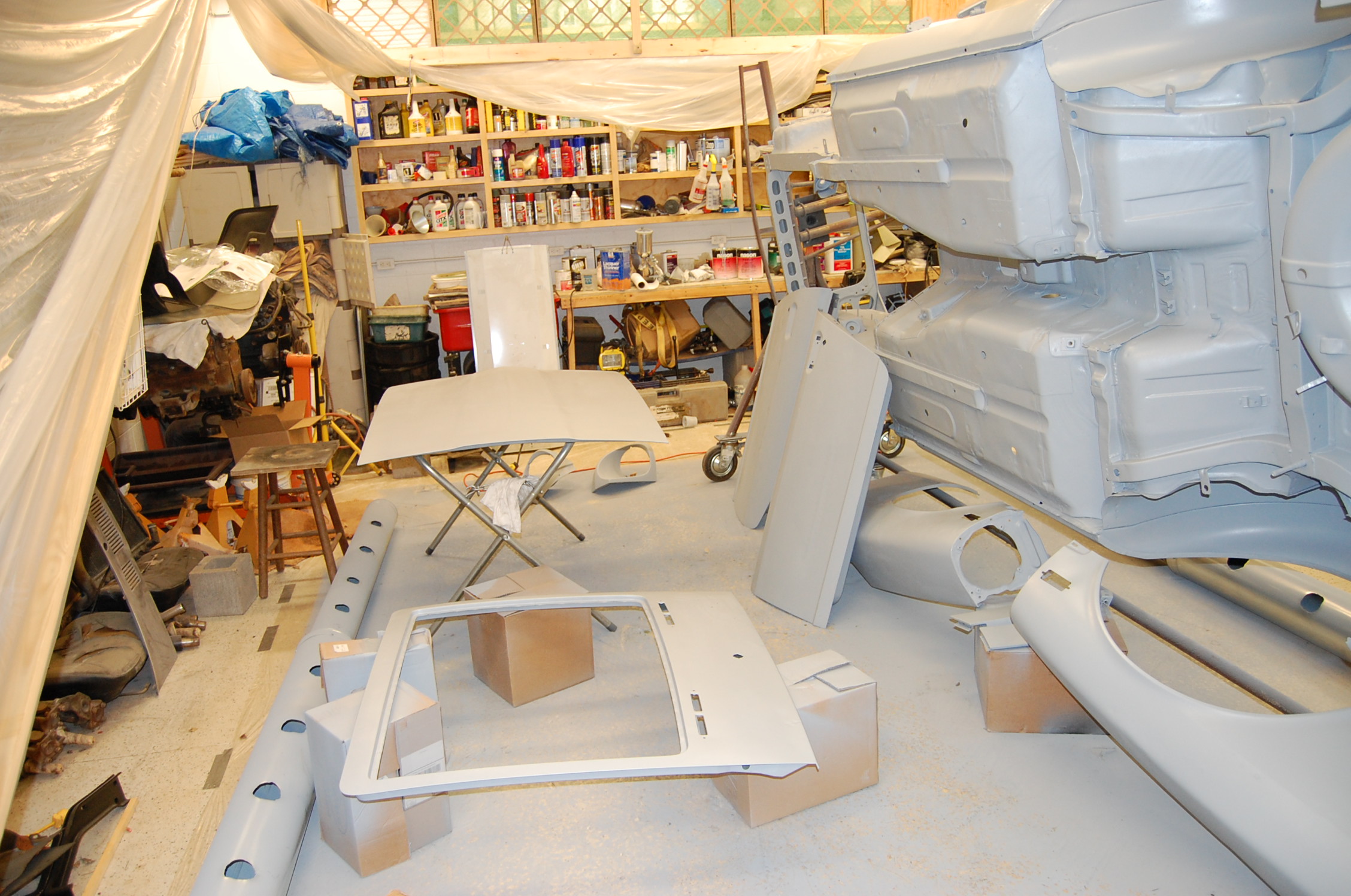

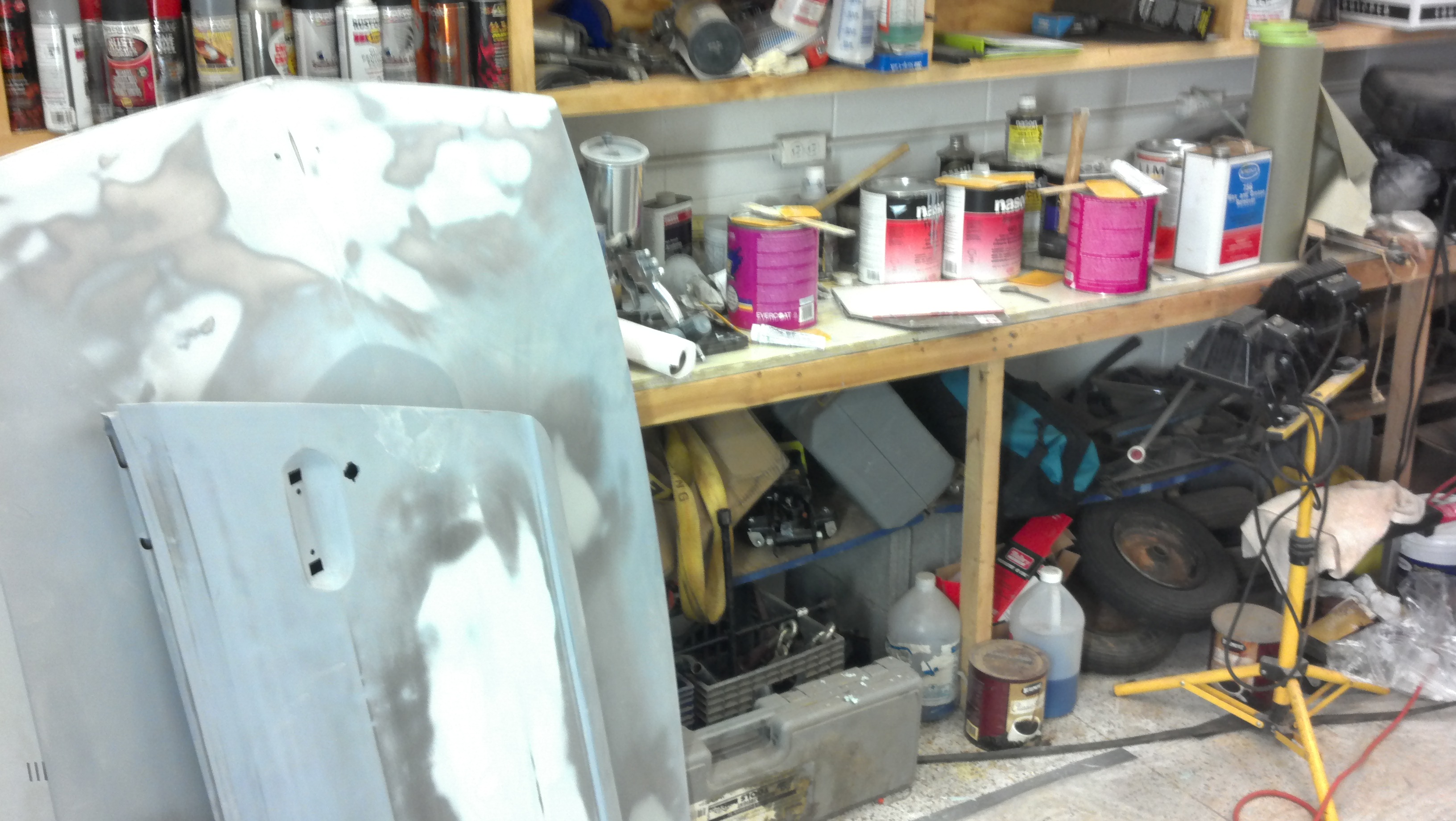

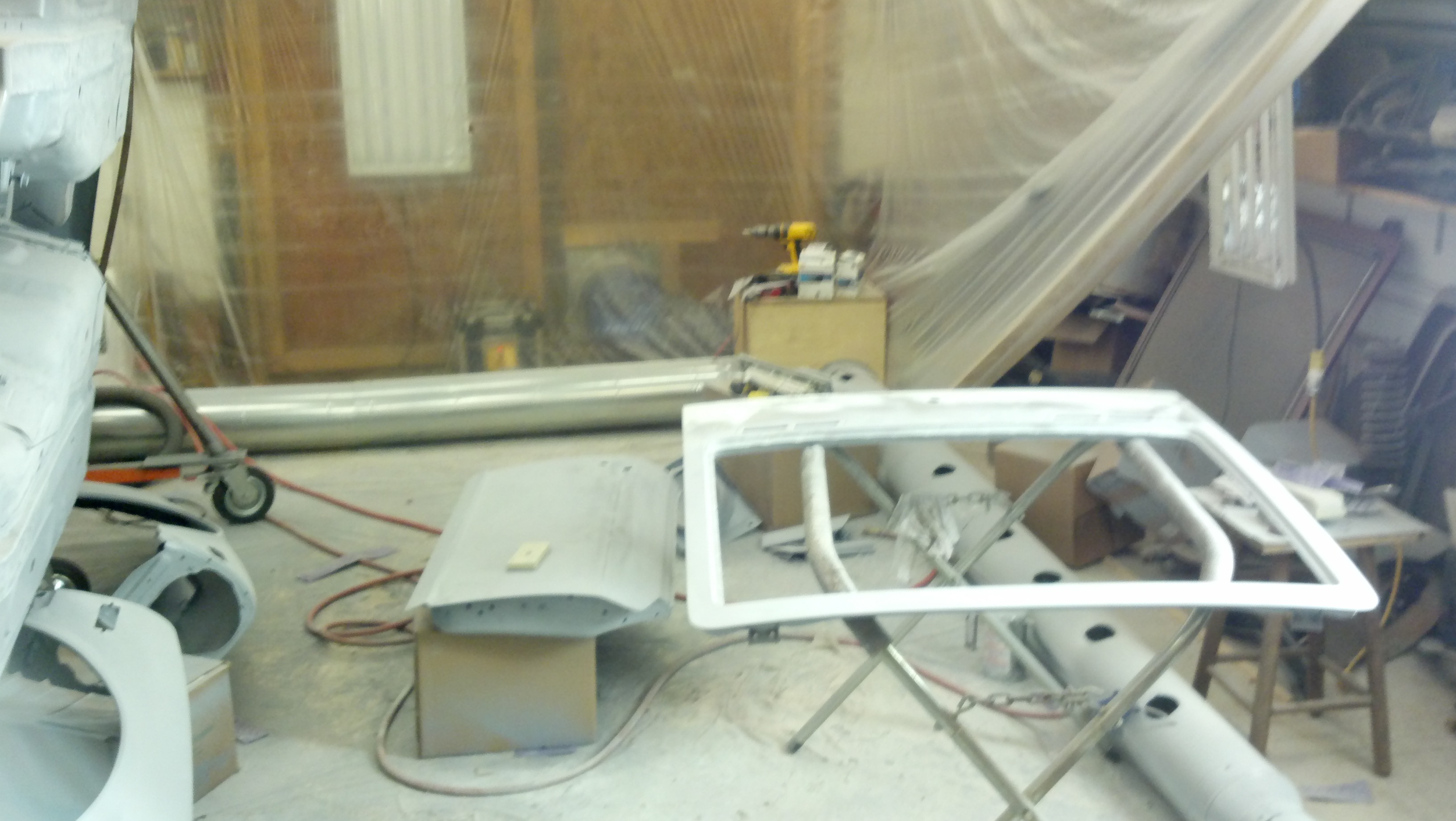

Lights hung around the outside of the booth. Six vertical lights around

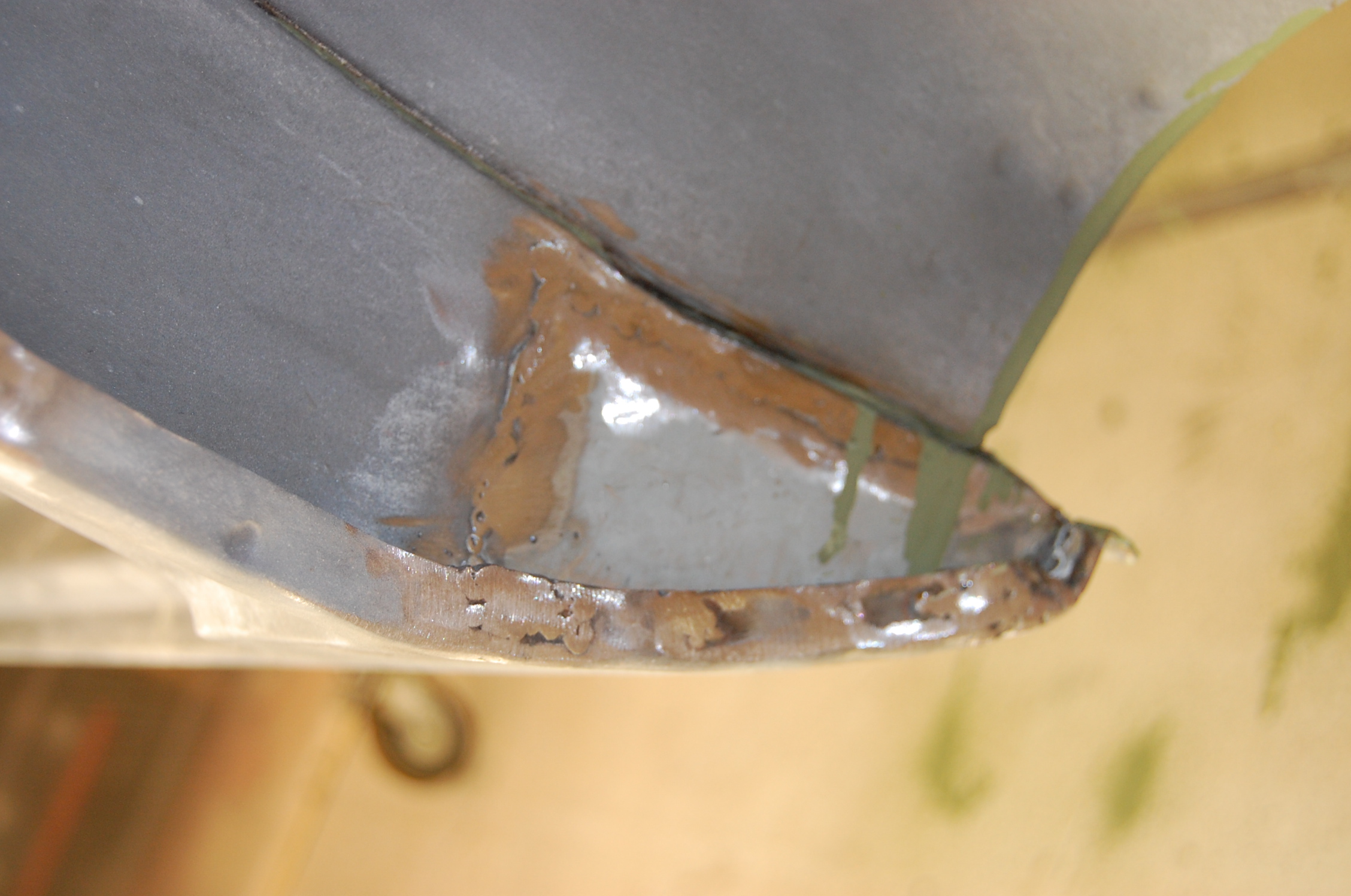

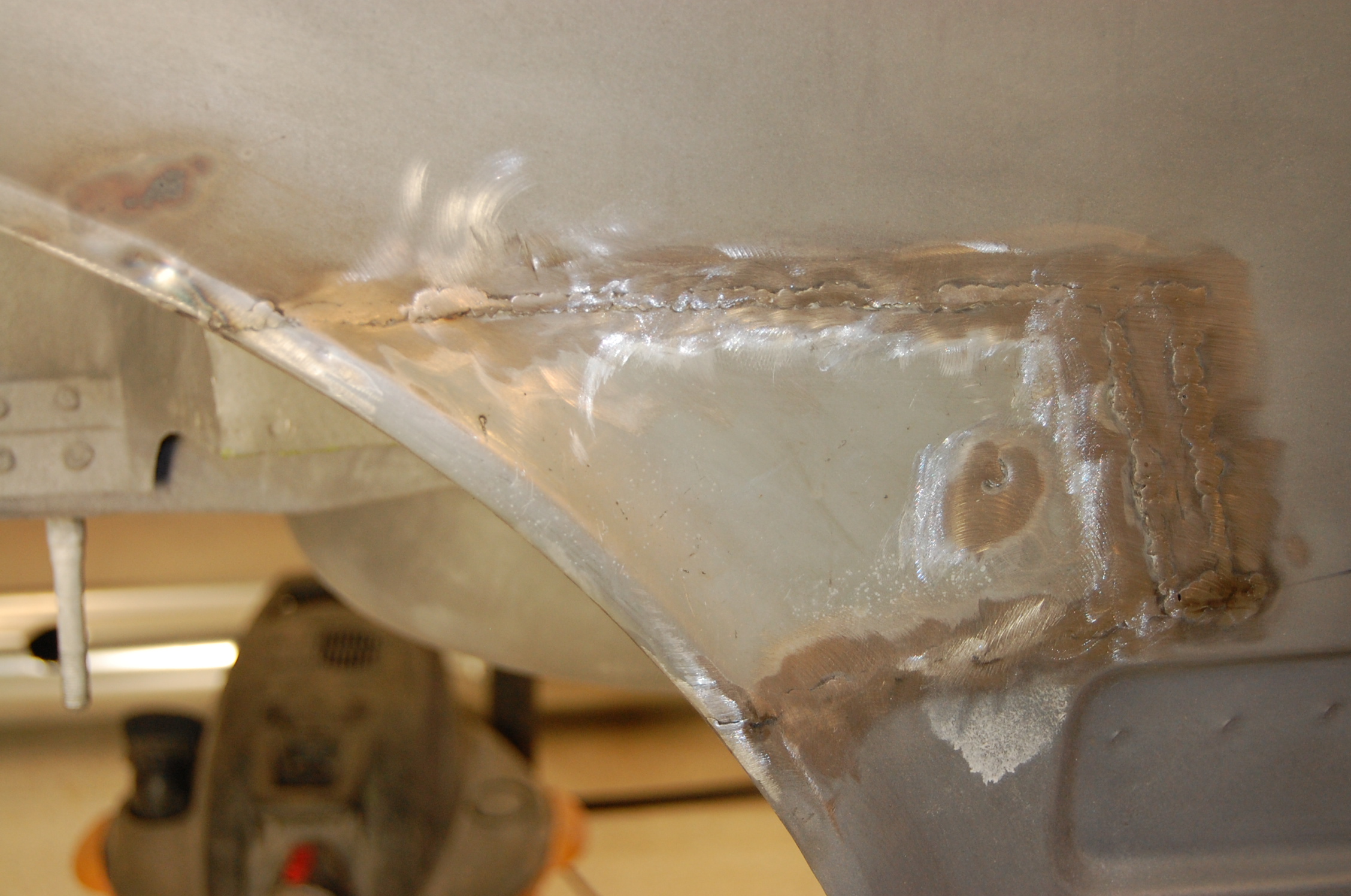

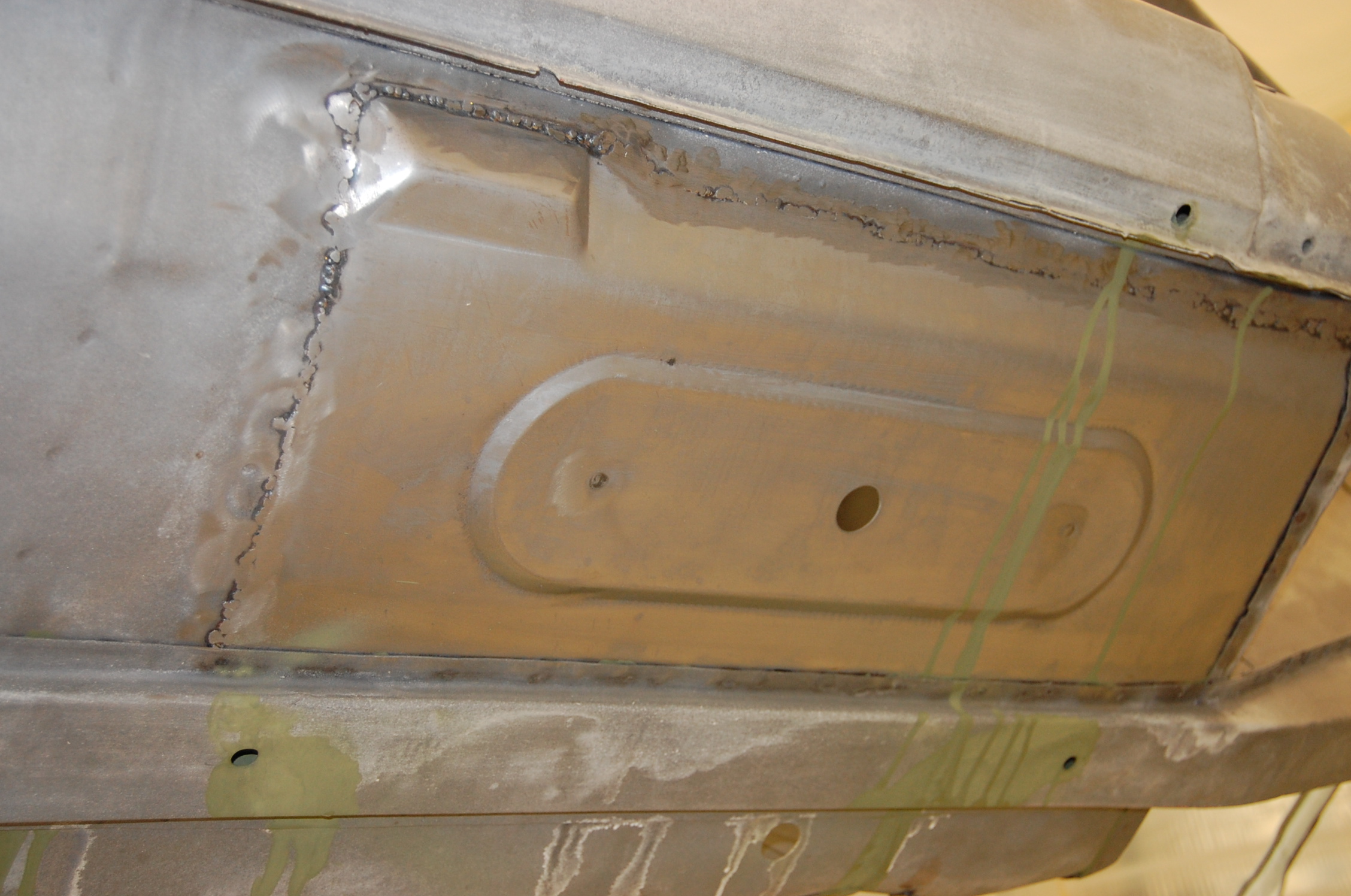

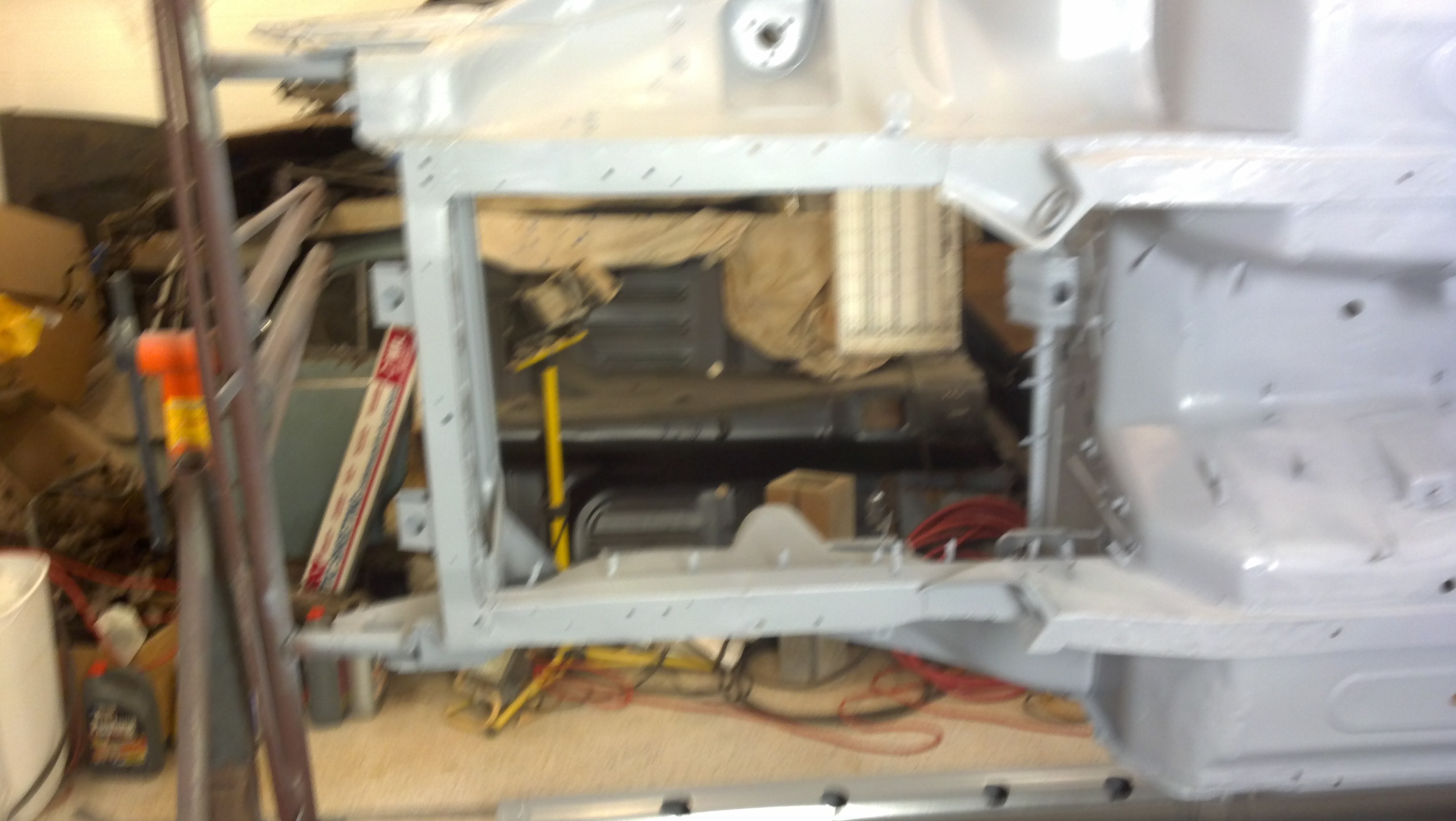

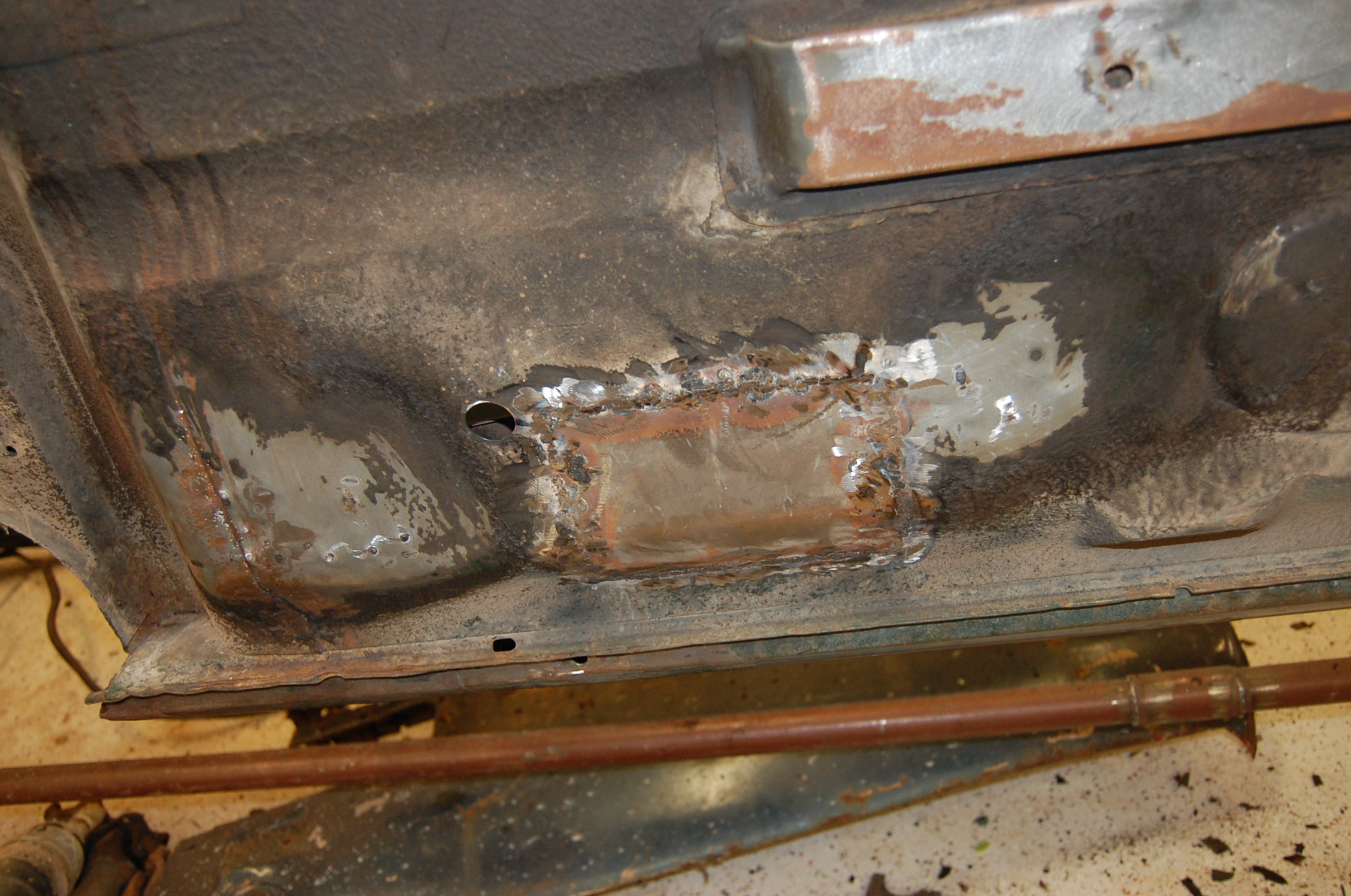

Patched the floor rust with a piece from one of Charlie's excellent floor boards

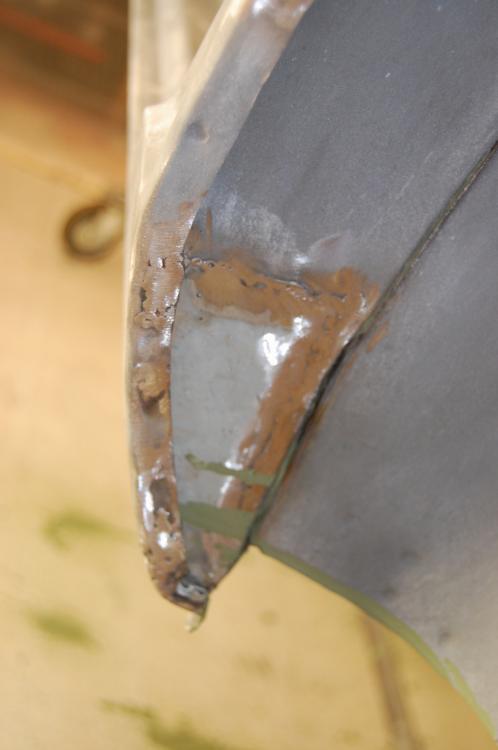

there was a big crease through the drivers side wheel well. I couldn't remove it so I made some patches from a Tabco panel...


this was June of 2013..

Edited by Patcon
  • Like 2

Share this post


Link to post
Share on other sites

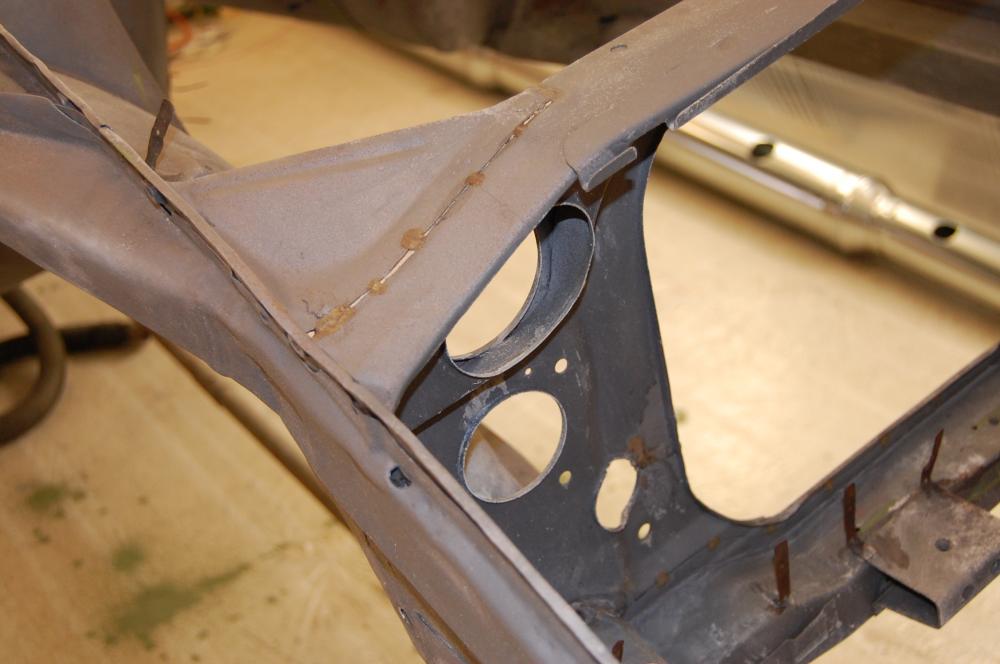

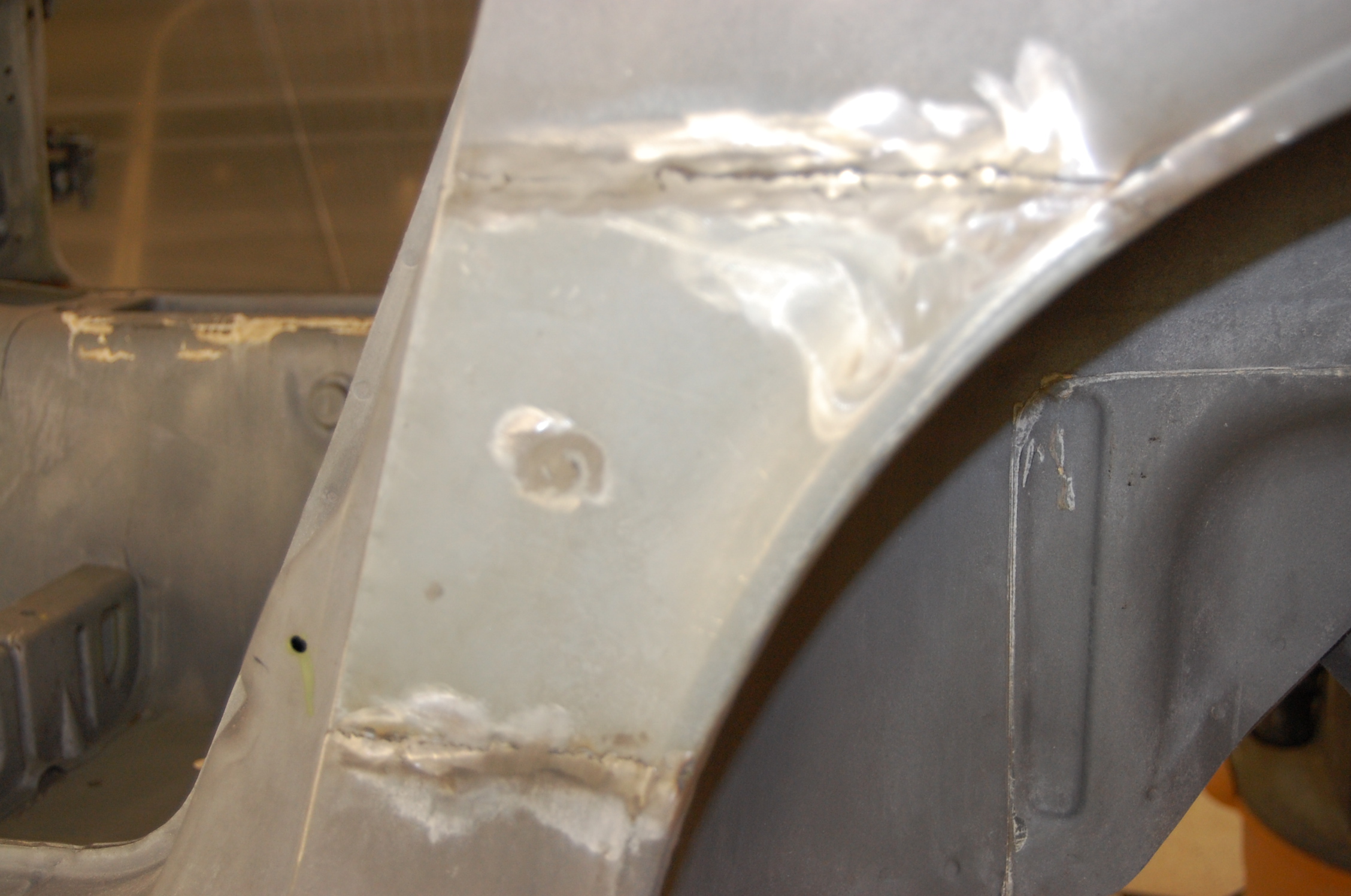

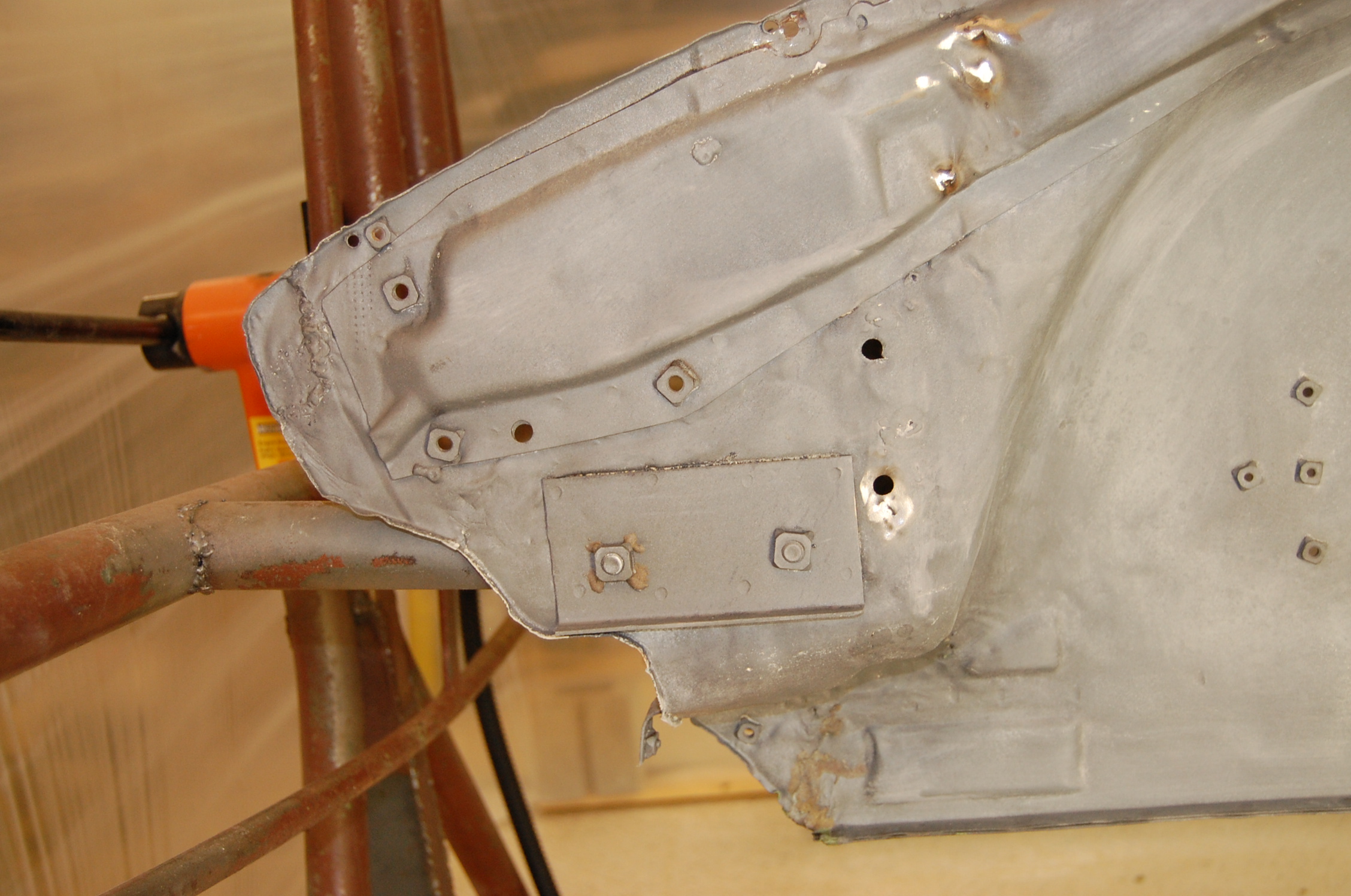

Even on this car Arizona or Nevada there was rust in the wheel wells. These patches came from Tabco panels too




this car has had affront end collision. I should have replace the nose but I didn't have the skills at the time






the radiator support has been replaced to a later style radiator support


  • Like 1

Share this post


Link to post
Share on other sites

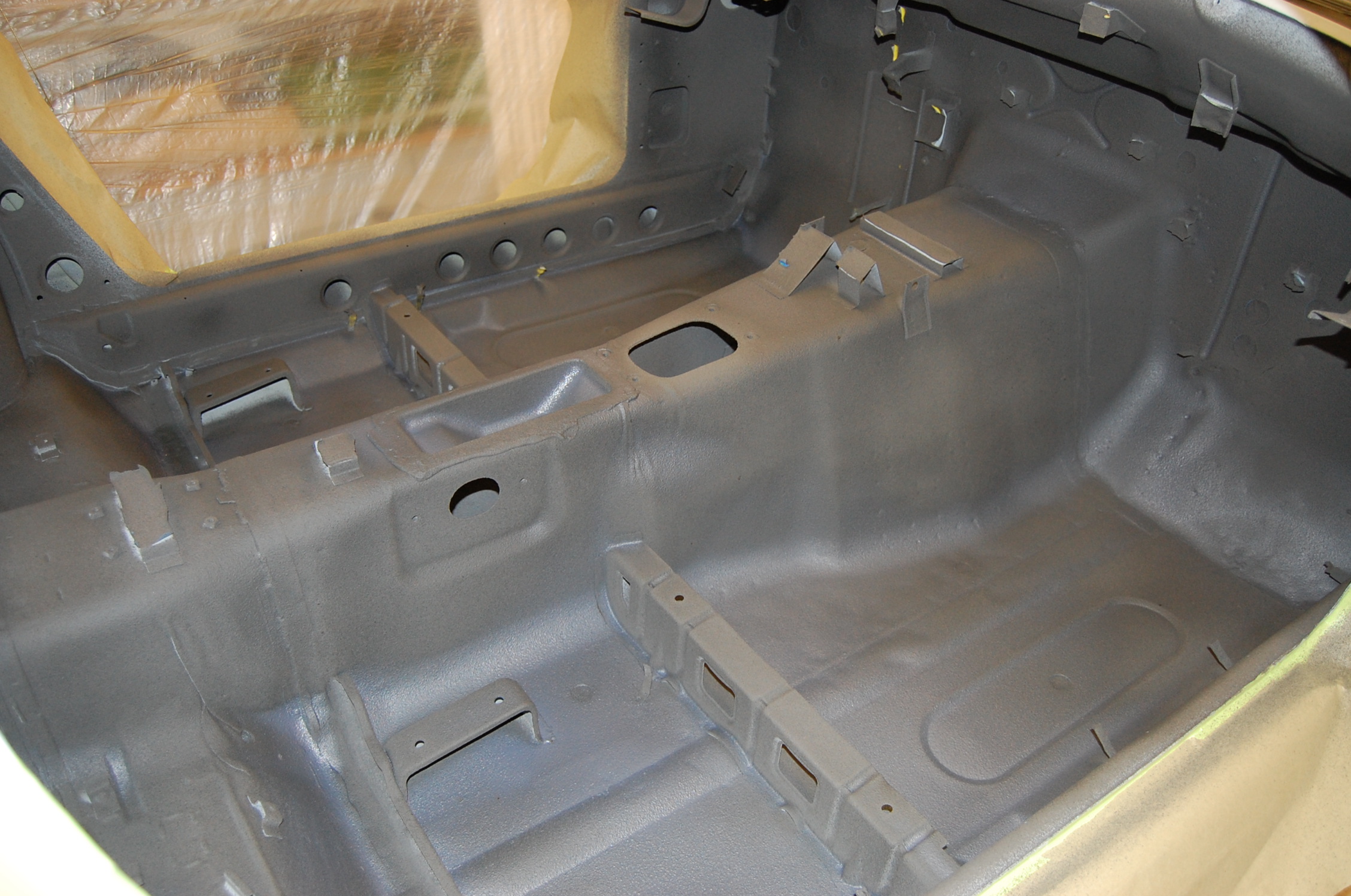

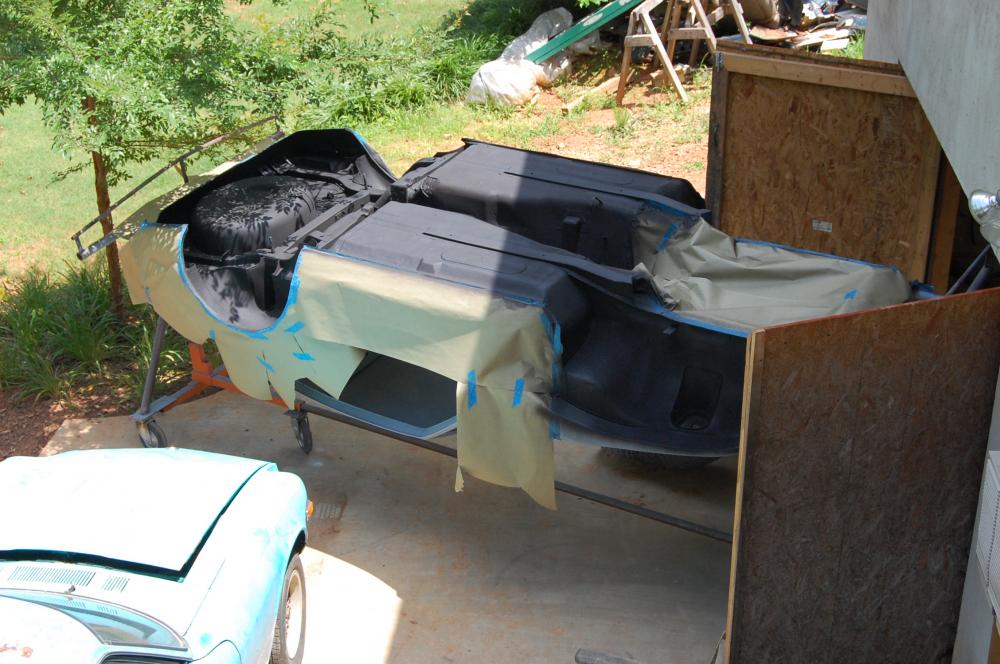

Shot the interior with Lizard Skin insulator then sound deadener. Then shot the bottom with undercoater


  • Like 3

Share this post


Link to post
Share on other sites

Charles, you sure have lots of projects to keep you busy. That a fastback mustang?  Your 510 wagon get/getting the same treatment?



Share this post


Link to post
Share on other sites

double post. grrr. slow internet

Edited by hr369

Share this post


Link to post
Share on other sites

This should be an entertaining thread.

I envy your two-car garage and workspace.  Nevertheless, isn't it amazing how shelf space fills up so quickly?  I've adopted the strategy of hanging larger parts from the overhead beams in my workshop.  Even with that, shelf space always seems to be at a premium.

Is the blue Z in the driveway a runner or is it a parts donor?

BTW, nice job on the paint-spray enclosure.

Share this post


Link to post
Share on other sites
2 hours ago, Namerow said:

I've adopted the strategy of hanging larger parts from the overhead beams in my workshop.

I was talking with Joseph at the Z Store not too long ago and he said something I've never thought about after seeing a picture I sent him.

" Love the Z Garage. We can’t do the ladder-over-the-car thing here in CA for earthquake reasons, lol."




Share this post


Link to post
Share on other sites
9 hours ago, hr369 said:

Charles, you sure have lots of projects to keep you busy. That a fastback mustang?  Your 510 wagon get/getting the same treatment?



Way too many projects!!! The 510 probably won't get this treatment at least for a while. I really want to get it running so Cody can enjoy it. If he wants to take it off the road for a while later and do it "nuts and bolts" we can, but even if you do it really fast, it takes a year of weekends and nights. I'm 7 years in and just put the first part back onto the car yesterday

There are 2 - 66 Thunderbirds in the yard that were gonna be a project. Sold the fastback when my older son lost interest. Another 71 Z to be done if it doesn't rust apart first and a 56 VW bug that is next on the "nuts and bolts" list

5 hours ago, Namerow said:

I envy your two-car garage and workspace.  Nevertheless, isn't it amazing how shelf space fills up so quickly?  I've adopted the strategy of hanging larger parts from the overhead beams in my workshop.  Even with that, shelf space always seems to be at a premium.

Is the blue Z in the driveway a runner or is it a parts donor?

It is amazing how fast the shop fills up when you disassemble a car. They basically double in size maybe more. In some of these earlier pictures, we have the fastback and the Z torn all the way down. There is also a 56 bug tucked into the other corner of the shop that is out of frame, bead blasting cabinet, tool boxes, welder, plasma cutter, engine hoist. Get's full quick. The shop is about 26' x 27' inside dimensions and has a structural concrete floor above it. So I also have a beam trollie if I want to use it to move things around...

There is also more storage. The wall of shelves is not all of the parts


the Blue or Tourquoise Z in the driveway was "the shark" from my signature line. I traded it plus some cash to get the Datsun 510 for Cody. We had it running off and on. I had replaced one floor board but it still had a lot of rust. It had rust in weird places too. I am not sure I would have really known what to do with it. Significant rust in the windshield pillars, door jambs and stuff. Hadn't seen that before



3 hours ago, siteunseen said:

Charles I'm " Jones'n " for some more land like you have.  Those happy young'uns you have helping makes work look fun too.  I'm jealous! :)

Land is great. Those young'uns aren't so young any more but they still help me on the cars. The blond chipping the sound mat out is almost 16 now and getting his license. He has the 510 Wagon we're trying to get back on the road. We're getting close...I have considered doing a build thread for that but not sure the reception I would get considering the forum never really got expanded to some other Datsun vehicles. I figured some of the work we have been doing would be applicable to all Datsun cars. We just deconstructed and repaired his hood then reassembled it




Edited by Patcon
  • Like 1

Share this post


Link to post
Share on other sites
9 minutes ago, Patcon said:

Way too many projects. The 510 probably won't get this treatment at least for a while. I really want to get it running so Cody can enjoy it. If he wants to take it off the road for a while later and do it "nuts and bolts" we can but even if you do it really fast it takes a year of weekend and nights. I'm 7 years in and just put the first part back onto the car yesterday

There are 2 - 66 Thunderbirds in the yard that were gonna be a project. sold the fastback when my older son lost interest. Another 71 Z to be done if it doesn't rust apart first and a 56 VW bug that is next on the "nuts and bolts" list

It is amazing how fast the shop fills up when you disassemble a car. They basically double in size maybe more. In some of these earlier pictures, we have the fastback and the Z torn all the a way down. There is also a 56 bug tucked into the other corner of the shop that is out of frame, bead blasting cabinet, tool boxes, welder, plasma cutter, engine hoist. Get's full quick. The shop is about 26' x 27' inside dimensions and has a structural concrete floor above it. So I also have a beam trollies if I want to use it to move things around...

the Blue or Tourquoise Z in the driveway was "the shark" from my signature line. I traded it plus some cash to get the Datsun 510 for Cody. We had it running off and on. I had replaced one floor board but it still had a lot of rust. It had rust in weird places too. I am not sure I would have really known what to do with. Significant rust in the windshield pillars, door jambs and stuff. Hadn't seen that before



Land is great. Those young'uns aren't so young any more but they still help me on the cars. The blond chipping the sound mat out is almost 16 now and getting his license. He has the 510 Wagon we're trying to get back on the road. We're getting close...I have considered doing a build thread for that but not sure the reception I would get considering the forum never really got expanded to some other Datsun vehicles. I figured some of the work we have been doing would be applicable to all Datsun cars. We just deconstructed and repaired his hood then reassembled it



Well that's a first. Only 10 likes per day message.

I'm happy to hear about your son and the 510s rebirth.

Share this post


Link to post
Share on other sites

I made myself a set of seam opening pliers last year. I tried to find a set for months but finally gave up and saw a thread on another forum where I guy had made a pair. I don't know if I posted these or not...


I did this work last year, I took the rear support out of one of the fenders. There are a couple of little tack welds in the corners and you have to remove the upper fender bracket.


Once you remove the spot welds and the bracket. You can open the seam just a little bit and the inner fender support comes right out. Then you can get it really clean and repair the pin holes in the fender inner and outer

130816c.JPG130816d.JPG130816e.JPG130816f.JPG130816f.JPG20160311_164527.jpg20160311_164449.jpg




All rebuilt

The fender still needs to be finished









Share this post


Link to post
Share on other sites

Share this post


Link to post
Share on other sites

Very Nice! I had somehow missed this thread earlier....

Share this post


Link to post
Share on other sites

Today I worked on the door hinges some

I took them apart last year bead blasted them and painted the pieces. When I reassembled them I damaged some of the paint. Especially where I had to drive the pins in.


The upper hinges had an area that I missed getting painted.


I worked on touching those up today. Scuffed the with 400, degreased and painted. The upper hinges got better


The lower hinge still didn't get colored all the way. I shot three lighter coats on the pins and had all kinds of drips but couldn't get them to cover. Not messing with them any more for now. If it really bothers me when it's assembled. I will touch it up with a brush.

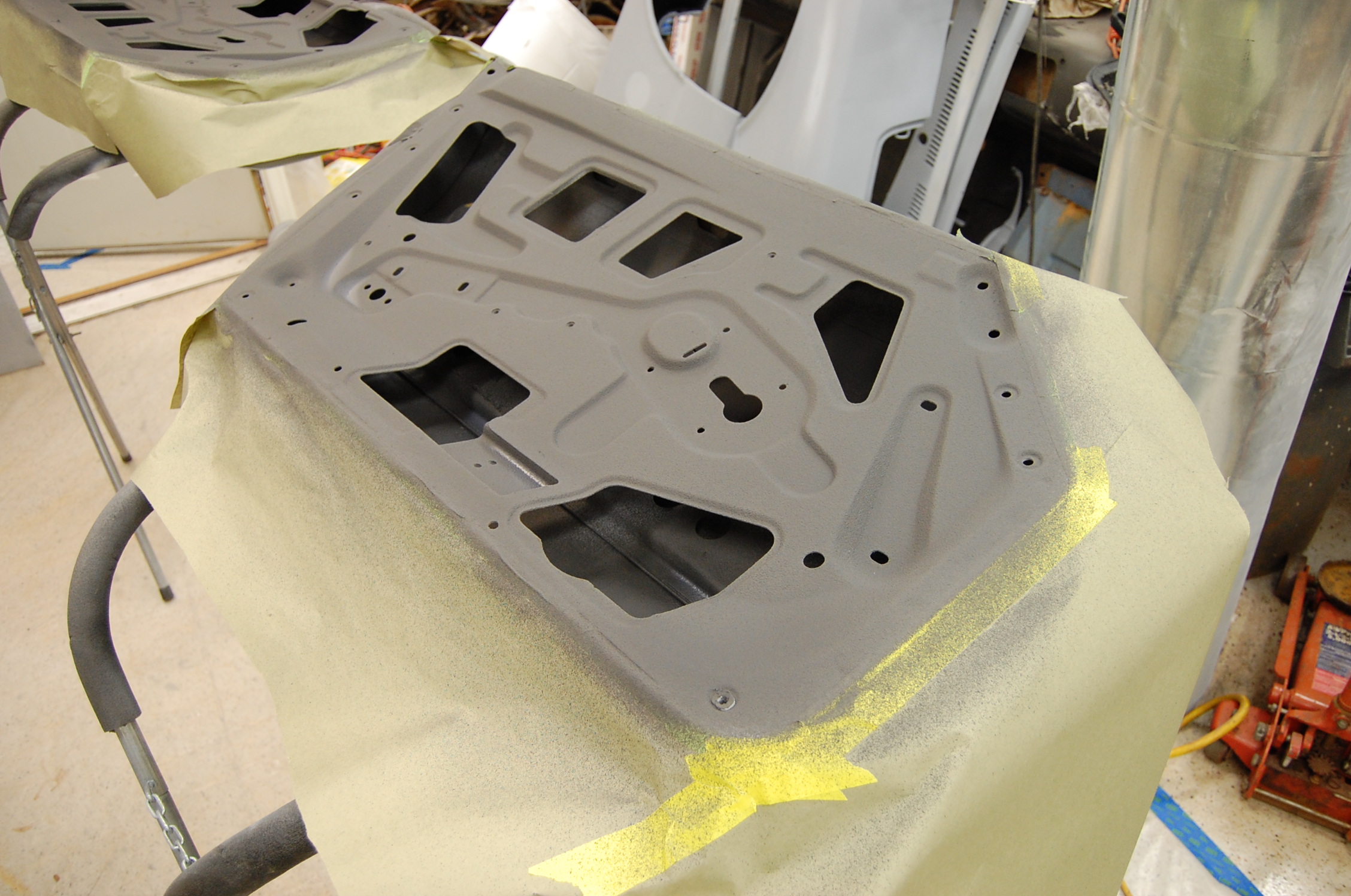

I also blocked the inside of the hood and shot a coat of primer into the center section




  • Like 1

Share this post


Link to post
Share on other sites

Thanks Wheee

The metal work is not at Disepyon standards, but I have gotten better at it as I've gone along and I have a better welder now than earlier which helps a lot

Share this post


Link to post
Share on other sites

Disepyon and "standard" do not go together. Out of everyone's league.

Share this post


Link to post
Share on other sites
2 hours ago, wheee! said:

Disepyon and "standard" do not go together. Out of everyone's league.

Too true. He does have fabulous metal skills!

1 hour ago, rturbo 930 said:

No worries about not being seen in traffic with that color lol.

My wife wanted it yellow. It's really her car. When we first went to the paint shop. She took a yellow Lily out of our yard and told them she wanted that color of paint. They handled it well...:P We went through several shades before settling on this one. Yellow is a challenge though because it tends to be very transparent so the color under it makes a huge difference. I shoot white base coat first or the yellow color shade changes

  • Like 2

Share this post


Link to post
Share on other sites

I guess I missed this thread too but glad to see you are getting things back on track Patcon.  That is awesome that you can do so much in your own shop.  I look forward to more updates.  Keep up the good work!

Share this post


Link to post
Share on other sites

Were the hinge detent wheels worn on yours? I've got flat spots on mine from years of them not spinning properly and sliding instead of spinning.

I've got a spare set of hinges here that I intend to rebuild before installing, but it's lower on the priority list.

Share this post


Link to post
Share on other sites
