jimbo99

Watch EBAY Motors or if you get stuck order the ZCAR CD from this website and use NISSMO http://www.nismoparts.com they can get alot of OEM part, I've found them to be very helpful. Also try Victoria-British http://www.victoriabritish.com also very good but on the expensive side I think. There are a number of others but this get you going. I highly recommend you get the ZCAR CD and a Nissan factory service manual. My 2 cents

Hi all Have an early 260z and I'm rebuilding a stock intake manifold for it. Hit a snag when it come to the wire leads from the Throttle Opener Control Valve (BY wire not seen in picture) and EGR Control Valve (GY wire seen in picture - yellow arrows) were do they connect to and and what kind of connector is on the raditator side if any. I have a partial wire lead but the radiator side has be chopped. Pictures would be a big help. Thanks Jim 1974 260Z - RLS30-020697 (01/74) Note: Picture is not of my 260 just for illustration purposes. Picture file to big Will upload as soon as I can. Throttle Opener CV and EGR CV wire 2.bmp

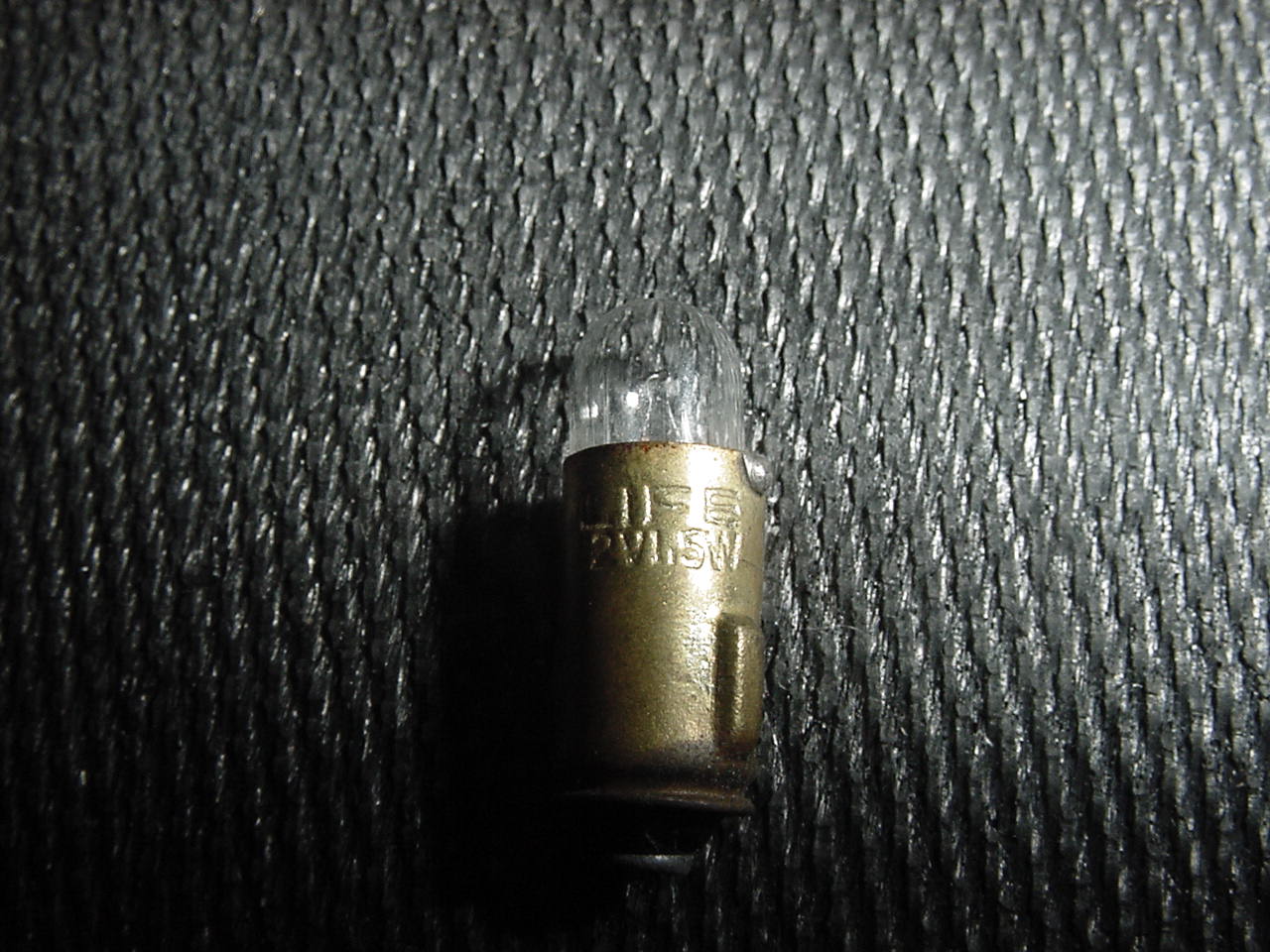

For my 260 went through the samething chopped wiring was the problem but, to answer your question the 3898 bulbs I got from the WWW.TOPBULB.COM web site, great service sent them the specs and a picture $1.00 each + shipping very quick. The SAE type bulbs I got NAPA parts store Seat Belt Warning 1.5 Mini-Bayonet Type OSRAM 3898 12V 2W Defogger Switch 1.5 Mini-Bayonet Type OSRAM 3898 12V 2W Hazard switch 1.5 Mini-Bayonet Type OSRAM 3898 12V 2W Defogger warning 1.5 Mini-Bayonet Type OSRAM 3898 12V 2W Choke warning 1.5 Mini-Bayonet Type OSRAM 3898 12V 2W SAE Speedometer Illumination 3.4W 57 2 Brake Warning Lamp 3.4W 57 1 High Beam Warning Lamp 3.4W 57 1 Tach Illumination 3.4W 57 2 T/S Lamp 3.4W 57 2 OIL-TEMP Illumination 3.4W 57 1 AMP-FUEL Illumination 3.4W 57 1 CLOCK Illumination 3.4W 57 1 Jim

I used on my 260Z after reading in Wick Humble’s book and researching the Z-Car CD-ROM, 5 – JX14 as they seemed to be the standard. The wheels should be stamped either TOPY MM/YY 4 ½ - J14 or 5 - J14. The Z-Car CD-ROM list them as 4 ½ – JX14 (P/N: 40100-E4400) or 5 – JX14 (P/N 40300-E4400). Standard tire size is 175/70HR-14 standard with 195/70HR-14 a later option but, 185/70HR-14 90Hwill work as well. The H is the speed rating After sandblasting, paint on 240 rims had matt black face and silver on the reverse later rims not sure when were matt black faces with gloss black. Info from Tire Rack website Using a P195/60R15 87S tire size as an example, the 87S at the end of the size represents the tire's service description. A service description identifies the tire's load index and speed rating. Service Descriptions are required on all speed rated (except for Z-speed rated) tires manufactured since 1991. The first two digits (87S) represent the tire's load index and are followed by a single letter (87S) identifying the tire's speed rating. Load Index P195/60R15 87S - The load index (87) is the tire size's assigned numerical value used to compare relative load carrying capabilities. In the case of our example the 87 identifies the tires ability to carry approximately 1,201 pounds. The higher the tire's load index number, the greater its load carrying capacity. 89 = 1,279 pounds 88 = 1,235 pounds 87 = 1,201 pounds 86 = 1,168 pounds 85 = 1,135 pounds Speed Rating Beginning in 1991, the speed symbol denoting a fixed maximum speed capability of new tires must be shown only in the speed rating portion of the tire's service description, such as 225/50R16 89S. The most common tire speed rating symbols, maximum speeds and typical applications are shown below: N 87 mph 140 km/h Temporary Spare Tires P 93 mph 150 km/h Q 99 mph 160 km/h Studless & Studdable Winter Tires R 106 mph 170 km/h H.D. Light Truck Tires S 112 mph 180 km/h Family Sedans & Vans T 118 mph 190 km/h Family Sedans & Vans U 124 mph 200 km/h H 130 mph 210 km/h Sport Sedans & Coupes V 149 mph 240 km/h Sport Sedans, Coupes & Sports Cars Info condensed from Tire Racks website. Jim Atkinson 1974 260Z - RLS30-020697 (01/74)

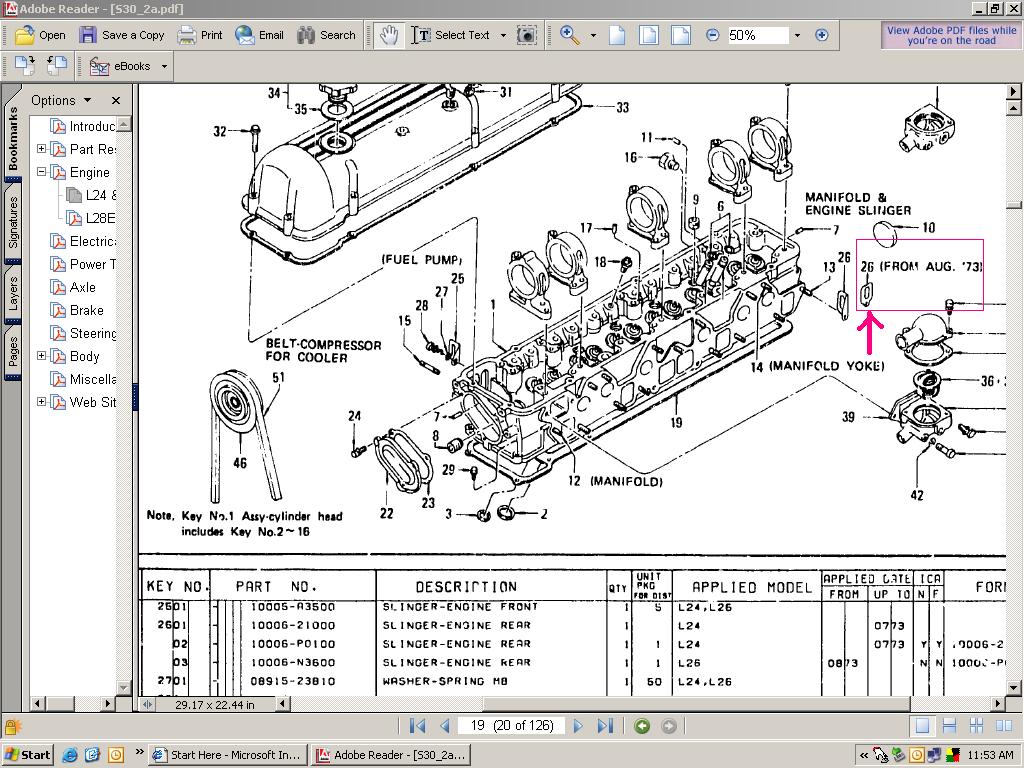

I'm looking for a part for my to L26 engine, a Rear engine slinger. 1974 260Z - RLS30-020697 (01/74) Thanks, Jim

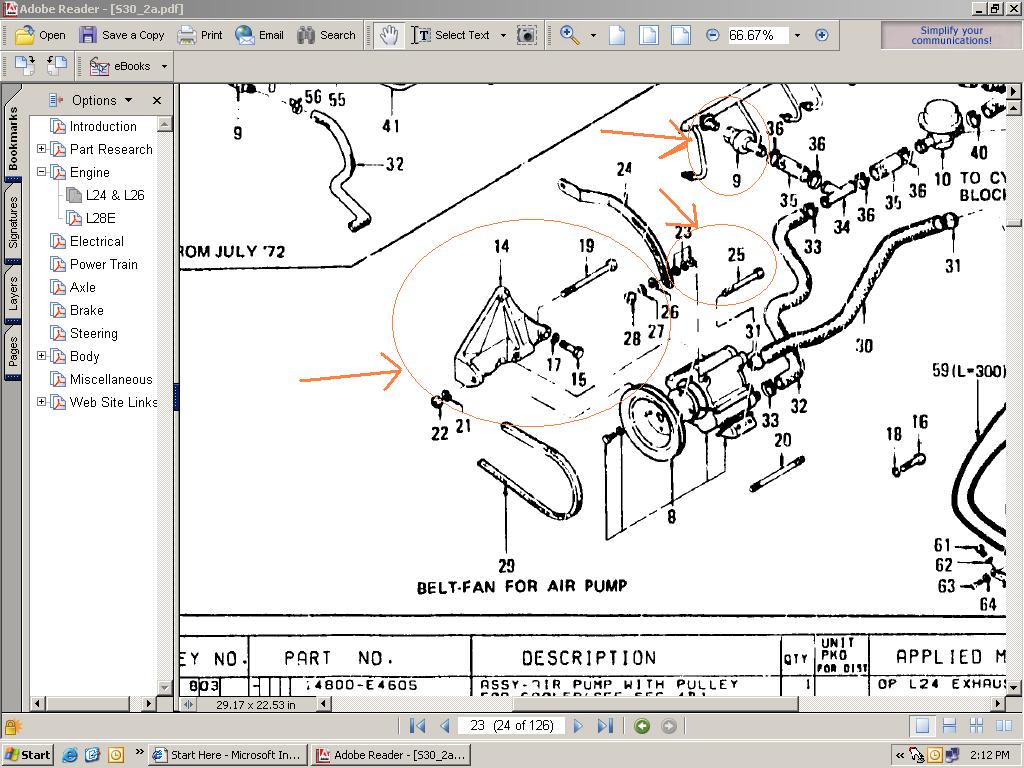

Hi I'm looking for parts to a early 74 260z L26 engine. Need the following: 1) Rear engine slinger 2) Check Valve 3) Air Pump bracket with mounting bolts 15, 19 and 25 1974 260Z - RLS30-020697 (01/74) Thanks, Jim

I have a 260z 2+2 air cleaner the same blue as what you discribe and was going to use Dupli-Color DSFM257 Spinnaker Blue but, it didn't look to be a close enough match after I sprayed a sample. Gee's photo gallery has a pic titled My brother's 260z 2+2 with a good picture of the air cleaner and the blue used. Anyone know what the decal might of been?

Looking for info on the 260 air cleaners. Restoring the one we have, plan on upgrading from the flat tops to round tops and keep the original air cleaner, going to use Ztherapy's adapters with TWM Induction air horns. I see what looks likes it at least one decal on it. Anyone know more about them, pics would be great. Thanks, Jim 1974 260Z - RLS30-020697 (01/74)

I've seen both blue and red air cleaners on an early 260. The Blue was on 2+2. My question is, were there any decals on the original early or 74.5 260 air cleaners, any pictures. Both Banzai Motors and Zeddsavers skip over them and don't have any info. By the way I would check out Zeddsaver.com he seems to be very eger to please and to get established. He made a good 1st impression, in the emails we exchanged, he plans to expand his Z decal line and other products in 2005. I'm hoping he'll fill the void MidwestZ left in customer service and parts delivery. Time will tell. Jim Installing 3 screw round top SUs with original air cleaner. Carberator adapters by ZTherapy and Air Horns by TWM Induction. 1974 260Z - RLS30-020697 (01/74)

Hi Ed, Thanks for the reply, sounds like exactly what I'm looking for! How much do you want? Thanks again, Jim

Looking for choke switch that attached to choke cable assembly that goes to connect console harness then the choke light. Thanks, Jim 74 260Z - RLS30-020697 (01/74)

Have you tried VictoriaBritish they carry stock arrangements page 110 catalog # z.42

Just bought an air cleaner for my early 260z what I thougth was primer turned out to be Blue grey paint similar to the the later air cleaners. Also does anyone now where new gaskets can be found? Found them at Nismo. :stupid: But seriously, this air cleaner is blue/grey like the 77 air cleaner. Puzzled even confused by it now!

My son and I are interested, we were trying to figure out two things before he went out of town for two weeks, what a good offer would be and transportation for it. My e-mail is j.atkinson@snet.net. Thanks. As you can see we are not that far away. Jim 1974 260Z - RLS30-020697 (01/74)

Thanks guys for the suggestion and info. I've been reading about the LEDs, it maybe someting for the future. We are getting the car back to stock condition as much as possible before we make any further changes. Jim 1974 260Z - RLS30-020697 (01/74)

Hi Having a question on light bulb sizes on the 260z we're restoring? Have tracked down the following info: Item Wattage Seat Belt Warning 1.5-1.7W Defogger Switch 1.5-1.7W Hazard switch 1.5-1.7W Choke Warning 1.5-1.7W Info from Owner's and shop manual, can't find SAE# anywhere Jim 1974 260Z - RLS30-020697 (01/74)

Hi Ed, I checked with VB, MSA and NISMO parts, no luck. I did however, find one on ebay not a bad price it appeared to be in good shape, not new, but usable. Jim

A great find!! Congrats :classic: For what my .02 cents are worth, Sell it as is, its everyones dream to find a Zcar in that great of a condition so few left, especially on the east coast. With the profit you could do almost anything with another Z. But, its your car, your decision. Best of Luck with whatever you decide. Jim 1974 260Z - RLS30-020697 (01/74)

Chris have you gotton a reply from the police? I had the same thought? My son and I hope for the best for Chloe, in the short time we've done business with her, we found her to be a geniuely wonderful person and a super lady to do business with, she seem to care about her customers both old and new, a great deal. Who ever said it, the other Zpart dealers could learn alot from her about customer satisfaction.

Hello, I’m looking for the following part: P/N: 62812-N3001; Rubber-Heat Insulator. Its in the engine compartment opposite the cowl to hood seal on the radiator frame. For a 1974 260Z - RLS30-020697 (01/74)

felnik, Any luck on the 260? Jim

Has anyone heard anything about Chloe and MidwestZ ? :disappoin

Is there any news on Chloe and MidwestZ? I expected to hear something after the 4th of July.

Try this web site http://zhome.com/ if you haven't yet, alot of good info from alot of good sources I've emailed an article writers on IZCC about restoration guestions for the 260 we are restoring. May take them a few days to repond but they will get back to you you might want to get some good photos of your carbs There are books out about weber carbs, I have seen them on amazon and at VictoriaBritish.com. Hope this helps. 1974 260Z - RLS30-020697 (01/74) Jim and Tony

I was wonder the same about her, glad to hear things are well. 1974 260Z - RLS30-020697 Jim & Tony
