Custom member, side view

By panchovisa

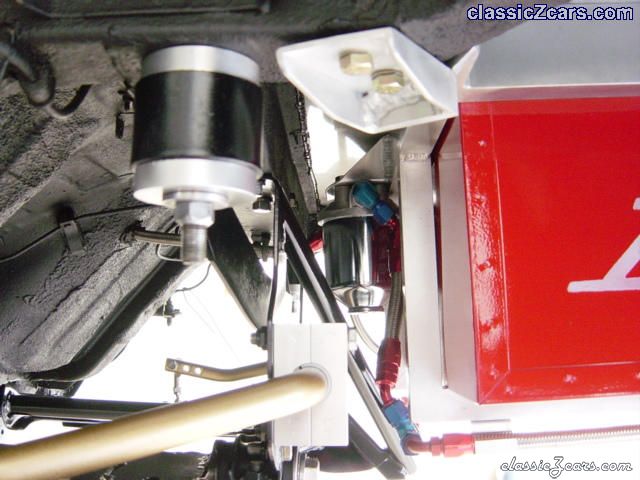

Here is side view showing triangulation up to frame attachment points. Also serves to lift car without bending suspension when jacked up from relocated pad. Custom aluminum pillow blocks hold 7/8" adjustable sway bar riding in teflon bushing, with thrust face against lateral locating collar.

  •

    From the category:

    Big Z Photo Collection

    · 17884 images

    Recommended Comments

    Regular

    Phred

    Community Member

    Is that a solid mount on the moustache bar?

    Did you build or buy the adj. sway bar?

    Looks too nice to drive. But not too nice to race!

    Phred

    ExperienZed

    panchovisa

    Community Member

    Phred, yes the M-bar is solid mounted on aluminum homemade bushings. The sway bar was on the racecar when I got it, but was mounted in RUBBER (for cryin out loud) bushings in sheet metal brackets.

    Got to drive it, it's just been sitting in the garage for 9 years. I only drove it about 400 (street & auto-X) miles on race slicks.

    Veteran

    Ron Carter

    Community Member

    Collaborator

    ctomkins

    Community Member

    Is that fuel cell bolt missing a lock washer?

    Come on man what were you thinking.

    Na... it can't be. Must be the camera.

    ExperienZed

    panchovisa

    Community Member

    I think your right. Must have dropped it when I could have used three hands getting it in. I fix it this weekend eagaleyes.
