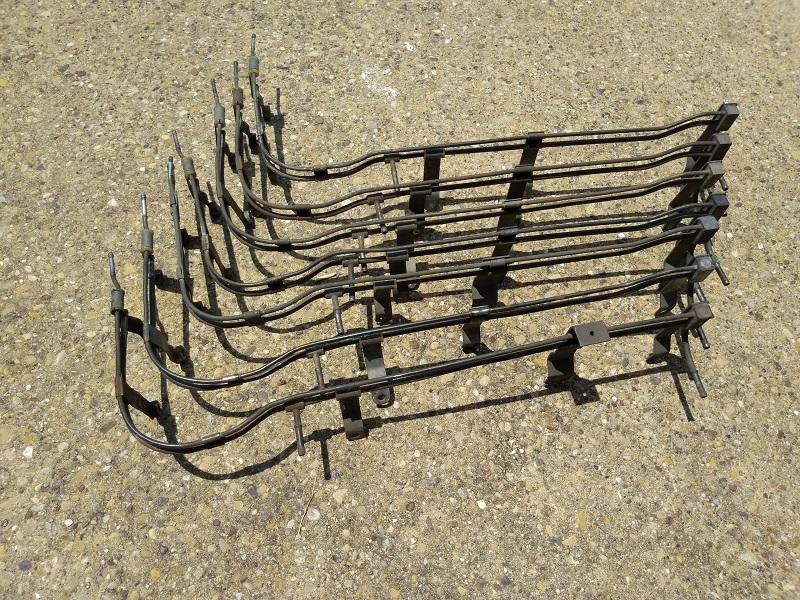

I'm working on some fuel rails I came by as part of a large used parts purchase, spent today bending and straightening the abuses of prior owners.  One of the rails is different - it is at the front of the group pic.  This design also matches the OE rail on my car.  So... a question for the knowledge folks: was this design unique to early cars - those we refer to as Series 1?

Next up: the dreaded and tedious cleaning process to get rid of years of grease, grime, rust, ...etc.

240Z Fuel Rails 01 Resize.jpg

240Z Fuel Rail Jim Resize.jpg

  • Like 2

Share this post


Link to post
Share on other sites

Hoover bag shows it on VINS ~ 12,000 but not on ~18,000 so somewhere in between it changed. This gives  a change between Oct to Dec 1970

Edited by 240260280
  • Like 3

Share this post


Link to post
Share on other sites

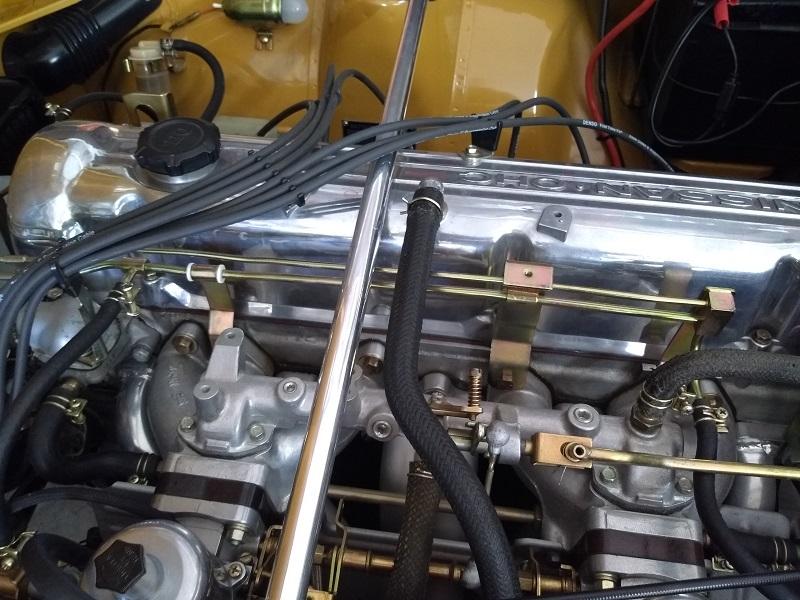

My 7/70 and 10/70 240z cars have this version with the tab and hole. I have no idea, what was the hole for.

I've never seen photos showing anything mounted there.

Jim A.----care to do a 73 fuel rail as you prepare these for plating?? The one I have is certainly restorable----just kinda grungy. It has captive plastic insulators that form a thermal barrier from the metal legs conducting heat from the engine mounts.

I'd sure like to send it to you and I'll cover the expense for its restoration..

Share this post


Link to post
Share on other sites
12 hours ago, Zup said:

My 7/70 and 10/70 240z cars have this version with the tab and hole. I have no idea, what was the hole for.

I've never seen photos showing anything mounted there.

Jim A.----care to do a 73 fuel rail as you prepare these for plating?? The one I have is certainly restorable----just kinda grungy. It has captive plastic insulators that form a thermal barrier from the metal legs conducting heat from the engine mounts.

I'd sure like to send it to you and I'll cover the expense for its restoration..

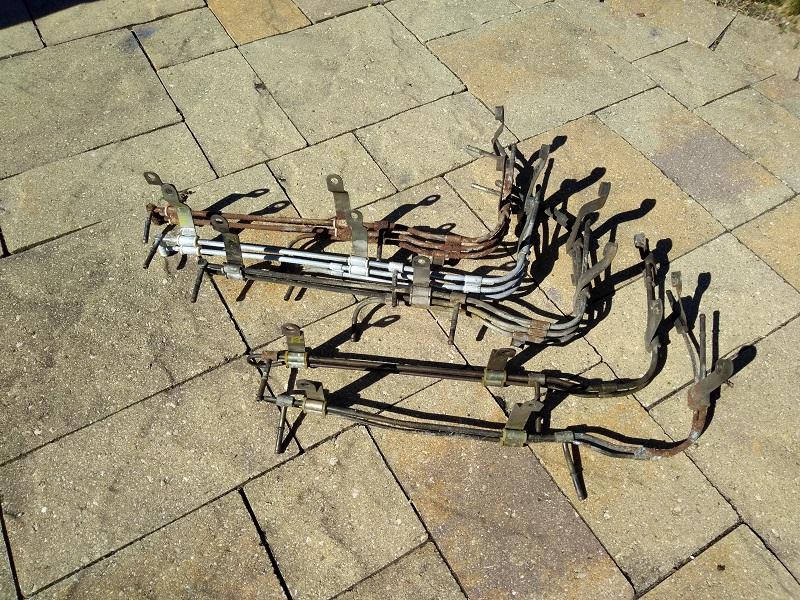

JIm D. - I've got two rails for flat tops and three for 260Z yet to get underway, one more in the bunch would not be a problem.  Pack it up and send it this way.  You already have my address?

Jim3

240Z - 260Z Fuel Rails Resize.jpg

  • Like 2

Share this post


Link to post
Share on other sites

Here's another oddity to challenge the experts:

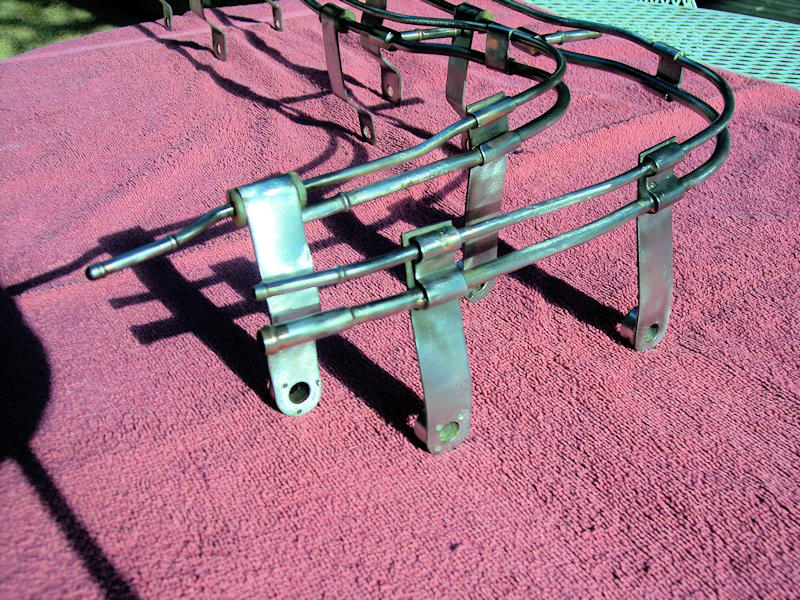

Working thru cleaning the rails for round top carbs, I came across this one with  both front brackets solidly fixed.  All others I've seen have one fixed bracket and one movable bracket - seen behind the odd one.  Note also the fuel line connecting points are equal length, not staggered as most.  The rest of the rail matches others.  Thoughts?


Share this post


Link to post
Share on other sites

Hi Jim,

I looked at early VINS and the very early one in the Engine FSM. They all have the nylon support.  I think that rail may have been customized or perhaps from a JDM model.

  • Like 1

Share this post


Link to post
Share on other sites
